Radare2:using test

└─$ sudo apt install radare2                                                                                                                                               100 ⨯
[sudo] kwkl 的密码：
正在读取软件包列表... 完成
正在分析软件包的依赖关系树... 完成
正在读取状态信息... 完成
下列软件包是自动安装的并且现在不需要了：
  blt buildah conmon fonts-lyx fuse-overlayfs gir1.2-ayatanaappindicator3-0.1 golang-github-containernetworking-plugin-dnsname golang-github-containers-common
  golang-github-containers-image isympy-common isympy3 libb2-1 libduktape207 libegl-dev libgl-dev libgl1-mesa-dev libgles-dev libgles1 libgles2 libglu1-mesa-dev libglut-dev
  libglut3.12 libglvnd-core-dev libglvnd-dev libglx-dev libjs-jquery-ui libjs-uglify libopengl-dev libostree-1-1 libperl5.34 libprotobuf32 libpython3.11-dev libpython3.9
  libpython3.9-dev libpython3.9-minimal libpython3.9-stdlib libqt6core6 libqt6dbus6 libqt6network6 libqt6sql6 libqt6sql6-sqlite libqt6test6 libqt6xml6 libslirp0 libsubid4
  libts0 libxext-dev perl-modules-5.34 podman python-matplotlib-data python3-appdirs python3-cycler python3-fs python3-mpmath python3-opengl python3-sympy python3.11
  python3.11-dev python3.11-minimal python3.9 python3.9-dev python3.9-minimal qt6-base-dev-tools qt6-translations-l10n qtchooser ruby-uglifier ruby2.7 slirp4netns tk8.6-blt2.5
  uidmap unicode-data
使用'sudo apt autoremove'来卸载它(它们)。
将会同时安装下列软件：
  file libcapstone-dev liblz4-1 liblz4-dev libmagic-dev libmagic-mgc libmagic1 libradare2-5.0.0 libradare2-common libradare2-dev libzip-dev libzip4
下列【新】软件包将被安装：
  libcapstone-dev liblz4-dev libmagic-dev libradare2-5.0.0 libradare2-common libradare2-dev libzip-dev libzip4 radare2
下列软件包将被升级：
  file liblz4-1 libmagic-mgc libmagic1
升级了 4 个软件包，新安装了 9 个软件包，要卸载 0 个软件包，有 1856 个软件包未被升级。
需要下载 6,394 kB 的归档。
解压缩后会消耗 41.5 MB 的额外空间。
您希望继续执行吗？ [Y/n] y


└─$ radare2 -h                                                                                                                                                               1 ⨯
Usage: r2 [-ACdfLMnNqStuvwzX] [-P patch] [-p prj] [-a arch] [-b bits] [-i file]
          [-s addr] [-B baddr] [-m maddr] [-c cmd] [-e k=v] file|pid|-|--|=
 --           run radare2 without opening any file
 -            same as 'r2 malloc://512'
 =            read file from stdin (use -i and -c to run cmds)
 -=           perform !=! command to run all commands remotely
 -0           print \x00 after init and every command
 -2           close stderr file descriptor (silent warning messages)
 -a [arch]    set asm.arch
 -A           run 'aaa' command to analyze all referenced code
 -b [bits]    set asm.bits
 -B [baddr]   set base address for PIE binaries
 -c 'cmd..'   execute radare command
 -C           file is host:port (alias for -c+=http://%s/cmd/)
 -d           debug the executable 'file' or running process 'pid'
 -D [backend] enable debug mode (e cfg.debug=true)
 -e k=v       evaluate config var
 -f           block size = file size
 -F [binplug] force to use that rbin plugin
 -h, -hh      show help message, -hh for long
 -H ([var])   display variable
 -i [file]    run script file
 -I [file]    run script file before the file is opened
 -j           use json for -v, -L and maybe others
 -k [OS/kern] set asm.os (linux, macos, w32, netbsd, ...)
 -l [lib]     load plugin file
 -L           list supported IO plugins
 -m [addr]    map file at given address (loadaddr)
 -M           do not demangle symbol names
 -n, -nn      do not load RBin info (-nn only load bin structures)
 -N           do not load user settings and scripts
 -NN          do not load any script or plugin
 -q           quiet mode (no prompt) and quit after -i
 -qq          quit after running all -c and -i
 -Q           quiet mode (no prompt) and quit faster (quickLeak=true)
 -p [prj]     use project, list if no arg, load if no file
 -P [file]    apply rapatch file and quit
 -r [rarun2]  specify rarun2 profile to load (same as -e dbg.profile=X)
 -R [rr2rule] specify custom rarun2 directive
 -s [addr]    initial seek
 -S           start r2 in sandbox mode
 -T           do not compute file hashes
 -u           set bin.filter=false to get raw sym/sec/cls names
 -v, -V       show radare2 version (-V show lib versions)
 -w           open file in write mode
 -x           open without exec-flag (asm.emu will not work), See io.exec
 -X           same as -e bin.usextr=false (useful for dyldcache)
 -z, -zz      do not load strings or load them even in raw

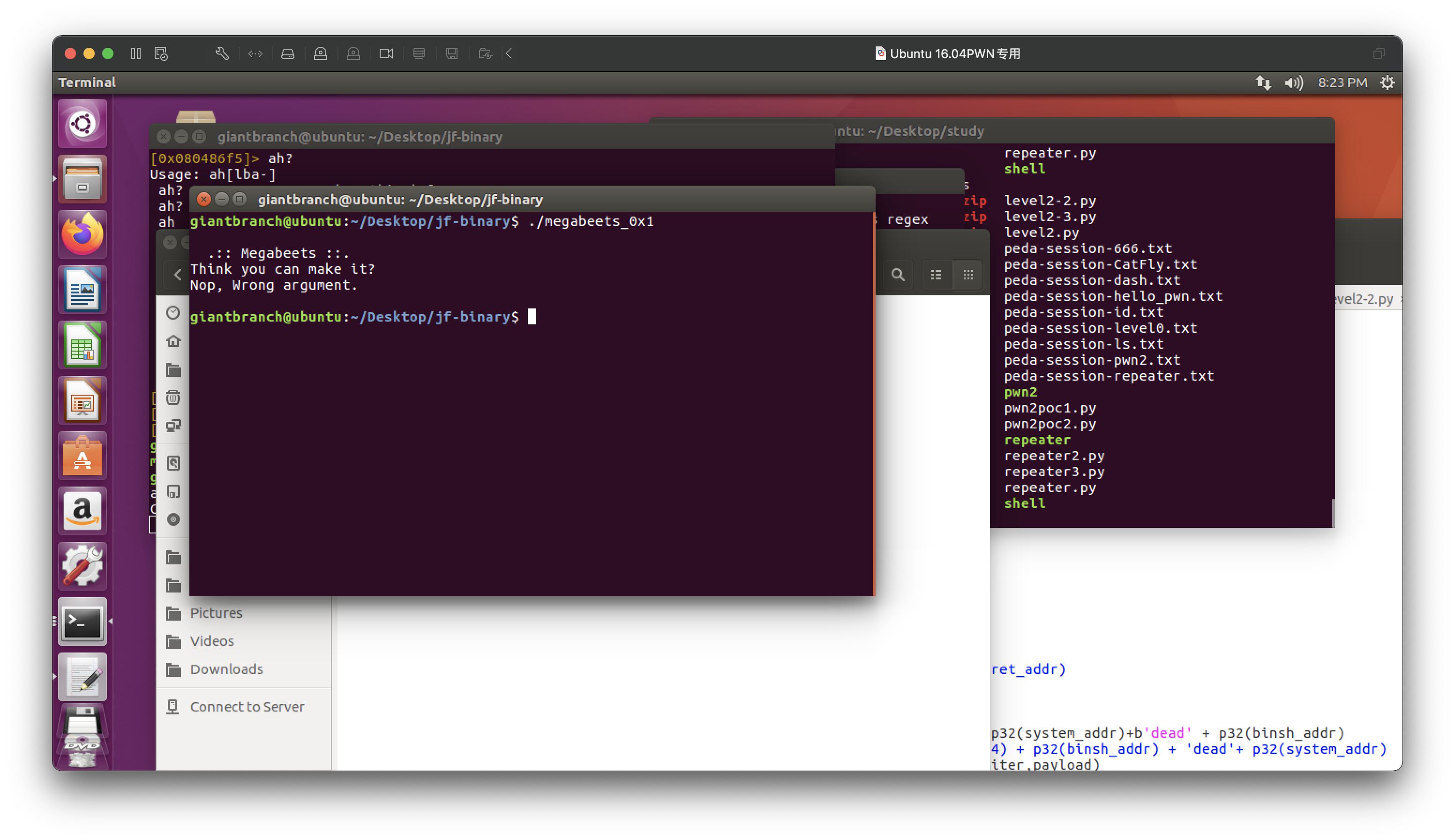

image-20230723112351070

analyzing

└─$ rabin2 -I megabeets_0x1                                                                                                                                                  1 ⨯
arch     x86
baddr    0x8048000
binsz    6220
bintype  elf
bits     32
canary   false
class    ELF32
compiler GCC: (Ubuntu 5.4.0-6ubuntu1~16.04.4) 5.4.0 20160609
crypto   false
endian   little
havecode true
intrp    /lib/ld-linux.so.2
laddr    0x0
lang     c
linenum  true
lsyms    true
machine  Intel 80386
nx       false
os       linux
pic      false
relocs   true
relro    partial
rpath    NONE
sanitize false
static   false
stripped false
subsys   linux
va       true




┌──(kwkl㉿kwkl)-[~/HODL/jf-binary]
└─$ rabin2 megabeets_0x1
Usage: rabin2 [-AcdeEghHiIjlLMqrRsSUvVxzZ] [-@ at] [-a arch] [-b bits] [-B addr]
              [-C F:C:D] [-f str] [-m addr] [-n str] [-N m:M] [-P[-P] pdb]
              [-o str] [-O str] [-k query] [-D lang symname] file

┌──(kwkl㉿kwkl)-[~/HODL/jf-binary]
└─$ rabin2 -I megabeets_0x1                                                                                                                                                  1 ⨯
arch     x86
baddr    0x8048000
binsz    6220
bintype  elf
bits     32
canary   false
class    ELF32
compiler GCC: (Ubuntu 5.4.0-6ubuntu1~16.04.4) 5.4.0 20160609
crypto   false
endian   little
havecode true
intrp    /lib/ld-linux.so.2
laddr    0x0
lang     c
linenum  true
lsyms    true
machine  Intel 80386
nx       false
os       linux
pic      false
relocs   true
relro    partial
rpath    NONE
sanitize false
static   false
stripped false
subsys   linux
va       true

┌──(kwkl㉿kwkl)-[~/HODL/jf-binary]
└─$ r2 ./megabeets_0x1
[0x08048370]> ie
[Entrypoints]
vaddr=0x08048370 paddr=0x00000370 haddr=0x00000018 hvaddr=0x08048018 type=program

1 entrypoints

[0x08048370]> aaaaaa
[x] Analyze all flags starting with sym. and entry0 (aa)
[x] Analyze function calls (aac)
[x] Analyze len bytes of instructions for references (aar)
[x] Finding and parsing C++ vtables (avrr)
[x] Type matching analysis for all functions (aaft)
[x] Propagate noreturn information (aanr)
[x] Finding function preludes
[x] Enable constraint types analysis for variables
[0x08048370]> fs
    0 * classes
    5 * format
    0 * functions
    5 * imports
   11 * registers
    5 * relocs
   31 * sections
   10 * segments
    4 * strings
   37 * symbols
   27 * symbols.sections
[0x08048370]> fs imports;f
0x00000360 16 loc.imp.__gmon_start__
0x08048320 6 sym.imp.strcmp
0x08048330 6 sym.imp.strcpy
0x08048340 6 sym.imp.puts
0x08048350 6 sym.imp.__libc_start_main
[0x08048370]> iz
[Strings]
nth paddr      vaddr      len size section type  string
―――――――――――――――――――――――――――――――――――――――――――――――――――――――
0   0x00000700 0x08048700 20  21   .rodata ascii \n  .:: Megabeets ::.
1   0x00000715 0x08048715 22  23   .rodata ascii Think you can make it?
2   0x0000072c 0x0804872c 9   10   .rodata ascii Success!\n
3   0x00000736 0x08048736 21  22   .rodata ascii Nop, Wrong argument.\n

[0x08048370]> axt @@ str.*
[0x08048370]> ax?
Usage: ax[?d-l*]   # see also 'afx?'
| ax              list refs
| ax*             output radare commands
| ax addr [at]    add code ref pointing to addr (from curseek)
| ax- [at]        clean all refs/refs from addr
| ax-*            clean all refs/refs
| axc addr [at]   add generic code ref
| axC addr [at]   add code call ref
| axg [addr]      show xrefs graph to reach current function
| axg* [addr]     show xrefs graph to given address, use .axg*;aggv
| axgj [addr]     show xrefs graph to reach current function in json format
| axd addr [at]   add data ref
| axq             list refs in quiet/human-readable format
| axj             list refs in json format
| axF [flg-glob]  find data/code references of flags
| axm addr [at]   copy data/code references pointing to addr to also point to curseek (or at)
| axt[?] [addr]   find data/code references to this address
| axf[?] [addr]   find data/code references from this address
| axv[?] [addr]   list local variables read-write-exec references
| ax. [addr]      find data/code references from and to this address
| axff[j] [addr]  find data/code references from this function
| axs addr [at]   add string ref
[0x08048370]> axt @@ *
sym.beet 0x80485e3 [CALL] call sym.imp.strcmp
sym.beet 0x804859b [CALL] call sym.imp.strcpy
main 0x804860e [CALL] call sym.imp.puts
main 0x804861e [CALL] call sym.imp.puts
main 0x804864b [CALL] call sym.imp.puts
main 0x804865d [CALL] call sym.imp.puts
entry0 0x804838c [CALL] call sym.imp.__libc_start_main
[0x08048370]> axt @@ ?
sym.beet 0x80485e3 [CALL] call sym.imp.strcmp
sym.beet 0x804859b [CALL] call sym.imp.strcpy
main 0x804860e [CALL] call sym.imp.puts
main 0x804861e [CALL] call sym.imp.puts
main 0x804864b [CALL] call sym.imp.puts
main 0x804865d [CALL] call sym.imp.puts
entry0 0x804838c [CALL] call sym.imp.__libc_start_main
[0x08048370]> axt @@ str>8
[0x08048370]> axt @@ str.*
[0x08048370]> axt @@ str.*
[0x08048370]> @@?
| @@                   # foreach iterator command:
| x @@ sym.*          run 'x' over all flags matching 'sym.' in current flagspace
| x @@.file           run 'x' over the offsets specified in the file (one offset per line)
| x @@/x 9090         temporary set cmd.hit to run a command on each search result
| x @@=`pdf~call[0]`  run 'x' at every call offset of the current function
| x @@=off1 off2 ..   manual list of offsets
| x @@b               run 'x' on all basic blocks of current function (see afb)
| x @@c:cmd           the same as @@=`` without the backticks
| x @@dbt[abs]        run 'x' command on every backtrace address, bp or sp
| x @@f               run 'x' on all functions (see aflq)
| x @@f:write         run 'x' on all functions matching write in the name
| x @@i               run 'x' on all instructions of the current function (see pdr)
| x @@iS              run 'x' on all sections adjusting blocksize
| x @@k sdbquery      run 'x' on all offsets returned by that sdbquery
| x @@s:from to step  run 'x' on all offsets from, to incrementing by step
| x @@t               run 'x' on all threads (see dp)
[0x08048370]> iz
[Strings]
nth paddr      vaddr      len size section type  string
―――――――――――――――――――――――――――――――――――――――――――――――――――――――
0   0x00000700 0x08048700 20  21   .rodata ascii \n  .:: Megabeets ::.
1   0x00000715 0x08048715 22  23   .rodata ascii Think you can make it?
2   0x0000072c 0x0804872c 9   10   .rodata ascii Success!\n
3   0x00000736 0x08048736 21  22   .rodata ascii Nop, Wrong argument.\n

[0x08048370]> axt @@ str.*
[0x08048370]> afl
0x08048370    1 34           entry0
0x08048350    1 6            sym.imp.__libc_start_main
0x080483b0    4 43           sym.deregister_tm_clones
0x080483e0    4 53           sym.register_tm_clones
0x08048420    3 30           sym.__do_global_dtors_aux
0x08048440    4 43   -> 40   entry.init0
0x080486e0    1 2            sym.__libc_csu_fini
0x080483a0    1 4            sym.__x86.get_pc_thunk.bx
0x0804846b   19 282          sym.rot13
0x080486e4    1 20           sym._fini
0x08048585    1 112          sym.beet
0x08048330    1 6            sym.imp.strcpy
0x08048320    1 6            sym.imp.strcmp
0x08048680    4 93           sym.__libc_csu_init
0x080485f5    5 127          main
0x080482ec    3 35           sym._init
0x08048360    1 6            sym..plt.got
0x08048340    1 6            sym.imp.puts
[0x08048370]> s main
[0x080485f5]> pdf
            ; DATA XREF from entry0 @ 0x8048387
┌ 127: int main (char **argv);
│           ; var int32_t var_8h @ ebp-0x8
│           ; arg char **argv @ esp+0x24
│           0x080485f5      8d4c2404       lea ecx, [argv]
│           0x080485f9      83e4f0         and esp, 0xfffffff0
│           0x080485fc      ff71fc         push dword [ecx - 4]
│           0x080485ff      55             push ebp
│           0x08048600      89e5           mov ebp, esp
│           0x08048602      53             push ebx
│           0x08048603      51             push ecx
│           0x08048604      89cb           mov ebx, ecx
│           0x08048606      83ec0c         sub esp, 0xc
│           0x08048609      6800870408     push str._n__.::_Megabeets_::. ; 0x8048700 ; "\n  .:: Megabeets ::." ; const char *s
│           0x0804860e      e82dfdffff     call sym.imp.puts           ; int puts(const char *s)
│           0x08048613      83c410         add esp, 0x10
│           0x08048616      83ec0c         sub esp, 0xc
│           0x08048619      6815870408     push str.Think_you_can_make_it_ ; 0x8048715 ; "Think you can make it?" ; const char *s
│           0x0804861e      e81dfdffff     call sym.imp.puts           ; int puts(const char *s)
│           0x08048623      83c410         add esp, 0x10
│           0x08048626      833b01         cmp dword [ebx], 1
│       ┌─< 0x08048629      7e2a           jle 0x8048655
│       │   0x0804862b      8b4304         mov eax, dword [ebx + 4]
│       │   0x0804862e      83c004         add eax, 4
│       │   0x08048631      8b00           mov eax, dword [eax]
│       │   0x08048633      83ec0c         sub esp, 0xc
│       │   0x08048636      50             push eax                    ; int32_t arg_8h
│       │   0x08048637      e849ffffff     call sym.beet
│       │   0x0804863c      83c410         add esp, 0x10
│       │   0x0804863f      85c0           test eax, eax
│      ┌──< 0x08048641      7412           je 0x8048655
│      ││   0x08048643      83ec0c         sub esp, 0xc
│      ││   0x08048646      682c870408     push str.Success__n         ; 0x804872c ; "Success!\n" ; const char *s
│      ││   0x0804864b      e8f0fcffff     call sym.imp.puts           ; int puts(const char *s)
│      ││   0x08048650      83c410         add esp, 0x10
│     ┌───< 0x08048653      eb10           jmp 0x8048665
│     │││   ; CODE XREFS from main @ 0x8048629, 0x8048641
│     │└└─> 0x08048655      83ec0c         sub esp, 0xc
│     │     0x08048658      6836870408     push str.Nop__Wrong_argument._n ; 0x8048736 ; "Nop, Wrong argument.\n" ; const char *s
│     │     0x0804865d      e8defcffff     call sym.imp.puts           ; int puts(const char *s)
│     │     0x08048662      83c410         add esp, 0x10
│     │     ; CODE XREF from main @ 0x8048653
│     └───> 0x08048665      b800000000     mov eax, 0
│           0x0804866a      8d65f8         lea esp, [var_8h]
│           0x0804866d      59             pop ecx
│           0x0804866e      5b             pop ebx
│           0x0804866f      5d             pop ebp
│           0x08048670      8d61fc         lea esp, [ecx - 4]
└           0x08048673      c3             ret
[0x080485f5]>
[0x080485f5]> pdf sym.beet
            ; DATA XREF from entry0 @ 0x8048387
┌ 127: int main (char **argv);
│           ; var int32_t var_8h @ ebp-0x8
│           ; arg char **argv @ esp+0x24
│           0x080485f5      8d4c2404       lea ecx, [argv]
│           0x080485f9      83e4f0         and esp, 0xfffffff0
│           0x080485fc      ff71fc         push dword [ecx - 4]
│           0x080485ff      55             push ebp
│           0x08048600      89e5           mov ebp, esp
│           0x08048602      53             push ebx
│           0x08048603      51             push ecx
│           0x08048604      89cb           mov ebx, ecx
│           0x08048606      83ec0c         sub esp, 0xc
│           0x08048609      6800870408     push str._n__.::_Megabeets_::. ; 0x8048700 ; "\n  .:: Megabeets ::." ; const char *s
│           0x0804860e      e82dfdffff     call sym.imp.puts           ; int puts(const char *s)
│           0x08048613      83c410         add esp, 0x10
│           0x08048616      83ec0c         sub esp, 0xc
│           0x08048619      6815870408     push str.Think_you_can_make_it_ ; 0x8048715 ; "Think you can make it?" ; const char *s
│           0x0804861e      e81dfdffff     call sym.imp.puts           ; int puts(const char *s)
│           0x08048623      83c410         add esp, 0x10
│           0x08048626      833b01         cmp dword [ebx], 1
│       ┌─< 0x08048629      7e2a           jle 0x8048655
│       │   0x0804862b      8b4304         mov eax, dword [ebx + 4]
│       │   0x0804862e      83c004         add eax, 4
│       │   0x08048631      8b00           mov eax, dword [eax]
│       │   0x08048633      83ec0c         sub esp, 0xc
│       │   0x08048636      50             push eax                    ; int32_t arg_8h
│       │   0x08048637      e849ffffff     call sym.beet
│       │   0x0804863c      83c410         add esp, 0x10
│       │   0x0804863f      85c0           test eax, eax
│      ┌──< 0x08048641      7412           je 0x8048655
│      ││   0x08048643      83ec0c         sub esp, 0xc
│      ││   0x08048646      682c870408     push str.Success__n         ; 0x804872c ; "Success!\n" ; const char *s
│      ││   0x0804864b      e8f0fcffff     call sym.imp.puts           ; int puts(const char *s)
│      ││   0x08048650      83c410         add esp, 0x10
│     ┌───< 0x08048653      eb10           jmp 0x8048665
│     │││   ; CODE XREFS from main @ 0x8048629, 0x8048641
│     │└└─> 0x08048655      83ec0c         sub esp, 0xc
│     │     0x08048658      6836870408     push str.Nop__Wrong_argument._n ; 0x8048736 ; "Nop, Wrong argument.\n" ; const char *s
│     │     0x0804865d      e8defcffff     call sym.imp.puts           ; int puts(const char *s)
│     │     0x08048662      83c410         add esp, 0x10
│     │     ; CODE XREF from main @ 0x8048653
│     └───> 0x08048665      b800000000     mov eax, 0
│           0x0804866a      8d65f8         lea esp, [var_8h]
│           0x0804866d      59             pop ecx
│           0x0804866e      5b             pop ebx
│           0x0804866f      5d             pop ebp
│           0x08048670      8d61fc         lea esp, [ecx - 4]
└           0x08048673      c3             ret
[0x080485f5]> pdf @sym.beet
            ; CALL XREF from main @ 0x8048637
┌ 112: sym.beet (char *src);
│           ; var char *s2 @ ebp-0x92
│           ; var int32_t var_8eh @ ebp-0x8e
│           ; var int32_t var_8ah @ ebp-0x8a
│           ; var char *dest @ ebp-0x88
│           ; arg char *src @ ebp+0x8
│           0x08048585      55             push ebp
│           0x08048586      89e5           mov ebp, esp
│           0x08048588      81ec98000000   sub esp, 0x98
│           0x0804858e      83ec08         sub esp, 8
│           0x08048591      ff7508         push dword [src]            ; const char *src
│           0x08048594      8d8578ffffff   lea eax, [dest]
│           0x0804859a      50             push eax                    ; char *dest
│           0x0804859b      e890fdffff     call sym.imp.strcpy         ; char *strcpy(char *dest, const char *src)
│           0x080485a0      83c410         add esp, 0x10
│           0x080485a3      c7856effffff.  mov dword [s2], 0x6167654d  ; 'Mega'
│           0x080485ad      c78572ffffff.  mov dword [var_8eh], 0x74656562 ; 'beet'
│           0x080485b7      66c78576ffff.  mov word [var_8ah], 0x73    ; 's' ; 115
│           0x080485c0      83ec0c         sub esp, 0xc
│           0x080485c3      8d856effffff   lea eax, [s2]
│           0x080485c9      50             push eax                    ; int32_t arg_8h
│           0x080485ca      e89cfeffff     call sym.rot13
│           0x080485cf      83c410         add esp, 0x10
│           0x080485d2      83ec08         sub esp, 8
│           0x080485d5      8d856effffff   lea eax, [s2]
│           0x080485db      50             push eax                    ; const char *s2
│           0x080485dc      8d8578ffffff   lea eax, [dest]
│           0x080485e2      50             push eax                    ; const char *s1
│           0x080485e3      e838fdffff     call sym.imp.strcmp         ; int strcmp(const char *s1, const char *s2)
│           0x080485e8      83c410         add esp, 0x10
│           0x080485eb      85c0           test eax, eax
│           0x080485ed      0f94c0         sete al
│           0x080485f0      0fb6c0         movzx eax, al
│           0x080485f3      c9             leave
└           0x080485f4      c3             ret
[0x080485f5]> ahi ?
[0x080485f5]> ahi?
Usage: ahi [2|8|10|10u|16|bodhipSs] [@ offset]   Define numeric base
| ahi <base>  set numeric base (2, 8, 10, 16)
| ahi 10|d    set base to signed decimal (10), sign bit should depend on receiver size
| ahi 10u|du  set base to unsigned decimal (11)
| ahi b       set base to binary (2)
| ahi o       set base to octal (8)
| ahi h       set base to hexadecimal (16)
| ahi i       set base to IP address (32)
| ahi p       set base to htons(port) (3)
| ahi S       set base to syscall (80)
| ahi s       set base to string (1)
| ahi1 10     set base of argument 1 to base 10 (same as ahi1 d)
[0x080485f5]> ahi s 0x080485a3 0x080485ad 0x080485b7
[0x080485f5]> ahi s @@=0x080485a3 0x080485ad 0x080485b7
[0x080485f5]> pdf @sym.beet
            ; CALL XREF from main @ 0x8048637
┌ 112: sym.beet (char *src);
│           ; var char *s2 @ ebp-0x92
│           ; var int32_t var_8eh @ ebp-0x8e
│           ; var int32_t var_8ah @ ebp-0x8a
│           ; var char *dest @ ebp-0x88
│           ; arg char *src @ ebp+0x8
│           0x08048585      55             push ebp
│           0x08048586      89e5           mov ebp, esp
│           0x08048588      81ec98000000   sub esp, 0x98
│           0x0804858e      83ec08         sub esp, 8
│           0x08048591      ff7508         push dword [src]            ; const char *src
│           0x08048594      8d8578ffffff   lea eax, [dest]
│           0x0804859a      50             push eax                    ; char *dest
│           0x0804859b      e890fdffff     call sym.imp.strcpy         ; char *strcpy(char *dest, const char *src)
│           0x080485a0      83c410         add esp, 0x10
│           0x080485a3      c7856effffff.  mov dword [s2], 'ageM'      ; 'Mega'
│                                                                      ; 0x6167654d
│           0x080485ad      c78572ffffff.  mov dword [var_8eh], 'teeb' ; 'beet'
│                                                                      ; 0x74656562
│           0x080485b7      66c78576ffff.  mov word [var_8ah], 's'     ; 's'
│                                                                      ; 0x73 ; 115
│           0x080485c0      83ec0c         sub esp, 0xc
│           0x080485c3      8d856effffff   lea eax, [s2]
│           0x080485c9      50             push eax                    ; int32_t arg_8h
│           0x080485ca      e89cfeffff     call sym.rot13
│           0x080485cf      83c410         add esp, 0x10
│           0x080485d2      83ec08         sub esp, 8
│           0x080485d5      8d856effffff   lea eax, [s2]
│           0x080485db      50             push eax                    ; const char *s2
│           0x080485dc      8d8578ffffff   lea eax, [dest]
│           0x080485e2      50             push eax                    ; const char *s1
│           0x080485e3      e838fdffff     call sym.imp.strcmp         ; int strcmp(const char *s1, const char *s2)
│           0x080485e8      83c410         add esp, 0x10
│           0x080485eb      85c0           test eax, eax
│           0x080485ed      0f94c0         sete al
│           0x080485f0      0fb6c0         movzx eax, al
│           0x080485f3      c9             leave
└           0x080485f4      c3             ret
[0x080485f5]>

┌──(kwkl㉿kwkl)-[~/HODL/jf-binary]
└─$ rahash2 -E rot -S s:13 -s "Megabeets"
Zrtnorrgf

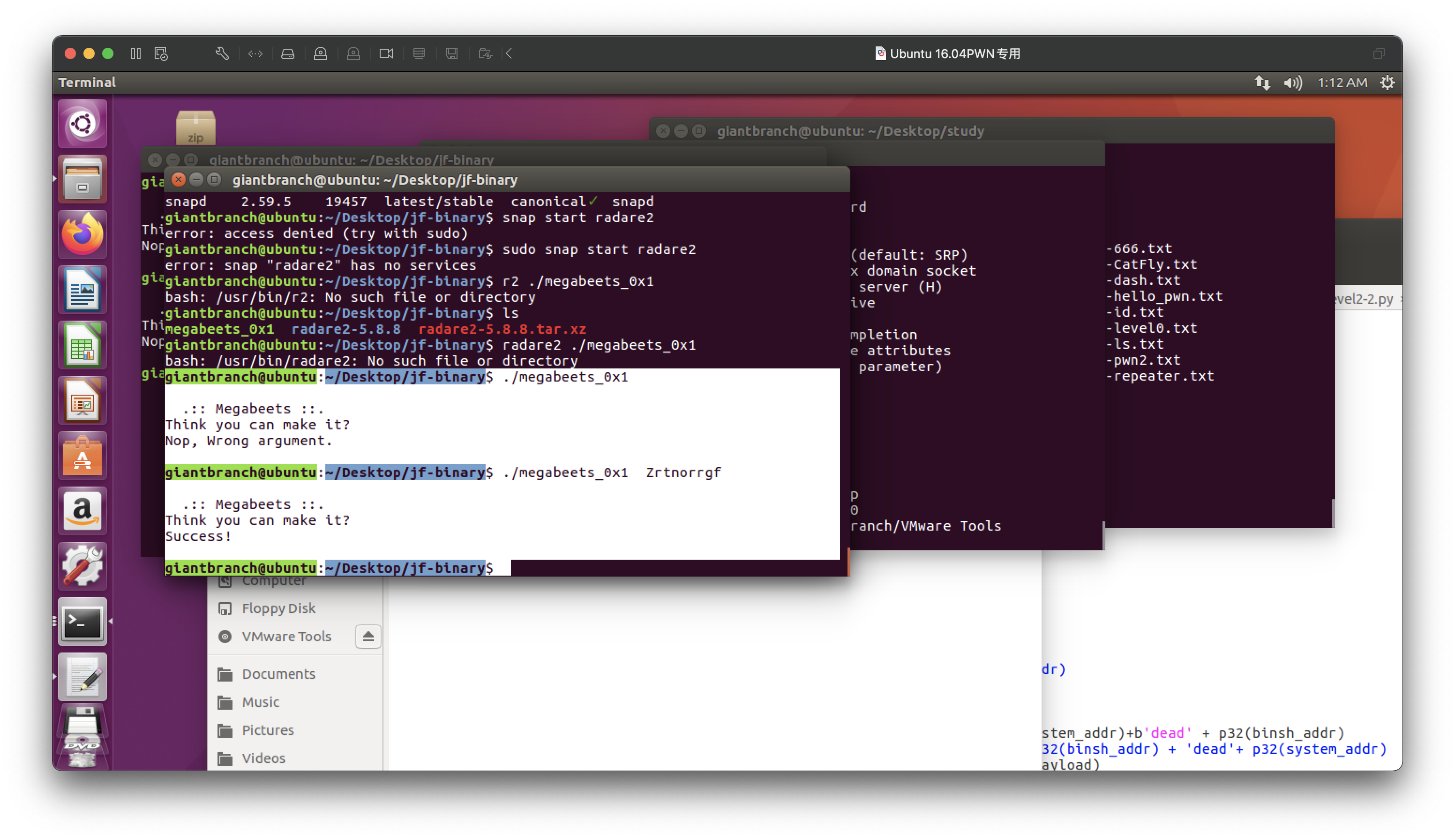

giantbranch@ubuntu:~/Desktop/jf-binary$ /snap/bin/radare2 ./megabeets_0x1
 -- Don't look at the code. Don't look.
[0x08048370]> aaaa
INFO: Analyze all flags starting with sym. and entry0 (aa)
INFO: Analyze all functions arguments/locals (afva@@@F)
INFO: Analyze function calls (aac)
INFO: Analyze len bytes of instructions for references (aar)
INFO: Finding and parsing C++ vtables (avrr)
INFO: Type matching analysis for all functions (aaft)
INFO: Propagate noreturn information (aanr)
INFO: Scanning for strings constructed in code (/azs)
INFO: Finding function preludes (aap)
INFO: Enable anal.types.constraint for experimental type propagation
[0x08048370]> ood Zrtnorrgf
INFO: File dbg:///home/giantbranch/Desktop/jf-binary/megabeets_0x1 Zrtnorrgf reopened in read-write mode
[0xf7f00a20]> ood Zrtnorrgf
child received signal 9
INFO: File dbg:///home/giantbranch/Desktop/jf-binary/megabeets_0x1 Zrtnorrgf reopened in read-write mode
[0xf7f17a20]> ood Zrtnorrgf
child received signal 9
INFO: File dbg:///home/giantbranch/Desktop/jf-binary/megabeets_0x1 Zrtnorrgf reopened in read-write mode
[0xf7f6aa20]> dc

  .:: Megabeets ::.
Think you can make it?
Success!

(112883) Process exited with status=0x0
[0xf7f68dc9]> dc
(112883) Process terminated with status 0
INFO: ==> Process finished
[0xf7f6aa20]>

image-20230723161154672

reference：

Radare2: Libre Reversing Framework for Unix Geeks

See the Releases page for downloads. The current git master branch is 5.8.9, next will be 5.9.0.

  • Since r2-5.6.0 all the patch releases are abi stable
  • Odd patch versions are used in git builds only, releases use even numbers
  • No need to recompile the plugins, bindings or tools if the major and minor version are the same

Description

r2 is a complete rewrite of radare. It provides a set of libraries, tools and plugins to ease reverse engineering tasks. Distributed mostly under LGPLv3, each plugin can have different licenses (see r2 -L, rasm2 -L, …).

The radare project started as a simple command-line hexadecimal editor focused on forensics. Today, r2 is a featureful low-level command-line tool with support for scripting. r2 can edit files on local hard drives, view kernel memory, and debug programs locally or via a remote gdb server. r2’s wide architecture support allows you to analyze, emulate, debug, modify, and disassemble any binary.

screenshot

Installation

  • r2 can be installed from git or via pip using r2env.
  • Run sys/install.sh for the default acr+make+symlink installation
  • meson/ninja (muon/samu also works) and make builds are supported.
  • Windows builds require meson and msvc or mingw as compilers
  • To uninstall the current build of r2 run make uninstall
  • To uninstall ALL the system installations of r2 do: sudo make purge
git clone https://github.com/radareorg/radare2
radare2/sys/install.sh

Default Windows builds use MSVC, so run those .bat:

preconfigure.bat       REM setup python, meson, ninja
configure.bat          REM run meson b + vs project
make.bat               REM run ninja -C b
prefix\bin\radare2.exe

Alternatively you can use r2env to switch between different versions.

pip install -U r2env
r2env init
r2env add radare2@git

Usage

These are the first steps to use r2, read the book or find tutorials for more details

$ r2 /bin/ls   # open file in read-only
> aaa          # analyse the program (r2 -A)
> afl          # list all functions (try aflt, aflm)
> px 32        # print 32 byte hexdump current block
> s sym.main   # seek to main (using flag name)
> f~foo        # filter flags matching 'foo' (internal |grep)
> iS;is        # list sections and symbols (rabin2 -Ss)
> pdf; agf     # disassembly and ascii-art function graph
> oo+;w hello  # reopen in read-write and write a string
> ?*~...       # interactive filter in all command help
> q            # quit

Resources

Plugins

Many plugins are included in r2 by default. But you can extend its capabilities by using the r2pm package manager.

r2pm -s <word> # search package by word
r2pm -ci <pkg> # install a package
r2pm -u <pkg>  # uninstall
r2pm -l <pkg>  # list installed packages

Most popular packages are:

  • esilsolve: The symbolic execution plugin, based on esil and z3
  • r2diaphora: Diaphora’s diffing engine working on top of radare2
  • iaito: The official Qt graphical interface
  • radius2: A fast symbolic execution engine based on boolector and esil
  • r2dec: A decompiler based on r2 written in JS, accessed with the pdd command
  • r2ghidra: The native ghidra decompiler plugin, accessed with the pdg command
  • r2frida: The frida io plugin. Start r2 with r2 frida://0 to use it
  • r2poke Integration with GNU/Poke for extended binary parsing capabilities
  • r2pipe Script radare2 from any programming language
  • r2papi High level api on top of r2pipe

Contributing

There are many ways to contribute to the project. Contact the community, check out the github issues, or grep for TODO/FIXME/XXX comments in the source.

To contribute code, push your changes to a branch on your fork of the repository. Please ensure that you follow the coding and style guidelines and that your changes pass the testing suite, which you can run with the r2r tool. If you are adding significant code, it may be necessary to modify or add additional tests in the test/ directory.

For more details, see CONTRIBUTING.md and DEVELOPERS.md.

Documentation

To learn more about r2 we encourage you to watch youtube talks from r2con. In addition to reading blogposts, slides or the official radare2 book, here are some methods to contact us:

Community

Supported Platforms

Operating Systems

Windows (since XP), Linux, Darwin, GNU/Hurd, Apple’s {Mac,i,iPad,watch}OS, Android, [Dragonfly, Net, Free, Open] BSD, Z/OS, QNX, SerenityOS, Solaris, Haiku, Vinix, FirefoxOS.

Architectures

i386, x86-64, Alpha, ARM, AVR, BPF, MIPS, PowerPC, SPARC, RISC-V, SH, m68k, XAP, S390, XCore, CR16, HPPA, ARC, Blackfin, Z80, H8/300, V810, PDP11, m680x, V850, CRIS, XAP, PIC, LM32, 8051, 6502, i4004, i8080, Propeller, EVM, OR1K Tricore, CHIP-8, LH5801, T8200, GameBoy, SNES, SPC700, MSP430, Xtensa, xcore, NIOS II, Java, Dalvik, Pickle, WebAssembly, MSIL, EBC, TMS320 (c54x, c55x, c55+, c64x), Hexagon, Brainfuck, Malbolge, whitespace, DCPU16, LANAI, lm32, MCORE, mcs96, RSP, SuperH-4, VAX, KVX, Am29000, LOONGARCH, JDH8, s390x.

File Formats

ELF, Mach-O, Fatmach-O, PE, PE+, MZ, COFF, XCOFF, OMF, TE, XBE, SEP64, BIOS/UEFI, Dyldcache, DEX, ART, CGC, Java class, Android boot image, Plan9 executables, ZIMG, MBN/SBL bootloader, ELF coredump, MDMP (Windows minidump), PDP11, XTAC, WASM (WebAssembly binary), Commodore VICE emulator, QNX, WAD, OFF, TIC-80, GB/GBA, NDS and N3DS, and mount several filesystems like NTFS, FAT, HFS+, EXT,…

Packaging Status

32进制
关注
  • 0
    点赞
  • 踩
  • 0
    收藏
    觉得还不错? 一键收藏
  • 0
    评论
python反汇编二进制文件_GitHub - xubingyue/radare2: 逆向工程平台，它可以反汇编、调试、分析和操作二进制文件unix-like reverse engineering ...
weixin_29163857的博客
02-20 269
____ ___ ___ ___ ____ ___ ____| _ \/ \| \/ \ _ \/ _ \ |__ \| ( V | | ) V | ( _/ / __/|__\__|_|__|___/__|__|_\__|___| |____|www.radare.org--pancakeJenkinsTravisCIAppVeyor...
Linux radare2 二进制代码分析
qq_42931917的博客
11-02 2375
至于怎么搭建radare软件调试环境，可以参照之前写过的文章； 这里主要和大家一起学习一下radare2的软件调试功能，首先讲讲基本的使用方法，准备调试一个编译出来的二进制文件； curits@curits-virtual-machine:/usr/local/lib$ radare2 -d example Process with PID 35299 started... = attach 35299 35299 bin.baddr 0x55df3a30c000 Using 0x55df3a30c000
radare2逆向笔记
有价值炮灰
02-09 561
最近刚开始学习逆向(Reverse Engineering), 发现其学习曲线也是挺陡峭的, 而网上的 许多writeup文章主旨总结就六个字:"你们看我屌吗?" ...几近炫技而对初学者不太友好. 所以我打算以初学者的身份来写写自己从入门到深入的经历. 准备 当前许多逆向的writeup倾向于使用IDA-Pro, 而且似乎都依赖于F5(反编译的快捷键), 直接 从二进制文件转成了可读...
一步一步pwn路由器之radare2使用全解
weixin_30553065的博客
08-03 557
前言 本文由 本人 首发于 先知安全技术社区： https://xianzhi.aliyun.com/forum/user/5274 radare2 最近越来越流行，已经进入 github 前 25了，看到大佬们纷纷推荐，为了紧跟时代潮流，我也决定探究探究这款 神器 。下面画画重点，以便以后需要用了，可以方便查找。 正文 首先是安装 radare2 ,直接去官方 github 安照指示安装即可...
Numerical Methods: Using MATLAB, 4th Edition
02-03
Numerical Methods: Using MATLAB By 作者: George Lindfield – John Penny ISBN-10 书号: 0128122560 ISBN-13 书号: 9780128122563 Edition 版本: 4 出版日期: 2018-10-30 pages 页数: (608 ) $99.95 The fourth ...
MySQL数据库：USING子句.pptx
05-29
表名1 INNER JOIN 表名2 USING (列名) [WHERE 条件表达式] 外连接语法格式如下： 表名1 LEFT| RIGHT JOIN 表名2 USING (列名) [WHERE 条件表达式] ; 【例】 查找Members表中所有订购过图书的会员的姓名。 SELECT ...
Computer Graphics: Using OpenGL cpp
04-14
Computer Graphics: Using OpenGL cppComputer Graphics: Using OpenGL cppComputer Graphics: Using OpenGL cppComputer Graphics: Using OpenGL cppComputer Graphics: Using OpenGL cppComputer Graphics: Using ...
Lesson 1: Using Quartz
03-26
NULL 博文链接：https://thinktothings.iteye.com/blog/1133761
CNCERT：关于汽车数据处理4项安全要求检测情况的通报 (第一批)
最新发布
南七小僧的学海无涯
04-30 680
本次检测根据《汽车数据安全管理若干规定（试行）》有关要求，按照GB/T 41871-2022《信息安全技术 汽车数据处理安全要求》和T/CAAMTB 77-2022《汽车传输视频及图像脱敏技术要求与方法》相关技术标准，并参考《汽车数据通用要求（报批稿）》附录C组织实施。检测采用相同的测试要求、测试环境、技术标准和测试流程，包括车外人脸信息等匿名化处理、默认不收集座舱数据、座舱数据车内处理以及处理个人信息显著告知4项要求。e.查阅、复制其个人信息以及删除车内、请求删除已经提供给车外的个人信息的方式和途径；
Linux服务器安全基础 - 查看入侵痕迹
eagle89的专栏
04-30 605
Linux服务器安全基础 - 查看入侵痕迹
企业计算机服务器中了rmallox勒索病毒怎么办？Rmallox勒索病毒解密流程工具
M99W1230的博客
04-26 499
在网络飞速发展的时代，企业离不开网络，网络为企业的生产运营提供了极大便利，加快了企业进步的步伐，依靠网络可以开展各项工作业务，通过网络数据整合，可以更方便企业办公。Rmallox勒索病毒属于mallox勒索家族，属于早期的勒索病毒，随着网络技术的不断发展，mallox勒索病毒做过多次升级调整，而rmallox勒索病毒是近期新升级的勒索病毒，具有较强的攻击与加密能力，一旦被攻击很难自行破解恢复，经过云天数据恢复中心对rmallox勒索病毒的解密处理，为大家整理了以下有关该勒索病毒的相关信息。
网络安全实训Day16
Yisitelz的博客
04-26 684
网络空间安全第16天学习笔记。漏洞扫描；内网渗透
百度安全多篇议题入选Blackhat Asia以硬技术发现“芯”问题
Baidu_Secrity的博客
04-24 786
因此，跨缓存攻击的效率直接决定了安卓上众多基于堆栈的漏洞利用成功率。结合这些漏洞，议题依次分析了四种威胁模型中的典型漏洞案例，并介绍了Netlink相关漏洞的验证和利用方法，最后为厂商使用Netlink提供了最前沿的安全建议。百度安全是百度公司旗下以AI为核心打造的安全品牌，基于百度各业务线全技术栈的安全实践总结，在基础安全、数据安全、业务安全、车与IoT安全打造四大产品矩阵，面向行业和合作伙伴输出安全产品与行业一体化解决方案，在智能制造、智慧能源、智慧政务、智慧金融、智能汽车等领域已有丰富实践。
保序加密技术：保护数据有序性的安全方案
jiamisoft的博客
04-30 355
保序加密技术是一种特殊的加密方式，它允许对加密数据进行特定的有序操作，同时保持数据的加密状态。与传统的加密技术不同，OPE允许用户在不解密的情况下，对加密的数据进行范围搜索和比较，因为加密后的数据保持了原始数据的顺序特性。
第27天：安全开发-PHP应用&TP框架&路由访问&对象操作&内置过滤绕过&核心漏洞
IceCream的博客
04-24 719
参考：https://www.kancloud.cn/manual/thinkphp5_1
基础安全:CSRF攻击原理与防范
八尺妖剑的博客
04-23 1568
这是一种常见的网络攻击手段，攻击者通过构造恶意请求，诱骗已登录的合法用户在不知情的情况下执行非本意的操作。这种攻击方式利用了Web应用程序中用户身份验证的漏洞，即浏览器在用户完成登录后会自动携带相关的认证信息（如Cookie、Authorization header等）发送给服务器，使得服务器误以为请求来自已授权的用户。这是一个阳光明媚的好日子，万里无云，心情愉悦，用户哼着小曲儿兴高采烈的通过下面的请求地址登录了自己的账户并给小老婆转账520000，成功登录后在浏览器上留下了。基于上面的概念描述，
如何安全可控的进行跨区域数据交换，提高数据价值？
文件数据安全交换
04-30 490
飞驰云联是中国领先的数据安全传输解决方案提供商，长期专注于安全可控、性能卓越的数据传输技术和解决方案，公司产品和方案覆盖了跨网跨区域的数据安全交换、供应链数据安全传输、数据传输过程的防泄漏、FTP的增强和国产化替代、文件传输自动化和传输集成等各种数据传输场景。飞驰云联主要服务于集成电路半导体、先进制造、高科技、金融、政府机构等行业的中大型客户，现有客户超过500家，其中500强和上市企业150余家，覆盖终端用户超过40万，每年通过飞驰云联平台进行数据传输和保护的文件量达到4.4亿个。
DEBUG: Using selector: SelectSelector
09-14
DEBUG: Using selector: SelectSelector是Scrapy框架中的一条调试信息，表示正在使用SelectSelector选择器进行页面解析。它通常用于定位和提取HTML页面中的特定元素或数据。在Scrapy中，选择器是用于解析和提取目标...

“相关推荐”对你有帮助么？

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
