基于单片机的电子秤设计

嵌入式基地

已于 2023-09-25 21:25:26 修改

阅读量1k

点赞数 2

分类专栏：毕业设计文章标签：单片机电子秤毕业设计称重

于 2020-09-29 21:50:21 首次发布

本文链接：https://blog.csdn.net/m0_51061483/article/details/108876444

版权

毕业设计专栏收录该内容

104 篇文章 118 订阅

订阅专栏

文末下载完整资料

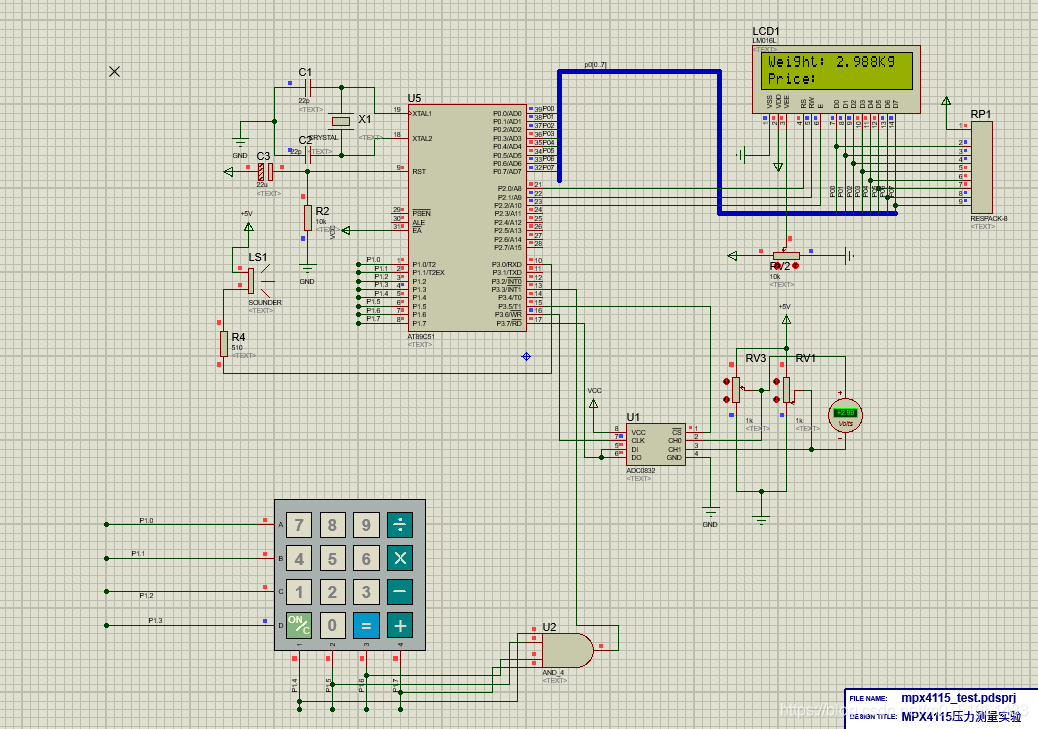

protues仿真

在这里插入图片描述

程序

#include<reg51.h>
#include<intrins.h>
#include <absacc.h>
#include <math.h>

#define uchar unsigned char
#define uint   unsigned int
#define BUSY  0x80          //³£Á¿¶¨Òå
#define DATAPORT P0


//ADC0832µÄÒý½Å
sbit ADCS =P3^5;  //ADC0832 chip seclect
sbit ADDI =P3^7;  //ADC0832 k in
sbit ADDO =P3^7;  //ADC0832 k out
sbit ADCLK =P3^6;  //ADC0832 clock signal

sbit LCM_RS=P2^0;
sbit LCM_RW=P2^1;
sbit LCM_EN=P2^2;

uchar ad_data,key;
uchar rrr=0xff;
uchar alldata[12]={0};
uchar love[14];
uchar exit=0,yes=0,kind=0,fu=0,pfu=0,position1=0,position2=0;
unsigned long  data1=0,data2=0,data3=0,ddata=0;    //²ÉÑùÖµ´æ´¢
sbit Alarm_led_red =P3^0;                         //³¬¹ýÖØÁ¿±íÁ¿³Ì×î´óÖµºìÉ«led±¨¾¯¶¨Òå
sbit Alarm_led_green=P3^1;                        //µÍÓÚÁã±íÁ¿³Ì×îÐ¡ÖµÂÌÉ«led±¨¾¯¶¨Òå
//adc²ÉÑùÖµ´æ´¢µ¥Ôª
char press_data;                                  //±ê¶È±ä»»´æ´¢µ¥Ôª
unsigned char ad_alarm;                           //±¨¾¯Öµ´æ´¢µ¥Ôª
unsigned char press_ge=0;                        //ÏÔÊ¾Öµ°ÙÎ»
unsigned char press_shifen=0;                      //ÏÔÊ¾ÖµÊ®Î»
unsigned char press_baifen=0;                       //ÏÔÊ¾Öµ¸öÎ»
unsigned char press_qianfen=0;                      //ÏÔÊ¾ÖµÊ®·ÖÎ»

uchar code str0[]={"Weight:  .   Kg "};
uchar code str2[]={"Price: "};
uchar code str3[]={"Total:          "};
void delay(uint);
void lcd_wait(void);
void delay_LCM(uint);             				    //LCDÑÓÊ±×Ó³ÌÐò
void initLCM( void);               					//LCD³õÊ¼»¯×Ó³ÌÐò
void lcd_wait(void);              					//LCD¼ì²âÃ¦×Ó³ÌÐò
void WriteCommandLCM(uchar WCLCM,uchar BusyC);      //Ð´Ö¸Áîµ½ICM×Óº¯Êý
void WriteDataLCM(uchar WDLCM);                     //Ð´Êý¾Ýµ½LCM×Óº¯Êý
void DisplayOneChar(uchar X,uchar Y,uchar DData);        //ÏÔÊ¾Ö¸¶¨×ø±êµÄÒ»¸ö×Ö·û×Óº¯Êý
void DisplayListChar(uchar X,uchar Y,uchar code *DData); //ÏÔÊ¾Ö¸¶¨×ø±êµÄÒ»´®×Ö·û×Óº¯Êý
void error(void);
unsigned long shi(uchar k);
void out(void);
uchar keyscan(void);
void display(void);
void  display(uchar);
void  keydisplay(uchar);
void  prodis(void);
void  clear(void);
void  datapc(void);
void remove0(void);
void  data3dis(void);                                       //ÏµÍ³ÏÔÊ¾×Óº¯Êý
uchar Adc0832(unsigned char channel);
void alarm(void);
void data_pro(void);


/**********main funcation************/

void main(void)
{
    delay(500);                      //ÏµÍ³ÑÓÊ±500msÆô¶¯
	ad_data=0;                       //²ÉÑùÖµ´æ´¢µ¥Ôª³õÊ¼»¯Îª0
   	initLCM( );

   	WriteCommandLCM(0x01,1);		    //ÇåÏÔÊ¾ÆÁ
    DisplayListChar(0,0,str0);
//	 WriteCommandLCM(0x01,0); 	//????????
   	DisplayListChar(0,1,str2);

	while(1)
    {
	   ad_data =Adc0832(0);	   //²ÉÑùÖµ´æ´¢µ¥Ôª³õÊ¼»¯Îª0
	   alarm();
       data_pro();
	   display();
	   key=keyscan();
	   delay(5);
	   if(exit==1)
		  keydisplay(key);
	 }

 }
/*********ÑÓÊ±K*1ms,12.000Mhz**********/

void delay(uint k)
{
    uint i,j;
    for(i=0;i<k;i++)
     for(j=0;j<60;j++);

}
/**********Ð´Ö¸Áîµ½ICM×Óº¯Êý************/

void WriteCommandLCM(uchar WCLCM,uchar BusyC)
{
    if(BusyC)
	lcd_wait();
	DATAPORT=WCLCM;
    LCM_RS=0;                   // Ñ¡ÖÐÖ¸Áî¼Ä´æÆ÷
    LCM_RW=0;               	// Ð´Ä£Ê½
    LCM_EN=1;
	_nop_();
	_nop_();
	_nop_();
    LCM_EN=0;

}

/**********Ð´Êý¾Ýµ½LCM×Óº¯Êý************/

void WriteDataLCM(uchar WDLCM)
{
    lcd_wait( );             //¼ì²âÃ¦ÐÅºÅ
	DATAPORT=WDLCM;
    LCM_RS=1;                // Ñ¡ÖÐÊý¾Ý¼Ä´æÆ÷
    LCM_RW=0;           	 // Ð´Ä£Ê½
    LCM_EN=1;
    _nop_();
	_nop_();
	_nop_();
    LCM_EN=0;
}

/***********lcmÄÚ²¿µÈ´ýº¯Êý*************/

void lcd_wait(void)
{
    DATAPORT=0xff;	     //¶ÁLCDÇ°Èôµ¥Æ¬»úÊä³öµÍµçÆ½,¶ø¶Á³öLCDÎª¸ßµçÆ½,Ôò³åÍ»,Proteus·ÂÕæ»áÓÐÏÔÊ¾Âß¼»ÆÉ«
	LCM_EN=1;
    LCM_RS=0;
    LCM_RW=1;
    _nop_();
    _nop_();
	_nop_();
    while(DATAPORT&BUSY)
	{  LCM_EN=0;
	   _nop_();
	   _nop_();
	   LCM_EN=1;
	   _nop_();
	   _nop_();
	   }
   	LCM_EN=0;

}

/**********LCM³õÊ¼»¯×Óº¯Êý***********/

void initLCM( )
{
	DATAPORT=0;
	delay(15);
	WriteCommandLCM(0x38,0);    //Èý´ÎÏÔÊ¾Ä£Ê½ÉèÖÃ£¬²»¼ì²âÃ¦ÐÅºÅ
    delay(5);
    WriteCommandLCM(0x38,0);
    delay(5);
    WriteCommandLCM(0x38,0);
    delay(5);

    WriteCommandLCM(0x38,1);    //8bitÊý¾Ý´«ËÍ£¬2ÐÐÏÔÊ¾£¬5*7×ÖÐÍ£¬¼ì²âÃ¦ÐÅºÅ
    WriteCommandLCM(0x08,1);    //¹Ø±ÕÏÔÊ¾£¬¼ì²âÃ¦ÐÅºÅ
    WriteCommandLCM(0x01,1);    //ÇåÆÁ£¬¼ì²âÃ¦ÐÅºÅ
    WriteCommandLCM(0x06,1);    //ÏÔÊ¾¹â±êÓÒÒÆÉèÖÃ£¬¼ì²âÃ¦ÐÅºÅ
    WriteCommandLCM(0x0c,1);    //ÏÔÊ¾ÆÁ´ò¿ª£¬¹â±ê²»ÏÔÊ¾£¬²»ÉÁË¸£¬¼ì²âÃ¦ÐÅºÅ
}

/****ÏÔÊ¾Ö¸¶¨×ø±êµÄÒ»¸ö×Ö·û×Óº¯Êý****/

void DisplayOneChar(uchar X,uchar Y,uchar DData)

{
    Y&=0x01;
    X&=0x0f;
    if(Y)X|=0x40;               //ÈôyÎª1£¨ÏÔÊ¾µÚ¶þÐÐ£©£¬µØÖ·Âë+0X40
    X|=0x80;                    //Ö¸ÁîÂëÎªµØÖ·Âë+0X80
    WriteCommandLCM(X,1);
    WriteDataLCM(DData);
}

/*******ÏÔÊ¾Ö¸¶¨×ø±êµÄÒ»´®×Ö·û×Óº¯Êý*****/

void DisplayListChar(uchar X,uchar Y,uchar code *DData)
  {
    uchar ListLength=0;
    Y&=0x01;
    X&=0x0f;
    while(X<16)
    {
        DisplayOneChar(X,Y,DData[ListLength]);
        ListLength++;
        X++;
    }
  }
void error(void)
{
  uchar derror[8]={'E','R','R','O','R','!','!','!'};
  uchar k;
  for(k=0;k<=7;k++)
  {
   WriteCommandLCM(0xc8+k,0);
   WriteDataLCM(derror[k]);
   DisplayOneChar(7,1,derror[k]);
   delay(5);
  }
}

void out(void)
{
   uchar k;
   uchar dout[12]={'O','U','T',' ','O','F',' ','R','A','N','G','E'};
   for(k=0;k<=11;k++)
  {
   WriteCommandLCM(0xc4+k,0);
   WriteDataLCM(dout[k]);
   DisplayOneChar(7,1,dout[k]);
   delay(5);
  }
}

unsigned long shi(uchar n)
{
   int m=1;
   while(n!=0)
    {
     m=m*10;
     n--;
    }
 return(m);
}

     /*¼üÅÌÉ¨Ãè×Ó³ÌÐò*/
uchar keyscan()
{
  uchar i=0,j=0;
  P1=0xf0;
  if(((~P1) & 0xf0)!=0)
   {
     delay(10);
     if(((~P1) & 0xf0)!=0)
      {
        exit=1;
        P1=0xfe;
        while(((~P1) & 0x0f)!=0)
        {
          if(((~P1) & 0xf0)!=0)
          {
              switch((~P1) & 0xf0)
          {
          case 0x10:
          j=0;break;
          case 0x20:
          j=1;break;
          case 0x40:
          j=2;break;
          case 0x80:
          j=3;break;
          }

        return(4*i+j);
      }
      else
      {
       P1=P1<<1;
       i++;
      }
   }
  }
}
exit=0;
return(key);
}
 /*****************ÏµÍ³ÏÔÊ¾×Óº¯Êý*****************/

void display(void)
{
   	WriteCommandLCM(0x0c,1);    				//ÏÔÊ¾ÆÁ´ò¿ª£¬¹â±ê²»ÏÔÊ¾£¬²»ÉÁË¸£¬¼ì²âÃ¦ÐÅºÅ
	DisplayListChar(0,0,str0);
	DisplayListChar(0,1,str2);


	DisplayOneChar(8,0,press_ge+0x30);
	DisplayOneChar(10,0,press_shifen+0x30);
	DisplayOneChar(11,0,press_baifen+0x30);
    DisplayOneChar(12,0,press_qianfen+0x30);
	delay(1000);                               //ÎÈ¶¨ÏÔÊ¾
}
/**********************************¼üÅÌÏÔÊ¾×Óº¯Êý**********************************/
void keydisplay(uchar C)
{
  WriteCommandLCM(0x0c,1);
  DisplayListChar(0,1,str2);
 switch(C)
 {
	 case 0:clear();
	        break;
	 case 1:prodis();
	        alldata[rrr]=0;
	        WriteDataLCM('0');
	        break;
	 case 2:prodis();
	        WriteDataLCM('=');
	        kind=kind+10;
	        position2=rrr;
	        datapc();
	        remove0();
	        data3dis();
	        break;
	 case 3:prodis();
	        kind=kind+1;             //¼Ó·¨ÔËËã£¬ kind=1
	        position1=rrr;
	        WriteDataLCM('+');
	        break;
	 case 4:prodis();
	        alldata[rrr]=1;
	        WriteDataLCM('1');
	        break;
	 case 5:prodis();
	        alldata[rrr]=2;
	        WriteDataLCM('2');
	        break;
	 case 6:prodis();
	        alldata[rrr]=3;
	        WriteDataLCM('3');
	        break;
	 case 7:prodis();
	        kind=kind+5;             //¼õ·¨ÔËËã£¬ kind=5
	        position1=rrr;
	        WriteDataLCM('-');
	        break;
	 case 8:prodis();
	        alldata[rrr]=4;
	        WriteDataLCM('4');
	        break;
	 case 9:prodis();
	        alldata[rrr]=5;
	        WriteDataLCM('5');
	        break;
	 case 10:prodis();
	         alldata[rrr]=6;
	         WriteDataLCM('6');
	        break;
	 case 11:prodis();
	         kind=kind+25;             //³Ë·¨ÔËËã£¬ kind=25
	         position1=rrr;
	         WriteDataLCM('*');
	         break;
	 case 12:prodis();
	         alldata[rrr]=7;
	         WriteDataLCM('7');
	         break;
	 case 13:prodis();
	         alldata[rrr]=8;
	         WriteDataLCM('8');
	         break;
	 case 14:prodis();
	         alldata[rrr]=9;
	         WriteDataLCM('9');
	         break;
	 case 15:prodis();
	         kind=kind+125;              //³ý·¨ÔËËã£¬ kind=125
	         position1=rrr;
	         WriteDataLCM('/');
	         break;
	 default:
	 break;
	 }
    }

void datapc(void)
{
  uchar k;
  if((position1==0) || (position2==(position1+1)))
       yes=1;
  else
   {
    for(k=0;k<position1;k++)
    {
      ddata=shi(position1-1-k);
      data1=data1+(alldata[k])*ddata;
    }
    for(k=position1+1;k<position2;k++)
    {
       ddata=shi(position2-1-k);
       data2=data2+(alldata[k])*ddata;
    }
  if((data1 > 50000) || (data2 > 50000))
         {yes=2;}
  else
    {
      switch (kind)
        {
         case 11:data3=data1+data2;yes=0;
		         break;
         case 15: if(data1<data2)
                 {
				   ddata=data1;
				   data1=data2;
				   data2=ddata;
				   fu=1;
				  }
	             data3=data1-data2;yes=0;
				  break;
         case 35:data3=data1*data2;yes=0;
		          break;
         case 135:data3=data1/data2;yes=0;
		          break;
         default:yes=1;
        }
    }
}
if(yes==0)
 {
   love[0]=data3 / 1000000000;
   love[1]=data3 / 100000000-love[0]*10;
   love[2]=data3 / 10000000-love[0]*100-love[1]*10;
   love[3]=data3 / 1000000-love[0]*1000-love[1]*100-love[2]*10;
   love[4]=data3 / 100000-love[0]*10000-love[1]*1000-love[2]*100-love[3]*10;
   love[5]=data3 / 10000-love[0]*100000-love[1]*10000-love[2]*1000-love[3]*100-love[4]*10;
   love[6]=(data3 % 10000)/1000;
   love[7]=(data3 % 1000)/100;
   love[8]=(data3 % 100)/10;
   love[9]= data3 % 10;
 }
if(kind==135)
 {
   love[10]=0xfe;
   love[11]=((data1 % data2)*10)/data2;
   love[12]=((((data1 % data2)*10)%data2)*10)/data2;
   love[13]=((((((data1 % data2)*10)%data2)*10)%data2)*10)/data2;
  }
}

void remove0(void)
{
  uchar k=0;
  while((love[k]==0) && (k<=8))
   {
    love[k]=0xf0;
    k++;
    }
  pfu=k;
}
