基于 springmvc+tomcat+mysql 的BBS论坛

源码地址： https://download.csdn.net/download/m0_51152186/85262287

基于 springmvc+tomcat+mysql 的BBS论坛
本系统具有以下功能：
1.前台服务功能
   登录、注册、修改信息、注销、管理个人留言信息、查看发表回复帖子、查询留言
2.后台管理功能
  用户管理、版主后台管理、管理员后台管理、系统设置、留言管理、公告管理、其他管理。

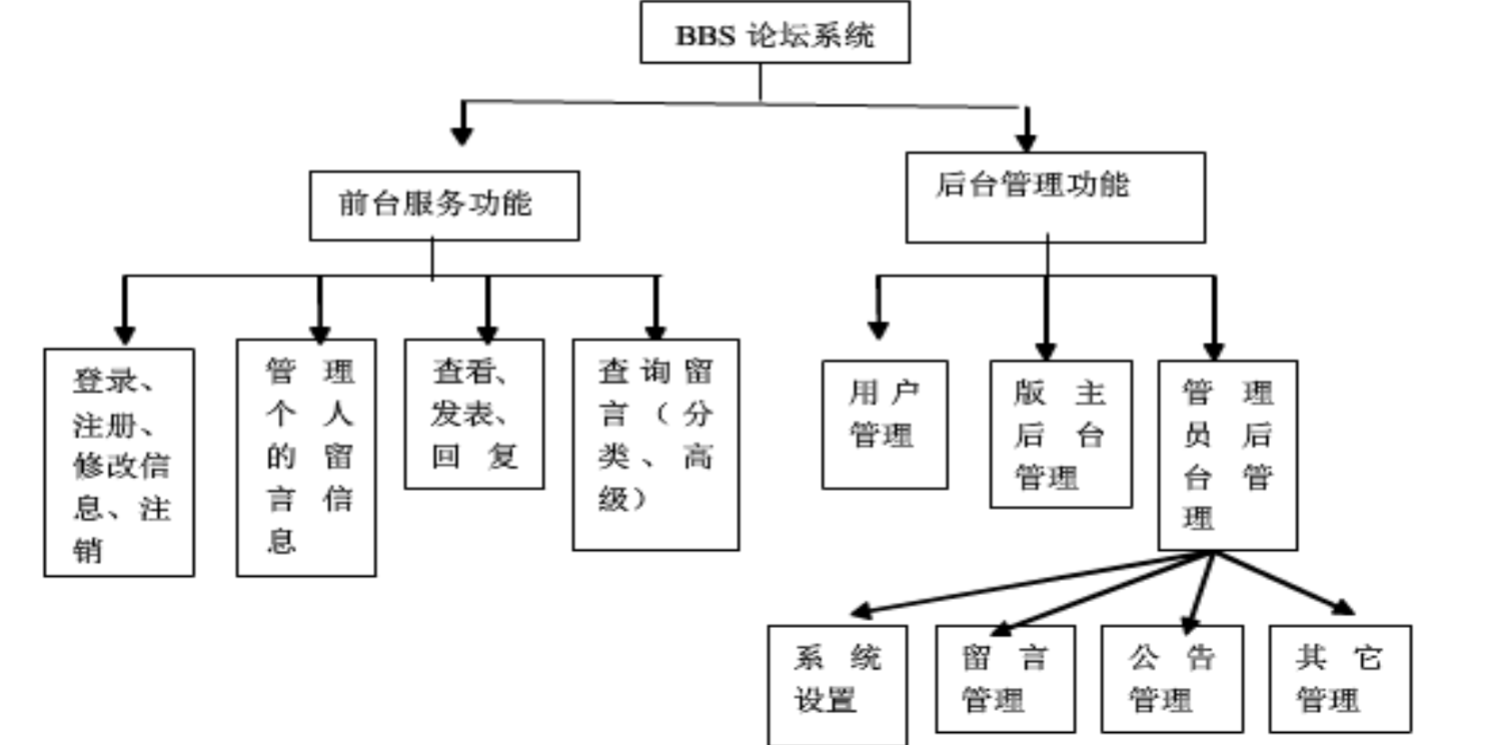

项目功能图：

一、eclipse中建立以下目录的web工程，配置tomcat

  二、建立数据库连接类，连接本地MySQL8.0

package common;

import java.sql.*;

public class DBConnect {
	/*建立数据库连接*/
    private Connection conn = null;
    private Statement  stmt  = null;
    private ResultSet  rs    = null;
	private PreparedStatement ps = null;

    public DBConnect()
    {
        try
        {
        	//Class.forName("com.microsoft.sqlserver.jdbc.SQLServerDriver");
        	Class.forName("com.mysql.cj.jdbc.Driver");
            //conn = DriverManager.getConnection("jdbc:mysql://localhost/mybbs?&useSSL=false&serverTimezone=GMT%2B8&characterEncoding=utf-8&autoReconnect=true", "root", "123456");
        	 conn = DriverManager.getConnection("jdbc:mysql://localhost:3306/mybbs?&useSSL=false&serverTimezone=GMT%2B8&characterEncoding=utf-8&autoReconnect=true", "root", "123456");
        	stmt = conn.createStatement(ResultSet.TYPE_SCROLL_INSENSITIVE,ResultSet.CONCUR_READ_ONLY);

        }
        catch (SQLException ex)
        {
            System.out.println(ex.getMessage() + "璺緞閿欒锛�");
        }
        catch (ClassNotFoundException ex)
        {
            System.out.println(ex.getMessage() + "椹卞姩閿欒锛�");
        }
    }

    /*返回更新影响的记录数*/
    public PreparedStatement getPs(String sql) throws SQLException {
		try {
			ps = conn.prepareStatement(sql);
			conn.commit();
			return ps;
		} catch (Exception e) {
			//conn.rollback();
			e.printStackTrace();
			return ps;
		}
	}/*返回查询后的结果集*/
    public ResultSet executeQuery(String ssql) throws SQLException{
       try{
           rs = stmt.executeQuery(ssql);
           return rs;

       }
       catch(SQLException se){
           //conn.rollback();
           System.out.println("DBBean.executeQuery() ERROR:"+se.getMessage());
       }
       return rs;
   }
   public int executeUpdate(String ssql) throws SQLException{
        int iupdate = 0;
        try{
            iupdate = stmt.executeUpdate(ssql);
            return iupdate;
        }
        catch(SQLException se){
            //conn.rollback();
            System.out.println("DBBean.executeUpdate() ERROR:"+se.getMessage());
        }
        return iupdate;
   }/*释放数据库连接资源*/
   public void free() throws SQLException{
       try{
           if(rs   != null) rs.close();
           if(stmt != null) stmt.close();
           if(conn != null) conn.close();
       }
       catch(SQLException se){
           System.out.println("DBBean.free() ERROR:"+se.getMessage());
       }
   }


	public Connection getConnection() {/*返回连接*/
		return conn;
	}
}

数据库导入语句如下：（在MYSQL中复制粘贴即可导入项目数据）



/*
Navicat MySQL Data Transfer

Source Server         : local
Source Server Version : 50519
Source Host           : localhost:3306
Source Database       : mybbs

Target Server Type    : MYSQL
Target Server Version : 50519
File Encoding         : 65001

Date: 2017-12-10 18:54:04
*/
create database mybbs;
use mybbs;

SET FOREIGN_KEY_CHECKS=0;

-- ----------------------------
-- Table structure for board
-- ----------------------------
DROP TABLE IF EXISTS `board`;
CREATE TABLE `board` (
  `BoardName` varchar(50) NOT NULL,
  `BoardId` int(11) unsigned zerofill NOT NULL AUTO_INCREMENT,
  PRIMARY KEY (`BoardId`)
) ENGINE=InnoDB AUTO_INCREMENT=5 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of board
-- ----------------------------
INSERT INTO `board` VALUES ('Java集合类学习讨论', '00000000001');
INSERT INTO `board` VALUES ('JSP内置对象使用', '00000000002');
INSERT INTO `board` VALUES ('Servlet使用', '00000000003');
INSERT INTO `board` VALUES ('HTML5学习讨论', '00000000004');

-- ----------------------------
-- Table structure for reply
-- ----------------------------
DROP TABLE IF EXISTS `reply`;
CREATE TABLE `reply` (
  `Contentinfo` text NOT NULL,
  `CreateDate` datetime DEFAULT NULL,
  `UserId` int(11) NOT NULL,
  `TopicId` int(11) NOT NULL,
  `ReplyId` int(10) unsigned zerofill NOT NULL AUTO_INCREMENT,
  PRIMARY KEY (`ReplyId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of reply
-- ----------------------------

-- ----------------------------
-- Table structure for topic
-- ----------------------------
DROP TABLE IF EXISTS `topic`;
CREATE TABLE `topic` (
  `Title` varchar(50) NOT NULL,
  `Contentinfo` text NOT NULL,
  `CreateDate` datetime DEFAULT NULL,
  `UserId` int(11) NOT NULL,
  `ClickNum` int(11) DEFAULT NULL,
  `ReplyNum` int(11) DEFAULT NULL,
  `BoardId` int(11) NOT NULL,
  `TopicId` int(10) unsigned zerofill NOT NULL AUTO_INCREMENT,
  PRIMARY KEY (`TopicId`)
) ENGINE=InnoDB AUTO_INCREMENT=6 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of topic
-- ----------------------------
INSERT INTO `topic` VALUES ('hi', 'aaabbb', '2017-12-10 16:13:23', '1', '0', '0', '1', '0000000001');
INSERT INTO `topic` VALUES ('List', 'dggw', '2017-12-10 16:21:36', '1', '0', '0', '1', '0000000002');
INSERT INTO `topic` VALUES ('request对象', 'request.setAttribute(\"pass\",\"123\");', '2017-12-10 17:01:49', '1', '0', '0', '2', '0000000003');
INSERT INTO `topic` VALUES ('HttpServlet', 'javax.servlet.http.HttpServlet', '2017-12-10 17:03:55', '1', '0', '0', '3', '0000000004');
INSERT INTO `topic` VALUES ('HTML', '<HTML>\r\n<Body>\r\n</Body>\r\n</HTML>', '2017-12-10 17:04:55', '1', '0', '0', '4', '0000000005');

-- ----------------------------
-- Table structure for userinfo
-- ----------------------------
DROP TABLE IF EXISTS `userinfo`;
CREATE TABLE `userinfo` (
  `UserName` varchar(20) DEFAULT NULL,
  `Password` varchar(50) NOT NULL,
  `UserId` int(10) unsigned zerofill NOT NULL AUTO_INCREMENT,
  PRIMARY KEY (`UserId`)
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8;

-- ----------------------------
-- Records of userinfo
-- ----------------------------
INSERT INTO `userinfo` VALUES ('2', '2', '0000000001');
INSERT INTO `userinfo` VALUES ('3', '3', '0000000002');
INSERT INTO `userinfo` VALUES ('4', '4', '0000000003');




三、SpringMVC其实就一种基于Servlet的MVC模型：

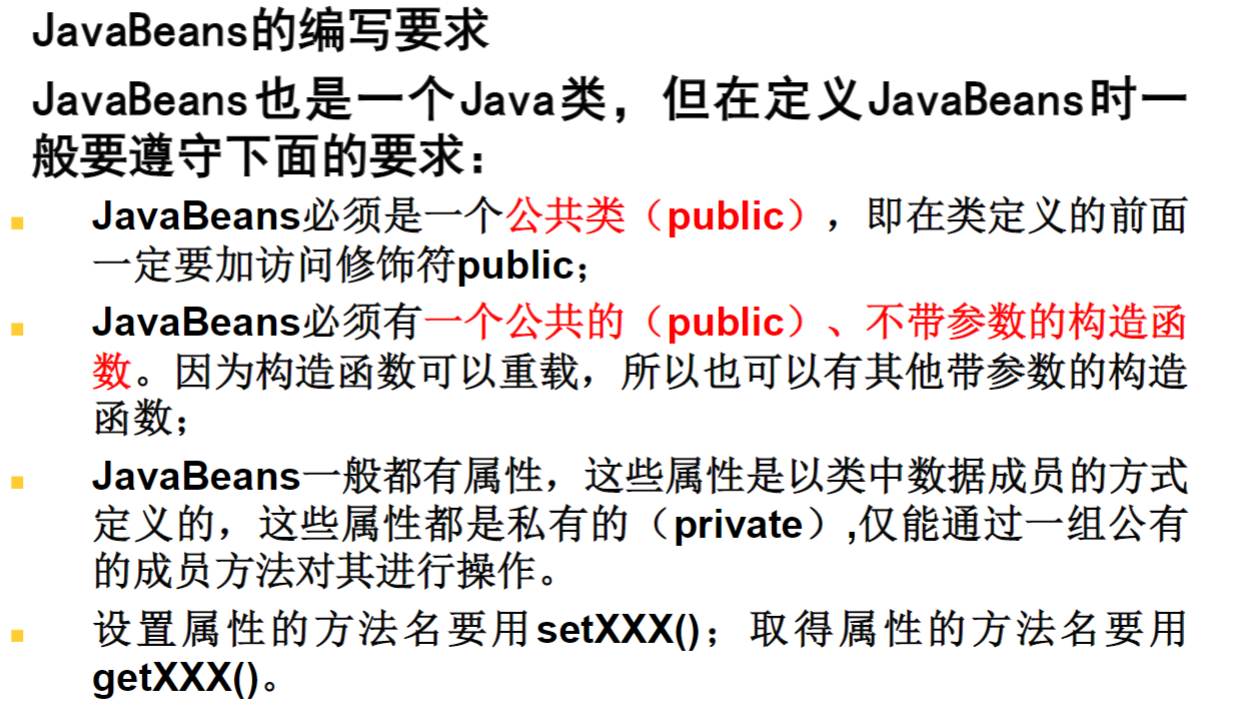

1、模型：一个或多个javabean对象，用于存储数据和业务逻辑。



package entity;
public class Board {
	String boardId;
	String boradname;
	String topicNum;
	String newTopic;


	public String getTopicNum() {
		return topicNum;
	}
	public void setTopicNum(String topicNum) {
		this.topicNum = topicNum;
	}
	public String getNewTopic() {
		return newTopic;
	}
	public void setNewTopic(String newTopic) {
		this.newTopic = newTopic;
	}

	public String getBoardId() {
		return boardId;
	}
	public void setBoardId(String boardId) {
		this.boardId = boardId;
	}
	public String getBoradname() {
		return boradname;
	}
	public void setBoradname(String boradname) {
		this.boradname = boradname;
	}

}

package entity;
public class Topic {
	String topicId;
	String topicTitle;
	String clicknum;
	String replynum;

	String content;
	String CreateDate;
	String Userid;

	public String getUserid() {
		return Userid;
	}
	public void setUserid(String userid) {
		Userid = userid;
	}
	public String getCreateDate() {
		return CreateDate;
	}
	public void setCreateDate(String createDate) {
		CreateDate = createDate;
	}

	public String getContent() {
		return content;
	}
	public void setContent(String content) {
		this.content = content;
	}

	public String getTopicId() {
		return topicId;
	}
	public void setTopicId(String topicId) {
		this.topicId = topicId;
	}
	public String getTopicTitle() {
		return topicTitle;
	}
	public void setTopicTitle(String topicTitle) {
		this.topicTitle = topicTitle;
	}
	public String getClicknum() {
		return clicknum;
	}
	public void setClicknum(String clicknum) {
		this.clicknum = clicknum;
	}
	public String getReplynum() {
		return replynum;
	}
	public void setReplynum(String replynum) {
		this.replynum = replynum;
	}

}

 2、控制器：一个或多个Servlet对象，根据视图提交的请求进行控制，即将请求转发给业务逻辑的javabean，并将处理记过存放到实体模型javabean中，输出给视图显示。

package servlet;
import java.net.URLDecoder;
import java.net.URLEncoder;
import java.io.IOException;
import java.io.PrintWriter;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import javax.servlet.http.HttpSession;

import dao.SaveTopicDAO;
import dao.SaveTopicDAOImp;

public class AddTopicServlet extends HttpServlet {

	/**
	 * Constructor of the object.
	 */
	public AddTopicServlet() {
		super();
	}

	/**
	 * Destruction of the servlet. <br>
	 */
	public void destroy() {
		super.destroy(); // Just puts "destroy" string in log
		// Put your code here
	}

	/**
	 * The doGet method of the servlet. <br>
	 *
	 * This method is called when a form has its tag value method equals to get.
	 *
	 * @param request the request send by the client to the server
	 * @param response the response send by the server to the client
	 * @throws ServletException if an error occurred
	 * @throws IOException if an error occurred
	 */
	public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		doPost(request,response);
	}

	/**
	 * The doPost method of the servlet. <br>
	 *
	 * This method is called when a form has its tag value method equals to post.
	 *
	 * @param request the request send by the client to the server
	 * @param response the response send by the server to the client
	 * @throws ServletException if an error occurred
	 * @throws IOException if an error occurred
	 */
	public void doPost(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		//设定请求中的字符编码格式为GBK，避免汉字乱码
		request.setCharacterEncoding("gbk");
		//从request中获得session对象
		HttpSession session=request.getSession();
	    //从session中获得userID数据
		String userid=(String)session.getAttribute("userid");
	    //从请求中获得参数(title、contentinfo、boardid)
		String title=request.getParameter("title");
		String content=request.getParameter("content");
		String boardid=request.getParameter("boardid");
		String boardname=request.getParameter("boardname");
	    //定义业务类对象，并调用业务方法
		SaveTopicDAO t=new SaveTopicDAOImp();
		int i=t.saveTopic(title, content, userid, boardid);
	    //跳转到GetTopicServlet
		if(i==1){
			response.sendRedirect("GetTopicServlet?boardId="+boardid+"&boardName="+boardname);

		}

	}

	/**
	 * Initialization of the servlet. <br>
	 *
	 * @throws ServletException if an error occurs
	 */
	public void init() throws ServletException {
		// Put your code here
	}

}

package servlet;

import java.io.IOException;
import java.io.PrintWriter;
import java.util.List;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.net.URLDecoder;
import java.net.URLEncoder;
import dao.GetBoard;

public class GetboardServlet extends HttpServlet {

	/**
	 * Constructor of the object.
	 */
	public GetboardServlet() {
		super();
	}

	/**
	 * Destruction of the servlet. <br>
	 */
	public void destroy() {
		super.destroy(); // Just puts "destroy" string in log
		// Put your code here
	}

	/**
	 * The doGet method of the servlet. <br>
	 *
	 * This method is called when a form has its tag value method equals to get.
	 *
	 * @param request the request send by the client to the server
	 * @param response the response send by the server to the client
	 * @throws ServletException if an error occurred
	 * @throws IOException if an error occurred
	 */
	public void doGet(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		doPost(request,response);
	}

	/**
	 * The doPost method of the servlet. <br>
	 *
	 * This method is called when a form has its tag value method equals to post.
	 *
	 * @param request the request send by the client to the server
	 * @param response the response send by the server to the client
	 * @throws ServletException if an error occurred
	 * @throws IOException if an error occurred
	 */
	public void doPost(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {

		//实例化业务类,调用getboard方法获得版块信息
		GetBoard gb=new GetBoard();
		List result=gb.getBoard();
		//保存数据
		request.setAttribute("result", result);
		//页面转向到index.jsp页面（请求转发）
        request.getRequestDispatcher("index.jsp").forward(request, response);
	}

	/**
	 * Initialization of the servlet. <br>
	 *
	 * @throws ServletException if an error occurs
	 */
	public void init() throws ServletException {
		// Put your code here
	}

}

 视图：一个和多个JSP页面，想控制器提交数据和为模型提供数据显示，JSP页面主要使用HTML标记和JavaBean标记来显示数据。



<%@ page language="java" import="java.util.*" pageEncoding="GBK"%>


<HTML>
	<HEAD>
		<TITLE>Java在线学习论坛--看贴</TITLE>
		<META http-equiv=Content-Type content="text/html; charset=gbk">
		<Link rel="stylesheet" type="text/css" href="style/style.css" />
	</HEAD>

	<BODY>
		<DIV>
			<IMG src="images/logo.gif">
		</DIV>

		<!--      用户信息、登录、注册        -->



		<DIV class="h">
			欢迎你，***
		</DIV>

		<!--      主体        -->
		<DIV>
			<br />
			<!--      导航        -->
			<DIV>
				&gt;&gt;
				<B>论坛首页</B>&gt;&gt;
				<B></B>
			</DIV>
			<br />
			<!--      回复、新帖        -->
			<DIV>
				<A href="reply.jsp"><IMG
						src="images/reply.gif" border="0">
				</A>
				<A href="post.jsp"><IMG
						src="images/post.gif" border="0">
				</A>
			</DIV>
			<!--         翻 页         -->

			<!--      本页主题的标题        -->

			<DIV>
				<TABLE cellSpacing="0" cellPadding="0" width="100%">
					<TR>
						<TH class="h">
							本页主题:***</TH>
					</TR>
					<TR class="tr2">
						<TD>
							&nbsp;
						</TD>
					</TR>
				</TABLE>
			</DIV>
			<!--      主题        -->

			<DIV class="t">
				<TABLE style="BORDER-TOP-WIDTH: 0px; TABLE-LAYOUT: fixed"
					cellSpacing="0" cellPadding="0" width="100%">
					<TR class="tr1">
						<TH style="WIDTH: 20%">

							<B>XXX</B>
							<BR />

							<B>该贴不存在</B>
							<BR />

							<B>发表该贴的用户已被删除</B>
							<BR />

						</TH>

						<TH>
							<H4>
								话题标题
							</H4>
							<DIV>
								话题内容
							</DIV>
							<DIV class="tipad gray">


								发表：2011-01-11
								&nbsp; 支持率：5&nbsp; 回帖总数：6


							</DIV>
							<DIV class="zc">
								<div align="right">

									<font color="#FF0000"> <a
										>支&nbsp;持</a>
										&nbsp;&nbsp;&nbsp;</font>

									<font color="#818a89">支&nbsp;持&nbsp;&nbsp;&nbsp;</font>

								</div>
							</DIV>
						</TH>

						<TH>
							<H4>
								该贴已被删除
							</H4>
							<DIV>

							</DIV>
							<DIV class="tipad gray">
								&nbsp;&nbsp;
							</DIV>
							<DIV class="zc">
								<div align="right">
									&nbsp;&nbsp;
								</div>
							</DIV>
						</TH>



					</TR>
				</TABLE>
			</DIV>

			<!--      回复        -->


			<DIV class="t">
				<TABLE style="BORDER-TOP-WIDTH: 0px; TABLE-LAYOUT: fixed"
					cellSpacing="0" cellPadding="0" width="100%">
					<TR class="tr1">
						<TH style="WIDTH: 20%">
							<B>回复用户名</B>
							<BR />
						</TH>
						<TH>
							<DIV>回复内容</DIV>
							<DIV class="tipad gray">
								发表：回复时间
								&nbsp;
							</DIV>
						</TH>
					</TR>
				</TABLE>
			</DIV>



			<!--            翻 页          -->
			<DIV>

			</DIV>
		</DIV>

		<!--      声明        -->
		<BR>


	</BODY>
</HTML>

<%@ page language="java" import="java.util.List,entity.*" pageEncoding="GBK"%>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<HTML>
<HEAD>
<TITLE>欢迎访问Java在线学习论坛</TITLE>
<META http-equiv=Content-Type content="text/html; charset=gbk">
<Link rel="stylesheet" type="text/css" href="style/style.css" />
</HEAD>
<BODY>
<DIV>&nbsp;
	<IMG src="images/logo.gif">
</DIV>
<!--      用户信息、登录、注册        -->

<c:if test="${sessionScope.isLogined=='true'}">
<DIV class="h">
		欢迎你${sessionScope.username }
</DIV>
</c:if>
<c:if test="${sessionScope.isLogined==null}">
<DIV class="h">
		您尚未登录　<a href="login.jsp?where=index.jsp">登录</a>
		&nbsp;| &nbsp; <A href="reg.jsp">注册</A> |
	</DIV>
</c:if>

<!--      主体        -->
<DIV class="t">
	<TABLE cellSpacing="0" cellPadding="0" width="100%">
		<TR class="tr2" align="center">
			<TD colSpan="2">版块</TD>
			<TD style="WIDTH: 10%;">主贴数</TD>
			<TD style="WIDTH: 30%">最新发表</TD>
		</TR>
		<TR class="tr3">
		  <TD colspan="4"><br></TD>
		</TR>

		<c:forEach items="${result}" var="b">
		<TR class="tr3">
			<TD width="5%">&nbsp;</TD>
			<TD align="left">
				<IMG src="images/board.gif">
				<A href="GetTopicServlet?boardId=${b.boardId }&boardName=${b.boradname}">${b.boradname}
				</A>
			</TD>
			<TD align="center">${b.topicNum }</TD>
			<TD align="left">${b.newTopic }</TD>
		</TR>

		</c:forEach>

		<TR class="tr3">
		  <TD colspan="4">&nbsp;</TD>
		</TR>
	</TABLE>
</DIV>
</BODY>
</HTML>

<%@ page language="java"  pageEncoding="GBK"%>
<%@taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<HTML>
<HEAD>
<TITLE>Java在线学习论坛--发布帖子</TITLE>
<META http-equiv=Content-Type content="text/html; charset=gbk">
<Link rel="stylesheet" type="text/css" href="style/style.css" />
<script type="text/javascript">
function check(){
	if(document.postForm.title.value=="") {
		alert("标题不能为空");
		return false;
	}
	if(document.postForm.content.value=="") {
		alert("内容不能为空");
		return false;
	}
	if(document.postForm.content.value.length>3000) {
		alert("长度不能大于3000");
		return false;
	}
}
</script>
</HEAD>

<BODY>
<DIV>
	<IMG src="images/logo.gif">
</DIV>
<!--      用户信息 -->
	<%
	String boardid = request.getParameter("boardid");
	System.out.println("测试数据："+boardid);

	//判断处理用户登录
	String boardname=request.getParameter("boardName");
	String username = (String)session.getAttribute("username");
	String isLogined = (String)session.getAttribute("isLogined");
/*	if(isLogined==null){
		isLogined = "false";
		response.sendRedirect("login.jsp");
	}*/
%>
<c:if test="${sessionScope.isLogined==null }">
	<c:set var="isLogined" scope="page" value="false"></c:set>
	<c:redirect url="login.jsp"></c:redirect>
</c:if>

<DIV class="h">
	欢迎你，${sessionScope.username }
</DIV>

<!--      主体        -->
<DIV><BR/>
&nbsp;<!--      导航        -->
	<DIV>
		<B>论坛首页</B>&gt;&gt;&nbsp;${param.boardname }
	</DIV><BR/>
	<DIV>
		<FORM name="postForm" onSubmit="return check()" action="AddTopicServlet" method="POST">
			<INPUT type="hidden" name="boardid" value="${param.boardid }"/>
			<INPUT type="hidden" name="boardname" value="${param.boardname }"/>
			<DIV class="t">
				<TABLE cellSpacing="0" cellPadding="0" align="center">
				    <TR>
					    <TD class="h" colSpan="3"><B>发表帖子</B></TD>
				    </TR>

				    <TR class="tr3">
					    <TH width="20%"><B>标题</B></TH>
					    <TH><INPUT class="input" style="PADDING-LEFT: 2px; FONT: 14px Tahoma"
					            tabIndex="1" size="60" name="title">
					    </TH>
				    </TR>

				    <TR class="tr3">
					    <TH vAlign=top>
					      <DIV><B>内容</B></DIV>
					    </TH>
					    <TH colSpan=2>
					        <DIV>
						        <span><textarea style="WIDTH: 385px;" name="content" rows="7" cols="80" tabIndex="2" ></textarea></span>
						    </DIV>
					      (不能多于1500个汉字)
					    </TH>
					</TR>
				</TABLE>
			</DIV>

			<DIV style="MARGIN: 15px 0px; TEXT-ALIGN: center">
				<INPUT class="btn" tabIndex="3" type="submit" value="提 交">
				<INPUT class="btn" tabIndex="4" type="reset"  value="重 置">
			</DIV>
		</FORM>
	</DIV>
</DIV>
<!--      声明        -->
<BR/>
</BODY>
</HTML>

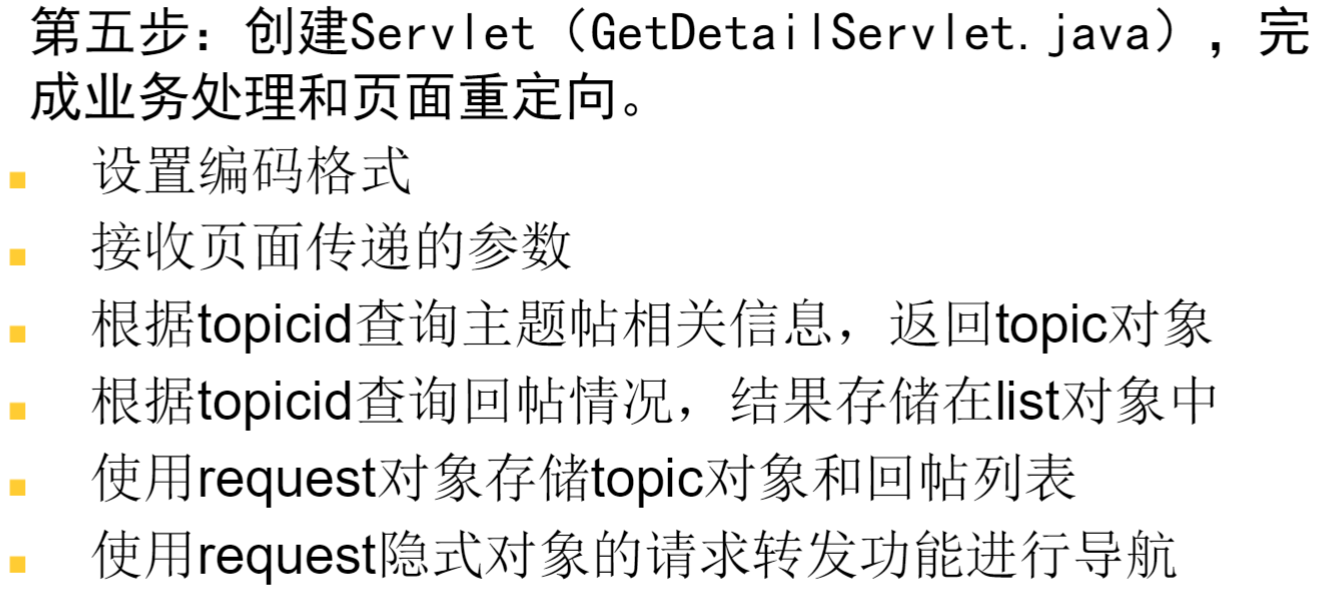

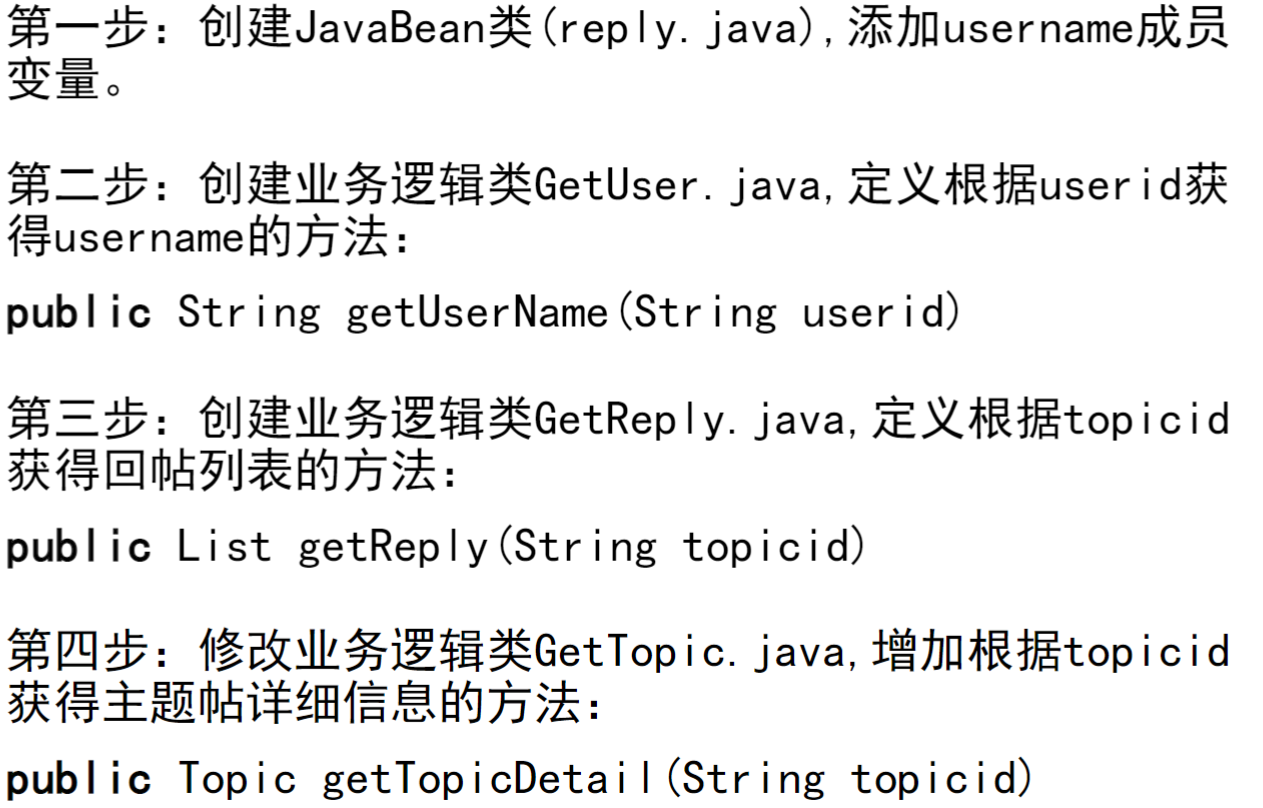

 四、使用Servlet完成BBS

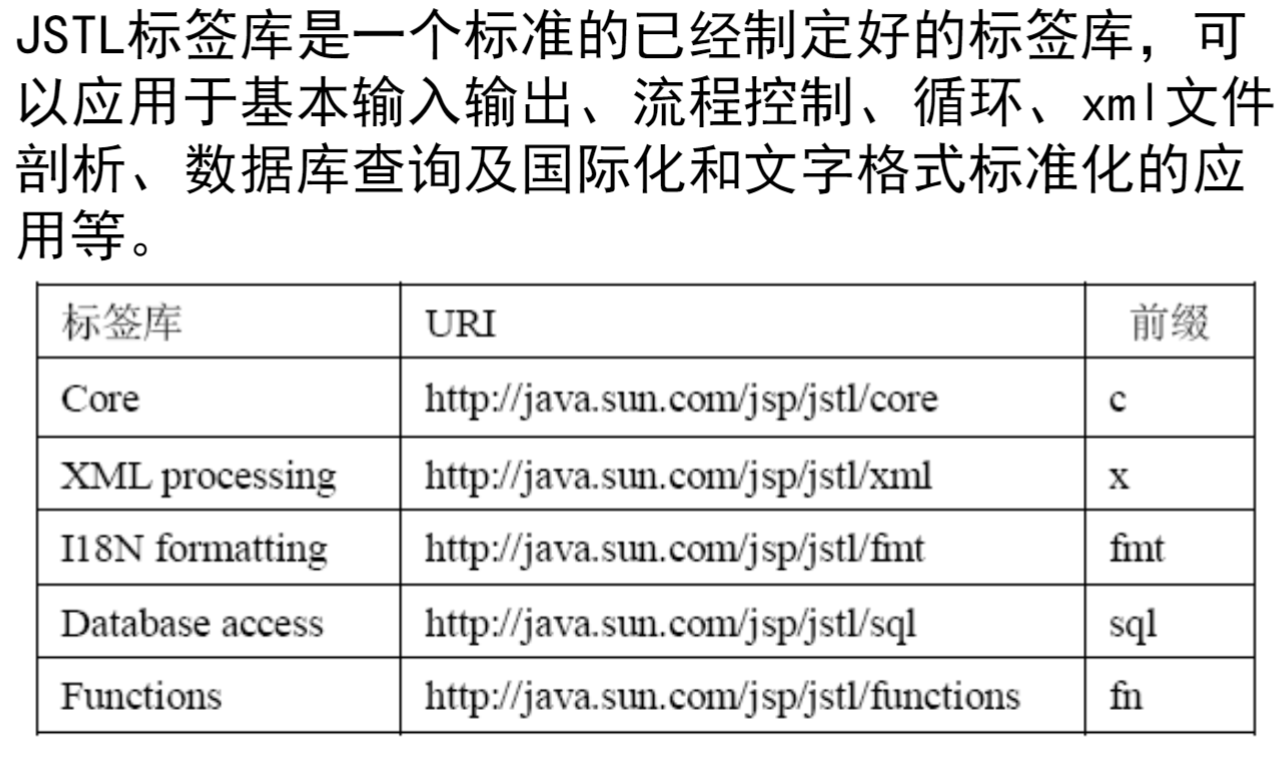

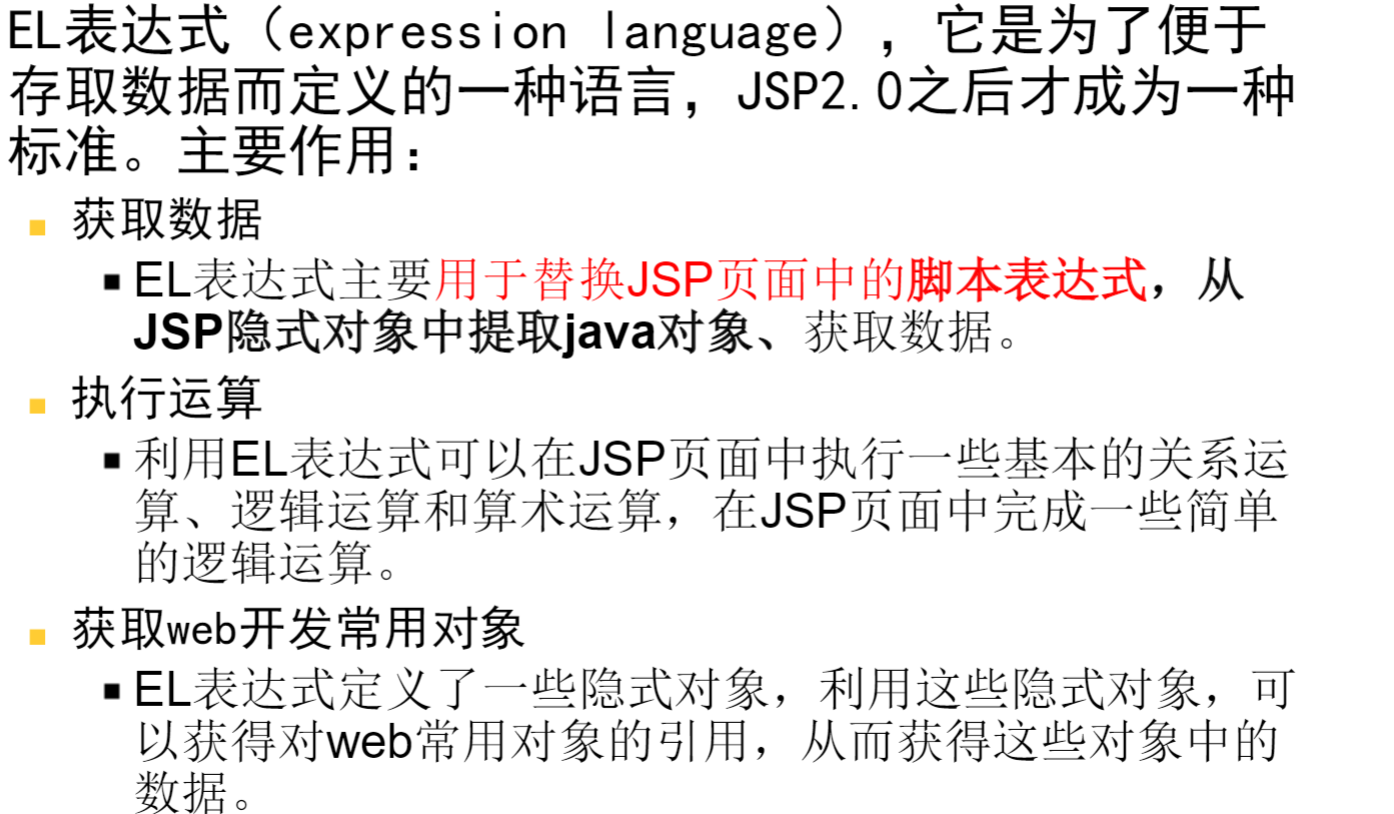

 五、EL表达式与JSTL标签





 六、功能实现及运行效果图

 登陆界面如下：

 注册界面如下：

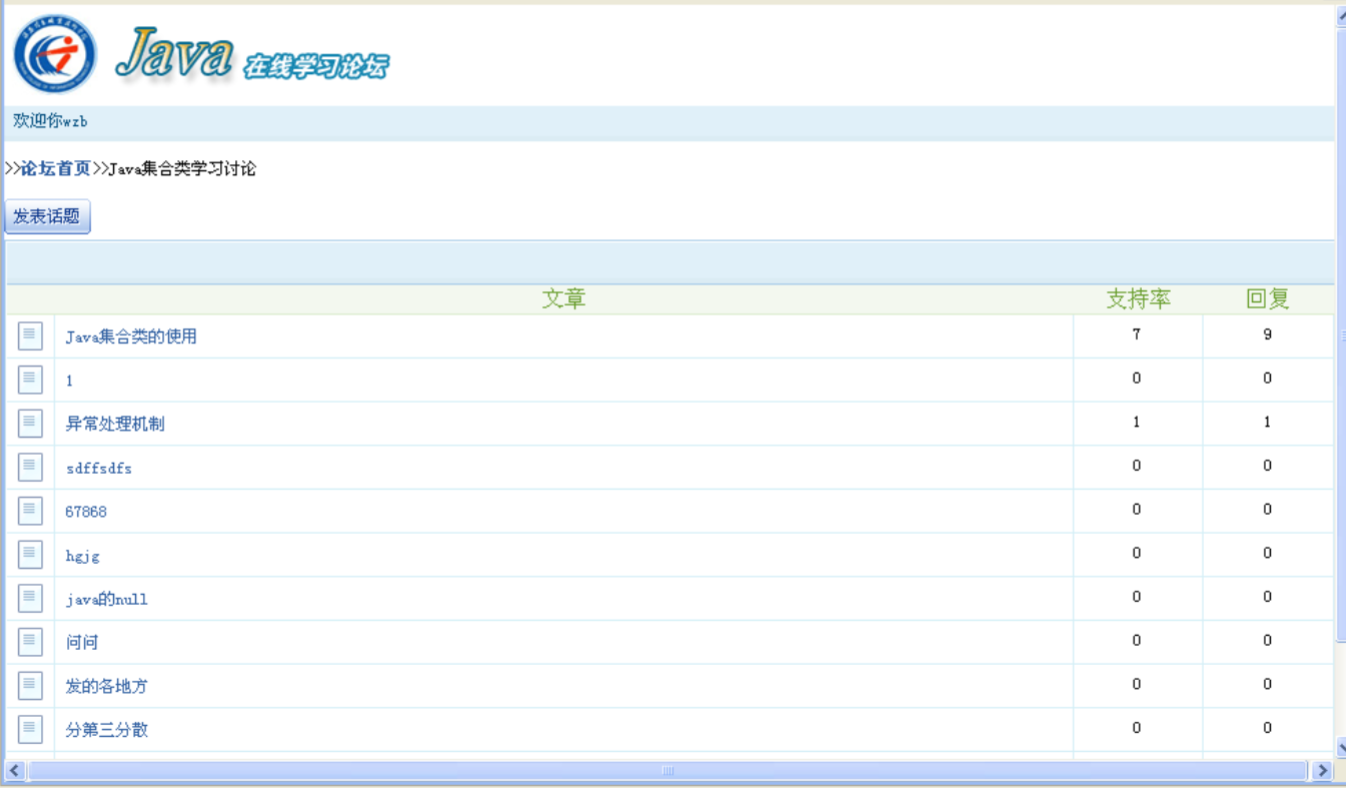

 论坛帖如下：

 论坛话题分类如下：

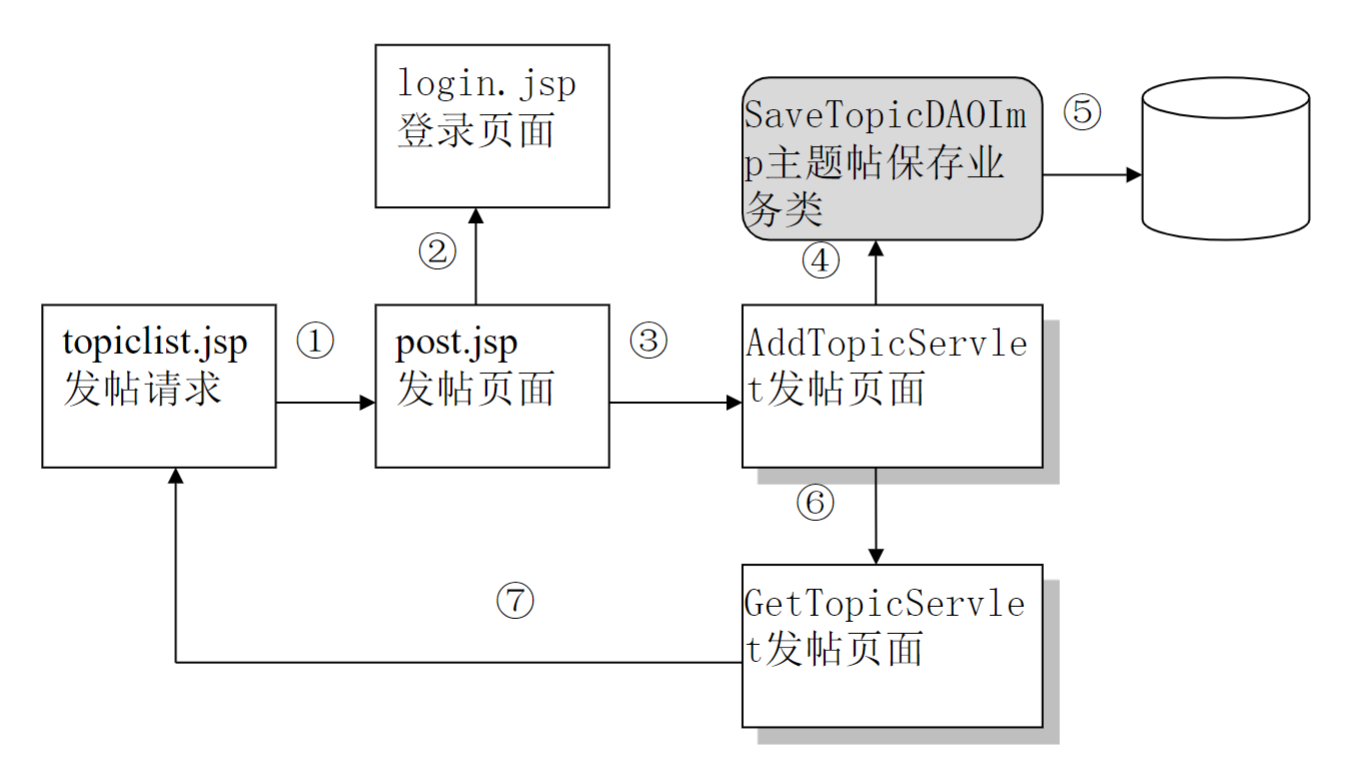

 论坛发帖界面如下：

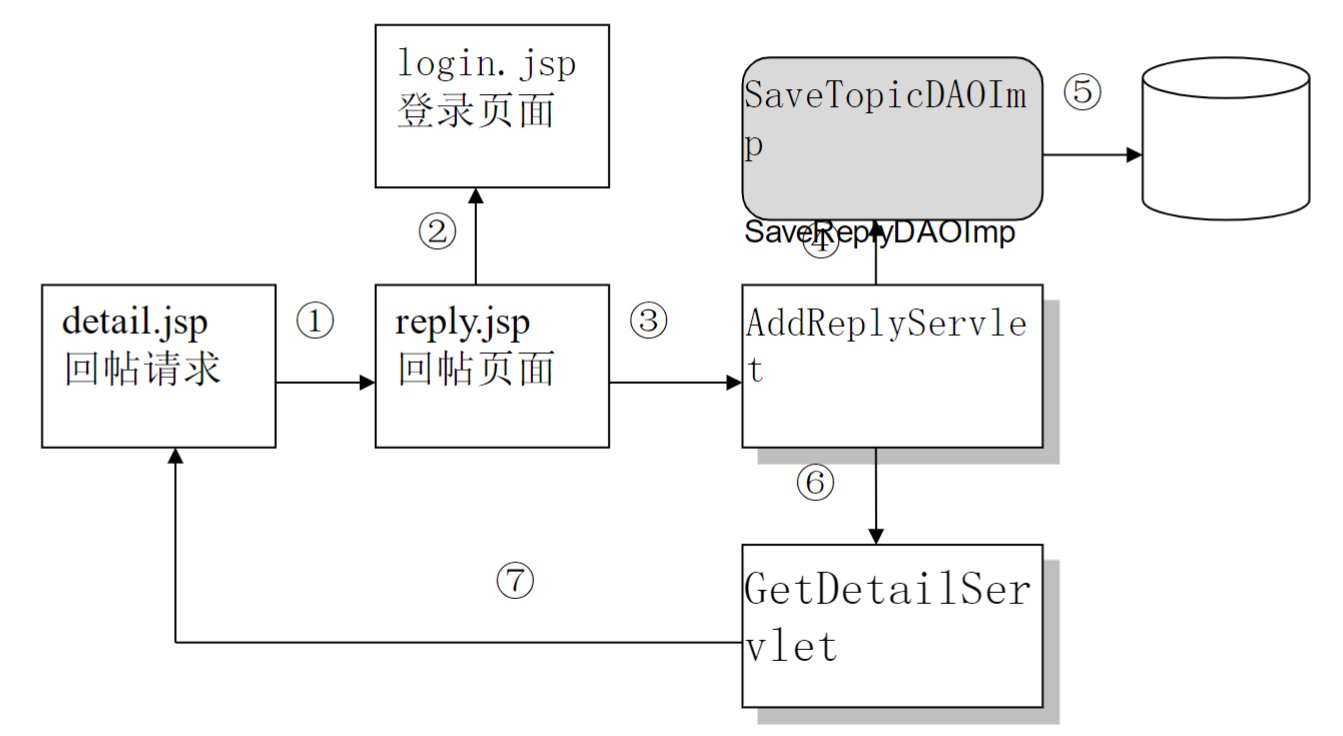

 回复帖子的实现如下：

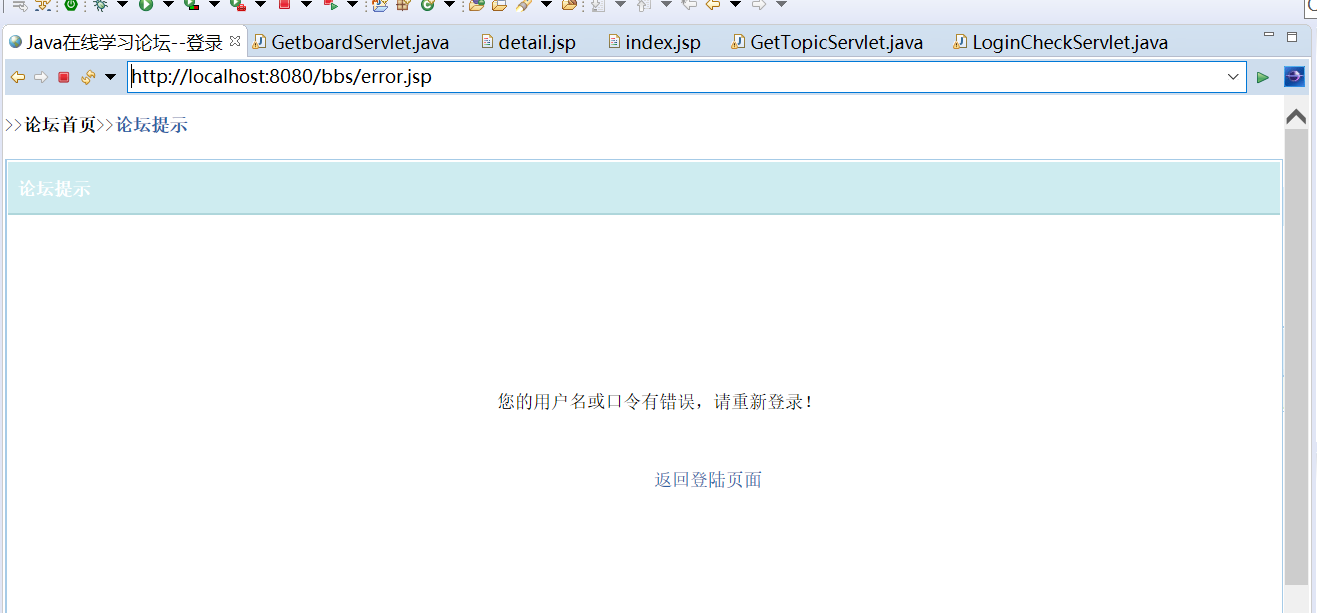

 异常处理界面如下：





七、BBS论坛项目总结
