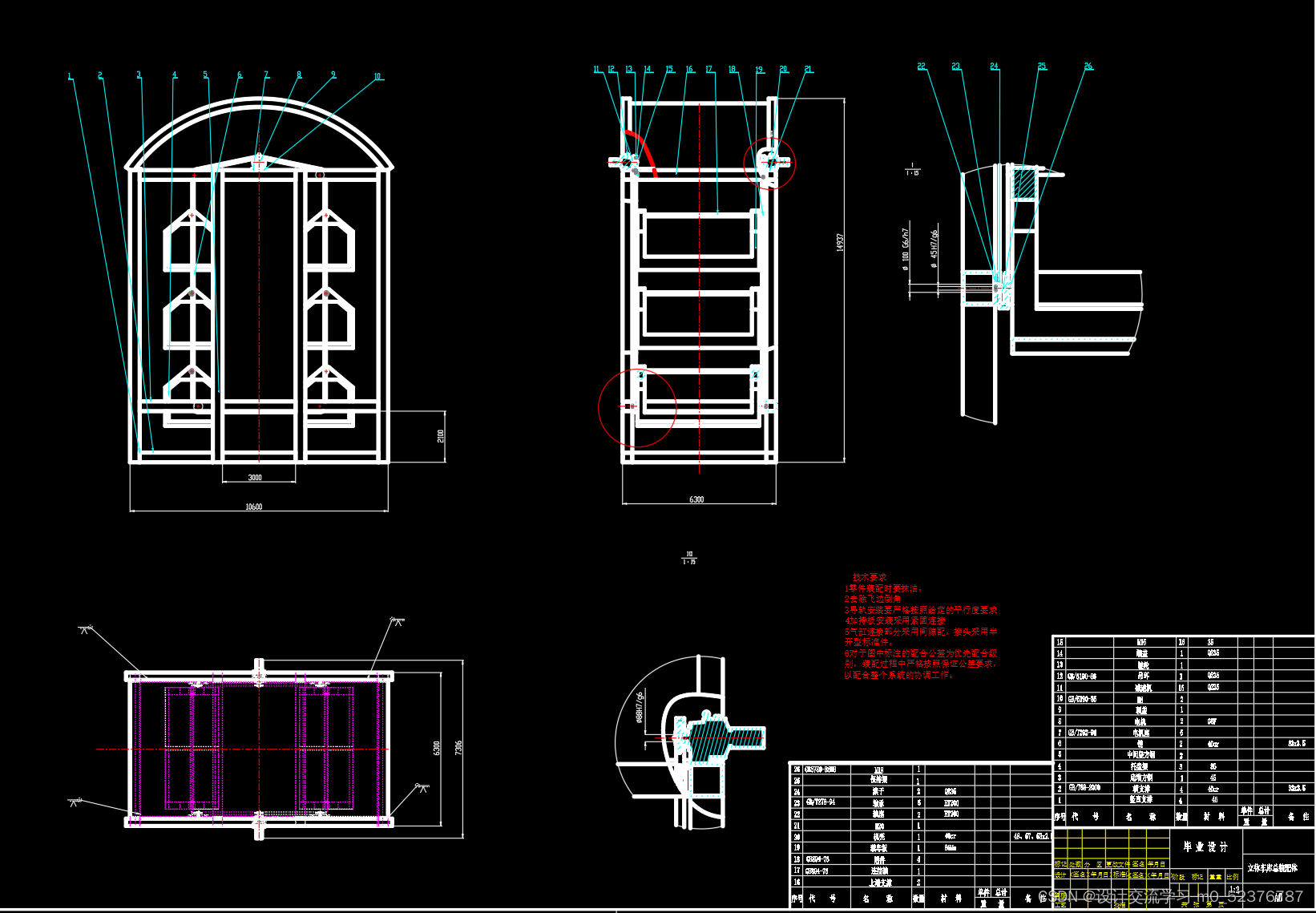

垂直循环式立体车库设计【说明书、CAD图纸、三维SW】

关注 m0_52376787

于 2024-05-04 14:48:51 发布

阅读量395

点赞数

分类专栏：机械模具数控夹具车辆 PLC /设计文章标签：汽车

原文链接：https://blog.csdn.net/m0_52376787/article/details/129011436?spm=1001.2014.3001.5502

版权

机械模具数控夹具车辆 PLC /设计专栏收录该内容

1449 篇文章

订阅专栏

摘要

立体车库空间利用率非常高，占地面积约为平面停车场的1／15～1／25，大大地节省了土地资源和土建开发成本。可以实现自动化操作，使用方便。建设成本大大低于传统停车场。配备自动检测系统、各种安全机构、自动报警系统、消防系统及其他防范设施，安全可靠。并且可以因地制宜，利用零星空地，配以美观的外形，美化城市环境。

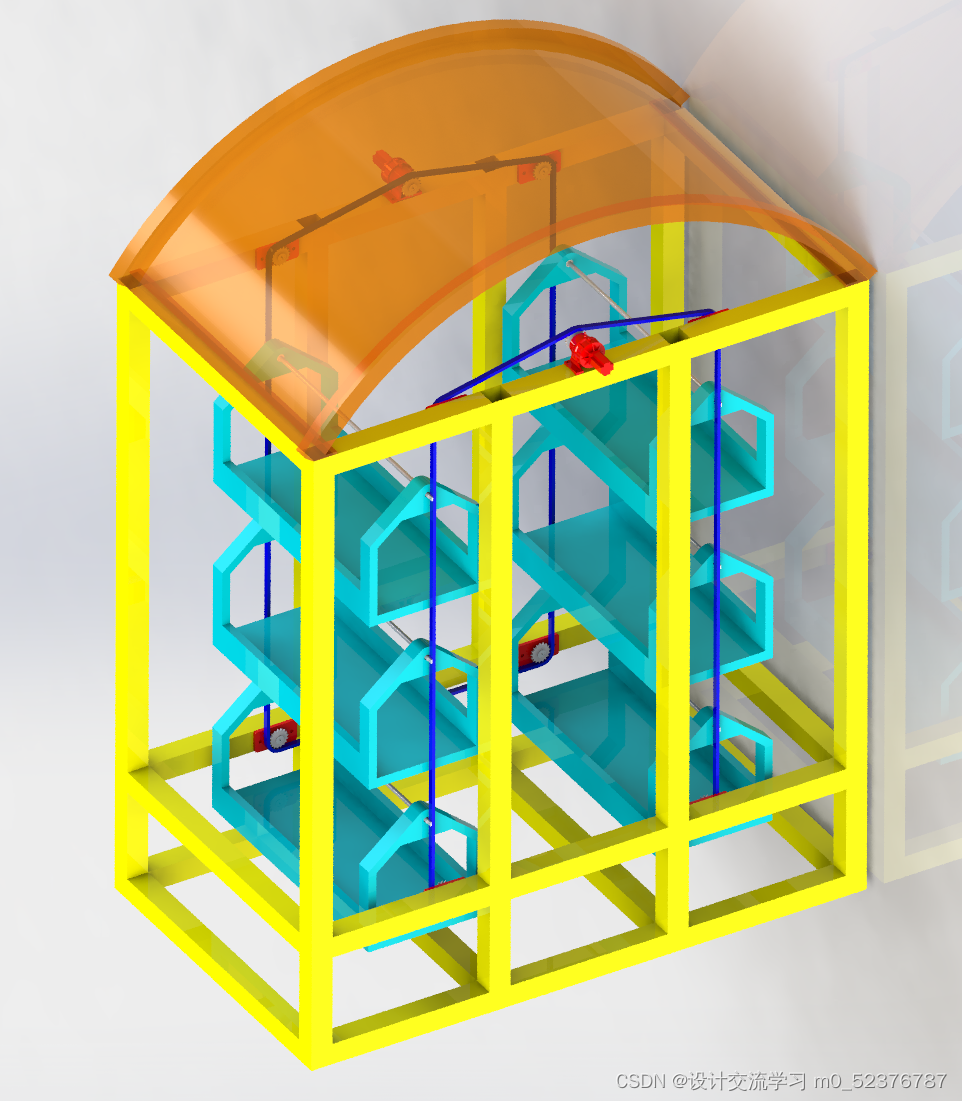

本文从分析各种立体车库的具体特点出发，结合城市住宅小区具体环境情况，选择垂直循环式立体车库为研究开发对象。提出并确定了车库的总体方案；确立了车库的整体体系结构由机械结构和自动控制结构组成；设计了车库的整体尺寸；选择了车库的建材设计立体车库的构型方案。根据设计方案，对轴承、电动机、减速机、轴承座选型计算，并进行应力校核；最后根据设计方案，采用三维软件solidworks软件对立体车库进行三维建模。

关键词: 停车、链传动、电机、减速机

Three-dimensional garage space utilization rate is very high, covers an area of about 1/15 ~ 1/25 for plane parking lot, greatly saves land resources and civil engineering development costs. Can realize automatic operation, easy to use. Construction cost is much lower than the traditional parking lot. Equipped with automatic detection system, all kinds of security mechanism, automatic alarm system, fire fighting system and other facilities for the prevention of safe and reliable. And it can adjust measures to local conditions, using the scattered field, with beautiful shape, beautify the urban environment.

In this paper, starting from the analysis of the characteristics of various three-dimensional garage, combines the condition of urban residential area the concrete environment, choose vertical circulation parking equipment as the object of research and development. Proposed and determine the overall scheme of the garage; Established the overall architecture of the garage is composed of mechanical structure and automatic control structure; Design the overall size of the garage; Choose the configuration scheme of stereo garage garage building materials design. According to the design scheme of bearing, motor, reducer, bearing type selection calculation, and the stress checking; According to the design scheme of using 3 d software solidworks software 3 d modeling for three-dimensional garage.

Keywords: Parking, chain, motor，reducer

…………
