Pieper准则是Pieper.D.L于1968年在其论文“THE KINEMATICS OF MANIPULATORS UNDER COMPUTER CONTROL”中提出的用于判别机械臂逆运动学问题是否存有封闭解的准则,是存在封闭逆解的充分条件,具体内容为:
当如下条件之一满足时,一个6自由度运动学结构具有闭合形式的运动学逆解:
1、三个连续的转动关节的轴相交于同一点
2、三个连续的转动关节的轴平行
(我看有篇论文里说Duffy在论文“Analysis of mechanisms and robot manipulators”中证明了3个连续关节轴平行的6自由度机械臂逆运动学可解,不太清楚这个条件到底是他俩谁先提出来的。)

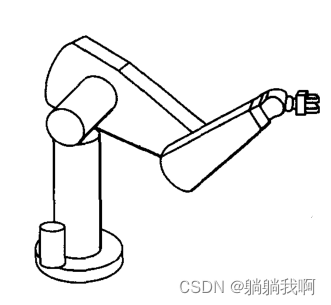

为简化逆解的运算,现今的机械臂厂家生产的机械臂大多满足这一准则,几乎都有三根相交轴,如常见的PUMA560:
PUMA560是一款具有球形腕的机械臂,其关节4、5、6的旋转轴相交于第五个关节坐标系的原点处,我们在逆运动学求解的过程中,通常也会选择该点作为求解的切入点:该点的位置可以表示为给定末端执行器的位置和方向的函数,同时还可以表示为数量被约简的关节变量的函数。这等价于将逆运动学问题表示为两个子问题,因为位置解和方向解被解耦了。

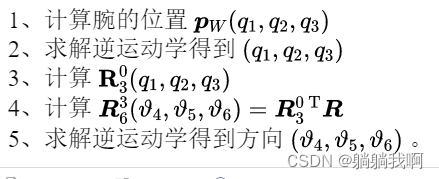

具体求解过程可以为:
Pieper论文的摘要:
The kinematics of manipulators is studied. A model is presented which allows for the systematic description of new and existing manipulators. Six degree-of-freedom manipulators are studied. Several solutions to the problem of finding the manipulator configuration leading to a specified position and orientation are presented. Numerical as well as explicit solutions are given. The problem of positioning a multilink digital arm is also discussed. Given the solution to the position problem, a set of heuristics is developed for moving a six degree-of-freedom manipulator from an initial position to a final position through a space containing obstacles. This results in a computer program shown to be able to direct a manipulator around obstacles.
