Java 调用 WebService 服务的 3 种方式

虽然 WebService 这个框架已经过时，但是有些公司还在使用，在调用他们的服务的时候就不得不面对各种问题，本篇文章总结了最近我调用他司 WebService 的心路历程。3 种方式可以分别尝试，哪种能通用哪个。

soapui 下载地址：百度网盘、夸克网盘。

1. HttpClient

依赖：

        <!-- lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <!-- Apache Http httpclient_version-->
        <dependency>
            <groupId>org.apache.httpcomponents.client5</groupId>
            <artifactId>httpclient5</artifactId>
            <version>5.1.3</version>
        </dependency>

代码：

import lombok.extern.slf4j.Slf4j;
import org.apache.http.impl.client.HttpClientBuilder;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.entity.StringEntity;
import org.apache.http.HttpEntity;

@Slf4j
public class HttpClientUtil {
    /**
     * HttpClient 调用 WebService
     * @param wsUrl webService地址，格式：http://ip:port/xxx/xxx/soap?wsdl
     * @param json格式的入参
     * @return
     */
    public static String callServiceHC(String wsUrl, String jsonStr) {
        String xml = createSoapContent(jsonStr);
        String returnDatabase = doPostSoap(wsUrl, xml, "");
        log.info("returnDatabase===>{}", returnDatabase);
        return returnDatabase;
    }

    /**
     * 根据拼接 xml 字符串
     * @param input
     * @return
     */
    public static String createSoapContent(String jsonStr) {
        log.info("开始拼接请求报文");
        //开始拼接请求报文
        StringBuilder stringBuilder = new StringBuilder();
        stringBuilder.append("<soapenv:Envelope xmlns:soapenv=\"http://schemas.xmlsoap.org/soap/envelope/\" xmlns:zys=\"http://www.chenjy.com.cn/\">\n");
        stringBuilder.append("<soapenv:Header/>\n");
        stringBuilder.append("<soapenv:Body>\n");
        stringBuilder.append("<cjy:CallInterface>\n");
        stringBuilder.append("<cjy:msgHeader><![CDATA[\n");
        stringBuilder.append("<?xml version=\"1.0\" encoding=\"UTF-8\"?>\n");
        stringBuilder.append("<root>\n");
        stringBuilder.append("<serverName>getInfo</serverName>\n");
        stringBuilder.append("<format>xml</format>\n");
        stringBuilder.append("<callOperator>测试</callOperator>\n");
        stringBuilder.append("<certificate>AcsaoP21Lxw5KAoQu6SLs624bhGjwNL0DzxsQ9a7B/HbqNsPPcA==</certificate>\n");
        stringBuilder.append("</root>\n");
        stringBuilder.append("]]></cjy:msgHeader>\n");
        stringBuilder.append("<cjy:msgBody><![CDATA[\n");
        stringBuilder.append( jsonStr+ "\n");
        stringBuilder.append("]]></cjy:msgBody>\n");
        stringBuilder.append("</cjy:CallInterface>\n");
        stringBuilder.append("</soapenv:Body>\n");
        stringBuilder.append("</soapenv:Envelope>");
        log.info("拼接后的参数"+stringBuilder.toString());
        return stringBuilder.toString();
    }

    /**
     * HTTPClient 调用 WebService
     * @param url
     * @param soap
     * @param SOAPAction
     * @return
     */
    public static String doPostSoap(String url, String soap, String SOAPAction) {
        //请求体
        String retStr = "";
        // 创建HttpClientBuilder
        HttpClientBuilder httpClientBuilder = HttpClientBuilder.create();
        // HttpClient
        CloseableHttpClient closeableHttpClient = httpClientBuilder.build();
        HttpPost httpPost = new HttpPost(url);
        try {
            httpPost.setHeader("Content-Type", "text/xml;charset=UTF-8");
            httpPost.setHeader("SOAPAction", SOAPAction);
            StringEntity data = new StringEntity(soap,
                    Charset.forName("UTF-8"));
            httpPost.setEntity(data);
            CloseableHttpResponse response = closeableHttpClient
                    .execute(httpPost);
            HttpEntity httpEntity = response.getEntity();
            if (httpEntity != null) {
                // 打印响应内容
                retStr = EntityUtils.toString(httpEntity, "UTF-8");
            }
            // 释放资源
            closeableHttpClient.close();
        } catch (Exception e) {
            e.printStackTrace();
        }
        return retStr;
    }
}

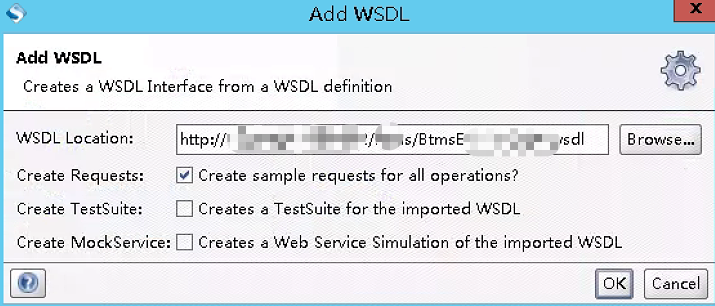

注意：拼接 xml 字符串的时候要根据实际的 WebService 地址拼接，可在 soapui 中导入 wsurl 获取到入参，如下：

把这些参数全部拼接进去：

补充：忽略 ssl 验证，调用WebService接口

    public static String sendPostByHttpsWithoutSSL(String url, String body,  String SOAPAction) {
        SSLConnectionSocketFactory sslConnectionSocketFactory = null;
        try {
            sslConnectionSocketFactory =
                    new SSLConnectionSocketFactory(SSLContexts.custom().loadTrustMaterial(null, new TrustStrategy() {
                        @Override
                        public boolean isTrusted(X509Certificate[] x509Certificates, String s) throws CertificateException {
                            return true;
                        }
                    }).build(), NoopHostnameVerifier.INSTANCE);
        }catch(NoSuchAlgorithmException | KeyManagementException | KeyStoreException e) {
            e.printStackTrace();
        }
        CloseableHttpClient httpClient = HttpClients.custom()
                .setSSLSocketFactory(sslConnectionSocketFactory)
                .build();
        //创建post方式请求对象
        HttpPost httpPost = new HttpPost(url);
        // 请求头设置
        httpPost.setHeader("Content-Type", "text/xml;charset=UTF-8");
        httpPost.setHeader("SOAPAction", SOAPAction);
        // 情求体设置
        if (body != null) {
            httpPost.setEntity(new StringEntity(body, "utf-8"));
        }
        CloseableHttpResponse response = null;
        //执行请求操作，并拿到结果
        try {
            response = httpClient.execute(httpPost);
            //获取结果实体
            HttpEntity entity = response.getEntity();
            String respBody;
            if (entity != null) {
                respBody = EntityUtils.toString(entity);
                return respBody;
            }
        } catch (IOException e) {

        }
        return null;
    }

2. Http post

依赖：

        <!-- lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <!-- jodd-http -->
        <dependency>
            <groupId>org.jodd</groupId>
            <artifactId>jodd-http</artifactId>
            <version>6.3.0</version>
        </dependency>

代码：

import lombok.extern.slf4j.Slf4j;
import jodd.http.*;

public class HttpPostUtil {
    /**
     * http post 调用 WebService
     * @param wsUrl
     * @param jsonStr
     * @return
     */
    public static String callServiceHP(String wsUrl, String jsonStr) {
        String xml = createSoapContent(jsonStr);
        String uploadFeeDetailJsonStr = postWs(wsUrl, xml);
        return uploadFeeDetailJsonStr;
    }

	/**
     * 根据拼接 xml 字符串
     * @param input
     * @return
     */
    public static String createSoapContent(String jsonStr) {
        log.info("开始拼接请求报文");
        //开始拼接请求报文
        StringBuilder stringBuilder = new StringBuilder();
        stringBuilder.append("<soapenv:Envelope xmlns:soapenv=\"http://schemas.xmlsoap.org/soap/envelope/\" xmlns:zys=\"http://www.chenjy.com.cn/\">\n");
        stringBuilder.append("<soapenv:Header/>\n");
        stringBuilder.append("<soapenv:Body>\n");
        stringBuilder.append("<cjy:CallInterface>\n");
        stringBuilder.append("<cjy:msgHeader><![CDATA[\n");
        stringBuilder.append("<?xml version=\"1.0\" encoding=\"UTF-8\"?>\n");
        stringBuilder.append("<root>\n");
        stringBuilder.append("<serverName>getInfo</serverName>\n");
        stringBuilder.append("<format>xml</format>\n");
        stringBuilder.append("<callOperator>测试</callOperator>\n");
        stringBuilder.append("<certificate>AcsaoP21Lxw5KAoQu6SLs624bhGjwNL0DzxsQ9a7B/HbqNsPPcA==</certificate>\n");
        stringBuilder.append("</root>\n");
        stringBuilder.append("]]></cjy:msgHeader>\n");
        stringBuilder.append("<cjy:msgBody><![CDATA[\n");
        stringBuilder.append( jsonStr+ "\n");
        stringBuilder.append("]]></cjy:msgBody>\n");
        stringBuilder.append("</cjy:CallInterface>\n");
        stringBuilder.append("</soapenv:Body>\n");
        stringBuilder.append("</soapenv:Envelope>");
        log.info("拼接后的参数"+stringBuilder.toString());
        return stringBuilder.toString();
    }

    /**
     * 调用 webService
     * @param url
     * @param jsonStr
     * @return
     */
    public static String postWs(String url, String jsonStr) {
        HttpResponse resp = HttpRequest.post(url).connectionTimeout(60000).timeout(60000)
                .contentType("application/xml", StandardCharsets.UTF_8.toString())
                .header("SOAPAction","")
                .bodyText(jsonStr, "application/xml", "utf-8")
                .charset(StandardCharsets.UTF_8.toString()).trustAllCerts(true)
                .send();
        resp.charset(StandardCharsets.UTF_8.toString());
        return resp.bodyText();
    }
}

3. cxf

因为我用 cxf 调不通，所以就在这里就直接奉上其他博主的调用案例：
https://blog.csdn.net/qq_20161461/article/details/116237450
