基于centos7.9部署CICD持续化集成

安装GitLab环境

在Kubernetes.集群中新建命名空间kube-ops,，将GitLab 部署到该命名空间下，Deployment和Service名称均为gitlab，以NodePort方式将80端口对外暴露为30880，设置GitLab服务root用户的密码为admin123456。

上传镜像

[root@k8s-master-node1 cicd-runner]# docker load -i images/image.tar

[root@k8s-master-node1 cicd-runner]# kubectl create namespace kube-ops
namespace/kube-ops created

a[root@k8s-master-node1 cicd-runner]# cat gitlab.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: gitlab
  namespace: kube-ops
spec:
  selector:
    matchLabels:
      app: gitlab
  replicas: 1
  template:
    metadata:
      labels:
        app: gitlab
    spec:
      containers:
      - name: gitlab
        image: yidaoyun/gitlab-ce:v1.0
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 80
        env:
        - name: GITLAB_ROOT_PASSWORD
          value: "admin123456"
---
apiVersion: v1
kind: Service
metadata:
  name: gitlab
  namespace: kube-ops
spec:
  type: NodePort
  ports:
  - port: 80
    targetPort: 80
    nodePort: 30880
  selector:
    app: gitlab

[root@k8s-master-node1 cicd-runner]# kubectl apply -f gitlab.yaml
deployment.apps/gitlab created
service/gitlab created

查看暴露的端口

[root@k8s-master-node1 cicd-runner]# kubectl get svc -n kube-ops
NAME     TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)        AGE
gitlab   NodePort   10.96.215.60   <none>        80:30880/TCP   84s

浏览器访问

部署GitLab Runner

在Kubernetes集群kube-ops命名空间下使用StatefulSet资源对象完成GitLab Runner的部署，StatefulSet名称为gitlabcirunner，副本数为2，并完成GitLab Runner在GitLab中的注册。

为了完成 GitLab Runner 在 GitLab 中的注册，您需要在 GitLab 界面上创建一个项目，并获取该项目的注册令牌。将此令牌更新到 YAML 文件中的 REGISTRATION_TOKEN 环境变量中，以便在 GitLab Runner 容器启动时自动注册

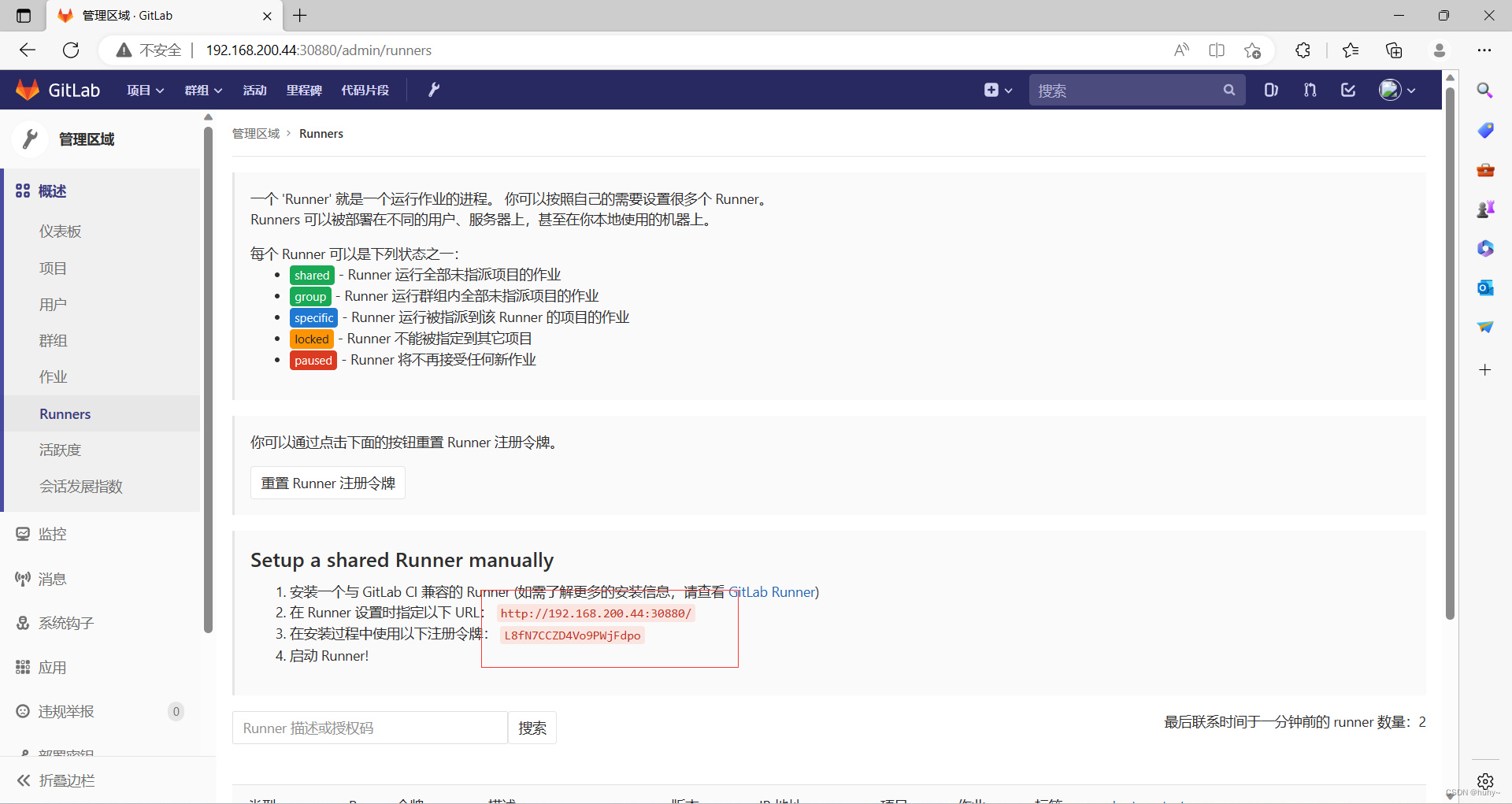

查看runner注册令牌

将token转码

[root@k8s-master-node1 manifests]# echo L8fN7CCZD4Vo9PWjFdpo | base64 -w0
TDhmTjdDQ1pENFZvOVBXakZkcG8K[root@k8s-master-node1 manifests]#

[root@k8s-master-node1 manifests]# cat gitlab-ci-token-secret.yaml
apiVersion: v1
kind: Secret
metadata:
  name: gitlab-ci-token
  namespace: kube-ops
  labels:
    app: gitlab-ci-runner
data:
  GITLAB_CI_TOKEN: TDhmTjdDQ1pENFZvOVBXakZkcG8K

修改资源清单配置文件，CI_SERVER_URL对应的值需要指向我们的 Gitlab 实例的 URL，且需要手动添加

[root@k8s-master-node1 manifests]# cat runner-configmap.yaml
apiVersion: v1
data:
  REGISTER_NON_INTERACTIVE: "true"
  REGISTER_LOCKED: "false"
  METRICS_SERVER: "0.0.0.0:9100"
  CI_SERVER_URL: "http://192.168.200.44:30880/"
  RUNNER_REQUEST_CONCURRENCY: "4"
  RUNNER_EXECUTOR: "kubernetes"
  KUBERNETES_NAMESPACE: "kube-ops"
  KUBERNETES_PRIVILEGED: "true"
  KUBERNETES_CPU_LIMIT: "1"
  KUBERNETES_CPU_REQUEST: "500m"
  KUBERNETES_MEMORY_LIMIT: "1Gi"
  KUBERNETES_SERVICE_CPU_LIMIT: "1"
  KUBERNETES_SERVICE_MEMORY_LIMIT: "1Gi"
  KUBERNETES_HELPER_CPU_LIMIT: "500m"
  KUBERNETES_HELPER_MEMORY_LIMIT: "100Mi"
  KUBERNETES_PULL_POLICY: "if-not-present"
  KUBERNETES_TERMINATIONGRACEPERIODSECONDS: "10"
  KUBERNETES_POLL_INTERVAL: "5"
  KUBERNETES_POLL_TIMEOUT: "360"
kind: ConfigMap
metadata:
  labels:
    app: gitlab-ci-runner
  name: gitlab-ci-runner-cm
  namespace: kube-ops

此脚本文件不需要修改

[root@k8s-master-node1 manifests]# cat runner-scripts-configmap.yaml
apiVersion: v1
data:
  run.sh: |
    #!/bin/bash
    unregister() {
        kill %1
        echo "Unregistering runner ${RUNNER_NAME} ..."
        /usr/bin/gitlab-ci-multi-runner unregister -t "$(/usr/bin/gitlab-ci-multi-runner list 2>&1 | tail -n1 | awk '{print $4}' | cut -d'=' -f2)" -n ${RUNNER_NAME}
        exit $?
    }
    trap 'unregister' EXIT HUP INT QUIT PIPE TERM
    echo "Registering runner ${RUNNER_NAME} ..."
    /usr/bin/gitlab-ci-multi-runner register -r ${GITLAB_CI_TOKEN}
    sed -i 's/^concurrent.*/concurrent = '"${RUNNER_REQUEST_CONCURRENCY}"'/' /home/gitlab-runner/.gitlab-runner/config.toml
    echo "Starting runner ${RUNNER_NAME} ..."
    /usr/bin/gitlab-ci-multi-runner run -n ${RUNNER_NAME} &
    wait
kind: ConfigMap
metadata:
  labels:
    app: gitlab-ci-runner
  name: gitlab-ci-runner-scripts
  namespace: kube-ops

使用envFrom来指定Secrets和ConfigMaps来用作环境变量，对应的资源清单文件如下：(runner-statefulset.yaml)

[root@k8s-master-node1 manifests]# cat runner-statefulset.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: gitlab-ci-runner
  namespace: kube-ops
  labels:
    app: gitlab-ci-runner
spec:
  selector:
    matchLabels:
      app: gitlab-ci-runner
  updateStrategy:
    type: RollingUpdate
  replicas: 2
  serviceName: gitlab-ci-runner
  template:
    metadata:
      labels:
        app: gitlab-ci-runner
    spec:
      volumes:
        - name: gitlab-ci-runner-scripts
          projected:
            sources:
              - configMap:
                  name: gitlab-ci-runner-scripts
                  items:
                    - key: run.sh
                      path: run.sh
                      mode: 0755
      serviceAccountName: gitlab-ci
      securityContext:
        runAsNonRoot: true
        runAsUser: 999
        supplementalGroups: [999]
      containers:
        - image: gitlab/gitlab-runner:latest
          name: gitlab-ci-runner
          command:
            - /scripts/run.sh
          envFrom:
            - configMapRef:
                name: gitlab-ci-runner-cm
            - secretRef:
                name: gitlab-ci-token
          env:
            - name: RUNNER_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
          ports:
            - containerPort: 9100
              name: http-metrics
              protocol: TCP
          volumeMounts:
            - name: gitlab-ci-runner-scripts
              mountPath: "/scripts"
              readOnly: true
      restartPolicy: Always
[root@k8s-master-node1 manifests]#

[root@k8s-master-node1 manifests]# cat runner-rbac.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: gitlab-ci
  namespace: kube-ops
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: gitlab-ci
  namespace: kube-ops
rules:
  - apiGroups: [""]
    resources: ["*"]
    verbs: ["*"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: gitlab-ci
  namespace: kube-ops
subjects:
  - kind: ServiceAccount
    name: gitlab-ci
    namespace: kube-ops
roleRef:
  kind: Role
  name: gitlab-ci
  apiGroup: rbac.authorization.k8s.io

[root@k8s-master-node1 manifests]# ls
gitlab-ci-token-secret.yaml  runner-rbac.yaml               runner-statefulset.yaml
runner-configmap.yaml        runner-scripts-configmap.yaml

[root@k8s-master-node1 manifests]# kubectl apply -f .
secret/gitlab-ci-token unchanged
configmap/gitlab-ci-runner-cm unchanged
serviceaccount/gitlab-ci unchanged
role.rbac.authorization.k8s.io/gitlab-ci unchanged
rolebinding.rbac.authorization.k8s.io/gitlab-ci unchanged
configmap/gitlab-ci-runner-scripts unchanged
statefulset.apps/gitlab-ci-runner unchanged

[root@k8s-master-node1 manifests]# kubectl get pod -n kube-ops
NAME                      READY   STATUS    RESTARTS        AGE
gitlab-6b5c9dd9bc-pvzdb   1/1     Running   1 (3h23m ago)   13h
gitlab-ci-runner-0        1/1     Running   0               173m
gitlab-ci-runner-1        1/1     Running   0               172m

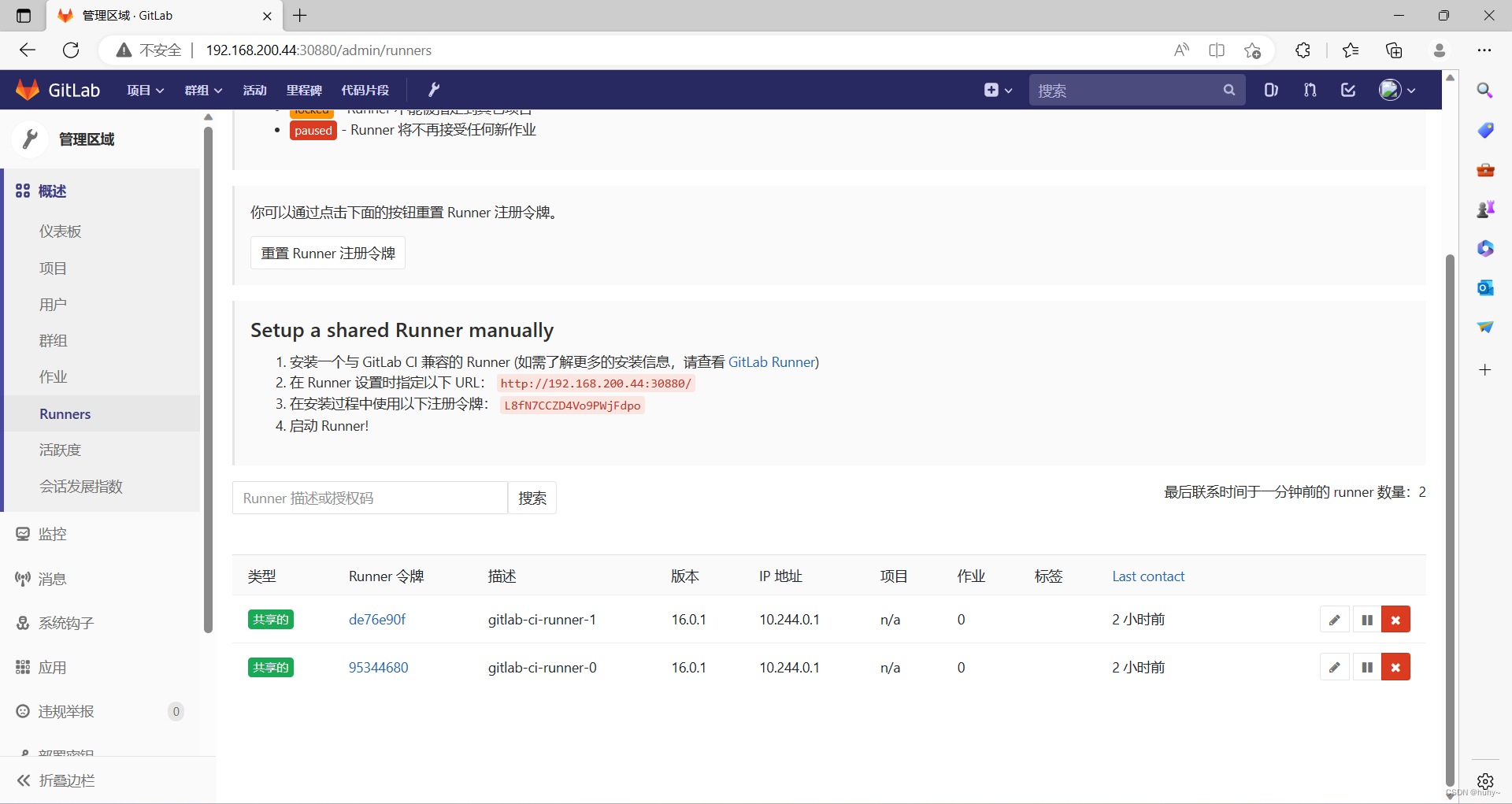

界面验证

配置GitLab

在GitLab中新建公开项目springcloud，然后将Kubemetes集群添加到GitLab中，项目命名空间选择kube-ops。

查看集群api地址

[root@k8s-master-node1 cicd-runner]# kubectl cluster-info
Kubernetes control plane is running at https://apiserver.cluster.local:6443
CoreDNS is running at https://apiserver.cluster.local:6443/api/v1/namespaces/kube-system/services/kube-dns:dns/proxy

查看集群ca证书命令

[root@k8s-master-node1 cicd-runner]# kubectl config view --raw -o json | jq -r '.clusters[] | select(.name == "kubernetes") | .cluster."certificate-authority-data"' | base64 --decode
-----BEGIN CERTIFICATE-----
MIIC/jCCAeagAwIBAgIBADANBgkqhkiG9w0BAQsFADAVMRMwEQYDVQQDEwprdWJl
cm5ldGVzMB4XDTIzMDQwODEzMDAzOFoXDTMzMDQwNTEzMDAzOFowFTETMBEGA1UE
AxMKa3ViZXJuZXRlczCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBAL6s
SEDhofKKKmmpepRlfdZvEhahRjBBMZfGwgBdufRd2Bfn8ShuW3GFG11NcQaKLp+W
S+X2Mi2kwM4vmYLJyaFhpsICu6n8p5QduZF9DX7dpoHTIXqnZu1xnuK7o/AaB8Rt
yBLVQnqRD77ycvuJBwIyxIwu4aYNwEVvGA3pSevhZw7hGHXzVwoPtjRnqqx/GrLU
CYTFBMChyzwBTC2UyR1e5bYrE6DXEgM5KhqPNPKY96J/slENRGLbdPy9sSLMoIz9
Du6BKe4i/6bjtAcbYMyg8bLiLT4ReIryP+/pfXuP6cuS66P+W2NhnwMP7/D/3srB
eFyixpF9wRXghEJFCPECAwEAAaNZMFcwDgYDVR0PAQH/BAQDAgKkMA8GA1UdEwEB
/wQFMAMBAf8wHQYDVR0OBBYEFN1GWdadKcduIifNv6Fop8gqLpC0MBUGA1UdEQQO
MAyCCmt1YmVybmV0ZXMwDQYJKoZIhvcNAQELBQADggEBABnGMNphZPreqgJ38jXp
dPEKKqekpEVTKROyjosKb9Yk1KQkHL6iIr0bxlb+XUhYx1O5gLqS6QWkC5nP1Xsa
V4HD3BBxedMZFkEPvW07FCQHwY77AgkfERS41Qfm739SO3soaq442rzqwbJQa3u9
26mWLoGvhy8tqj89gN2zXEZbHZvwJU78AbOG6tc62/5UuHm9TK/D0TePTU5db5IH
HCP+3n1jWajobRG6YvMlbxEIAt1Dq4ui25cEYmQ6Et2Tgt5AHlHoU/fYvYs3nPG1
hpSsjfg2pkoSrFgyvZZF8ZyooZZC0k81nVVj71Z3HJx/au6LiCff/pNi0v+TKsGX
R/I=
-----END CERTIFICATE-----

查看令牌

 kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep gitlab | awk '{print $1}')

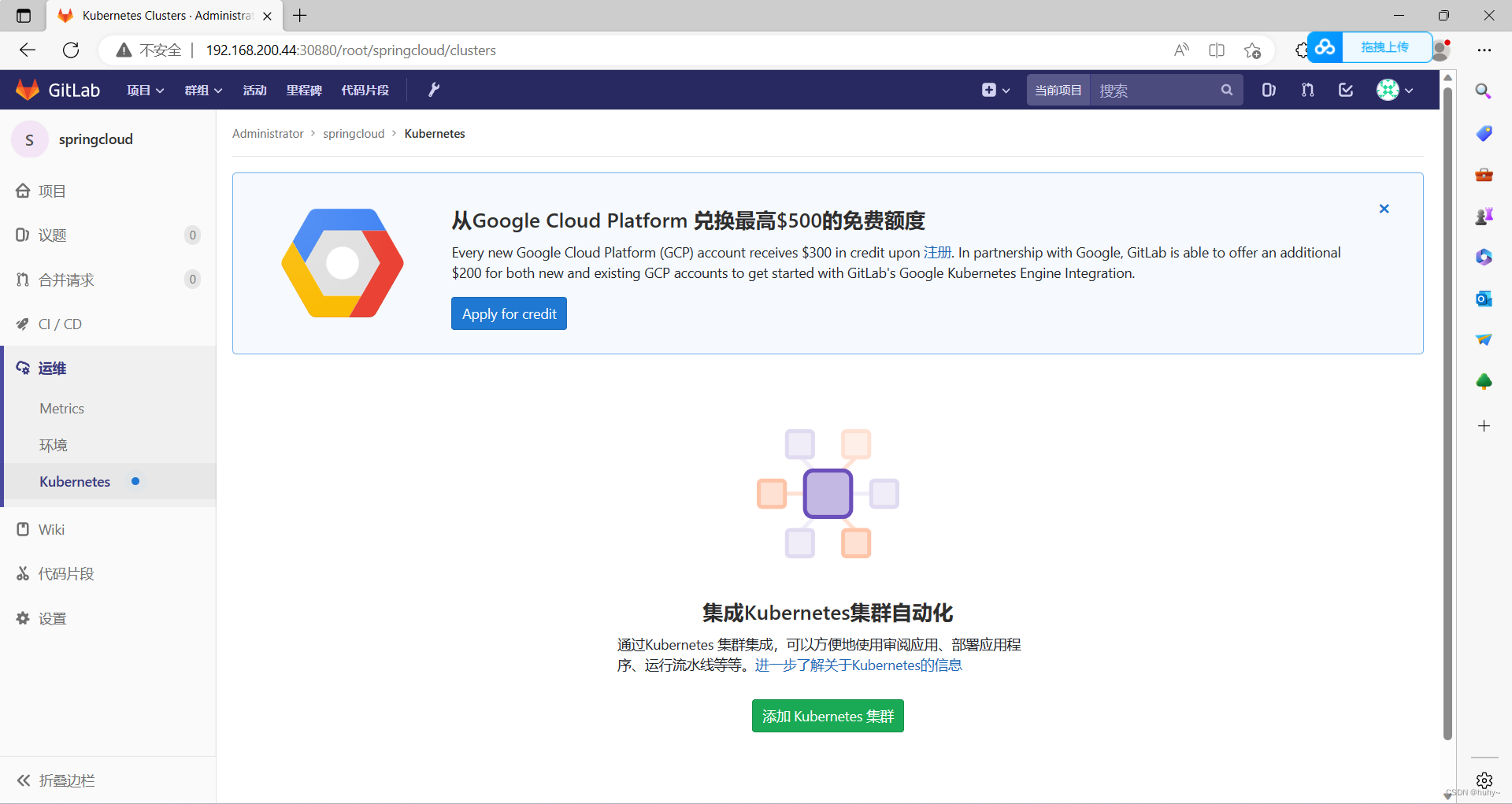

kubernetes集群设置

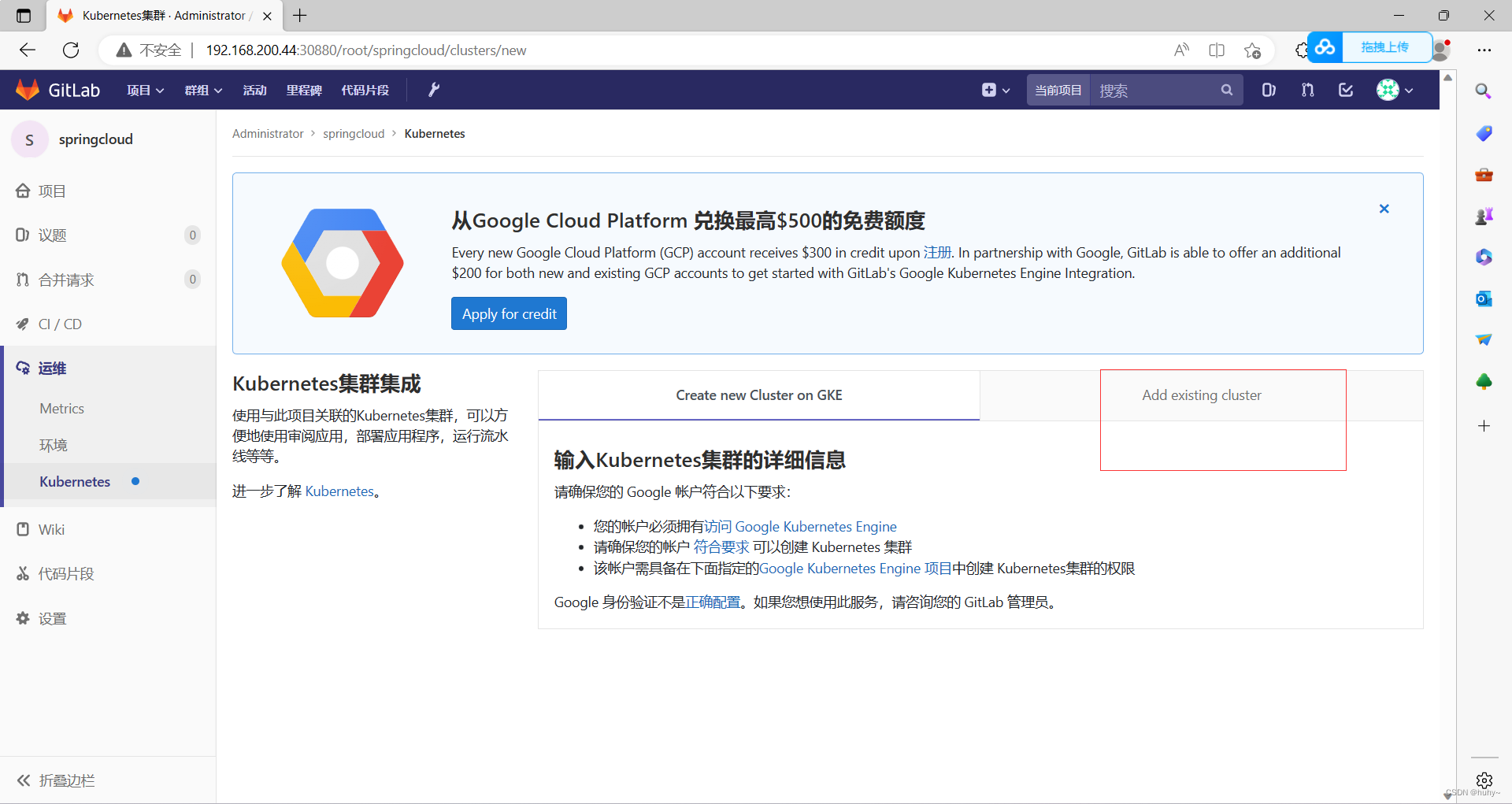

创建集群

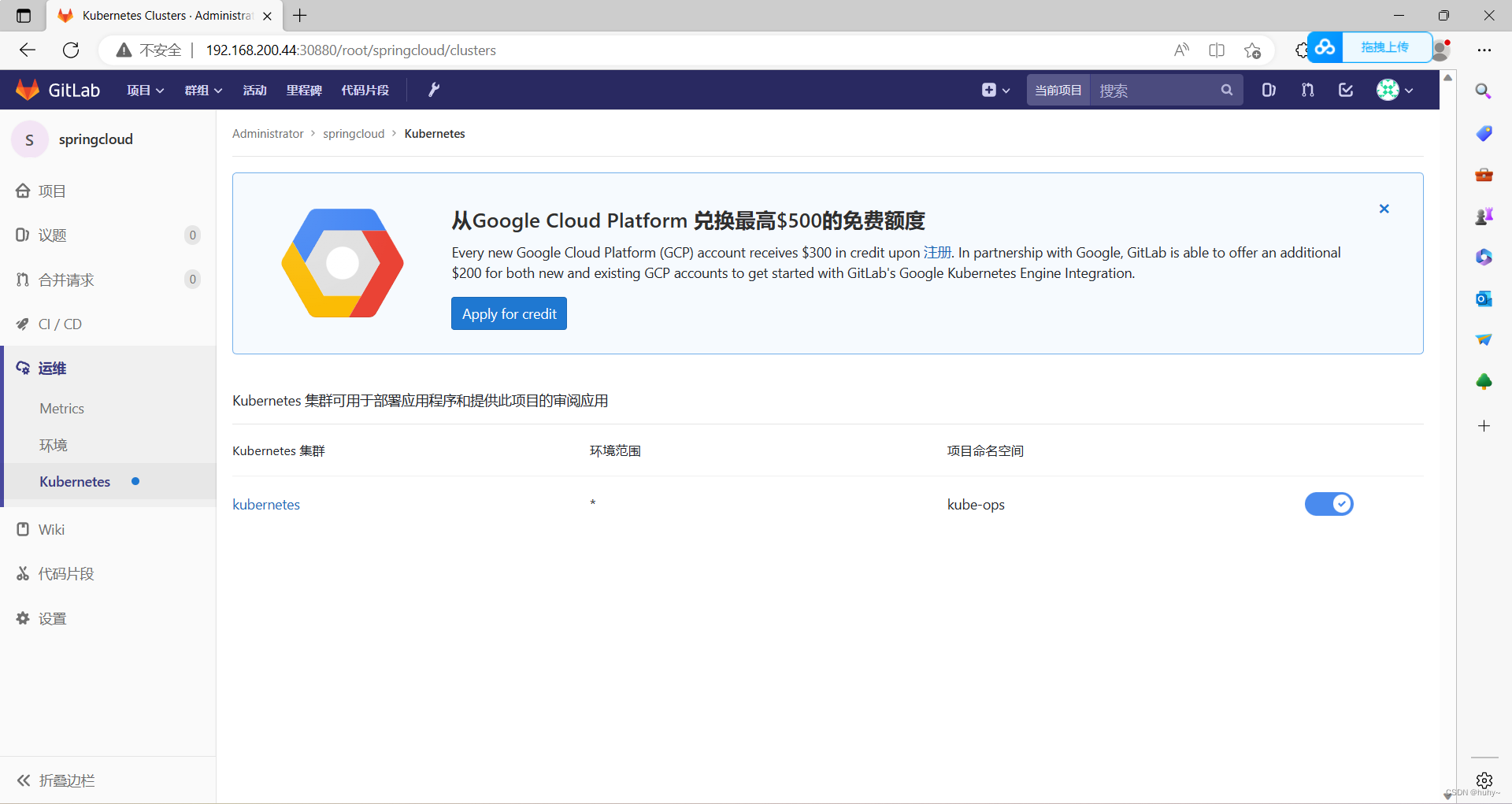

集群添加成功

构建CICD

将提供的代码推送到GilLab项目springcloud中，编写流水线脚本, gitlab-ci. yml触发自动构建，要求完成构建代码、构建镜像springcloud:master、推送镜像到library项目并发布服务到gitlab命名空间下
