java实现excel文件转成图片

一、引入依赖

<!-- Apache POI -->
<dependency>
    <groupId>org.apache.poi</groupId>
    <artifactId>poi</artifactId>
    <version>4.1.2</version> <!-- 使用最新版本 -->
</dependency>
<dependency>
    <groupId>org.apache.poi</groupId>
    <artifactId>poi-ooxml</artifactId>
    <version>5.0.0</version>
</dependency>

二、创建一个ExcelToImage文件

import org.apache.poi.hssf.usermodel.HSSFWorkbook;
import org.apache.poi.ss.usermodel.*;
import org.apache.poi.xssf.usermodel.XSSFWorkbook;

import javax.imageio.ImageIO;
import java.awt.*;
import java.awt.Color;
import java.awt.Font;
import java.awt.image.BufferedImage;
import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;

public class ExcelToImage {

    public static void main(String[] args) throws IOException {
        String excelFilePath = "E:\\test\\11\\1.xls";
        String imageFilePath = "E:\\test\\11\\1.png";
        convertExcelToImage(excelFilePath, imageFilePath);
    }

    public static void convertExcelToImage(String excelFilePath, String imageFilePath) throws IOException {
        FileInputStream fis = new FileInputStream(new File(excelFilePath));
        Workbook workbook;
        if (excelFilePath.endsWith(".xls")) {
            workbook = new HSSFWorkbook(fis); // For Excel 97-2003 (.xls) format
        } else if (excelFilePath.endsWith(".xlsx")) {
            workbook = new XSSFWorkbook(fis); // For Excel 2007 and later (.xlsx) format
        } else {
            throw new IllegalArgumentException("Unsupported file type");
        }
        Sheet sheet = workbook.getSheetAt(0);

        int rowCount = sheet.getPhysicalNumberOfRows();
        int colCount = sheet.getRow(0).getPhysicalNumberOfCells();

        BufferedImage image = new BufferedImage(896, 424, BufferedImage.TYPE_INT_RGB);
        Graphics2D graphics = image.createGraphics();
        for (int i = 0; i < rowCount; i++) {
            Row row = sheet.getRow(i);
            for (int j = 0; j < colCount; j++) {
                if(i==0){
                    graphics.setFont(new Font("宋体", Font.PLAIN, 16));
                }else {
                    graphics.setFont(new Font("宋体", Font.PLAIN, 12));
                }
                Cell cell = row.getCell(j);
                if (cell != null) {
                    if(j==0&&i==0){
                        graphics.setColor(new Color(20,91,133)); // 设置背景颜色
                    }
                    if((j==0&&i!=0)||(j!=0&&i==0)){
                        graphics.setColor(new Color(48,119,163)); // 设置背景颜色
                    }
                    if(j!=0&&i!=0){
                        graphics.setColor(new Color(89,142,176)); // 设置背景颜色
                    }
                    graphics.fillRect(j*150, i*47, 896, 424);
                    graphics.setColor(Color.WHITE); // 设置边框颜色
                    graphics.drawRect(j*150, i*47, 896, 424);
                    String cellValue = getCellValueAsString(cell);
                    graphics.drawString(cellValue, j * 150+10, i * 45+30);
                }
            }
        }

        graphics.dispose();
        ImageIO.write(image, "png", new File(imageFilePath));
        workbook.close();
        fis.close();
    }

    private static String getCellValueAsString(Cell cell) {
        String cellValue = "";
        if (cell != null) {
            switch (cell.getCellType()) {
                case STRING:
                    cellValue = cell.getStringCellValue();
                    break;
                case NUMERIC:
                    cellValue = String.valueOf(cell.getNumericCellValue());
                    break;
                case BOOLEAN:
                    cellValue = String.valueOf(cell.getBooleanCellValue());
                    break;
                case FORMULA:
                    cellValue = cell.getCellFormula();
                    break;
                default:
                    cellValue = "";
            }
        }
        return cellValue;
    }
}

三、生成效果

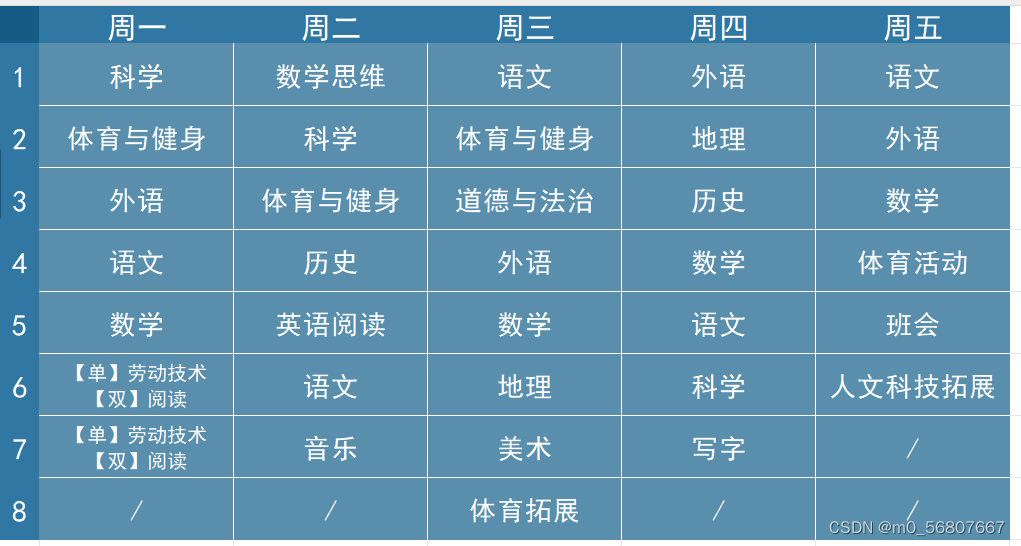

excel

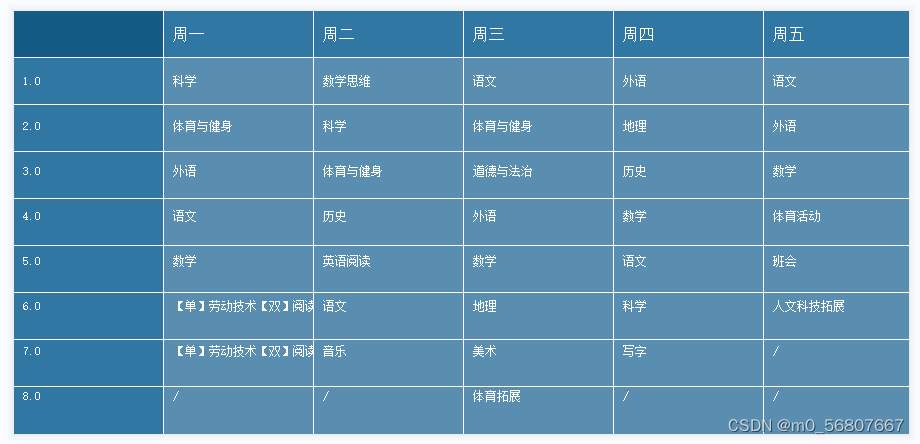

生成效果
