Prometheus+Grafana 监控MongoDB

已于 2025-05-28 11:26:08 修改
阅读量587 收藏 15
点赞数 16
文章标签： prometheus grafana mongodb
于 2025-05-28 11:12:21 首次发布
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.csdn.net/m0_58409545/article/details/148221704
版权

介绍：

已亲测，适配MongoDB 4.0 7.0 8.0版本

版本说明：

prometheus：2.55.0                mongodb_exporter：0.11.2                grafana：11.2.0

目录

Grafana监控效果:

一、部署Prometheus

1、下载、验证

2、解压安装

3、创建用户

4、授权

5、编写prometheus配置文件

6、编写prometheus的服务单元文件

7、 启动 Prometheus

二、安装 MongoDB Exporter(MongoDB 实例节点)

1、下载验证

2、添加grafana用户（所有节点）

3、解压安装

4、编写mongodb_exporter 启动单元

参数讲解：

单实例

多实例：

5、对（.service 文件）添加了可执行权限

6、启动

7、常见报错

三、编写文件服务发现配置

四、配置grafana

1、导入数据源

2、配置grafana模版

1）、下载模版

2）、上传模版

3、grafana的使用

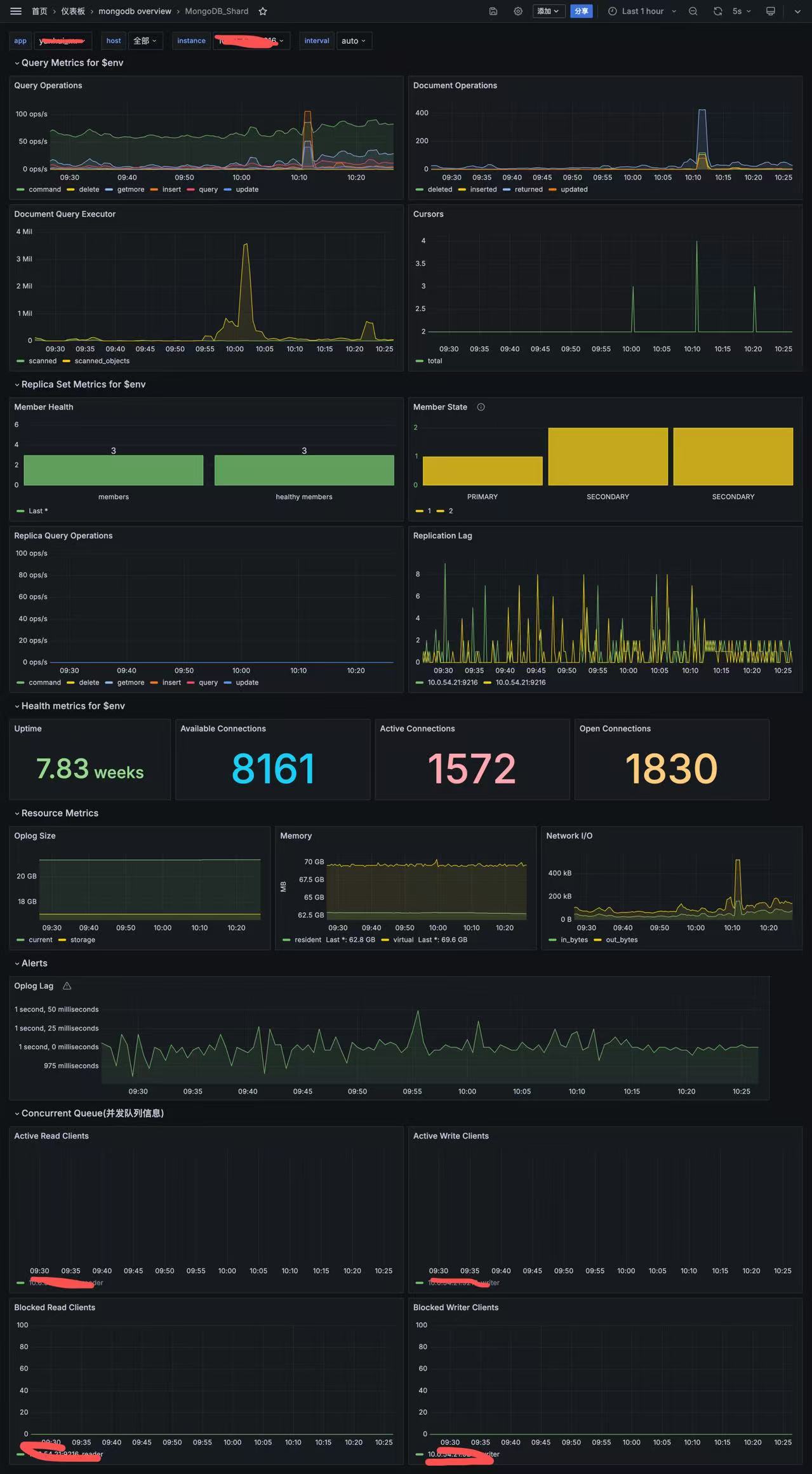

Grafana监控效果:

一、部署Prometheus

1、下载、验证

# 下载
wget https://github.com/prometheus/prometheus/releases/download/v2.55.0/prometheus-2.55.0.linux-amd64.tar.gz


# 使用 sha256sum 命令来生成并验证下载文件的哈希值
sha256sum prometheus-2.55.0.linux-amd64.tar.gz

2、解压安装

tar xvf prometheus-2.55.0.linux-amd64.tar.gz
sudo mv prometheus-2.55.0.linux-amd64 /opt/prometheus

3、创建用户


# 添加用户（所有节点）

chattr -i /etc/passwd /etc/shadow /etc/group /etc/gshadow
sudo useradd -rs /bin/false prometheus
chattr +i /etc/passwd /etc/shadow /etc/group /etc/gshadow

4、授权

# 授权
mkdir -p /opt/prometheus/data
sudo chown -R prometheus:prometheus /opt/prometheus
sudo chmod -R 755 /opt/prometheus

5、编写prometheus配置文件

vim /opt/prometheus/prometheus.yml

# my global config
global:
  scrape_interval: 15s # 全局抓取间隔，默认为15秒，适用于所有job，除非在job级别覆盖
scrape_configs:
  - job_name: "mongodb_exporter" # 定义job名称
    scrape_timeout: 15s # 抓取超时时间，可选，默认使用全局配置
    #basic_auth: # 基本认证信息，目前被注释掉了
    #  username: admin
    #  password: admin
    file_sd_configs: # 文件服务发现配置
    - files:
      - "/usr/local/prometheus/db_nodes/mongodb_exporter.yml" # 指定的文件路径，Prometheus将从这里读取targets

6、编写prometheus的服务单元文件

注：

user、group 为上面步骤3创建的用户组

ExecStart 为prometheus的二进制可执行文件和配置文件

vim /etc/systemd/system/prometheus.service

[Unit]
Description=Prometheus Monitoring
After=network.target
[Service]
User=prometheus
Group=prometheus
Type=simple
ExecStart=/opt/prometheus/prometheus --config.file=/opt/prometheus/prometheus.yml
Restart=always
[Install]
WantedBy=multi-user.target

7、 启动 Prometheus

sudo systemctl daemon-reload
sudo systemctl restart prometheus
sudo systemctl enable prometheus

二、安装 MongoDB Exporter(MongoDB 实例节点)

推荐使用0.11.2版本，其他版本grafana无法适配

1、下载验证

#官网

https://github.com/percona/mongodb_exporter/tree/0.11.2

wget
https://github.com/percona/mongodb_exporter/releases/download/v0.11.2/mongodb_exporter-0.11.2.linux-amd64.tar.gz

sha256sum mongodb_exporter-0.11.2.linux-amd64.tar.gz
06c586a86468c6f14dcd31f2cffbb90a1fbdf7d8861b69ba64d7fa2e38eb403b  mongodb_exporter-0.11.2.linux-amd64.tar.gz

2、添加grafana用户（所有节点）

chattr -i /etc/passwd /etc/shadow /etc/group /etc/gshadow
sudo useradd -rs /bin/false mongodb_exporter
chattr +i /etc/passwd /etc/shadow /etc/group /etc/gshadow

3、解压安装

mkdir -p /opt/mongodb_exporter
tar xvf mongodb_exporter-0.11.2.linux-amd64.tar.gz -C /opt/mongodb_exporter
mv /opt/mongodb_exporter/mongodb_exporter /usr/local/bin/

4、编写mongodb_exporter 启动单元

参数讲解：

mongodb.uri=mongodb://admin:admin@localhost:27001

# 这是监控27001端口的，admin为user和passwd，需要确认好，mongo能正常登录，单独创建账户最好

user、group

# 为上面步骤2创建的用户组

web.listen-address=:9216

# 指定 Web 服务监听地址和端口

单实例

vim /etc/systemd/system/mongodb_exporter.service

[Unit]
Description=Prometheus MongoDB Exporter
Documentation=https://github.com/percona/mongodb_exporter
After=network.target

[Service]
Type=simple

User=mongodb_exporter
Group=mongodb_exporter

#EnvironmentFile=/etc/default/mongodb_exporter
ExecStart=/usr/local/bin/mongodb_exporter --mongodb.uri=mongodb://admin:admin:27001/admin?authSource=admin
--web.listen-address=:9216
SyslogIdentifier=mongodb_exporter

Restart=always

[Install]
WantedBy=multi-user.target

多实例：

注：单台机器分片集群（多实例）

有route：20000、configs：21000、shard1：27001、shard2：27002、shard3：27003多个实例

那就需要些多个启动单元,route这个我这边是没有添加监控，你们需要可以单独配置添加

如：

# config
vim /etc/systemd/system/mongodb_exporter_config.service

[Unit]
Description=Prometheus MongoDB Exporter
Documentation=https://github.com/percona/mongodb_exporter
After=network.target

[Service]
Type=simple

User=mongodb_exporter
Group=mongodb_exporter

#EnvironmentFile=/etc/default/mongodb_exporter
ExecStart=/usr/local/bin/mongodb_exporter --mongodb.uri=mongodb://admin:admin@localhost:21000/admin?authSource=admin
--web.listen-address=:9215
SyslogIdentifier=mongodb_exporter_config

Restart=always

[Install]
WantedBy=multi-user.target



# shard1
vim /etc/systemd/system/mongodb_exporter_shard1.service

[Unit]
Description=Prometheus MongoDB Exporter
Documentation=https://github.com/percona/mongodb_exporter
After=network.target

[Service]
Type=simple

User=mongodb_exporter
Group=mongodb_exporter

#EnvironmentFile=/etc/default/mongodb_exporter
ExecStart=/usr/local/bin/mongodb_exporter --mongodb.uri=mongodb://admin:admin@localhost:27001/admin?authSource=admin
--web.listen-address=:9216
SyslogIdentifier=mongodb_exporter_shard2

Restart=always

[Install]
WantedBy=multi-user.target

# shard2
vim /etc/systemd/system/mongodb_exporter_shard2.service

[Unit]
Description=Prometheus MongoDB Exporter
Documentation=https://github.com/percona/mongodb_exporter
After=network.target

[Service]
Type=simple

User=mongodb_exporter
Group=mongodb_exporter

#EnvironmentFile=/etc/default/mongodb_exporter
ExecStart=/usr/local/bin/mongodb_exporter --mongodb.uri=mongodb://admin:admin@localhost:27002/admin?authSource=admin
--web.listen-address=:9217
SyslogIdentifier=mongodb_exporter_shard2

Restart=always

[Install]
WantedBy=multi-user.target

# shard3
vim /etc/systemd/system/mongodb_exporter_shard2.service

[Unit]
Description=Prometheus MongoDB Exporter
Documentation=https://github.com/percona/mongodb_exporter
After=network.target

[Service]
Type=simple

User=mongodb_exporter
Group=mongodb_exporter

#EnvironmentFile=/etc/default/mongodb_exporter
ExecStart=/usr/local/bin/mongodb_exporter --mongodb.uri=mongodb://admin:admin@localhost:27003/admin?authSource=admin
--web.listen-address=:9218
SyslogIdentifier=mongodb_exporter_shard3

Restart=always

[Install]
WantedBy=multi-user.target

5、对（.service 文件）添加了可执行权限

chmod +x /etc/systemd/system/mongodb_exporter.service
chmod +x /etc/systemd/system/mongodb_exporter_configs.service
chmod +x /etc/systemd/system/mongodb_exporter_shard1.service
chmod +x /etc/systemd/system/mongodb_exporter_shard2.service
chmod +x /etc/systemd/system/mongodb_exporter_shard3.service

6、启动

注：根据自己的启动单元文件启动

sudo systemctl daemon-reload
sudo systemctl restart mongodb_exporter.service
sudo systemctl enable mongodb_exporter.service
sudo systemctl status mongodb_exporter.service

sudo systemctl daemon-reload
sudo systemctl restart mongodb_exporter_configs.service
sudo systemctl enable mongodb_exporter_configs.service
sudo systemctl status mongodb_exporter_configs.service

sudo systemctl daemon-reload
sudo systemctl restart mongodb_exporter_shard1.service
sudo systemctl enable mongodb_exporter_shard1.service
sudo systemctl status mongodb_exporter_shard1.service

sudo systemctl daemon-reload
sudo systemctl restart mongodb_exporter_shard2.service
sudo systemctl enable mongodb_exporter_shard2.service
sudo systemctl status mongodb_exporter_shard2.service


sudo systemctl daemon-reload
sudo systemctl restart mongodb_exporter_shard3.service
sudo systemctl enable mongodb_exporter_shard3.service
sudo systemctl status mongodb_exporter_shard3.service

7、常见报错

1）、防火墙没开，对应的端口需要放开，对prometheus机器

如：9216 需对prometheus部署的机器放开

2）、用户没有创建

User=mongodb_exporter
Group=mongodb_exporter

3）、mongodb无法连接

检查账户密码，端口，测试连接成功后

4）、端口被占用

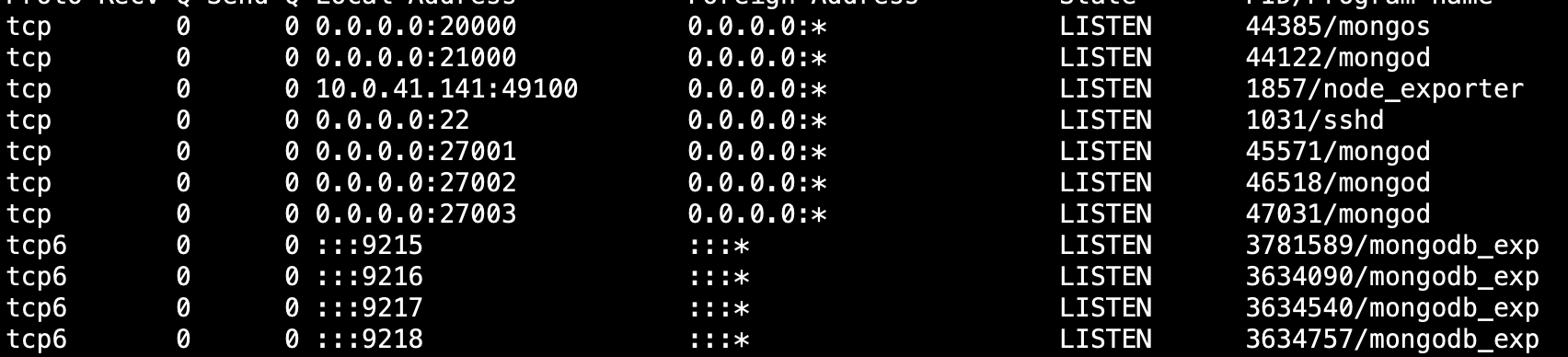

检查9216这些端口有没有被占用

netstat -luntp

三、编写文件服务发现配置

注：

  • app: test：表示项目名称为 test，用于标识目标所属的项目，方便在 Prometheus 或 Grafana 中按项目过滤数据。
  • host: 192.168.30.30：标识目标所在的主机 IP。
  • instance: shard1_27001：标识具体的 MongoDB 实例，是一个分片（shard1），端口 27001。
vim /usr/local/prometheus/db_nodes/mongodb_exporter.yml


- targets:
    - 192.168.30.30:9216
  labels:
    app: test
    host: 192.168.30.30
    instance: shard1_27001
- targets:
    - 192.168.30.30:9217
  labels:
    app: test
    host: 192.168.30.30
    instance: shard2_27002
- targets:
    - 192.168.30.30:9218
  labels:
    app: test
    host: 192.168.30.30
    instance: shard3_27003
- targets:
    - 192.168.30.30:9215
  labels:
    app: test
    host: 192.168.30.30
    instance: configs_21000

四、配置grafana

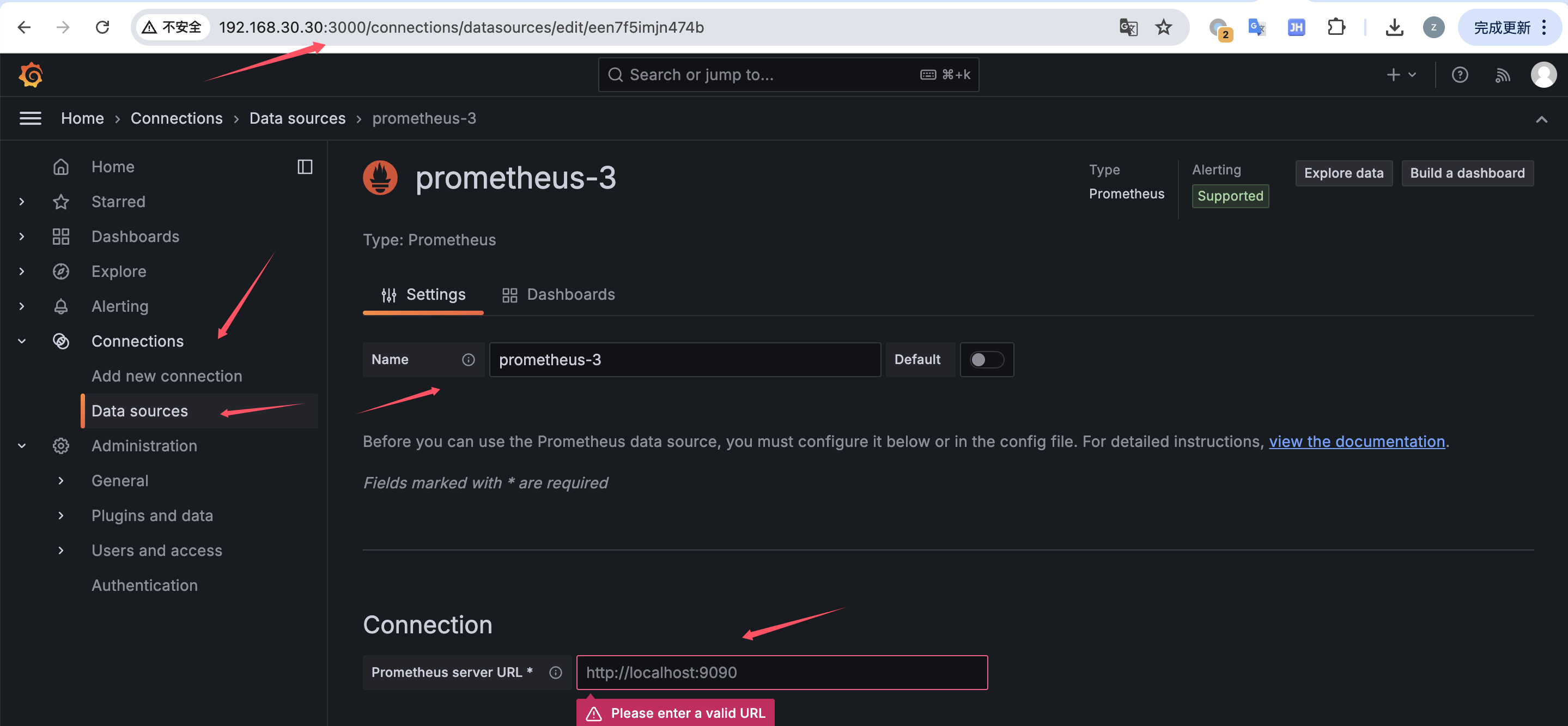

1、导入数据源

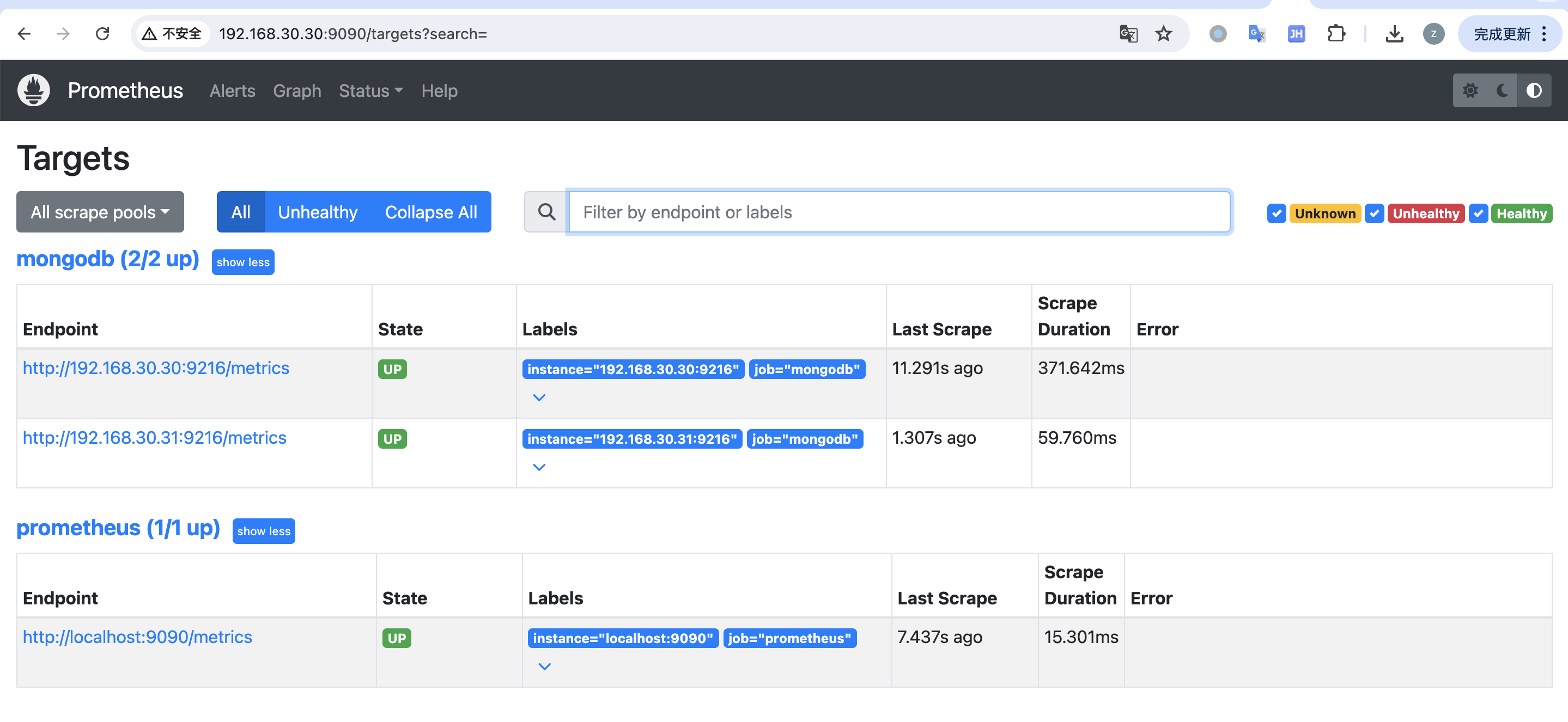

注：url为prometheus.yml 的ip+port  我用的localhost:9090，可以去这个网址检查是否都正常

URL: http://192.168.30.30:9090/

然后划到最下面，保存即可

2、配置grafana模版

1）、下载模版

第一种是：我附近上传的模版（或者在文章底部），我是引用官方的（2583），然后结合自己的需求添加了些参数监控

第二种：直接输入官方的id即可，见图二，load前面

2）、上传模版

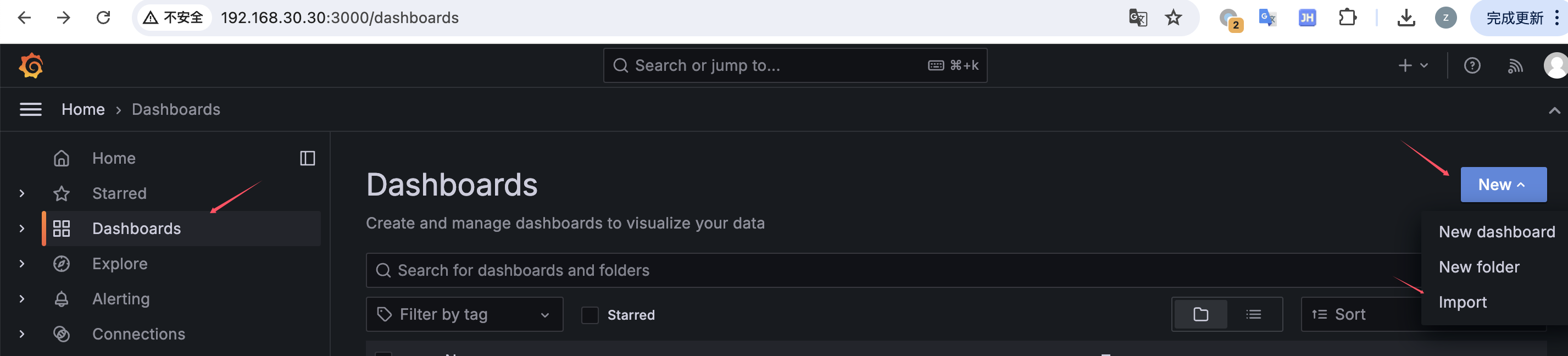

图一：

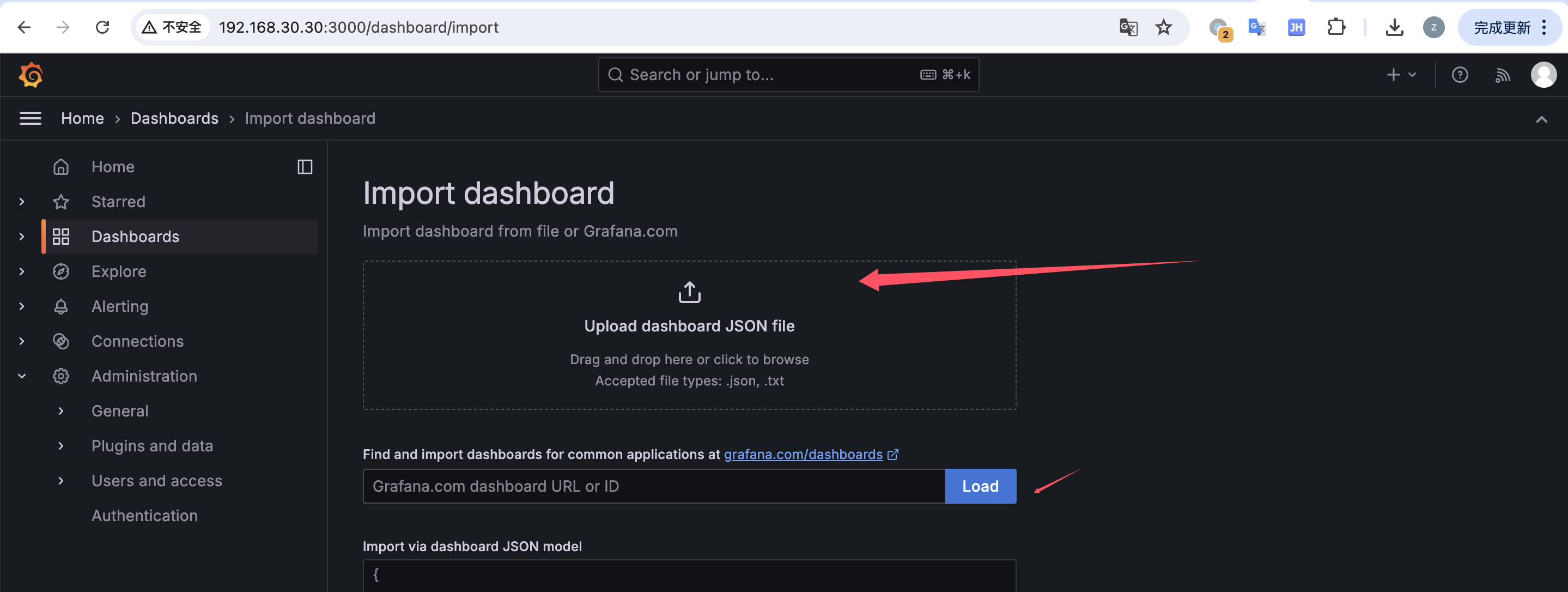

图二：

3、grafana的使用

用app来区分不同的项目

用host来区分不同的主机

用instance来区分不同的实例

json模版：

{
  "__inputs": [
    {
      "name": "DS_DB",
      "label": "DB",
      "description": "",
      "type": "datasource",
      "pluginId": "prometheus",
      "pluginName": "Prometheus"
    },
    {
      "name": "DS_ALL",
      "label": "All",
      "description": "",
      "type": "datasource",
      "pluginId": "prometheus",
      "pluginName": "Prometheus"
    }
  ],
  "__elements": {},
  "__requires": [
    {
      "type": "panel",
      "id": "barchart",
      "name": "Bar chart",
      "version": ""
    },
    {
      "type": "grafana",
      "id": "grafana",
      "name": "Grafana",
      "version": "10.4.1"
    },
    {
      "type": "datasource",
      "id": "prometheus",
      "name": "Prometheus",
      "version": "1.0.0"
    },
    {
      "type": "panel",
      "id": "stat",
      "name": "Stat",
      "version": ""
    },
    {
      "type": "panel",
      "id": "timeseries",
      "name": "Time series",
      "version": ""
    }
  ],
  "annotations": {
    "list": [
      {
        "builtIn": 1,
        "datasource": {
          "type": "datasource",
          "uid": "grafana"
        },
        "enable": true,
        "hide": true,
        "iconColor": "rgba(0, 211, 255, 1)",
        "name": "Annotations & Alerts",
        "type": "dashboard"
      }
    ]
  },
  "description": "MongoDB Prometheus Exporter Dashboard. A fork inspired from https://grafana.com/grafana/dashboards/2583 which is made to work well with https://github.com/percona/mongodb_exporter.",
  "editable": true,
  "fiscalYearStartMonth": 0,
  "gnetId": 12079,
  "graphTooltip": 1,
  "id": null,
  "links": [],
  "panels": [
    {
      "collapsed": false,
      "datasource": {
        "type": "prometheus",
        "uid": "celj61hpy49ogb"
      },
      "gridPos": {
        "h": 1,
        "w": 24,
        "x": 0,
        "y": 0
      },
      "id": 20,
      "panels": [],
      "repeat": "env",
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "celj61hpy49ogb"
          },
          "refId": "A"
        }
      ],
      "title": "Query Metrics for $env",
      "type": "row"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 10,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "insertNulls": false,
            "lineInterpolation": "linear",
            "lineWidth": 1,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "never",
            "spanNulls": false,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          },
          "unit": "ops"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 6,
        "w": 12,
        "x": 0,
        "y": 1
      },
      "id": 7,
      "options": {
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": true
        },
        "tooltip": {
          "mode": "multi",
          "sort": "none"
        }
      },
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "exemplar": false,
          "expr": "rate(mongodb_op_counters_total{app=~\"$app\", host=~\"$host\", instance=~\"$instance\"}[$interval])",
          "format": "time_series",
          "instant": false,
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "{{type}}",
          "range": true,
          "refId": "A",
          "step": 240
        }
      ],
      "title": "Query Operations",
      "type": "timeseries"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 10,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "insertNulls": false,
            "lineInterpolation": "linear",
            "lineWidth": 1,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "never",
            "spanNulls": false,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          },
          "unit": "short"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 6,
        "w": 12,
        "x": 12,
        "y": 1
      },
      "id": 9,
      "options": {
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": true
        },
        "tooltip": {
          "mode": "multi",
          "sort": "none"
        }
      },
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "expr": "rate(mongodb_mongod_metrics_document_total{app=~\"$app\", host=~\"$host\", instance=~\"$instance\"}[$interval])",
          "format": "time_series",
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "{{state}}",
          "range": true,
          "refId": "A",
          "step": 240
        }
      ],
      "title": "Document Operations",
      "type": "timeseries"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 10,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "insertNulls": false,
            "lineInterpolation": "linear",
            "lineWidth": 1,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "never",
            "spanNulls": false,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          },
          "unit": "short"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 8,
        "w": 12,
        "x": 0,
        "y": 7
      },
      "id": 8,
      "options": {
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": true
        },
        "tooltip": {
          "mode": "multi",
          "sort": "none"
        }
      },
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "expr": "rate(mongodb_mongod_metrics_query_executor_total{app=~\"$app\", host=~\"$host\", instance=~\"$instance\"}[$interval])",
          "format": "time_series",
          "hide": false,
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "{{state}}",
          "range": true,
          "refId": "A",
          "step": 600
        }
      ],
      "title": "Document Query Executor",
      "type": "timeseries"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 0,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "insertNulls": false,
            "lineInterpolation": "linear",
            "lineWidth": 1,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "auto",
            "spanNulls": false,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": []
      },
      "gridPos": {
        "h": 8,
        "w": 12,
        "x": 12,
        "y": 7
      },
      "id": 68,
      "options": {
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": true
        },
        "tooltip": {
          "mode": "single",
          "sort": "none"
        }
      },
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "expr": "mongodb_mongod_metrics_cursor_open{state=\"total\",app=~\"$app\", host=~\"$host\", instance=~\"$instance\"}",
          "instant": false,
          "legendFormat": "{{state}}",
          "range": true,
          "refId": "A"
        },
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "expr": "mongodb_mongod_metrics_cursor_open{state=\"noTimeout\",instance=~\"$env\"}",
          "hide": false,
          "instant": false,
          "legendFormat": "{{state}}",
          "range": true,
          "refId": "B"
        }
      ],
      "title": "Cursors",
      "type": "timeseries"
    },
    {
      "collapsed": false,
      "datasource": {
        "type": "prometheus",
        "uid": "celj61hpy49ogb"
      },
      "gridPos": {
        "h": 1,
        "w": 24,
        "x": 0,
        "y": 15
      },
      "id": 21,
      "panels": [],
      "repeat": "env",
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "celj61hpy49ogb"
          },
          "refId": "A"
        }
      ],
      "title": "Replica Set Metrics for $env",
      "type": "row"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_ALL}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "",
            "axisPlacement": "auto",
            "fillOpacity": 80,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "lineWidth": 1,
            "scaleDistribution": {
              "type": "linear"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": []
      },
      "gridPos": {
        "h": 6,
        "w": 12,
        "x": 0,
        "y": 16
      },
      "id": 15,
      "options": {
        "barRadius": 0,
        "barWidth": 0.97,
        "fullHighlight": false,
        "groupWidth": 0.7,
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": true
        },
        "orientation": "auto",
        "showValue": "auto",
        "stacking": "none",
        "tooltip": {
          "mode": "single",
          "sort": "none"
        },
        "xTickLabelRotation": 0,
        "xTickLabelSpacing": 0
      },
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_ALL}"
          },
          "editorMode": "code",
          "exemplar": false,
          "expr": "mongodb_mongod_replset_number_of_members{app=~\"$app\", host=~\"$host\", instance=~\"$instance\"}",
          "format": "time_series",
          "instant": true,
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "members",
          "range": false,
          "refId": "A",
          "step": 600
        },
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_ALL}"
          },
          "editorMode": "code",
          "expr": "sum(mongodb_mongod_replset_number_of_members{app=~\"$app\", host=~\"$host\", instance=~\"$instance\"})",
          "format": "time_series",
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "healthy members",
          "range": true,
          "refId": "B",
          "step": 600
        }
      ],
      "title": "Member Health",
      "transformations": [
        {
          "id": "reduce",
          "options": {
            "reducers": [
              "current"
            ]
          }
        }
      ],
      "type": "barchart"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "description": "See which node is currently acting as the primary, secondary, ...",
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "series",
            "axisLabel": "",
            "axisPlacement": "auto",
            "fillOpacity": 80,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "lineWidth": 1,
            "scaleDistribution": {
              "type": "linear"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": []
      },
      "gridPos": {
        "h": 6,
        "w": 12,
        "x": 12,
        "y": 16
      },
      "id": 14,
      "options": {
        "barRadius": 0,
        "barWidth": 0.97,
        "colorByField": "Last *",
        "fullHighlight": false,
        "groupWidth": 0.7,
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": true
        },
        "orientation": "auto",
        "showValue": "auto",
        "stacking": "none",
        "text": {},
        "tooltip": {
          "maxWidth": -6,
          "mode": "single",
          "sort": "none"
        },
        "xTickLabelRotation": 0,
        "xTickLabelSpacing": 0
      },
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "exemplar": false,
          "expr": "mongodb_mongod_replset_member_state{app=~\"$app\", host=~\"$host\", instance=~\"$instance\"}",
          "format": "time_series",
          "instant": true,
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "{{state}}",
          "range": false,
          "refId": "A",
          "step": 240
        }
      ],
      "title": "Member State",
      "transformations": [
        {
          "id": "reduce",
          "options": {
            "reducers": [
              "current"
            ]
          }
        }
      ],
      "type": "barchart"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 10,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "insertNulls": false,
            "lineInterpolation": "linear",
            "lineWidth": 1,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "never",
            "spanNulls": false,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          },
          "unit": "ops"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 8,
        "w": 12,
        "x": 0,
        "y": 22
      },
      "id": 11,
      "options": {
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": true
        },
        "tooltip": {
          "mode": "multi",
          "sort": "none"
        }
      },
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "expr": "rate(mongodb_op_counters_repl_total{app=~\"$app\", host=~\"$host\", instance=~\"$instance\"}[$interval])",
          "format": "time_series",
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "{{type}}",
          "range": true,
          "refId": "A",
          "step": 600
        }
      ],
      "title": "Replica Query Operations",
      "type": "timeseries"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 0,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "insertNulls": false,
            "lineInterpolation": "linear",
            "lineWidth": 1,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "auto",
            "spanNulls": false,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": []
      },
      "gridPos": {
        "h": 8,
        "w": 12,
        "x": 12,
        "y": 22
      },
      "id": 69,
      "options": {
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": true
        },
        "tooltip": {
          "mode": "single",
          "sort": "none"
        }
      },
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "expr": "mongodb_mongod_replset_member_replication_lag{app=~\"$app\", host=~\"$host\", instance=~\"$instance\"}",
          "instant": false,
          "legendFormat": "{{instance}}",
          "range": true,
          "refId": "A"
        }
      ],
      "title": "Replication Lag",
      "type": "timeseries"
    },
    {
      "collapsed": false,
      "datasource": {
        "type": "prometheus",
        "uid": "celj61hpy49ogb"
      },
      "gridPos": {
        "h": 1,
        "w": 24,
        "x": 0,
        "y": 30
      },
      "id": 22,
      "panels": [],
      "repeat": "env",
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "celj61hpy49ogb"
          },
          "refId": "A"
        }
      ],
      "title": "Health metrics for $env",
      "type": "row"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "fixedColor": "light-green",
            "mode": "fixed"
          },
          "mappings": [
            {
              "options": {
                "match": "null",
                "result": {
                  "text": "N/A"
                }
              },
              "type": "special"
            }
          ],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "rgba(245, 54, 54, 0.9)",
                "value": null
              },
              {
                "color": "rgba(237, 129, 40, 0.89)",
                "value": 0
              },
              {
                "color": "rgba(50, 172, 45, 0.97)",
                "value": 360
              }
            ]
          },
          "unit": "s"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 4,
        "w": 5,
        "x": 0,
        "y": 31
      },
      "id": 10,
      "maxDataPoints": 100,
      "options": {
        "colorMode": "value",
        "graphMode": "none",
        "justifyMode": "auto",
        "orientation": "horizontal",
        "percentChangeColorMode": "standard",
        "reduceOptions": {
          "calcs": [
            "lastNotNull"
          ],
          "fields": "",
          "values": false
        },
        "showPercentChange": false,
        "text": {
          "titleSize": 4
        },
        "textMode": "auto",
        "wideLayout": true
      },
      "pluginVersion": "10.4.1",
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "exemplar": false,
          "expr": "mongodb_instance_uptime_seconds{app=~\"$app\", host=~\"$host\", instance=~\"$instance\"}",
          "format": "time_series",
          "instant": true,
          "intervalFactor": 2,
          "legendFormat": "",
          "range": false,
          "refId": "A",
          "step": 1800
        }
      ],
      "title": "Uptime",
      "type": "stat"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "fixedColor": "#19cef7",
            "mode": "fixed"
          },
          "mappings": [
            {
              "options": {
                "match": "null",
                "result": {
                  "text": "N/A"
                }
              },
              "type": "special"
            }
          ],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          },
          "unit": "none"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 4,
        "w": 6,
        "x": 5,
        "y": 31
      },
      "id": 2,
      "maxDataPoints": 100,
      "options": {
        "colorMode": "value",
        "graphMode": "area",
        "justifyMode": "auto",
        "orientation": "horizontal",
        "percentChangeColorMode": "standard",
        "reduceOptions": {
          "calcs": [
            "mean"
          ],
          "fields": "",
          "values": false
        },
        "showPercentChange": false,
        "text": {
          "titleSize": 3
        },
        "textMode": "value",
        "wideLayout": true
      },
      "pluginVersion": "10.4.1",
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "exemplar": false,
          "expr": "mongodb_connections{app=~\"$app\", host=~\"$host\", instance=~\"$instance\",state=\"available\"}",
          "format": "time_series",
          "instant": true,
          "intervalFactor": 2,
          "legendFormat": "",
          "metric": "mongodb_connections",
          "range": false,
          "refId": "A",
          "step": 1800
        }
      ],
      "title": "Available Connections",
      "type": "stat"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "fixedColor": "super-light-red",
            "mode": "fixed"
          },
          "mappings": [
            {
              "options": {
                "match": "null",
                "result": {
                  "text": "N/A"
                }
              },
              "type": "special"
            }
          ],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          },
          "unit": "none"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 4,
        "w": 6,
        "x": 11,
        "y": 31
      },
      "id": 70,
      "maxDataPoints": 100,
      "options": {
        "colorMode": "value",
        "graphMode": "area",
        "justifyMode": "auto",
        "orientation": "horizontal",
        "percentChangeColorMode": "standard",
        "reduceOptions": {
          "calcs": [
            "first"
          ],
          "fields": "",
          "values": false
        },
        "showPercentChange": false,
        "textMode": "auto",
        "wideLayout": true
      },
      "pluginVersion": "10.4.1",
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "exemplar": false,
          "expr": "mongodb_connections{app=~\"$app\", host=~\"$host\", instance=~\"$instance\",state=\"active\"}",
          "format": "time_series",
          "instant": true,
          "intervalFactor": 2,
          "legendFormat": "",
          "metric": "mongodb_connections",
          "range": false,
          "refId": "A",
          "step": 1800
        }
      ],
      "title": "Active Connections",
      "type": "stat"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "fixedColor": "super-light-orange",
            "mode": "fixed"
          },
          "mappings": [
            {
              "options": {
                "match": "null",
                "result": {
                  "text": "N/A"
                }
              },
              "type": "special"
            }
          ],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          },
          "unit": "none"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 4,
        "w": 6,
        "x": 17,
        "y": 31
      },
      "hideTimeOverride": false,
      "id": 1,
      "maxDataPoints": 100,
      "options": {
        "colorMode": "value",
        "graphMode": "area",
        "justifyMode": "auto",
        "orientation": "horizontal",
        "percentChangeColorMode": "standard",
        "reduceOptions": {
          "calcs": [
            "first"
          ],
          "fields": "",
          "values": false
        },
        "showPercentChange": false,
        "textMode": "auto",
        "wideLayout": true
      },
      "pluginVersion": "10.4.1",
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "exemplar": false,
          "expr": "mongodb_connections{app=~\"$app\", host=~\"$host\", instance=~\"$instance\",state=\"current\"}",
          "format": "time_series",
          "instant": true,
          "intervalFactor": 2,
          "legendFormat": "",
          "metric": "mongodb_connections",
          "range": false,
          "refId": "A",
          "step": 1800
        }
      ],
      "title": "Open Connections",
      "type": "stat"
    },
    {
      "collapsed": false,
      "datasource": {
        "type": "prometheus",
        "uid": "celj61hpy49ogb"
      },
      "gridPos": {
        "h": 1,
        "w": 24,
        "x": 0,
        "y": 35
      },
      "id": 23,
      "panels": [],
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "celj61hpy49ogb"
          },
          "refId": "A"
        }
      ],
      "title": "Resource Metrics",
      "type": "row"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 10,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "insertNulls": false,
            "lineInterpolation": "linear",
            "lineWidth": 1,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "never",
            "spanNulls": false,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          },
          "unit": "decbytes"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 6,
        "w": 8,
        "x": 0,
        "y": 36
      },
      "id": 6,
      "options": {
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": true
        },
        "tooltip": {
          "mode": "multi",
          "sort": "none"
        }
      },
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "expr": "mongodb_mongod_replset_oplog_size_bytes{app=~\"$app\", host=~\"$host\", instance=~\"$instance\"}",
          "format": "time_series",
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "{{type}}",
          "metric": "mongodb_locks_time_acquiring_global_microseconds_total",
          "range": true,
          "refId": "A",
          "step": 240
        }
      ],
      "title": "Oplog Size",
      "type": "timeseries"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "MB",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 10,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "insertNulls": false,
            "lineInterpolation": "linear",
            "lineWidth": 1,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "never",
            "spanNulls": false,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          },
          "unit": "decmbytes"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 6,
        "w": 8,
        "x": 8,
        "y": 36
      },
      "id": 4,
      "options": {
        "legend": {
          "calcs": [
            "lastNotNull"
          ],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": true
        },
        "tooltip": {
          "mode": "single",
          "sort": "none"
        }
      },
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "expr": "mongodb_memory{app=~\"$app\", host=~\"$host\", instance=~\"$instance\",type=~\"resident|virtual\"}",
          "format": "time_series",
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "{{type}}",
          "range": true,
          "refId": "A",
          "step": 240
        }
      ],
      "title": "Memory",
      "type": "timeseries"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 10,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "insertNulls": false,
            "lineInterpolation": "linear",
            "lineWidth": 1,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "never",
            "spanNulls": false,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          },
          "unit": "decbytes"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 6,
        "w": 8,
        "x": 16,
        "y": 36
      },
      "id": 5,
      "options": {
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": true
        },
        "tooltip": {
          "mode": "multi",
          "sort": "none"
        }
      },
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "expr": "rate(mongodb_network_bytes_total{app=~\"$app\", host=~\"$host\", instance=~\"$instance\"}[$interval])",
          "format": "time_series",
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "{{state}}",
          "metric": "mongodb_metrics_operation_total",
          "range": true,
          "refId": "A",
          "step": 240
        }
      ],
      "title": "Network I/O",
      "type": "timeseries"
    },
    {
      "collapsed": false,
      "datasource": {
        "type": "prometheus",
        "uid": "celj61hpy49ogb"
      },
      "gridPos": {
        "h": 1,
        "w": 24,
        "x": 0,
        "y": 42
      },
      "id": 24,
      "panels": [],
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "celj61hpy49ogb"
          },
          "refId": "A"
        }
      ],
      "title": "Alerts",
      "type": "row"
    },
    {
      "alert": {
        "conditions": [
          {
            "evaluator": {
              "params": [
                300
              ],
              "type": "gt"
            },
            "operator": {
              "type": "and"
            },
            "query": {
              "params": [
                "A",
                "15m",
                "now"
              ]
            },
            "reducer": {
              "params": [],
              "type": "avg"
            },
            "type": "query"
          }
        ],
        "executionErrorState": "keep_state",
        "frequency": "60s",
        "handler": 1,
        "message": "A MongoDB oplog replication has been 5 minutes behind in its replication for more than 15 minutes.\nBeing able to fail over to a replica of your data is only useful if the data is up to date, so you need to know when that’s no longer the case!",
        "name": "MongoDB Oplog lag alert",
        "noDataState": "no_data",
        "notifications": [
          {
            "id": 2
          }
        ]
      },
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 10,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "insertNulls": false,
            "lineInterpolation": "linear",
            "lineWidth": 1,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "never",
            "spanNulls": false,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "line+area"
            }
          },
          "decimals": 1,
          "fieldMinMax": true,
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "transparent",
                "value": null
              },
              {
                "color": "red",
                "value": 300
              }
            ]
          },
          "unit": "dtdurations"
        },
        "overrides": []
      },
      "gridPos": {
        "h": 6,
        "w": 23,
        "x": 0,
        "y": 43
      },
      "id": 16,
      "options": {
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": false
        },
        "tooltip": {
          "mode": "multi",
          "sort": "none"
        }
      },
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "exemplar": false,
          "expr": "rate(mongodb_mongod_replset_oplog_head_timestamp{app=~\"$app\", host=~\"$host\", instance=~\"$instance\"}[5m])",
          "format": "time_series",
          "hide": false,
          "instant": false,
          "interval": "",
          "intervalFactor": 2,
          "legendFormat": "__auto",
          "range": true,
          "refId": "A",
          "step": 240
        }
      ],
      "title": "Oplog Lag",
      "type": "timeseries"
    },
    {
      "collapsed": false,
      "gridPos": {
        "h": 1,
        "w": 24,
        "x": 0,
        "y": 49
      },
      "id": 51,
      "panels": [],
      "title": "Concurrent Queue(并发队列信息)",
      "type": "row"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 0,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "insertNulls": false,
            "lineInterpolation": "linear",
            "lineWidth": 1,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "auto",
            "spanNulls": false,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [
            {
              "options": {
                "reader": {
                  "index": 0,
                  "text": "reader"
                }
              },
              "type": "value"
            }
          ],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": [
          {
            "__systemRef": "hideSeriesFrom",
            "matcher": {
              "id": "byNames",
              "options": {
                "mode": "exclude",
                "names": [
                  "{__name__=\"mongodb_mongod_global_lock_current_queue\", instance=\"192.168.30.30:9216\", job=\"mongodb\", type=\"reader\"}"
                ],
                "prefix": "All except:",
                "readOnly": true
              }
            },
            "properties": [
              {
                "id": "custom.hideFrom",
                "value": {
                  "legend": false,
                  "tooltip": false,
                  "viz": true
                }
              }
            ]
          }
        ]
      },
      "gridPos": {
        "h": 8,
        "w": 12,
        "x": 0,
        "y": 50
      },
      "id": 38,
      "options": {
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": true
        },
        "tooltip": {
          "mode": "single",
          "sort": "none"
        }
      },
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "expr": "mongodb_mongod_global_lock_current_queue{type=\"reader\",app=~\"$app\", host=~\"$host\", instance=~\"$instance\"}",
          "instant": false,
          "legendFormat": "{{instance}}_{{type}}",
          "range": true,
          "refId": "A"
        }
      ],
      "title": "Active Read Clients",
      "type": "timeseries"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 0,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "insertNulls": false,
            "lineInterpolation": "linear",
            "lineWidth": 1,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "auto",
            "spanNulls": false,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [
            {
              "options": {
                "reader": {
                  "index": 0,
                  "text": "reader"
                }
              },
              "type": "value"
            }
          ],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": [
          {
            "__systemRef": "hideSeriesFrom",
            "matcher": {
              "id": "byNames",
              "options": {
                "mode": "exclude",
                "names": [
                  "{__name__=\"mongodb_mongod_global_lock_current_queue\", instance=\"192.168.30.30:9216\", job=\"mongodb\", type=\"reader\"}"
                ],
                "prefix": "All except:",
                "readOnly": true
              }
            },
            "properties": [
              {
                "id": "custom.hideFrom",
                "value": {
                  "legend": false,
                  "tooltip": false,
                  "viz": true
                }
              }
            ]
          }
        ]
      },
      "gridPos": {
        "h": 8,
        "w": 12,
        "x": 12,
        "y": 50
      },
      "id": 64,
      "options": {
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": true
        },
        "tooltip": {
          "mode": "single",
          "sort": "none"
        }
      },
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "expr": "mongodb_mongod_global_lock_current_queue{type=\"writer\",app=~\"$app\", host=~\"$host\", instance=~\"$instance\"}",
          "hide": false,
          "instant": false,
          "legendFormat": "{{instance}}_{{type}}",
          "range": true,
          "refId": "B"
        }
      ],
      "title": "Active Write Clients",
      "type": "timeseries"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 0,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "insertNulls": false,
            "lineInterpolation": "linear",
            "lineWidth": 1,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "auto",
            "spanNulls": false,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": []
      },
      "gridPos": {
        "h": 8,
        "w": 12,
        "x": 0,
        "y": 58
      },
      "id": 65,
      "options": {
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": true
        },
        "tooltip": {
          "mode": "single",
          "sort": "none"
        }
      },
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "expr": "mongodb_mongod_global_lock_current_queue{type=\"reader\",app=~\"$app\", host=~\"$host\", instance=~\"$instance\"}",
          "instant": false,
          "legendFormat": "{{instance}}_{{type}}",
          "range": true,
          "refId": "A"
        }
      ],
      "title": "Blocked Read Clients",
      "type": "timeseries"
    },
    {
      "datasource": {
        "type": "prometheus",
        "uid": "${DS_DB}"
      },
      "fieldConfig": {
        "defaults": {
          "color": {
            "mode": "palette-classic"
          },
          "custom": {
            "axisBorderShow": false,
            "axisCenteredZero": false,
            "axisColorMode": "text",
            "axisLabel": "",
            "axisPlacement": "auto",
            "barAlignment": 0,
            "drawStyle": "line",
            "fillOpacity": 0,
            "gradientMode": "none",
            "hideFrom": {
              "legend": false,
              "tooltip": false,
              "viz": false
            },
            "insertNulls": false,
            "lineInterpolation": "linear",
            "lineWidth": 1,
            "pointSize": 5,
            "scaleDistribution": {
              "type": "linear"
            },
            "showPoints": "auto",
            "spanNulls": false,
            "stacking": {
              "group": "A",
              "mode": "none"
            },
            "thresholdsStyle": {
              "mode": "off"
            }
          },
          "mappings": [],
          "thresholds": {
            "mode": "absolute",
            "steps": [
              {
                "color": "green",
                "value": null
              },
              {
                "color": "red",
                "value": 80
              }
            ]
          }
        },
        "overrides": []
      },
      "gridPos": {
        "h": 8,
        "w": 12,
        "x": 12,
        "y": 58
      },
      "id": 66,
      "options": {
        "legend": {
          "calcs": [],
          "displayMode": "list",
          "placement": "bottom",
          "showLegend": true
        },
        "tooltip": {
          "mode": "single",
          "sort": "none"
        }
      },
      "targets": [
        {
          "datasource": {
            "type": "prometheus",
            "uid": "${DS_DB}"
          },
          "editorMode": "code",
          "expr": "mongodb_mongod_global_lock_current_queue{type=\"writer\",app=~\"$app\", host=~\"$host\", instance=~\"$instance\"}",
          "instant": false,
          "legendFormat": "{{instance}}_{{type}}",
          "range": true,
          "refId": "A"
        }
      ],
      "title": "Blocked Writer Clients",
      "type": "timeseries"
    }
  ],
  "refresh": "5s",
  "schemaVersion": 39,
  "tags": [
    "prometheus"
  ],
  "templating": {
    "list": [
      {
        "current": {},
        "datasource": {
          "type": "prometheus",
          "uid": "${DS_DB}"
        },
        "definition": "label_values(mongodb_up,app)",
        "hide": 0,
        "includeAll": true,
        "label": "app",
        "multi": true,
        "name": "app",
        "options": [],
        "query": {
          "qryType": 1,
          "query": "label_values(mongodb_up,app)",
          "refId": "PrometheusVariableQueryEditor-VariableQuery"
        },
        "refresh": 1,
        "regex": "",
        "skipUrlSync": false,
        "sort": 1,
        "type": "query"
      },
      {
        "current": {},
        "datasource": {
          "type": "prometheus",
          "uid": "${DS_DB}"
        },
        "definition": "label_values(mongodb_up{app=~\"$app\"},host)",
        "hide": 0,
        "includeAll": true,
        "label": "host",
        "multi": false,
        "name": "host",
        "options": [],
        "query": {
          "qryType": 1,
          "query": "label_values(mongodb_up{app=~\"$app\"},host)",
          "refId": "PrometheusVariableQueryEditor-VariableQuery"
        },
        "refresh": 1,
        "regex": "",
        "skipUrlSync": false,
        "sort": 1,
        "type": "query",
        "useTags": false
      },
      {
        "current": {},
        "datasource": {
          "type": "prometheus",
          "uid": "${DS_ALL}"
        },
        "definition": "label_values(mongodb_up{app=\"$app\", host=~\"$host\"},instance)",
        "hide": 0,
        "includeAll": false,
        "label": "instance",
        "multi": true,
        "name": "instance",
        "options": [],
        "query": {
          "qryType": 1,
          "query": "label_values(mongodb_up{app=\"$app\", host=~\"$host\"},instance)",
          "refId": "PrometheusVariableQueryEditor-VariableQuery"
        },
        "refresh": 1,
        "regex": "",
        "skipUrlSync": false,
        "sort": 1,
        "type": "query"
      },
      {
        "auto": true,
        "auto_count": 30,
        "auto_min": "10s",
        "current": {
          "selected": false,
          "text": "auto",
          "value": "$__auto_interval_interval"
        },
        "hide": 0,
        "name": "interval",
        "options": [
          {
            "selected": true,
            "text": "auto",
            "value": "$__auto_interval_interval"
          },
          {
            "selected": false,
            "text": "1m",
            "value": "1m"
          },
          {
            "selected": false,
            "text": "10m",
            "value": "10m"
          },
          {
            "selected": false,
            "text": "30m",
            "value": "30m"
          },
          {
            "selected": false,
            "text": "1h",
            "value": "1h"
          },
          {
            "selected": false,
            "text": "6h",
            "value": "6h"
          },
          {
            "selected": false,
            "text": "12h",
            "value": "12h"
          },
          {
            "selected": false,
            "text": "1d",
            "value": "1d"
          },
          {
            "selected": false,
            "text": "7d",
            "value": "7d"
          },
          {
            "selected": false,
            "text": "14d",
            "value": "14d"
          },
          {
            "selected": false,
            "text": "30d",
            "value": "30d"
          }
        ],
        "query": "1m,10m,30m,1h,6h,12h,1d,7d,14d,30d",
        "queryValue": "",
        "refresh": 2,
        "skipUrlSync": false,
        "type": "interval"
      }
    ]
  },
  "time": {
    "from": "now-1h",
    "to": "now"
  },
  "timepicker": {
    "refresh_intervals": [
      "5s",
      "10s",
      "30s",
      "1m",
      "5m",
      "15m",
      "30m",
      "1h",
      "2h",
      "1d"
    ],
    "time_options": [
      "5m",
      "15m",
      "1h",
      "6h",
      "12h",
      "24h",
      "2d",
      "7d",
      "30d"
    ]
  },
  "timezone": "browser",
  "title": "MongoDB_Shard",
  "uid": "AyWQt9jWks120",
  "version": 17,
  "weekStart": ""
}

XuanRan07
关注
MongoDB与Grafana集成：数据可视化的新篇章
gitblog_00071的博客
04-19 985
MongoDB与Grafana集成：数据可视化的新篇章 项目地址:https://gitcode.com/gh_mirrors/mo/mongodb-grafana 在大数据时代，有效的数据可视化工具是理解复杂信息的关键。项目，它提供了一种优雅的方式将这两个工具无缝连接起来。 项目简介 mongodb-grafana项目是James Osgood为方便在Grafana中集成MongoDB而开发的一...
Prometheus+Grafana监控mongodb数据库
linux_yyp的博客
08-26 4716
官方文档 prometheus的工作原理与流程图 使用mongo-exporter监控mongodb数据库，prometheus连接mongo-exporter的开放端口，pull exporter中的监控数据，在向grafana中添加mongodb的官方模板：2583，就完成了mongodb的监控。 前提是prometheus+grafana+mongodb已经能正常使用 1 安装mongo-exporter 1.1 准备mongo-exporter的docker-compose.yaml文件 vim
Grafana+Prometheus监控mongodb
兰辉
03-08 8959
Grafana+Prometheus监控mongodb 一，什么是exporter 如果你对Prometheus（普罗米修斯）监控体系有了解。它监控的基础是对各类服务的信息、数据进行采样收集，这一重要的角色就是Prometheus里的Exporter。而我们这里要用到社区的mongodb-exporter Prometheus提供监控样本数据的程序都可以被称为一个Exporter。而Exporter的一个实例称为target， 社区提供的 Prometheus社区提供了丰富的Exporter实现，涵
grafana 添加mongodb数据源
莫笑少年江湖梦，谁不年少梦江湖
11-09 914
文章参考 https://github.com/JamesOsgood/mongodb-grafana。
总结：Grafana
w2009211777的专栏
03-31 6305
Grafana作为最火热的开源数据可视化工具，最大的特点就是支持多种数据源以及丰富的插件库了。官方提供了Elasictsearch、Prometheus、Mysql等常见数据库的数据源。社区也提供了支持Zabbix监控数据展示的数据源，但是实际应用中仍会遇到现有数据源无法满足需求的情况。比如Grafana没有现成插件支持从MongoDB等其他数据库中读取数据。SimpleJson是Grafana开源社区提供的数据源。
RocketMQ、PostgreSQL、Grafana、MongoDB部署
dreambyday
05-03 663
单链表（有头结点） #include<iostream> using namespace std; template<class T> class LinkNode{ public : T data; LinkNode<T>*link; }; template<class T> class LinkList{ private: LinkNode...
Prometheus+Grafana监控MongoDB
最新发布
05-28
Prometheus+Grafana监控MongoDB
Prometheus+Grafana企业级监控实战（数据库监控篇）
06-20
本课程是承接《Prometheus+Grafana企业级监控实战（运维篇)》 来进行讲解 运维篇课程可以点击主页进行查看，本课程主要讲解监控数据库的实战内容。 本课监控的数据库有 Mysql，ElasticSearch，Redis，Kafka，Mongodb...
Prometheus+Grafana 监控平台实践-搭建&常用服务监控&告警
我不懂，可我不傻
07-31 2307
Prometheus 是一个开放性的监控解决方案，通过各种 Exporter 采集当前主机/服务的数据，和 Grafana 相结合可以实现强大的监控和可视化功能本篇将分享使用 docker compose 构建 Prometheus+Grafana，并监控之前文章所搭建的主机&服务，分享日常使用的一些使用经验文章较长，已安装可略过，推荐先看第三节常用服务的 Prometheus+Grafana 配置。
prometheus +grafana 实现对各个资源的监控(包含监控SpringBoot项目)
流星007
03-21 1391
prometheus +grafana 实现对各个资源的监控，包括：服务器cpu、内存、redis、mysql、kafka、nginx、zookeeper、mongodbspringboot项目等
MongoDB Grafana插件安装配置完全指南
gitblog_01228的博客
10-18 1033
MongoDB Grafana插件安装配置完全指南 mongodb-grafana MongoDB plugin for Grafana 项目地址: https://gitcode.com/gh_mirrors/mo/mongod...
使用grafana监控mongodb
热门推荐
Locky_LLL的博客
04-22 1万+
说先说一下结构,由于grafana本身数据源没有mongodb,所以需要在中间加上Prometheus来对mongodb监控. 服务器端组件： prometheus #服务端 alertmanager #预警 Grafana #前端展示， 客户端组件： node_exporter mongodb_exporter
MongoDB插件Grafana下载及安装教程
gitblog_01237的博客
10-18 1051
MongoDB插件Grafana下载及安装教程 mongodb-grafana MongoDB plugin for Grafana 项目地址: https://gitcode.com/gh_mirrors/mo/mongodb-...
从仪表盘探索 MongoDB 关键指标
n9ecommunity的博客
12-02 1153
通过每个 panel 的研读，我们对 MongoDB 的监控知识又前进了一步，要想彻底弄懂还需要研究 MongoDB 的文档和原理。本文的探索希望给大家一些学习这类知识的方向。
MongoDB Grafana 插件使用教程
gitblog_00907的博客
08-16 345
MongoDB Grafana 插件使用教程 mongodb-grafanaMongoDB plugin for Grafana项目地址:https://gitcode.com/gh_mirrors/mo/mongodb-grafana 项目目录结构及介绍 MongoDB Grafana 插件的目录结构如下： mongodb-grafana/ ├── dist/ ├── examples/ ├─...
grafana免费连接Oracle/MongoDB——simpod-json-datasource
业余发文，有时候回复不及时，可以加q 2360355335。
08-23 1726
grafana官方提供的Oracle、MongoDB插件都需要付费使用。在需求促使下，我发现了一个官方提供的可以白嫖的simpod-json-datasource。这款插件允许自定义数据源，我们只需要提供接口，并按数据库数据按规定格式响应，即可将数据传给grafana。只要插件版本适配，这套方案理论上支持任何版本的grafana。这套方案的扩展性很好，后续可以加入其他grafana付费数据源。
Prometheus，Grafana展示Mongo数据
tianjiewang的专栏
01-03 3181
一、Prometheus和Grafana安装 查看之前文档ubuntu14.04 Docker安装Prometheus，Grafana监控服务器性能数据 配置go环境 二、使用go编译文件安装 安装make和go包管理工具glide $ sudo apt-get install make $ curl https://glide.sh/get | sh 安装mongo_exporter...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
