1.为什么要使用弹窗
弹窗存在于许多的应用程序中,有多种应用场景
提高用户体验: 弹窗可以为用户提供更直观、友好的界面,避免用户迷失在复杂的页面结构中。
即时反馈: 弹窗可以立即向用户提供反馈,使用户了解其操作的结果或状态。
上下文切换: 弹窗可以在不离开当前界面的情况下展示新的信息,避免了用户在不同页面之间的频繁切换。
有效利用空间: 弹窗可以临时占用屏幕空间,而不需要为新页面分配额外的空间。

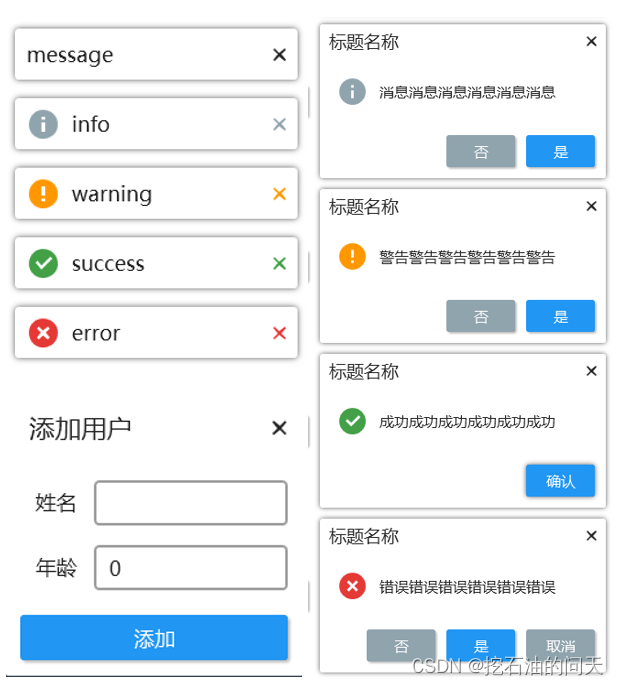

弹窗的分类:信息提示弹窗、确认弹窗、错误处理弹窗、输入表单弹窗、对话框-会话(通常会阻止用户与应用程序的其他部分交互,直到对话框被关闭。),下图便是一些常见的图像UI。
2.Prism中使用弹窗服务
(1)首先需要实现母窗体,注册弹窗服务 IDialogService dialogService,构造函数可以有多个参数,导航和弹窗的服务可以同时注册,因此仅注册弹窗时:
public MainWindowViewModel(IDialogService dialogService)
{
OpenCommand_1 = new DelegateCommand<string>(Open_1);
this.dialogService = dialogService;
}
弹窗和导航都注册时:
public MainWindowViewModel(IRegionManager regionManager, IDialogService dialogService)
{
OpenCommand = new DelegateCommand<string>(Open);
OpenCommand_1 = new DelegateCommand<string>(Open_1);
this.regionManager = regionManager;
this.dialogService = dialogService;
}
实现(绑定)弹出行为,回调函数。弹窗可以在多种情况下被调用,但是这里我们使用按键的方式使用弹窗。
视图
<Button Content="打开窗口W" Style="{StaticResource MyButton}" Command="{Binding OpenCommand_1}" CommandParameter="ViewW"/>
视图模型
private void Open_1(string obj)
{
//向开启的界面传参
DialogParameters keys = new DialogParameters();
keys.Add("Title", "测试弹窗");
dialogService.ShowDialog(obj, keys, callback =>
{
if (callback.Result == ButtonResult.OK)
{
//string result =callback.Parameters.GetValue<string>("Value");
Result = "返回结果为:确定";
}
else
{
Result = "返回结果为:取消";
}
});
}
(2)创建弹窗控件,先实现视图模型,识图模型可以通过继承的方式实现。
internal class ViewWViewModel : IDialogAware

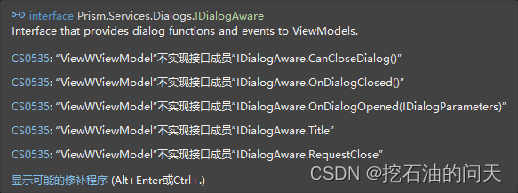

这里主要Prism中的大多数的组件都是以用户控件实现的,之后会提示要实现一些函数,我们可以直接修复。
这里直接放上一个简单的确定取消弹窗
internal class ViewWViewModel : IDialogAware
{
//确定和取消的方法
public DelegateCommand CancelCommand { get; set; }
public DelegateCommand SaveCommand { get; set; }
public ViewWViewModel()
{
CancelCommand = new DelegateCommand(Cancel);
SaveCommand = new DelegateCommand (Save);
}
private void Save()
{
OnDialogClosed();
}
private void Cancel()
{
RequestClose?.Invoke(new DialogResult(ButtonResult.No));
}
public string Title { get; set; }
//请求关闭
public event Action<IDialogResult> RequestClose;
public bool CanCloseDialog()
{
return true;
}
public void OnDialogClosed()
{
DialogParameters keys = new DialogParameters();
//字典
keys.Add("Value", "Hello");
RequestClose?.Invoke(new DialogResult(ButtonResult.OK, keys));
}
//启动时进入
public void OnDialogOpened(IDialogParameters parameters)
{
Title = parameters.GetValue<string>("Title");
}
}
XAML代码
<UserControl x:Class="FullApp3.Modules.ModuleName.Views.ViewW"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:local="clr-namespace:FullApp3.Modules.ModuleName.Views"
mc:Ignorable="d"
Height="200" Width="400" >
<Grid Background="White">
<Grid.RowDefinitions>
<RowDefinition Height="60"/>
<RowDefinition Height="*" />
<RowDefinition Height="60"/>
</Grid.RowDefinitions>
<TextBlock Text="这是窗口" FontSize="20 "/>
<StackPanel Grid.Row="2" Margin="10" HorizontalAlignment="Center" Orientation="Horizontal">
<Button Width="100" Height="40" Content=" 取消" Command="{Binding CancelCommand}"/>
<Grid Width="50"> </Grid>
<Button Width="100" Height="40" Content=" 确定" Command="{Binding SaveCommand}"/>
</StackPanel>
</Grid>
</UserControl>
最终实现效果:
