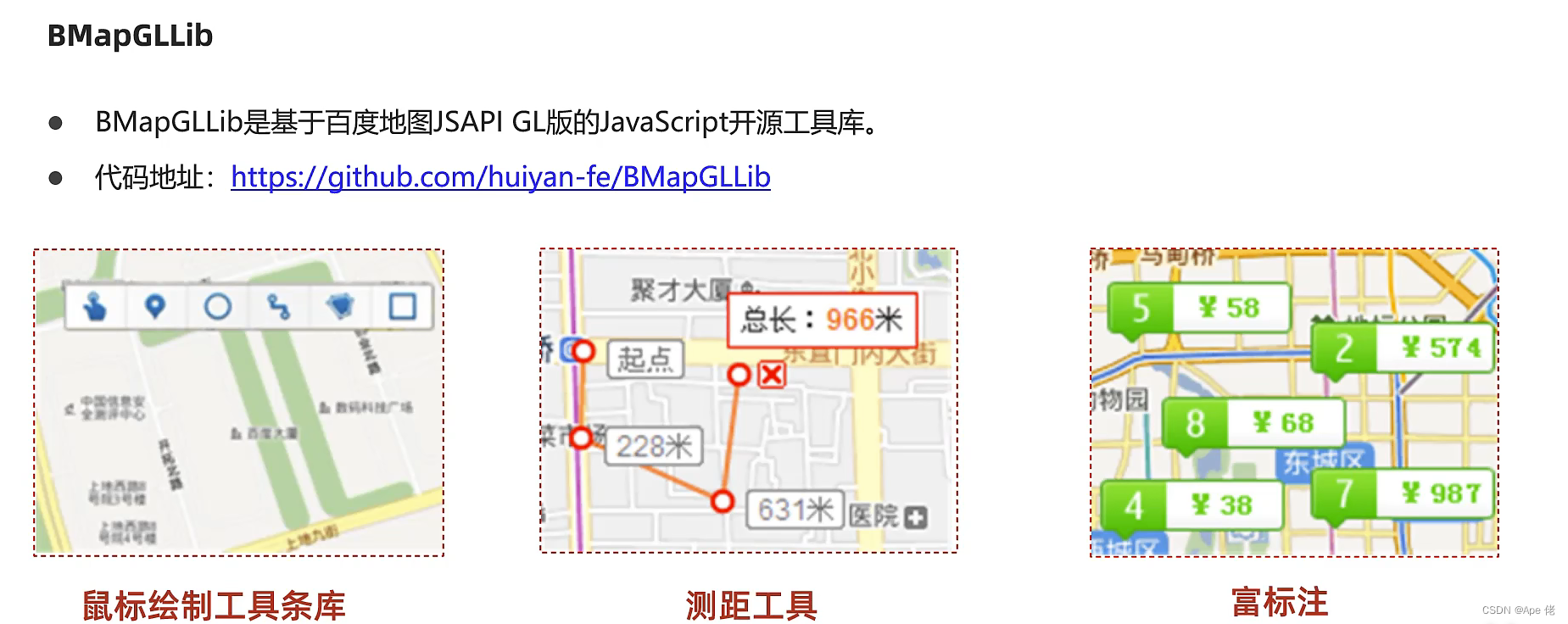

1、BMapGLLib库
网址: GitHub - huiyan-fe/BMapGLLib: 百度地图JSAPI GL版JavaScript开源工具库
该库相关辅助功能可通过点击上述网址进行查看!

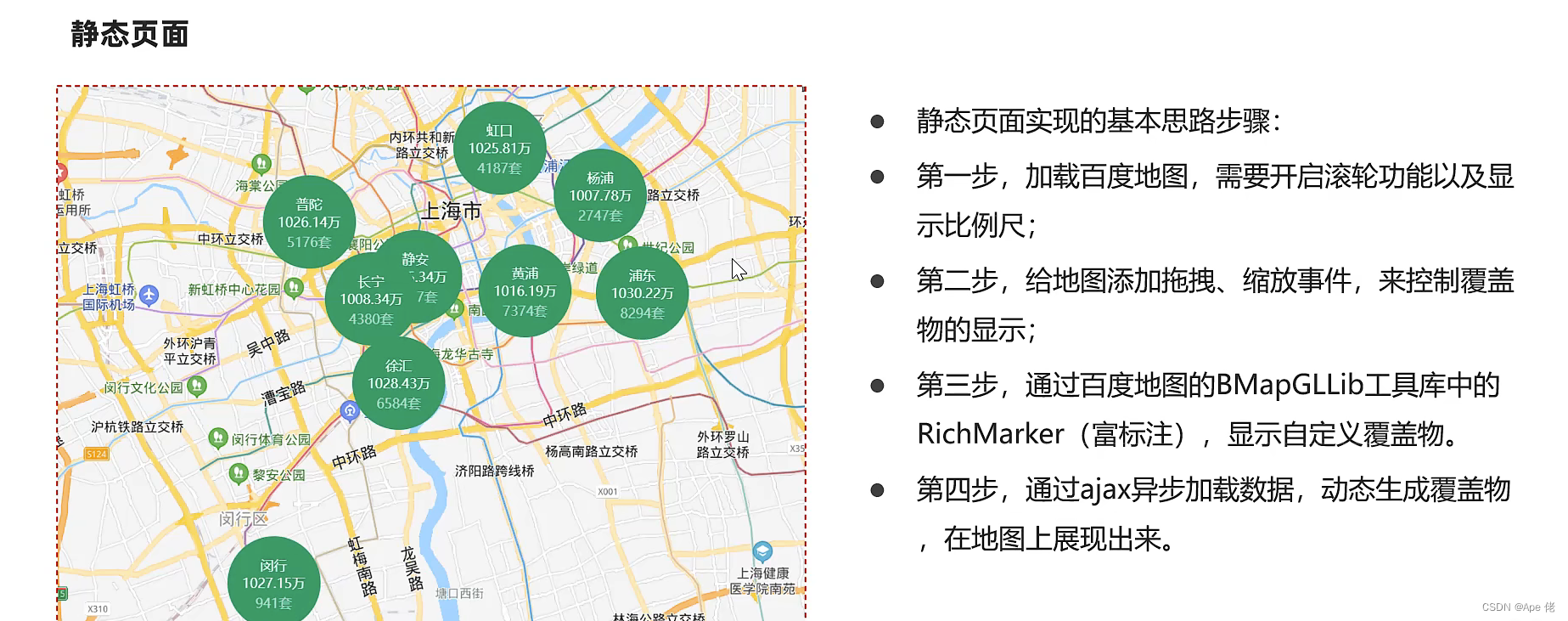

2、项目静态页面:
要有一个search.html界面和jQuery-3.6.0.min.js的包的资源:
其中search.html界面代码为:
<!DOCTYPE html>
<html>
<head>
<meta name="viewport" content="initial-scale=1.0, user-scalable=no" />
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<title>地图找房</title>
<style type="text/css">
html{height:100%}
body{height:100%;margin:0px;padding:0px}
#container{height:100%}
.district {
width: 84px;
height: 84px;
line-height: 16px;
font-size: 12px;
display: flex;
flex-direction: column;
justify-content: center;
border: 1px solid transparent;
border-radius: 50%;
overflow: hidden;
text-align: center;
font-family: PingFangSC-Semibold;
color: #fff;
background: #00ae66 !important;
box-sizing: border-box;
}
.district i {
font-size: 12px;
color: hsla(0, 0%, 100%, .7);
line-height: 12px;
margin-top: 4px;
font-style: normal;
}
#platform > div > div > div {
background: none !important;
}
</style>
<script type="text/javascript" src="jquery-3.6.0.min.js"></script>
<script type="text/javascript" src="http://api.map.baidu.com/api?v=1.0&type=webgl&ak=你的游览器端的密钥"></script>
<script src="http://mapopen.bj.bcebos.com/github/BMapGLLib/RichMarker/src/RichMarker.min.js"></script>
</head>
<body>
<div id="container"></div>
<script type="application/javascript">
function showInfo(map) {
let bound = map.getBounds(); //可视范围矩形坐标,其中sw表示矩形区域的西南角,参数ne表示矩形区域的东北角
let zoom = map.getZoom(); //缩放级别
console.log(bound);
//已经构建好数据库的情况下使用
// $.ajax({
// url: "/house/search",
// data: {
// maxLongitude: bound.ne.lng,
// minLongitude: bound.sw.lng,
// maxLatitude: bound.ne.lat,
// minLatitude: bound.sw.lat,
// zoom: zoom
// },
// success: function (data) {
// showMapMarker(data, map);
// }
// });
//测试效果使用:
let data = [{"name":"徐汇","price":"1028.43","total":"6584","longitude":121.43676,"latitude":31.18831},{"name":"黄浦","price":"1016.19","total":"7374","longitude":121.49295,"latitude":31.22337},{"name":"长宁","price":"1008.34","total":"4380","longitude":121.42462,"latitude":31.22036},{"name":"静安","price":"1005.34","total":"8077","longitude":121.4444,"latitude":31.22884},{"name":"普陀","price":"1026.14","total":"5176","longitude":121.39703,"latitude":31.24951},{"name":"金山","price":"1099.67","total":"6","longitude":121.34164,"latitude":30.74163},{"name":"松江","price":"1017.71","total":"14","longitude":121.22879,"latitude":31.03222},{"name":"青浦","price":"1038.11","total":"751","longitude":121.12417,"latitude":31.14974},{"name":"奉贤","price":"1108.63","total":"35","longitude":121.47412,"latitude":30.9179},{"name":"浦东","price":"1030.22","total":"8294","longitude":121.5447,"latitude":31.22249},{"name":"嘉定","price":"1041.45","total":"1620","longitude":121.2655,"latitude":31.37473},{"name":"宝山","price":"1050.65","total":"102","longitude":121.4891,"latitude":31.4045},{"name":"闵行","price":"1027.15","total":"941","longitude":121.38162,"latitude":31.11246},{"name":"杨浦","price":"1007.78","total":"2747","longitude":121.526,"latitude":31.2595},{"name":"虹口","price":"1025.81","total":"4187","longitude":121.48162,"latitude":31.27788}];
showMapMarker(data, map);
}
//显示覆盖物
function showMapMarker(data, map) {
for (let vo of data) {
let html = "<div class=\"district\">" + vo.name + "<span>" + vo.price + "万</span><i>" + vo.total + "套</i></div>";
let marker = new BMapGLLib.RichMarker(html, new BMapGL.Point(vo.longitude, vo.latitude));
map.addOverlay(marker);
}
}
//清除覆盖物
function clearMapMarker(map) {
let markers = map.getOverlays(); //获取到地图上所有的覆盖物
for (let marker of markers) { //循环将其删除
map.removeOverlay(marker);
}
}
$(function () {
//地图默认位置,上海市
let defaultX = 121.48130241985999;
let defaultY = 31.235156971414239;
let defaultZoom = 12; //默认缩放比例
let map = new BMapGL.Map("container"); // 创建地图实例
let point = new BMapGL.Point(defaultX, defaultY); // 创建点坐标
map.centerAndZoom(point, defaultZoom); // 初始化地图,设置中心点坐标和地图级别
map.enableScrollWheelZoom(true); //开启鼠标滚轮缩放
//显示比例尺
map.addControl(new BMapGL.ScaleControl({anchor: BMAP_ANCHOR_BOTTOM_RIGHT}));
map.addEventListener("dragstart", () => { //拖动开始事件
clearMapMarker(map)
});
map.addEventListener("dragend", () => { //拖动结束事件
showInfo(map)
});
map.addEventListener("zoomstart", () => { //缩放开始事件
clearMapMarker(map)
});
map.addEventListener("zoomend", () => { //缩放结束事件
showInfo(map)
});
//初始显示数据
showInfo(map);
});
</script>
</body>
</html>
3、搭建MongoDB环境:
(1)通过官方直接下载!!!
(相关操作在个人主页的MongoDB笔记中)
网址:MongoDB的安装、部署和启动连接(包含可视化Compass)_Ape 佬的博客-CSDN博客
(2)安装完后进行数据库的部署操作:
#进入admin数据库
mongo
use admin
#添加管理员,其拥有管理用户和角色的权限
db.createUser({ user: 'root', pwd: 'root', roles: [ { role: "root", db: "admin" } ] })
#退出后进行认证
#进行认证
mongo -u "root" -p "root" --authenticationDatabase "admin"
#通过admin添加普通用户
use admin
db.createUser({ user: 'house', pwd: 'oudqBFGmGY8pU6WS', roles: [ { role: "readWrite", db: "house" } ] });
#通过tanhua用户登录进行测试
mongo -u "house" -p "oudqBFGmGY8pU6WS" --authenticationDatabase "admin"
#发现可以正常进入控制台进行操作
~~~
(3)在application.yml中引入spring-data-mongodb的配置:
spring:
data:
mongodb:
username: house #账号
password: ****** #密码
authentication-database: admin #数据库
database: house
port: 27017 #端口号
host: ***.*.*.* #个人主机
auto-index-creation: true

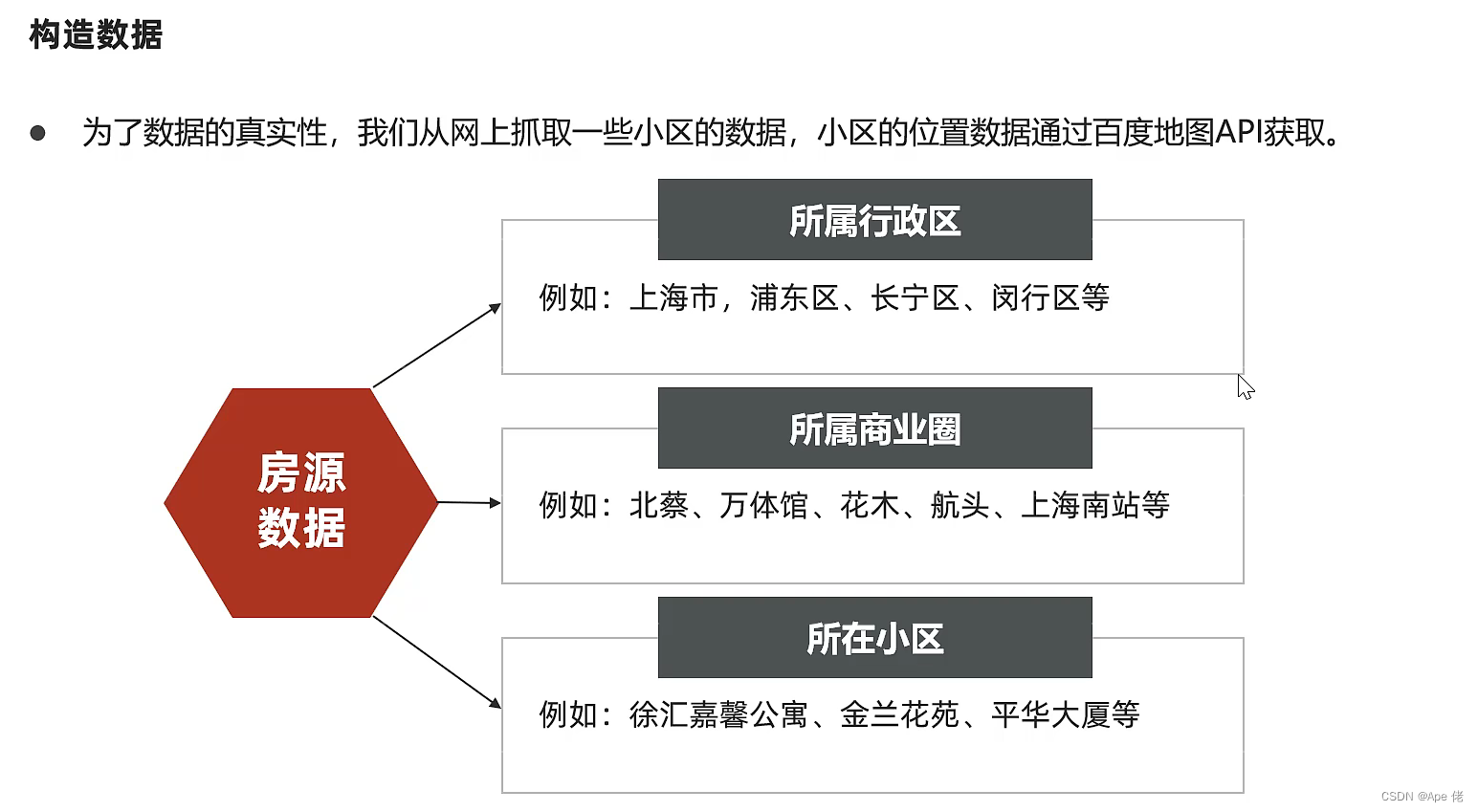

4、构造数据:

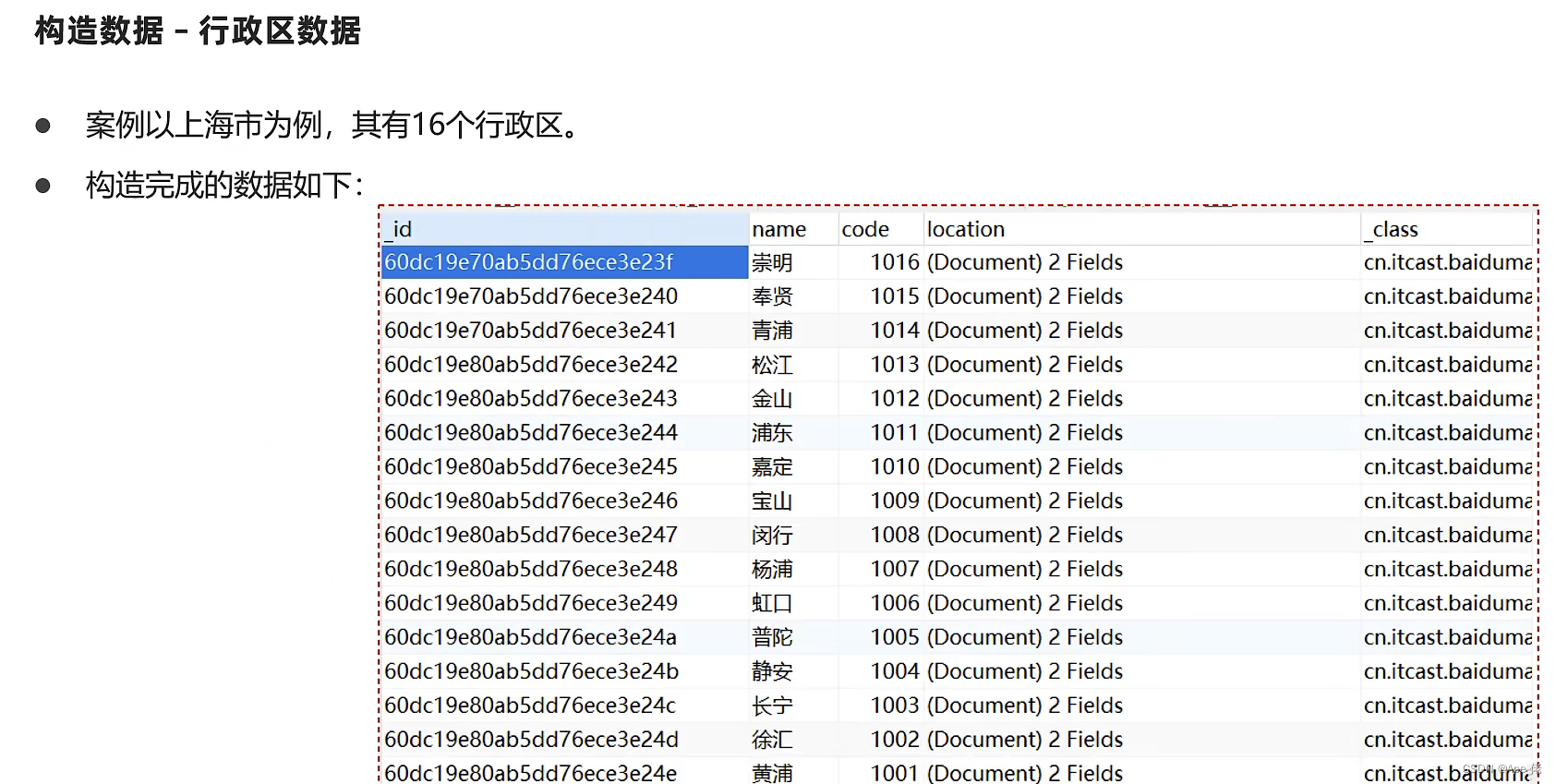

(1)区数据:

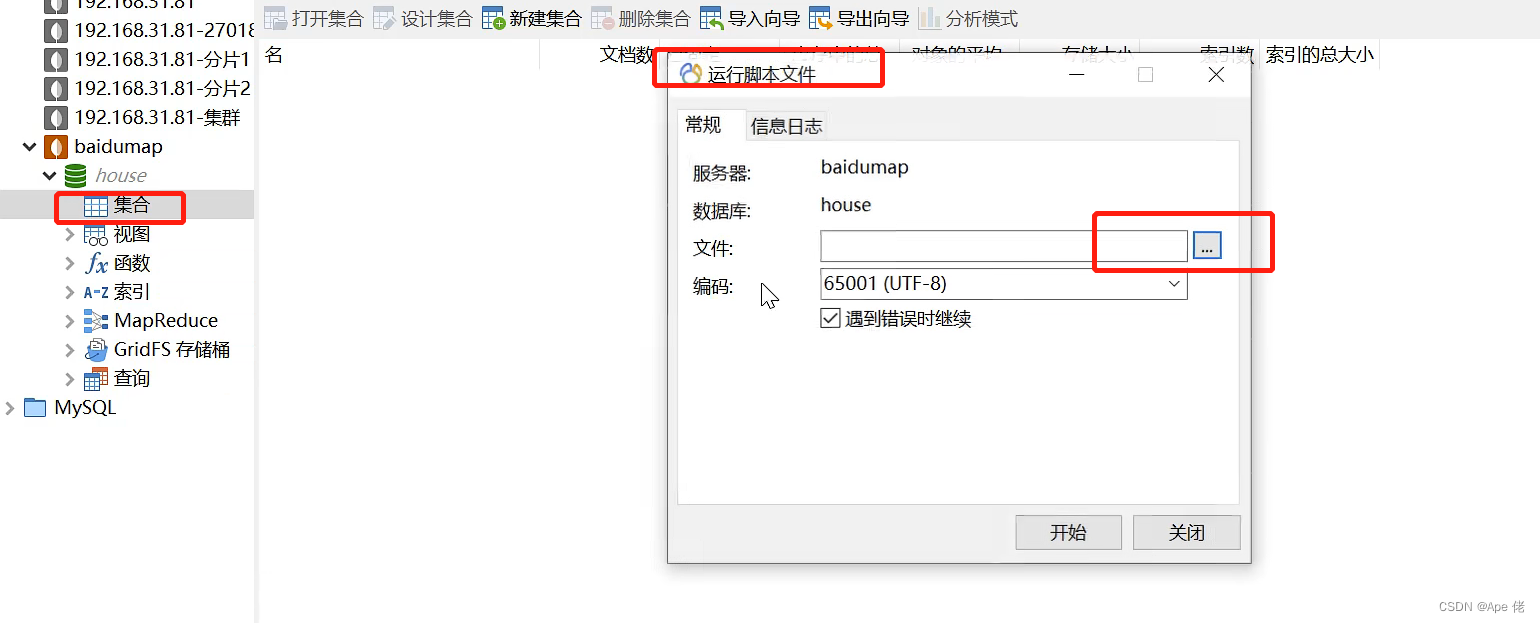

创建数据库,在集合中去运行脚本:(前提要准备数据***.js)

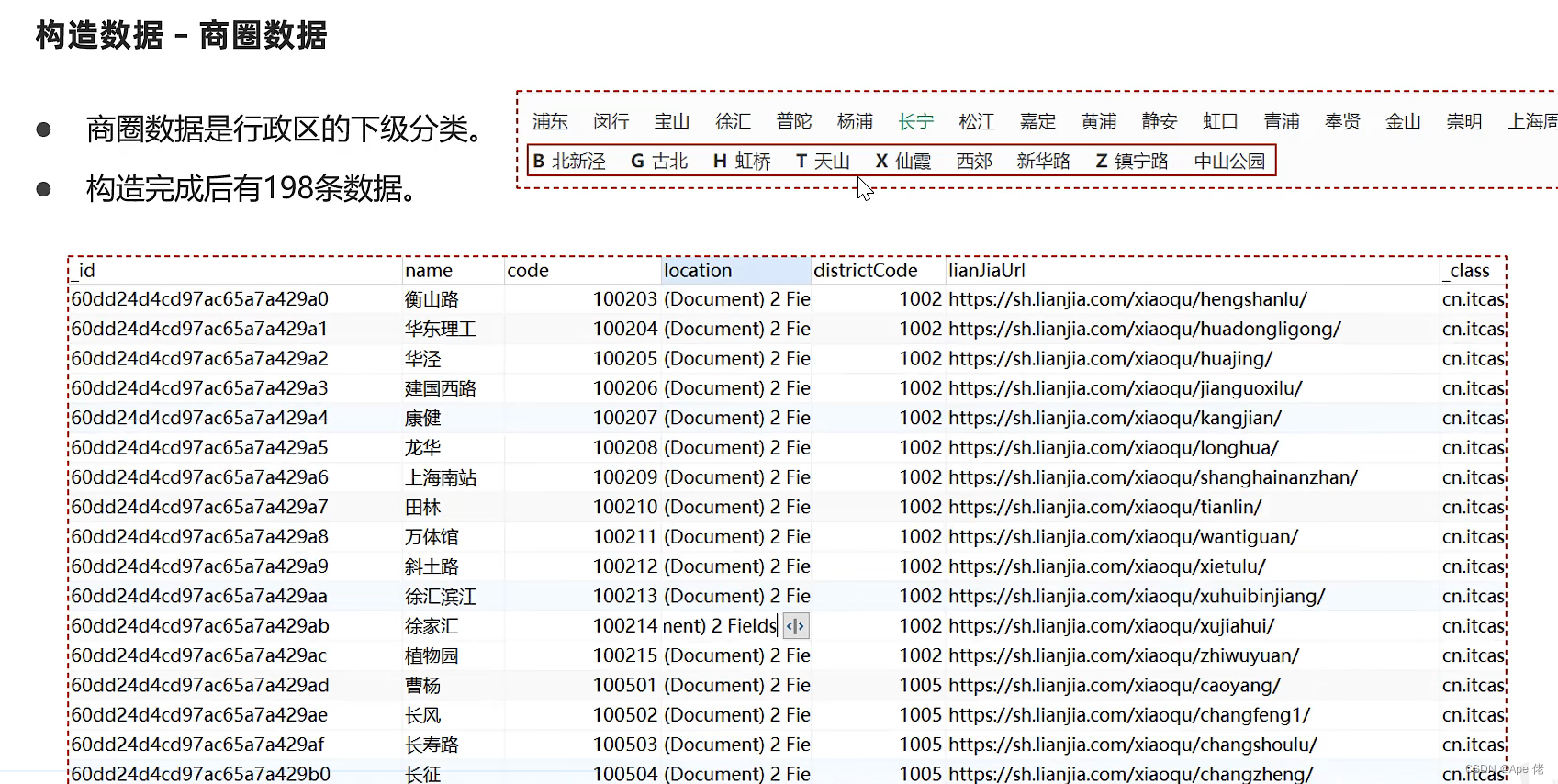

(2)商圈数据:

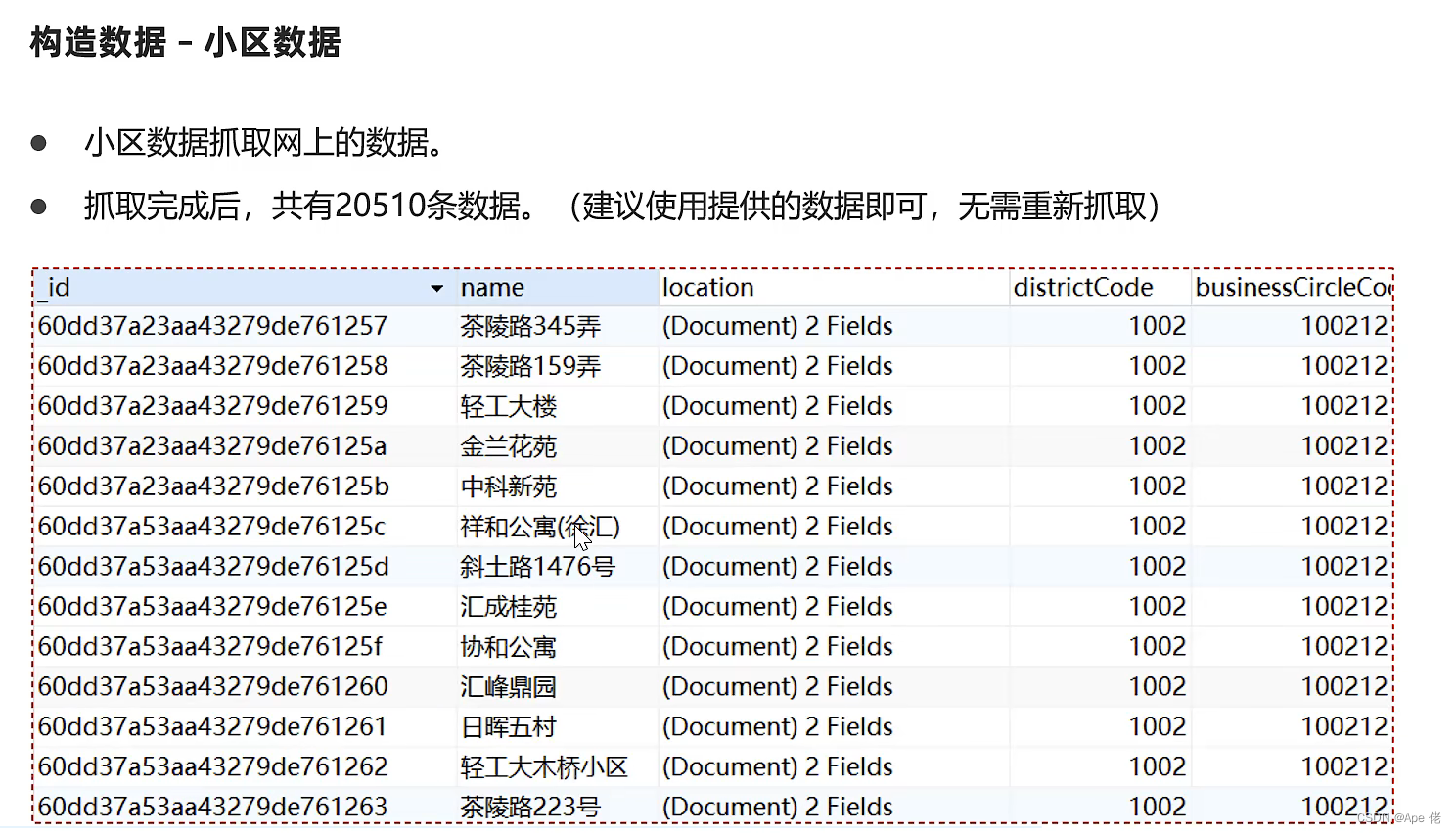

(3)小区数据:

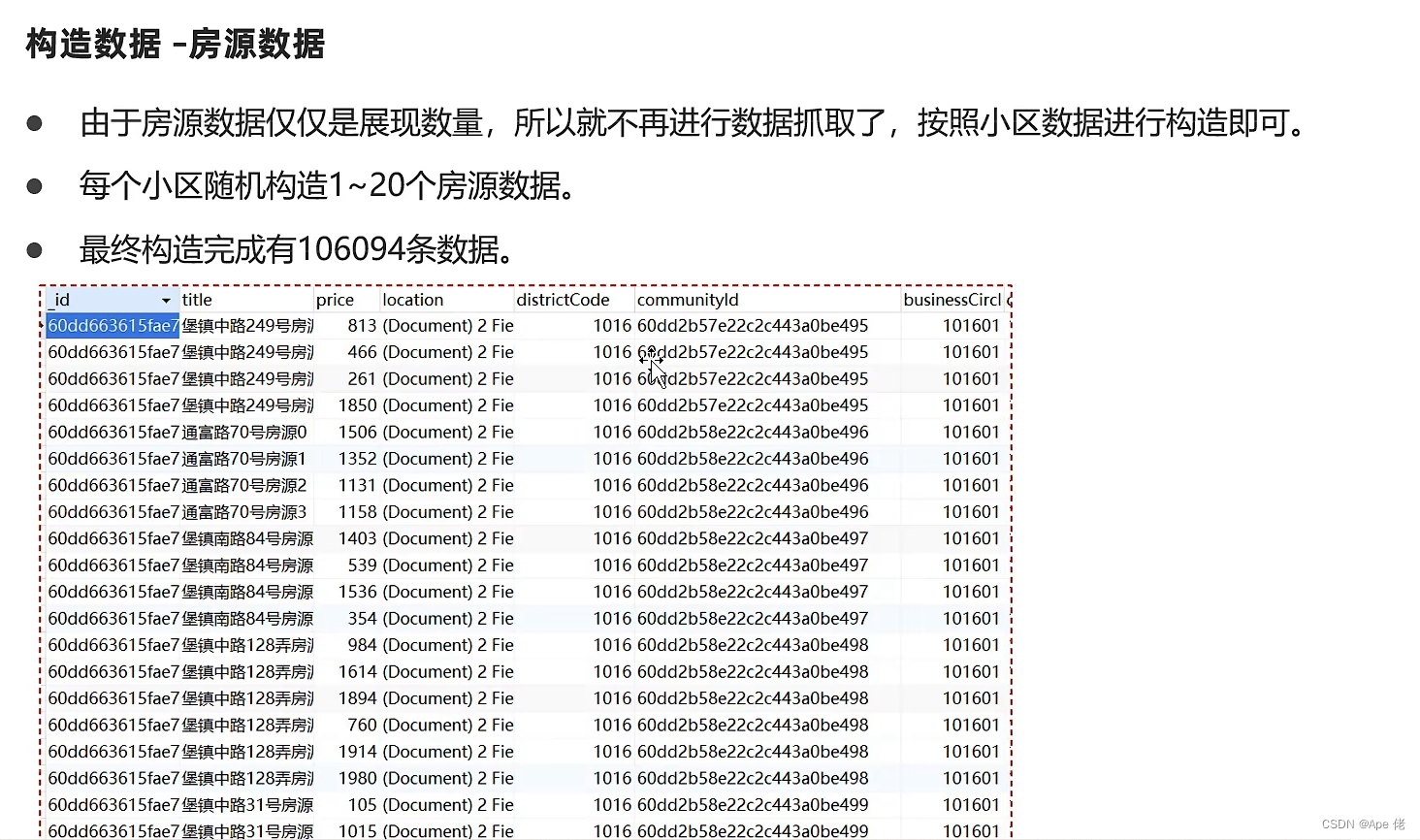

(4)房源数据:

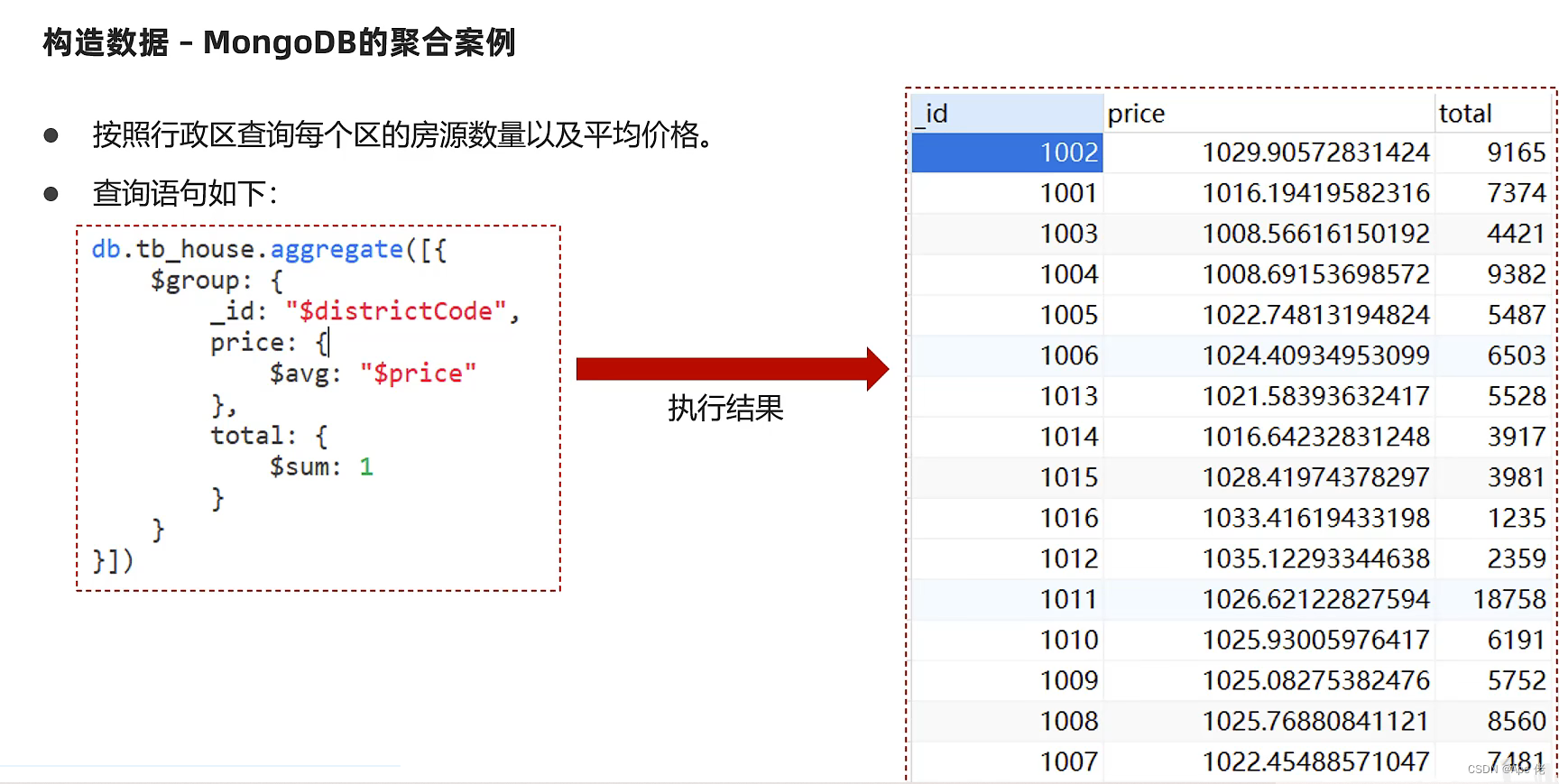

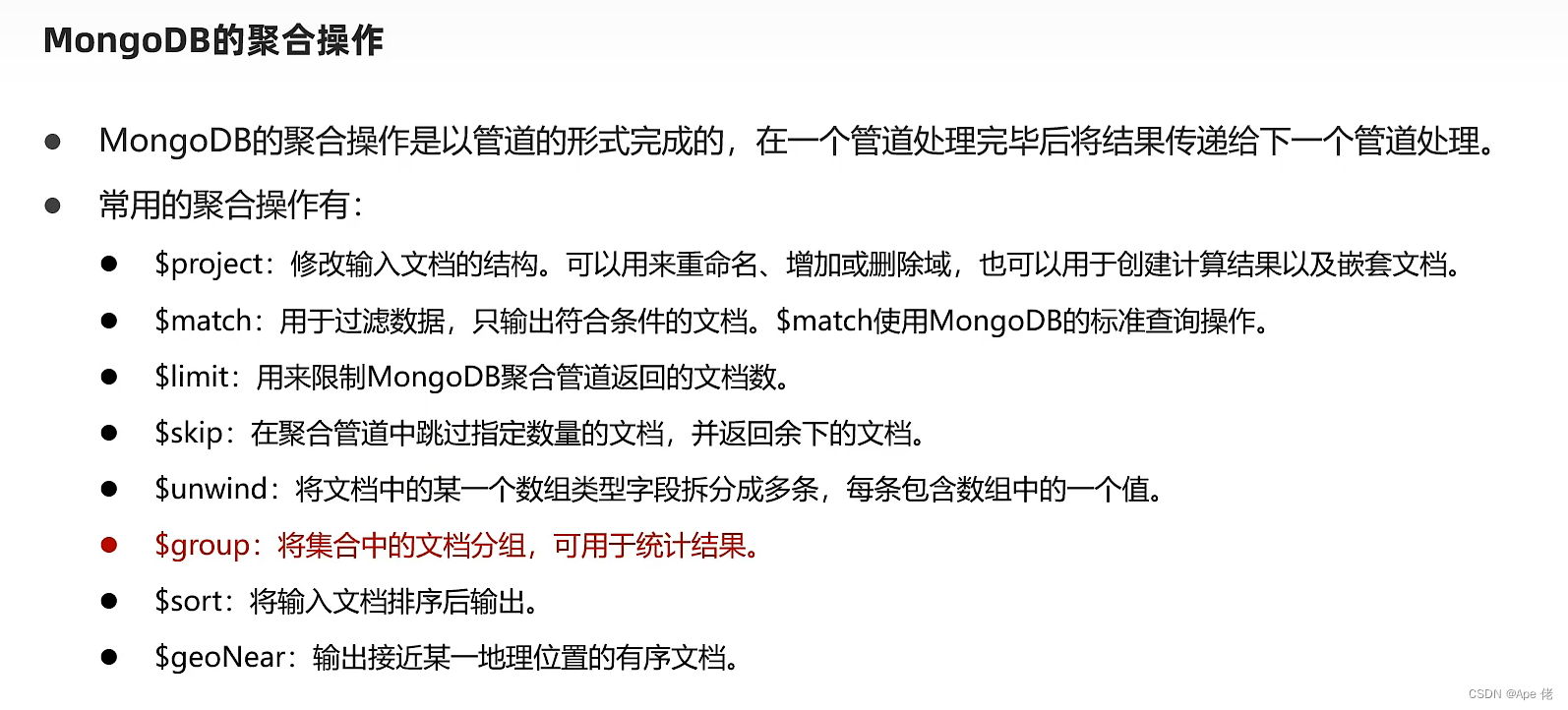

5、MongoDB的聚合操作:

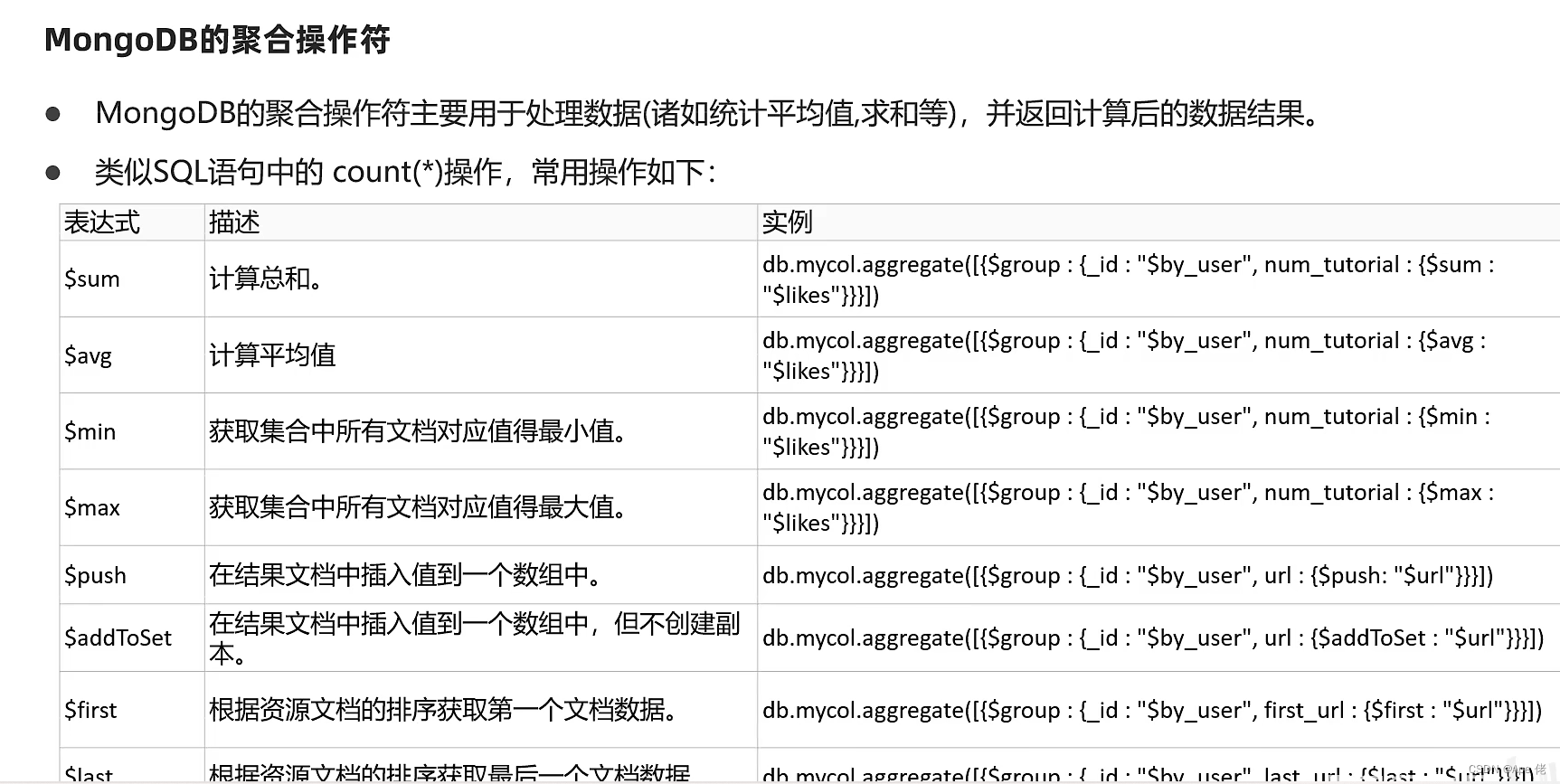

聚合操作符:

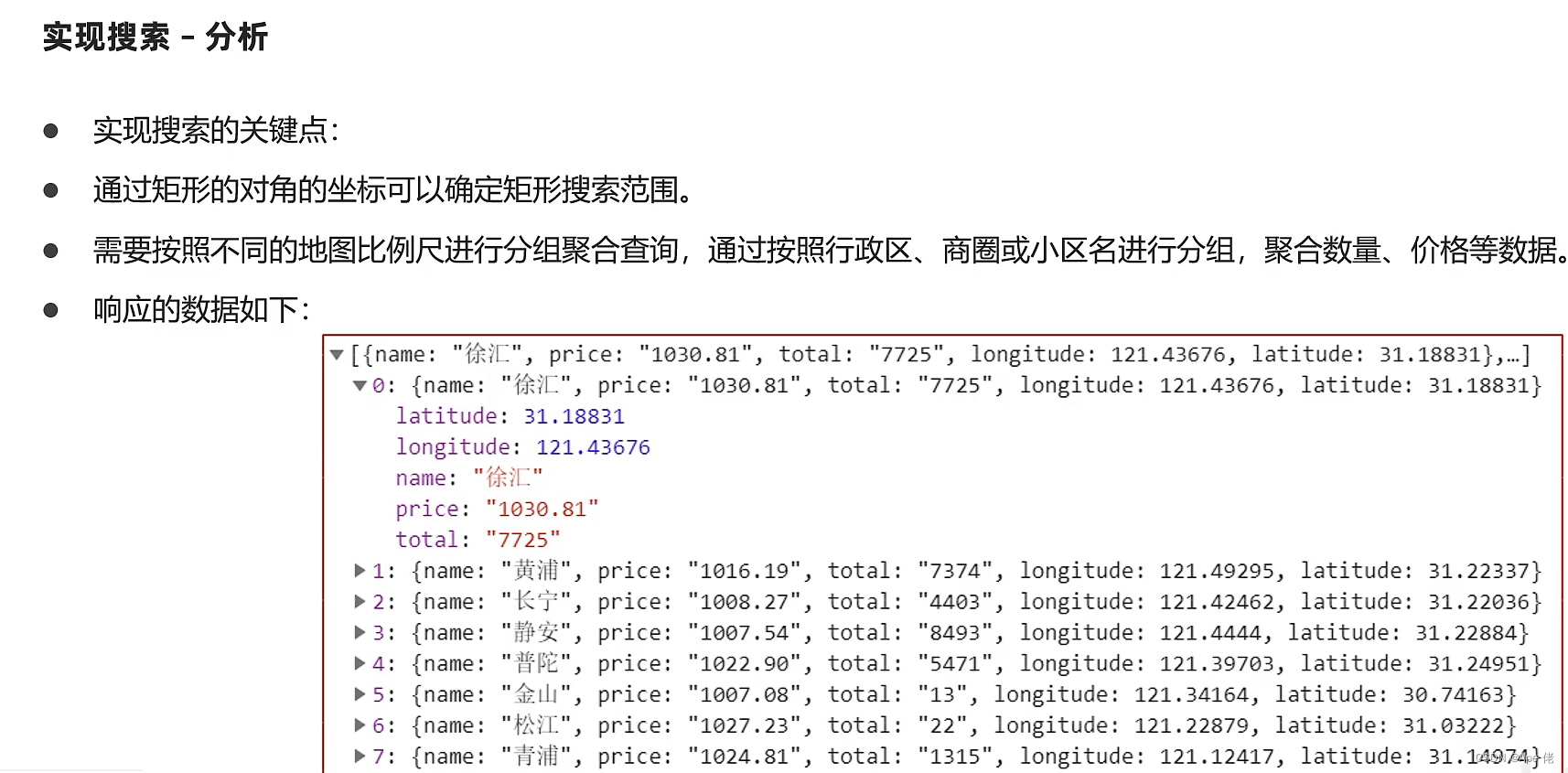

6、 实现搜索-分析:
(1)要导入相应的Pojo类,分别对应上文构建数据库数据的四个区,
/**
* 房源
*/
@Data
@NoArgsConstructor
@AllArgsConstructor
@Document(collection = "tb_house")
public class House {
@Id
private ObjectId id; //主键id
private String title; //房源标题
private Double price; //总价
@GeoSpatialIndexed(type = GeoSpatialIndexType.GEO_2DSPHERE)
private GeoJsonPoint location; //x:经度 y:纬度
@Indexed
private Integer districtCode; //所属行政区
@Indexed
private ObjectId communityId; //所属小区
@Indexed
private Integer businessCircleCode; //商圈
private Long created; //创建时间
}
/**
* 行政区
*/
@Data
@NoArgsConstructor
@AllArgsConstructor
@Document(collection = "tb_district")
public class District {
@Id
private ObjectId id; //主键id
private String name; //名称
@Indexed
private Integer code; //编号
@GeoSpatialIndexed(type = GeoSpatialIndexType.GEO_2DSPHERE)
private GeoJsonPoint location; //x:经度 y:纬度
}
/**
* 小区
*/
@Data
@NoArgsConstructor
@AllArgsConstructor
@Document(collection = "tb_community")
public class Community {
@Id
private ObjectId id; //主键id
private String name; //名称
@GeoSpatialIndexed(type = GeoSpatialIndexType.GEO_2DSPHERE)
private GeoJsonPoint location; //x:经度 y:纬度
@Indexed
private Integer districtCode; //所属区
@Indexed
private Integer businessCircleCode; //商圈
private String lianJiaUrl; //链家网url
}
/**
* 商圈
*/
@Data
@NoArgsConstructor
@AllArgsConstructor
@Document(collection = "tb_business_circle")
public class BusinessCircle {
@Id
private ObjectId id; //主键id
private String name; //名称
@Indexed
private Integer code; //编号
@GeoSpatialIndexed(type = GeoSpatialIndexType.GEO_2DSPHERE)
private GeoJsonPoint location; //x:经度 y:纬度
@Indexed
private Integer districtCode; //所属区
private String lianJiaUrl; //链家网url
}
(2) 创建一个vo包里的HouseResultVo类,专门用来作为统一的返回对象,供前端页面显示数据!
@Data
public class HouseResultVo {
//返回到前端时不使用
@JsonIgnore
@Field("_id")
private String code; //用于MongoDB聚合查询结果的映射
private String name; //显示的名称,可能是区、商业圈、小区
private String price; //均价
private String total; //房源数量
private Double longitude; //位置经度
private Double latitude; //位置维度
}
(3)控制层类:controller,前端页面进行调用访问路径获得数据!!!
@RequestMapping("/house/search")
@RestController
public class HouseSearch {
@Autowired
private HouseSearchService houseSearchService;
/*
* 地图找房搜索服务
* 最大小经度
* 最大小纬度
* 地图缩放比例
* */
@GetMapping
public List<HouseResultVo> search(@RequestParam("maxLongitude") Double maxLongitude,
@RequestParam("minLongitude") Double minLongitude,
@RequestParam("maxLatitude") Double maxLatitude,
@RequestParam("minLatitude") Double minLatitude,
@RequestParam("zoom") Double zoom){
return this.houseSearchService.search(maxLongitude,minLongitude,maxLatitude,minLatitude,zoom);
}
}
其中会调用到业务层方法,其业务层主要是执行Mongodb数据库的操作!从而获取数据并返回相应的值!
(4)业务层内容:
@Service
public class HouseSearchService {
@Autowired
private MongoTemplate mongoTemplate;
/*
* 地图找房搜索服务
* 最大小经度
* 最大小纬度
* 地图缩放比例
* */
public List<HouseResultVo> search( Double maxLongitude,
Double minLongitude,
Double maxLatitude,
Double minLatitude,
Double zoom) {
// 收集集合查询条件
List<AggregationOperation> operationList = new ArrayList<>();
// 在可视范围内搜索
Box box = new Box(new double[]{maxLongitude,maxLatitude},new double[]{minLongitude,minLatitude});
MatchOperation matchOperation = Aggregation.match(Criteria.where("location").within(box));
operationList.add(matchOperation);
int type;
GroupOperation groupOperation;
// 根据地图的缩放比例进行分组
if (zoom<13.5){//2公里以上
// 按照行政分组
groupOperation=Aggregation.group("districtCode");
type=1;
}else if (zoom<15.5){//200米以上
// 按照商圈分组
groupOperation=Aggregation.group("businessCircleCode");
type=2;
}else {//200以下
// 按照小区分组
groupOperation=Aggregation.group("communityId");
type=3;
}
// 一定要覆盖,否则无效 groupOperation=
groupOperation= groupOperation.count().as("total")
.avg("price").as("price");
operationList.add(groupOperation);
// 生成最终的集合条件
Aggregation aggregation= Aggregation.newAggregation(operationList);
// 执行查询
AggregationResults<HouseResultVo> aggregationResults =
this.mongoTemplate.aggregate(aggregation, House.class,HouseResultVo.class);
List<HouseResultVo> houseResultVoList = aggregationResults.getMappedResults();
if (CollUtil.isEmpty(houseResultVoList)){
return Collections.emptyList();
}
// 填充数据
switch (type){
case 1:{
// 查询行政区数据
for (HouseResultVo houseResultVo:houseResultVoList){
District district = this.queryDistrictByCode(Convert.toInt(houseResultVo.getCode()));
houseResultVo.setName(district.getName());
houseResultVo.setLongitude(district.getLocation().getX());
houseResultVo.setLatitude(district.getLocation().getY());
//价格保留两位小数
houseResultVo.setPrice(NumberUtil.roundStr(houseResultVo.getPrice(),2));
}
break;
}
case 2:{
// 查询商圈数据
for (HouseResultVo houseResultVo:houseResultVoList){
BusinessCircle businessCircle = this.queryBusinessCircleByCode(Convert.toInt(houseResultVo.getCode()));
houseResultVo.setName(businessCircle.getName());
houseResultVo.setLongitude(businessCircle.getLocation().getX());
houseResultVo.setLatitude(businessCircle.getLocation().getY());
//价格保留两位小数
houseResultVo.setPrice(NumberUtil.roundStr(houseResultVo.getPrice(),2));
}
break;
}
case 3:{
// 查询小区数据
for (HouseResultVo houseResultVo:houseResultVoList){
Community community = this.queryCommunityById(new ObjectId(houseResultVo.getCode()));
houseResultVo.setName(community.getName());
houseResultVo.setLongitude(community.getLocation().getX());
houseResultVo.setLatitude(community.getLocation().getY());
//价格保留两位小数
houseResultVo.setPrice(NumberUtil.roundStr(houseResultVo.getPrice(),2));
}
break;
}
default:{
return Collections.emptyList();
}
}
return houseResultVoList;
}
// 根据Code查询行政区
public District queryDistrictByCode(Integer code){
Query query = Query.query(Criteria.where("code").is(code));
return this.mongoTemplate.findOne(query,District.class);
}
// 根据Code查询商圈区
public BusinessCircle queryBusinessCircleByCode(Integer code){
Query query = Query.query(Criteria.where("code").is(code));
return this.mongoTemplate.findOne(query,BusinessCircle.class);
}
// 根据id查询小区
public Community queryCommunityById(ObjectId id){
return this.mongoTemplate.findById(id,Community.class);
}
}

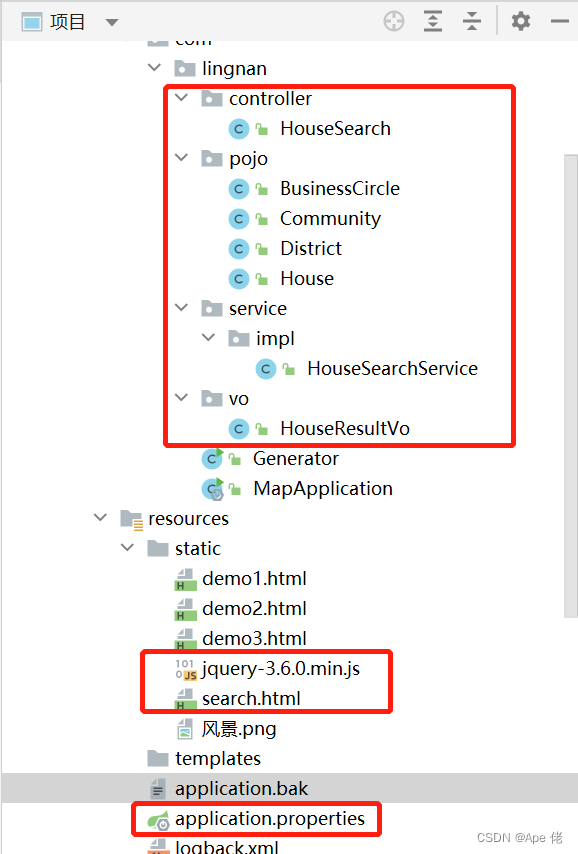

(5)项目工程目录:
(6)运行测试:
http://127.*.*.*:8080/search.html(本机ip地址+访问页面的端口号+前端页面路径)
(7)结果:
此外,在项目中还会出现一些bug,其中就有依赖冲突的问题,因此为了方便大家,下面为正确的pom.xml内容:
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.7.2</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.lingnan</groupId>
<artifactId>Map</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>Map</name>
<description>Map</description>
<properties>
<java.version>1.8</java.version>
</properties>
<dependencies>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<!--springdata对于mongodb支持-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-mongodb</artifactId>
</dependency>
<!-- 代码生成器-->
<dependency>
<groupId>com.baomidou</groupId>
<artifactId>mybatis-plus-generator</artifactId>
<version>3.4.1</version>
</dependency>
<!-- 实体类简化-->
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
</dependency>
<!-- 地图web服务-->
<dependency>
<groupId>cn.hutool</groupId>
<artifactId>hutool-all</artifactId>
<version>5.8.5</version>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
