本文介绍了Element UI的基本概念，如它是一个基于Vue的组件库，用于快速构建网页。通过示例展示了如何引入Vue.js和Element UI的文件，创建Vue实例，并使用Element的按钮组件。此外，还详细讲解了Element的两种布局方式——Layout布局和Container布局容器，提供了具体的代码示例，帮助读者理解并应用到实际项目中。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

一、Element概述

Element：是饿了么公司前端开发团队提供的一套基于Vue的网站组件库，用于快捷构建网页

组件：组成网页的部件，例如超链接、按钮、图片、表格等等~

官网：组件 | Elementhttps://element.eleme.cn/#/zh-CN/component/installation

二、Element入门案例

1、引入Element的css、js文件和Vue.js

<script src="js/vue.js"></script>
<script src="element-ui/lib/index.js"></script>
<link rel="stylesheet" href="element-ui/lib/theme-chalk/index.css">

2、创建Vue核心对象

<script>
    new Vue({
        el: "#app"
    })
</script>

3、官网复制Element组件代码

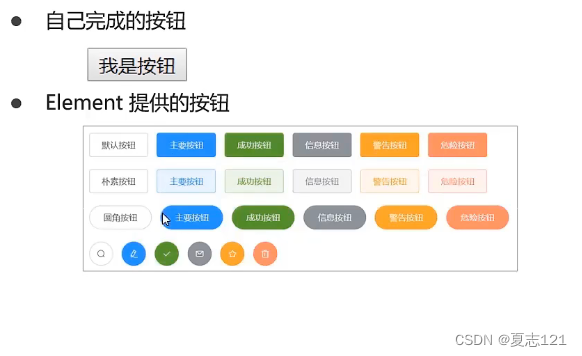

Element按钮代码示例：

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>
</head>
<body>
<div id="app">

    <el-row>
        <el-button>默认按钮</el-button>
        <el-button type="primary">主要按钮</el-button>
        <el-button type="success">成功按钮</el-button>
        <el-button type="info">信息按钮</el-button>
        <el-button type="warning">警告按钮</el-button>
        <el-button type="danger">危险按钮</el-button>
    </el-row>

    <el-row>
        <el-button plain>朴素按钮</el-button>
        <el-button type="primary" plain>主要按钮</el-button>
        <el-button type="success" plain>成功按钮</el-button>
        <el-button type="info" plain>信息按钮</el-button>
        <el-button type="warning" plain>警告按钮</el-button>
        <el-button type="danger" plain>危险按钮</el-button>
    </el-row>

    <el-row>
        <el-button round>圆角按钮</el-button>
        <el-button type="primary" round>主要按钮</el-button>
        <el-button type="success" round>成功按钮</el-button>
        <el-button type="info" round>信息按钮</el-button>
        <el-button type="warning" round>警告按钮</el-button>
        <el-button type="danger" round>危险按钮</el-button>
    </el-row>

    <el-row>
        <el-button icon="el-icon-search" circle></el-button>
        <el-button type="primary" icon="el-icon-edit" circle></el-button>
        <el-button type="success" icon="el-icon-check" circle></el-button>
        <el-button type="info" icon="el-icon-message" circle></el-button>
        <el-button type="warning" icon="el-icon-star-off" circle></el-button>
        <el-button type="danger" icon="el-icon-delete" circle></el-button>
    </el-row>

</div>


<script src="js/vue.js"></script>
<script src="element-ui/lib/index.js"></script>
<link rel="stylesheet" href="element-ui/lib/theme-chalk/index.css">


<script>
    new Vue({
        el: "#app"
    })
</script>

</body>
</html>

执行结果：

三、Element布局

Element中有两种布局方式：

Layout布局：

通过基础的24分栏，迅速简便地创建布局

Layout布局代码示例：

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>

    <style>
        .el-row {
            margin-bottom: 20px;
        }
        .el-col {
            border-radius: 4px;
        }

        .bg-purple-dark {
            background: #99a9bf;
        }

        .bg-purple {
            background: #d3dce6;
        }

        .bg-purple-light {
            background: #e5e9f2;
        }

        .grid-content {
            border-radius: 4px;
            min-height: 36px;
        }

        .row-bg {
            padding: 10px 0;
            background-color: #f9fafc;
        }
    </style>
</head>
<body>
<div id="app">

    <el-row>
        <el-col :span="24">
            <div class="grid-content bg-purple-dark"></div>
        </el-col>
    </el-row>
    <el-row>
        <el-col :span="12">
            <div class="grid-content bg-purple"></div>
        </el-col>
        <el-col :span="12">
            <div class="grid-content bg-purple-light"></div>
        </el-col>
    </el-row>
    <el-row>
        <el-col :span="8">
            <div class="grid-content bg-purple"></div>
        </el-col>
        <el-col :span="8">
            <div class="grid-content bg-purple-light"></div>
        </el-col>
        <el-col :span="8">
            <div class="grid-content bg-purple"></div>
        </el-col>
    </el-row>
    <el-row>
        <el-col :span="6">
            <div class="grid-content bg-purple"></div>
        </el-col>
        <el-col :span="6">
            <div class="grid-content bg-purple-light"></div>
        </el-col>
        <el-col :span="6">
            <div class="grid-content bg-purple"></div>
        </el-col>
        <el-col :span="6">
            <div class="grid-content bg-purple-light"></div>
        </el-col>
    </el-row>
    <el-row>
        <el-col :span="4">
            <div class="grid-content bg-purple"></div>
        </el-col>
        <el-col :span="4">
            <div class="grid-content bg-purple-light"></div>
        </el-col>
        <el-col :span="4">
            <div class="grid-content bg-purple"></div>
        </el-col>
        <el-col :span="4">
            <div class="grid-content bg-purple-light"></div>
        </el-col>
        <el-col :span="4">
            <div class="grid-content bg-purple"></div>
        </el-col>
        <el-col :span="4">
            <div class="grid-content bg-purple-light"></div>
        </el-col>
    </el-row>


</div>


<script src="js/vue.js"></script>
<script src="element-ui/lib/index.js"></script>
<link rel="stylesheet" href="element-ui/lib/theme-chalk/index.css">


<script>
    new Vue({
        el: "#app"
    })

</script>

</body>
</html>

执行结果：

Container布局容器：

用于布局的容器组件，方便快速搭建页面的基础结构

Container布局容器代码示例：

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Title</title>

    <style>
        .el-header {
            background-color: #B3C0D1;
            color: #333;
            line-height: 60px;
        }

        .el-aside {
            color: #333;
        }
    </style>

</head>
<body>
<div id="app">

    <el-container style="height: 500px; border: 1px solid #eee">
        <el-aside width="200px" style="background-color: rgb(238, 241, 246)">
            <el-menu :default-openeds="['1', '3']">
                <el-submenu index="1">
                    <template slot="title"><i class="el-icon-message"></i>导航一</template>
                    <el-menu-item-group>
                        <template slot="title">分组一</template>
                        <el-menu-item index="1-1">选项1</el-menu-item>
                        <el-menu-item index="1-2">选项2</el-menu-item>
                    </el-menu-item-group>
                    <el-menu-item-group title="分组2">
                        <el-menu-item index="1-3">选项3</el-menu-item>
                    </el-menu-item-group>
                    <el-submenu index="1-4">
                        <template slot="title">选项4</template>
                        <el-menu-item index="1-4-1">选项4-1</el-menu-item>
                    </el-submenu>
                </el-submenu>
                <el-submenu index="2">
                    <template slot="title"><i class="el-icon-menu"></i>导航二</template>
                    <el-menu-item-group>
                        <template slot="title">分组一</template>
                        <el-menu-item index="2-1">选项1</el-menu-item>
                        <el-menu-item index="2-2">选项2</el-menu-item>
                    </el-menu-item-group>
                    <el-menu-item-group title="分组2">
                        <el-menu-item index="2-3">选项3</el-menu-item>
                    </el-menu-item-group>
                    <el-submenu index="2-4">
                        <template slot="title">选项4</template>
                        <el-menu-item index="2-4-1">选项4-1</el-menu-item>
                    </el-submenu>
                </el-submenu>
                <el-submenu index="3">
                    <template slot="title"><i class="el-icon-setting"></i>导航三</template>
                    <el-menu-item-group>
                        <template slot="title">分组一</template>
                        <el-menu-item index="3-1">选项1</el-menu-item>
                        <el-menu-item index="3-2">选项2</el-menu-item>
                    </el-menu-item-group>
                    <el-menu-item-group title="分组2">
                        <el-menu-item index="3-3">选项3</el-menu-item>
                    </el-menu-item-group>
                    <el-submenu index="3-4">
                        <template slot="title">选项4</template>
                        <el-menu-item index="3-4-1">选项4-1</el-menu-item>
                    </el-submenu>
                </el-submenu>
            </el-menu>
        </el-aside>

        <el-container>
            <el-header style="text-align: right; font-size: 12px">
                <el-dropdown>
                    <i class="el-icon-setting" style="margin-right: 15px"></i>
                    <el-dropdown-menu slot="dropdown">
                        <el-dropdown-item>查看</el-dropdown-item>
                        <el-dropdown-item>新增</el-dropdown-item>
                        <el-dropdown-item>删除</el-dropdown-item>
                    </el-dropdown-menu>
                </el-dropdown>
                <span>王小虎</span>
            </el-header>

            <el-main>
                <el-table :data="tableData">
                    <el-table-column prop="date" label="日期" width="140">
                    </el-table-column>
                    <el-table-column prop="name" label="姓名" width="120">
                    </el-table-column>
                    <el-table-column prop="address" label="地址">
                    </el-table-column>
                </el-table>
            </el-main>
        </el-container>
    </el-container>


</div>


<script src="js/vue.js"></script>
<script src="element-ui/lib/index.js"></script>
<link rel="stylesheet" href="element-ui/lib/theme-chalk/index.css">


<script>
    new Vue({
        el: "#app",
        data() {
            const item = {
                date: '2016-05-02',
                name: '王小虎',
                address: '上海市普陀区金沙江路 1518 弄'
            };
            return {
                tableData: Array(20).fill(item)
            }
        }
    })

</script>

</body>
</html>

执行结果：
