MybatisPlus逆向工程插件，无需编写任何配置文件，只需配置数据库信息，一键生成Entity、Controller、Service、ServiceImpl、Mapper、Mapper.xml

1. 前言

在开发过程中，你是否厌倦了以下机械重复、枯燥乏味的工作

• 创建实体类
• 创建Controller
• 创建Service
• 创建ServiceImpl
• 创建Mapper
• 创建Mapper.xml

特别是在创建一个新项目的时候，我们需要根据表的结构大量地创建这些文件，创建这些文件没有什么技术含量，但是没有这些文件我们的项目就无法持续推进

---

没错，今天推荐给大家的MybatisPlus逆向工程插件正是为了解决这一痛点！！！

2. 与其它逆向工程工具相比的优势

• 当下也有很多逆向工程工具，要么就是需要编写及其复杂的配置文件，要么就是需要付费
• 比如Mybatis官方提供的逆向工程插件，不仅需要在Maven中导入逆向工程插件的坐标，还要编写一个及其复杂的配置文件，令人头晕眼花
• 本来用逆向工程就是为了不想做机械重复的工作，如今却要让我看一个晦涩难懂的配置文件，还要我手动编写配置，这不扯淡吗

---

今天推荐给大家的MybatisPlus逆向工程插件，不仅完全免费，而且十分简单易用（有图形化界面）

使用该插件无需编写复杂的配置文件，只需配置数据库信息，动动鼠标，就能一键生成实体类、Controller、Service、ServiceImpl、Mapper、Mapper.xml

---

本次演示使用的IDEA版本为最新版（2023.2），MySQL版本为8.0.32，SpringBoot版本为3.0.2，JDK版本为17.0.7

3. 下载插件

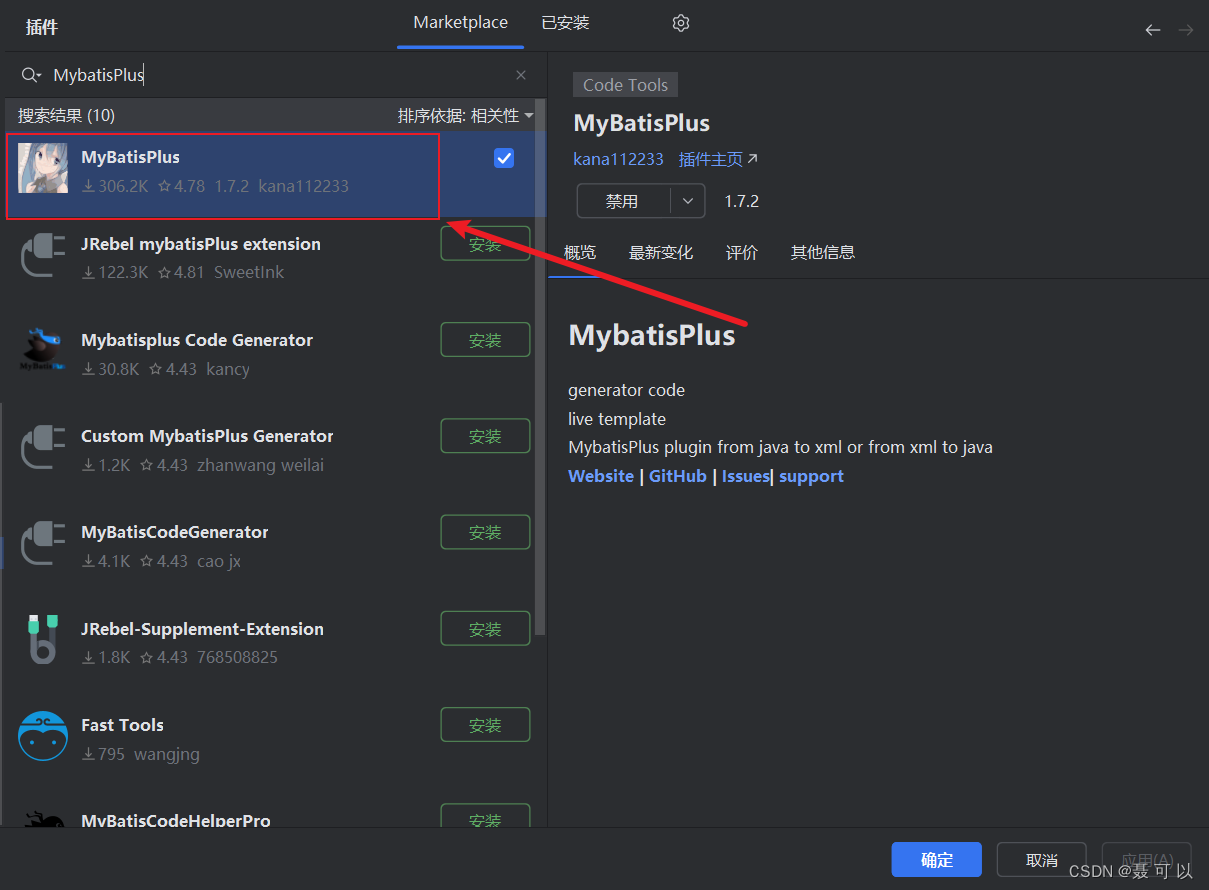

在IEDA的插件市场搜索MybatisPlus

安装插件后可能需要重启IDEA

4. 准备工作

4.1 创建数据库和表（可跳过）

先创建一个名为element的数据库，运行以下SQL文件

/*
 Navicat Premium Data Transfer

 Source Server         : rootLink
 Source Server Type    : MySQL
 Source Server Version : 80034 (8.0.34)
 Source Host           : localhost:3306
 Source Schema         : element

 Target Server Type    : MySQL
 Target Server Version : 80034 (8.0.34)
 File Encoding         : 65001

 Date: 18/06/2024 15:08:24
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for business
-- ----------------------------
DROP TABLE IF EXISTS `business`;
CREATE TABLE `business`  (
  `business_id` int NOT NULL AUTO_INCREMENT,
  `business_address` varchar(50) CHARACTER SET utf8mb3 COLLATE utf8mb3_danish_ci NULL DEFAULT NULL,
  `business_explain` varchar(40) CHARACTER SET utf8mb3 COLLATE utf8mb3_danish_ci NULL DEFAULT NULL,
  `business_img` mediumtext CHARACTER SET utf8mb3 COLLATE utf8mb3_danish_ci NULL,
  `business_name` varchar(40) CHARACTER SET utf8mb3 COLLATE utf8mb3_danish_ci NOT NULL,
  `delivery_price` decimal(5, 2) NULL DEFAULT NULL,
  `order_type_id` int NOT NULL,
  `remarks` varchar(40) CHARACTER SET utf8mb3 COLLATE utf8mb3_danish_ci NULL DEFAULT NULL,
  `start_price` decimal(5, 2) NULL DEFAULT NULL,
  PRIMARY KEY (`business_id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 22 CHARACTER SET = utf8mb3 COLLATE = utf8mb3_danish_ci ROW_FORMAT = COMPACT;

-- ----------------------------
-- Table structure for cart
-- ----------------------------
DROP TABLE IF EXISTS `cart`;
CREATE TABLE `cart`  (
  `cart_id` int NOT NULL AUTO_INCREMENT,
  `food_id` int NOT NULL,
  `business_id` int NOT NULL,
  `user_id` int NOT NULL,
  `quantity` int NOT NULL,
  PRIMARY KEY (`cart_id`) USING BTREE,
  INDEX `foodId`(`food_id` ASC) USING BTREE,
  INDEX `businessId`(`business_id` ASC) USING BTREE,
  INDEX `userId`(`user_id` ASC) USING BTREE,
  CONSTRAINT `cart_ibfk_1` FOREIGN KEY (`food_id`) REFERENCES `food` (`food_id`) ON DELETE RESTRICT ON UPDATE RESTRICT,
  CONSTRAINT `cart_ibfk_2` FOREIGN KEY (`business_id`) REFERENCES `business` (`business_id`) ON DELETE RESTRICT ON UPDATE RESTRICT,
  CONSTRAINT `cart_ibfk_3` FOREIGN KEY (`user_id`) REFERENCES `user` (`user_id`) ON DELETE RESTRICT ON UPDATE RESTRICT
) ENGINE = InnoDB AUTO_INCREMENT = 25 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = COMPACT;

-- ----------------------------
-- Table structure for delivery_address
-- ----------------------------
DROP TABLE IF EXISTS `delivery_address`;
CREATE TABLE `delivery_address`  (
  `delivery_address_id` int NOT NULL AUTO_INCREMENT,
  `contact_sex` int NOT NULL,
  `contact_tel` varchar(20) CHARACTER SET utf8mb3 COLLATE utf8mb3_danish_ci NOT NULL,
  `address` varchar(100) CHARACTER SET utf8mb3 COLLATE utf8mb3_danish_ci NOT NULL,
  `user_id` int NOT NULL,
  `contact_name` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL,
  PRIMARY KEY (`delivery_address_id`) USING BTREE,
  INDEX `deliveryaddress_FK_user`(`user_id` ASC) USING BTREE,
  CONSTRAINT `delivery_address_ibfk_1` FOREIGN KEY (`user_id`) REFERENCES `user` (`user_id`) ON DELETE RESTRICT ON UPDATE RESTRICT
) ENGINE = InnoDB AUTO_INCREMENT = 10 CHARACTER SET = utf8mb3 COLLATE = utf8mb3_danish_ci ROW_FORMAT = COMPACT;

-- ----------------------------
-- Table structure for food
-- ----------------------------
DROP TABLE IF EXISTS `food`;
CREATE TABLE `food`  (
  `food_id` int NOT NULL AUTO_INCREMENT,
  `food_name` varchar(30) CHARACTER SET utf8mb3 COLLATE utf8mb3_danish_ci NOT NULL,
  `food_explain` varchar(30) CHARACTER SET utf8mb3 COLLATE utf8mb3_danish_ci NOT NULL,
  `food_img` mediumtext CHARACTER SET utf8mb3 COLLATE utf8mb3_danish_ci NULL,
  `food_price` decimal(5, 2) NOT NULL,
  `business_id` int NOT NULL,
  `remarks` varchar(40) CHARACTER SET utf8mb3 COLLATE utf8mb3_danish_ci NULL DEFAULT NULL,
  PRIMARY KEY (`food_id`) USING BTREE,
  INDEX `food_FK_business`(`business_id` ASC) USING BTREE,
  CONSTRAINT `food_ibfk_1` FOREIGN KEY (`business_id`) REFERENCES `business` (`business_id`) ON DELETE RESTRICT ON UPDATE RESTRICT
) ENGINE = InnoDB AUTO_INCREMENT = 40 CHARACTER SET = utf8mb3 COLLATE = utf8mb3_danish_ci ROW_FORMAT = COMPACT;

-- ----------------------------
-- Table structure for order_detail
-- ----------------------------
DROP TABLE IF EXISTS `order_detail`;
CREATE TABLE `order_detail`  (
  `order_detail_id` int NOT NULL AUTO_INCREMENT,
  `order_id` int NULL DEFAULT NULL,
  `food_id` int NULL DEFAULT NULL,
  `quantity` int NULL DEFAULT NULL,
  PRIMARY KEY (`order_detail_id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 20 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = DYNAMIC;

-- ----------------------------
-- Table structure for orders
-- ----------------------------
DROP TABLE IF EXISTS `orders`;
CREATE TABLE `orders`  (
  `order_id` int NOT NULL AUTO_INCREMENT,
  `user_id` int NOT NULL,
  `business_id` int NOT NULL,
  `order_date` datetime NOT NULL,
  `order_total` decimal(7, 2) NOT NULL,
  `delivery_address_id` int NOT NULL,
  `order_state` int NOT NULL,
  PRIMARY KEY (`order_id`) USING BTREE,
  INDEX `orders_FK_user`(`user_id` ASC) USING BTREE,
  INDEX `orders_FK_business`(`business_id` ASC) USING BTREE,
  INDEX `orders_FK_deliveryaddress`(`delivery_address_id` ASC) USING BTREE,
  CONSTRAINT `orders_ibfk_1` FOREIGN KEY (`user_id`) REFERENCES `user` (`user_id`) ON DELETE RESTRICT ON UPDATE RESTRICT,
  CONSTRAINT `orders_ibfk_2` FOREIGN KEY (`business_id`) REFERENCES `business` (`business_id`) ON DELETE RESTRICT ON UPDATE RESTRICT,
  CONSTRAINT `orders_ibfk_3` FOREIGN KEY (`delivery_address_id`) REFERENCES `delivery_address` (`delivery_address_id`) ON DELETE RESTRICT ON UPDATE RESTRICT
) ENGINE = InnoDB AUTO_INCREMENT = 21 CHARACTER SET = utf8mb3 COLLATE = utf8mb3_danish_ci ROW_FORMAT = COMPACT;

-- ----------------------------
-- Table structure for role
-- ----------------------------
DROP TABLE IF EXISTS `role`;
CREATE TABLE `role`  (
  `role_id` int NOT NULL AUTO_INCREMENT,
  `role_name` varchar(40) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NULL DEFAULT NULL,
  PRIMARY KEY (`role_id`) USING BTREE,
  INDEX `roleId`(`role_id` ASC, `role_name` ASC) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 11 CHARACTER SET = utf8mb3 COLLATE = utf8mb3_general_ci ROW_FORMAT = COMPACT;

-- ----------------------------
-- Table structure for role_user
-- ----------------------------
DROP TABLE IF EXISTS `role_user`;
CREATE TABLE `role_user`  (
  `role_user_id` int NOT NULL AUTO_INCREMENT,
  `user_id` int NULL DEFAULT NULL,
  `role_id` int NULL DEFAULT NULL,
  PRIMARY KEY (`role_user_id`) USING BTREE,
  INDEX `userId`(`user_id` ASC) USING BTREE,
  INDEX `roleId`(`role_id` ASC) USING BTREE,
  CONSTRAINT `role_user_ibfk_1` FOREIGN KEY (`user_id`) REFERENCES `user` (`user_id`) ON DELETE RESTRICT ON UPDATE RESTRICT,
  CONSTRAINT `role_user_ibfk_2` FOREIGN KEY (`role_id`) REFERENCES `role` (`role_id`) ON DELETE RESTRICT ON UPDATE RESTRICT
) ENGINE = InnoDB AUTO_INCREMENT = 142 CHARACTER SET = utf8mb3 COLLATE = utf8mb3_general_ci ROW_FORMAT = COMPACT;

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user`  (
  `user_id` int NOT NULL AUTO_INCREMENT,
  `password` varchar(64) CHARACTER SET utf8mb3 COLLATE utf8mb3_general_ci NOT NULL,
  `username` varchar(20) CHARACTER SET utf8mb3 COLLATE utf8mb3_danish_ci NOT NULL,
  `user_sex` int NOT NULL DEFAULT 1,
  `user_avatar` mediumtext CHARACTER SET utf8mb3 COLLATE utf8mb3_danish_ci NULL,
  `deleted` int(1) UNSIGNED ZEROFILL NULL DEFAULT 0,
  PRIMARY KEY (`user_id`) USING BTREE,
  UNIQUE INDEX `userName`(`username` ASC) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 2917 CHARACTER SET = utf8mb3 COLLATE = utf8mb3_danish_ci ROW_FORMAT = COMPACT;

-- ----------------------------
-- Table structure for user_base_info
-- ----------------------------
DROP TABLE IF EXISTS `user_base_info`;
CREATE TABLE `user_base_info`  (
  `id` int NOT NULL AUTO_INCREMENT COMMENT '主键ID',
  `user_id` varchar(10) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL COMMENT '用户ID',
  `name` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL COMMENT '用户名',
  `chinese_name` varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '中文名',
  `sex` char(3) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NOT NULL COMMENT '性别',
  `alias` varchar(500) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '别名',
  `wechat` varchar(200) CHARACTER SET utf8mb4 COLLATE utf8mb4_0900_ai_ci NULL DEFAULT NULL COMMENT '微信号',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 4 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = DYNAMIC;

SET FOREIGN_KEY_CHECKS = 1;

4.2 配置数据库信息

在IDEA的菜单栏中找到工具->Config Database

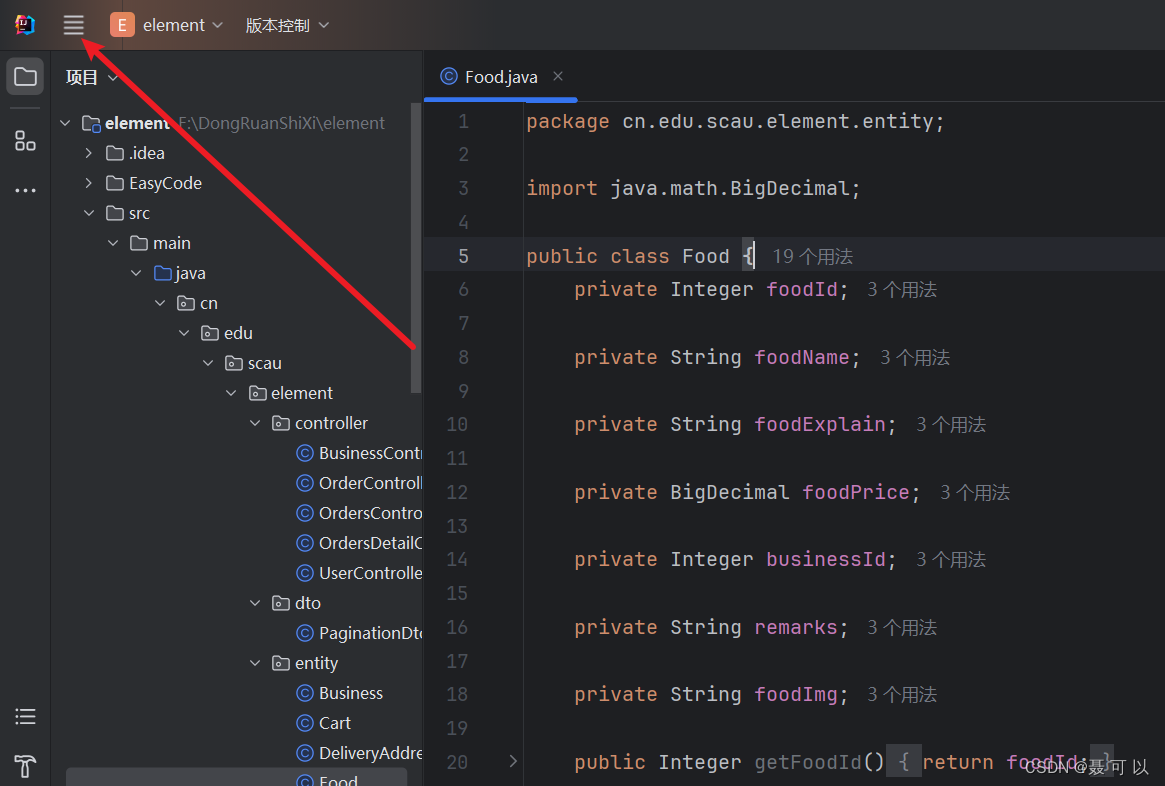

4.2.1 打开IDEA的菜单栏

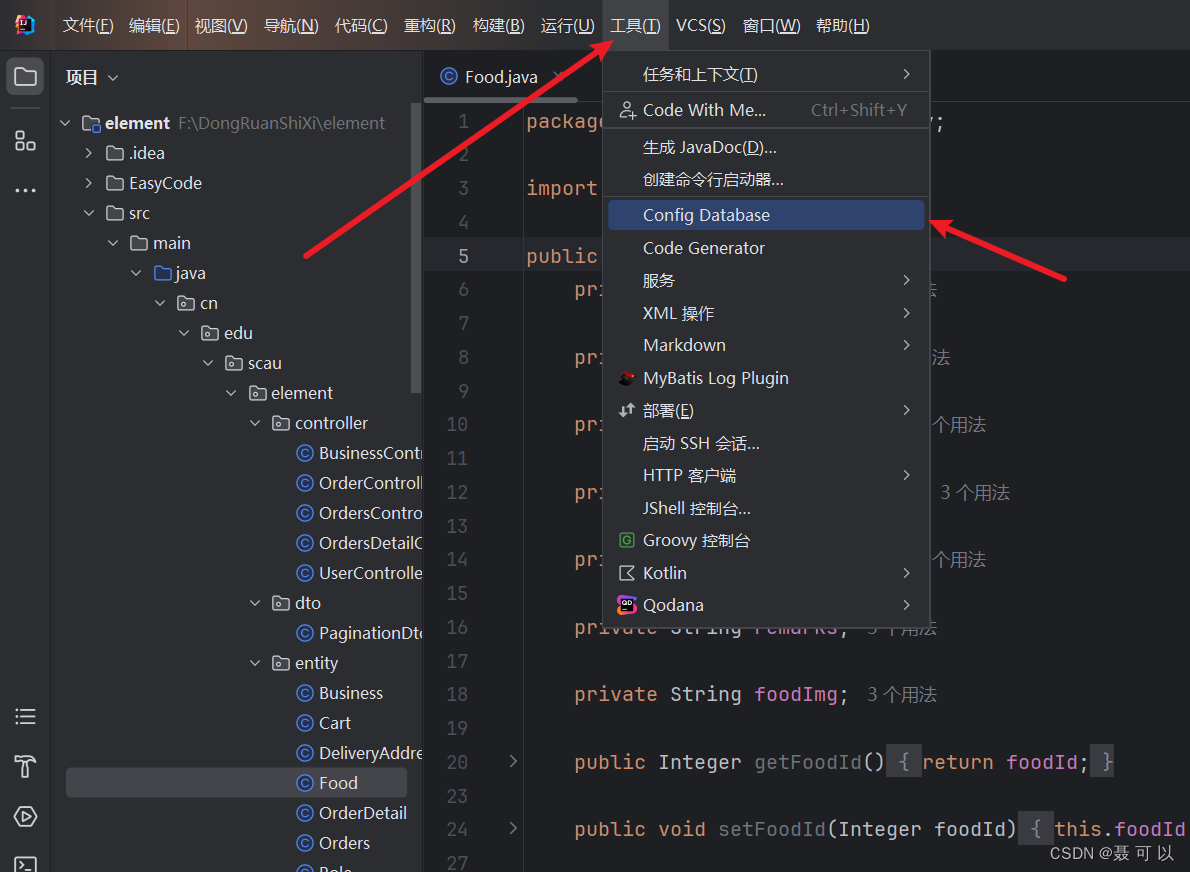

4.2.2 找到工具，点击Config Database

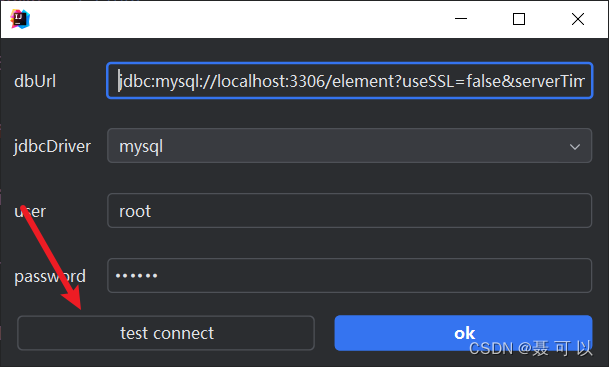

4.2.3 填写连接数据库所需要的信息

jdbc:mysql://localhost:3306/element?useSSL=false&serverTimezone=UTC

填写完连接数据库所需要的信息后，点击test connect按钮

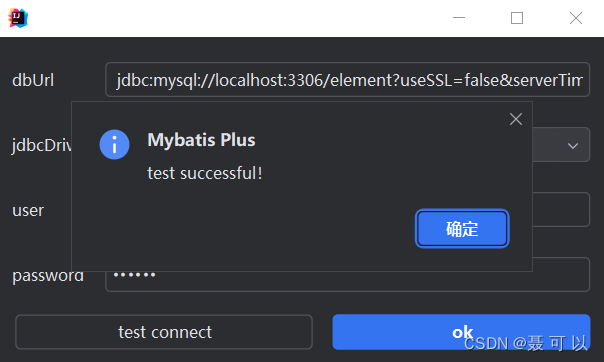

显示test successful!弹窗就表示连接数据库成功了

4.3 导入MybatisPlus的Maven依赖和Spring Web的Maven依赖（SpringBoot项目）

在项目的pom.xml文件中引入MybatisPlus的依赖

---

SpringBoot 2

<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>3.5.7</version>
</dependency>

---

SpringBoot 3

<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-spring-boot3-starter</artifactId>
    <version>3.5.7</version>
</dependency>

---

MybatisPlus的官网：安装 | MyBatis-Plus (baomidou.com)

---

在项目的pom.xml文件中引入Spring Web的依赖

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>

5. 修改生成代码的配置

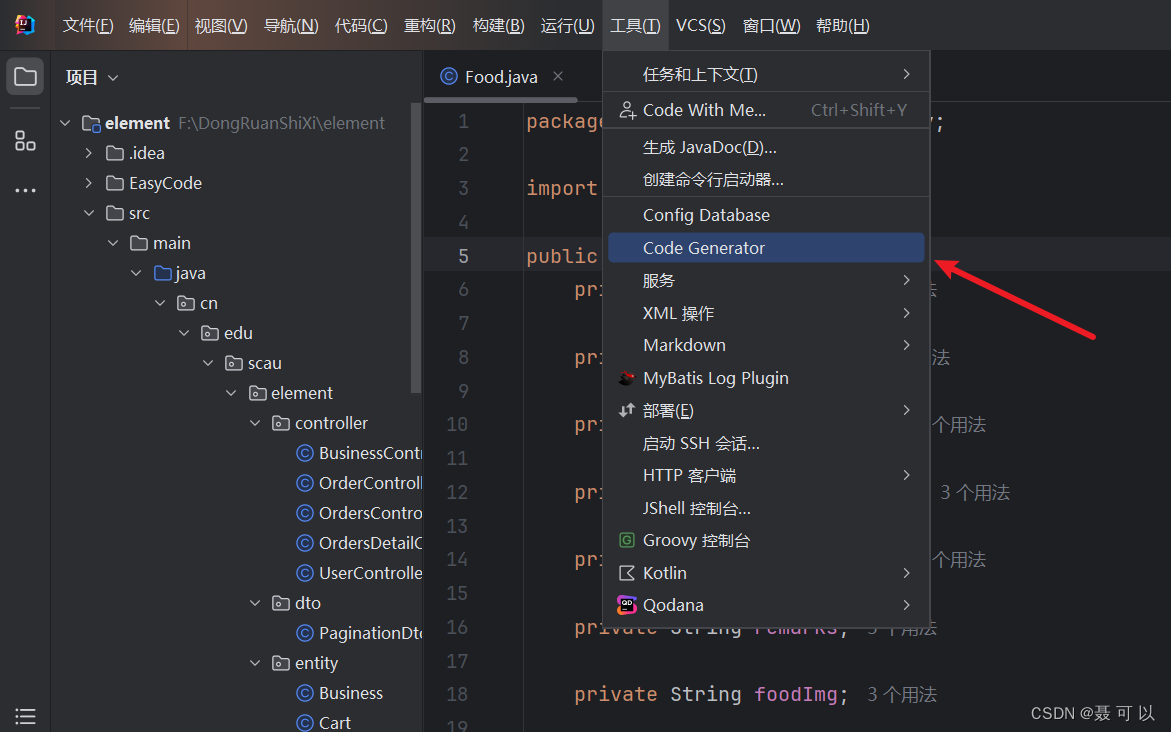

5.1 在菜单栏的工具项找到Code Generator

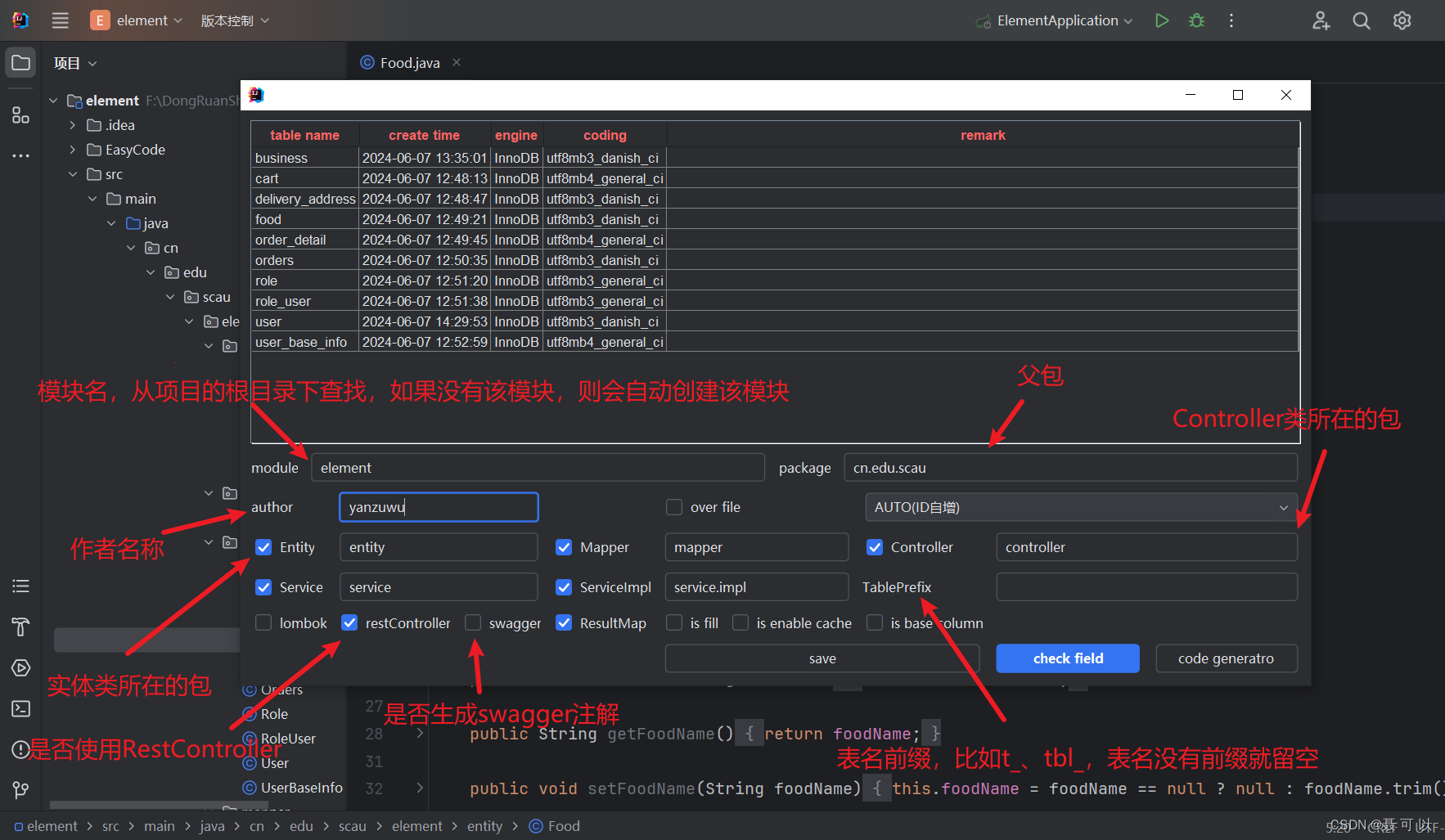

5.2 修改生成代码的配置

根据需求修改配置

尽量不要勾选over file（如果目录下有同名文件，会覆盖掉原文件）

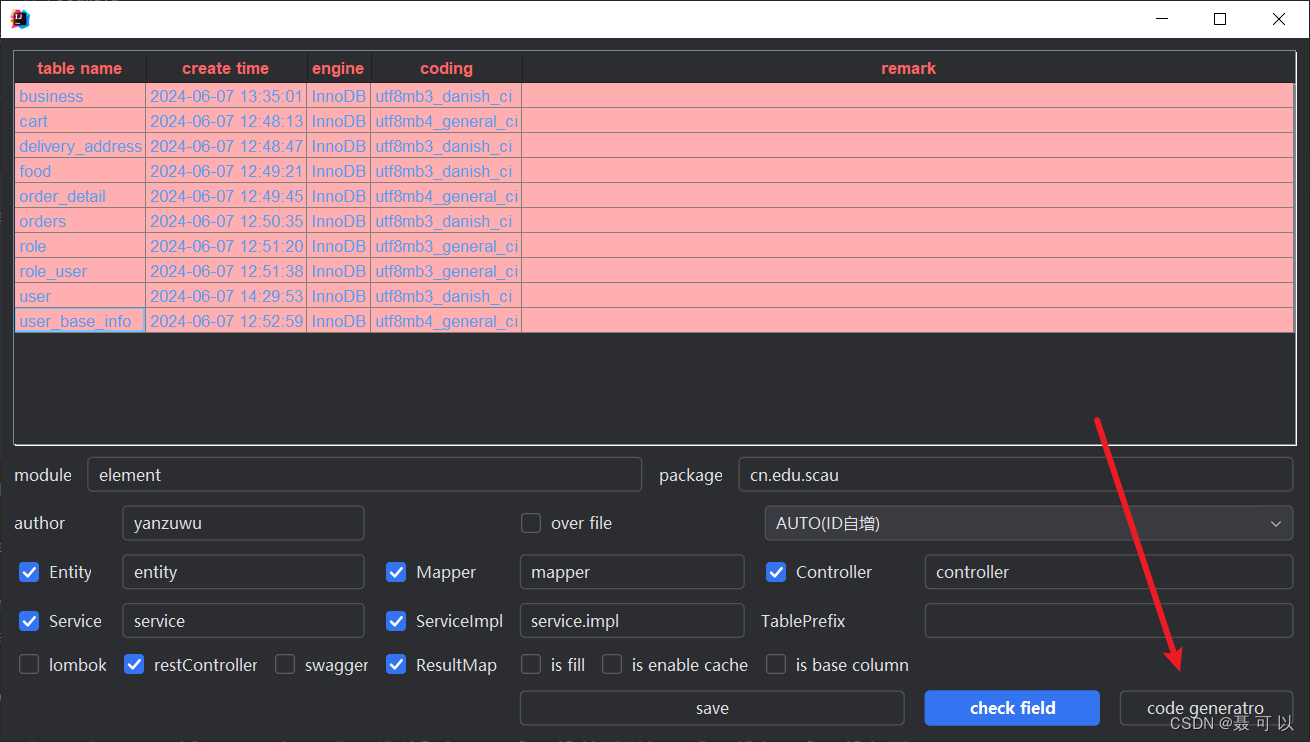

6. 选择需要逆向工程的表，点击 code generator 按钮

可以使用SHIFT键和CTRL键配合鼠标左键实现多选，被选中的表会变成粉色

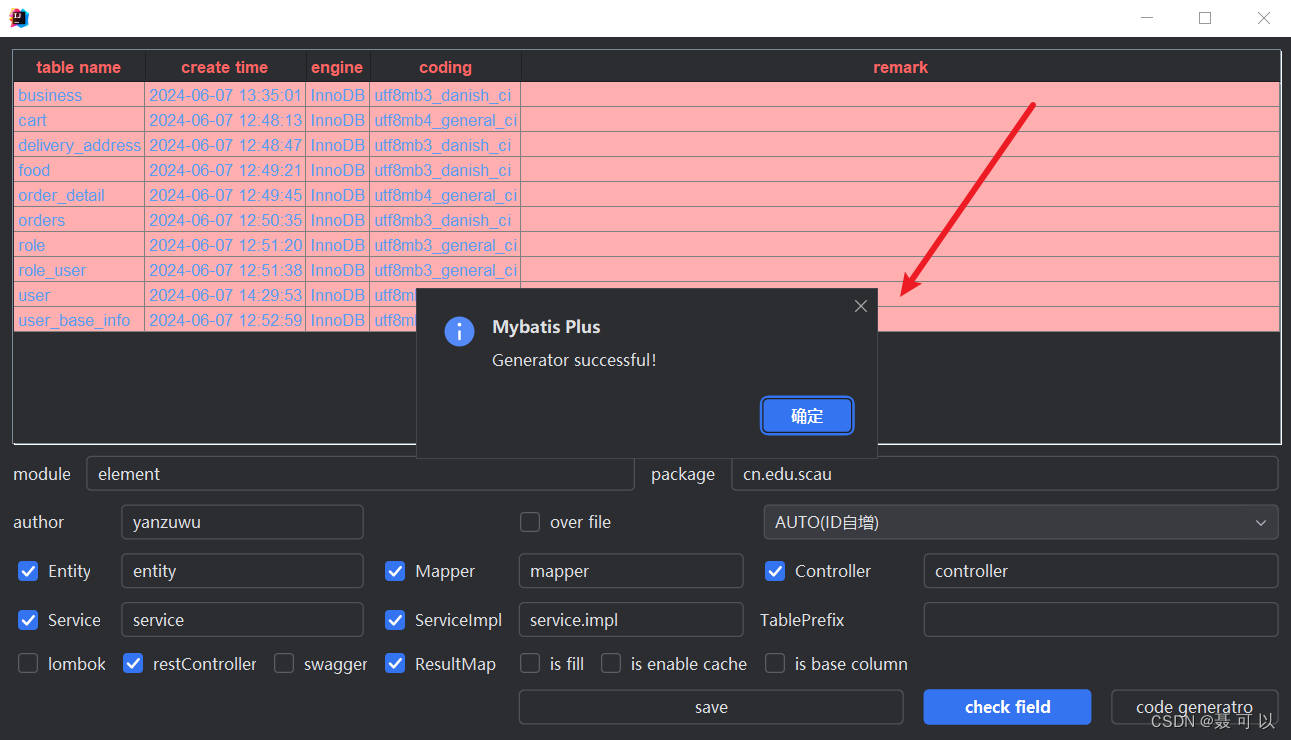

显示Generator successful窗口就代表生成成功了

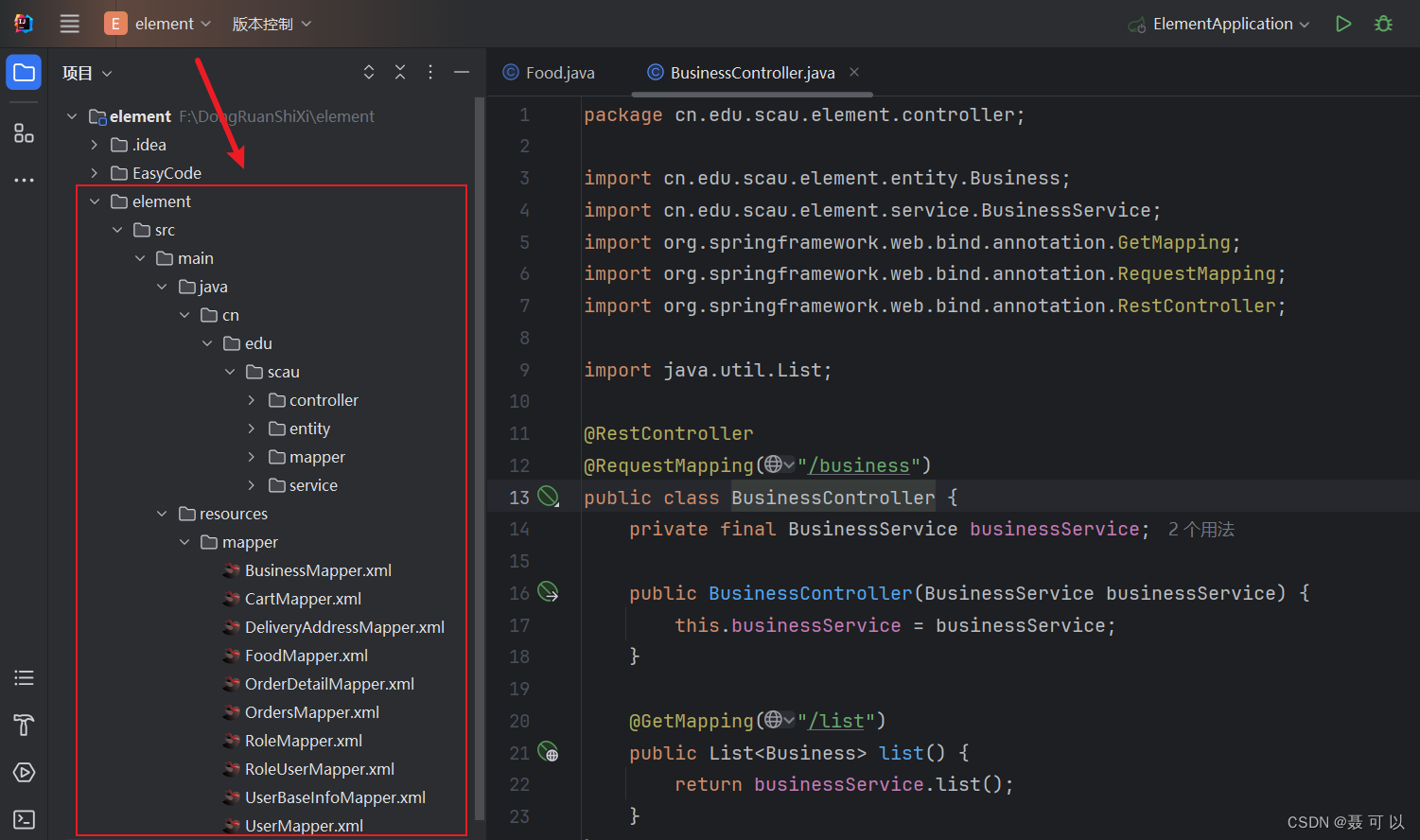

7. 逆向工程生成的代码的目录结构

生成代码的目录符合经典的三层MVC架构的（Mapper.xml文件会放在resources/mapper目录下）

8. 使用IDEA的在文件中批量替换文本功能更改Service接口的名称——结合正则表达式（可选）

MybatisPlus逆向工程插件生成的Service接口前面有一个I，可能不符合我们的使用习惯，我们可以使用IDEA的在文件中批量批量替换文本功能更改Service接口的名称

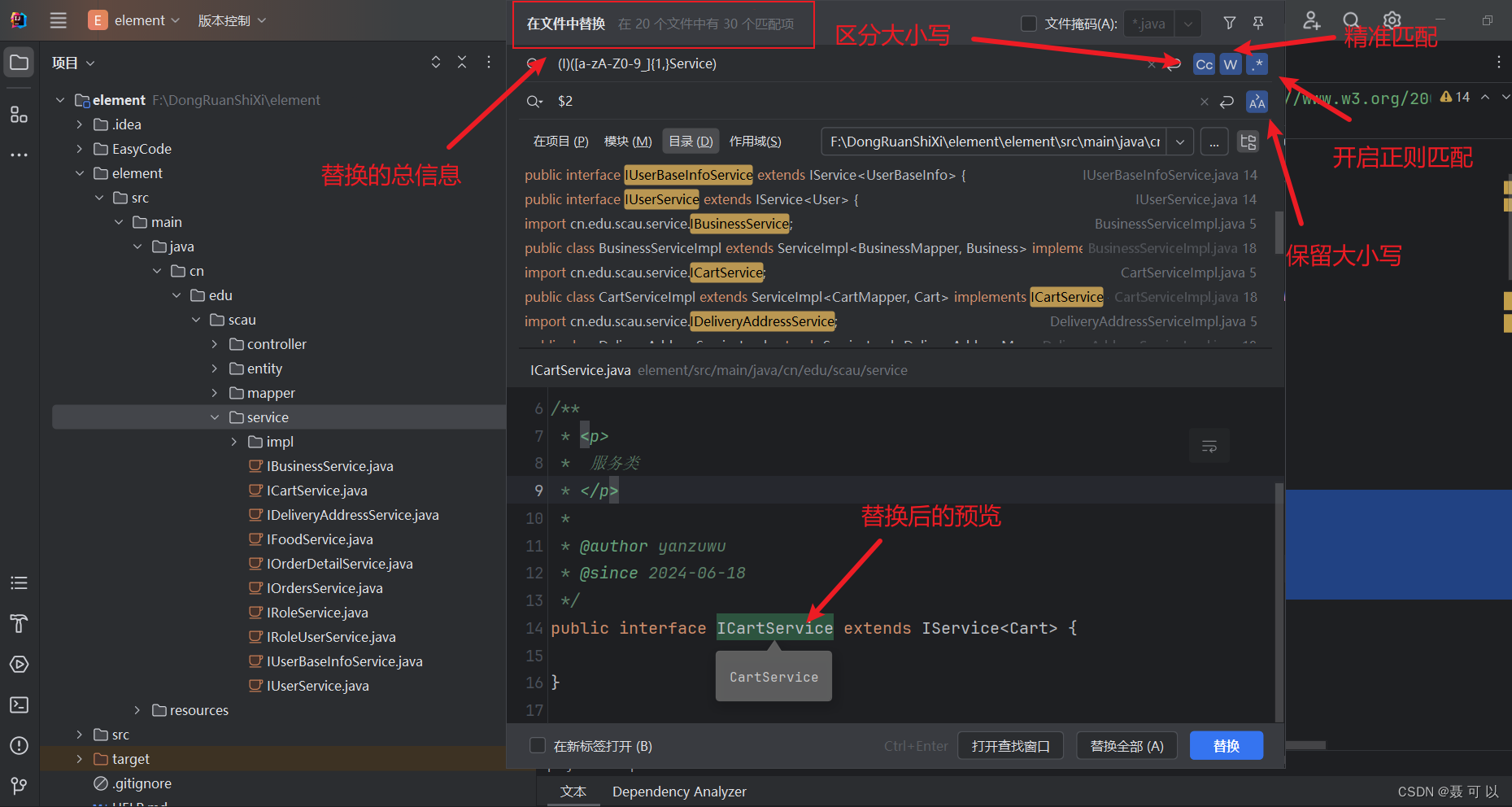

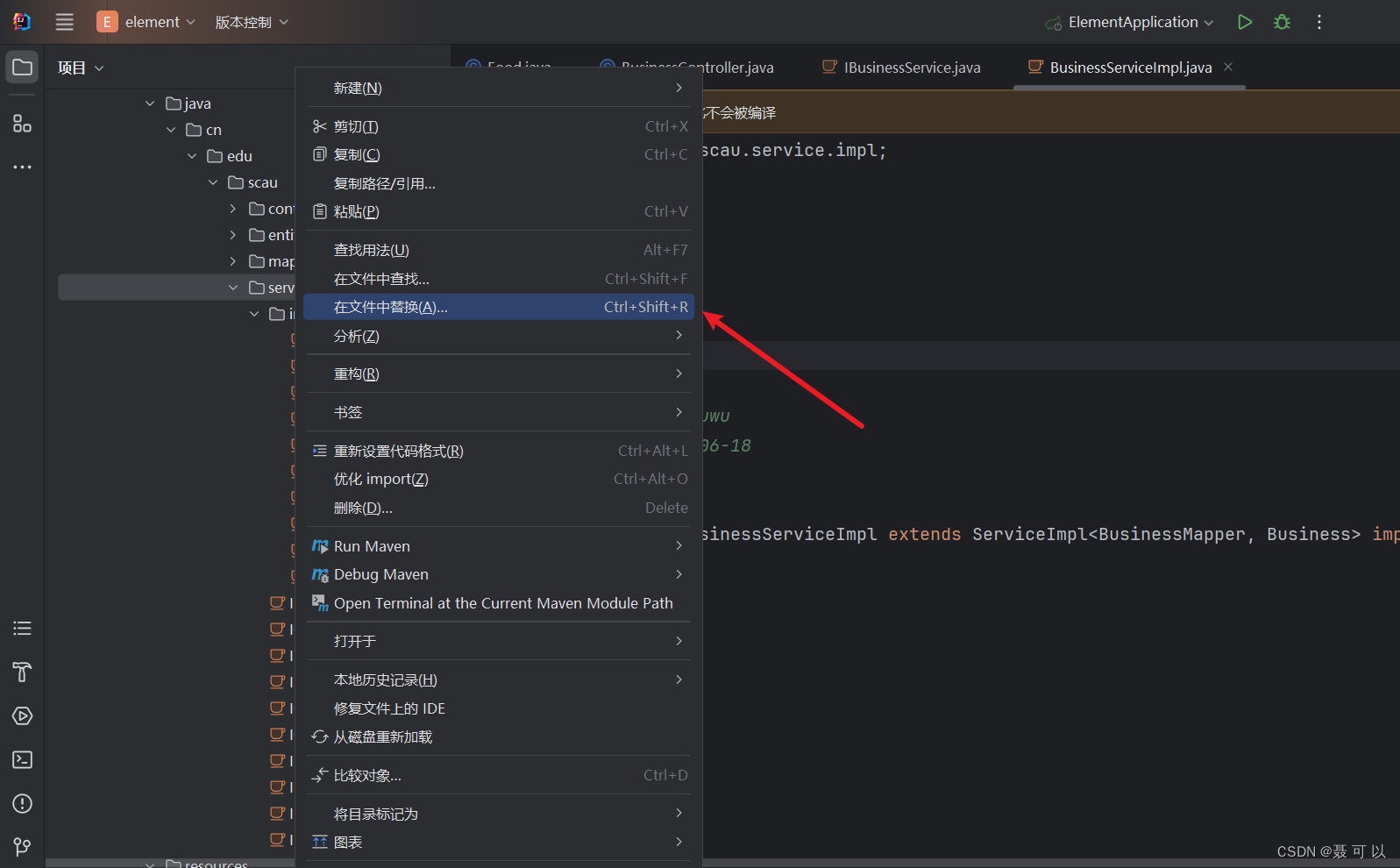

右击service目录，点击在文件中替换

以下是两个关键的正则表达式

(I)([a-zA-Z0-9_]{1,}Service)

$2

---

用于搜索的正则表达式的解释：

1. (I):
   • I 表示匹配字母"I"
   • 圆括号()表示这是一个捕获组，可以将匹配这部分的内容单独提取出来。在这个表达式中，第一个捕获组匹配的是字母"I"
2. ([a-zA-Z0-9_]{1,}Service):
   • [a-zA-Z0-9_] 表示匹配任意字母（大写或小写）、数字或下划线
   • {1,} 表示前面的字符类（字母、数字、下划线）至少出现一次
   • Service 表示匹配单词"Service"
   • 整条式子也是一个捕获组，它匹配的是"I"后面的至少一个字母、数字或下划线，以及"Service"这个单词

---

解释一下替换文本（$2）的意思，用于搜索的正则表达式有2个小括号括起来的表达式，每一个都代表着一组匹配结果集，第一个匹配结果集对应$1，第二个匹配结果集对应$2，第三个匹配结果集对应$3，以此类推

---

填写完两个正则表达式后，就可以实时看到替换的预览效果

点击替换按钮，就能将Service接口前面的I去掉了

唯一不足的是，Service接口类的文件名还是需要手动修改，可以结合IDEA的智能提示，提高修改文件名的效率
