使用JavaFX实现选择排序可视化

最新推荐文章于 2025-01-31 00:11:11 发布

原创最新推荐文章于 2025-01-31 00:11:11 发布 · 341 阅读

7 ·

CC 4.0 BY-SA版权

文章标签：

#java

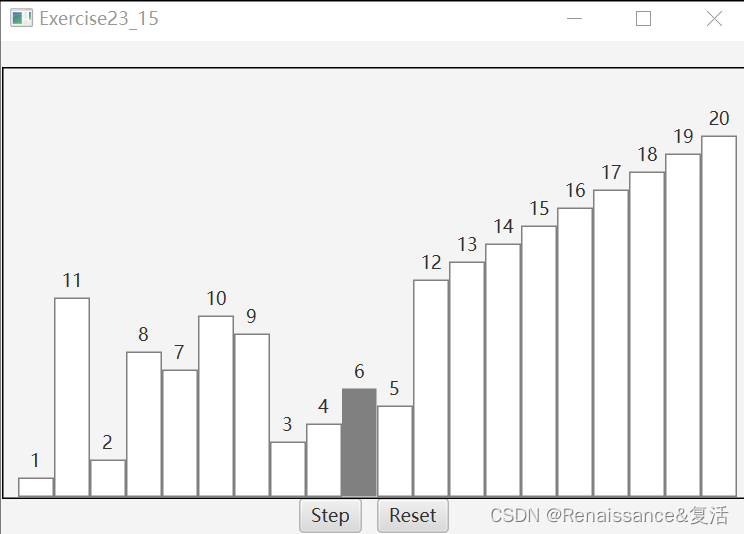

这个博客展示了如何用JavaFX创建一个交互式的选择排序可视化应用。程序包含了一个选择排序的实现，通过直方图展示排序过程，并提供Step和Reset按钮来控制排序的迭代和重置。用户可以观察到数组元素在每一步如何被比较和交换，从而理解选择排序的工作原理。

package sort;

import javafx.application.Application;
import javafx.geometry.Insets;
import javafx.geometry.Pos;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.ContentDisplay;
import javafx.scene.control.Label;
import javafx.scene.layout.BorderPane;
import javafx.scene.layout.HBox;
import javafx.scene.shape.Rectangle;
import javafx.scene.text.Text;
import javafx.stage.Stage;

import java.util.ArrayList;
import java.util.Collections;

public class Exercise23_15 extends Application {
    private static final int SIZE = 20;     //数组大小
    private ArrayList<Integer> list = new ArrayList<>(SIZE);    //数组列表
    private Rectangle[] rectangles = new Rectangle[SIZE];       //直方图
    private Button step = new Button("Step");       //按钮
    private Button reset = new Button("Reset");
    private Text text = new Text();     //顶部文本
    private int index, k;   //索引（执行一次排序外循环）

    public static void main(String[] args) {
        launch(args);
    }

    @Override
    public void start(Stage primaryStage) {
        HBox hBox = new HBox(10, step, reset);  //顶部面板
        hBox.setAlignment(Pos.CENTER);

        BorderPane pane = new BorderPane(getCenter());  //总面板
        pane.setTop(text);
        pane.setBottom(hBox);
        pane.setPadding(new Insets(2));
        BorderPane.setAlignment(pane.getTop(), Pos.CENTER);

        //按钮注册动作事件
        step.setOnAction(event -> {
            if (index < list.size() - 1) {
                selectionSort();
                pane.setCenter(getCenter());
                rectangles[k].setStyle("-fx-fill: grey;");
            } else
                text.setText("The list has sorted");
        });
        reset.setOnAction(event -> {
            Collections.shuffle(list);
            pane.setCenter(getCenter());
            text.setText("");
            index = 0;
        });

        Scene scene = new Scene(pane, 500, 330);
        primaryStage.setScene(scene);
        primaryStage.setTitle("Exercise23_15");
        primaryStage.show();
    }

    /** 返回中心面板 */
    private HBox getCenter() {
        if (list.size() == 0) { //数组列表空时，赋值
            for (int i = 0; i < SIZE; i++)
                list.add(i + 1);
            Collections.shuffle(list);
        }

        //直方图
        HBox hBox = new HBox();
        hBox.setStyle("-fx-border-color: black; -fx-padding: 0 5px 5px;");
        for (int i = 0; i < SIZE; i++) {
            rectangles[i] = new Rectangle();
            rectangles[i].setStyle("-fx-fill: white; -fx-stroke: grey;");
            rectangles[i].setHeight(list.get(i) * 12);
            rectangles[i].setWidth(23);
            Label label = new Label(String.valueOf(list.get(i)), rectangles[i]);
            label.setContentDisplay(ContentDisplay.BOTTOM);
            label.setRotate(180);
            hBox.getChildren().add(label);
        }
        hBox.setRotate(180);

        return hBox;
    }

    /** 选择排序 */
    public void selectionSort() {
        if (index < list.size() - 1) {
            int min = list.get(index);
            int k = index;
            for (int i = index + 1; i < list.size(); i++) {
                if (list.get(i) > min) {
                    min = list.get(i);
                    k = i;
                }
            }

            if (k != index) {
                list.set(k, list.get(index));
                list.set(index, min);
                this.k = k;
            }
            index++;
        }
    }
}
