1.算法程序

  illustrator是矢量编辑软件，画板是绘制处理的重要容器，在印刷方面的一个重要功能就是裁切标记，开发一个裁切标记功能，源代码如下所示：

if (app.documents.length == 0) {
    alert("请先建立一个新文件", "错误");
    var myDoc = app.documents.add();
}
luRes = "dialog {alignChildren: 'fill', text: '裁切标记',margins:[8,8,8,8]\nall: Group { orientation: 'row',alignChildren: 'fill', \n    myType: Panel {text:'类型',alignChildren: 'right',orientation: 'column',bounds:[100,0,225,110],properties:{borderStyle:'sunken'},\n                  lineType: Group { orientation: 'row',  spacing:1,\n                               st: StaticText { text:'角线:' }, \n                             ddl: DropDownList {preferredSize: [54, 20] ,fontsize:3,properties:{items:['日式', '罗马','中式']}},\n                                          } \n                crossType: Group { orientation: 'row',  spacing:1,\n                              cb: Checkbox { text:'套准', value: true}, \n                             ddl: DropDownList {preferredSize: [54, 20],properties:{items:['带圆', '无圆']}},\n                                          } \n                          } \n    mySize: Panel {text:'角线设置',alignChildren: 'fill',orientation: 'column',bounds:[100,0,240,0],properties:{borderStyle:'sunken'},\n                        lineLen: Group { orientation: 'row',  \n                                    s: StaticText { text:'长度:' }, \n                                    e: EditText {text: 6 , preferredSize: [36, 20],active:true}, \n                                    s: StaticText { text:'毫米' }, \n                                              } \n                    lineBleed: Group { orientation: 'row', \n                                    s: StaticText { text:'出血:' }, \n                                    e: EditText { text:3, preferredSize: [36, 20] },\n                                    s: StaticText { text:'毫米' }, \n                                             } \n                  lineStroke: Group { orientation: 'row', \n                                    s: StaticText { text:'描边:' }, \n                                    e: EditText { text:0.25, preferredSize: [36, 20] },\n                                    s: StaticText { text:'点' }, \n                                             } \n                         }  \n           } \nall2: Group { orientation: 'row',alignChildren: 'fill',\n        checkboxes: Panel { text:'选项', orientation:'column', alignChildren:'left',properties:{borderStyle:'black'},\n                 cb1: Checkbox { text:'添加角线图层 ', value: true}, \n                 cb2: Checkbox { text:'添加色标名称', value: true}, \n                 cb3: Checkbox { text:'添加文档信息' , value: true}, \n                 cb6: Checkbox { text:'包含对象边宽' }, \n                 cb4: Checkbox { text:'添加色条框',  value: true}, \n                 cb5: Checkbox { text:'色条框线',alignment: 'center',  value: true}, \n                }\n    myBisector: Panel { text:'等分线',alignChildren: 'left',orientation: 'column',bounds:[100,0,240,0],properties:{borderStyle:'sunken'},\n                               cb: Checkbox {text:'使用', value: true}\n            myUse: Group { orientation: 'column',alignChildren: 'fill',\n                        myHor: Group { orientation: 'row', \n                                    s: StaticText { text:'水平数:' }, \n                                    e: EditText { text:2, preferredSize: [55, 20]},  } \n                      myHor2: Group { orientation: 'row', \n                                    s3: StaticText { text:'切线距:' }, \n                                    e2: EditText { text:6, preferredSize: [25, 20]},\n                                    s4: StaticText { text:'毫米' }, \n                                           } \n                        myVer: Group { orientation: 'row', \n                                    s: StaticText {text:'垂直数:' }, \n                                    e: EditText { text:4, preferredSize: [55, 20] },  } \n                     myVer2: Group { orientation: 'row',  \n                                    s3: StaticText { text:'切线距:' }, \n                                    e2: EditText { text:6, preferredSize: [25, 20]},\n                                    s4: StaticText { text:'毫米' }, \n                                            } \n                                  }\n                            }\n              }\nbuttonGroups: Group { orientation: 'row', alignment: 'center', \ncancelBtn: Button { text:'取消',properties:{name:'cancel'}}, \nokBtn: Button { text:'确定',properties:{name:'ok'}}, \n        }\n}";
var win = new Window(luRes);
win.all.myType.lineType.ddl.selection = win.all.myType.lineType.ddl.items[0];
win.all.myType.crossType.ddl.selection = win.all.myType.crossType.ddl.items[0];
selLine = win.all.myType.lineType.ddl.items[0];
selLine1 = win.all.myType.lineType.ddl.items[1];
selellipse = win.all.myType.crossType.ddl.items[0];
win.all.myType.crossType.cb.onClick = function() {
    win.all.myType.crossType.ddl.enabled = this.value;
};
win.all2.myBisector.cb.onClick = function() {
    win.all2.myBisector.myUse.enabled = this.value;
};
if (win.all2.myBisector.cb.value == true) {
    win.all2.myBisector.cb.notify()
}
win.all2.checkboxes.cb4.onClick = function() {
    win.all2.checkboxes.cb5.enabled = this.value;
};
win.center();
myReturn = win.show();
if (myReturn == true) {
    var docRef = app.activeDocument;
    var pointTomm = 2.83464566929134;
    var pw = 0;
    var ph = 0;
    var x = 0;
    var y = 0;
    var aiver = app.version;
    var fileNameLocation = 0;
    var pageNumberLocation = 0;
    var mCMYK = [setCMYKcolor(100, 0, 0, 0), setCMYKcolor(0, 100, 0, 0), setCMYKcolor(0, 0, 100, 0), setCMYKcolor(0, 0, 0, 100)];
    mCMYK.push(setCMYKcolor(100, 100, 0, 0), setCMYKcolor(100, 0, 100, 0), setCMYKcolor(0, 100, 100, 0), setCMYKcolor(0, 0, 0, 50));
    var colorBarSize = 5 * pointTomm;
    var regRoundSize = 3.6 * pointTomm;
    var myFont = textFonts.getByName("MicrosoftYaHei");
    var myFontSize = 9;
    var lineLen = eval(win.all.mySize.lineLen.e.text) * pointTomm;
    var lineBleed = eval(win.all.mySize.lineBleed.e.text) * pointTomm;
    var hBisector = eval(win.all2.myBisector.myUse.myHor.e.text);
    var vBisector = eval(win.all2.myBisector.myUse.myVer.e.text);
    var hBSpace = eval(win.all2.myBisector.myUse.myHor2.e2.text) * pointTomm;
    var vBSpace = eval(win.all2.myBisector.myUse.myVer2.e2.text) * pointTomm;
    var SW = eval(win.all.mySize.lineStroke.e.text);
    placeCropline = true;
    win.all2.checkboxes.cb1.value ? creatCropMarkLayer = true : creatCropMarkLayer = false;
    win.all2.myBisector.cb.value ? placeBisector = true : placeBisector = false;
    win.all2.checkboxes.cb2.value ? placeColorName = true : placeColorName = false;
    win.all2.checkboxes.cb3.value ? placeFileDateName = placePageSize = true : placeFileDateName = placePageSize = false;
    win.all.myType.crossType.cb.value ? placeRegMark = true : placeRegMark = false;
    win.all2.checkboxes.cb4.value ? placeColorBar = true : placeColorBar = false;
    win.all2.checkboxes.cb5.value ? colorBarStroked = true : colorBarStroked = false;
    if (lineLen <= 0 || lineBleed <= 0 || isNaN(lineLen) == true || isNaN(lineBleed) == true) {
        alert("输入的数值必须大于零！已自动更正为 长度:6mm 出血:3mm。", "错误");
        lineLen = 6 * pointTomm;
        lineBleed = 3 * pointTomm;
    }
    if (creatCropMarkLayer == true) {
        docRef.layers.add();
        docRef.layers[0].name = "角线图层";
    }
    if (docRef.selection.length > 0) {
        var sl = true;
        var obj = docRef.selection;
        var selVB = getBounds(obj);
        var docName = "文件名: " + docRef.name;
        pw = selVB[2] - selVB[0];
        ph = selVB[1] - selVB[3];
        x = selVB[0];
        y = selVB[3];
        for (var i = 0; i < obj.length; i += 1) {
            obj[i].selected = false;
        }
        setOpt();
    } else if (aiver.slice(0, 2) >= 14) {
        var ab = docRef.artboards.length - 1;
        if (ab >= 49) {
            alert("注意:页面数量超过 50 时需要较多的内存与较长的运行时间，请耐心等候。\n当出现 \"PARM\"错误时，请关掉一些不用的软件以释放可用内存！", "提示");
        }
        for (var j = 0; j <= ab; j += 1) {
            docRef.artboards.setActiveArtboardIndex(j);
            var artboardnumber = docRef.artboards.getActiveArtboardIndex() + 1;
            var docName = "文件名: " + docRef.name + "  页码: " + docRef.artboards.length + "-" + artboardnumber;
            pw = docRef.width;
            ph = docRef.height;
            x = docRef.cropBox[0];
            y = docRef.cropBox[1] - ph;
            setOpt();
        }
    } else {
        pw = docRef.width;
        ph = docRef.height;
        var docName = "文件名: " + docRef.name;
        setOpt();
    }
}

function setOpt() {
    regGroup = docRef.groupItems.add();
    textGroup = docRef.groupItems.add();
    colorBarGroup = docRef.groupItems.add();
    cropmark();
    if (placeColorName == true) {
        colorname();
    }
    if (placeColorBar == true) {
        colorBar();
    }
    if (placeBisector == true) {
        Bisector();
    }
    if (placeFileDateName == true) {
        filenameDate();
    }
    if (placeRegMark == true) {
        Regmark();
    }
    if (placePageSize == true) {
        pagesize();
    }
}

function setCMYKcolor(c, m, y, k) {
    var newCMYKcolor = new CMYKColor();
    newCMYKcolor.cyan = c;
    newCMYKcolor.magenta = m;
    newCMYKcolor.yellow = y;
    newCMYKcolor.black = k;
    return newCMYKcolor;
}

function filenameDate() {
    var today = new Date();
    var week = ["星期日", "星期一", "星期二", "星期三", "星期四", "星期五", "星期六"];
    var thisDate = today.getFullYear() + "年" + today.getMonth() + 1 + "月" + today.getDate() + "日" + " " + week[today.getDay()];
    var textString = "文件名: " + docName + "  " + thisDate;
    var textRef = textGroup.textFrames.add();
    textRef.contents = docName + "  " + thisDate;
    textRef.textRange.characterAttributes.size = myFontSize;
    textRef.textRange.characterAttributes.textFont = myFont;
    textRef.textRange.characterAttributes.fillColor = docRef.swatches[1].color;
    textRef.top = (y - 2) - lineBleed;
    textRef.left = ((pw - textRef.width) - lineBleed) + x;
}

function colorname() {
    var textRef = textGroup.textFrames.add();
    textRef.contents = "青色(C) 洋红(M) 黄色(Y) 黑色(K)";
    textRef.textRange.characterAttributes.size = myFontSize;
    textRef.textRange.characterAttributes.textFont = myFont;
    textRef.top = (y - 2) - lineBleed;
    textRef.left = x + lineBleed;
    for (var i = 0; i <= 5; i += 1) {
        textRef.textRange.characters[i].characterAttributes.fillColor = mCMYK[0]
    }
    for (var i = 6; i <= 11; i += 1) {
        textRef.textRange.characters[i].characterAttributes.fillColor = mCMYK[1]
    }
    for (var i = 12; i <= 17; i += 1) {
        textRef.textRange.characters[i].characterAttributes.fillColor = mCMYK[2]
    }
    for (var i = 18; i <= 22; i += 1) {
        textRef.textRange.characters[i].characterAttributes.fillColor = mCMYK[3]
    }
}

function pagesize() {
    var sizeUnit = "MM";
    var sizeX = pw;
    var sizeY = ph;
    switch (docRef.rulerUnits) {
        case RulerUnits.Centimeters:
            sizeUnit = " 厘米";
            sizeX = Math.round(((pw / pointTomm) / 10) * 100) / 100;
            sizeY = Math.round(((ph / pointTomm) / 10) * 100) / 100;
            break;
        case RulerUnits.Inches:
            sizeUnit = " 英吋";
            sizeX = Math.round((pw / 72) * 100) / 100;
            sizeY = Math.round((ph / 72) * 100) / 100;
            break;
        case RulerUnits.Millimeters:
            sizeUnit = " 毫米";
            sizeX = Math.round(((pw / pointTomm) + 0.001) * 100) / 100;
            sizeY = Math.round(((ph / pointTomm) + 0.001) * 100) / 100;
            break;
        case RulerUnits.Points:
            sizeUnit = " 点";
            sizeX = Math.round(pw * 100) / 100;
            sizeY = Math.round(ph * 100) / 100;
            break;
        case RulerUnits.Pixels:
            sizeUnit = " 像素";
            sizeX = Math.round(pw * 100) / 100;
            sizeY = Math.round(ph * 100) / 100;
            break;
        case RulerUnits.Qs:
            sizeUnit = " Ha";
            sizeX = Math.round(pw * 141.111) / 100;
            sizeY = Math.round(ph * 141.111) / 100;
            break;
        default:

    }
    var textPageSize = textGroup.textFrames.add();
    textPageSize.contents = "尺寸: " + sizeX + "X" + sizeY + sizeUnit;
    textPageSize.textRange.characterAttributes.size = myFontSize;
    textPageSize.textRange.characterAttributes.textFont = myFont;
    textPageSize.textRange.characterAttributes.fillColor = docRef.swatches[1].color;
    textPageSize.position = [((x + pw) - lineBleed) - textPageSize.width, y + ph + textPageSize.height + lineBleed];
}

function cropmark() {
    var lineGroup = regGroup.groupItems.add();
    var myLine = {
        line: function(PTS) {
            var myLineSet = lineGroup.pathItems.add();
            myLineSet.setEntirePath(PTS);
            myLineSet.filled = false;
            myLineSet.stroked = true;
            myLineSet.strokeWidth = SW;
            myLineSet.strokeColor = docRef.swatches[1].color;
        }
    };
    if (win.all.myType.lineType.ddl.selection == selLine) {
        var PTS1 = [
            [0, lineLen + lineBleed],
            [lineLen, lineLen + lineBleed],
            [lineLen, 0]
        ];
        myLine.line(PTS1);
        var PTS2 = [
            [0, lineLen],
            [lineLen + lineBleed, lineLen],
            [lineLen + lineBleed, 0]
        ];
        myLine.line(PTS2);
    } else if (win.all.myType.lineType.ddl.selection == selLine1) {
        var PTS1 = [
            [0, lineLen + lineBleed],
            [lineLen, lineLen + lineBleed]
        ];
        myLine.line(PTS1);
        var PTS2 = [
            [lineLen + lineBleed, lineLen],
            [lineLen + lineBleed, 0]
        ];
        myLine.line(PTS2);
    } else {
        var PTS1 = [
            [0, lineLen + lineBleed],
            [lineLen, lineLen + lineBleed]
        ];
        myLine.line(PTS1);
        var PTS2 = [
            [0, lineLen],
            [lineLen + (lineBleed / 2), lineLen]
        ];
        myLine.line(PTS2);
        var PTS3 = [
            [lineLen + lineBleed, lineLen],
            [lineLen + lineBleed, 0]
        ];
        myLine.line(PTS3);
        var PTS4 = [
            [lineLen, lineLen + (lineBleed / 2)],
            [lineLen, 0]
        ];
        myLine.line(PTS4);
    }
    lineGroup.position = [-lineGroup.width + x, y];
    lineGroup2 = lineGroup.duplicate();
    lineGroup2.rotate(90);
    lineGroup2.left = lineGroup2.left + lineGroup2.width + pw;
    lineGroup3 = lineGroup.duplicate();
    lineGroup3.rotate(270);
    lineGroup3.top = lineGroup3.top + lineGroup3.height + ph;
    lineGroup4 = lineGroup2.duplicate();
    lineGroup4.rotate(90);
    lineGroup4.top = lineGroup4.top + lineGroup4.height + ph;
}

function Regmark() {
    var lineGroup = regGroup.groupItems.add();
    if (win.all.myType.crossType.ddl.selection == selellipse) {
        ellipse = lineGroup.pathItems.ellipse((regRoundSize / 2) + y, (-regRoundSize / 2) + x, regRoundSize, regRoundSize, false, true);
        with(ellipse) {
            filled = false;
            stroked = true;
            strokeWidth = SW;
            strokeColor = docRef.swatches[1].color;
        }
    }
    var myLine = {
        line: function(X1, Y1, X2, Y2) {
            var myLineSet = lineGroup.pathItems.add();
            myLineSet.setEntirePath([
                [X1, Y1],
                [X2, Y2]
            ]);
            myLineSet.filled = false;
            myLineSet.stroked = true;
            myLineSet.strokeWidth = SW;
            myLineSet.strokeColor = docRef.swatches[1].color;
        }
    };
    myLine.line((-lineLen / 2) + x, y, (lineLen / 2) + x, y);
    myLine.line(x, -(lineLen + lineBleed) + y, x, lineLen + lineBleed + y);
    lineGroup.position = [(-lineGroup.width - lineBleed) + x, ((ph + lineGroup.height) / 2) + y];
    lineGroup.duplicate().position = [pw + lineBleed + x, ((ph + lineGroup.height) / 2) + y];
    lineGroup.duplicate();
    lineGroup.rotate(90);
    lineGroup.position = [((pw - lineGroup.width) / 2) + x, -lineBleed + y];
    lineGroup.duplicate().position = [((pw - lineGroup.width) / 2) + x, ph + lineGroup.height + lineBleed + y];
}

function colorBar() {
    var rectangle = {
        bar: function(y, x, colorBarSize, fiColor, swColor) {
            var myRectangle = colorBarGroup.pathItems.rectangle(y, x, colorBarSize, colorBarSize);
            myRectangle.fillColor = fiColor;
            myRectangle.stroked = false;
            if (colorBarStroked == true) {
                myRectangle.strokeColor = swColor;
                myRectangle.strokeWidth = SW;
            }
        }
    };
    for (var i = 0; i <= 10; i += 1) {
        rectangle.bar(y + (i * colorBarSize) + colorBarSize + lineBleed, ((-colorBarSize - lineBleed) + x) - 1, colorBarSize, colorBarSize, setCMYKcolor(10 * i, 0, 0, 0), mCMYK[0]);
        rectangle.bar((((y + (i * colorBarSize)) - (10 * colorBarSize)) - lineBleed) + ph, ((-colorBarSize - lineBleed) + x) - 1, colorBarSize, colorBarSize, setCMYKcolor(0, 10 * i, 0, 0), mCMYK[1]);
        rectangle.bar((((y + (i * colorBarSize)) - (10 * colorBarSize)) - lineBleed) + ph, lineBleed + x + pw + 1, colorBarSize, colorBarSize, setCMYKcolor(0, 0, 10 * i, 0), mCMYK[2]);
        rectangle.bar(y + (i * colorBarSize) + colorBarSize + lineBleed, lineBleed + x + pw + 1, colorBarSize, colorBarSize, setCMYKcolor(0, 0, 0, 10 * i), mCMYK[3]);
    }
    for (var j = 0; j <= 7; j += 1) {
        rectangle.bar(y + ph + colorBarSize + lineBleed + 1, lineBleed + x + (j * colorBarSize), colorBarSize, colorBarSize, mCMYK[j], docRef.swatches[1].color)
    }
}

function Bisector() {
    var lineGroup = regGroup.groupItems.add();
    var myLine = {
        line: function(X1, Y1, X2, Y2) {
            var myLineSet = lineGroup.pathItems.add();
            myLineSet.setEntirePath([
                [X1, Y1],
                [X2, Y2]
            ]);
            myLineSet.filled = false;
            myLineSet.stroked = true;
            myLineSet.strokeWidth = SW;
            myLineSet.strokeColor = docRef.swatches[1].color;
        }
    };
    if (vBSpace == 0) {
        for (var vML = 1; vML < vBisector; vML += 1) {
            var vEquidistant = ph / vBisector;
            myLine.line((x - lineLen) - lineBleed, y + (vML * vEquidistant), x - lineBleed, y + (vML * vEquidistant));
            myLine.line(x + lineLen + lineBleed + pw, y + (vML * vEquidistant), x + lineBleed + pw, y + (vML * vEquidistant));
        }
    } else {
        for (var vML = 1; vML < vBisector; vML += 1) {
            var vEquidistant = (ph + vBSpace) / vBisector;
            myLine.line((x - lineLen) - lineBleed, y + (vML * vEquidistant), x - lineBleed, y + (vML * vEquidistant));
            myLine.line((x - lineLen) - lineBleed, (y - vBSpace) + (vML * vEquidistant), x - lineBleed, (y - vBSpace) + (vML * vEquidistant));
            myLine.line(x + lineLen + lineBleed + pw, y + (vML * vEquidistant), x + lineBleed + pw, y + (vML * vEquidistant));
            myLine.line(x + lineLen + lineBleed + pw, (y - vBSpace) + (vML * vEquidistant), x + lineBleed + pw, (y - vBSpace) + (vML * vEquidistant));
        }
    }
    if (hBSpace == 0) {
        for (var hML = 1; hML < hBisector; hML += 1) {
            var hEquidistant = pw / hBisector;
            myLine.line(x + (hML * hEquidistant), (y - lineLen) - lineBleed, x + (hML * hEquidistant), y - lineBleed);
            myLine.line(x + (hML * hEquidistant), y + ph + lineBleed + lineLen, x + (hML * hEquidistant), y + ph + lineBleed);
        }
    } else {
        for (var hML = 1; hML < hBisector; hML += 1) {
            var hEquidistant = (pw + hBSpace) / hBisector;
            myLine.line(x + (hML * hEquidistant), (y - lineLen) - lineBleed, x + (hML * hEquidistant), y - lineBleed);
            myLine.line(x + (hML * hEquidistant), y + ph + lineBleed + lineLen, x + (hML * hEquidistant), y + ph + lineBleed);
            myLine.line((x + (hML * hEquidistant)) - hBSpace, (y - lineLen) - lineBleed, (x + (hML * hEquidistant)) - hBSpace, y - lineBleed);
            myLine.line((x + (hML * hEquidistant)) - hBSpace, y + ph + lineBleed + lineLen, (x + (hML * hEquidistant)) - hBSpace, y + ph + lineBleed);
        }
    }
}

function getBounds(obj) {
    var selObj1 = new Array();
    var selObj2 = new Array();
    var vgb1 = new Array();
    var vgb2 = new Array();
    var n = obj.length;
    if (n > 0) {
        if (obj[0].typename == "GroupItem" && obj[0].clipped && obj[0].pageItems.length > 1) {
            clipObj = obj[0].pathItems[0].geometricBounds;
            vgb1 = clipObj;
        } else {
            selObj1 = obj[0];
            if (win.all2.checkboxes.cb6.value) {
                vgb1 = selObj1.visibleBounds;
            } else {
                vgb1 = selObj1.geometricBounds;
            }
        }
        if (n > 1) {
            for (var i = 1; i < n; i += 1) {
                selObj2 = obj[i];
                if (obj[i].typename == "GroupItem" && obj[i].clipped && obj[i].pageItems.length > 1) {
                    if (win.all2.checkboxes.cb6.value) {
                        vgb2 = obj[i].pathItems[0].visibleBounds;
                    } else {
                        vgb2 = obj[i].pathItems[0].geometricBounds;
                    }
                } else {
                    if (win.all2.checkboxes.cb6.value) {
                        vgb2 = selObj2.visibleBounds;
                    } else {
                        vgb2 = selObj2.geometricBounds;
                    }
                }
                if (vgb1[0] > vgb2[0]) {
                    vgb1[0] = vgb2[0]
                }
                if (vgb1[1] < vgb2[1]) {
                    vgb1[1] = vgb2[1]
                }
                if (vgb1[2] < vgb2[2]) {
                    vgb1[2] = vgb2[2]
                }
                if (vgb1[3] > vgb2[3]) {
                    vgb1[3] = vgb2[3]
                }
            }
        }
    }
    return vgb1;
}

2.文本转执行

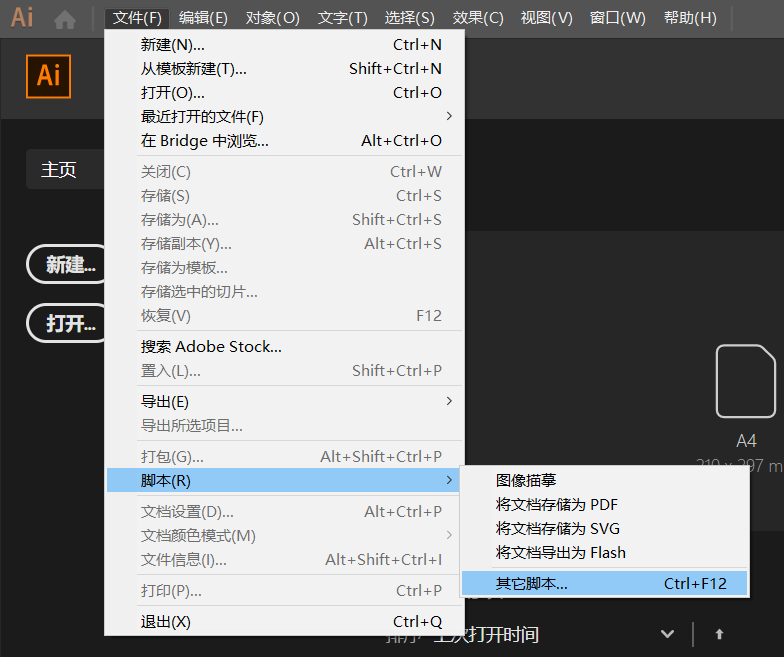

  使用记事本或者notepad++等文本编辑器，将代码拷贝至文本文件，然后修改后缀名为js或者jsx，最后再illustrator软件菜单文件》脚本》其它脚本，选择脚本文件，点执行即可，也可以将脚本放在预设文件夹内，会显示再脚本下的二级子菜单。如下图所示：
在这里插入图片描述

3.作者答疑

  如有疑问，请留言。

ai不同形状的拼版插件_Illustrator（AI）自动拼版脚本插件
weixin_39807541的博客
12-20 3166
Illustrator(AI)自动拼版脚本插件书法字体2018.04.15ai脚本分享一款小巧的Illustrator(AI)自动拼版脚本插件。此自动拼版脚本适用于相同形状的ai文档阵列方式拼版。在拼版的同时可以自动绘制角线、裁切线、套版十字。对于相同形状的对象拼版要比人工快的多(也仅仅只支持相同形状对象的拼版)。…分享一款小巧的Illustrator(AI)自动拼版脚本插件。此自动拼版脚本适用于...
ai不同形状的拼版插件_Illustrator自动拼版脚本插件-AI自动拼版脚本下载-西西软件下载...
weixin_39878401的博客
12-20 1247
AI自动拼版脚本是一款Illustrator的简洁自动拼版脚本，这款脚本可以简化你的拼版工作，在拼版的同时可以自动绘制角线、裁切线、套版十字。对于相同形状的对象拼版要比人工快的多，推荐有需要的用户下载使用。脚本特色：复制总数量包含选取的群组目标支持默认及参数记忆支持不透明蒙版的位移支持蒙版及未转曲文本框正确尺寸的选取增加角线及裁线及套版十字等三种印刷标记的选项增加印刷标记关于线宽、线长、偏移值(出...
Illustrator自动拼版脚本插件免费版
07-25
Illustrator自动拼版脚本插件分享给大家，这个小巧的自动拼版脚本能够大大简化你的工作内容，它适用于相同形状的ai文档阵列方式拼版，在拼版的同时可以自动绘制角线、裁切线、套版十字，对于相同形状的对象拼版要比人工快的多（也仅仅只支持相同形状对象的拼版），需要的朋友欢迎下载使用！ 脚本特性说明 复制总数量包含选取的群组目标 支持默认及参数记忆 支持不透明蒙版的位移 支持蒙版及未转曲文本
illustrator插件-拼版功能开发-一键拼版-js脚本开发-ai插件
插件开发
03-17 1068
illustrator是矢量编辑软件，画板是绘制处理的重要容器，在印刷方面的一个重要功能就是拼版，开发一个一键拼版功能。
使用ailabel对图片进行标注，vue3/js+ailabel.js
最新发布
weixin_46861111的博客
02-05 922
npm install ailabel ​import AILabel from "ailabel"
AI自动拼版加角线插件
03-31
此插件印刷行业，拼版操作方便快捷，AI自动拼版加角线插件
免费插件-AI插件-illustrator插件集合-尺寸标注-智能填充-颜色自动处理-自动批处理-Windows安装包.zip
06-10
节点延伸，解锁全部对象，统一画板尺寸，当前画板矩形，全部画板矩形，垂直两分，水平两分，插入页码等，多图层转多画板，页面适配对象，裁切标记，印前角线，一键拼版，自动拼版，阵列复制，标记线生成，创建参考线...
Illustrator AI文档自动拼版脚本插件下载
### Illustrator自动拼版脚本插件免费版知识点 Adobe Illustrator是一款广泛应用于图形设计领域的矢量图形编辑软件，它提供了强大的绘图工具，可以设计出印刷品质的插画、标志、排版等内容。然而，在进行版面设计时...
AI脚本插件合集v7.5：75个实用脚本提高工作效率
AI脚本插件合集是一系列增强Adobe Illustrator软件功能的脚本，这些脚本可帮助设计师和用户自动化执行复杂的图形设计任务，从而提升工作效率和设计质量。脚本是用Adobe的脚本语言jsx编写的，能够跨平台使用，即在...
Illustrator插件
04-25
此插件为Illustrator集合体，包括创建二维码、创建日历、填充转描边、更改所有画板尺寸、印前裁切标记、多页PDF打开、轻松画包装等等，CS6版本也适用，装在预设-ZHCN-脚本文件夹中，CS6以下则装在脚本中。
ai不同形状的拼版插件_AI绘制3D图形
weixin_34884417的博客
01-01 1669
3D立体文字与图形效果，是平面设计中常见的一种设计元素。制作3D效果，首先想到的是3dsmax， Rhino， C4D等。其实，Ai软件也能够简便和快速地打造3D效果。既可以节约时间成本，又可以满足设计需求。以Ai软件的效果、混合、变换3种方法为例，了解如何快速打造文字与图形的3D效果。一、效果——3D1. 突出和斜角绘制图形或文字。打开更多选项，调整位置、斜角及光源位置。得到如下效果。...
AI自动拼版
11-29
AI自动拼版工具，使你在ai中拼版不再烦恼，简化您的拼版工作~~
AI 插件脚本
07-27
Adobe illustrator插件脚本 包含了很多方面的 相当实用 安装简单 直接复制到AI软件安装目录下的Adobe Illustrator CS6\Presets\zh_CN\脚本 文件夹里面
Adobe Illustrator CropMark Pc
01-10
ai加角线，色带，名称等解压直接放在D:\Program Files\Adobe Illustrator CS5\Presets\zh_CN\脚本 就可以用.pc版。如果排版是专版或尺寸一样的很方便。
AI自动添加角线插件
06-20
本插件对印刷前人士有用，一般出菲林都要加上角线，功能比AICS5自带的强很多。放到AI文件中的脚本文件夹里。
CropMark_jsx.rar
11-13
AI自动加角线的插件CropMark.jsx
illustrator插件-拼版功能开发-阵列复制-js脚本开发-ai插件
插件开发
03-16 1315
illustrator是矢量编辑软件，画板是绘制处理的重要容器，在印刷方面的一个重要功能就是拼版，开发一个阵列复制功能，以下功能仅用于学习交流，请勿用于非法用途。
ai不同形状的拼版插件_AE与AI的即时互导插件，好用到cry！！
weixin_39887748的博客
12-30 423
AI与AE的配合度本身要比Ps与Ae高很多，Ai中的形状图层可以完美的导入Ae，这在做一些简单icon动效和角色动画时非常方便。而今天要讲的Overlord插件更是将二者的配合发挥到极致，简直好用到Cry！1软件介绍先来看看制作的几个抽象动态海报。这种抽象动态海报用到大量的几何元素，在Ae中绘制是非常繁琐事情，而在Ai中绘制导入的话，修改整起来又非常麻烦，情急之中！overlord插件敲响我的大门...
ai不同形状的拼版插件_Astute Graphics for Mac(ai创意插件合集)
weixin_32280985的博客
12-30 1869
今天小编为大家带来了一款ai创意插件合集包，包含了Astute Graphics出品的全系列18套AI插件。Astute Graphics mac版包括颜色控制、图形剪裁编辑、笔刷贴图材质纹理插件等工具，可以让用户在使用Illustrator软件工作的时候得到更加方便的操作。有需要的朋友，可以利用Astute graphics软件可以帮助您完成一些简单的设计，在操作流程上更加方便。还在等什么？感兴...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
