勤学如春起之苗,不见其增,日有所长;
辍学如磨刀之石,不见其损,日有所亏。
业务这边想要实现右边链接的效果阿里云付费全景图,类似VR看房,支持360° x 360°任意旋转
,支持自定义添加标注
,支持切换场景
等功能,效果如下
阿里云的全景图需要付费,而且个别功能不满足我们业务需要
,那边无法及时调整,所以后面由我们内部自己实现
前端组长这边提供了photo-sphere-viewer相关的文章作为参考
内部基于 photo-sphere-viewer

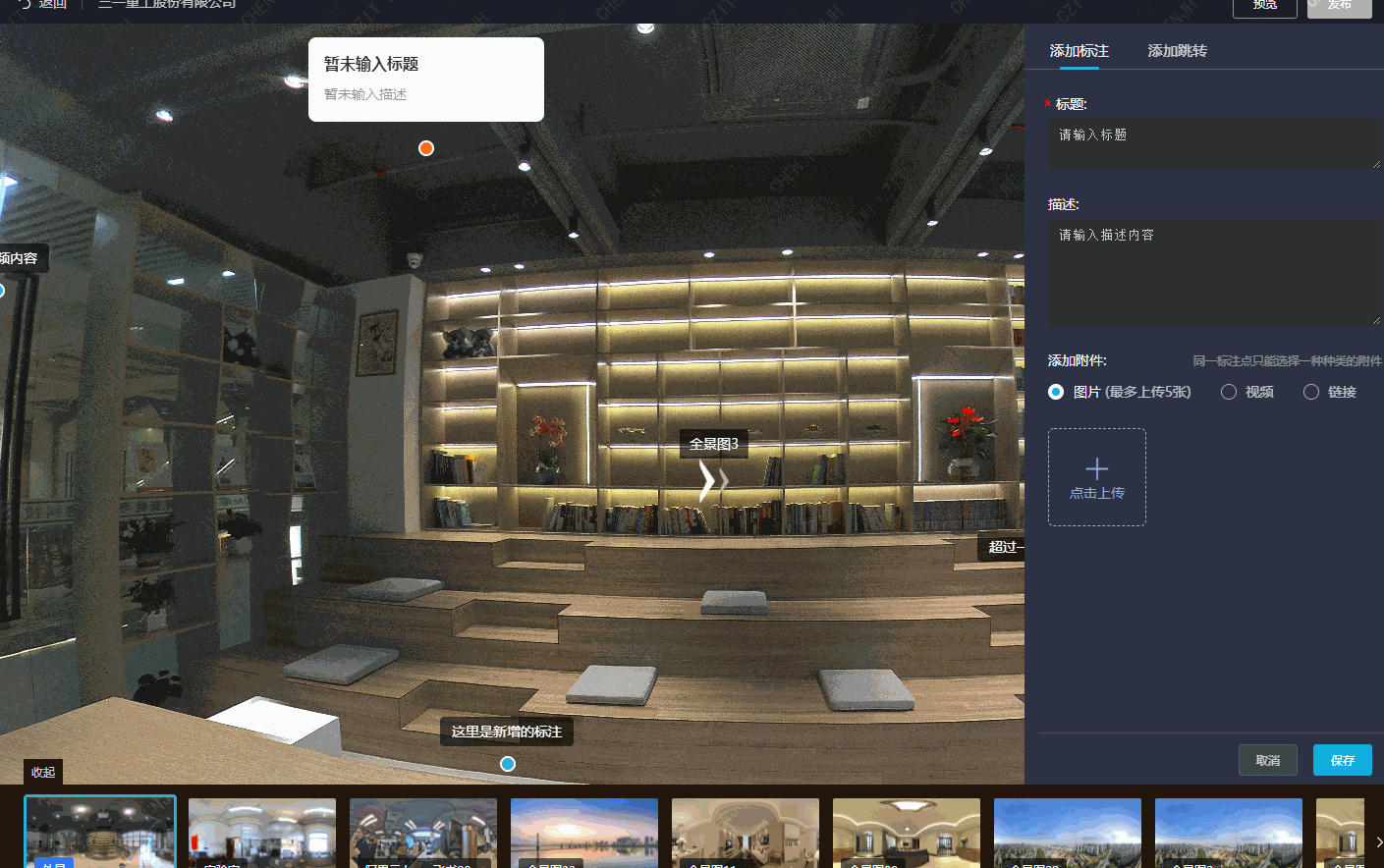

插件实现效果如下
全景图实现使用了 photo-sphere-viewer
插件,它基于three.js和uEvent 2实现
这边实现主要用了 photo-sphere-viewer和他的标记Markers插件
安装插件
使用 npm 或 yarn 下载安装
npm install photo-sphere-viewer --save
yarn add photo-sphere-viewer
文章使用的版本"photo-sphere-viewer": "^4.3.0"
使用如下
import MarkersPlugin from 'photo-sphere-viewer/dist/plugins/markers'
import 'photo-sphere-viewer/dist/plugins/markers.css';
import { MarkersPlugin } from 'photo-sphere-viewer/dist/plugins/markers'
import 'photo-sphere-viewer/dist/plugins/markers.css'
this.viewer = new Viewer({
container:document.querySelector('#viewer'),
panorama:'https://aupup-mall-pub.oss-cn-shenzhen.aliyuncs.com/public/aa28925e-8ef9-4a2d-9217-e82a86b6ee15.jpg',
size:{
width: '100%',
height: '100%',
},
plugins: [
[MarkersPlugin, {
markers: [
{
id:'circle',
tooltip:'A circle of radius 30',
circle:30,
svgStyle : {
fill:'rgba(255,255,0,0.3)',
stroke:'yellow',
strokeWidth:'2px',
},
longitude: -1.5,
latitude: -0.28,
anchor: 'center right',
}
],
}],
],
});
Configuration 配置项
一个陌生的对象,打断点后,去控制台查看,可以很方便看到对象的属性方法之类的信息
Standard options 常规配置
container (required)
- type: HTMLElement | string
全景图的容器,可以是DOM元素或者DOM的ID
container: document.querySelector('.viewer')
container: 'viewer' // will target [id="viewer"]
adapter 适配器
- default: equirectangular
用于加载全景图的适配器
panorama (required)
- type: *
全景图地址,如果用默认的适配器,只支持传单个
plugins 插件
- type: array
Introduction to plugins
这里只用到标注插件,后面单独介绍
caption 标题
- type: string
导航栏中显示的文本。如果导航栏被禁用,它无论如何都会显示,但没有按钮。允许使用 HTML
size 全景图宽度高度
- type: { width: integer, height: integer }
全景容器的最终尺寸。默认情况下使用容器的大小,并在窗口调整大小期间遵循
