食物列表页

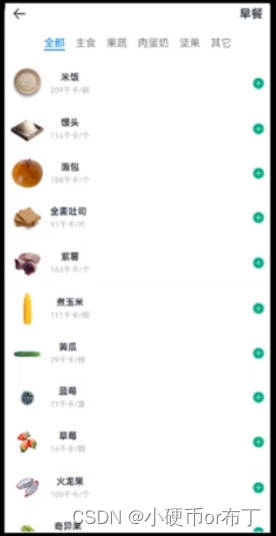

如图所示,本节继续完善饮食记录页面的功能,点击早餐等标签会跳转到食物列表页,为早餐等挑选食物或为运动标签挑选运动。效果如下:
分析结构+实现
首先,该页面是一个独立的页面,所以是新增一页,而不是新增一个组件。根据效果图,可以将该页分为头部导航和食物列表两部分。
头部列表是由一个返回图标和标签组成,代码实现如下:
1.Header部分
@Builder Header(){
Row(){
//返回图标
Image($r('app.media.ic_public_back'))
.width(30)
.onClick(()=>router.back())
Blank();
//标题
Text('早餐').fontSize(18).fontWeight(CommonConstants.FONT_WEIGHT_600)
}.width(CommonConstants.THOUSANDTH_940)
.height(32)
}
可以看出,为返回图标添加了点击事件,点击返回上一页。
2.食物列表
根据效果图,可以看出,食物列表与本应用主页同样使用了Tabs组件,其中TabContent()中是食物列表或运动列表,以食物列表为例,将食物列表封装。
@Builder TabContentBuilder(){
List({space:CommonConstants.SPACE_10}){
ForEach([1,2,,3,4,5,6],(item)=>{
ListItem(){
Row({space:CommonConstants.SPACE_6}){
Image($r('app.media.toast')).width(50)
Column({space:CommonConstants.SPACE_4}){
Text('全麦吐司').fontWeight(CommonConstants.FONT_WEIGHT_500)
Text('91千卡/片').fontSize(14).fontColor($r('app.color.light_gray'))
}
Blank();
Image($r('app.media.ic_public_add_norm_filled'))
.width(18)
.fillColor($r('app.color.primary_color'))
}
.width('100%')
.padding(CommonConstants.SPACE_6)
}
})
}
.width('100%')
.height('100%')
}

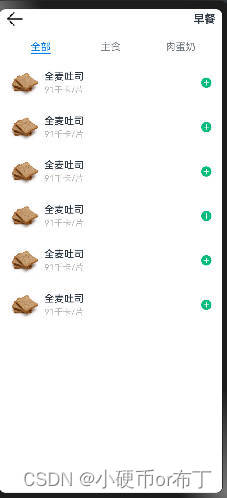

3.在食物列表主页调用
build() {
Column() {
//1.头部导航
this.Header();
//2.列表
ItemList()
}
.width('100%')
.height('100%')
}
