华为-无线wlan实验

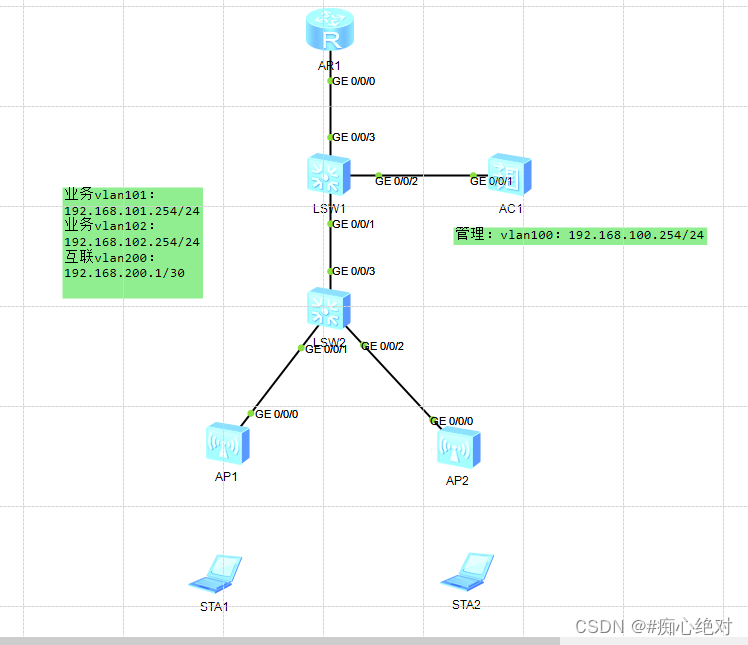

拓扑图如下

设备	接口	IP地址、端口状态	备注
router	g0/0/0	192.168.200.2/30

需求

(1)配置隧道转发模式，完成AP上线，内部办公用户只能通过无线上网（vlan101）

(2)访客(vlan102)能通过无线上网

(3)配置vlan100、vlan101和vlan102，vlan100用于AP管理，vlan101为内部用户提供上网服务（ssid：work），vlan102为访客提供上网服务（ssid：fangke）。AP通过AC DHCP自动获取192.168.100.0/24网段的IP地址，内部用户和访客通过SW1DHCP自动分配对应网段的IP地址。

配置过程

R1 :

<Huawei>sys

Enter system view, return user view with Ctrl+Z.

[Huawei]int g0/0/0

[Huawei-GigabitEthernet0/0/0]ip add 192.168.200.2 30

[Huawei-GigabitEthernet0/0/0]quit

<Huawei>ping 192.168.200.1

  PING 192.168.200.1: 56  data bytes, press CTRL_C to break

    Reply from 192.168.200.1: bytes=56 Sequence=1 ttl=255 time=40 ms

    Reply from 192.168.200.1: bytes=56 Sequence=2 ttl=255 time=40 ms

    Reply from 192.168.200.1: bytes=56 Sequence=3 ttl=255 time=110 ms

    Reply from 192.168.200.1: bytes=56 Sequence=4 ttl=255 time=30 ms

    Reply from 192.168.200.1: bytes=56 Sequence=5 ttl=255 time=60 ms

[router]ip route-static 192.168.102.0 24 192.168.200.1

[router]ip route-static 192.168.101.0 24 192.168.200.1

SW1:

<Huawei>sys

[Huawei]sysname sw1

[sw1]vlan batch 100 101 102 200

[sw1]int g0/0/1

[sw1-GigabitEthernet0/0/1]port link-type trunk

[sw1-GigabitEthernet0/0/1]port trunk allow-pass vlan 100

[sw1-GigabitEthernet0/0/1]int g0/0/2

[sw1-GigabitEthernet0/0/2]port link-type trunk

[sw1-GigabitEthernet0/0/2]port trunk allow-pass vlan all

[sw1-GigabitEthernet0/0/2]int g0/0/3

[sw1-GigabitEthernet0/0/3]port link-type access

[sw1-GigabitEthernet0/0/3]port default vlan 200

[sw1-GigabitEthernet0/0/3]quit

[sw1]int vlan 101

[sw1-Vlanif101]ip add 192.168.101.254 24

[sw1-Vlanif101]int vlan 102

[sw1-Vlanif102]ip add 192.168.102.254 24

[sw1-Vlanif102]quit

[sw1]int vlan 200

[sw1-Vlanif200]ip add 192.168.200.1 30

[sw1-Vlanif200]quit

[sw1]dhcp enable

[sw1]int vlan 101

[sw1-Vlanif101]dhcp select interface

[sw1-Vlanif101]int vlan 102

[sw1-Vlanif102]dhcp select interface

SW2:

<Huawei>sys

[Huawei]sysname sw2

[sw2]

[sw2]vlan 100

[sw2-vlan100]quit

[sw2]int g0/0/1

[sw2-GigabitEthernet0/0/1]port link-type trunk

[sw2-GigabitEthernet0/0/1]port trunk allow-pass vlan 100

[sw2-GigabitEthernet0/0/1]port trunk pvid vlan 100

[sw2-GigabitEthernet0/0/1]di th

#

interface GigabitEthernet0/0/1

 port link-type trunk

 port trunk pvid vlan 100

 port trunk allow-pass vlan 100

#

return

[sw2-GigabitEthernet0/0/1]quit

[sw2]int g0/0/2

[sw2-GigabitEthernet0/0/2]port link-type trunk

[sw2-GigabitEthernet0/0/2]port trunk allow-pass vlan 100

[sw2-GigabitEthernet0/0/2]port trunk pvid vlan 100

[sw2-GigabitEthernet0/0/2]dis th

#

interface GigabitEthernet0/0/2

 port link-type trunk

 port trunk pvid vlan 100

 port trunk allow-pass vlan 100

#

return

[sw2-GigabitEthernet0/0/2]quit

[sw2]int g0/0/3

[sw2-GigabitEthernet0/0/3]port link-type trunk

[sw2-GigabitEthernet0/0/3]port trunk allow-pass vlan 100

AC6605:

<AC6605>sys

[AC6605]vlan batch 100 101 102

[AC6605]int g0/0/1

[AC6605-g0/0/1]port link-type trunk

[AC6605-g0/0/1]port trunk allow-pass vlan all

[AC6605-g0/0/1]quit

[AC6605]interface vlan 100

[AC6605-vlanif100]ip add 192.168.100.254 24

#开启DHCP功能，为AP分配IP地址

[AC6605]dhcp enable

[AC6605]int vlan 100

[AC6605-vlanif100]dhcp select interface //为ap分配vlanif100相同网段的管理地址

(3)在AC上配置AP上线

1.创建与管理模板

[AC6605]wlan

[AC6605-wlan-view]regulatory-domain-profile name summer//配置域管理模板，名称为summer，名字可以任意

[AC6605-wlan-regulatory-domain-summer]country-code cn//配置国家代码，cn代表中国

2.创建AP组，并引用特定的与管理参数

[AC6605-wlan-view]ap-group name summer

[AC6605-wlan-ap-group-summer]regulatory-domain-profie summer//引用域管理模板

.......[Y/N]:Y// 表示确认

3.配置CAPWAP隧道源接口或源地址

[AC6605]capwap soure interface vlanif100

4.配置AP设备入网认证

[AC6605]wlan

[AC6605-wlan-view]ap auth-mode mac-auth //配置为mac地址认证

[AC6605-wlan-view]ap-id 1 ap-mac 00e0-fc95-2860//输入要认证色AP1的MAC地址

[AC6605-wlan-ap-1]

[AC6605-wlan-ap-1]ap-group summer//j加入AP组summer

.......[Y/N]:y

#配置AP2上线

[AC6605-wlan-view]ap-group name fangke
Info: This operation may take a few seconds. Please wait for a moment.done.
[AC6605-wlan-ap-group-fangke]regu
[AC6605-wlan-ap-group-fangke]regulatory-domain-profile summer
Warning: Modifying the country code will clear channel, power and antenna gain c
onfigurations of the radio and reset the AP. Continue?[Y/N]:y
[AC6605-wlan-ap-group-fangke]quit

[AC6605-wlan-view]ap-id 2 ap-mac 00e0-fc45-2790
[AC6605-wlan-ap-2]
[AC6605-wlan-ap-2]ap-gr
[AC6605-wlan-ap-2]ap-group fangke
Warning: This operation may cause AP reset. If the country code changes, it will
 clear channel, power and antenna gain configurations of the radio, Whether to c
ontinue? [Y/N]:y

5.检查AP上线结果

无线控制器wlan业务配置，配置完成后会自动下发到对应的AP

1.配置用户认证方式

[AC6605-wlan】wlan

[AC6605-wlan-view]security-profile name summer//安全模板，名字为summer

[AC6605-wlan-security-profile-summer]security wpa-wpa2 psk pass-phrase a1234567 aes//采用WPA-WPA2方式认证，PSK表示预共享密码，简单理解就是通过密码方式认证

2.配置SSID模板

[AC6605-wlan-view]ssid-profile name summer

[AC6605-wlan-ssid-profile-summer]ssid work//ssid名称为work

3.配置VAP模板，设置为隧道模式，配置用户vlan101，并绑定安全模板、SSID模板

[AC6605-wlan-view】vap-profile name work

[AC6605-wlan-vap-prof-work]forward-mode tunnel//配置转发模式为隧道模式

[AC6605-wlan-vap-prof-work]service-vlan vlan-id 101 //为用户服务vlan是101，所有连接这个vap的用户被划分到vlan101

[AC6605-wlan-vap-prof-work]security-profile summer

[AC6605-wlan-vap-prof-work]ssid-profile summer

[AC6605-wlan-vap-prof-work]quit

4.在ap组中绑定VAP模板

[AC6605-wlan-view]ap-group name summer

[AC6605-wlan-ap-group-summer]vap-profile work wlan 1 radio 0 //在ap组中，指定的VAP模板引用到射
[AC6605-wlan-view]ap-group name fangke
[AC6605-wlan-ap-group-fangke]vap-pro
[AC6605-wlan-ap-group-fangke]vap-profile famgke wlan 2 ra
[AC6605-wlan-ap-group-fangke]vap-profile famgke wlan 2 radio 0
Error: The VAP profile does not exist.
[AC6605-wlan-ap-group-fangke]vap-pro
[AC6605-wlan-ap-group-fangke]vap-profile fangke wlan 2 ra
[AC6605-wlan-ap-group-fangke]vap-profile fangke wlan 2 radio 0
Info: This operation may take a few seconds, please wait...done.
[AC6605-wlan-ap-group-fangke]

配置完成后。STA1可以正常连接，如图

测试STA1ping路由器地址192.168.200.2 vlanif200接口地址192.168.200.1都可以通

STA1去pingSTA2也可以通
