支付宝手机网页支付实现代码

支付宝服务商手机网页支付实现

---

---

前言

支付宝作为中国领先的第三方支付平台，不仅提供了便捷的在线支付服务，还为用户提供了手机网页支付功能。通过支付宝手机网页支付，用户可以在手机上完成支付操作，无需打开电脑即可实现购物、转账等功能。

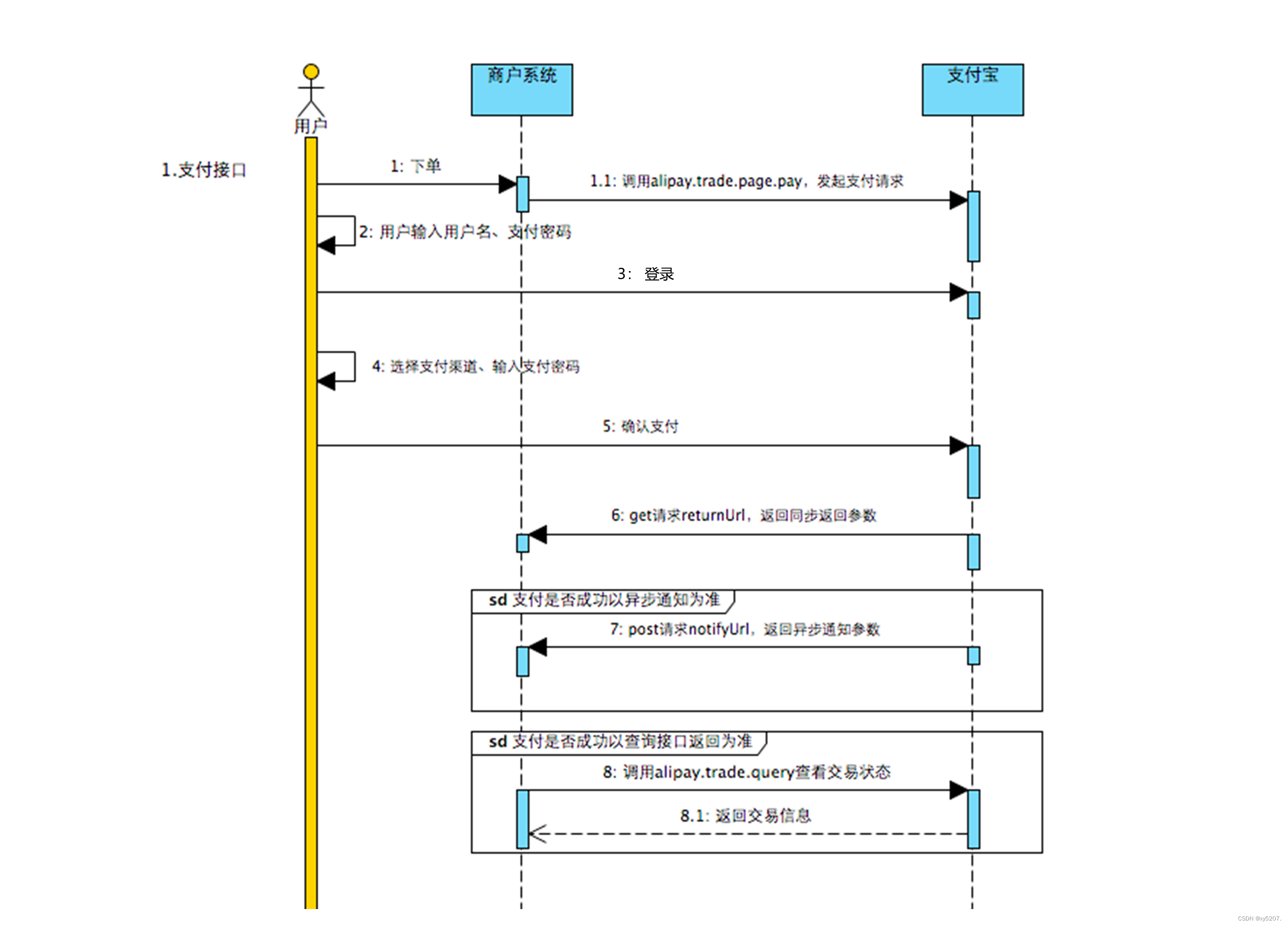

支付宝流程

---

一、配置类

配置好支付宝对应的配置信息（alipay.properties）

# 支付宝支付相关参数
# 应用ID,您的APPID，收款账号既是您的APPID对应支付宝账号
alipay.app-id=
# 支付宝网关（固定的）
alipay.gateway-url=https://openapi.alipay.com/gateway.do

# 商户私钥，您的PKCS8格式RSA2私钥
alipay.merchant-private-key=

# 支付宝公钥,查看地址：https://openhome.alipay.com/platform/keyManage.htm 对应APPID下的支付宝公钥
alipay.alipay-public-key=

# 接口内容加密秘钥，对称秘钥，可不配置
#alipay.content-key=D8entyfafkkFwtMbUqj3Mw==

# 页面跳转同步通知页面路径（需外网可访问的地址）
alipay.return-url=

# 服务器异步通知页面路径  需http://格式的完整路径，不能加?id=123这类自定义参数，必须外网可以正常访问
# 注意：每次重新启动ngrok，都需要根据实际情况修改这个配置
alipay.notify-url=

# 商户PID,卖家支付宝账号ID
alipay.seller-id=
#第三方调用（服务商模式），传值app_auth_token后，会收款至授权app_auth_token对应商家账号，如何获传值app_auth_token请参考文档：https://opensupport.alipay.com/support/helpcenter/79/201602494631
alipay.app-auth-token =
#系统商编号，填写服务商的PID，返佣参数传值前提：传值账号需要签约返佣协议，用于isv商户。
alipay.pid =

根据配置文件创建配置类（AlipayClientConfig）

@Configuration
//加载配置文件
@PropertySource("classpath:alipay.properties")
public class AlipayClientConfig {

    @Resource
    private Environment config;

    @Bean
    public AlipayClient alipayClient() throws AlipayApiException {

        AlipayConfig alipayConfig = new AlipayConfig();

        //设置网关地址
        alipayConfig.setServerUrl(config.getProperty("alipay.gateway-url"));
        //设置应用Id
        alipayConfig.setAppId(config.getProperty("alipay.app-id"));
        //设置应用私钥
        alipayConfig.setPrivateKey(config.getProperty("alipay.merchant-private-key"));
        //设置请求格式，固定值json
        alipayConfig.setFormat(AlipayConstants.FORMAT_JSON);
        //设置字符集
        alipayConfig.setCharset(AlipayConstants.CHARSET_UTF8);
        //设置支付宝公钥
        alipayConfig.setAlipayPublicKey(config.getProperty("alipay.alipay-public-key"));
        //设置签名类型
        alipayConfig.setSignType(AlipayConstants.SIGN_TYPE_RSA2);
        //构造client
        AlipayClient alipayClient = new DefaultAlipayClient(alipayConfig);

        /** 业务扩展参数 **/
        //创建API对应的request类
        AlipayTradeQueryRequest request = new AlipayTradeQueryRequest();
        //第三方调用（服务商模式），传值app_auth_token后，会收款至授权app_auth_token对应商家账号，如何获传值app_auth_token请参考文档：https://opensupport.alipay.com/support/helpcenter/79/201602494631
        request.putOtherTextParam("app_auth_token",config.getProperty("alipay.app-auth-token"));
        ExtendParams extendParams = new ExtendParams();
        extendParams.setSysServiceProviderId(config.getProperty("alipay.pid"));
        return alipayClient;
    }
}

视图对象类vo

@Data
@Accessors(chain = true)
public class R {

    private Integer code; //响应码
    private String message; //响应消息
    private Map<String, Object> data = new HashMap<>();

    public static R ok(){
        R r = new R();
        r.setCode(0);
        r.setMessage("成功");
        return r;
    }

    public static R error(){
        R r = new R();
        r.setCode(-1);
        r.setMessage("失败");
        return r;
    }

    public R data(String key, Object value){
        this.data.put(key, value);
        return this;
    }
}

二、实现层

1.创建AliPayService

实现支付宝支付接口

public interface AliPayService {
    //生成订单
    String tradeCreate(OrderInfo orderInfo);
    //处理订单
    void processOrder(Map<String, String> params);
    //用户取消订单
    void cancelOrder(String orderNo);
    //查询订单
    String queryOrder(String orderNo);
    //根据订单号调用支付宝查单接口，核实订单状态
    void checkOrderStatus(String orderNo);
    //退款
    void refund(String orderNo, String reason);
    //查询退款
    String queryRefund(String orderNo);
    //申请账单
    String queryBill(String billDate, String type);
}

2.接口实现

@Service
@Slf4j
public class AliPayServiceImpl implements AliPayService {

    @Resource
    private OrderInfoService orderInfoService;

    @Resource
    private AlipayClient alipayClient;

    @Resource
    private Environment config;

    @Resource
    private PaymentInfoService paymentInfoService;

    @Resource
    private RefundInfoService refundsInfoService;

    private final ReentrantLock lock = new ReentrantLock();

    @Transactional(rollbackFor = Exception.class)
    @Override
    public String tradeCreate(OrderInfo orderInfos) {

        try {
            //生成订单
            log.info("生成订单");
            OrderInfo orderInfo = orderInfoService.createOrderByProductId(orderInfos, PayType.ALIPAY.getType());

            //调用支付宝接口
            AlipayTradeWapPayRequest request = new AlipayTradeWapPayRequest();
            //配置需要的公共请求参数
            //支付完成后，异步通知的地址
            request.setNotifyUrl(config.getProperty("alipay.notify-url"));
            //支付完成后，配置returnUrl
            request.setReturnUrl(config.getProperty("alipay.return-url"));

            //组装当前业务方法的请求参数
            JSONObject bizContent = new JSONObject();
            bizContent.put("out_trade_no", orderInfo.getOrderNo());
            //将订单总金额从分转换为元
            BigDecimal total = new BigDecimal(orderInfos.getTotalFee()).divide(new BigDecimal("100"));
            bizContent.put("total_amount", total);
            bizContent.put("subject", orderInfo.getTitle());

            bizContent.put("product_code", "QUICK_WAP_WAY");

            request.putOtherTextParam("app_auth_token",config.getProperty("alipay.app-auth-token"));
            request.setBizContent(bizContent.toString());

            //执行请求，调用支付宝接口
            AlipayTradeWapPayResponse response = alipayClient.pageExecute(request);

            if(response.isSuccess()){
                log.info("调用成功，返回结果 ===> " + response.getBody());
                return response.getBody();
            } else {
                log.info("调用失败，返回码 ===> " + response.getCode() + ", 返回描述 ===> " + response.getMsg());
                throw new RuntimeException("创建支付交易失败");
            }
        } catch (AlipayApiException e) {
            e.printStackTrace();
            throw new RuntimeException("创建支付交易失败");
        }
    }

    /**
     * 处理订单
     * @param params
     */
    @Transactional(rollbackFor = Exception.class)
    @Override
    public void processOrder(Map<String, String> params) {

        log.info("处理订单");

        //获取订单号
        String orderNo = params.get("out_trade_no");

        /*在对业务数据进行状态检查和处理之前，
        要采用数据锁进行并发控制，
        以避免函数重入造成的数据混乱*/
        //尝试获取锁：
        // 成功获取则立即返回true，获取失败则立即返回false。不必一直等待锁的释放
        if(lock.tryLock()) {
            try {
                //处理重复通知
                //接口调用的幂等性：无论接口被调用多少次，以下业务执行一次
                String orderStatus = orderInfoService.getOrderStatus(orderNo);
                if (!OrderStatus.NOTPAY.getType().equals(orderStatus)) {
                    return;
                }
                //更新订单状态
                orderInfoService.updateStatusByOrderNo(orderNo, OrderStatus.SUCCESS);
                //记录支付日志
                paymentInfoService.createPaymentInfoForAliPay(params);
            } finally {
                //要主动释放锁
                lock.unlock();
            }
        }

    }

    /**
     * 用户取消订单
     * @param orderNo
     */
    @Override
    public void cancelOrder(String orderNo) {

        //调用支付宝提供的统一收单交易关闭接口
        this.closeOrder(orderNo);

        //更新用户订单状态
        orderInfoService.updateStatusByOrderNo(orderNo, OrderStatus.CANCEL);
    }

    /**
     * 查询订单
     * @param orderNo
     * @return 返回订单查询结果，如果返回null则表示支付宝端尚未创建订单
     */
    @Override
    public String queryOrder(String orderNo) {

        try {
            log.info("查单接口调用 ===> {}", orderNo);
            AlipayTradeQueryRequest request = new AlipayTradeQueryRequest();
            JSONObject bizContent = new JSONObject();
            bizContent.put("out_trade_no", orderNo);
            request.setBizContent(bizContent.toString());

            AlipayTradeQueryResponse response = alipayClient.execute(request);
            if(response.isSuccess()){
                log.info("调用成功，返回结果 ===> " + response.getBody());
                return response.getBody();
            } else {
                log.info("调用失败，返回码 ===> " + response.getCode() + ", 返回描述 ===> " + response.getMsg());
                //throw new RuntimeException("查单接口的调用失败");
                return null;//订单不存在
            }

        } catch (AlipayApiException e) {
            e.printStackTrace();
            throw new RuntimeException("查单接口的调用失败");
        }
    }

    /**
     * 根据订单号调用支付宝查单接口，核实订单状态
     * 如果订单未创建，则更新商户端订单状态
     * 如果订单未支付，则调用关单接口关闭订单，并更新商户端订单状态
     * 如果订单已支付，则更新商户端订单状态，并记录支付日志
     */
    @Override
    public void checkOrderStatus(String orderNo) {

        log.warn("根据订单号核实订单状态 ===> {}", orderNo);

        String result = this.queryOrder(orderNo);

        //订单未创建
        if(result == null){
            log.warn("核实订单未创建 ===> {}", orderNo);
            //更新本地订单状态
            orderInfoService.updateStatusByOrderNo(orderNo, OrderStatus.CLOSED);
        }

        //解析查单响应结果
        Gson gson = new Gson();
        HashMap<String, LinkedTreeMap> resultMap = gson.fromJson(result, HashMap.class);
        if(resultMap == null){
            log.error("resultMap is null");
        }
        LinkedTreeMap alipayTradeQueryResponse = resultMap.get("alipay_trade_query_response");

        String tradeStatus = (String)alipayTradeQueryResponse.get("trade_status");
        if(AliPayTradeState.NOTPAY.getType().equals(tradeStatus)){
            log.warn("核实订单未支付 ===> {}", orderNo);

            //如果订单未支付，则调用关单接口关闭订单
            this.closeOrder(orderNo);

            // 并更新商户端订单状态
            orderInfoService.updateStatusByOrderNo(orderNo, OrderStatus.CLOSED);
        }

        if(AliPayTradeState.SUCCESS.getType().equals(tradeStatus)){
            log.warn("核实订单已支付 ===> {}", orderNo);

            //如果订单已支付，则更新商户端订单状态
            orderInfoService.updateStatusByOrderNo(orderNo, OrderStatus.SUCCESS);

            //并记录支付日志
            paymentInfoService.createPaymentInfoForAliPay(alipayTradeQueryResponse);
        }

    }

    /**
     * 关单接口的调用
     * @param orderNo 订单号
     */
    private void closeOrder(String orderNo) {

        try {
            log.info("关单接口的调用，订单号 ===> {}", orderNo);

            AlipayTradeCloseRequest request = new AlipayTradeCloseRequest();
            JSONObject bizContent = new JSONObject();
            bizContent.put("out_trade_no", orderNo);
            request.setBizContent(bizContent.toString());
            AlipayTradeCloseResponse response = alipayClient.execute(request);

            if(response.isSuccess()){
                log.info("调用成功，返回结果 ===> " + response.getBody());
            } else {
                log.info("调用失败，返回码 ===> " + response.getCode() + ", 返回描述 ===> " + response.getMsg());
                //throw new RuntimeException("关单接口的调用失败");
            }

        } catch (AlipayApiException e) {
            e.printStackTrace();
            throw new RuntimeException("关单接口的调用失败");
        }
    }

    /**
     * 退款
     * @param orderNo
     * @param reason
     */
    @Transactional(rollbackFor = Exception.class)
    @Override
    public void refund(String orderNo, String reason) {

        try {
            log.info("调用退款API");

            //创建退款单
            RefundInfo refundInfo = refundsInfoService.createRefundByOrderNoForAliPay(orderNo, reason);

            //调用统一收单交易退款接口
            AlipayTradeRefundRequest request = new AlipayTradeRefundRequest ();

            //组装当前业务方法的请求参数
            JSONObject bizContent = new JSONObject();
            bizContent.put("out_trade_no", orderNo);//订单编号
            BigDecimal refund = new BigDecimal(refundInfo.getRefund().toString()).divide(new BigDecimal("100"));
            //BigDecimal refund = new BigDecimal("2").divide(new BigDecimal("100"));
            bizContent.put("refund_amount", refund);//退款金额：不能大于支付金额
            bizContent.put("refund_reason", reason);//退款原因(可选)

            request.setBizContent(bizContent.toString());

            //执行请求，调用支付宝接口
            AlipayTradeRefundResponse response = alipayClient.execute(request);

            if(response.isSuccess()){
                log.info("调用成功，返回结果 ===> " + response.getBody());

                //更新订单状态
                orderInfoService.updateStatusByOrderNo(orderNo, OrderStatus.REFUND_SUCCESS);

                //更新退款单
                refundsInfoService.updateRefundForAliPay(
                        refundInfo.getRefundNo(),
                        response.getBody(),
                        AliPayTradeState.REFUND_SUCCESS.getType()); //退款成功

            } else {
                log.info("调用失败，返回码 ===> " + response.getCode() + ", 返回描述 ===> " + response.getMsg());

                //更新订单状态
                orderInfoService.updateStatusByOrderNo(orderNo, OrderStatus.REFUND_ABNORMAL);

                //更新退款单
                refundsInfoService.updateRefundForAliPay(
                        refundInfo.getRefundNo(),
                        response.getBody(),
                        AliPayTradeState.REFUND_ERROR.getType()); //退款失败
            }


        } catch (AlipayApiException e) {
            e.printStackTrace();
            throw new RuntimeException("创建退款申请失败");
        }
    }

    /**
     * 查询退款
     * @param orderNo
     * @return
     */
    @Override
    public String queryRefund(String orderNo) {

        try {
            log.info("查询退款接口调用 ===> {}", orderNo);

            AlipayTradeFastpayRefundQueryRequest request = new AlipayTradeFastpayRefundQueryRequest();
            JSONObject bizContent = new JSONObject();
            bizContent.put("out_trade_no", orderNo);
            bizContent.put("out_request_no", orderNo);
            request.setBizContent(bizContent.toString());

            AlipayTradeFastpayRefundQueryResponse response = alipayClient.execute(request);
            if(response.isSuccess()){
                log.info("调用成功，返回结果 ===> " + response.getBody());
                return response.getBody();
            } else {
                log.info("调用失败，返回码 ===> " + response.getCode() + ", 返回描述 ===> " + response.getMsg());
                //throw new RuntimeException("查单接口的调用失败");
                return null;//订单不存在
            }

        } catch (AlipayApiException e) {
            e.printStackTrace();
            throw new RuntimeException("查单接口的调用失败");
        }
    }

    /**
     * 申请账单
     * @param billDate
     * @param type
     * @return
     */
    @Override
    public String queryBill(String billDate, String type) {

        try {

            AlipayDataDataserviceBillDownloadurlQueryRequest request = new AlipayDataDataserviceBillDownloadurlQueryRequest();
            JSONObject bizContent = new JSONObject();
            bizContent.put("bill_type", type);
            bizContent.put("bill_date", billDate);
            request.setBizContent(bizContent.toString());
            AlipayDataDataserviceBillDownloadurlQueryResponse response = alipayClient.execute(request);

            if(response.isSuccess()){
                log.info("调用成功，返回结果 ===> " + response.getBody());

                //获取账单下载地址
                Gson gson = new Gson();
                HashMap<String, LinkedTreeMap> resultMap = gson.fromJson(response.getBody(), HashMap.class);
                LinkedTreeMap billDownloadurlResponse = resultMap.get("alipay_data_dataservice_bill_downloadurl_query_response");
                String billDownloadUrl = (String)billDownloadurlResponse.get("bill_download_url");

                return billDownloadUrl;
            } else {
                log.info("调用失败，返回码 ===> " + response.getCode() + ", 返回描述 ===> " + response.getMsg());
                throw new RuntimeException("申请账单失败");
            }

        } catch (AlipayApiException e) {
            e.printStackTrace();
            throw new RuntimeException("申请账单失败");
        }
    }

三、控制层

@CrossOrigin
@RestController
@RequestMapping("/api/ali-pay")
@Api(tags = "手机网站支付宝支付")
@Slf4j
public class AliPayController extends PublicUtilController {

    @Resource
    private AliPayService aliPayService;

    @Resource
    private Environment config;

    @Resource
    private OrderInfoService orderInfoService;

    @ApiOperation("统一收单下单并支付页面接口的调用")
    @PostMapping("/trade/wap/pay")
    public R tradeWapPay(@RequestBody OrderInfo orderInfo){
        System.out.println(orderInfo);

        log.info("统一收单下单并支付页面接口的调用");
        //支付宝开放平台接受 request 请求对象后
        // 会为开发者生成一个html 形式的 form表单，包含自动提交的脚本
        String formStr = aliPayService.tradeCreate(orderInfo);
        //我们将form表单字符串返回给前端程序，之后前端将会调用自动提交脚本，进行表单的提交
        //此时，表单会自动提交到action属性所指向的支付宝开放平台中，从而为用户展示一个支付页面
        return R.ok().data("formStr", formStr);
    }

    @ApiOperation("支付通知")
    @PostMapping("/trade/notify")
    public String tradeNotify(@RequestParam Map<String, String> params){

        log.info("支付通知正在执行");
        log.info("通知参数 ===> {}", params);

        String result = "failure";

        try {
            //异步通知验签
            boolean signVerified = AlipaySignature.rsaCheckV1(
                    params,
                    config.getProperty("alipay.alipay-public-key"),
                    AlipayConstants.CHARSET_UTF8,
                    AlipayConstants.SIGN_TYPE_RSA2); //调用SDK验证签名

            if(!signVerified){
                //验签失败则记录异常日志，并在response中返回failure.
                log.error("支付成功异步通知验签失败！");
                return result;
            }

            // 验签成功后
            log.info("支付成功异步通知验签成功！");

            //按照支付结果异步通知中的描述，对支付结果中的业务内容进行二次校验，
            //1 商户需要验证该通知数据中的 out_trade_no 是否为商户系统中创建的订单号
            String outTradeNo = params.get("out_trade_no");
            OrderInfo order = orderInfoService.getOrderByOrderNo(outTradeNo);
            if(order == null){
                log.error("订单不存在");
                return result;
            }

            //2 判断 total_amount 是否确实为该订单的实际金额（即商户订单创建时的金额）
            String totalAmount = params.get("total_amount");
            int totalAmountInt = new BigDecimal(totalAmount).multiply(new BigDecimal("100")).intValue();
            int totalFeeInt = order.getTotalFee().intValue();
            if(totalAmountInt != totalFeeInt){
                log.error("金额校验失败");
                return result;
            }

            //3 校验通知中的 seller_id（或者 seller_email) 是否为 out_trade_no 这笔单据的对应的操作方
            String sellerId = params.get("seller_id");
            String sellerIdProperty = config.getProperty("alipay.seller-id");
            if(!sellerId.equals(sellerIdProperty)){
                log.error("商家pid校验失败");
                return result;
            }

            //4 验证 app_id 是否为该商户本身
            String appId = params.get("app_id");
            String appIdProperty = config.getProperty("alipay.app-id");
            if(!appId.equals(appIdProperty)){
                log.error("appid校验失败");
                return result;
            }


            //在支付宝的业务通知中，只有交易通知状态为 TRADE_SUCCESS时，
            // 支付宝才会认定为买家付款成功。
            String tradeStatus = params.get("trade_status");
            if(!"TRADE_SUCCESS".equals(tradeStatus)){
                log.error("支付未成功");
                return result;
            }

            //处理业务 修改订单状态 记录支付日志
            aliPayService.processOrder(params);

            //校验成功后在response中返回success并继续商户自身业务处理，校验失败返回failure
            result = "success";
        } catch (AlipayApiException e) {
            e.printStackTrace();
        }
        return result;
    }

    /**
     * 用户取消订单
     * @param orderNo
     * @return
     */
    @ApiOperation("用户取消订单")
    @PostMapping("/trade/close/{orderNo}")
    public R cancel(@PathVariable String orderNo){

        log.info("取消订单");
        aliPayService.cancelOrder(orderNo);
        return R.ok().setMessage("订单已取消");
    }

    /**
     * 查询订单
     * @param orderNo
     * @return
     */
    @ApiOperation("查询订单：测试订单状态用")
    @GetMapping("/trade/query/{orderNo}")
    public R queryOrder(@PathVariable String orderNo)  {

        log.info("查询订单");

        String result = aliPayService.queryOrder(orderNo);
        return R.ok().setMessage("查询成功").data("result", result);

    }

    /**
     * 申请退款
     * @param orderNo
     * @param reason
     * @return
     */
    @ApiOperation("申请退款")
    @PostMapping("/trade/refund/{orderNo}/{reason}")
    public R refunds(@PathVariable String orderNo, @PathVariable String reason){

        log.info("申请退款");
        aliPayService.refund(orderNo, reason);
        return R.ok();
    }

    /**
     * 查询退款
     * @param orderNo
     * @return
     * @throws Exception
     */
    @ApiOperation("查询退款：测试用")
    @GetMapping("/trade/fastpay/refund/{orderNo}")
    public R queryRefund(@PathVariable String orderNo) throws Exception {

        log.info("查询退款");

        String result = aliPayService.queryRefund(orderNo);
        return R.ok().setMessage("查询成功").data("result", result);
    }

    /**
     * 根据账单类型和日期获取账单url地址
     *
     * @param billDate
     * @param type
     * @return
     */
    @ApiOperation("获取账单url")
    @GetMapping("/bill/downloadurl/query/{billDate}/{type}")
    public R queryTradeBill(
            @PathVariable String billDate,
            @PathVariable String type)  {
        log.info("获取账单url");
        String downloadUrl = aliPayService.queryBill(billDate, type);
        return R.ok().setMessage("获取账单url成功").data("downloadUrl", downloadUrl);
    }

}

---
