vue教程

Vue安装和配置

1.进入想要的目录
2.输入命令

npm init vue@latest

成功显示:
在这里插入图片描述
之后依次输入下面三个命令:

cd vue-project
npm install
npm run dev

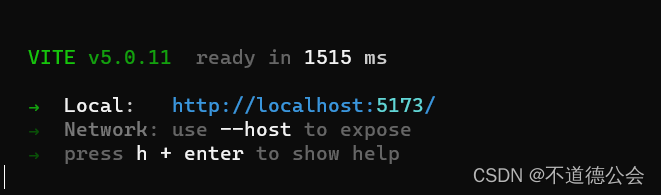

运行后出先:
在这里插入图片描述

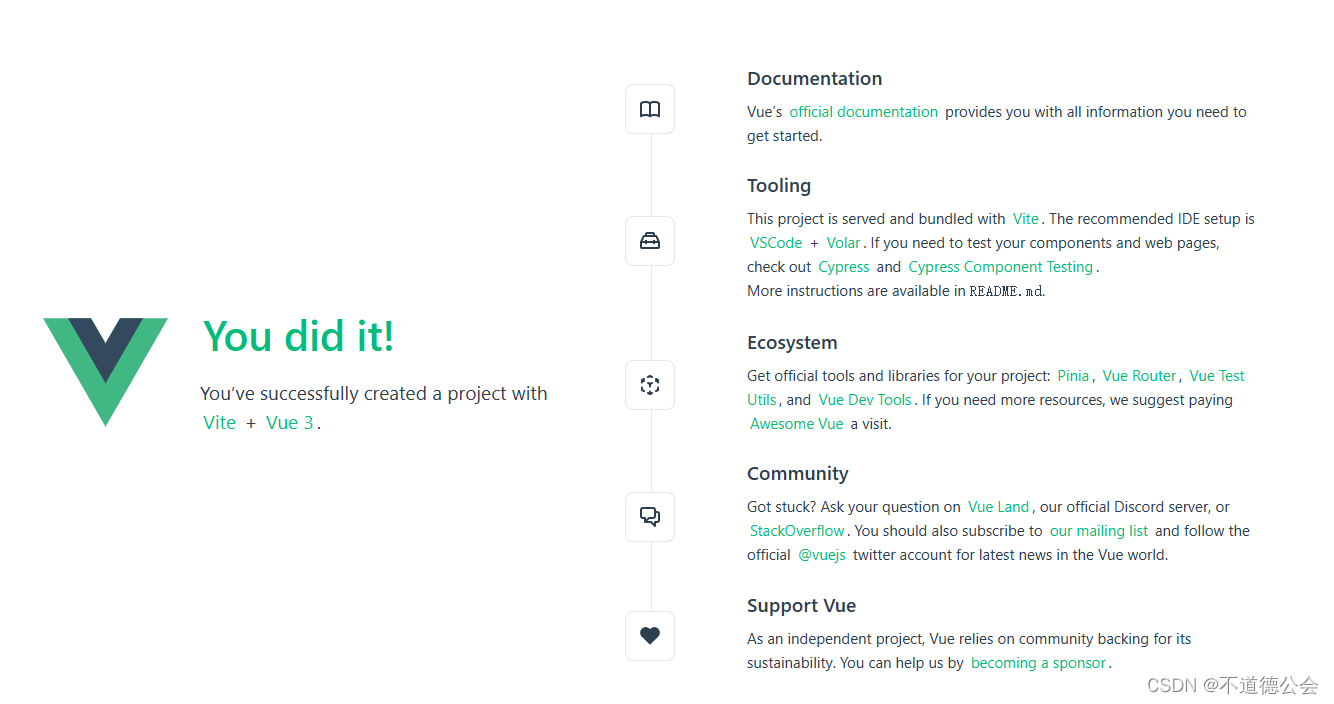

在浏览器中输入会出现:
在这里插入图片描述
之后,给VScode安装vue的插件colar:

在这里插入图片描述

项目文件说明

src下写代码。

运行项目

在项目目录输入:

cd vue-project
npm run dev

模板语法

前置工作

第一次使用,我们可以先把默认的数据删除,以方便书写代码。把src/components下的内容全面删除,再把app.vue中的内容全部删除,换成:
<template>指的是html文本,<script>指的是语句。

<template>

</template>
<script>

</script>

之后这个启动页面就变成全白了。
我们再把src/main.js中文件的下面这条删掉,这样就没有样式了。

import './assets/main.css'

1.文本插值

使用{{ }}来进行文本插值。

代码:

<template>
<h3>模板语法</h3>
<p>{{ msg }}</p>
</template>
<script>
export default {
  data(){
    return{
      msg:"你好"
    }
  }
}
</script>

显示:
在这里插入图片描述

合法和不合法的表达式

合法的表达式:
单一的数据,有结果的表达式 三步运算符可以使用{{ }}来显示也可以表示。

msg
number+1
ok? 'Yes':'No' //ok是true返回Yes,false返回No

代码为:

<template>
<h3>模板语法</h3>
<p>{{ msg }}</p>
<p>{{ number+1 }}</p>
<p>{{ ok? 'Yes':'No' }}</p>
</template>
<script>
export default {
  data(){
    return{
      msg:"你好",
      number:10,
      ok:true,
    }
  }
}
</script>

不合法的表达式
下面这类为不合法的表达式:
1.赋值语句,不是表达式。
2.换行的条件控制。

{{ var a =1 }} //不合法
{{ if(ok) { return message } }}  //不合法

插入HTML

如果想插入HTML文本,而不是文本,就需要使用v-html命令(再templete中)。
代码为:

<template>
<h3>模板语法</h3>

<p v-html="raw"></p>

</template>
<script>
export default {
  data(){
    return{
      raw:"<a href='https://www.baidu.com/'>进入百度</a>"
    }
  }
}
</script>

结果像这样的:
在这里插入图片描述

2.属性插值

{{ }}可以绑定值,但是绑定不了属性。比如我们想绑定id数据:

<div id=""> </div>

我们可以使用这样的方法,在属性前面加上v-bind:来实现:

<div v-bind:id="idd"> </div>

也可以使用简写:

:id="值"

具体代码为:

<template>
<div v-bind:id="idd"> </div>
  <h3>模板语法</h3>
</template>
<script>
export default {
  data(){
    return{

      idd : 10
    }
  }
}
</script>

查看控制台,这个div被赋值为10:
在这里插入图片描述
如果绑定的值为undefined或者null,这个属性就会被移除

绑定多个属性

直接把v-bind:后面的值改为一个对象。这个对象中有多个值。

<template>
<div v-bind="idd"> </div>
  <h3>模板语法</h3>
<p v-html="raw"></p>
</template>

<script>
export default {
  data(){
    return{
      raw:"<a href='https://www.baidu.com/'>进入百度</a>",
      idd : {
        id:100,
        name:"okk"
      }
    }
  }
}
</script>

结果为:
在这里插入图片描述

3.条件渲染

类似if-else。在vue中有4中。
v-ifv-show
如果为,渲染内容,为假,隐藏内容:

tem:
<div v-if="flag">如果为false,不仅不会渲染,也不会添加</div>
<div v-show="flag">不能实现if-else等,但是一定会渲染,因此频繁的切换可以使用v-show。
具体来说就是设置为display:none</div>
scr:
flag:false
<template>
<div v-bind="idd"> </div>
  <h3>模板语法</h3>
<div v-if="flag">看不到我</div>
</template>

<script>
export default {
  data(){
    return{
      raw:"<a href='https://www.baidu.com/'>进入百度</a>",
      flag:false
    }
  }
}
</script>

这里为false不会显示内容。
v-else
需要和v-if一起使用,如果v-if的值为false,则显示v-else

tem:
<div v-else>我真帅!</div>
<template>
<div v-bind="idd"> </div>
  <h3>模板语法</h3>
<div v-if="flag">看不到我</div>
<div v-else>我真帅!</div>
</template>

<script>
export default {
  data(){
    return{
      raw:"<a href='https://www.baidu.com/'>进入百度</a>",
      flag:false
    }
  }
}
</script>

只会显示:我真帅。
在这里插入图片描述

v-else-if
类似elif,使用方法如下:

tem:
<div v-if= "type === 'A'">A</div>
<div  v-if="type === 'B'">B</div>
<div  v-if="type === 'C'">C</div>
src:
type:"B"

结果为:B
在这里插入图片描述

4.列表渲染

v-for指令用来渲染数组或者列表,,需要使用item in items特殊语法才能使用,其中item为源数据的数组,items为子数据。(item of item这个语法也是一样的)

tem:
<p v-for="item in names">{{ item }}</p>
src:
 names:["你好","我好",66]

<template>
<h3>模板语法</h3>
<p v-for="item in names">{{ item }}</p>

</template>

<script>
export default {
  data(){
    return{
      names:["你好","我好",66]
    }
  }
}
</script>

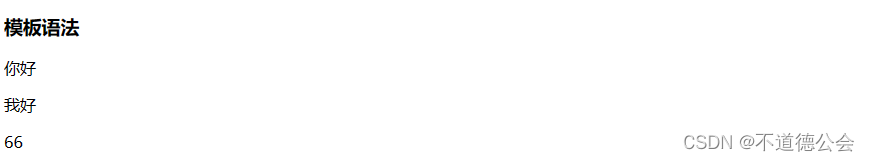

结果为:
在这里插入图片描述

处理JSON请求

在前后端交互中,可以使用这种方法来传递JSON数据。注意了,想要实现图片,需要使用v-bind:绑定属性

绑定JSON数组:
<div v-for="item in result">

遍历其中变量:
{{item.变量名}}

对属性进行操作:
v-bind:属性:"item.变量"
<template>
  <h3>模板语法</h3>
<div v-for="item in result"> <!--设置列表-->
  <p>{{ item.title }}</p> <!--遍历title属性-->
  <img v-bind:src="item.avator" alt="">
</div>
</template>

<script>
export default {
  data(){
    return{
      result:[
        {
          "id":220,
          "title":"你好",
          "avator":"图片路径1"
        },
        {
          "id":221,
          "title":"你好1",
          "avator":"图片路径2"
        }
      ]
    }
  }
}
</script>

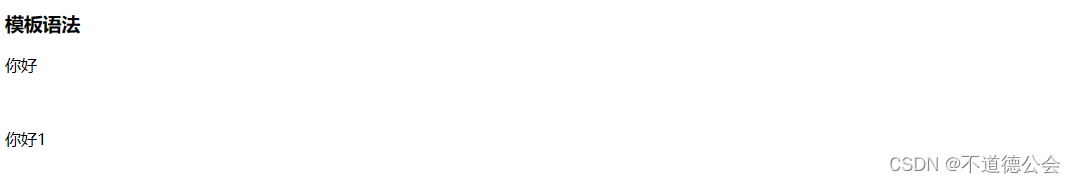

结果为.可以自己添加图片测试:
在这里插入图片描述

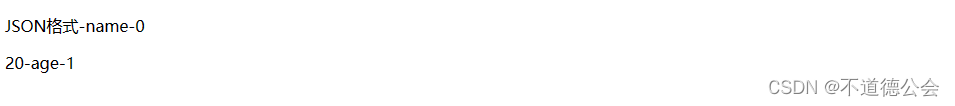

处理JSON请求2

上面的请求放在数组,也可以不放在数组中,直接写在JSON格式里。其中value为值,key为键,index为索引

tem:
<p v-for="(value,key,index) in userInfo">{{ value }}-{{ key }}-{{ index }}</p>

src:
userInfo:{
	name:"iwen",
	age:20,
}
<template>
  <h3>模板语法</h3>
  <p v-for="(item,index) in names">{{ item }}-{{ index }}</p>
<div v-for="item in result"> <!--设置列表-->
  <p>{{ item.title }}</p> <!--遍历title属性-->
  <img v-bind:src="item.avator" alt="">
</div>
<p v-for="(value,key,index) in userInfo">{{ value }}-{{ key }}-{{ index }}</p>
</template>

<script>
export default {
  data(){
    return{
      names:["你好","我好",66],
      result:[
        {
          "id":220,
          "title":"你好",
          "avator":"图片路径1"
        },
        {
          "id":221,
          "title":"你好1",
          "avator":"图片路径2"
        }
      ],
      userInfo:{
	    name:"JSON格式",
	    age:20,
    }
    }
  }
}
</script>

在这里插入图片描述

显示索引

我们可以使用这种语法来显示索引值

tem:
<p v-for="(item,index) in names">{{ item }}-{{ index }}</p>
scr:
 names:["你好","我好",66],

整体代码为:

<template>
  <h3>模板语法</h3>
  <p v-for="(item,index) in names">{{ item }}-{{ index }}</p>
<div v-for="item in result"> <!--设置列表-->
  <p>{{ item.title }}</p> <!--遍历title属性-->
  <img v-bind:src="item.avator" alt="">
</div>
</template>
<script>
export default {
  data(){
    return{
      names:["你好","我好",66],
      result:[
        {
          "id":220,
          "title":"你好",
          "avator":"图片路径1"
        },
        {
          "id":221,
          "title":"你好1",
          "avator":"图片路径2"
        }
      ]
    }
  }
}
</script>

在这里插入图片描述

使用key进行更新

使用v-for指令渲染的时,如果用户触发了某种条件,需要使用DOM更改元素的顺序,这时,v-for会把之前的销毁并重新生成,这可能会降低性能。这时需要使用key。注意,key为属性,需要使用v-bind进行绑定。
在实际的项目中,推荐使用id作为key的值(item.id),因为id一般唯一

tem:
<p v-for="(item,index) in names" v-bind:key="index">{{ item }}</p>
src:
 names:["你好","我好",6666]
<template>
  <h3>模板语法</h3>
  <p v-for="(item,index) in names" v-bind:key="index">{{ item }}</p>
</template>

<script>
export default {
  data(){
    return{
      names:["你好","我好",6666]
    }
  }
}
</script>

5.事件处理

使用v-on或者@来监听DOM事件,并在事件触发时执行JS,用法为:@click="handler"on:click="methodName"

内链事件处理器
比如我们想实现 每按一次按钮,值都会+1 可以这样写。内链事件基本不会使用,一般都是使用方法事件处理。

tem:
<button v-on:click="count++">Add</button>
<p>{{ count }}</p>
src:
 count:0,
<template>
  <h3>模板语法</h3>
  <button v-on:click="count++">Add</button>
  <p>{{ count }}</p>
</template>

<script>
export default {
  data(){
    return{
     count:0,
    }
  }
}
</script>

方法事件处理
所有的方法都应写在method中,和data同级。这里说明以下,想要获得return中的数据,需要使用this.进行绑定。方法事件处理是最常见的。

tem:
  <button @click="addCount">Add</button>
  <p>{{ count }}</p>
scr:
  methods:{
    addCount(){
      this.count++;
    }
  }
<template>
  <h3>模板语法</h3>
  <button @click="addCount">Add</button>
  <p>{{ count }}</p>
</template>

<script>
export default {
  data(){
    return{
     count:0,
    }
  },
  methods:{
    addCount(){
     this.count++;
    }
  }
}
</script>

事件中的参数

获取event对象
  methods:{
    addCount(e){
      console.log(e);
     this.count++;
    }
  }

这个event对象可以使用target,也就是说可以使用js(innerHTML之类的)改变内容。

tem:
  <button @click="addCount">Add</button>
  <p>{{ count }}</p>
src:
  methods:{
    addCount(e){
      e.target.innerHTML = "Add"+ this.count
     this.count++
    }
<template>
  <h3>模板语法</h3>
  <button @click="addCount">Add</button>
  <p>{{ count }}</p>
</template>

<script>
export default {
  data(){
    return{
     count:0,
    }
  },
  methods:{
    addCount(e){
      e.target.innerHTML = "Add"+ this.count
     this.count++
    }
  }
}
</script>

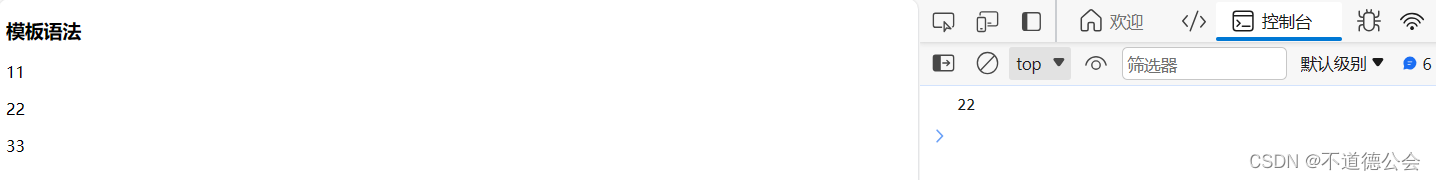

传递参数

比如我们想实现点击页面上的那个数据,控制台就输出那个数据。就是把item作为参数传递给函数,之后再控制台打印。

tem:
 <p @click="getName(item)" v-for="(item,index) of names" :key="index">{{ item }}</p>
 scr:

   data(){
    return{
     names:["11","22","33"],
    }
  },
  methods:{
    getName(name){
      console.log(name);
    }
  }

在这里插入图片描述
如果这样做,就无法通过之前的方法获得event对象了。可以使用下面的方法:

向第二个参数除加一个 $event
<template>
  <h3>模板语法</h3>
  <p @click="getName(item,$event)" v-for="(item,index) of names" :key="index">{{ item }}</p>

</template>

<script>
export default {
  data(){
    return{
     names:["11","22","33"],
    }
  },
  methods:{
    getName(name,e){
      console.log(name);
      console.log(e);
    }
  }
}
</script>

事件修饰符

在使用事件的时候,会有很多事件我们时常调用,因此,可以使用简化的事件修饰符。常见的事件修饰符为:

.stop
.prevent
.once
.enter
阻止默认事件

可以通过event阻止事件,比如我们想让一个a标签的href失效。

method:
e.preventDefault();
<template>
  <h3>模板语法</h3>
  <a @click="clickhanle" href="https://www.baidu.com/">进入百度</a>

</template>

<script>
export default {
  data(){
    return{

    }
  }
  ,
  methods:{
    clickhanle(e){
      e.preventDefault();
      console.log("点击了");
    }
  }

}
</script>

现在这个跳转就失效了
在这里插入图片描述
也可以直接在语句中添加:

<a @click.prevent="clickhanle" href="https://www.baidu.com/">进入百度</a>
父元素被同时触发

又叫阻止事件冒泡
冒泡事件是:点击了子事件之后,父事件也会触发,但是我们不想让父事件触发。

<div @click="clickhanle1">
  <p @click="clickhanle2">clickhanle1和clickhanle2都会被触发。</p>
</div>

可以在子事件中使用event.stopPropagation()方法就可以防止父元素被触发。

<template>
  <h3>模板语法</h3>
  <a @click="clickhanle" href="https://www.baidu.com/">进入百度</a>
<div @click="clickhanle1">
  <p @click="clickhanle2">冒泡</p>
</div>
</template>

<script>
export default {
  data(){
    return{

    }
  }
  ,
  methods:{
    clickhanle(e){
      e.preventDefault();
      console.log("点击了");
    },

    clickhanle1(e){
      console.log("点击了11");
    },

    clickhanle2(e){
      e.stopPropagation()
      console.log("点击了22");
    }
  }

}
</script>

也可以使用.stop方法:

<p @click.stop="clickhanle2">冒泡</p>

6.数组变化侦测

分为两种1.push方法对应的变更方法。 2.concat方法对应的替换方法
push方法

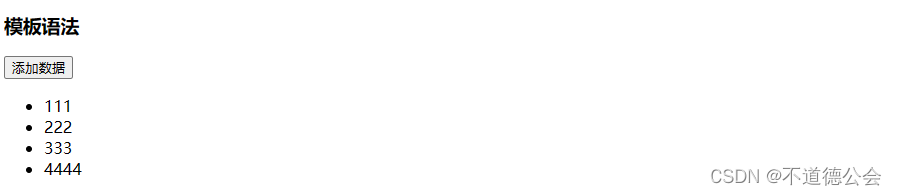

push方法可以引起事件更新,比如下面就是按下按钮后增加元素。

<template>
  <h3>模板语法</h3>
  <button @click="addHandle">添加数据</button>
<ul>
<li v-for="(item,index) of names" :key="index">{{ item }}</li>
</ul>
</template>

<script>
export default {
  data(){
    return{
      names:["111","222","333"],
    }
  }
  ,
  methods:{
    addHandle(){
      this.names.push("4444")
    }
  }
}
</script>

在这里插入图片描述
concat方法
又叫合并数组,concat方法虽然也会更新数组,但是在页面中不显示,因为本质是是让数组变成了一个新的数组。(返回一个新的数组)

<template>
  <h3>模板语法</h3>
  <button @click="addHandle">添加数据</button>
<ul>
<li v-for="(item,index) of names" :key="index">{{ item }}</li>
</ul>
</template>

<script>
export default {
  data(){
    return{
      names:["111","222","333"],
    }
  }
  ,
  methods:{
    addHandle(){
      //this.names.push("4444")
      console.log(this.names.concat(["55555"]));
    }
  }

}
</script>

在这里插入图片描述
如果想要更新,就把这个返回的数组替换并打印出来:

method:
this.names = this.names.concat(["55555"])
<template>
  <h3>模板语法</h3>
  <button @click="addHandle">添加数据</button>
<ul>
<li v-for="(item,index) of names" :key="index">{{ item }}</li>
</ul>
</template>

<script>
export default {
  data(){
    return{
      names:["111","222","333"],
    }
  }
  ,
  methods:{
    addHandle(){
      //this.names.push("4444")
      this.names = this.names.concat(["55555"])
    }
  }

}
</script>

这样点击后就在页面中显示了。
在这里插入图片描述

7.计算属性

可以使用计算属性来替代在{{}}中写表达式。比如这样。

<p>{{ it.content.length > 0 ? 'Yes' : 'No' }}</p> 在这里写太长了,<!--批量使用不方便。-->

在和data同级的目录下创建computed作为计算属性,

computed:{
    itContent(){
      return this.it.content.length > 0 ? 'Yes' : 'No'
    }
  }

使用就是直接把计算属性放到表达式中:

tem:
<p>{{ itContent }}</p>

整体代码为:

<template>
  <h3>模板语法</h3>
  <p>{{ it.name }}</p>
  <p>{{ itContent }}</p>
</template>

<script>
export default {
  data(){
    return{
      it:{
        name:"你好",
        content:["我好","大家好"]
      }
    }
  }
  ,
  methods:{

  },

  computed:{
    itContent(){
      return this.it.content.length > 0 ? 'Yes' : 'No'
    }
  }

}
</script>

计算属性和函数的区别:
如果计算属性没有发生变动(就是一个方法,没有更改参数或表达式),则多次调用只是一次渲染而函数是每次调用每次渲染
就是优化了一点性能

8.class绑定

class也是一种属性,可以使用v-bind来绑定。但是class使用的太多,v-bind在处理字符串拼接时比较复杂,所以出了一个专用的功能加强。参数中可以使用对象或者数组

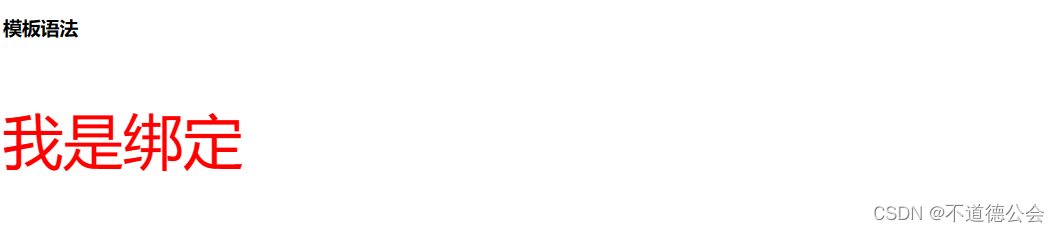

下面这种方法是给class绑定CSS语法

tem:
<p :class="{'active':isActive}">我是绑定</p>
scr:
 isActive:true //是否显示,可以自定义
 hasError:true //是否显示,可以绑定很多个条件,一个为false就不显示
sty:
.active{
  color:red;
  font-size: 100px;
}
<template>
  <h3>模板语法</h3>
  <p :class="{'active':isActive,'text-danger':hasError}">我是绑定</p>
</template>

<script>
export default {
  data(){
    return{
      isActive:true, //是否显示
      hasError:true //是否显示,可以绑定很多个条件,一个为false就不显示
    }
  }

}
</script>

<style>
.active{
  color:red;
  font-size: 100px;
}
</style>

在这里插入图片描述

多个对象绑定

如果有很多个对象,可以使用更简单的方法进行绑定。

tem:
<p :class="classObject">我是绑定222</p>
scr:
 classObject:{
        'active':true,
        'text-danger':true,
}
sty:
.active{
  color:red;
  font-size: 60px;
}
<template>
  <h3>模板语法</h3>
  <p :class="{'active':isActive,'text-danger':hasError}">我是绑定</p>
  <p :class="classObject">我是绑定222</p>
</template>

<script>
export default {
  data(){
    return{
      isActive:true, //是否显示
      hasError:true, //是否显示

      classObject:{
        'active':true,
        'text-danger':true,
      }
    }
  }

}
</script>

<style>
.active{
  color:red;
  font-size: 60px;
}
</style>

在这里插入图片描述

绑定数组

使用方法如下:

tem:
<p :class="[arrActive,数组名]">我是绑定333</p>
scr:
arrActive:"active"  //数组名 : style中的active样式
sty:
.active{
  color:red;
  font-size: 60px;
}
<template>
  <h3>模板语法</h3>
  <p :class="{'active':isActive,'text-danger':hasError}">我是绑定</p>
  <p :class="classObject">我是绑定222</p>
  <p :class="[arrActive]">我是绑定333</p>
</template>

<script>
export default {
  data(){
    return{
      isActive:true, //是否显示
      hasError:true, //是否显示

      classObject:{
        'active':true,
        'text-danger':true,
      },
      arrActive:"active"
    }
  }

}
</script>

<style>
.active{
  color:red;
  font-size: 60px;
}
</style>

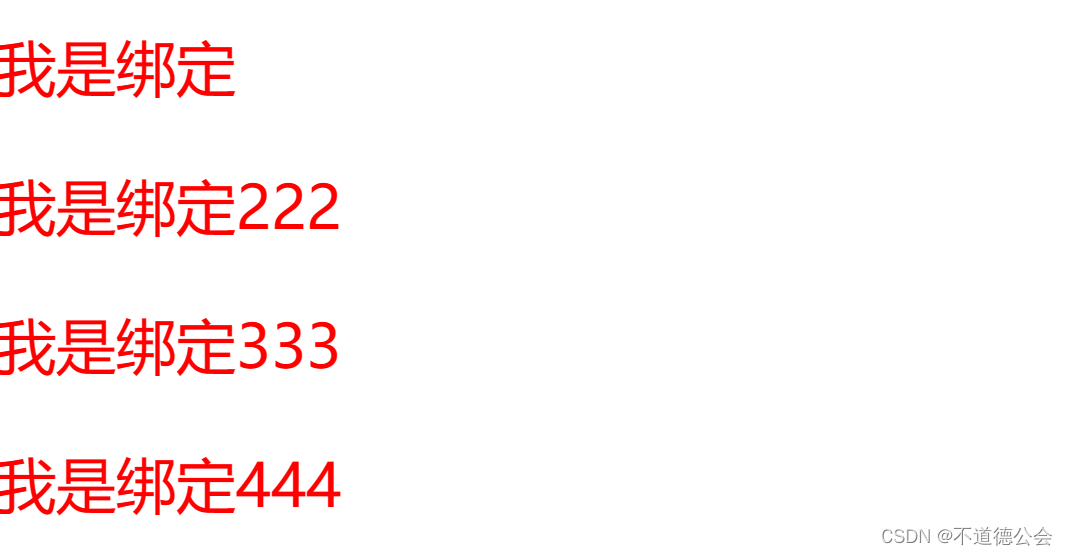

在数组中使用三元运算符:为true显示active,为false,不显示active。

tem:
<p :class="[isActive? 'active' : ' ']">我是绑定444</p>
scr:
isActive:true, //为true显示active样式
sty:
.active{
  color:red;
  font-size: 60px;
}

在这里插入图片描述

数组和对象一起使用

只能数组嵌套对象。这样会有多个对象。

class="[{'active':isActive},errorClass]"

9.style绑定

和class相同,vue有对style的加强。
一般的使用方法:

<p style="{color:'red'}">style绑定</p>

对象绑定

tem:
<p :style="{color:actC,fontSize:actC1+'px'}">style绑定</p>
src:
actC:"green",
actC1:60
<template>
  <h3>模板语法</h3>
  <p :style="{color:actC,fontSize:actC1+'px'}">style绑定</p>
</template>
<script>
export default {
  data(){
    return{
        actC:"green",
        actC1:60
    }
  }
}
</script>
<style>
</style>

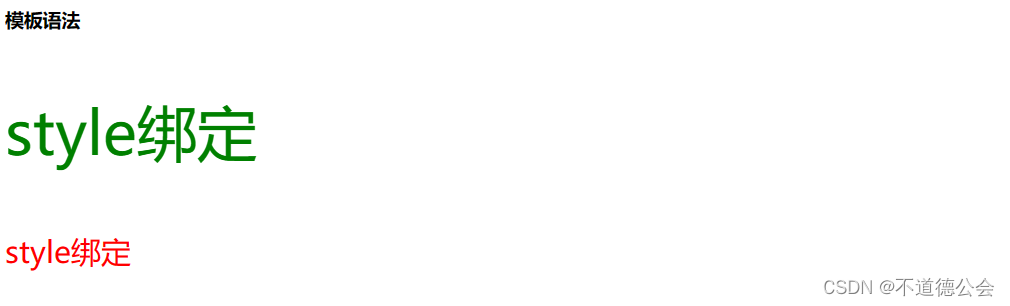

也可以放在对象中:

tem:
<p :style="styleO">style绑定</p>
src:
styleO:{
          color:"red",
          fontSize:"30px"
        }
<template>
  <h3>模板语法</h3>
  <p :style="{color:actC,fontSize:actC1+'px'}">style绑定</p>
  <p :style="styleO">style绑定</p>
</template>

<script>
export default {
  data(){
    return{
        actC:"green",
        actC1:60,
        styleO:{
          color:"red",
          fontSize:"30px"
        }
    }
  }
}
</script>
<style>
</style>

在这里插入图片描述
也可以使用数组,和class一样。

10.侦听器

只能监听动态数据。比如这个例子,按下按钮后Hello切换为6666。

<template>
  <h3>模板语法</h3>
  <p>{{ message }}</p>
  <button @click="update">修改数据</button>
</template>
<script>
export default {
  data(){
    return{
        message:"hello"
    }
  },
  methods:{
    update(){
      this.message = "6666"
    }
  }
}
</script>
<style>
</style>

监听器需要在data同级处创建一个watch。它的函数名必须和data中属性名(监听的数据)一致。其中有两个参数newValue,oldValue,分别为更新前的数据和更新后的数据(两个是自带的)。我们可以在数据变化时使用函数来处理这些变化(如果需要的话)

  watch:{
    message(newValue,oldValue){
    	//数据变化时发生的函数
        console.log(newValue,oldValue);
    }
  }

11.表单输入绑定v-model

手动绑定监听器会比较麻烦(使用js比较麻烦),但是在vue中只需要使用v-model指令就可以了。下面这个代码是当用户输入时,页面中会同时显示输入的数据。
比如百度的搜索框就是表单输入绑定

tem:
<form action="">
    <input type="text" v-model="message">
    <p>{{ message }}</p>
</form>
scr:
message:""

在这里插入图片描述

<template>
  <h3>模板语法</h3>
  <form action="">
    <input type="text" v-model="message">
    <p>{{ message }}</p>
  </form>
</template>
<script>
export default {
  data(){
    return{
        message:""
    }
  },
  methods:{
  },
  watch:{
  }
}
</script>
<style>
</style>

其他的搜索框也可以实现

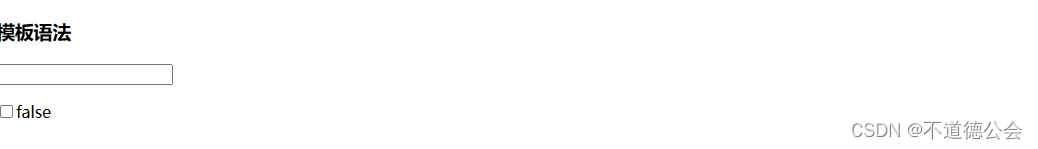

tem:
  <form action="">
    <input type="checkbox" id="checkbox" v-model="checked">
    <label for="checkbox">{{ checked }}</label>
  </form>
scr:
checked:false

一旦点击这个框,就会显示true。
0

v-model的修饰符

v-model.number:只获取数字。
v-model.trim:获取时去掉前后空格。
v-model.lazy:输入完点击回车或确定才获取。

12.获取DOM操作

前面已经完成了大量的DOM元素,如果想要操作一些不常用的操作,可以使用ref标签来获得元素,使用this.$refs来操作元素。`

tem:
<div ref="container" class="container">
{{ content }}
</div>
<button @click="getE">获取元素</button>
methods
getE(){
	console.log(this.$refs.container);
}

这样点击按钮就可以获得这个ref值为为container的元素。
在这里插入图片描述
因为获得了这个元素,所以你可以对它重新赋值,其他JS操作也可以:

mthods:
getE(){
	console.log(this.$refs.container.innerHTML="hhhhh"); //修改内容
}

下面这个例子是获取用户的输入。

tem:
<input type="text" ref="username">
mthods:
console.log(this.$refs.username.value);

13.组件组成和引入

组件可以复用。一般在使用时,会把组件定义在一个单独的.vue文件中。一个vue组件包含tempate,script,style三种,分别用来写html,js,css。

组件引入
之前都是使用默认的App.vue来写代码,如果我们想要自定义组件,可以在conponent目录下新建.vue文件。
如果想要显示组件,我们先在默认的App.vue引入。在scr下面引入:

//写在export default外面
import (引入变量) from "./components/文件名.vue"
import nihao from "./components/nihao.vue"

之后需要注入组件,在里面写一个components:{}把引入变量放入:

export default{
  components:{
    nihao
  }
}

最后-显示组件,在tem中使用标签的形式显示组件:

tem:
<nihao />

scoped参数

style中加入scoped参数可以让当前样式只在当前组件中生效,默认在app.vue中的style全局生效的。你可以在子组件中使用scoped来让改组件使用自己的样式。

<style scoped>

14.组件嵌套

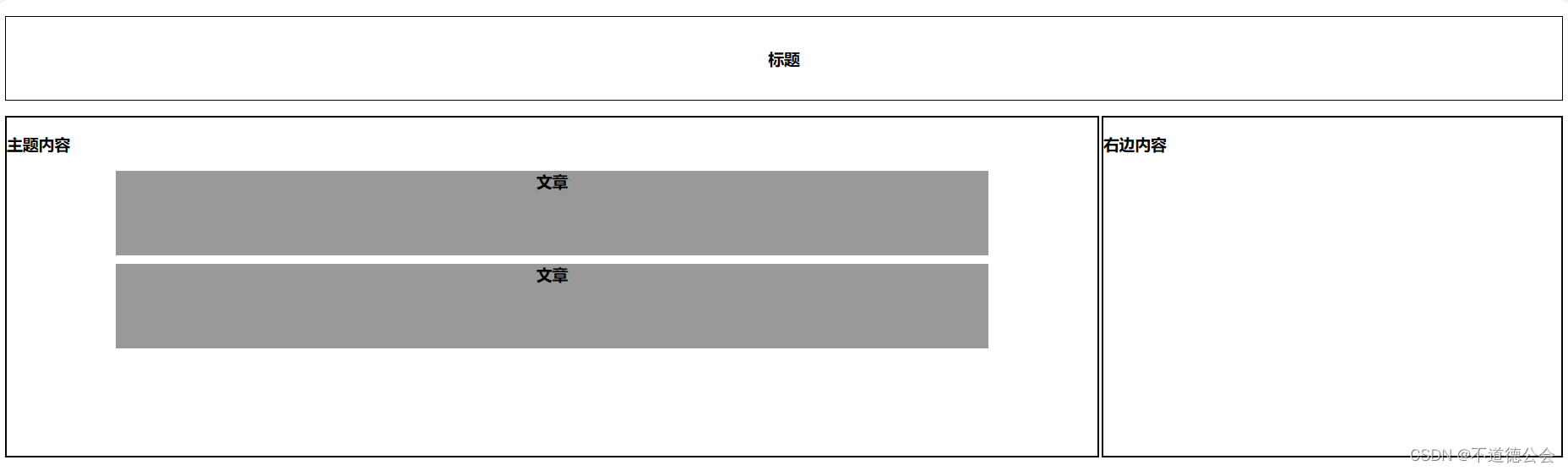

组件之间可以嵌套,组件一般在开发中被层层嵌套。比如想实现下面的效果(每个框都是独立的一个文件):
基本上每一个组件都可以实现嵌套。
在这里插入图片描述

1.创建文件Header.vue并在里面书写代码。

<template>
    <h3>标题</h3>
</template>

<style scoped>
h3{
    height: 100px;
    width: 100%;
    border: 1px solid ;
    box-sizing: border-box;
    text-align: center;
    line-height: 100px;
}
</style>

2.创建Main文件并写入代码:

<template>
    <div class="main">
        <h3>主题内容</h3>
        <Article />
        <Article />
    </div>
</template>

<script>

</script>

<style scoped>
.main{
    float: left;
    width: 70%;
    border: 2px solid ;
    height: 400px;
}
</style>

3.创建Aside文件并写入代码:

<template>
    <div class="aside">
        <h3>右边内容</h3>
    </div>
</template>

<style scoped>
.aside{
    float: right;
    width: 29.4%;
    border: 2px solid ;
    height: 400px;
}
</style>

4.因为Header.vue/Main.vue/Aside.vue在App.vue中,所以需要在App.vue下引入:

<template>
  <Header />
  <Main />
  <Aside />
</template>

<script>
import Header from "./pages/Header.vue"
import Main from "./pages/Main.vue"
import Aside from "./pages/Aside.vue"
export default{
  components:{
    Header,
    Main,
    Aside
  }

}
</script>

<style>
</style>

5.实现文章创建Article文件,并被Main.vue引入:

<template>
    <h3>文章</h3>
</template>
<style scoped>

h3{
    width: 80%;
    margin: 0 auto;
    height: 100px;
    margin-bottom: 10px;
    text-align: center;
    background: #999;
}

</style>

修改Main代码为:

<template>
    <div class="main">
        <h3>主题内容</h3>
        <Article />
        <Article />
    </div>
</template>

<script>
import Article from "./Article.vue"
export default{
    components:{
        Article
    }
}
</script>

<style scoped>
.main{
    float: left;
    width: 70%;
    border: 2px solid ;
    height: 400px;
}
</style>

15.组件的注册(全局注册)

就是组件的引入方式。一个vue组件在使用前需要先注册。注册有两种方式:全局注册局部注册。之前使用的引入都是局部注册。全局注册就是注册后所有组件都可以引入,就是只是需要写<Header />就可以引入了。

比如我们上面的例子,我们把Header这个组件相关的引入先删除。
在这里插入图片描述
全局注册需要在main.js处实现。使用下面的代码替换:

import { createApp } from 'vue'
import App from './App.vue'
//引入组件
import Header from "./pages/Header.vue"
//构造对象
const app = createApp(App)

//注册组件,第一个参数是键(名字)
app.component("Header",Header)

//一定要放到最后
app.mount('#app')

全局注册后,页面显示:
在这里插入图片描述
全局注册会消耗更多的性能。

16.组件传递数据props(父传子)

无法修改父级传来的数据
组件和组件之间是可以传递数据的。使用props来传递参数。只能由父级传给子级。用法为:

 <Child title="Parent数据" /> <!--在定义的组件处加一个 (参数值)="传递的数据"-->

子组件使用参数:

props:
props:["title"]  //如果参数值为titile
tem:
{{ titile }}

在components目录下创建两个新的文件Parent.vueChild.vue,在里面写入内容:
Parent,需要在里面定义Child组件:

<template>
    <h3>Parent</h3>
    <Child title="Parent数据" />
</template>

<script>
import Child from "./Child.vue"
export default {
    data(){

    },
    components:{
        Child
    }
}
</script>

Child:

<template>
    <h3>Child</h3>
    <p>{{ title }}</p>
</template>
<script>
export default {
    data(){

    },
    //必须以字符串形式存在
    props:["title"]
}
</script>

App.vue中引入父组件:

<template>
  <Parent />
</template>
<script>
import Parent from "./components/Parent.vue"
export default{
  components:{
    Parent,
  }
}
</script>

<style>
</style>

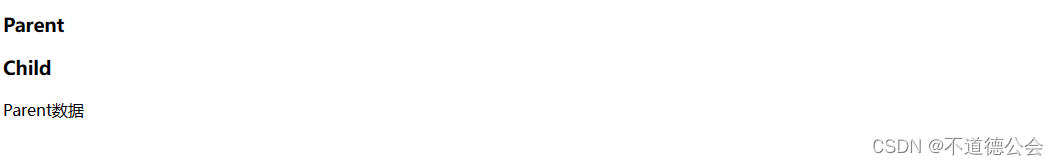

动态获得数据

也很简单,但是需要注意,绑定属性需要使用v-bind(或:)方法。

tem:
<Child :title="message" />
scr-data:
message:"Parent数据"
<template>
    <h3>Parent</h3>
    <Child :title="message" />
</template>
<script>
import Child from "./Child.vue"
export default {
    data(){
        message:"Parent数据"
    },
    components:{
        Child
    }
}
</script>

在这里插入图片描述

17.组件传递数据的类型

使用props传递数据,任何类型都可以传递。

数字类型

tem:
<Child :title="message" :age="age" />
scr-data:
age:20

数组类型

tem:
<Child :title="message" :age="age" :name="names"/>
scr-data:
names:["你好","我好"]

对象类型

tem:
<Child :title="message" :age="age" :name="names" :userInfo="userInfo"/>
scr-data:
userInfo:{
	name:"hhhh",
	age:10
}

Parent

<template>
    <h3>Parent</h3>
    <Child :title="message" :age="age" :name="names" :userInfo="userInfo"/>
</template>
<script>
import Child from "./Child.vue"
export default {
    data(){
        return{
            message:"Parent数据",
            age:20,
            names:[
                "你好","我好"
            ],
            userInfo:{
                name:"hhhh",
                age:10
            }
        }
    },
    components:{
        Child
    }
}
</script>

Child:

<template>
    <h3>Child</h3>
    <p>{{ title }}</p>
    <p>{{ age }}</p>
    <p>{{ name }}</p>
    <ul>
        <li v-for="(item,index) of names" :key="index">{{ item }}</li>
    </ul>
    <p>{{ userInfo.name }}</p>
    <p>{{ userInfo.age }}</p>
</template>

<script>

export default {
    data(){

    },
    //必须以字符串形式存在
    props:["title","age","name","userInfo"]
}
</script>

18.组件传递的参数校验

无法修改父级传来的数据
比如我们希望传递数字类型,但是发送了字符串类型。只用修改props中的值就可以了。

props:{
	title:{ //接受的参数
		type:[String,Number,Array,Object]  //希望接受字符串类型,数字类型,数组类型,对象类型。
	}
}

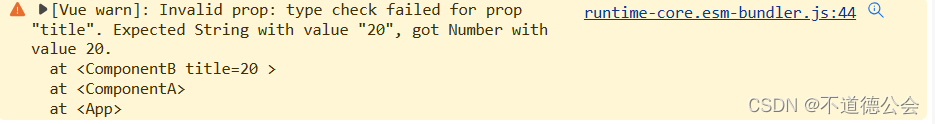

如果你传递了其他数据,还是会显示,但是会出现一个报错信息。
在这里插入图片描述

默认值

就是子组件希望父组件传递的参数,比如子组件希望父组件传递titleage这两个参数。只能使用在字符串和数字中

props:{
	title:{
		type:String
},
age:{
		type:Number
	}
}

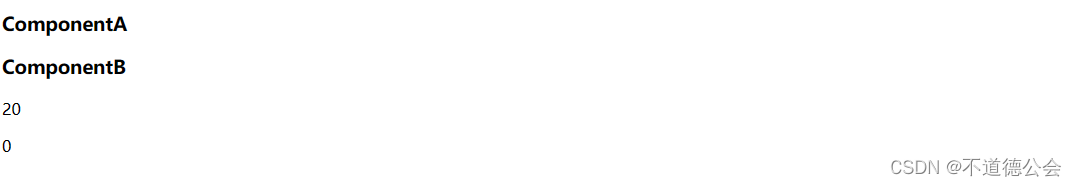

但是如果父组件不传,则显示默认值。

props:{
	title:{
            type:String
},
age:{
	type:Number,
		default:0 //如果没有age,显示0
	}
}

在这里插入图片描述

工厂函数(默认值)

数组和对象使用默认值需要使用工厂函数。

default(){return [" "]}
props:{
	names:{
		type:Array,
		default(){
				return ["空"]
				}
		}
}

这样,如果不传names这个数组,就显示空
在这里插入图片描述

必选项

不传就会报警告。

 required:true
props:{
        title:{
            type:String,
            required:true
        },
        age:{
            type:Number,
            default:0
        },
        names:{
            type:Array,
            default(){
                return ["空"]
            }
        }
    }

在这里插入图片描述

整体代码

需要创建两个文件componentAcomponentB并在里面写入内容,在componentA处引入componentB,在app.vue处引入componentA
componentA:

<template>
    <h3>ComponentA</h3>
    <componentB :title="title" />
</template>

<script>
import componentB from './componentB.vue';
export default {
    data(){
        return {
            title:"标题",
            names:["aa","bb"]
        }
    },
    components:{
        componentB
    }
}
</script>

componentB:

<template>
    <h3>ComponentB</h3>
    <p>{{ title }}</p>
    <p>{{ age }}</p>
    <p v-for="(item,index) of names" :key="index">{{ item }}</p>
</template>

<script>

export default {
    data(){
        return {

        }
    },
    props:{
        title:{
            type:String,
            required:true
        },
        age:{
            type:Number,
            default:0
        },
        names:{
            type:Array,
            default(){
                return ["空"]
            }
        }
    }
}
</script>

App.vue:

<template>
  <ComponentA />
</template>
<script>
//import Header from "./pages/Header.vue"
//import Main from "./pages/Main.vue"
//import Aside from "./pages/Aside.vue"
//import Parent from "./components/Parent.vue"
import ComponentA from "./components/componentA.vue"
export default{
  components:{
    //Header,
    //Main,
    //Aside
    //Parent,
    ComponentA,

  }
}
</script>
<style>
</style>

19.组件事件(子数据传父数据)

在组件中,可以使用$emit方法来触发自定义事件(事件),它可以实现子组件向父组件传递数据。又叫自定义事件。
子级:

tem:
<button @click="clickEvent">传递数据</button>
src:
this.$emit("someEvent","数据1")//向父级发送一个事件someEvent,第二个参数可以为数据

父级:

tem:
<cEvent @someEvent="getHandle" />
<p>{{ message }}</p>
src-data:
message:""
met:
getHandle(){
	console.log("触发了" + data);
	this.message = data //把data存入message中
}

这样子组件点击按钮后,父元素就会响应数据了。

具体代码为:
在component目录创建一个文件Event.vuecEvent.vue
cEvent.vue:

<template>
    <h3>子组件事件</h3>
    <button @click="clickEvent">传递数据</button>
</template>
<script>
export default {
    methods:{
        clickEvent(){
            console.log("哈哈哈");
            //自定义事件
            this.$emit("someEvent","数据1")
        }
    }
}
</script>

Event.vue:

<template>
    <h3>组件事件</h3>
    <cEvent @someEvent="getHandle" />
    <p>父元素:{{ message }}</p>
</template>

<script>
import cEvent from "./cEvent.vue"
export default {
    data(){
        return{
            message:""
        }
    },

    components:{
        cEvent
    },
    methods:{
        getHandle(data){
            console.log("触发了" + data);
            this.message = data; //把data存入message中
        }
    }
}
</script>

在这里插入图片描述

20.组件事件和v-model

比如用户在组件A中输入,同时结果出现在组件B。本身是使用侦听器。

1.创建组件search.vur,用来实现搜索框:

<template>
    <input type=" text" v-model="search">  <!-- 这里是使用v-model来绑定数据,获得输入的数据 -->
</template>

<script>
export default{
    data(){
        return {
            search :""
        }
    },
    //侦听器
    watch:{
        search(newValue,oldValue){
            this.$emit("searchEvent",newValue) //把值作为一个事件传递给下一个组件
        }
    }
}
</script>

2.创建组件Main.vue用来重复内容:

<template>
    <h3>我是主页面</h3>
    <p>搜索内容为:{{ search }}</p>
    搜索:<search @searchEvent='getSerach' /> <!--绑定事件,创建函数处理-->
</template>

<script>
import search from './search.vue';
export default {
    components:{
        search
    },
    data(){
        return {
            search:""
        }
    },
    methods:{
        getSerach(data){
            this.search = data; //把传来的数赋给search
        }
    }
}
</script>

21.子传父(函数传递)

之前说了父传子(props),子传父($emit)。但是props其实也可以实现子传父,使用另一种方式-父组件传递函数给子组件,子组件实现这个函数之后又传给父元素。
传递函数:

tem:
<子组件名 :onEvent="函数名" />
<CB :onEvent="dataFn" />

1.创建父组件,在父组件中实现子组件:

<template>
    <h3>组件A</h3>
    <CB :onEvent="dataFn" />
    <p>{{ message }}</p>
    </template>

    <script>
    import CB from './CB.vue';
    export default {
        data(){
            return{
                message:""
            }
        },
        components:{
            CB,
        },
        methods:{
            dataFn(data){
                console.log(data);
                this.message = data
            }
        }
    }
    </script>

2.创建子组件,实现函数(父组件定义,子组件执行,之后会传给父组件):

<template>
    <h3>组件B</h3>
    <p>{{ onEvent('子给父传递数据') }}</p>

    </template>

    <script>
    export default {
        data(){
            return{

            }
        },
        props:{ //接受父组件传递的这个函数
            onEvent:Function
        }
    }
    </script>

这样写又些复杂,容易混淆,可以用来理解传递函数的概念。

透传属性attribute

使用率比较低,可以只用来了解。
透传是指传递给一个组件,但是这个组件不是props,emit或者v-on事件监听器。而是class,id,style渲染之类的。而且只能有一个元素

比如在组件声明处加入一个class:

<Att class="attr-container" />

这个是代码,如果我们加了.attr-container这个样式,那么我们的元素就会直接使用这个样式(不需要给它上js,css之类的,比如这个h3没有被申明样式,但是它任然是红色的)

<template>
    <!--必须为唯一根元素,就是只能由一个元素-->
    <h3>透传</h3>
</template>

<script>
</script>

<style>
.attr-container{
    color:red
}
</style>

禁用attribute
script代码处加入:

export default {
    inheritAttrs:false
}

没有什么用

插槽slot(父传子)

组件中传递数据使用props,而传递模板需要使用到slot。我们可以使用模板来书写代码,而写法就不是之前申明处不是使用<组件名 />这样了,而是<slot1></slot1>这样的双标签。
同时,使用模板中的内容也是使用<slot1></slot1>

App.vue:

<template>
  <slot1>
    <h3>插槽2-你可以在这里写代码</h3>
    <p>我是内容</p>
  </slot1>
</template>
<script>
import slot1 from "./components/slot.vue"
export default{
  components:{
    slot1,
  }
}
</script>

slot.vue:

<template>
    <h3>插槽基础知识</h3>
    <slot></slot>
</template>

<script>
</script>

在这里插入图片描述

slot动态数据显示

slot可以访问到父组件的数据作用域,因为其就是在父组件中定义的。比如我们想使用动态数据:
就像:

<h3>{{ message }}</h3>

这个message我们需要在父组件中定义。就像下面这个例子:

<template>
  <slot1>
    <h3>{{ message }}</h3>
  </slot1>
</template>
<script>
export default{
  components:{
    slot1,
  },
  data(){
    return {
      message:"插槽内容2"
    }
  }
}
</script>

在这里插入图片描述

默认内容

如果slot没有传递任何数据,默认值就会生效,插槽默认值的设置方法如下:
在子组件中:

<slot>默认值</slot>
<template>
    <h3>插槽基础知识2</h3>
    <slot>默认值</slot>
</template>

<script>
export default {
    data(){
        return{

        }
    }
}
</script>

在这里插入图片描述

具名插槽

如果我们只是需要一部分的插槽内容,我们可以把插槽的一部分加上名字,在使用时可以指定使用那些部分的内容。使用<template v-slot:名字>来定义。
v-slot拥有简写#,就是<template #名字>

<template v-slot:header>

父组件中定义:

<组件名>
    <template v-slot:header>
      <h3>{{ message }}</h3>
    </template>

    <template v-slot:main>
      <p>内容</p>
    </template>

</组件名1>

父组件的整体代码:

<template>
  <slot1>
    <template v-slot:header>
      <h3>{{ message }}</h3>
    </template>
    <template v-slot:main>
      <p>内容</p>
    </template>
  </slot1>
</template>
<script>
import slot1 from "./components/slot.vue"
export default{
  components:{
    slot1,
  },
  data(){
    return {
      message:"插槽内容2"
    }
  }
}
</script>
<style>
</style>

子组件中,我们只想要header部分的元素:

<template>
    <h3>插槽基础知识2</h3>
    <slot name="header">默认值</slot>
    <hr>
</template>
<script>
export default {
    data(){
        return{
        }
    }
}
</script>

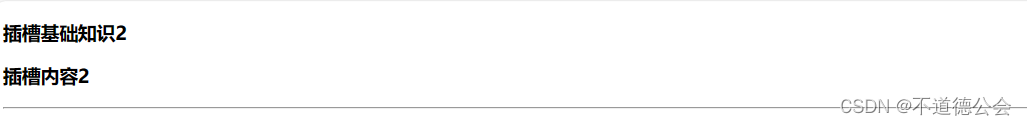

在这里插入图片描述
只能使用在template中

插槽2(子传父数据)

插槽一般只能从父组件中传递,但是如果同时想要子组件的数据,就需要先把数据传给父元素,父元素再把值传到对象中。
传递的方法:

<!--子元素  msg为自定义值,child为要传递的数据 -->
<slot :msg="child"></slot>
<!--父元素 slotp是一个对象,可以自定义名字,需要使用 对象.传来的值 这样生效-->
<!--这里的v-slot不能使用#代替-->
<slot2 v-slot="slotp">
	<h3>{{ text }}-{{ slotp.msg }}</h3>
</slot2>

子组件的代码:

<template>
    <h3>我是slot</h3>
   <slot :msg="child"></slot>
</template>
<script>
export default {
    data(){
        return{
            child:"我是子组件的数据"
        }
    }
}
</script>

父组件的代码:

<template>
  <slot2 v-slot="slotp">
    <h3>{{ text }}-{{ slotp.msg }}</h3>
  </slot2>
</template>

<script>
import slot2 from "./components/slot11.vue"
export default{
  components:{
    slot2,
  },
  data(){
    return {
      message:"插槽内容2",
      text:"测试文本"
    }
  }
}
</script>

在这里插入图片描述

具名插槽的数据传递

如果插槽有名字,也可以实现子传父。
子组件:

<template>
    <h3>第一个命名为header,第二个命名为main</h3>
    <slot name="haeder" :msg="child"></slot>
    <slot name="main" :job="job"></slot>
</template>

<script>
export default {
    data(){
        return{
            child:"我是子组件的数据",
            job:"你好啊"
        }
    }
}
</script>

父组件:

<template>
  <slot2 >
    <template #header="slotp"> <!--使用名为header的slot,对象为slotp -->
      <h3>{{ text }}-{{ slotp.msg }}</h3>
    </template>
    <template #main="slotp"> <!--使用名为main的slot -->
     <p>{{ slotp.job }}</p>
    </template>
  </slot2>
</template>
<script>
import slot2 from "./components/slot11.vue"
export default{
  components:{
    slot2,
  },
  data(){
    return {
      message:"插槽内容2",
      text:"测试文本"
    }
  }
}
</script>

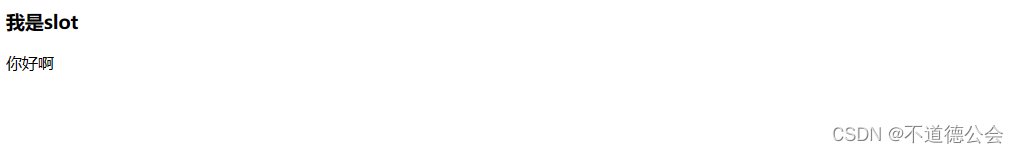

在这里插入图片描述

组件生命周期

分为四个事件,每个周期有其特殊的生命周期函数。每个阶段有两个,一个是创建(更新)前,一个是创建(更新)阶段。
1.创建期:beforeCreate/created
2.挂载期:beforeMounte/mounted
3.更新期:beforeUpdate/updated
4.销毁期:beforeUnmount/unmounted

<template>
  <h3>组件的生命周期</h3>
  <p>{{ Message }}</p>
  <button @click="updateHandle">更新数据</button>
</template>
<script>

export default{
  data(){
    return{
      Message:"更新之前",
    }
  },
  methods:{
    updateHandle(){
      this.Message = "更新之后"
    }
  },
  beforeCreate(){
    console.log("组件创建之前");
  },
  created(){
    console.log("组件创建之后");
  },
  beforeMount(){
    console.log("组件渲染之前");
  },
  mounted(){
    console.log("组件渲染之后");
  },
  beforeUpdate(){
    console.log("组件更新之前");
  },
  updated(){
    console.log("组件更新之后");
  },
  beforeUnmount(){
    console.log("组件销毁之前");
  },
  unmounted(){
    console.log("组件销毁之后");
  }
}
</script>

如果我们直接打开页面。会执行四个生命周期函数:
在这里插入图片描述

如果我们点击按钮更新页面,会执行两个生命周期函数:
在这里插入图片描述
组件销毁后面再做。

组件生命周期的应用

有两个最常见的应用:
1.通过``ref```获取元素的DOM结构。
2.模拟网络请求渲染数据。

1.只能在渲染期读取到数据:

<template>
<h3>组件生命周期</h3>
<p ref="name">我是数据</p>
</template>
<script>
export default {
    beforeMount(){
        //这个时期,你无法读取到这个数据
        console.log(this.$refs.name); //undefined
    },
    mounted(){
        //这个时期,可以读到
        console.log(this.$refs.name);
    }
}
</script>

在这里插入图片描述
2.比如接受后端传来的数据,只能在创建期后(更好是渲染期)执行:
如果在创建期执行,很可能会出现数据提前拿到,但是css没有加载完成。

<template>

<ul>
    <li v-for="(item,index) of banner" :key="index">
        <h3>{{ item.title }}</h3>
        <p>{{ item.content }}</p>
    </li>
</ul>
</template>
<script>
export default {
    data(){
        return{
            banner:[]
        }
    },
    created(){
        //模拟网络请求-只能在创建期实现
        this.banner = [{
            "title":"伦敦",
            "content":"是英国的首都"
        },]
    },
}
</script>

动态组件(组件切换)

有的时候需要两个组件来回切换,比如tap界面。需要注意的是,这里的赋值需要以字符串的形式赋值。使用<component :is="值"></component>来实现,具体代码如下:
app.vue

<template>
  <component :is="tapComponent"></component>
  <button @click="changeHandle">切换组件</button>
</template>
<script>
import A from "./components/CAA.vue"
import B from "./components/CBB.vue"
export default{
  data(){
    return {
      tapComponent:"A"
    }
  },
  components:{
      A,
      B,
  },
  methods:{
    changeHandle(){
    //如果是A就切换为B,是B就切换为A
      this.tapComponent = this.tapComponent == "A" ? "B" :"A"
    }
  }
}
</script>

a.vue:

<template>
    <h3>我是A界面</h3>
</template>

<script>
export default{
}
</script>

b.vue:

<template>
    <h3>我是B界面</h3>
</template>

组件保持存活

如果我们使用<component :is>来进行组件的切换,被切换的组件就会被卸载,我们可以使用<keep-alive>来让他保持存活。
比如,我们在A组件中更新了数据,又切换组件到B,这个组件A又回到了原始数据。如果我们.
需要保存组件A更新的数据,就需要使用<keep-alive>这个标签包括<component :is>
App.vue:

<template>
  <KeepAlive>
    <component :is="tapComponent"></component>
  </KeepAlive>
  <button @click="changeHandle">切换组件</button>
</template>
<script>
import A from "./components/CAA.vue"
import B from "./components/CBB.vue"
export default{
  data(){
    return {
      tapComponent:"A"
    }
  },
  components:{
      A,
      B,
  },
  methods:{
    changeHandle(){
      this.tapComponent = this.tapComponent == "A" ? "B" :"A"
    }
  }
}
</script>

A:

<template>
    <h3>我是A界面</h3>
    <p>{{ message }}</p>
    <button @click="updateHandle">更新数据</button>
</template>

<script>
export default{
    data(){
        return {
            message:"老数据"
        }
    },
    methods:{
        updateHandle(){
            this.message = "新数据"
        }
    }
}
</script>

B:

<template>
    <h3>我是B界面</h3>
</template>

在这里插入图片描述

异步组件

需要使用上面的代码,只需要修改引入。
同步:按顺序执行。异步:功能同进行。在大型项目中,我们可能会许多的组件,如果是正常的执行,我们需要等待所有组件执行完毕,但是异步执行是用到那个执行那个,这会显著的提高性能。

比如上面的组件切换,我们切换后实际上组件B并没有执行,所以可以把它作为异步组件,等我们点击切换后再执行。

我们只需要修改引入的代码就可以了:

//import B from "./components/CBB.vue" 把这个改为下面的

//异步加载组件
import {  defineAsyncComponent } from "vue"
const B = defineAsyncComponent(()=>
import("./components/componentB.vue")
)
<template>
  <KeepAlive>
    <component :is="tapComponent"></component>
  </KeepAlive>
  <button @click="changeHandle">切换组件</button>
</template>
<script>
import A from "./components/CAA.vue"
//import B from "./components/CBB.vue"
//异步加载组件
import {  defineAsyncComponent } from "vue"
const B = defineAsyncComponent(()=>
import("./components/componentB.vue")
)
export default{
  data(){
    return {
      tapComponent:"A"
    }
  },
  components:{
      A,
      B,
  },
  methods:{
    changeHandle(){
      this.tapComponent = this.tapComponent == "A" ? "B" :"A"
    }
  }
}
</script>

这样我们点击切换页面的时候,可以发现,网络中又一次新的请求发布
在这里插入图片描述

依赖注入

如果有一个多层级嵌套的组件,形成了一颗巨大的组件树,而某个深层的组件需要较远组件中的部分数据,这种情况下如果使用props传递数据就会十分麻烦。

比如我们像祖宗给孙子传递数据,一般是先传给父组件,再由父组件传给子组件,这样十分麻烦。我们可以使用provide来传数据,使用inject来接受数据。

1.创建祖先文件

<template>
<h3>我是祖先</h3>
<A />
</template>
<script>
import A from "./components/AAA.vue"
export default{
  data(){
    return {
      message:"祖先的财产~~"
    }
  },
  provide(){
    return{
      message:this.message
    }
  },
  components:{
    A,
  }
}
</script>

2.创建父组件:

<template>
<h3>我是父组件</h3>
<B />
</template>

<script>
import B from "./BBB.vue"
export default {
    components:{
        B
    }
}
</script>

3.创建子组件:

<template>
    <h3>我是子组件</h3>
    <p>{{ message }}</p>
    </template>

    <script>
    export default {
        inject:["message"]
    }
    </script>

子组件也可以把接受的数据先放到data中,就像这样:

<template>
    <h3>我是子组件</h3>
    <p>{{ fullMessage }}</p>
    </template>

    <script>
    export default {
        inject:["message"],

        data(){
            return {
                fullMessage:this.message
            }
        }
    }
    </script>

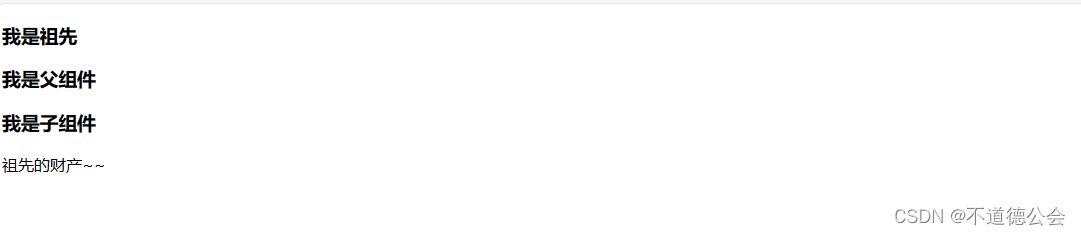

在这里插入图片描述

只能从上到下传递数据

依赖化

我们也可以在整个应用层面提供依赖。就是在main.js页面中。可以使用类似这样的代码:
mian.js

import { createApp } from 'vue'
import App from './App.vue'
//引入组件
import Header from "./pages/Header.vue"
//构造对
const app = createApp(App)

//注册组件,第一个参数是键(名字)
app.component("Header",Header)

//这里
app.provide("golabData","我是全局数据")

//一定要放到最后
app.mount('#app')

任意一个子项目,比如上面的子组件:

<template>
    <h3>我是子组件</h3>
    <p>{{ fullMessage }}</p>
    <p>{{ golabData }}</p>
    </template>
    <script>
    export default {
        inject:["message","golabData"],
        data(){
            return {
                fullMessage:this.message
            }
        }
    }
    </script>

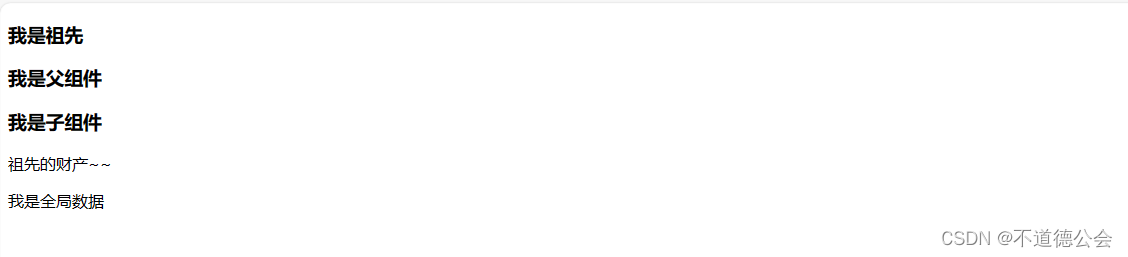

在这里插入图片描述

vue应用

实例
每个vue应用都是通过createApp函数来创建一个新的应用实例。

  • 15
    点赞
  • 19
    收藏
    觉得还不错? 一键收藏
  • 1
    评论
SystemVue是一款强大的电子系统级(ESL)仿真软件,用于设计和验证各种通信和雷达系统。以下是SystemVue教程的简要介绍。 SystemVue教程旨在帮助用户快速了解和掌握SystemVue软件的使用方法和功能。教程提供了全面的学习资源,包括文档、示例项目和视频教程等。 SystemVue教程的内容包括以下几个主要方面: 1. 界面导览:介绍SystemVue的主要界面和工具栏,帮助用户熟悉软件的基本操作和界面布局。 2. 基本模块使用:教程介绍如何使用SystemVue中的基本模块来搭建仿真系统。包括信号源、滤波器、混频器等常用模块的应用。 3. 仿真设置和参数配置:教程详细介绍如何设置仿真参数和配置系统参数,以确保仿真的准确性和有效性。 4. 信号处理和分析:教程讲解SystemVue中各种信号处理和分析工具的使用方法,包括频谱分析、时域分析、波形观察等。 5. 通信系统仿真:教程重点介绍如何使用SystemVue来设计和仿真各种通信系统,如OFDM、CDMA、LTE等。 6. 雷达系统仿真:教程还提供了针对雷达系统设计的教学模块,包括雷达信号生成、目标检测和跟踪等相关内容。 通过SystemVue教程,用户可以了解到如何使用SystemVue软件进行各种系统级仿真,提高系统设计和验证的效率和准确性。教程内容全面且易于理解,适用于初学者和有一定经验的用户。无论你是通信系统工程师还是雷达系统设计师,掌握SystemVue教程将对你的工作和研究带来很大的帮助。

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论 1
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
