野火stm32f407霸天虎V2开发板使用cubemx驱动4.3寸LCD屏

最新推荐文章于 2024-07-02 00:32:06 发布

m0_73423571

最新推荐文章于 2024-07-02 00:32:06 发布

阅读量559

点赞数 7

文章标签： stm32 嵌入式硬件单片机

本文链接：https://blog.csdn.net/m0_73423571/article/details/138290291

版权

本文详细描述了如何在STM32F407VE开发板上利用STM32CubeMX生成FSMC驱动，以控制NT355104.3寸TFTLCD，并提供了配置系统时钟、初始化GPIO和FSMC，以及LCD测试的相关代码示例。

摘要由CSDN通过智能技术生成

关键词： FSMC驱动LCD，STM32F407VE

调试环境：

编译器：keil5

驱动生成：STM32CubeMX

开发板：野火STM32F407ZGT6 霸天虎v2开发板

LCD：800x480_NT35510 ，驱动IC：NT35510， 4.3寸TFT LCD

1.用 STM32CubeMX 创建FSMC 的驱动

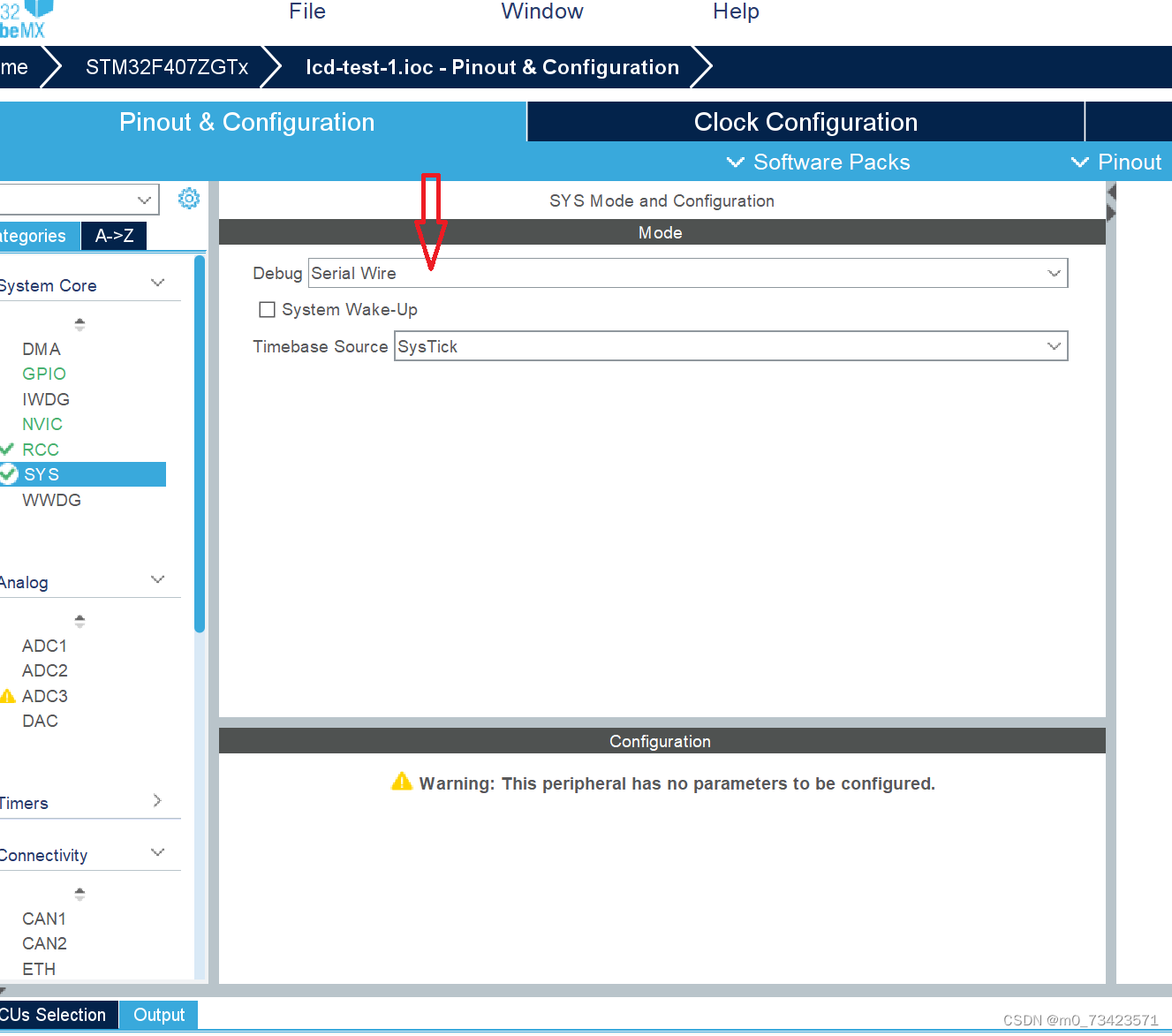

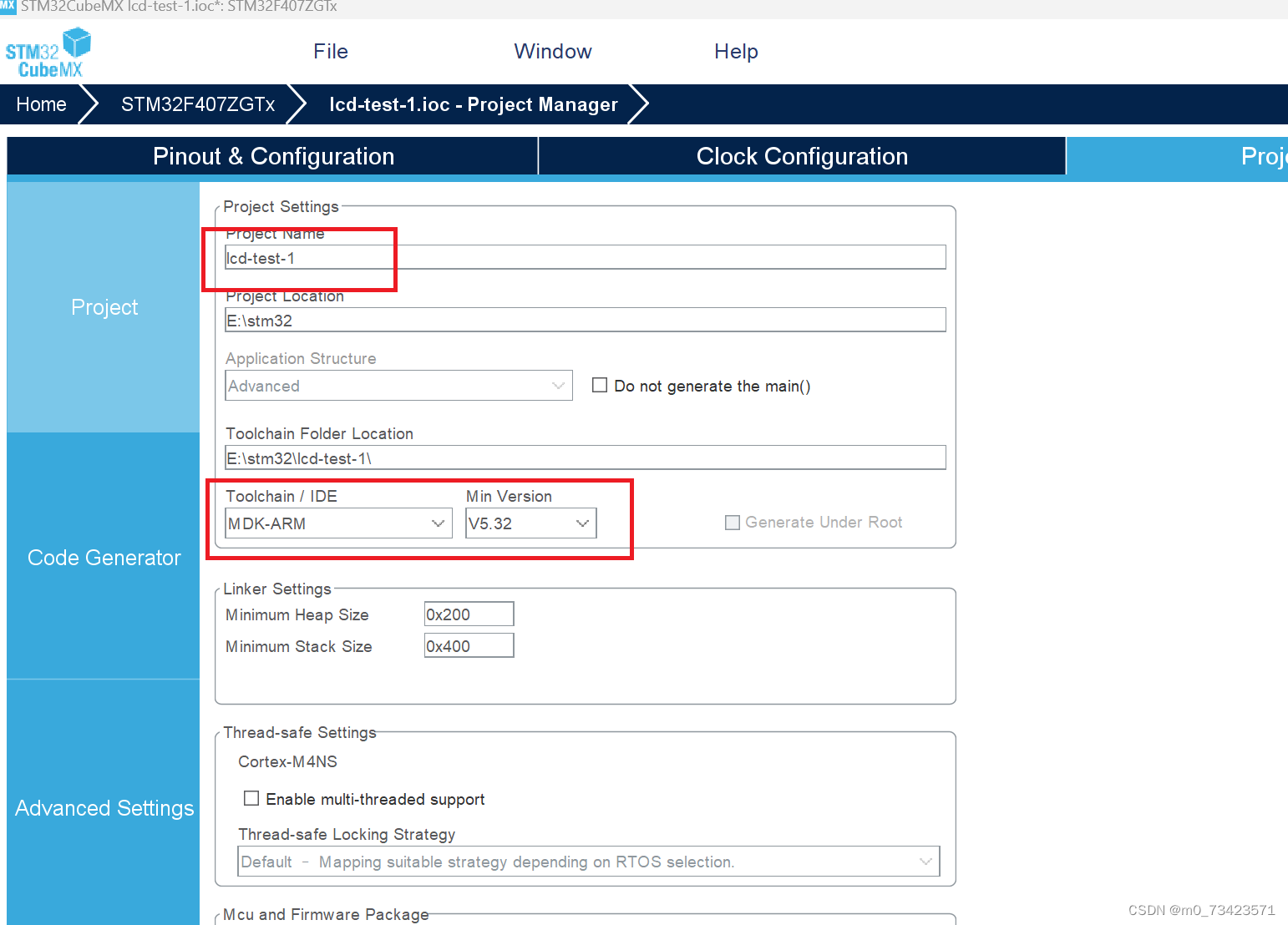

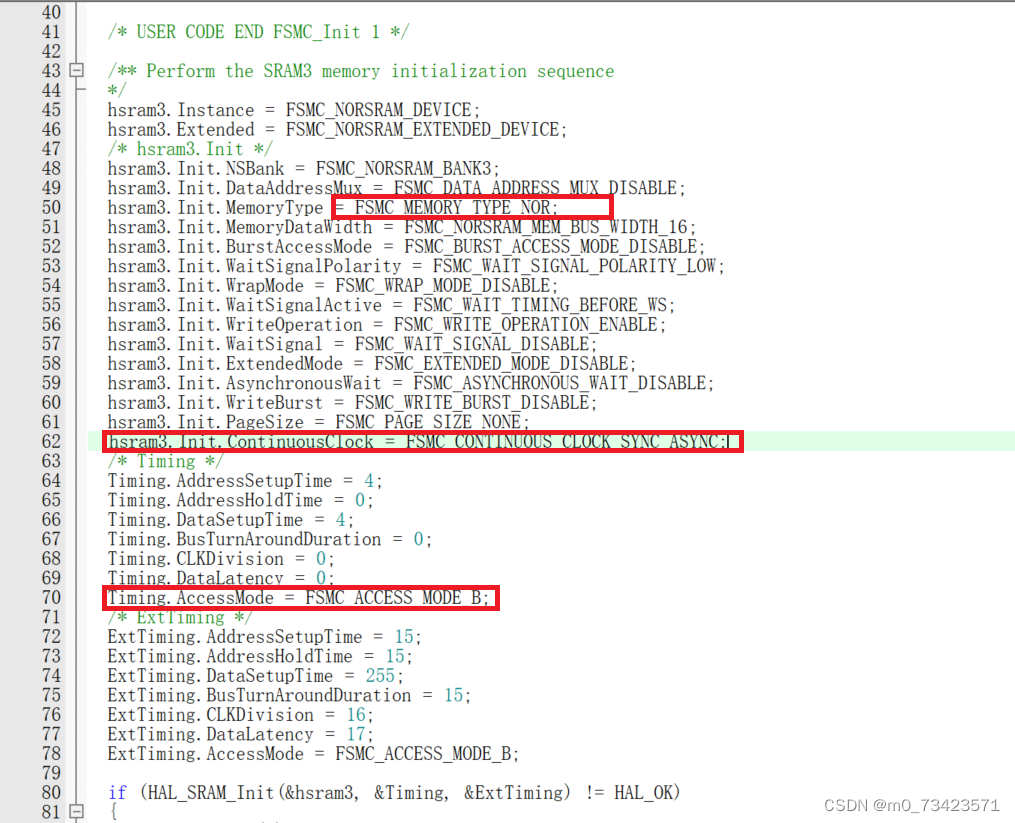

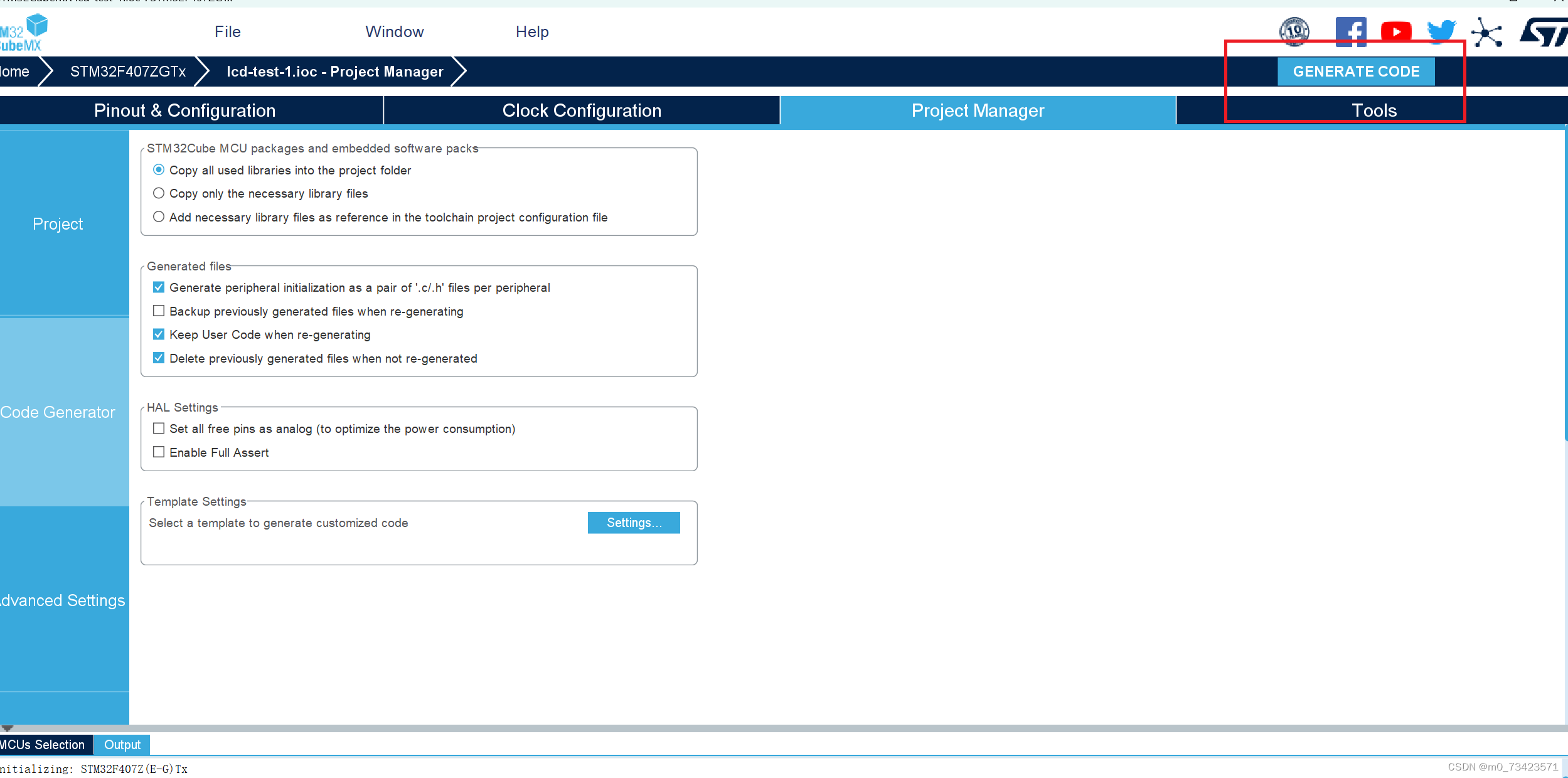

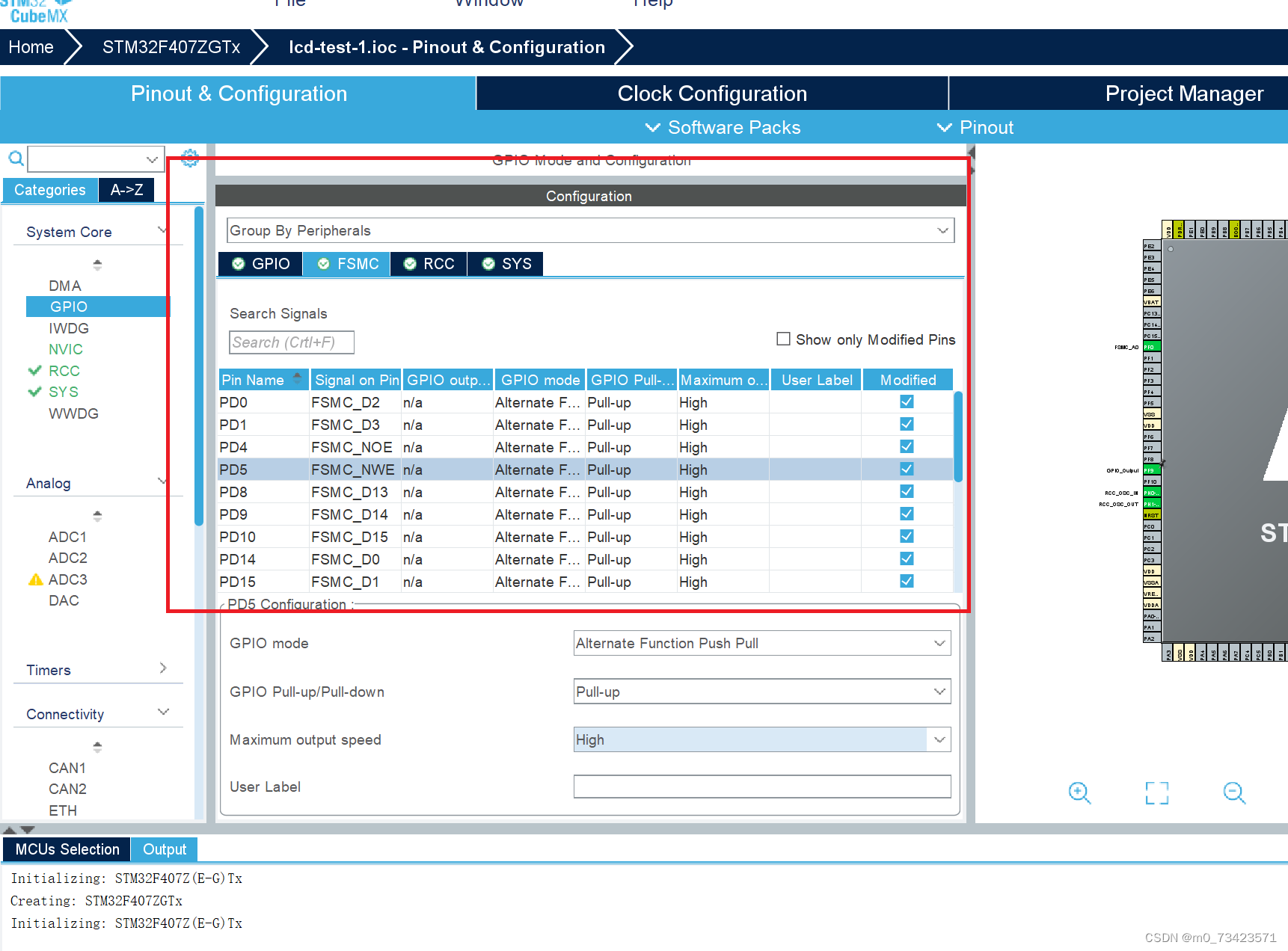

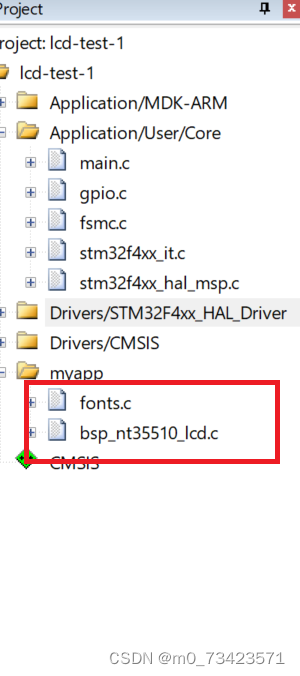

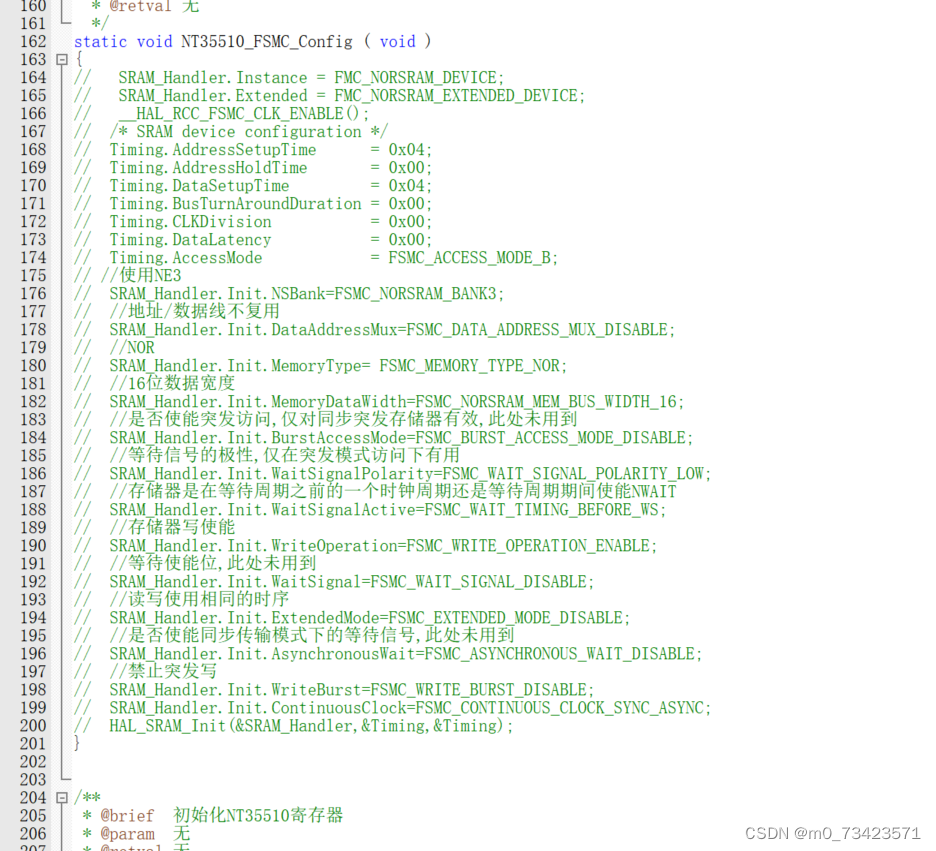

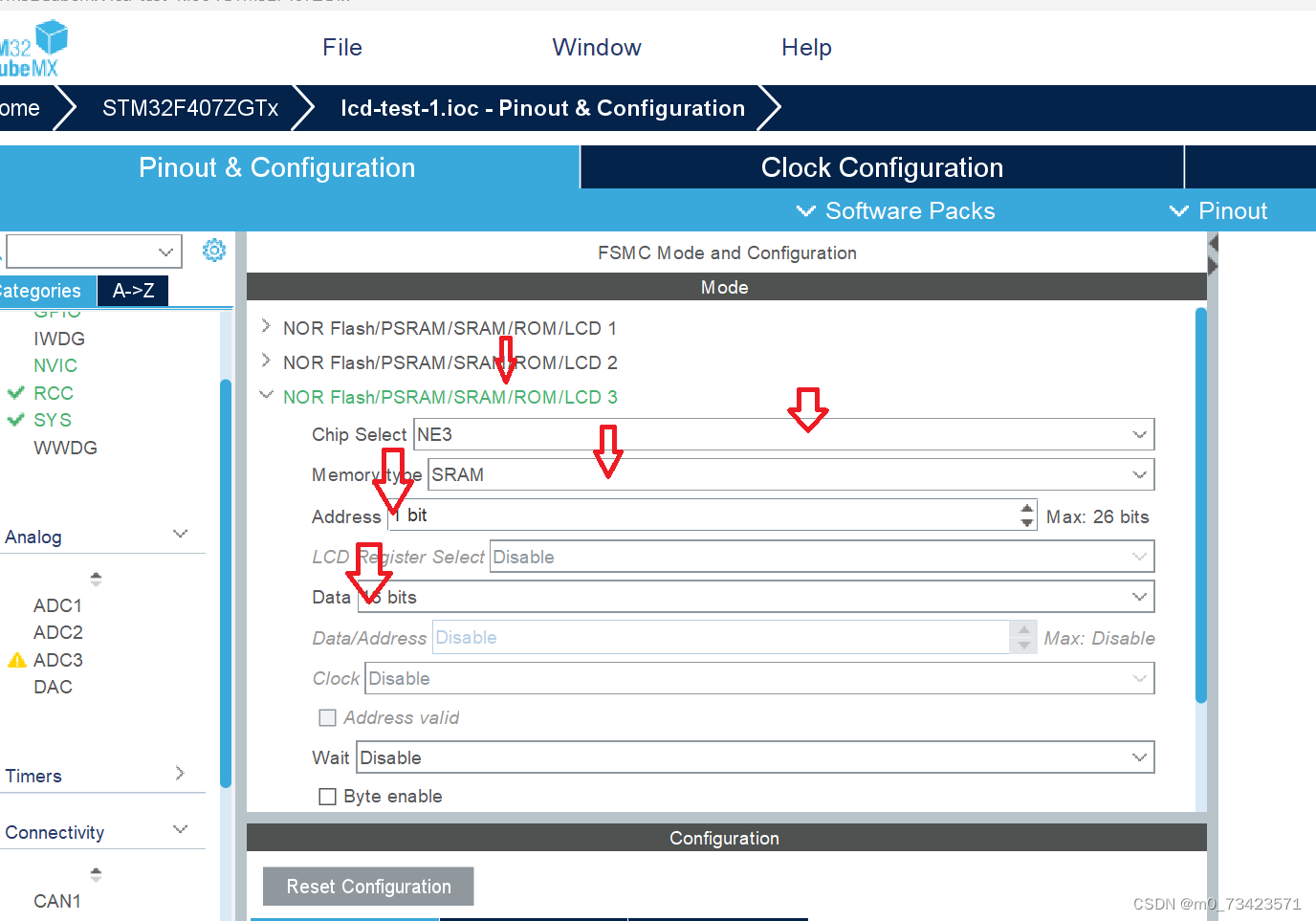

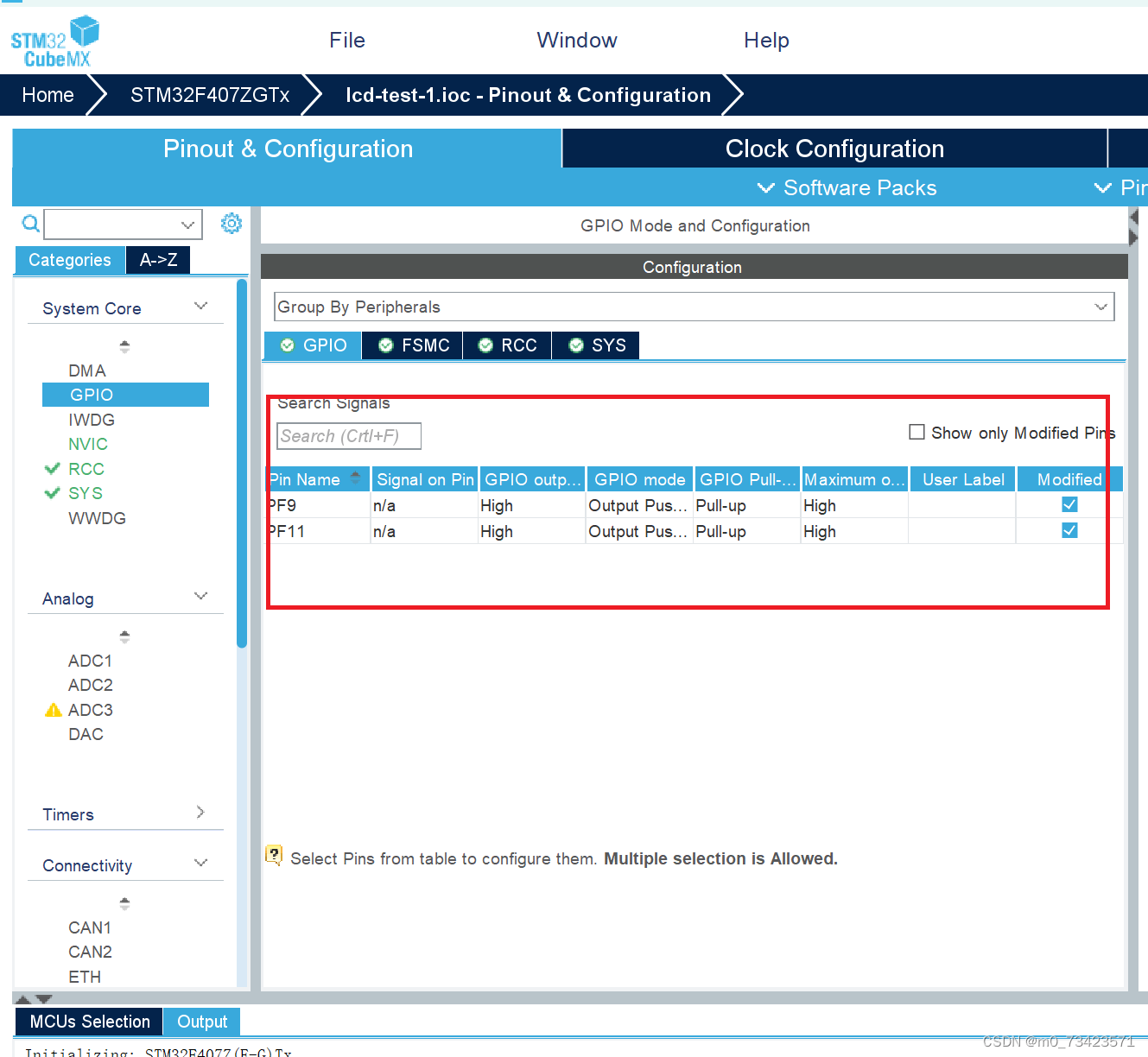

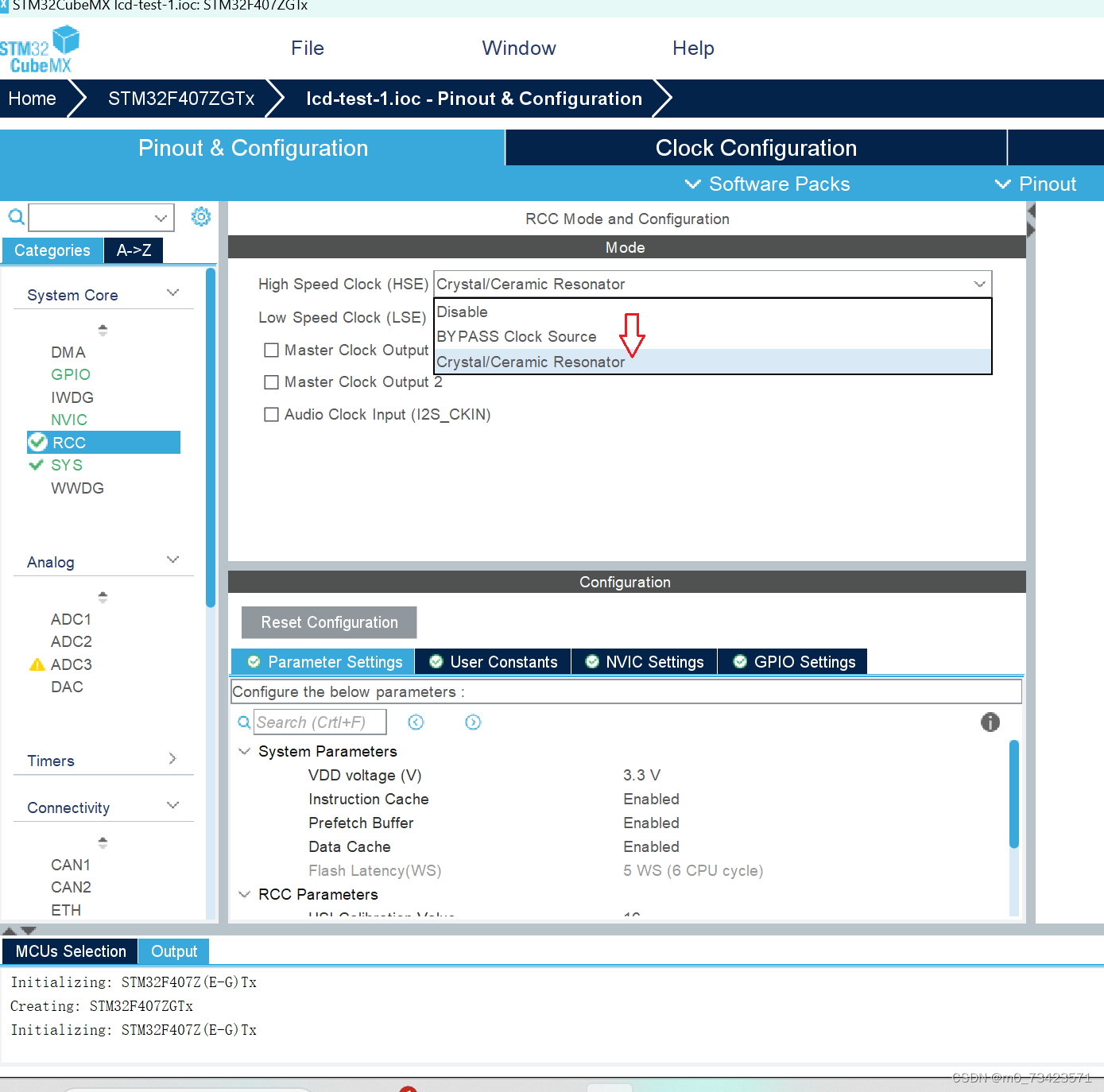

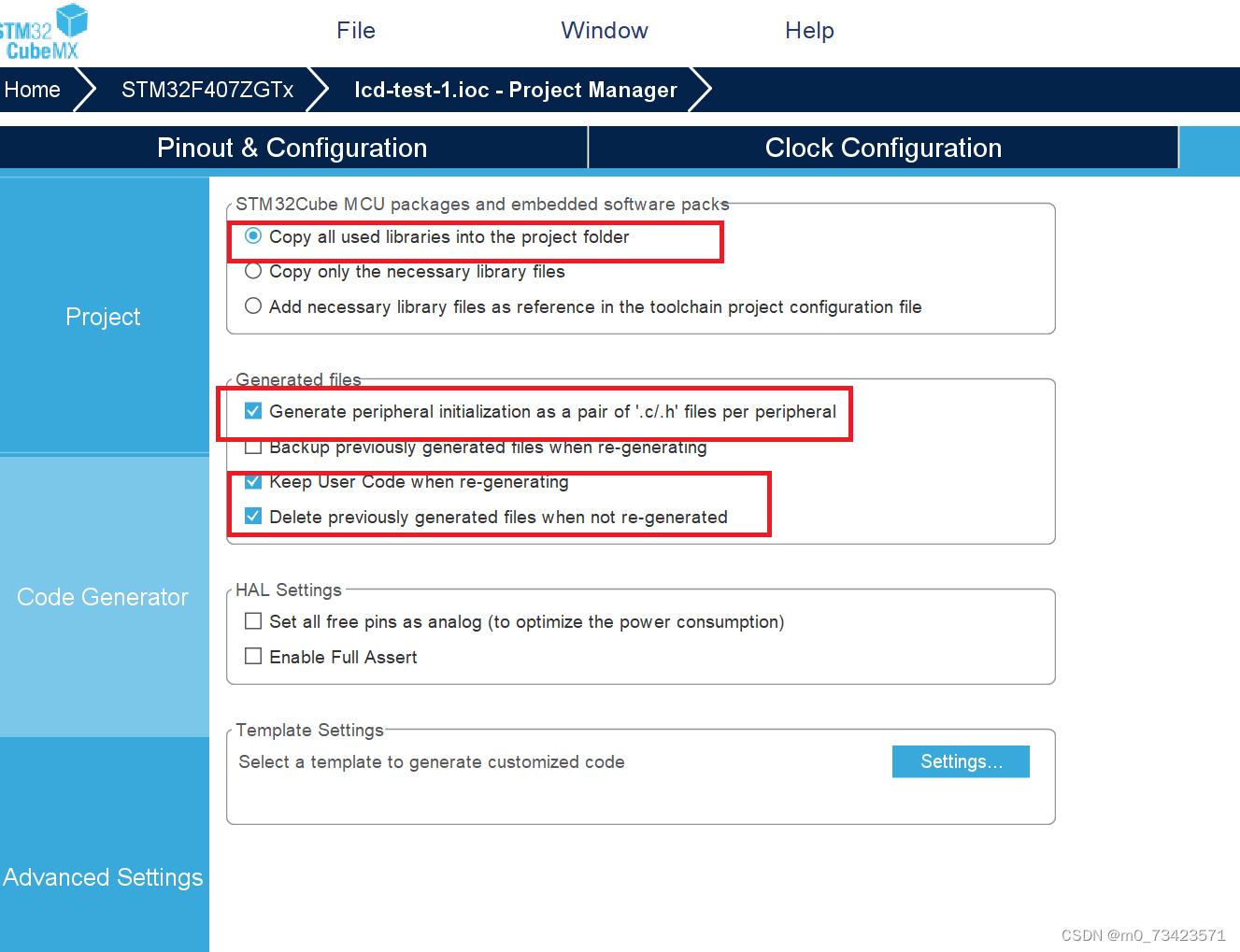

按如下截图顺序设置

/* USER CODE BEGIN Header */
/**
  ******************************************************************************
  * @file           : main.c
  * @brief          : Main program body
  ******************************************************************************
  * @attention
  *
  * <h2><center>&copy; Copyright (c) 2024 STMicroelectronics.
  * All rights reserved.</center></h2>
  *
  * This software component is licensed by ST under BSD 3-Clause license,
  * the "License"; You may not use this file except in compliance with the
  * License. You may obtain a copy of the License at:
  *                        opensource.org/licenses/BSD-3-Clause
  *
  ******************************************************************************
  */
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "gpio.h"
#include "fsmc.h"

/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include <stdlib.h>
#include <stdio.h>
#include "bsp_nt35510_lcd.h"
/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */
static void LCD_Test(void);
static void Delay ( __IO uint32_t nCount );
void Printf_Charater(void)   ;


/* USER CODE END PTD */

/* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* USER CODE END PD */

/* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM */

/* USER CODE END PM */

/* Private variables ---------------------------------------------------------*/

/* USER CODE BEGIN PV */

/* USER CODE END PV */

/* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP */

/* USER CODE END PFP */

/* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 */

/* USER CODE END 0 */

/**
  * @brief  The application entry point.
  * @retval int
  */
int main(void)
{
  /* USER CODE BEGIN 1 */

  /* USER CODE END 1 */

  /* MCU Configuration--------------------------------------------------------*/

  /* Reset of all peripherals, Initializes the Flash interface and the Systick. */
  HAL_Init();

  /* USER CODE BEGIN Init */

  /* USER CODE END Init */

  /* Configure the system clock */
  SystemClock_Config();

  /* USER CODE BEGIN SysInit */

  /* USER CODE END SysInit */

  /* Initialize all configured peripherals */
  MX_GPIO_Init();
  MX_FSMC_Init();
  /* USER CODE BEGIN 2*/
	NT35510_Init();
	LCD_SetFont(&Font16x32);
	LCD_SetColors(GREEN,BLACK);

  NT35510_Clear(0,0,LCD_X_LENGTH,LCD_Y_LENGTH);	/* 清屏，显示全黑 */
	/********显示字符串示例*******/
  NT35510_DispStringLine_EN(LINE(0),"hello world");
  NT35510_DispStringLine_EN(LINE(2),"resolution:480x800px");
  NT35510_DispStringLine_EN(LINE(3),"LCD driver:NT35510");
  NT35510_DispStringLine_EN(LINE(4),"Touch driver:GT917S");
  /* USER CODE END 2 */

  /* Infinite loop */
  /* USER CODE BEGIN WHILE */
  while (1)
  {

    /* USER CODE END WHILE */

    /* USER CODE BEGIN 3 */
  }
  /* USER CODE END 3 */
}

/**
  * @brief System Clock Configuration
  * @retval None
  */
void SystemClock_Config(void)
{
  RCC_OscInitTypeDef RCC_OscInitStruct = {0};
  RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};

  /** Configure the main internal regulator output voltage
  */
  __HAL_RCC_PWR_CLK_ENABLE();
  __HAL_PWR_VOLTAGESCALING_CONFIG(PWR_REGULATOR_VOLTAGE_SCALE1);
  /** Initializes the RCC Oscillators according to the specified parameters
  * in the RCC_OscInitTypeDef structure.
  */
  RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSI;
  RCC_OscInitStruct.HSIState = RCC_HSI_ON;
  RCC_OscInitStruct.HSICalibrationValue = RCC_HSICALIBRATION_DEFAULT;
  RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;
  RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSI;
  RCC_OscInitStruct.PLL.PLLM = 8;
  RCC_OscInitStruct.PLL.PLLN = 168;
  RCC_OscInitStruct.PLL.PLLP = RCC_PLLP_DIV2;
  RCC_OscInitStruct.PLL.PLLQ = 4;
  if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK)
  {
    Error_Handler();
  }
  /** Initializes the CPU, AHB and APB buses clocks
  */
  RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
                              |RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
  RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
  RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;
  RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV4;
  RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV2;

  if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_5) != HAL_OK)
  {
    Error_Handler();
  }
}

/* USER CODE BEGIN 4 */
void LCD_Test(void)
{
	/*演示显示变量*/
	static uint8_t testCNT = 0;
	char dispBuff[100];

	testCNT++;

	LCD_SetFont(&Font16x32);
	LCD_SetColors(RED,BLACK);

  NT35510_Clear(0,0,LCD_X_LENGTH,LCD_Y_LENGTH);	/* 清屏，显示全黑 */
	/********显示字符串示例*******/
  NT35510_DispStringLine_EN(LINE(0),"YH 4.3 inch LCD");
  NT35510_DispStringLine_EN(LINE(2),"resolution:480x800px");
  NT35510_DispStringLine_EN(LINE(3),"LCD driver:NT35510");
  NT35510_DispStringLine_EN(LINE(4),"Touch driver:GT917S");

	/********显示变量示例*******/
	LCD_SetTextColor(GREEN);

	/*使用c标准库把变量转化成字符串*/
	sprintf(dispBuff,"Count : %d ",testCNT);
  NT35510_ClearLine(LINE(7));	/* 清除单行文字 */

	/*然后显示该字符串即可，其它变量也是这样处理*/
	NT35510_DispStringLine_EN(LINE(7),dispBuff);

	/*******显示图形示例******/
  /* 画直线 */

  NT35510_ClearLine(LINE(7));/* 清除单行文字 */
	LCD_SetTextColor(BLUE);

  NT35510_DispStringLine_EN(LINE(7),"Draw line:");

	LCD_SetTextColor(RED);
  NT35510_DrawLine(50,270,420,275);
  NT35510_DrawLine(50,300,420,375);

	LCD_SetTextColor(GREEN);
  NT35510_DrawLine(50,370,420,475);
  NT35510_DrawLine(50,400,420,475);

	LCD_SetTextColor(BLUE);
  NT35510_DrawLine(50,420,420,325);
  NT35510_DrawLine(50,450,420,395);

  Delay(0x2FFFFFF);

  NT35510_Clear(0,32*7,LCD_X_LENGTH,LCD_Y_LENGTH-32*7);	/* 清屏，显示全黑 */


  /*画矩形*/

  NT35510_ClearLine(LINE(7));	/* 清除单行文字 */
	LCD_SetTextColor(BLUE);

  NT35510_DispStringLine_EN(LINE(7),"Draw Rect:");

	LCD_SetTextColor(RED);
  NT35510_DrawRectangle(50,300,200,100,1);

	LCD_SetTextColor(GREEN);
  NT35510_DrawRectangle(100,300,200,120,0);

	LCD_SetTextColor(BLUE);
  NT35510_DrawRectangle(250,300,200,150,1);


  Delay(0x2FFFFFF);

	NT35510_Clear(0,32*7,LCD_X_LENGTH,LCD_Y_LENGTH-32*7);	/* 清屏，显示全黑 */

  /* 画圆 */
  NT35510_ClearLine(LINE(7));	/* 清除单行文字 */
	LCD_SetTextColor(BLUE);

  NT35510_DispStringLine_EN(LINE(7),"Draw Cir:");

	LCD_SetTextColor(RED);
	NT35510_DrawCircle(150,400,60,1);

	LCD_SetTextColor(GREEN);
	NT35510_DrawCircle(250,400,60,0);

	LCD_SetTextColor(BLUE);
	NT35510_DrawCircle(350,400,60,1);

  Delay(0x2FFFFFF);

  NT35510_Clear(0,32*7,LCD_X_LENGTH,LCD_Y_LENGTH-32*7);	/* 清屏，显示全黑 */

}


/**
  * @brief  简单延时函数
  * @param  nCount ：延时计数值
  * @retval 无
  */
static void Delay ( __IO uint32_t nCount )
{
  for ( ; nCount != 0; nCount -- );

}
/* USER CODE END 4 */

/**
  * @brief  This function is executed in case of error occurrence.
  * @retval None
  */
void Error_Handler(void)
{
  /* USER CODE BEGIN Error_Handler_Debug */
  /* User can add his own implementation to report the HAL error return state */
  __disable_irq();
  while (1)
  {
  }
  /* USER CODE END Error_Handler_Debug */
}

#ifdef  USE_FULL_ASSERT
/**
  * @brief  Reports the name of the source file and the source line number
  *         where the assert_param error has occurred.
  * @param  file: pointer to the source file name
  * @param  line: assert_param error line source number
  * @retval None
  */
void assert_failed(uint8_t *file, uint32_t line)
{
  /* USER CODE BEGIN 6 */
  /* User can add his own implementation to report the file name and line number,
     ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) */
  /* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/
