EasyX-中国象棋棋盘

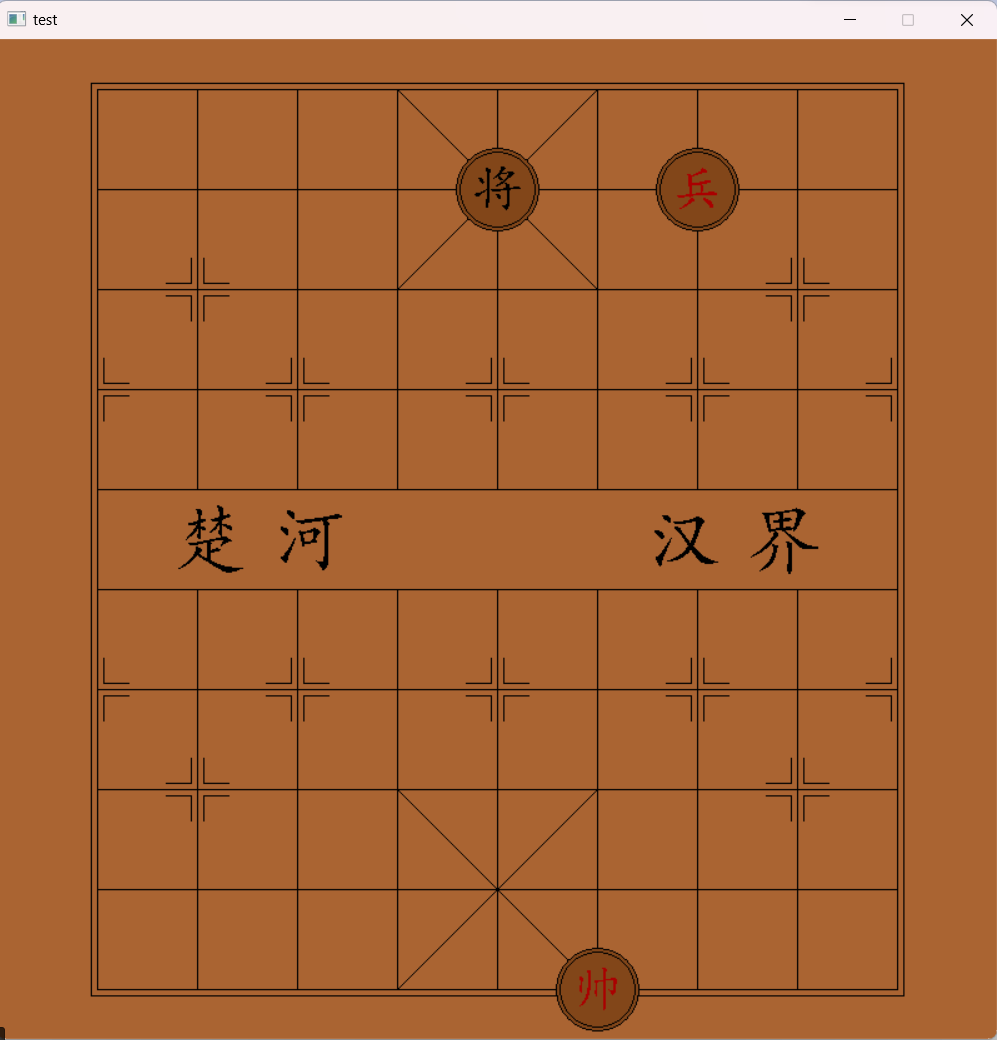

设计程序，画一个中国象棋棋盘，配上你喜欢的底色，中间写上“楚河汉界”四字。

选做：找一个象棋残局画出来

#include <stdlib.h>
#include <Windows.h>
#include <graphics.h>
#include <conio.h>
void print_right_angle_1(int x, int y);//输出以（x，y）为交点的第一象限直角，下面以此类推
void print_right_angle_2(int x, int y);
void print_right_angle_3(int x, int y);
void print_right_angle_4(int x, int y);
void print_cross(int x, int y);//输出以（x，y）为中心的十字
int main() {
	initgraph(800, 800);
	setbkcolor(RGB(170, 100, 50));
	setlinecolor(BLACK);
	cleardevice();
	rectangle(80, 40, 720, 760);
	rectangle(75, 35, 725, 765);
	for (int i = 120; i <= 680; i += 80)//两个for循环画出大概框架
		line(80, i, 720, i);
	for (int i = 160; i <= 640; i += 80) {
		line(i, 40, i, 360);
		line(i, 440, i, 760);
	}
	line(320, 40, 480, 200);//画四条线，即两个叉叉
	line(320, 200, 480, 40);
	line(320, 760, 480, 600);
	line(320, 600, 480, 760);
	//上半最左边兵
	print_right_angle_1(85, 275);
	print_right_angle_4(85, 285);
	//下半最左边兵
	print_right_angle_1(85, 515);
	print_right_angle_4(85, 525);
	//输出所有十字架
	print_cross(160, 200);
	print_cross(160, 600);
	print_cross(240, 280);
	print_cross(240, 520);
	print_cross(400, 280);
	print_cross(400, 520);
	print_cross(560, 280);
	print_cross(560, 520);
	print_cross(640, 200);
	print_cross(640, 600);
	//上半最右边兵
	print_right_angle_2(715, 275);
	print_right_angle_3(715, 285);
	//下半最右边兵
	print_right_angle_2(715, 515);
	print_right_angle_3(715, 525);
	settextcolor(BLACK);
	settextstyle(60, 0, _T("楷体"));
	outtextxy(140, 370, _T("楚"));
	outtextxy(220, 370, _T("河"));
	outtextxy(520, 370, _T("汉"));
	outtextxy(600, 370, _T("界"));
	//下面输出几个棋子
	setbkmode(TRANSPARENT);
	settextstyle(40, 0, _T("楷体"));
	setfillcolor(RGB(130, 70, 25));
	fillcircle(400, 120, 33);
	fillcircle(400, 120, 30);
	outtextxy(380, 100, _T("将"));
	settextcolor(RED);
	fillcircle(560, 120, 33);
	fillcircle(560, 120, 30);
	outtextxy(540, 100, _T("兵"));
	fillcircle(480, 760, 33);
	fillcircle(480, 760, 30);
	outtextxy(460, 740, _T("帅"));
	system("pause");
	closegraph();
	return 0;
}
void print_right_angle_1(int x, int y) {
	line(x, y, x + 20, y);
	line(x, y, x, y - 20);
}
void print_right_angle_2(int x, int y) {
	line(x, y, x - 20, y);
	line(x, y, x, y - 20);
}
void print_right_angle_3(int x, int y) {
	line(x, y, x - 20, y);
	line(x, y, x, y + 20);
}
void print_right_angle_4(int x, int y) {
	line(x, y, x + 20, y);
	line(x, y, x, y + 20);
}
void print_cross(int x, int y) {
	print_right_angle_1(x + 5, y - 5);
	print_right_angle_2(x - 5, y - 5);
	print_right_angle_3(x - 5, y + 5);
	print_right_angle_4(x + 5, y + 5);
}



 来个赞！！
