MyBatis
前言
后续会更新spring、springmvc、springboot、分布式微服务等 关注我,一起学习,一起进步吧
来源:
尚硅谷视频教程
一、MyBatis简介
- 是一个基于Java的半自动的ORM(Object Relation Mapping)持久层框架
- iBatis提供的持久层框架包括SQL Maps和Data Access Objects(DAO)
- 支持存储过程以及高级映射
- 不需要手动写jdbc代码、不需要手动设置参数和获取结果集
- 使用简单的XML或注解用于配置和原始映射
- SQL 和 Java 编码分开,SQL语句专注于数据,java代码专注于业务逻辑
- 封装了jdbc,简化操作
二、搭建MyBatis项目
1. 开发环境
- ide
- maven
- MySQL
- MyBatis
2. 创建maven工程
- 设置打包方式:jar
<packaging>war</packaging>
- 引入依赖—在pom.xml文件
<dependencies>
<!-- Mybatis核心 -->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.5.7</version>
</dependency>
<!-- junit测试 -->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
<scope>test</scope>
</dependency>
<!-- MySQL驱动 -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.3</version>
</dependency>
</dependencies>
3. 创建MyBatis核心配置文件
-
习惯命名:mybatis-config.xml
-
ssm整合之后可以省略不写
-
作用:配置连接数据库的环境以及MyBatis的全局配置信息
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<!--设置连接数据库的环境-->
<environments default="development">
<environment id="development">
<transactionManager type="JDBC"/>
<dataSource type="POOLED">
<property name="driver" value="com.mysql.jdbc.Driver"/>
<property name="url"
value="jdbc:mysql://localhost:3306/MyBatis"/>
<property name="username" value="root"/>
<property name="password" value="123456"/>
</dataSource>
</environment>
</environments>
<!--引入映射文件-->
<mappers>
<mapper resource="mappers/UserMapper.xml"/>
</mappers>
</configuration>
4. 创建Mapper接口
- mapper接口相当于以前的DAO,用来操作数据库,
MyBatis是面向接口编程的,所以不需要提供实现类 - 位置:main----com.nuesoft.mybatis.mapper
5. 创建MyBatis映射文件
相关概念:
ORM(Object Relationship Mapping)对象关系映射。
- O:Object,java中的实体对象
- R:Relationship,关系型数据库
- M:Mapping,俩者之间的映射关系
-
映射关系
- Java 数据库概念
- 类 表
- 对象 行
- 属性 字段
-
注意事项
-
映射文件的命名规则:
表所对应的实体类的类名+Mapper.xml
-
一个映射文件对应一个实体类,对应一张表的操作
-
MyBatis映射文件用于编写SQL,访问以及操作表中的数据
-
MyBatis中想要面向接口操作数据,要保证两个一致:
- mapper接口的全类名和映射文件的命名空间(namespace)保持一致
- mapper接口中方法的方法名和映射文件中编写SQL的标签的id属性保持一致
-
6. 通过junit(测试单元)测试代码
’
//读取MyBatis的核心配置文件
InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
//创建SqlSessionFactoryBuilder对象
SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new
SqlSessionFactoryBuilder();
//通过核心配置文件所对应的字节输入流创建工厂类SqlSessionFactory,生产SqlSession对象
SqlSessionFactory sqlSessionFactory = sqlSessionFactoryBuilder.build(is);
//创建SqlSession对象,此时通过SqlSession对象所操作的sql都必须手动提交或回滚事务
//SqlSession sqlSession = sqlSessionFactory.openSession();
//创建SqlSession对象,此时通过SqlSession对象所操作的sql都会自动提交
SqlSession sqlSession = sqlSessionFactory.openSession(true);
//通过**代理模式**创建UserMapper接口的代理实现类对象
UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
//调用UserMapper接口中的方法,就可以根据UserMapper的全类名匹配元素文件,通过调用的方法名匹配
映射文件中的SQL标签,并执行标签中的SQL语句
int result = userMapper.insertUser();
//sqlSession.commit();'
7. 配置log4j日志功能
a>引入依赖(pom.xml文件中)
<!-- log4j日志 -->
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>1.2.17</version>
</dependency>
### b>加入配置文件
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE log4j:configuration SYSTEM "log4j.dtd">
<log4j:configuration xmlns:log4j="http://jakarta.apache.org/log4j/">
<appender name="STDOUT" class="org.apache.log4j.ConsoleAppender">
<param name="Encoding" value="UTF-8" />
<layout class="org.apache.log4j.PatternLayout">
<param name="ConversionPattern" value="%-5p %d{MM-dd HH:mm:ss,SSS}
%m (%F:%L) \n" />
</layout>
</appender>
<logger name="java.sql">
<level value="debug" />
</logger>
<logger name="org.apache.ibatis">
<level value="info" />
</logger>
<root>
<level value="debug" />
<appender-ref ref="STDOUT" />
</root>
</log4j:configuration>
c>日志级别
-
FATAL(致命)>ERROR(错误)>WARN(警告)>INFO(信息)>DEBUG(调试)
-
从左到右打印的内容越来越详细
三、MyBatis核心配置文件
1. 标签顺序
properties?,settings?,typeAliases?,typeHandlers?,objectFactory?,
objectWrapperFactory?,reflectorFactory?,plugins?,environments?,
databaseIdProvider?,mappers?
2.配置文件内容
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//MyBatis.org//DTD Config 3.0//EN"
"http://MyBatis.org/dtd/MyBatis-3-config.dtd">
<configuration>
<!--引入properties文件,此时就可以${属性名}的方式访问属性值-->
<properties resource="jdbc.properties"/>
<!--全局变量-->
<settings>
<!--将表中字段的下划线自动转换为驼峰-->
<setting name="mapUnderscoreToCamelCase" value="true"/>
<!--开启延迟加载-->
<setting name="lazyLoadingEnabled" value="true"/>
</settings>
<typeAliases>
<!-- typeAlias:设置某个具体的类型的别名
属性:
type:需要设置别名的类型的全类名
alias:设置此类型的别名,若不设置此属性,该类型拥有默认的别名,即类名且不区分大小
写
若设置此属性,此时该类型的别名只能使用alias所设置的值
-->
<!--<typeAlias type="com.atguigu.mybatis.bean.User"></typeAlias>-->
<!--<typeAlias type="com.atguigu.mybatis.bean.User" alias="abc">
</typeAlias>-->
<!--以包为单位,设置改包下所有的类型都拥有默认的别名,即类名且不区分大小写-->
<package name="com.atguigu.mybatis.bean"/>
</typeAliases>
<!--
environments:设置多个连接数据库的环境
属性:
default:设置默认使用的环境的id
-->
<environments default="mysql_test">
<!--
environment:设置具体的连接数据库的环境信息
属性:
id:设置环境的唯一标识,可通过environments标签中的default设置某一个环境的id,
表示默认使用的环境
-->
<environment id="mysql_test">
<!--
transactionManager:设置事务管理方式
属性:type:设置事务管理方式,type="JDBC|MANAGED"
type="JDBC":设置当前环境的事务管理都必须手动处理
type="MANAGED":设置事务被管理,例如spring中的AOP
-->
<transactionManager type="JDBC"/>
<!--
dataSource:设置数据源
属性:
type:设置数据源的类型,type="POOLED|UNPOOLED|JNDI"
type="POOLED":使用数据库连接池,即会将创建的连接进行缓存,下次使用可以从
缓存中直接获取,不需要重新创建
type="UNPOOLED":不使用数据库连接池,即每次使用连接都需要重新创建
type="JNDI":调用上下文中的数据源
-->
<dataSource type="POOLED">
<!--设置驱动类的全类名-->
<property name="driver" value="${jdbc.driver}"/>
<!--设置连接数据库的连接地址-->
<property name="url" value="${jdbc.url}"/>
<!--设置连接数据库的用户名-->
<property name="username" value="${jdbc.username}"/>
<!--设置连接数据库的密码-->
<property name="password" value="${jdbc.password}"/>
</dataSource>
</environment>
</environments>
<!--引入映射文件-->
<mappers>
<mapper resource="UserMapper.xml"/>
<!--
以包为单位,将包下所有的映射文件引入核心配置文件
注意:此方式必须保证mapper接口和mapper映射文件必须在相同的包下
-->
<package name="com.atguigu.mybatis.mapper"/>
</mappers>
</configuration>
四、MyBatis增删改查
1.添加
<insert>
insert into t_user values(null,'admin','123456',23,'男')
<insert/>
2.删除
<delete>delete from t_user where id = 7 </delete>
3.修改
<update>
update t_user set username='ybc',password='123' where id = 6
</update>
4.查询一条数据
返回单个对象
<select resultType = "com.nuesoft.mybatis.User">
SELECT * FROM EMP WHERE id = #{id}
</select>
5.查询多条数据
返回集合
<select>
select * from emp;
</select>
6.注意
a>
-
查询的标签select必须设置属性resultType或resultMap,用于设置实体类和数据库表的映射关系
-
resultType:
自动映射,用于属性名和表中字段名一致的情况
-
resultMap:
自定义映射,用于一对多或多对一或字段名和属性名不一致的情况
b>
- 当查询的数据为多条时,不能使用实体类作为返回值,只能使用集合,否则会抛出异常 TooManyResultsException;但是若查询的数据只有一条,可以使用实体类或集合作为返回值
五、MyBatis获取参数的俩种方式
1.#{}和${}
- ${}使用字符串拼接的方式拼接sql,若为字符串类型或日期类型的字段进行赋值时,需要手动加单引 号;
- 但是#{}使用占位符赋值的方式拼接sql,此时为字符串类型或日期类型的字段进行赋值时,可以自动添加单引号
2.单个字面量类型参数
- 若mapper接口中的方法参数为单个的字面量类型
- 此时可以使用KaTeX parse error: Expected 'EOF', got '#' at position 4: {}或#̲{}以任意的名称获取参数的值,…{}需要手动加单引号
3.多个字面量类型参数
- 若mapper接口中的方法参数为多个时
- 此时MyBatis会自动将这些参数放在一个map集合中,以arg0,arg1…为键,以参数为值; 以 param1,param2…为键,以参数为值;
- 因此只需要通过KaTeX parse error: Expected 'EOF', got '#' at position 4: {}和#̲{}访问map集合的键就可以获…{}需要手动加单引号
4.map集合类型参数
-
若mapper接口中的方法需要的参数为多个时
-
此时可以手动创建map集合,将这些数据放在map中
-
只需要通过KaTeX parse error: Expected 'EOF', got '#' at position 4: {}和#̲{}访问map集合的键就可以获…{}需要手动加单引号
5.实体类类型参数
- 若mapper接口中的方法参数为实体类对象时
- 此时可以使用KaTeX parse error: Expected 'EOF', got '#' at position 4: {}和#̲{},通过访问实体类对象中的*…{}需要手动加单引号
6.使用@Param标识参数
- 可以通过@Param注解标识mapper接口中的方法参数
- 此时,会将这些参数放在map集合中,以@Param注解的value属性值为键,以参数为值;
- 以 param1,param2…为键,以参数为值;
- 只需要通过KaTeX parse error: Expected 'EOF', got '#' at position 4: {}和#̲{}访问**map集合的键**…{}需要手动加单引号
六、MyBatis的各种查询功能
1.查询单个实体类对象
User getUserById(@Param("uid") uid);
<select>
select * from t_user where id = #{id}
</select>
2.查询list集合
list<User> getAllUser();
<select>
select * from t_user
</select>
3.查询单个数据
- 单个值或者聚合函数
int getAcount();
<select>
select count(*) form emp
</select>
4.查询一条数据为map集合
Map <String , Object> getUserToMap(@Param("id") int id);
- 将表中的数据以map集合的方式查询
<select>
select * from t_user where id = #{id}
</select>
5.查询多条数据为map集合
a>存入到list集合中
- 存到list<map<String,Object>>中
- 将表中的数据以map集合的方式查询,一条数据对应一个map;
- 若有多条数据,就会产生多个map集合,此 时可以将这些map放在一个list集合中获取
b>指定键的值
- 使用注解@MapKey(“key”)
- 键的值一般为主键(唯一字段)
- 最终要以一个map的方式返回数据,此时需要通过@MapKey注解设置map集合的键,值是每条数据所对应的 map集合
七、特殊SQL执行
1. 模糊查询
`/**
\* 测试模糊查询
\* @param mohu
\* @return
*/
List<User> testMohu(@Param("mohu") String mohu);
<!--List<User> testMohu(@Param("mohu") String mohu);-->
<select id="testMohu" resultType="User">
<!--select * from t_user where username like '%${mohu}%'-->
<!--select * from t_user where username like concat('%',#{mohu},'%')-->
select * from t_user where username like "%"#{mohu}"%"
</select>`
2. 批量删除
`/**
\* 批量删除
\* @param ids
\* @return
*/
int deleteMore(@Param("ids") String ids);
<!--int deleteMore(@Param("ids") String ids);-->
<delete id="deleteMore">
delete from t_user where id in (${ids})
</delete>`
3. 动态设置表名
`/**
\* 动态设置表名,查询所有的用户信息
\* @param tableName
\* @return
*/
List<User> getAllUser(@Param("tableName") String tableName);
<!--List<User> getAllUser(@Param("tableName") String tableName);-->
<select id="getAllUser" resultType="User">
select * from ${tableName}
</select>`
4. 添加功能获取自增主键
t_clazz(clazz_id,clazz_name)
t_student(student_id,student_name,clazz_id)
-
添加班级信息
-
获取新添加的班级的id
-
为班级分配学生,即将某学的班级id修改为新添加的班级的id
`/**
\* 添加用户信息
\* @param user
\* @return
\* useGeneratedKeys:设置使用自增的主键
\* keyProperty:因为增删改有统一的返回值是受影响的行数,因此只能将获取的自增的主键放在传输的参
数user对象的某个属性中
*/
int insertUser(User user);
<!--int insertUser(User user);-->
<insert id="insertUser" useGeneratedKeys="true" keyProperty="id">
insert into t_user values(null,#{username},#{password},#{age},#{sex})
</insert>`
八、自定义映射resultMap
为什么需要自定义映射?
无疑,自动映射解决不了问题了,因为字段名和属性名不一致了
1. 处理字段和属性的映射关系
-
解决字段名和属性名不一致的情况
-
resultMap:设置自定义映射
-
属性:
-
id:表示自定义映射的唯一标识
-
type:查询的数据要映射的实体类的类型
-
-
子标签:
-
id:设置主键的映射关系
-
result:设置普通字段的映射关系
-
association:设置多对一的映射关系 ,在多的一方创建一的属性
-
collection:设置一对多的映射关系 ,在一的一方创建集合属性存储多的一方对象
-
属性:
- property:设置映射关系中实体类中的属性名
- column:设置映射关系中表中的字段名
-
-
若字段名和实体类中的属性名不一致,但是字段名符合数据库的规则(使用_),实体类中的属性 名符合Java的规则(使用驼峰)
-
此时也可通过以下两种方式处理
- 可以通过为字段起别名的方式,保证和实体类中的属性名保持一致
- 可以在MyBatis的核心配置文件中设置一个全局配置信息mapUnderscoreToCamelCase,此配置可以在查询表中数据时,自动将_类型的字段名转换为驼峰
-
2. 多对一映射关系
查询员工信息以及员工所对应的部门信息
a>级联方式
`<resultMap id="empDeptMap" type="Emp">
<id column="eid" property="eid"></id>
<result column="ename" property="ename"></result>
<result column="age" property="age"></result>
<result column="sex" property="sex"></result>
<result column="did" property="dept.did"></result>
<result column="dname" property="dept.dname"></result>
</resultMap>
<!--Emp getEmpAndDeptByEid(@Param("eid") int eid);-->
<select id="getEmpAndDeptByEid" resultMap="empDeptMap">
select emp.*,dept.* from t_emp emp left join t_dept dept on emp.did =
dept.did where emp.eid = #{eid}
</select>`
b>使用association处理映射关系
`<resultMap id="empDeptMap" type="Emp">
<id column="eid" property="eid"></id>
<result column="ename" property="ename"></result>
<result column="age" property="age"></result>
<result column="sex" property="sex"></result>
<association property="dept" javaType="Dept">
<id column="did" property="did"></id>
<result column="dname" property="dname"></result>
</association>
</resultMap>
<!--Emp getEmpAndDeptByEid(@Param("eid") int eid);-->
<select id="getEmpAndDeptByEid" resultMap="empDeptMap">
select emp.*,dept.* from t_emp emp left join t_dept dept on emp.did =
dept.did where emp.eid = #{eid}
</select>`
c>分步查询
- 查询员工信息
`/**
\* 通过分步查询查询员工信息
\* @param eid
\* @return
*/
Emp getEmpByStep(@Param("eid") int eid);
<resultMap id="empDeptStepMap" type="Emp">
<id column="eid" property="eid"></id>
<result column="ename" property="ename"></result>
<result column="age" property="age"></result>
<result column="sex" property="sex"></result>
<!--
select:设置分步查询,查询某个属性的值的sql的标识(namespace.sqlId)
column:将sql以及查询结果中的某个字段设置为分步查询的条件
-->
<association property="dept"
select="com.atguigu.MyBatis.mapper.DeptMapper.getEmpDeptByStep" column="did">
</association>
</resultMap>
<!--Emp getEmpByStep(@Param("eid") int eid);-->
<select id="getEmpByStep" resultMap="empDeptStepMap">
select * from t_emp where eid = #{eid}
</select>`
2. 根据员工所对应的部门id查询部门信息
`/**
\* 分步查询的第二步:根据员工所对应的did查询部门信息
\* @param did
\* @return
*/
Dept getEmpDeptByStep(@Param("did") int did);
<!--Dept getEmpDeptByStep(@Param("did") int did);-->
<select id="getEmpDeptByStep" resultType="Dept">
select * from t_dept where did = #{did}
</select>`
3. 一对多的映射关系
a>Collection
`/**
\* 根据部门id查新部门以及部门中的员工信息
\* @param did
\* @return
*/
Dept getDeptEmpByDid(@Param("did") int did);
<resultMap id="deptEmpMap" type="Dept">
<id property="did" column="did"></id>
<result property="dname" column="dname"></result>
<!--
ofType:设置collection标签所处理的集合属性中存储数据的类型
-->
<collection property="emps" ofType="Emp">
<id property="eid" column="eid"></id>
<result property="ename" column="ename"></result>
<result property="age" column="age"></result>
<result property="sex" column="sex"></result>
</collection>
</resultMap>
<!--Dept getDeptEmpByDid(@Param("did") int did);-->
<select id="getDeptEmpByDid" resultMap="deptEmpMap">
select dept.*,emp.* from t_dept dept left join t_emp emp on dept.did =
emp.did where dept.did = #{did}
</select>`
b>分步查询
- 查询部门信息
`/**
\* 分步查询部门和部门中的员工
\* @param did
\* @return
*/
Dept getDeptByStep(@Param("did") int did);
<resultMap id="deptEmpStep" type="Dept">
<id property="did" column="did"></id>
<result property="dname" column="dname"></result>
<collection property="emps" fetchType="eager"
select="com.atguigu.MyBatis.mapper.EmpMapper.getEmpListByDid" column="did">
</collection>
</resultMap>
<!--Dept getDeptByStep(@Param("did") int did);-->
<select id="getDeptByStep" resultMap="deptEmpStep">
select * from t_dept where did = #{did}
</select>`
2. 根据部门id查询员工信息
`/**
\* 根据部门id查询员工信息
\* @param did
\* @return
*/
List<Emp> getEmpListByDid(@Param("did") int did);
<!--List<Emp> getEmpListByDid(@Param("did") int did);-->
<select id="getEmpListByDid" resultType="Emp">
select * from t_emp where did = #{did}
</select>`
-
注意事项
分步查询的优点:可以实现延迟加载,但是必须在核心配置文件中设置全局配置信息:
lazyLoadingEnabled:延迟加载的全局开关。当开启时,所有关联对象都会延迟加载
aggressiveLazyLoading:当开启时,任何方法的调用都会加载该对象的所有属性。 否则,每个
属性会按需加载
此时就可以实现按需加载,获取的数据是什么,就只会执行相应的sql。此时可通过association和
collection中的fetchType属性设置当前的分步查询是否使用延迟加载,fetchType="lazy(延迟加
载)|eager(立即加载)"
九、动态SQL
1. 简介
Mybatis框架的动态SQL技术(一系列标签)是一种根据特定条件动态拼装SQL语句的功能,为了解决拼接SQL语句字符串时的痛点问题。
2. if
- if标签可通过test属性的表达式进行判断
- 若表达式的结果为true,则标签中的内容会执行;
- 反之标签中的内容就不会执行
3. where
- where和if一般结合使用:
- a>若where标签中的if条件都不满足,则where标签没有任何功能,即不会添加where关键字
- b>若where标签中的if条件满足,则where标签会自动添加where关键字,并将条件最前方多余的 and或者or去掉
- 注意:where标签不能去掉条件最后多余的and或or
4. trim
- trim用于去掉或添加标签中的内容
- 常用属性:
- prefix:在trim标签中的内容的前面添加某些内容
- prefixOverrides:在trim标签中的内容的前面去掉某些内容
- suffix:在trim标签中的内容的后面添加某些内容
- suffixOverrides:在trim标签中的内容的后面去掉某些内容
5. choose… when… ortherwise…
- 相当于if…else if…else
6. foreach
-
遍历集合或者数组
-
属性:
- collection:设置要循环的数组或集合
- item:表示集合或数组中的每一个数据
- separator:设置循环体之间的**分隔符 **
- open:设置foreach标签中的内容的开始符
- close:设置foreach标签中的内容的结束符
7. SQL片段
- 可以记录一段重复使用的sql片段,在使用的地方通过include标签进行引入
eid,ename,age,sex,did
select refid=“empColumns” from t_emp
十、MyBatis缓存
1. 一级缓存
a>简介
-
一级缓存是SqlSession级别的
-
通过同一个SqlSession查询的数据会被缓存
-
下次查询相同的数据,就会从缓存中直接获取,不会从数据库重新访问
-
提高了查询的速度
b>使一级缓存失效的四种情况:
-
不同的SqlSession对应不同的一级缓存
-
同一个SqlSession但是查询条件不同
-
同一个SqlSession两次查询期间执行了任何一次增删改操作-----清空缓存
-
同一个SqlSession两次查询期间手动清空了缓存
2. 二级缓存
a>简介
-
二级缓存是SqlSessionFactory级别
-
通过同一个SqlSessionFactory创建的SqlSession查询的结果会被缓存
-
此后若再次执行相同的查询语句,结果才会从缓存中获取
b>二级缓存开启的条件:
- 在核心配置文件中,设置全局配置属性cacheEnabled=“true”,默认为true,不需要设置
- 在映射文件中设置标签<cache />
- 二级缓存必须在SqlSession关闭或提交之后才会生效
- 查询的数据所转换的实体类的类必须实现序列化的接口Serializable
c>使二级缓存失效的情况:
两次查询之间执行了任意的增删改,会使一级和二级缓存同时失效
3. 二级缓存相关配置
在mapper配置文件中添加的cache标签可以设置一些属性:
-
eviction属性:缓存回收策略
- LRU(Least Recently Used) – 最近最少使用的:移除最长时间不被使用的对象。
- FIFO(First in First out) – 先进先出:按对象进入缓存的顺序来移除它们。
- SOFT – 软引用:移除基于垃圾回收器状态和软引用规则的对象。
- WEAK – 弱引用:更积极地移除基于垃圾收集器状态和弱引用规则的对象。
- 默认的是 LRU。
-
flushInterval属性:刷新间隔,单位毫秒
- 默认情况是不设置,也就是没有刷新间隔,缓存仅仅调用语句时刷新
- size属性:引用数目,正整数,代表缓存最多可以存储多少个对象,太大容易导致内存溢出
- readOnly属性:只读,true/false
- true:只读缓存;会给所有调用者返回缓存对象的相同实例。因此这些对象不能被修改。这提供了很重要的性能优势。
- false:读写缓存;会返回缓存对象的拷贝(通过序列化)。这会慢一些,但是安全,因此默认是false。
4. MyBatis缓存查询的顺序
-
先查询二级缓存,因为二级缓存中有多个SqlSession的数据,更容易查询到
-
如果二级缓存没有命中,再查询一级缓存
-
如果一级缓存也没有命中,则查询数据库
-
SqlSession关闭之后,一级缓存中的数据会写入二级缓存
5. 整合三方缓存EHCache
a>添加依赖
`<!-- Mybatis EHCache整合包 -->
<dependency>
<groupId>org.mybatis.caches</groupId>
<artifactId>mybatis-ehcache</artifactId>
<version>1.2.1</version>
</dependency>
<!-- slf4j日志门面的一个具体实现 -->
<dependency>
<groupId>ch.qos.logback</groupId>
<artifactId>logback-classic</artifactId>
<version>1.2.3</version>
</dependency>`
b>各jar包的功能
- mybatis-ehcache
- Mybatis和EHCache的整合包
- ehcache
- EHCache核心包
- slf4j-api
- SLF4J日志门面包
- logback-classic
- 支持SLF4J门面接口的一个具体实现
c>创建EHCache的配置文件ehcache.xml
`<?xml version="1.0" encoding="utf-8" ?>
<ehcache xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:noNamespaceSchemaLocation="../config/ehcache.xsd">
<!-- 磁盘保存路径 -->
<diskStore path="D:\atguigu\ehcache"/>
<defaultCache
maxElementsInMemory="1000"
maxElementsOnDisk="10000000"
eternal="false"
overflowToDisk="true"
timeToIdleSeconds="120"
timeToLiveSeconds="120"
diskExpiryThreadIntervalSeconds="120"
memoryStoreEvictionPolicy="LRU">
</defaultCache>
</ehcache>`
d>设置二级缓存的类型
<cache type="org.mybatis.caches.ehcache.EhcacheCache"/>
c>加入logback日志
存在SLF4J时,作为简易日志的log4j将失效,此时我们需要借助SLF4J的具体实现logback来打印日志。
创建logback的配置文件logback.xml
`<?xml version="1.0" encoding="UTF-8"?>
<configuration debug="true">
<!-- 指定日志输出的位置 -->
<appender name="STDOUT"
class="ch.qos.logback.core.ConsoleAppender">
<encoder>
<!-- 日志输出的格式 -->
<!-- 按照顺序分别是:时间、日志级别、线程名称、打印日志的类、日志主体内容、换行 -
->
<pattern>[%d{HH:mm:ss.SSS}] [%-5level] [%thread] [%logger]
[%msg]%n</pattern>
</encoder>
</appender>
<!-- 设置全局日志级别。日志级别按顺序分别是:DEBUG、INFO、WARN、ERROR -->
<!-- 指定任何一个日志级别都只打印当前级别和后面级别的日志。 -->
<root level="DEBUG">
<!-- 指定打印日志的appender,这里通过“STDOUT”引用了前面配置的appender -->
<appender-ref ref="STDOUT" />
</root>
<!-- 根据特殊需求指定局部日志级别 -->
<logger name="com.atguigu.crowd.mapper" level="DEBUG"/>
</configuration>`

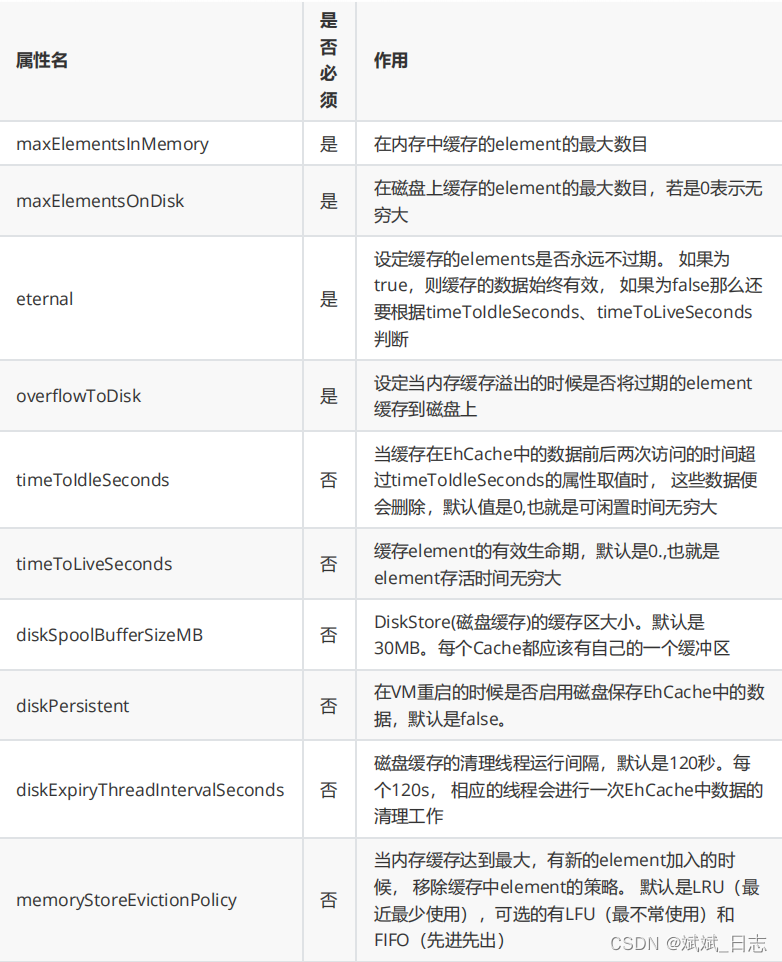

d>EHCache配置文件说明
十一、逆向工程
1. 简介
- 正向工程:
- 先编写实体类,框架根据实体类在数据库中生成对应的表
- 逆向工程:
- 框架根据数据库中的表来生成:
- JAVA实体类
- 映射接口
- 映射文件
- 框架根据数据库中的表来生成:
2. 逆向工程实现步骤
a>添加依赖和插件
```xml
`<!-- 依赖MyBatis核心包 -->
<dependencies>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.5.7</version>
</dependency>
</dependencies>
<!-- 控制Maven在构建过程中相关配置 -->
<build>
<!-- 构建过程中用到的插件 -->
<plugins>
<!-- 具体插件,逆向工程的操作是以构建过程中插件形式出现的 -->
<plugin>
<groupId>org.mybatis.generator</groupId>
<artifactId>mybatis-generator-maven-plugin</artifactId>
<version>1.3.0</version>
<!-- 插件的依赖 -->
<dependencies>
<!-- 逆向工程的核心依赖 -->
<dependency>
<groupId>org.mybatis.generator</groupId>
<artifactId>mybatis-generator-core</artifactId>
<version>1.3.2</version>
</dependency>
<!-- 数据库连接池 -->
<dependency>
<groupId>com.mchange</groupId>
<artifactId>c3p0</artifactId>
<version>0.9.2</version>
</dependency>
<!-- MySQL驱动 -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.8</version>
</dependency>
</dependencies>
</plugin>
</plugins>
</build>`
b>创建MyBatis核心配置文件
c>创建逆向工程的配置文件
- 文件名必须是:generatorConfig.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfigurationPUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
"http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">
<generatorConfiguration>
<!--
targetRuntime: 执行生成的逆向工程的版本
MyBatis3Simple: 生成基本的CRUD(**清新简洁版**)
MyBatis3: 生成带条件的CRUD(**奢华尊享版**)
-->
<context id="DB2Tables" targetRuntime="MyBatis3Simple">
<!-- 数据库的连接信息 -->
<jdbcConnection driverClass="com.mysql.jdbc.Driver"
connectionURL="jdbc:mysql://localhost:3306/mybatis"
userId="root"
password="123456">
</jdbcConnection>
<!-- javaBean的生成策略-->
<javaModelGenerator targetPackage="com.atguigu.mybatis.bean"
targetProject=".\src\main\java">
<property name="enableSubPackages" value="true" />
<property name="trimStrings" value="true" />
</javaModelGenerator>
<!-- SQL映射文件的生成策略 -->
<sqlMapGenerator targetPackage="com.atguigu.mybatis.mapper"
targetProject=".\src\main\resources">
<property name="enableSubPackages" value="true" />
</sqlMapGenerator>
<!-- Mapper接口的生成策略 -->
<javaClientGenerator type="XMLMAPPER"
targetPackage="com.atguigu.mybatis.mapper" targetProject=".\src\main\java">
<property name="enableSubPackages" value="true" />
</javaClientGenerator>
<!-- 逆向分析的表 -->
<!-- tableName设置为*号,可以对应所有表,此时不写domainObjectName -->
<!-- domainObjectName属性指定生成出来的实体类的类名 -->
<table tableName="t_emp" domainObjectName="Emp"/>
<table tableName="t_dept" domainObjectName="Dept"/>
</context>
</generatorConfiguration>`
d>执行MBG插件的generate目标
- 在maven工程中双击执行
3.QBC查询
- QBC(Qurey By Criteria)就是指按规则进行查询
- 代码实现
`@Test
public void testMBG() throws IOException {
InputStream is = Resources.getResourceAsStream("mybatis-config.xml");
SqlSession sqlSession = new
SqlSessionFactoryBuilder().build(is).openSession(true);
EmpMapper mapper = sqlSession.getMapper(EmpMapper.class);
EmpExample empExample = new EmpExample();
//创建条件对象,通过andXxx方法为SQL添加查询添加,每个条件之间是and关系
empExample.createCriteria().andEnameLike("a").andAgeGreaterThan(20).andDidIsNot
Null();
//将之前添加的条件通过or拼接其他条件
empExample.or().andSexEqualTo("男");
List<Emp> list = mapper.selectByExample(empExample);
for (Emp emp : list) {
System.out.println(emp);
}
}
十二、分页插件
1. 分页插件使用步骤
a>添加依赖
<dependency>
<groupId>\>com.github.pagehelper</groupId>
<artifactId>\>pagehelper</artifactId>
<version>\>5.2.0</version>
</dependency>
b>配置分页插件
- 在MyBatis的核心配置文件中配置插件
<plugins>
<plugin interceptor="com.github.pagehelper.PageInterceptor"></plugin>
</plugins>
2. 分页插件使用
I>在查询功能之前分页
- 使用PageHelper.startPage(int pageNum, int pageSize)开启分页功能
- 属性
- pageNum:页码
- pageSize:每页的数据条码数
- 属性
II>在获取list之后分页
- 使用PageInfo pageInfo = new PageInfo<>(List list, int navigatePages)获取分页相关数据
- 属性:
- list:分页之后的数据
- navigatePages:导航分页的页码数
III>分页相关数据
-
PageInfo{ pageNum=8, pageSize=4, size=2, startRow=29, endRow=30, total=30, pages=8, list=Page{count=true, pageNum=8, pageSize=4, startRow=28, endRow=32, total=30, pages=8, reasonable=false, pageSizeZero=false}, prePage=7, nextPage=0, isFirstPage=false, isLastPage=true, hasPreviousPage=true, hasNextPage=false, navigatePages=5, navigateFirstPage4, navigateLastPage8, navigatepageNums=[4, 5, 6, 7, 8] }
-
常用数据:
- pageNum:当前页的页码
- pageSize:每页显示的条数
- size:当前页显示的真实条数
- total:总记录数
- pages:总页数
- prePage:上一页的页码
- nextPage:下一页的页码
