Debian10: 安装兄弟DCP-7080D打印机

服务器：debian10  IP地址192.168.0.240
客户端：windows10   IP地址192.168.0.100
打印机：brother DCP-7080D

第一步：准备文件
到打印机官方网站下载Linux版本的Driver Intall Tool和windows10版本的<添加打印机向导驱动程序>，文件名分别为：
linux-brprinter-installer-2.2.2-1.gz
Y14B_C1-hostm-D2.EXE
网址：https://support.brother.com/g/b/producttop.aspx?c=cn&lang=zh&prod=dcp7080d_cn

第二步：安装 CUPS服务（通用Unix打印系统）

markul@server:sudo apt-get update
markul@server:sudo apt-get install cups

第三步：安装打印机驱动

markul@server:sudo gunzip linux-brprinter-installer-2.2.2-1.gz
markul@server:sudo bash linux-brprinter-installer-2.2.2-1 DCP-7080D
You are going to install following packages.
   dcp7080dlpr-3.2.0-1.i386.deb
   dcp7080dcupswrapper-3.2.0-1.i386.deb
   brscan4-0.4.9-1.amd64.deb
   brscan-skey-0.3.1-1.amd64.deb
OK? [y/N] ->y
........
Will you specify the Device URI? [Y/n] ->y
0: lpd
1: socket
2: https
3: ipps
4: cups-brf:/
5: beh
6: serial:/dev/ttyS0?baud=115200
7: ipp
8: http
9: usb://Brother/DCP-7080D?serial=E80117B0N291805
10 (I): Specify IP address.
11 (A): Auto. (usb://Brother/DCP-7080D?serial=E80117B0N291805)

select the number of destination Device URI. ->11

Test Print? [y/N] ->y



#测试打印机
markul@server:sudo lp -P DCP7080D /usr/share/cups/data/testprint

 第四步：修改cups配置(/etc/cups/cupsd.conf)

# Only listen for connections from the local machine.
Listen *:631
Listen /run/cups/cups.sock

# Show shared printers on the local network.
Browsing On
BrowseLocalProtocols dnssd

# Default authentication type, when authentication is required...
DefaultAuthType Basic

# Web interface setting...
WebInterface Yes

# Restrict access to the server...
<Location />
  Order allow,deny
  Allow all
</Location>

# Restrict access to the admin pages...
<Location /admin>
  Order allow,deny
  Allow all
</Location>

# Restrict access to configuration files...
<Location /admin/conf>
  AuthType Default
  Require user @SYSTEM
  Order allow,deny
  Allow all
</Location>

# Restrict access to log files...
<Location /admin/log>
  AuthType Default
  Require user @SYSTEM
  Order allow,deny
</Location>

第五步：重启cups服务

markul@server:sudo service cupsd restart
markul@server:sudo lpstat -a
DCP7080D accepting requests since Sun 16 Aug 2020 03:42:22 AM EDT

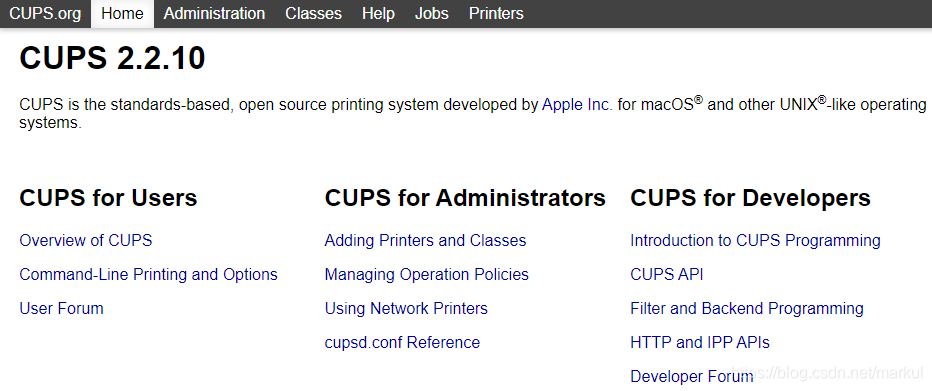

第六步：测试cups  WEB管理
客户端浏览器打开：https://192.168.0.240:631

第七步：客户端安装WIN10版本驱动

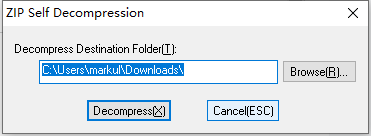

运行Y14B_C1-hostm-D2.EXE，解压出驱动程序文件，注意路径。

 第八步：客户端连接打印机

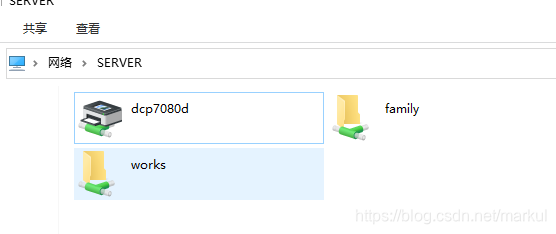

浏览网络---->打开服务器---->右击dcp7080d-->连接(N)

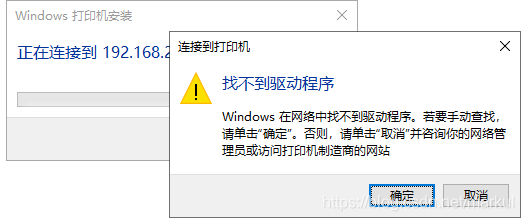

在弹出的对话框中点 "确定"

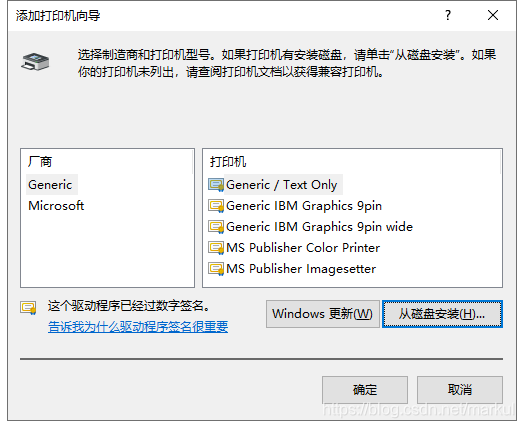

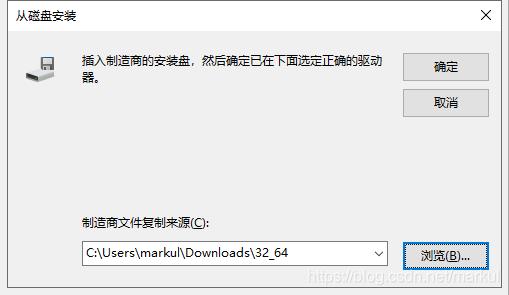

再点“从磁盘安装(H)...”

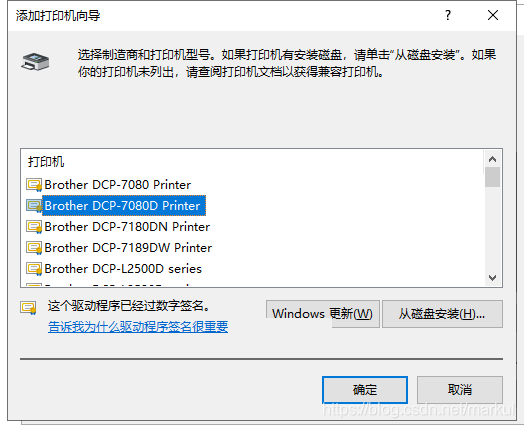

浏览第七步解压驱动包的路径，然后确定，在出现的列表中选择“Brother DCP-7080D Printer”

至此安装完成！
