算法学习之动态规划(leetcode 304. Range Sum Query 2D - Immutable）

leetcode 304. Range Sum Query 2D - Immutable

Given a 2D matrix matrix, find the sum of the elements inside the rectangle defined by its upper left corner (row1, col1) and lower right corner (row2, col2).

Example:

Given matrix = [
  [3, 0, 1, 4, 2],
  [5, 6, 3, 2, 1],
  [1, 2, 0, 1, 5],
  [4, 1, 0, 1, 7],
  [1, 0, 3, 0, 5]
]

sumRegion(2, 1, 4, 3) -> 8
sumRegion(1, 1, 2, 2) -> 11
sumRegion(1, 2, 2, 4) -> 12

Note:
You may assume that the matrix does not change.
There are many calls to sumRegion function.
You may assume that row1 ≤ row2 and col1 ≤ col2.

解析：
本来自己在做的时候，直接就去遍历，发现超时，没有往动态规划这块去想，就是缺少一个明确的定义。动态规划的第一步就是要有一个明确的定义。
lc上discuss中优美的答案，首先定义一个比原矩阵大一圈的矩阵dp[m+1][n+1]，便于后续边界条件的判断。
dp[i][j]的含义是在(i, j)之前，所有元素的和，不包括(i, j)，那么整个矩阵的和就是dp[m+1][n+1]。
而且dp矩阵的初始化需要使用动态规划的思路。

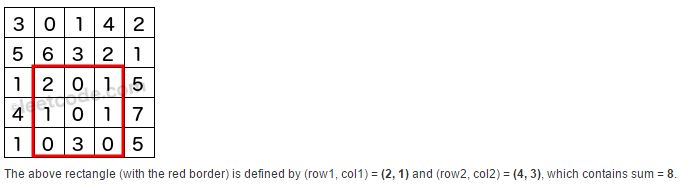

如下图

显然

dp[i][j] = dp[i-1][j] + dp[i][j-1] - dp[i-1][j-1]
           + m[i-1][j-1];

后续的public int sumRegion(int row1, int col1, int row2, int col2)函数可以使用几个矩阵的运算来做

公式为

紫色面积 = dp[row2+1][col2+1] - dp[row1][col2+1]
                         - dp[row2+1][col1]
                         - + dp[row1][col1];

具体的代码实现如下

public class NumMatrix {
    public static int[][] m;
    public static int[][] dp;

    public NumMatrix(int[][] matrix) {
        if(matrix == null || matrix.length == 0 || matrix[0].length == 0){
            m = null;
        }
        else{
            m = new int[matrix.length][matrix[0].length];
            for(int i = 0; i < matrix.length; i++){
                for(int j = 0; j < matrix[0].length; j++){
                    m[i][j] = matrix[i][j];
                }
            }

            dp = new int[matrix.length+1][matrix[0].length+1];
            for(int i = 1; i <= matrix.length; i++){
                for(int j = 1; j <= matrix[0].length; j++){
                    dp[i][j] = dp[i-1][j] + dp[i][j-1] - dp[i-1][j-1] + m[i-1][j-1];
                }
            }
        }
    }

    public int sumRegion(int row1, int col1, int row2, int col2) {
        return dp[row2+1][col2+1] - dp[row1][col2+1] - dp[row2+1][col1] + dp[row1][col1];
    }
}

// Your NumMatrix object will be instantiated and called as such:
// NumMatrix numMatrix = new NumMatrix(matrix);
// numMatrix.sumRegion(0, 1, 2, 3);
// numMatrix.sumRegion(1, 2, 3, 4);
