AMS： native crash处理

system_server启动过程会建立一个socket，其他进程出现crash，debuger进程会把收集到的信息发送给AMS中的crash处理线程。

	// file:
    private void startOtherServices() {
        final Context context = mSystemContext;
        VibratorService vibrator = null;
        IStorageManager storageManager = null;
        ...
        mActivityManagerService.systemReady(() -> {
            ...
            traceBeginAndSlog("StartObservingNativeCrashes");
            try {
                mActivityManagerService.startObservingNativeCrashes();
            } catch (Throwable e) {
                reportWtf("observing native crashes", e);
            }
            traceEnd();
            ...

启动监听

	// file: android-8.0.0_r1\frameworks\base\services\core\java\com\android\server\am\ActivityManagerService.java
    public void startObservingNativeCrashes() {
        final NativeCrashListener ncl = new NativeCrashListener(this);
        ncl.start();
    }

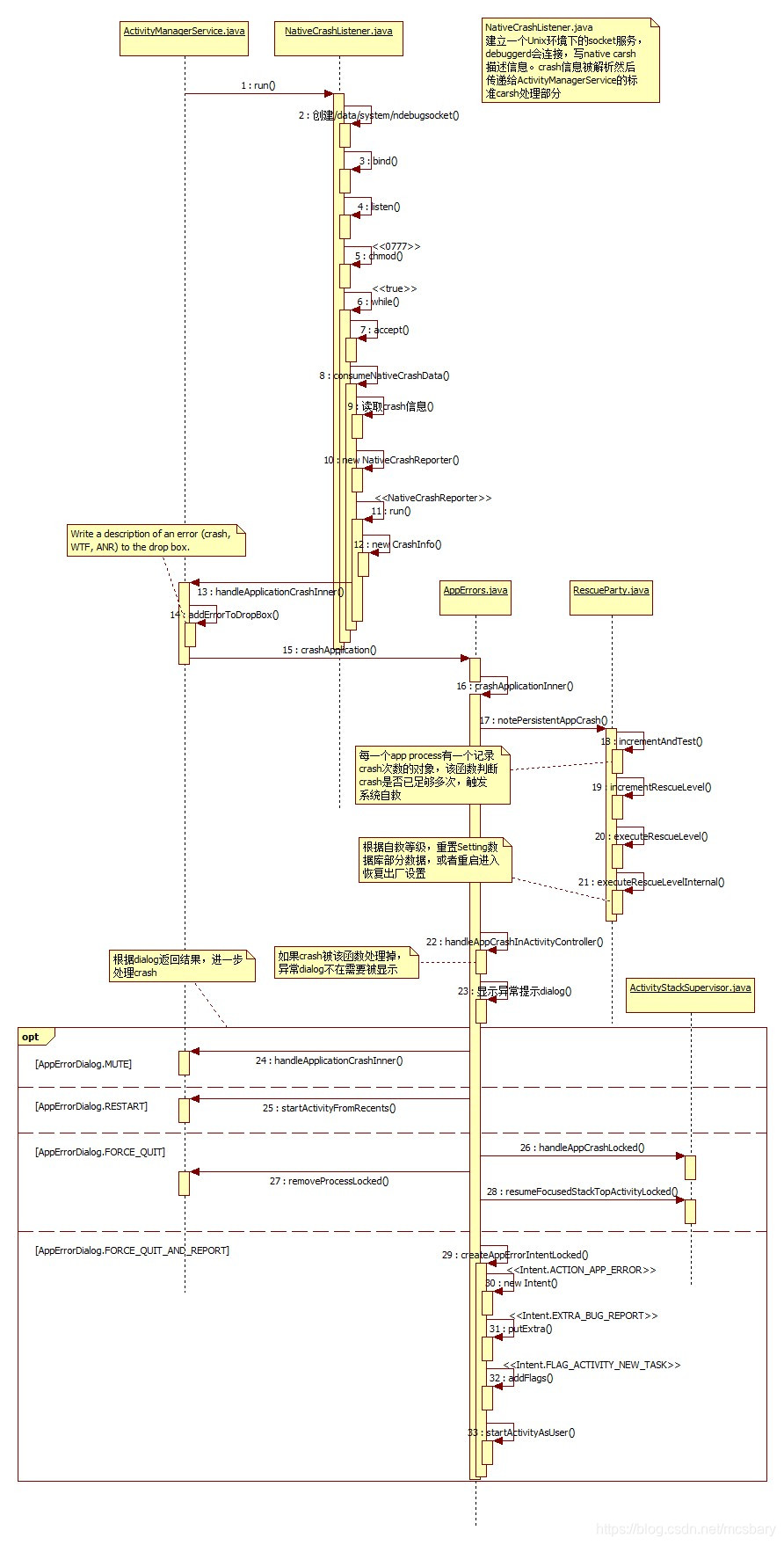

接下来的时序图，如下

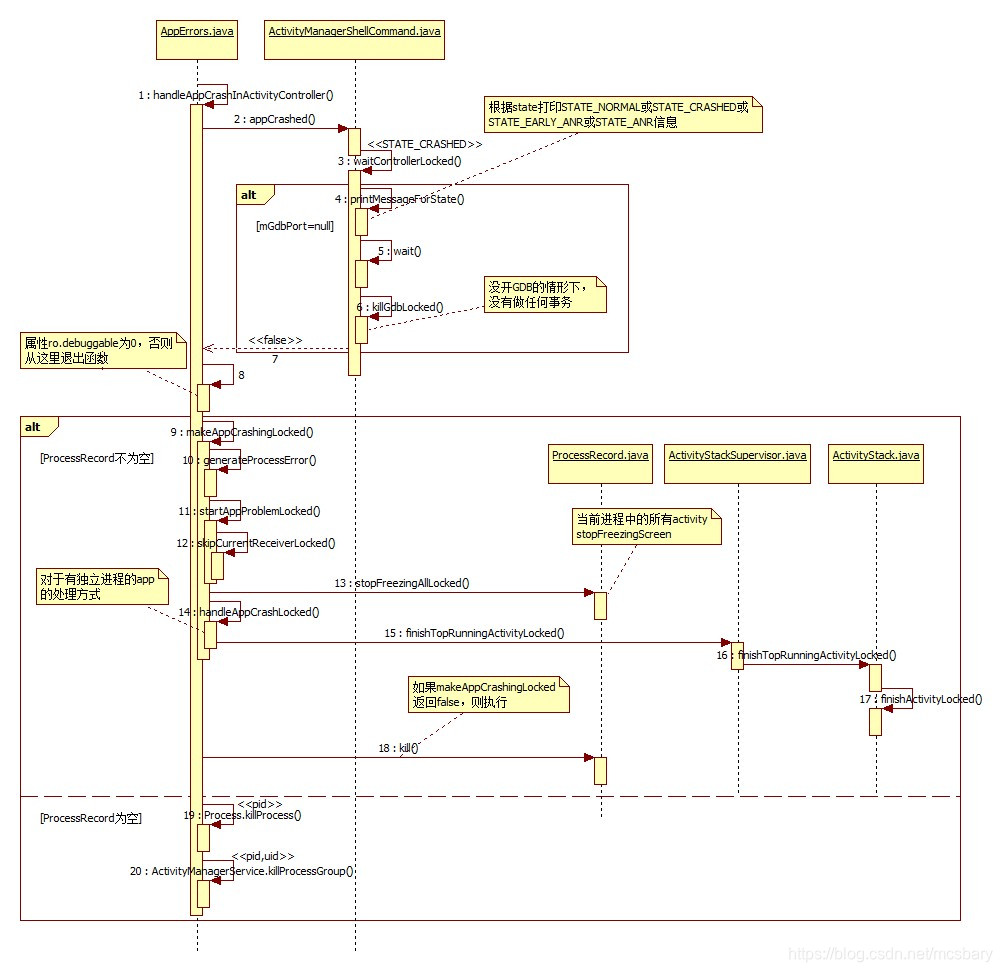

几个关键点

1. notePersistentAppCrash，系统急救错误处理
2. 系统自行解决crash，如果解决掉crash，直接退出错误处理，不会有后面的弹窗，让用户决策。

   这部分时序图未体现非独立process app出现crash的处理方式。对于app，基本都是独立process。
3. 根据makeAppCrashingLocked对crash的处理结果，决定如何给用户显示错误信息

	void crashApplicationInner(ProcessRecord r, ApplicationErrorReport.CrashInfo crashInfo,
           int callingPid, int callingUid) {
        ...
        // 装载处理结果的对象
        AppErrorResult result = new AppErrorResult();
        TaskRecord task;
        synchronized (mService) {
            /**
             * If crash is handled by instance of {@link android.app.IActivityController},
             * finish now and don't show the app error dialog.
             */
             // IActivityController处理crash
            if (handleAppCrashInActivityController(r, crashInfo, shortMsg, longMsg, stackTrace,
                    timeMillis, callingPid, callingUid)) {
                return;
            }

            /**
             * If this process was running instrumentation, finish now - it will be handled in
             * {@link ActivityManagerService#handleAppDiedLocked}.
             */
            // 不在这里处理crash，在ActivityManagerService#handleAppDiedLocked中处理
            if (r != null && r.instr != null) {
                return;
            }

            // Log crash in battery stats.
            if (r != null) {
                mService.mBatteryStatsService.noteProcessCrash(r.processName, r.uid);
            }

            AppErrorDialog.Data data = new AppErrorDialog.Data();
            data.result = result;
            data.proc = r;

            // If we can't identify the process or it's already exceeded its crash quota,
            // quit right away without showing a crash dialog.
            // 获取result
            if (r == null || !makeAppCrashingLocked(r, shortMsg, longMsg, stackTrace, data)) {
                return;
            }

            final Message msg = Message.obtain();
            // 发送显示UI的消息
            msg.what = ActivityManagerService.SHOW_ERROR_UI_MSG;

            task = data.task;
            msg.obj = data;
            mService.mUiHandler.sendMessage(msg);
        }
		// 获取解决
        int res = result.get();

        Intent appErrorIntent = null;
        MetricsLogger.action(mContext, MetricsProto.MetricsEvent.ACTION_APP_CRASH, res);
        if (res == AppErrorDialog.TIMEOUT || res == AppErrorDialog.CANCEL) {
            res = AppErrorDialog.FORCE_QUIT;
        }
        synchronized (mService) {
        	// 以下为几种处理方式
            if (res == AppErrorDialog.MUTE) {
                stopReportingCrashesLocked(r);
            }
            if (res == AppErrorDialog.RESTART) {
                mService.removeProcessLocked(r, false, true, "crash");
                if (task != null) {
                    try {
                        mService.startActivityFromRecents(task.taskId,
                                ActivityOptions.makeBasic().toBundle());
                    } catch (IllegalArgumentException e) {
                        // Hmm, that didn't work, app might have crashed before creating a
                        // recents entry. Let's see if we have a safe-to-restart intent.
                        final Set<String> cats = task.intent.getCategories();
                        if (cats != null && cats.contains(Intent.CATEGORY_LAUNCHER)) {
                            mService.startActivityInPackage(task.mCallingUid,
                                    task.mCallingPackage, task.intent,
                                    null, null, null, 0, 0,
                                    ActivityOptions.makeBasic().toBundle(),
                                    task.userId, null, null, "AppErrors");
                        }
                    }
                }
            }
            if (res == AppErrorDialog.FORCE_QUIT) {
                long orig = Binder.clearCallingIdentity();
                try {
                    // Kill it with fire!
                    mService.mStackSupervisor.handleAppCrashLocked(r);
                    if (!r.persistent) {
                        mService.removeProcessLocked(r, false, false, "crash");
                        mService.mStackSupervisor.resumeFocusedStackTopActivityLocked();
                    }
                } finally {
                    Binder.restoreCallingIdentity(orig);
                }
            }
            if (res == AppErrorDialog.FORCE_QUIT_AND_REPORT) {
                appErrorIntent = createAppErrorIntentLocked(r, timeMillis, crashInfo);
            }
            if (r != null && !r.isolated && res != AppErrorDialog.RESTART) {
                // XXX Can't keep track of crash time for isolated processes,
                // since they don't have a persistent identity.
                mProcessCrashTimes.put(r.info.processName, r.uid,
                        SystemClock.uptimeMillis());
            }
        }

        if (appErrorIntent != null) {
            try {
                mContext.startActivityAsUser(appErrorIntent, new UserHandle(r.userId));
            } catch (ActivityNotFoundException e) {
                Slog.w(TAG, "bug report receiver dissappeared", e);
            }
        }
    }
