浅谈RPC及Netty在RPC中的应用

什么是RPC

RPC协议：只是定义数据传输格式和传输方式，是一种应用层协议。
传输方式：有基于HTTP传输数据的RPC Over HTTP，也有基于TCP的RPC Over TCP等。
数据格式：双方协商定义，一般包括以下几点：
1、类名
2、方法名
3、参数类型（用来确定具体执行的方法，有方法重载）
4、参数值
（个人对于网络协议这里了解的不够深入，只能广义上讲下对rpc的认识）
官方说明：
一种通过网络从远程计算机程序上请求服务，而不需要了解底层网络技术的协议。RPC协议假定某些传输协议的存在，如TCP或UDP，为通信程序之间携带信息数据。在OSI网络通信模型中，RPC跨越了传输层和应用层。RPC使得开发包括网络分布式多程序在内的应用程序更加轻易。

RPC架构

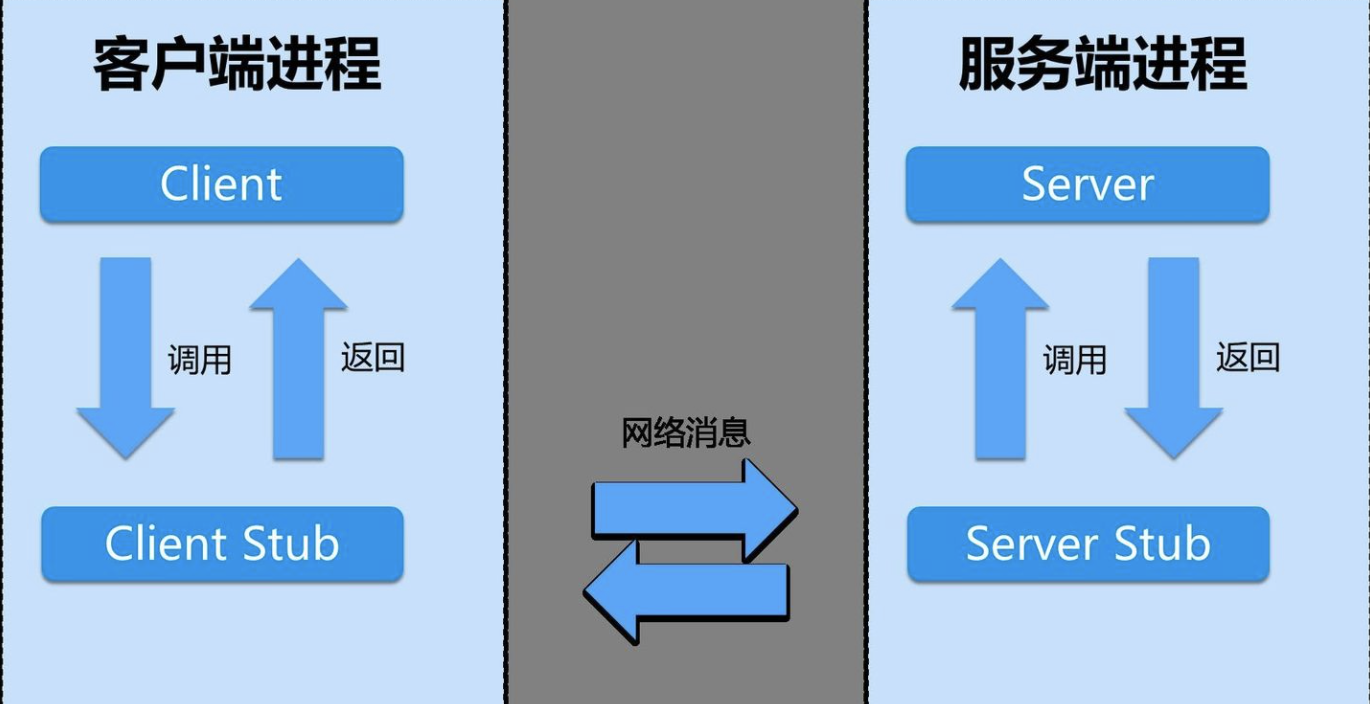

一个完整的RPC架构里面包含了四个核心的组件，分别是Client ,Server,Client Stub以及Server Stub，这个Stub大家可以理解为存根。分别说说这几个组件：
客户端（Client），服务的调用方。
服务端（Server），真正的服务提供者。
客户端存根，存放服务端的地址消息，再将客户端的请求参数打包成网络消息，然后通过网络远程发送给服务方。
服务端存根，接收客户端发送过来的消息，将消息解包，并调用本地的方法

dubbo

dubbo具体可以参考dubbo文档：https://dubbo.apache.org/zh/docs/v2.7/user/quick-start/
dubbo源码：https://github.com/apache/dubbo

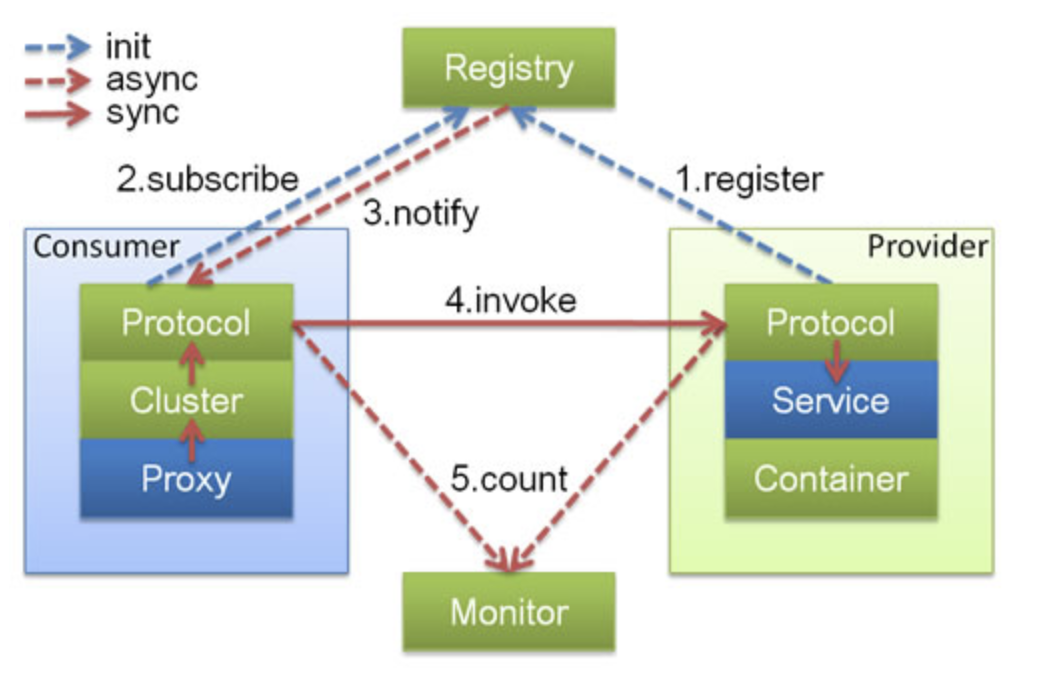

对应上图RPC架构的dubbo依赖关系：

接下来以dubbo官方源码的demo项目为例子进行Netty在dubbo中的作用分析。

dubbo启动

启动之前需要先安装好zookeeper，zkServer start先本地启动zk，默认地址127.0.0.1:2181，结束zkServer stop
dubbo-provider.xml配置注册中心地址
dubbo-consumer.xml配置为provider提供的注册中心地址
做好以上准备工作，启动dubbo的demo项目即可

Netty在dubbo的Provider提供者中的使用

provider启动程序：

/**
 * provider加载spring配置
 * Provider作为被访问方，是一个 Server模式的Socket
 */
public class Application {
    public static void main(String[] args) throws Exception {
        ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("spring/dubbo-provider.xml");
        context.start();
        // 按任意键退出
        System.in.read();
    }
}

至此运行到DubboProtocol的export方法

export(Invoker<T> invoker)
|
openServer(URL url)
|
ProtocolServer createServer(URL url)

打印出对应的执行栈：

doOpen:89, NettyServer (org.apache.dubbo.remoting.transport.netty4) 创建Netty Server端
<init>:71, AbstractServer (org.apache.dubbo.remoting.transport)
<init>:79, NettyServer (org.apache.dubbo.remoting.transport.netty4)
bind:35, NettyTransporter (org.apache.dubbo.remoting.transport.netty4)
bind:-1, Transporter$Adaptive (org.apache.dubbo.remoting)
bind:56, Transporters (org.apache.dubbo.remoting)
bind:44, HeaderExchanger (org.apache.dubbo.remoting.exchange.support.header)
bind:70, Exchangers (org.apache.dubbo.remoting.exchange) Bind a server
|
createServer:347, DubboProtocol (org.apache.dubbo.rpc.protocol.dubbo)
openServer:321, DubboProtocol (org.apache.dubbo.rpc.protocol.dubbo)
export:304, DubboProtocol (org.apache.dubbo.rpc.protocol.dubbo)
各种export
export:-1, Protocol$Adaptive (org.apache.dubbo.rpc)  Export service for remote invocation
|
doExportUrlsFor1Protocol:494, ServiceConfig (org.apache.dubbo.config)
doExportUrls:327, ServiceConfig (org.apache.dubbo.config)
doExport:303, ServiceConfig (org.apache.dubbo.config)
export:204, ServiceConfig (org.apache.dubbo.config)
|
start:889, DubboBootstrap (org.apache.dubbo.config.bootstrap) The bootstrap class of Dubbo
onContextRefreshedEvent:69, DubboBootstrapApplicationListener (org.apache.dubbo.config.spring.context)
onApplicationContextEvent:62, DubboBootstrapApplicationListener (org.apache.dubbo.config.spring.context)
|
main:27, Application (org.apache.dubbo.demo.provider)

当Spring容器启动的时候，会调用一些扩展类的初始化方法，比如继承了ApplicationContextAware，ApplicationListener的DubboBootstrapApplicationListener。而dubbo创建了ServiceBean继承了一个监听器，该类有一个export方法，用于打开 ServerSocket 。
然后执行了DubboProtocol的createServer方法，然后创建了一个NettyServer对象。NettyServer对象的构造方法同样是doOpen方法

真正创建Netty的Server：

protected void doOpen() throws Throwable {
    bootstrap = new ServerBootstrap();


    bossGroup = NettyEventLoopFactory.eventLoopGroup(1, "NettyServerBoss");
    workerGroup = NettyEventLoopFactory.eventLoopGroup(
            getUrl().getPositiveParameter(IO_THREADS_KEY, Constants.DEFAULT_IO_THREADS),
            "NettyServerWorker");


    final NettyServerHandler nettyServerHandler = new NettyServerHandler(getUrl(), this);
    channels = nettyServerHandler.getChannels();


    boolean keepalive = getUrl().getParameter(KEEP_ALIVE_KEY, Boolean.FALSE);


    bootstrap.group(bossGroup, workerGroup)
            .channel(NettyEventLoopFactory.serverSocketChannelClass())
            .option(ChannelOption.SO_REUSEADDR, Boolean.TRUE)
            .childOption(ChannelOption.TCP_NODELAY, Boolean.TRUE)
            .childOption(ChannelOption.SO_KEEPALIVE, keepalive)
            .childOption(ChannelOption.ALLOCATOR, PooledByteBufAllocator.DEFAULT)
            .childHandler(new ChannelInitializer<SocketChannel>() {
                @Override
                protected void initChannel(SocketChannel ch) throws Exception {
                    // FIXME: should we use getTimeout()?
                    int idleTimeout = UrlUtils.getIdleTimeout(getUrl());
                    NettyCodecAdapter adapter = new NettyCodecAdapter(getCodec(), getUrl(), NettyServer.this);
                    if (getUrl().getParameter(SSL_ENABLED_KEY, false)) {
                        ch.pipeline().addLast("negotiation",
                                SslHandlerInitializer.sslServerHandler(getUrl(), nettyServerHandler));
                    }
                    ch.pipeline()
                            .addLast("decoder", adapter.getDecoder())
                            .addLast("encoder", adapter.getEncoder())
                            .addLast("server-idle-handler", new IdleStateHandler(0, 0, idleTimeout, MILLISECONDS))
                            .addLast("handler", nettyServerHandler);
                }
            });
    // bind
    ChannelFuture channelFuture = bootstrap.bind(getBindAddress());
    channelFuture.syncUninterruptibly();
    channel = channelFuture.channel();
}

该方法中，看到了boss 线程，worker 线程，和 ServerBootstrap，在添加了编解码 handler 之后，添加一个 NettyHandler，最后调用 bind 方法，完成绑定端口的工作。
具体看下4个ChannelHandler的作用：

编解码器-NettyCodecAdapter

适配了解码器和编码器，传进去的Codec2对象，底下由这个Codec2实现解码和编码

private class InternalEncoder extends MessageToByteEncoder {


    @Override
    protected void encode(ChannelHandlerContext ctx, Object msg, ByteBuf out) throws Exception {
        ...
        codec.encode(channel, buffer, msg);
        ...
    }
}
private class InternalDecoder extends ByteToMessageDecoder {


    @Override
    protected void decode(ChannelHandlerContext ctx, ByteBuf input, List<Object> out) throws Exception {
                ...
        msg = codec.decode(channel, message);
                ...
}

codec可以找到跟dubbo协议相关的DubboCodec类，在重载的decodeBody方法中，包装DecodeableRpcInvocation，塞进Request.data中，返回这个Request给下级handler，在NettyServerHandler中处理

心跳机制IdleStateHandler

用于检测远端是否存活，会对应触发userEventTrigger()方法，具体示例可以参考基于Netty的IM系统

业务Handler-NettyServerHandler

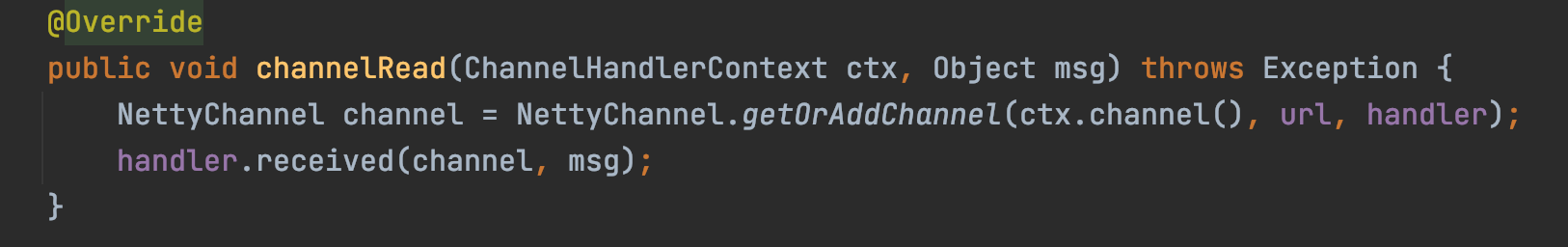

是对数据流的处理，直接看NettyServerHandler的channelRead：

责任链的方式途径几个关键ChannelHandler
DecodeHandler-transport层(面向message)

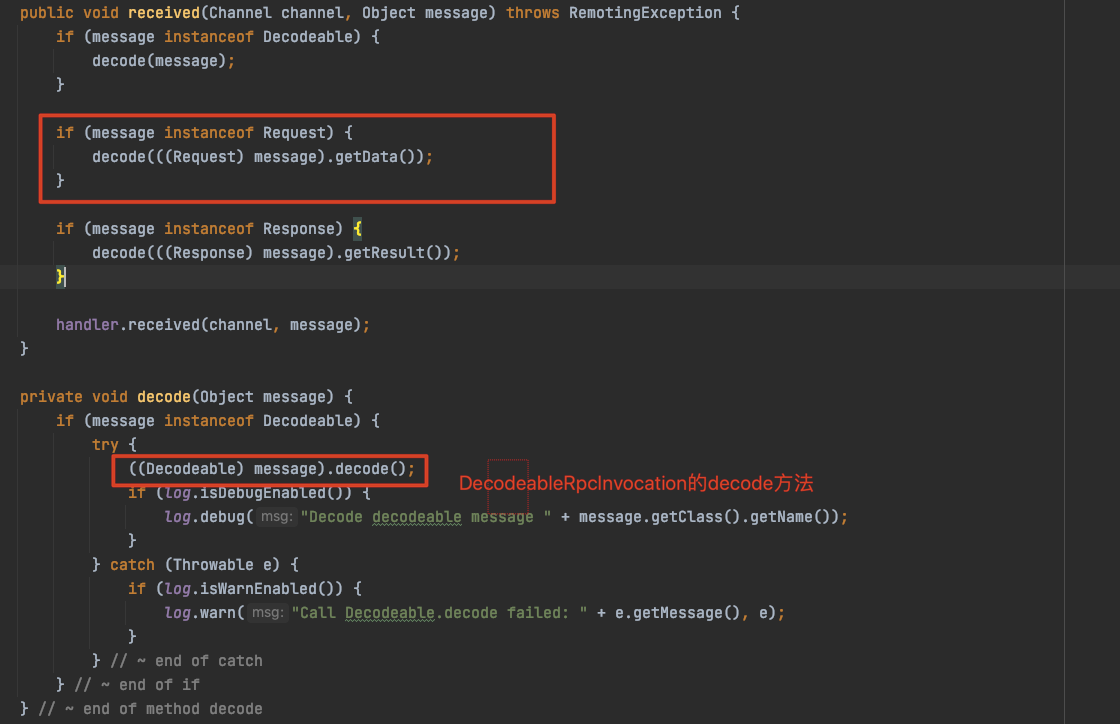

这个handler接收到上级decoder解码后的request(内部data是一个DecodeableRpcInvocation对象)，进入received逻辑

实际是执行DecodeableRpcInvocation的decode方法，主要步骤是读取方法名/参数类型/参数/attachment，完了之后这个DecodeableRpcInvocation可以被使用，继续调用内部handler

HeaderExchangeHandler-exchanger层(面向request/response)
exchanger层(面向request/response)，最终调用DubboProtocol.reply方法，实际是DubboProtocol中的一个匿名内部类的对象requestHandler经过几层包装而来

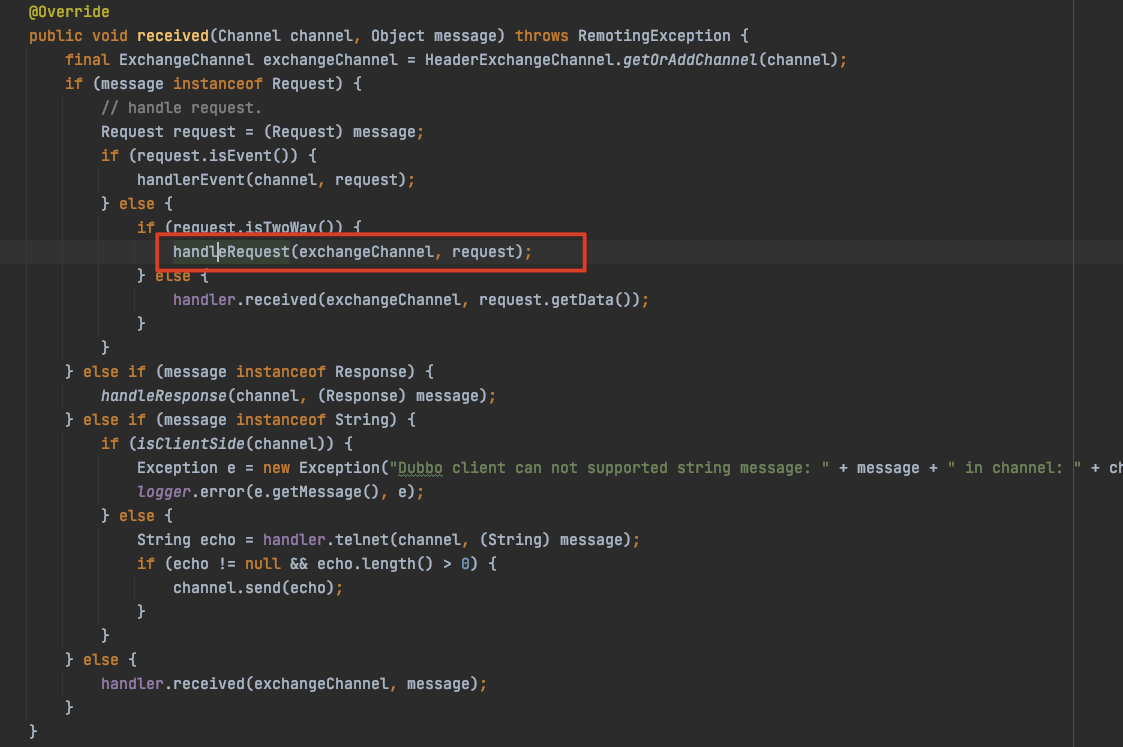

HeaderExchangeHandler的received方法中

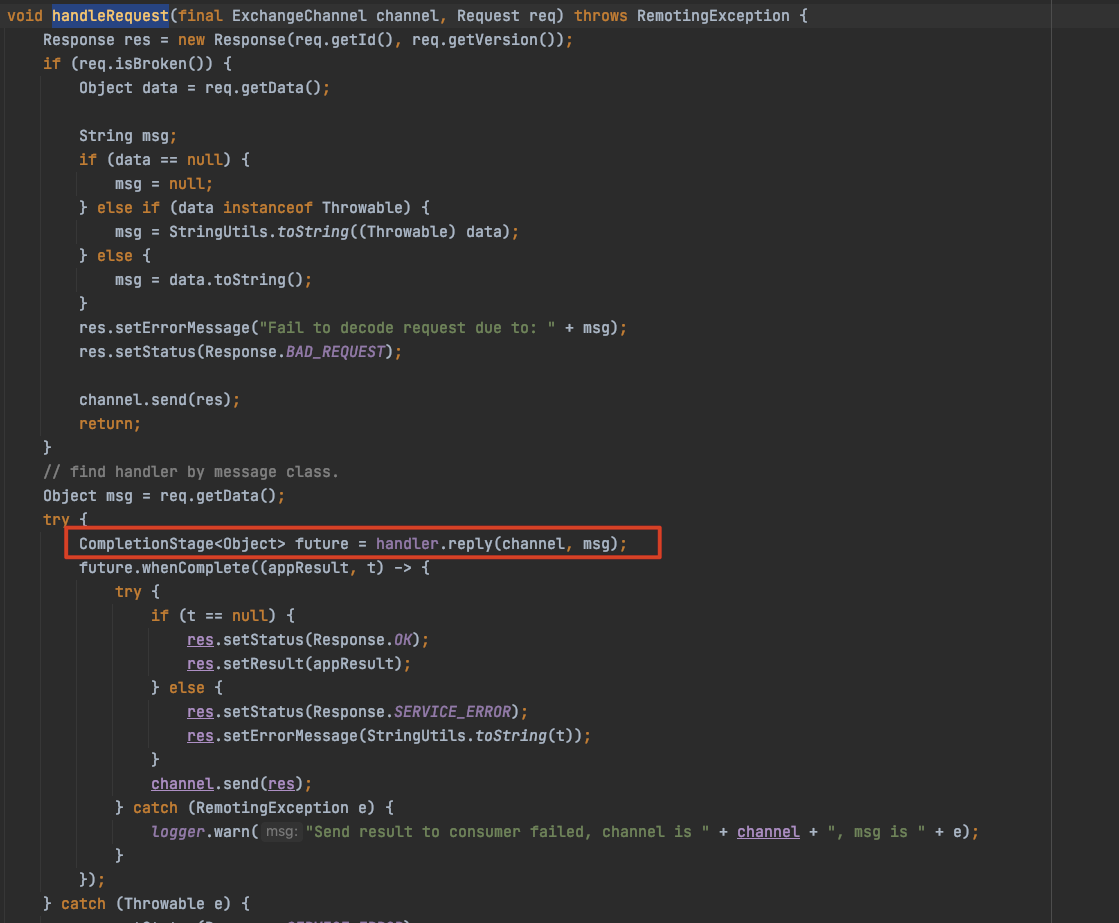

handleRequest中处理request并返回response

这里reply调用的是DubboProtocol的内部类

DubboProtocol-protocol层(面向invoker, invocation)
拿到上层解析完的invocation，找到invoker，调用代理的service实现

@Override
public CompletableFuture<Object> reply(ExchangeChannel channel, Object message) throws RemotingException {

    if (!(message instanceof Invocation)) {
        throw new RemotingException(channel, "Unsupported request: "
                + (message == null ? null : (message.getClass().getName() + ": " + message))
                + ", channel: consumer: " + channel.getRemoteAddress() + " --> provider: " + channel.getLocalAddress());
    }

    Invocation inv = (Invocation) message;
    Invoker<?> invoker = getInvoker(channel, inv);
    ...
    RpcContext.getContext().setRemoteAddress(channel.getRemoteAddress());
    Result result = invoker.invoke(inv);
    return result.thenApply(Function.identity());
}

自此，从网络字节流invocation的逐级转化完成，接下去就是invoker调用service的过程

Netty在dubbo的Consumer提供者中的使用

对于consumer的创建，经过的各dubbo层与provider类似
consumer启动程序：

/**
 * 加载Spring配置并调用远程服务
 */
public class Application {
    /**
     * In order to make sure multicast registry works, need to specify '-Djava.net.preferIPv4Stack=true' before
     * launch the application
     */
    public static void main(String[] args) throws Exception {
        // dubbo-consumer.xml 通过Spring配置引用远程服务
        ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("spring/dubbo-consumer.xml");
        context.start();
        // 获取远程服务代理，这个过程中会调用DubboProtocol实例的getClients（URL url）方法
        DemoService demoService = context.getBean("demoService", DemoService.class);
        GreetingService greetingService = context.getBean("greetingService", GreetingService.class);

        new Thread(() -> {
            while (true) {
                // 执行远程方法，最终会调用HeaderExchangeChannel的request方法，通过channel进行请求，本质NioClientSocketChannel的write方法。
                String greetings = greetingService.hello();
                // 调用结果
                System.out.println(greetings + " from separated thread.");
                try {
                    Thread.sleep(100);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
            }
        }).start();

        while (true) {
            CompletableFuture<String> hello = demoService.sayHelloAsync("world");
            System.out.println("result: " + hello.get());

            String greetings = greetingService.hello();
            System.out.println("result: " + greetings);

            Thread.sleep(500);
        }
    }
}

执行栈：

doOpen:92, NettyClient (org.apache.dubbo.remoting.transport.netty4) 创建Netty的bootstrap
<init>:63, AbstractClient (org.apache.dubbo.remoting.transport)
<init>:82, NettyClient (org.apache.dubbo.remoting.transport.netty4)
connect:40, NettyTransporter (org.apache.dubbo.remoting.transport.netty4)
connect:-1, Transporter$Adaptive (org.apache.dubbo.remoting)
connect:75, Transporters (org.apache.dubbo.remoting)
connect:39, HeaderExchanger (org.apache.dubbo.remoting.exchange.support.header)
connect:109, Exchangers (org.apache.dubbo.remoting.exchange)
initClient:615, DubboProtocol (org.apache.dubbo.rpc.protocol.dubbo) 创建Netty的client
buildReferenceCountExchangeClient:583, DubboProtocol (org.apache.dubbo.rpc.protocol.dubbo)
buildReferenceCountExchangeClientList:570, DubboProtocol (org.apache.dubbo.rpc.protocol.dubbo)
getSharedClient:495, DubboProtocol (org.apache.dubbo.rpc.protocol.dubbo)

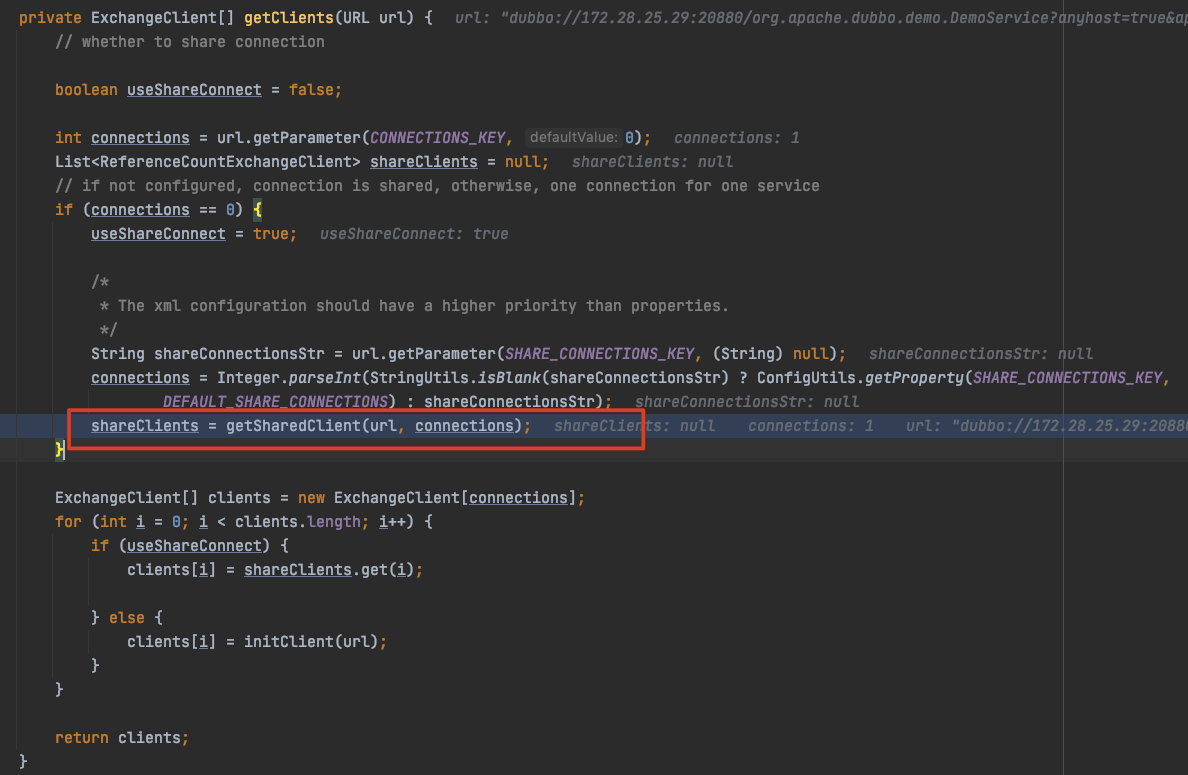

getClients:426, DubboProtocol (org.apache.dubbo.rpc.protocol.dubbo)
protocolBindingRefer:403, DubboProtocol (org.apache.dubbo.rpc.protocol.dubbo)
refer:104, AbstractProtocol (org.apache.dubbo.rpc.protocol)
refer:74, ProtocolListenerWrapper (org.apache.dubbo.rpc.protocol)
refer:83, ProtocolFilterWrapper (org.apache.dubbo.rpc.protocol)
refer:-1, Protocol$Adaptive (org.apache.dubbo.rpc)
toInvokers:344, RegistryDirectory (org.apache.dubbo.registry.integration)
refreshInvoker:199, RegistryDirectory (org.apache.dubbo.registry.integration)
refreshOverrideAndInvoker:159, RegistryDirectory (org.apache.dubbo.registry.integration)
notify:141, RegistryDirectory (org.apache.dubbo.registry.integration)
notify:429, AbstractRegistry (org.apache.dubbo.registry.support)
doNotify:372, FailbackRegistry (org.apache.dubbo.registry.support)
notify:364, FailbackRegistry (org.apache.dubbo.registry.support)
doSubscribe:181, ZookeeperRegistry (org.apache.dubbo.registry.zookeeper)
subscribe:299, FailbackRegistry (org.apache.dubbo.registry.support)
subscribe:105, ListenerRegistryWrapper (org.apache.dubbo.registry)
subscribe:104, RegistryDirectory (org.apache.dubbo.registry.integration)
doCreateInvoker:517, RegistryProtocol (org.apache.dubbo.registry.integration)
getInvoker:63, InterfaceCompatibleRegistryProtocol (org.apache.dubbo.registry.integration)
refreshInterfaceInvoker:332, MigrationInvoker (org.apache.dubbo.registry.client.migration)
migrateToServiceDiscoveryInvoker:113, MigrationInvoker (org.apache.dubbo.registry.client.migration)
doMigrate:60, MigrationRuleHandler (org.apache.dubbo.registry.client.migration)
onRefer:103, MigrationRuleListener (org.apache.dubbo.registry.client.migration)
interceptInvoker:490, RegistryProtocol (org.apache.dubbo.registry.integration)
doRefer:476, RegistryProtocol (org.apache.dubbo.registry.integration)
refer:470, RegistryProtocol (org.apache.dubbo.registry.integration)
refer:72, ProtocolListenerWrapper (org.apache.dubbo.rpc.protocol)
refer:81, ProtocolFilterWrapper (org.apache.dubbo.rpc.protocol)
refer:-1, Protocol$Adaptive (org.apache.dubbo.rpc)
createProxy:373, ReferenceConfig (org.apache.dubbo.config)
init:308, ReferenceConfig (org.apache.dubbo.config)
get:206, ReferenceConfig (org.apache.dubbo.config)
getObject:68, ReferenceBean (org.apache.dubbo.config.spring)
main:39, Application (org.apache.dubbo.demo.consumer)

用Spring容器的getBean方法，而dubbo扩展了FactoryBean，所以，会调用getObject方法，该方法会创建代理对象。这个过程中会调用DubboProtocol实例getClients

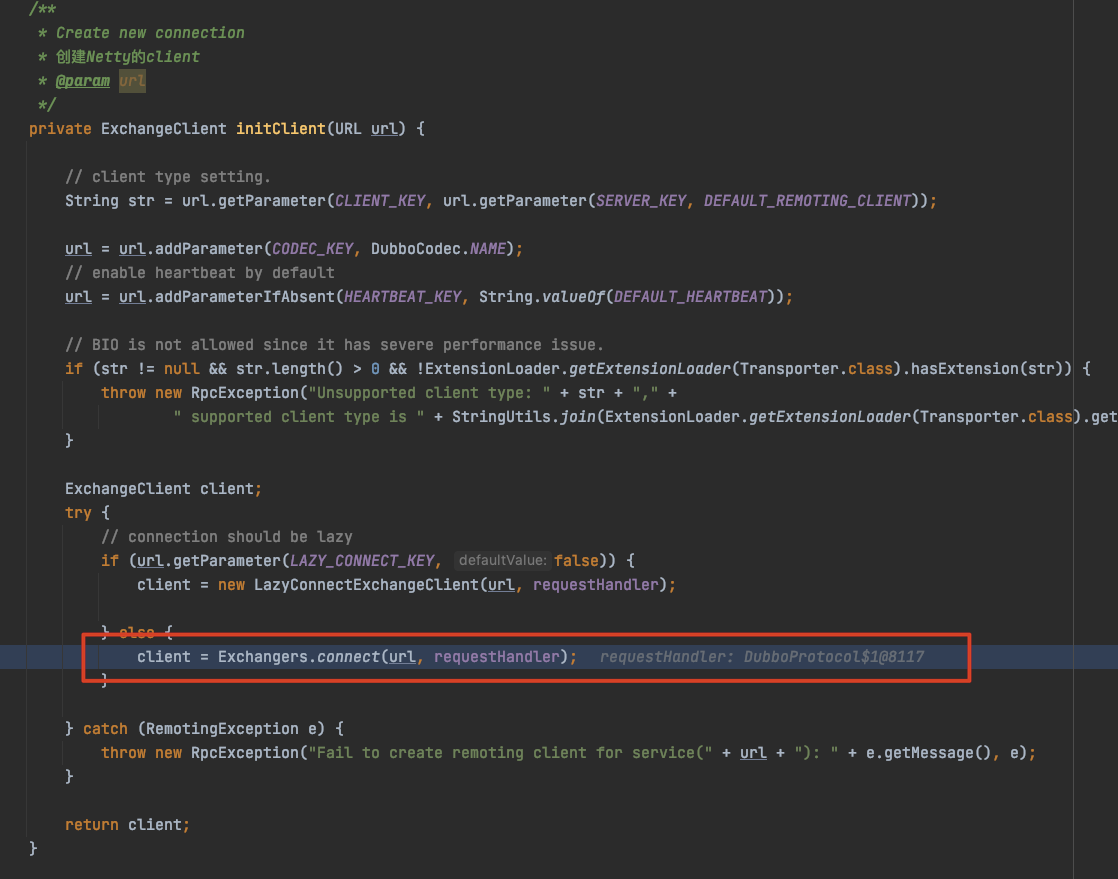

initClient方法就是创建Netty的client


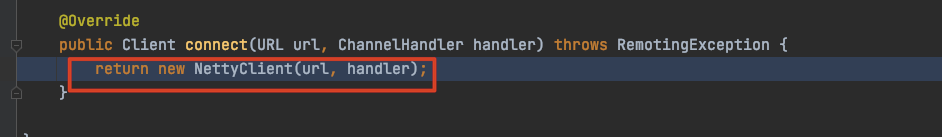

最终调用的就是抽象父类AbstractClient的构造方法，构造方法中包含了创建 Socket 客户端，连接客户端等行为

public AbstractClient(URL url, ChannelHandler handler) throws RemotingException {
    ...
    try {
        doOpen();
    }
    ...
    try {
        // connect.
        connect();
        ...
    }
    ...
}

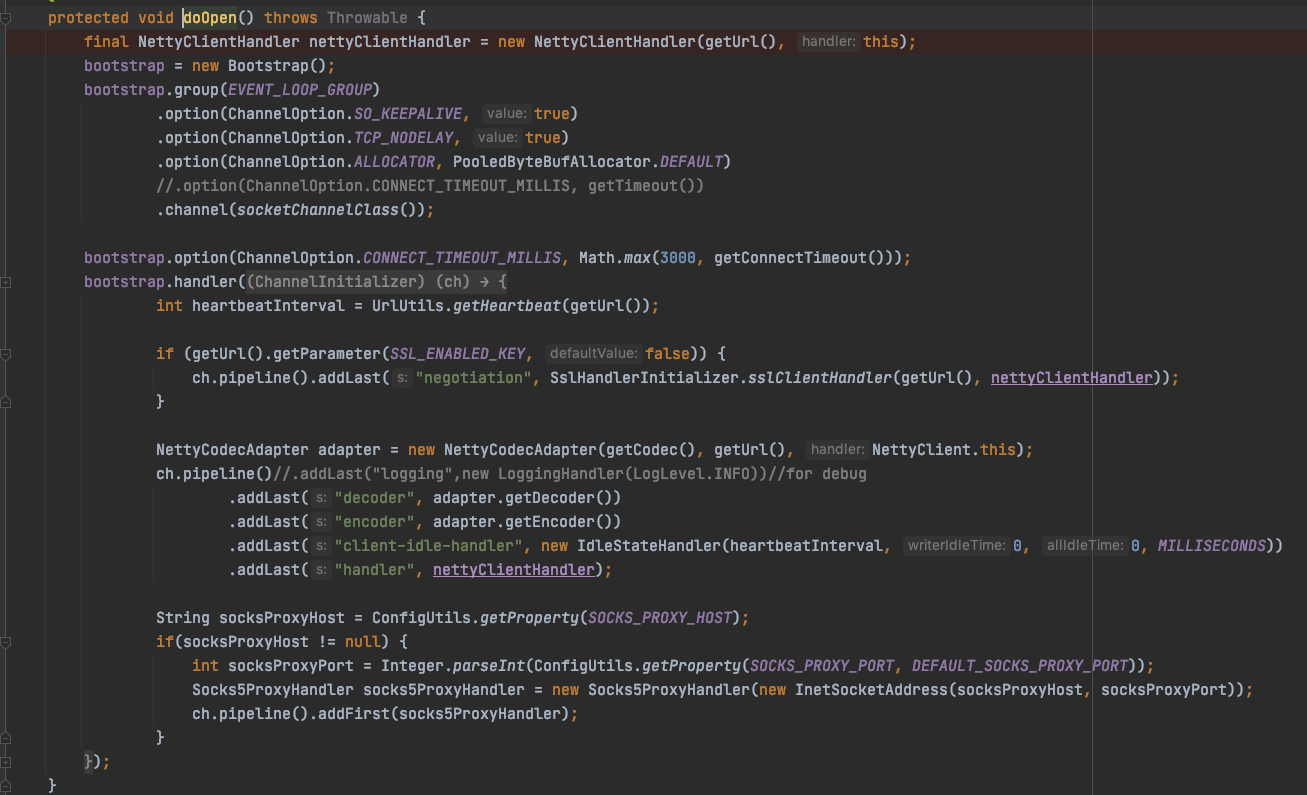

doOpent方法调用NettyClinet的doOpen用来创建Netty的bootstrap

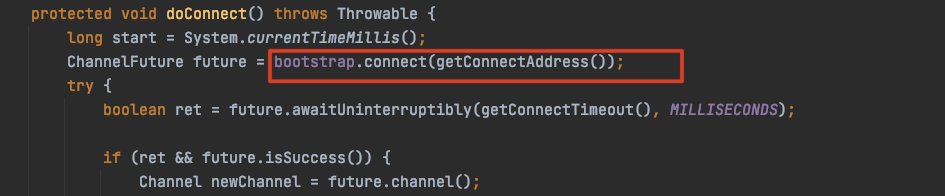

connect方法中的doConnect调用NettyClinet的doConnect用来连接提供者

调用了bootstrap的connect 方法，熟悉的Netty连接操作。当连接成功后，注册写事件，准备开始向提供者传递数据。

那么如何invoke？

流向（可以对比dubbo的依赖关系图）：
proxy层 -> cluster层 -> protocol层
proxy层:Processes a method invocation on a proxy instance and returns the result. This method will be invoked on an invocation handler when a method is invoked on a proxy instance that it is associated with

cluster层:Select a invoker using loadbalance policy

protocol层:invoke

执行栈：

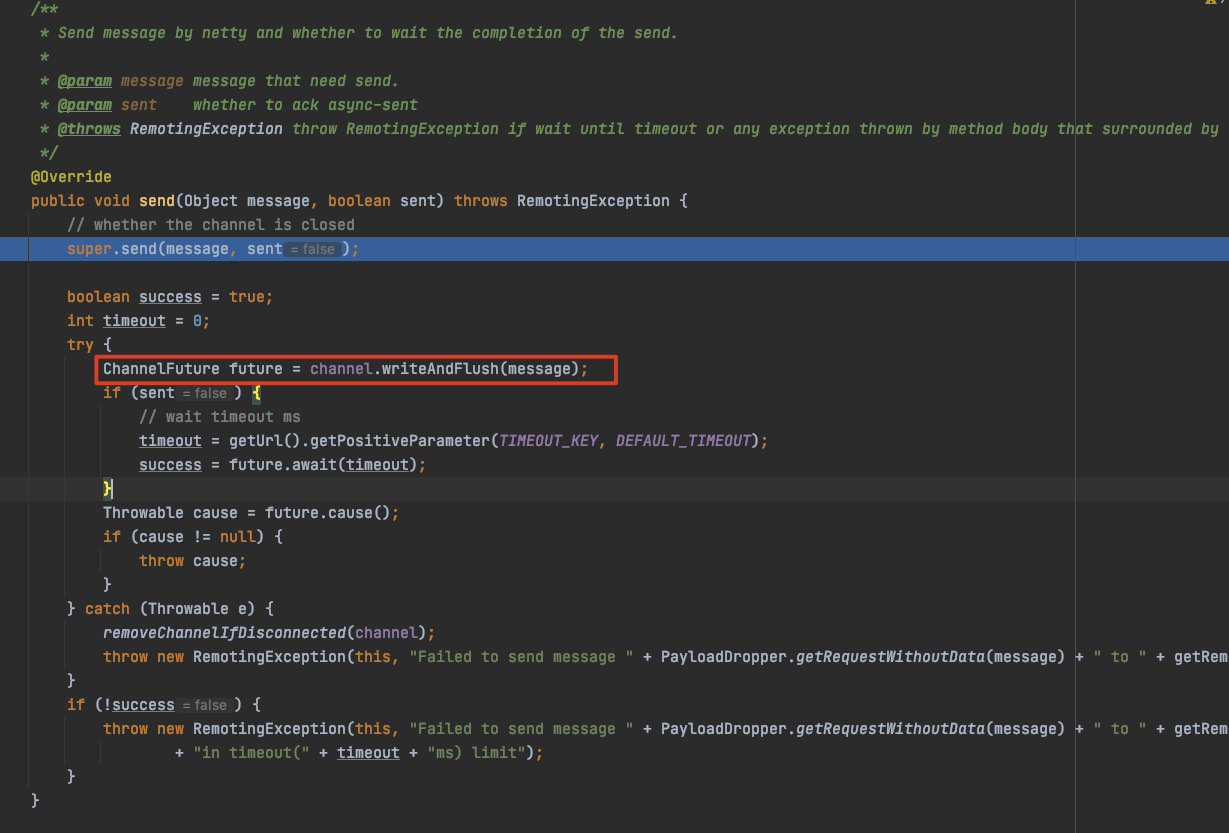

request:126, HeaderExchangeChannel (org.apache.dubbo.remoting.exchange.support.header)
request:95, HeaderExchangeClient (org.apache.dubbo.remoting.exchange.support.header)
request:89, ReferenceCountExchangeClient (org.apache.dubbo.rpc.protocol.dubbo)
doInvoke:108, DubboInvoker (org.apache.dubbo.rpc.protocol.dubbo)
invoke:173, AbstractInvoker (org.apache.dubbo.rpc.protocol)
invoke:52, AsyncToSyncInvoker (org.apache.dubbo.rpc.protocol)
invoke:78, ListenerInvokerWrapper (org.apache.dubbo.rpc.listener)
invoke:91, MonitorFilter (org.apache.dubbo.monitor.support)
invoke:61, FilterNode (org.apache.dubbo.rpc.protocol)
invoke:52, FutureFilter (org.apache.dubbo.rpc.protocol.dubbo.filter)
invoke:61, FilterNode (org.apache.dubbo.rpc.protocol)
invoke:69, ConsumerContextFilter (org.apache.dubbo.rpc.filter)
invoke:61, FilterNode (org.apache.dubbo.rpc.protocol)
invoke:56, InvokerWrapper (org.apache.dubbo.rpc.protocol)
doInvoke:82, FailoverClusterInvoker (org.apache.dubbo.rpc.cluster.support)
invoke:265, AbstractClusterInvoker (org.apache.dubbo.rpc.cluster.support)
intercept:47, ClusterInterceptor (org.apache.dubbo.rpc.cluster.interceptor)
invoke:92, AbstractCluster$InterceptorInvokerNode (org.apache.dubbo.rpc.cluster.support.wrapper)
invoke:93, MockClusterInvoker (org.apache.dubbo.rpc.cluster.support.wrapper)
invoke:169, MigrationInvoker (org.apache.dubbo.registry.client.migration)
invoke:96, InvokerInvocationHandler (org.apache.dubbo.rpc.proxy)
sayHelloAsync:-1, proxy0 (org.apache.dubbo.common.bytecode)
main:57, Application (org.apache.dubbo.demo.consumer)

最终会调用HeaderExchangeChannel的request方法，通过channel进行请求

send 方法中最后调用NettyChannel的中send方法，通过netty中Channel的writeAndFlush完成了一次数据的传输。

执行栈：

总结

消费者使用 NettyClient，提供者使用 NettyServer，Provider 启动的时候，会开启端口监听，使用我们平时启动 Netty 一样的方式。而 Client 在 Spring getBean 的时候，会创建 Client，当调用远程方法的时候，将数据通过 dubbo 协议编码发送到 NettyServer，然后 NettServer 收到数据后解码，并调用本地方法，并返回数据，完成一次完美的 RPC 调用。
