用Oauth2接入权限系统的朋友越来越多，而且通用性比较好，这里为了让大家能够快速地进行学习和使用，特提供教程一份。

工具包版本

Spring Boot 2.2.0.M5
Spring Cloud Hoxton.M2
Spring Cloud OAuth2 2.2.0.M2

开发框架

SpringBoot

maven 依赖引入

• 将AuthenticationManager注入到spring中，方便后续oauth server注入
• 创建UserDetailsService的内存实现，注入一个测试用户

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-oauth2</artifactId>
    </dependency>
</dependencies>

配置权限拦截

@Configuration
@EnableWebSecurity
@EnableGlobalMethodSecurity(prePostEnabled = true)
public class WebSecurityConfiguration extends WebSecurityConfigurerAdapter {
    /**
     * 必须注入 AuthenticationManager，不然oauth  无法处理四种授权方式
     *
     * @return
     * @throws Exception
     */
    @Bean
    @Override
    public AuthenticationManager authenticationManagerBean() throws Exception {
        return super.authenticationManagerBean();
    }
    /**
     * 注入UserDetailsService
     * @return
     */
    @Bean
    @Override
    protected UserDetailsService userDetailsService() {
        InMemoryUserDetailsManager userDetailsManager = new InMemoryUserDetailsManager();
        userDetailsManager.createUser(User.withUsername("lengleng").password("{noop}lengleng").authorities("USER").build());
        return userDetailsManager;
    }
}

配置oauth2 认证服务器

• 配置clientId 信息及其支持的授权模式

@Configuration
@EnableAuthorizationServer
public class BigAuthServerConfiguration extends AuthorizationServerConfigurerAdapter {
    @Autowired
    private AuthenticationManager authenticationManager;
    @Autowired
    private UserDetailsService userDetailsService;

    @Override
    public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
        clients.inMemory()
                .withClient("appid")
                .secret("{noop}secret")
                .authorizedGrantTypes("password", "authorization_code", "client_credentials", "implicit", "refresh_token")
                .scopes("all");
    }

    @Override
    public void configure(AuthorizationServerEndpointsConfigurer endpoints) {
        endpoints.authenticationManager(authenticationManager)
                .userDetailsService(userDetailsService);
    }

}

以上操作已完成了认证服务器的功能。

测试密码模式

curl -X POST -H "Content-Type: application/x-www-form-urlencoded" -d 'grant_type=password&username=cd&password=cd&scope=all' "http://appid:secret@localhost:8080/oauth/token"

配置资源服务器

• 引入web、 cloud-oauth

<dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-oauth2</artifactId>
    </dependency>
</dependencies>

配置客户端信息

security:
  oauth2:
    client:
      client-id: appid
      client-secret: secret
      scope: all
    resource: # 认证中心的check_token 接口地址
      token-info-uri: http://127.0.0.1:8080/oauth/check_token

应用声明资源服务器

• @EnableResourceServer 完成接入

@EnableResourceServer
@EnableDiscoveryClient
@SpringBootApplication
public class Oauth2ServerApplication {

    public static void main(String[] args) {
        SpringApplication.run(Oauth2ServerApplication.class, args);
    }

}

认证服务器暴露check_token

public class BigAuthServerConfiguration extends AuthorizationServerConfigurerAdapter {
    /**
     * checkTokenAccess 权限设置为isAuthenticated，不然资源服务器 来请求403
     * @param oauthServer
     */
    @Override
    public void configure(AuthorizationServerSecurityConfigurer oauthServer) {
        oauthServer
                .allowFormAuthenticationForClients()
                .checkTokenAccess("isAuthenticated()");
    }
}

服务器demo 接口

@RestController
public class DemoController {
    @GetMapping("/info")
    public Authentication authentication(Authentication authentication) {
        return authentication;
    }
}

获取token测试

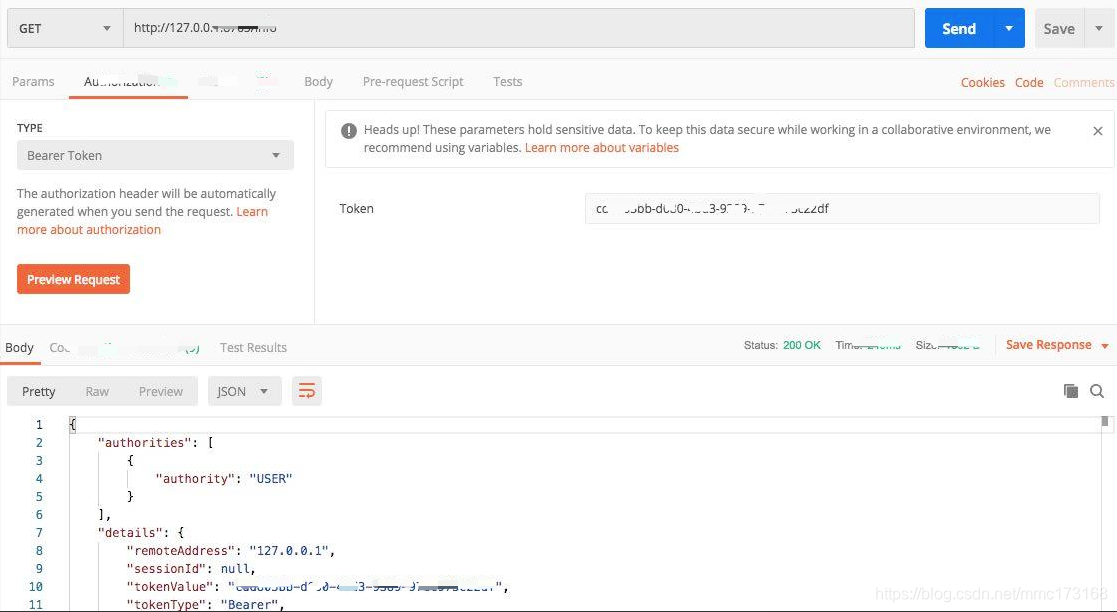

通过token请求测试接口获取当前用户信息

汇总
