Qlik Cockpit - Qlik Sense Log Analyzing Tool

Reading and Analyzing Qlik Sense and QlikView log files using the QlikCockpit



Last Update:

Jan 10, 2023 2:35:40 AM

Download:



QlikCockpit 1.0.11.0.zip  =>  please download from  Reading and Analyzing Qlik Sense and QlikView log ... - Qlik Community - 2023065Qlik provides the QlikCockpit bundled in all recent installations of Qlik Sense Enterprise on Windows. This tool is designed to assist in analysing - 2023065https://community.qlik.com/t5/Official-Support-Articles/Reading-and-Analyzing-Qlik-Sense-and-QlikView-log-files-using/ta-p/2023065

Qlik provides the QlikCockpit bundled in all recent installations of Qlik Sense Enterprise on Windows. This tool is designed to assist in analysing Qlik Sense (and QlikView) log files and is best used in combination with the Qlik Log Collector* (Qlik Log Collector).

A copy of QlikCockpit is attached.

​Qlik提供了QlikCockpit 在所有最近安装的QlikSense企业版或者QlikView上，这个工具旨在帮助分析QlikSense（和QlikView）日志文件，提供友好的日志数据格式化功能，也提供了过滤和搜索功能。



Example Usage:

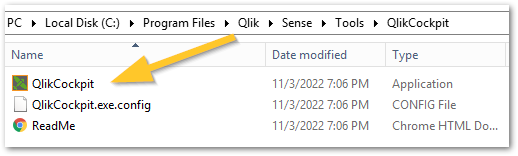

1. Launch the QlikCockpit from its installation folder (%drive%\Program Files\Qlik\Sense\Tools\QlikCockpit

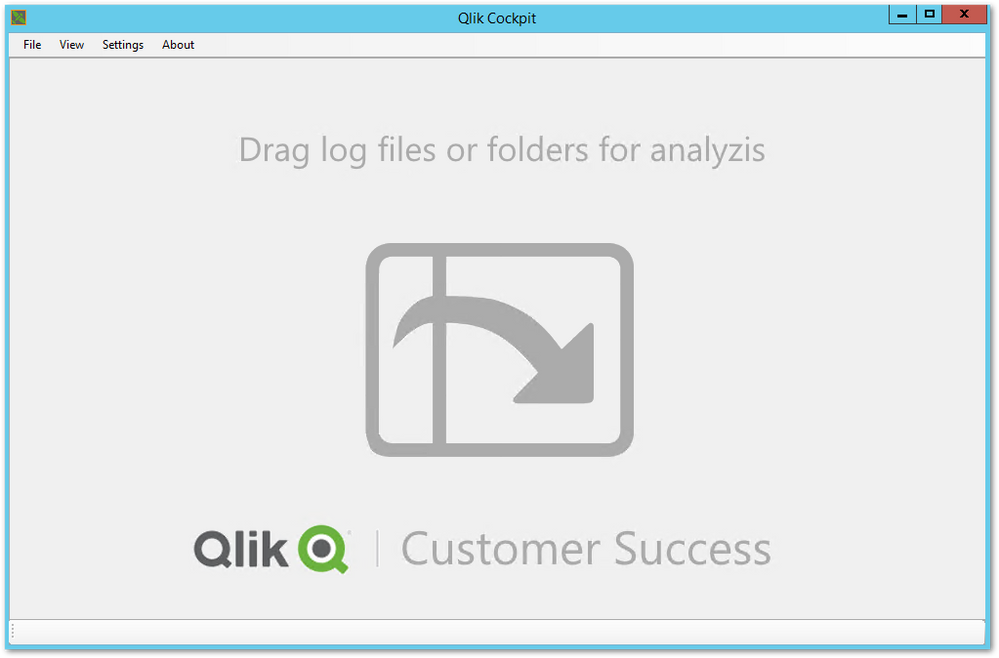

2. Drag and drop log files or zipped containers

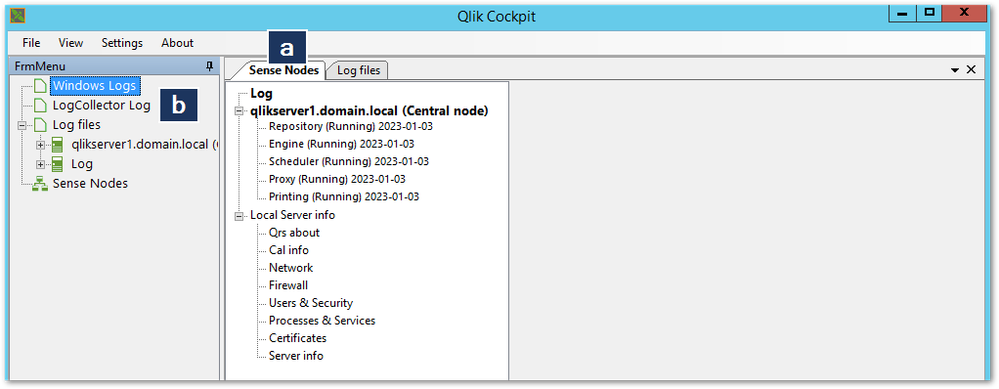

3. You are given an overview of Sense Nodes and a list of Log Files to navigate

   1. This will list all nodes the log files were collected from and provide useful data on local server information.
   2. The menu lists the collected Windows logs and the Qlik Sense log files split by node.

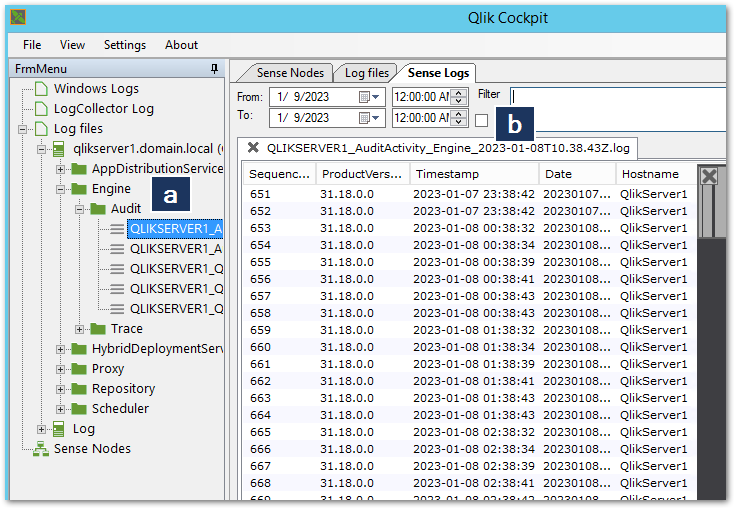

4. Navigate and filter log files

   1. Expand the log file menu from the leftmost panel
   2. Configure filters if required (Optional)

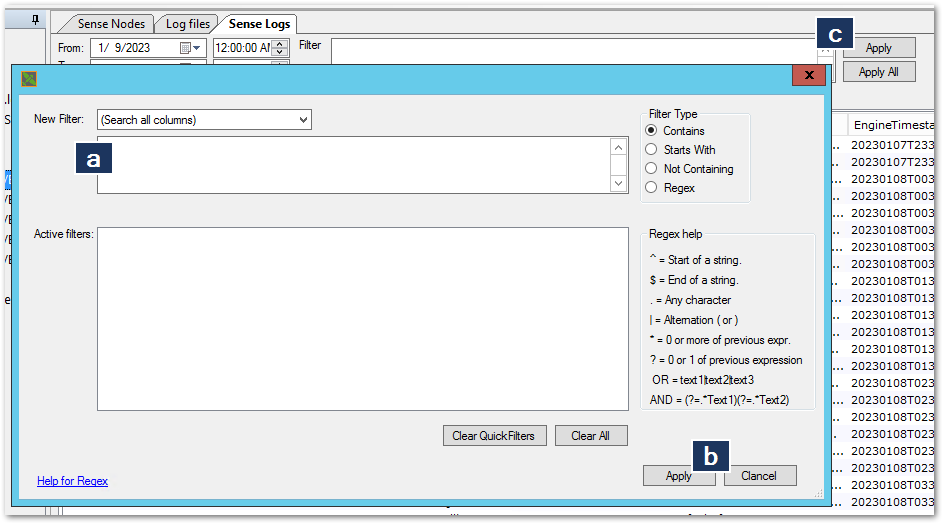

5. Prepare and apply your filter (Optional)

   1. Enter a filter
   2. Click Apply
   3. Choose the filter and click Apply again






Environment

Qlik Sense Enterprise on Windows
QlikView



The information in this article is provided as-is and to be used at own discretion. Depending on tool(s) used, customization(s), and/or other factors ongoing support on the solution below may not be provided by Qlik Support.
