C#下利用devexpress中chart插件实现柱状图

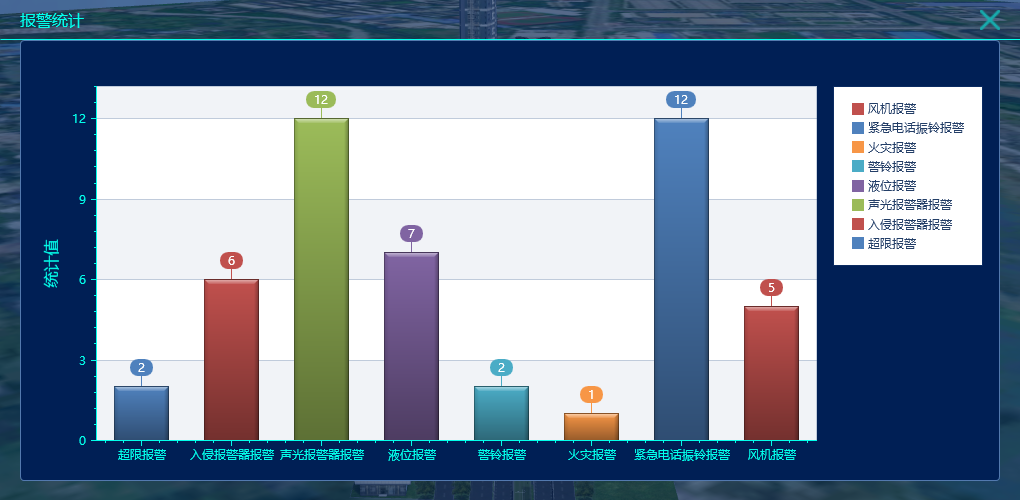

.Net下各种第三方的Chart图组件很多，笔者在三维管廊监测中使用的Devexpress插件实现的柱状图，效果如下图：

具体的方法：

1、在xaml中引入Devexpress插件

xml命名空间引入

xmlns:dxc="http://schemas.devexpress.com/winfx/2008/xaml/charts"

chart插件引入

<dxc:ChartControl Name="alarmChart" Grid.Column="0" Grid.Row="1" Grid.ColumnSpan="4" Width="980" Background="#001f55"  Foreground="#03ffea"  Margin="20,0,20,19">
        </dxc:ChartControl>

2、柱状图所需的数据

数据从数据库中取出，包括报警类型和报警数量

 DataTable dt;
            dt = WPFHelp.Instance.DbInit.queryTablesDGSYS("select 报警类型 from STC_报警类型表");

3、创建chart各属性，并赋值

Brush brush;
            BrushConverter brushConverter = new BrushConverter();
            brush = (Brush)brushConverter.ConvertFromString("#03ffea");//"#17acae");
            Diagram diagram = null;
            diagram = new XYDiagram2D();
            AxisY2D asisy = new AxisY2D();
            AxisTitle asisTitle = new AxisTitle();
            asisTitle.Content = "统计值";
            asisTitle.Foreground = brush;
            asisy.Title = asisTitle;
            asisy.Brush = brush;
            //Y轴刻度尺颜色
            asisy.ActualLabel.Foreground= brush;
            ((XYDiagram2D)diagram).AxisY = asisy;
            _title = "";// "报警统计";

            AxisX2D asisx = new AxisX2D();
            asisx.Brush = brush;
            ((XYDiagram2D)diagram).AxisX = asisx;
            asisx.ActualLabel.Foreground = brush;
            this.LoadChartData(_title, diagram, "直方图", dt);

4、LoadChartData 函数定义

 private void LoadChartData(string title, Diagram diagram, string seriesType, DataTable dtable)
        {
            try
            {
                if (dtable == null || dtable.Rows.Count == 0)
                {
                    return;
                }

                //透明
                this.alarmChart.Legend = null;
                if (!(diagram is SimpleDiagram2D))
                {
                    Legend legend = new Legend();
                    legend.ReverseItems = true;
                    this.alarmChart.Legend = legend;
                }

                this.alarmChart.Diagram = diagram;
                Title t = new Title();
                t.Content = title;
                t.FontSize = 15;
                Brush brush;
                BrushConverter brushConverter = new BrushConverter();
                brush = (Brush)brushConverter.ConvertFromString("#FF0000");//"#17acae");
                t.Foreground = brush;
                t.HorizontalAlignment = HorizontalAlignment.Center;
                alarmChart.Titles.Clear();
                alarmChart.Titles.Add(t);
                for (int i = 0; i < dtable.Rows.Count; i++)
                {
                    Series series  = new BarSideBySideSeries2D();//= CreateSeries(seriesType);
                    series.DisplayName = dtable.Rows[i][0].ToString();
                    series.AnimationAutoStartMode = AnimationAutoStartMode.SetStartState;
                    //series.FontStyle = new FontStyle();

                    for (int j = 1; j < dtable.Columns.Count; j++)
                    {
                        SeriesPoint seriesPoint = new SeriesPoint();
                        seriesPoint.Argument = dtable.Rows[i][0].ToString();// dtable.Columns[0].ColumnName.ToString();
                        seriesPoint.Value = double.Parse(dtable.Rows[i][j].ToString());

                        series.Points.Add(seriesPoint);

                    }
                    alarmChart.Diagram.Series.Add(series);
                }
                Title t1 = new Title();
                t1.Content = "数据项".PadRight(50);
                t1.FontSize = 14;
                t1.Foreground = brush;
                t1.HorizontalAlignment = HorizontalAlignment.Right;
                t1.Dock = Dock.Bottom;
                alarmChart.Titles.Add(t1);
            }
            catch (Exception ex)
            {

            }
        }
