Prim(普利姆算法)

Prim(普利姆算法)

学习视频
尚硅谷数据结构与算法

普利姆算法是为解决最小生成树问题的一种算法，最小生成树（Minimum Cost Spanning Tree），简称MST，给定一个带权的无向连通图，选取一颗树使树上所有边的权值之后最小，通俗来讲就是在n个节点的无向连通图中找出一个包含n个节点的最小连通子图，且子图没有回路。

算法流程

1. 设G=（V,E）是连通图，T=（U,D）是最小生成树，V,U是顶点集合，E,D是边集合。
2. 若从顶点v开始构造最小生成树，将顶点v从集合V中取出放入集合U，设置vistited[v] = 1。
3. 若集合U中顶点ui与集合V-U（V-U表示为集合V与集合U的差集）中顶点vj存在边，则寻找这些边的最小值，将最小值边的顶点vj加入集合U，设置visitited[vj] = 1，将最小边加入集合D。
4. 重复3步骤知道集合V与集合G相等，此时所有点都被标记过，且边为n-1条。

Prim算法解决修路问题

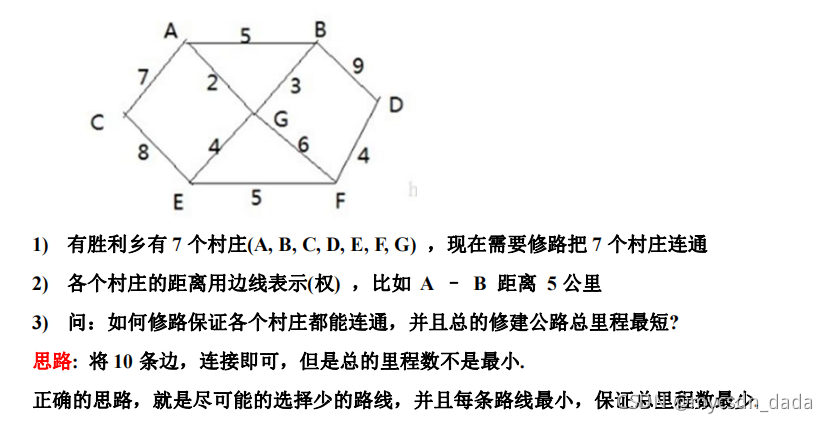

修路问题

算法代码

package Algorithm.primAlgorithm;

public class PrimAlgorithm {
    Graph graph;
    public PrimAlgorithm(int[][] weight, int vertex, char[] data) {
        graph = new Graph(vertex);
        graph.weight = weight;
        graph.data = data;
    }

    public void prim(int v) {
        //初始化visited数组
        int[] visited = new int[graph.vertex];
        //标记卡死节点
        visited[v] = 1;
        int m = -1, n = -1;
        //10000，表示不连通
        int minWeight = 10000;
        for (int k = 1; k < graph.vertex; k++) {
            for (int i = 0; i < graph.vertex; i++) {
                for (int j = 0; j < graph.vertex; j++) {
                    //重点理解代码
                    if (visited[i] == 1 && visited[j] == 0 && graph.weight[i][j] < minWeight) {
                        minWeight = graph.weight[i][j];
                        m = i;
                        n = j;
                    }
                }
            }
            System.out.println(graph.data[m] + "," + graph.data[n] + "权值：" + minWeight);
            minWeight = 10000;
            visited[n] = 1;
        }
    }
}

//定义一个图的内部类
class Graph {
    int vertex;//顶点数
    char[] data;//顶点集合
    int[][] weight;//邻接矩阵

    public Graph(int vertex) {
        this.vertex = vertex;
        data = new char[vertex];
        weight = new int[vertex][vertex];
    }
}

测试代码：

public class Client {
    public static void main(String[] args) {
        char[] data = new char[]{'A','B','C','D','E','F','G'};
        int vertex = data.length;
        int [][]weight=new int[][]{
                {10000,5,7,10000,10000,10000,2},
                {5,10000,10000,9,10000,10000,3},
                {7,10000,10000,10000,8,10000,10000},
                {10000,9,10000,10000,10000,4,10000},
                {10000,10000,8,10000,10000,5,4},
                {10000,10000,10000,4,5,10000,6},
                {2,3,10000,10000,4,6,10000}};
        PrimAlgorithm primAlgorithm = new PrimAlgorithm(weight, vertex, data);
        primAlgorithm.prim(0);
    }
}
