Simple Tabview

static void lv_example_tabview_1(void)
{
    /*Create a Tab view object*/
    lv_obj_t* tabview;
    tabview = lv_tabview_create(lv_scr_act(), LV_DIR_TOP, 50);
    /*Add 3 tabs (the tabs are page (lv_page) and can be scrolled*/
    lv_obj_t* tab1 = lv_tabview_add_tab(tabview, "Tab 1");
    lv_obj_t* tab2 = lv_tabview_add_tab(tabview, "Tab 2");
    lv_obj_t* tab3 = lv_tabview_add_tab(tabview, "Tab 3");
    /*Add content to the tabs*/
    lv_obj_t* label = lv_label_create(tab1);
    lv_label_set_text(label, "This the first tab\n\n"
        "If the content\n"
        "of a tab\n"
        "becomes too\n"
        "longer\n"
        "than the\n"
        "container\n"
        "then it\n"
        "automatically\n"
        "becomes\n"
        "scrollable.\n"
        "\n"
        "\n"
        "\n"
        "Can you see it?");
    label = lv_label_create(tab2);
    lv_label_set_text(label, "Second tab");
    label = lv_label_create(tab3);
    lv_label_set_text(label, "Third tab");
    lv_obj_scroll_to_view_recursive(label, LV_ANIM_ON);
}

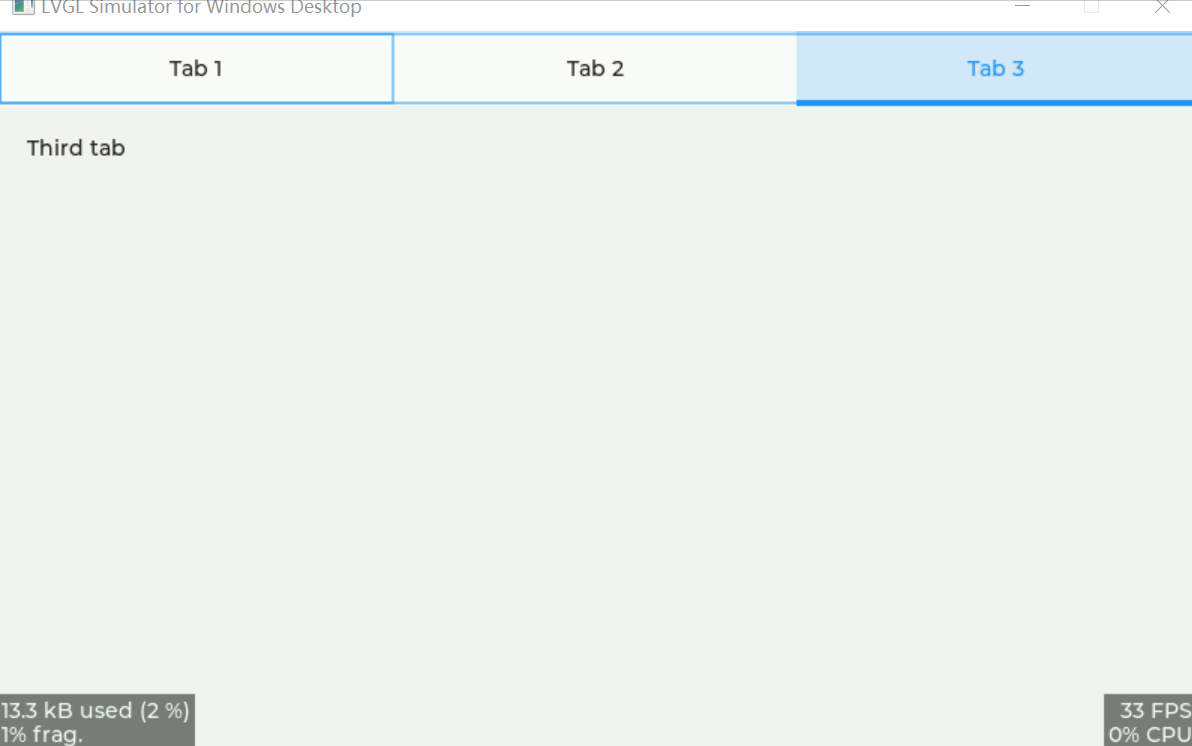

运行效果

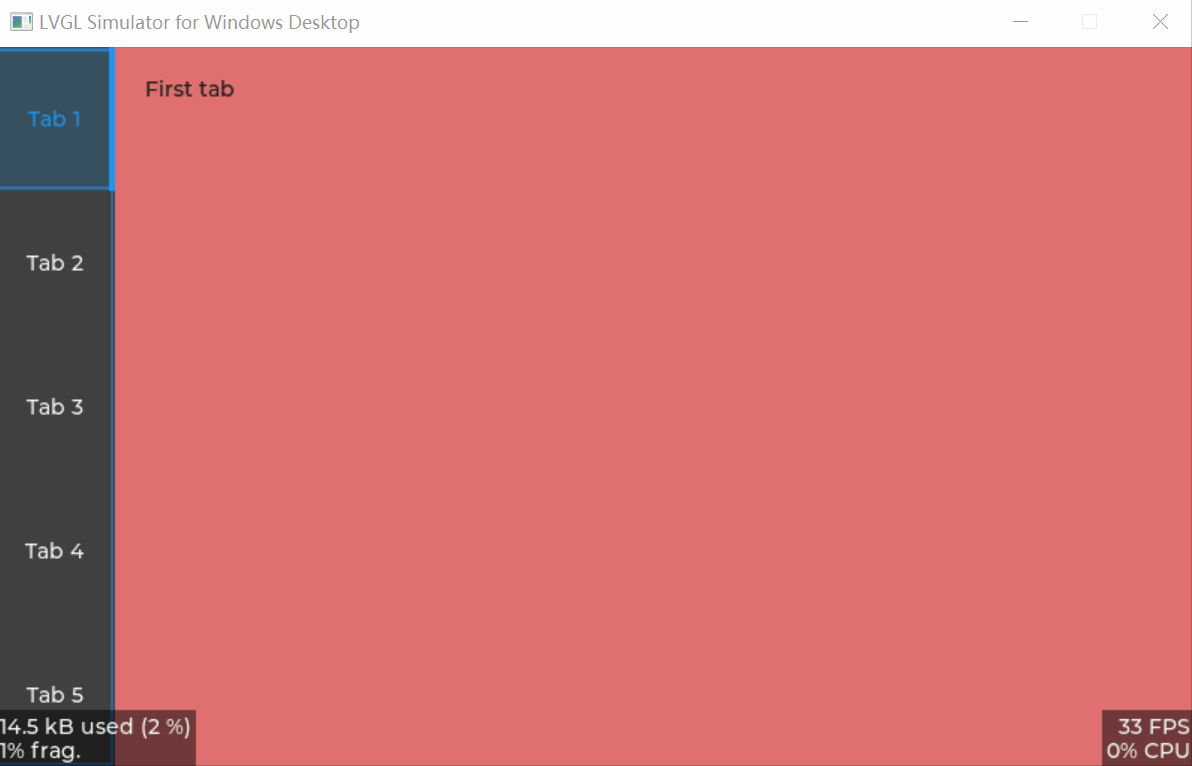

Tabs on the left, styling and no scrolling

static void scroll_begin_event(lv_event_t* e)
{
    /*Disable the scroll animations. Triggered when a tab button is clicked */
    if (lv_event_get_code(e) == LV_EVENT_SCROLL_BEGIN) {
        lv_anim_t* a = lv_event_get_param(e);
        if (a) a->time = 0;
    }
}

static void lv_example_tabview_2(void)
{
    /*Create a Tab view object*/
    lv_obj_t* tabview;
    tabview = lv_tabview_create(lv_scr_act(), LV_DIR_LEFT, 80);
    lv_obj_add_event_cb(lv_tabview_get_content(tabview), scroll_begin_event, LV_EVENT_SCROLL_BEGIN, NULL);
    lv_obj_set_style_bg_color(tabview, lv_palette_lighten(LV_PALETTE_RED, 2), 0);
    lv_obj_t* tab_btns = lv_tabview_get_tab_btns(tabview);
    lv_obj_set_style_bg_color(tab_btns, lv_palette_darken(LV_PALETTE_GREY, 3), 0);
    lv_obj_set_style_text_color(tab_btns, lv_palette_lighten(LV_PALETTE_GREY, 5), 0);
    lv_obj_set_style_border_side(tab_btns, LV_BORDER_SIDE_RIGHT, LV_PART_ITEMS | LV_STATE_CHECKED);
    /*Add 3 tabs (the tabs are page (lv_page) and can be scrolled*/
    lv_obj_t* tab1 = lv_tabview_add_tab(tabview, "Tab 1");
    lv_obj_t* tab2 = lv_tabview_add_tab(tabview, "Tab 2");
    lv_obj_t* tab3 = lv_tabview_add_tab(tabview, "Tab 3");
    lv_obj_t* tab4 = lv_tabview_add_tab(tabview, "Tab 4");
    lv_obj_t* tab5 = lv_tabview_add_tab(tabview, "Tab 5");
    lv_obj_set_style_bg_color(tab2, lv_palette_lighten(LV_PALETTE_AMBER, 3), 0);
    lv_obj_set_style_bg_opa(tab2, LV_OPA_COVER, 0);
    /*Add content to the tabs*/
    lv_obj_t* label = lv_label_create(tab1);
    lv_label_set_text(label, "First tab");
    label = lv_label_create(tab2);
    lv_label_set_text(label, "Second tab");
    label = lv_label_create(tab3);
    lv_label_set_text(label, "Third tab");
    label = lv_label_create(tab4);
    lv_label_set_text(label, "Forth tab");
    label = lv_label_create(tab5);
    lv_label_set_text(label, "Fifth tab");
    lv_obj_clear_flag(lv_tabview_get_content(tabview), LV_OBJ_FLAG_SCROLLABLE);
}
