定义消息ID

#define MSG_NEW_TEMPERATURE 1

2个label订阅的消息回调处理函数

static void label_event_cb(lv_event_t* e)
{
    lv_obj_t* label = lv_event_get_target(e);
    lv_msg_t* m = lv_event_get_msg(e);
    const char* fmt = lv_msg_get_user_data(m);
    const int32_t* v = lv_msg_get_payload(m);
    lv_label_set_text_fmt(label, fmt, *v);
}

static void label_text_event_cb(lv_event_t* e)
{
    lv_obj_t* label = lv_event_get_target(e);
    lv_msg_t* m = lv_event_get_msg(e);
    const char* fmt = lv_msg_get_user_data(m);
    const int32_t* v = lv_msg_get_payload(m);
    lv_label_set_text_fmt(label, fmt, *v);
}

slider滑动事件回调函函中处理消息发送

static void slider_event_cb(lv_event_t* e)
{
    /*Notifyallsubscribers(only the labelnow)thattheslidervaluehasbeen changed*/
    lv_obj_t* slider = lv_event_get_target(e);
    int32_t v = lv_slider_get_value(slider);
    lv_msg_send(MSG_NEW_TEMPERATURE, &v);
}

创建控件及订阅消息

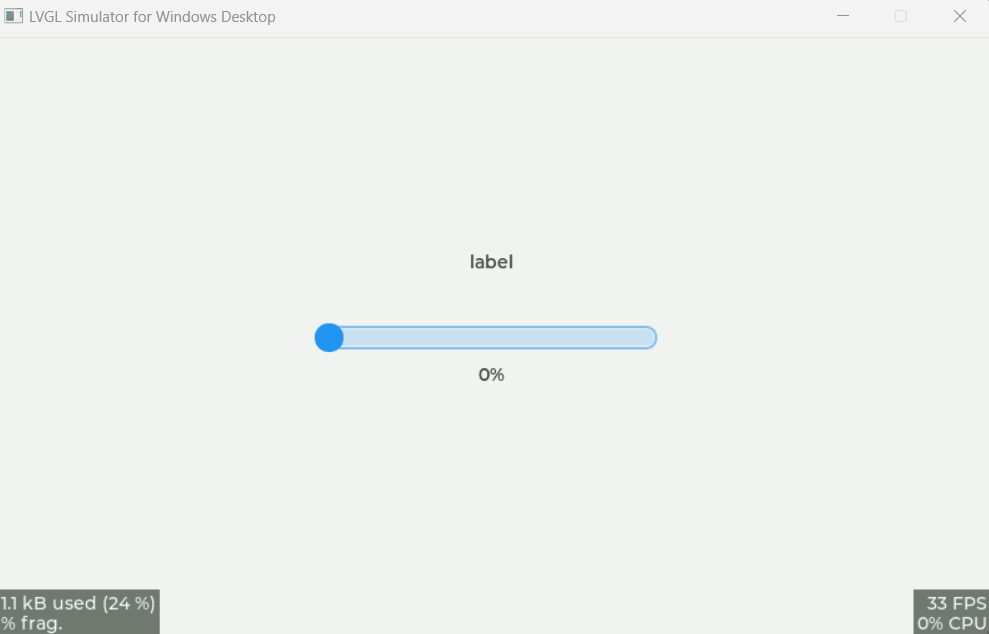

static void lv_example_msg_1(void)
{
    /*Createa sliderinthecenterof the display*/
    lv_obj_t* slider = lv_slider_create(lv_scr_act());
    lv_obj_center(slider);
    lv_obj_add_event_cb(slider, slider_event_cb, LV_EVENT_VALUE_CHANGED, NULL);
    /*Createa labelbelowtheslider*/
    lv_obj_t* label = lv_label_create(lv_scr_act());
    lv_obj_add_event_cb(label, label_event_cb, LV_EVENT_MSG_RECEIVED, NULL);
    lv_label_set_text(label, "0%");
    lv_obj_align(label, LV_ALIGN_CENTER, 0, 30);
    /*Subscribe the labeltoamessage.Alsousetheuser_datatosetaformatstring here.*/
    lv_msg_subsribe_obj(MSG_NEW_TEMPERATURE, label, "%d°C");

    lv_obj_t * label_text = lv_label_create(lv_scr_act());
    lv_label_set_text(label_text, "label");
    lv_obj_align(label_text, LV_ALIGN_CENTER, 0, -60);
    lv_obj_add_event_cb(label_text,label_event_cb, LV_EVENT_MSG_RECEIVED, NULL);
    lv_msg_subsribe_obj(MSG_NEW_TEMPERATURE, label_text, "label_text %d°C");
}
