【QUARTZ】springboot+quartz动态配置定时任务

Quartz 介绍

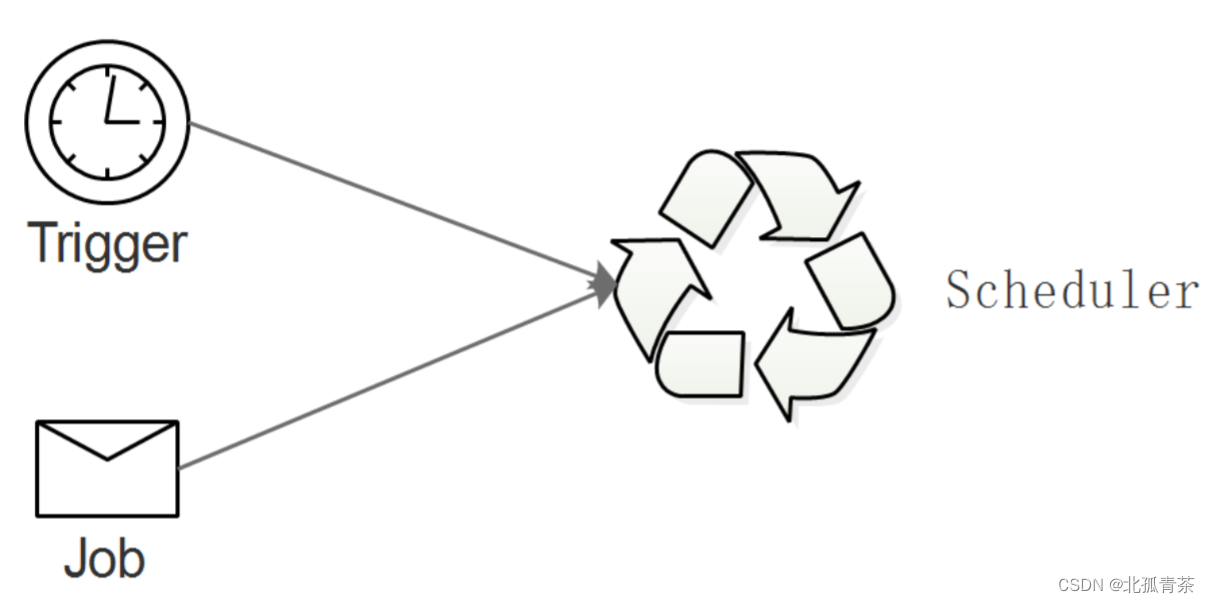

   Quartz 定时任务可分为Trigger（触发器）、Job（任务）和Scheduler（调度器），定时任务的逻辑大体为：创建触发器和任务，并将其加入到调度器中，如下图所示：

Trigger 有五种触发器：

        SimpleTrigger 触发器：需要在特定的日期/时间启动，且以指定的间隔时间（单位毫秒）重复执行 n 次任务，如 ：在 9:00 开始，每隔1小时，每隔几分钟，每隔几秒钟执行一次 。没办法指定每隔一个月执行一次（每月的时间间隔不是固定值）。
        CalendarIntervalTrigger 触发器：指定从某一个时间开始，以一定的时间间隔（单位有秒，分钟，小时，天，月，年，星期）执行的任务。
        DailyTimeIntervalTrigger 触发器：指定每天的某个时间段内，以一定的时间间隔执行任务。并且支持指定星期。如：指定每天 9:00 至 18:00 ，每隔 70 秒执行一次，并且只要周一至周五执行。
        CronTrigger 触发器：基于日历的任务调度器，即指定星期、日期的某时间执行任务。
        NthIncludedDayTrigger 触发器：不同时间间隔的第 n 天执行任务。比如，在每个月的第 15 日处理财务发票记帐，同样设定双休日或者假期。

引入quartz依赖

<!--定时器-->
<dependency>
	<groupId>org.springframework.boot</groupId>
	<artifactId>spring-boot-starter-quartz</artifactId>
</dependency>

TaskScheduler类：

import com.fasterxml.jackson.annotation.JsonFormat;
import lombok.Data;
import org.springframework.format.annotation.DateTimeFormat;
import java.util.Date;

@Data
public class TaskScheduler {

    private String jobName;

    private String jobGroupName;

    private String state;

    private String jobClass;

    private String intervalUnit;

    private String intervalUnitName;

    private Integer timeInterval;

    private String cronExpression;

    @DateTimeFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
    private Date startTime;

    @DateTimeFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss", timezone = "GMT+8")
    private Date endTime;

    private String description;
}

JobQuery类（查询用）：

import io.swagger.annotations.ApiModelProperty;
import lombok.Data;

@Data
public class JobQuery {

    @ApiModelProperty(value = "模糊查询任务描述")
    private String jobNameLike;

}

TaskSchedulerController类：

import com.example.demo.system.domain.Result;
import com.example.demo.system.job.JobQuery;
import com.example.demo.system.job.TaskScheduler;
import com.example.demo.system.service.ITaskSchedulerService;
import io.swagger.annotations.Api;
import org.springframework.web.bind.annotation.*;
import javax.annotation.Resource;
import java.util.List;


@RestController
@Api(value = "system/taskScheduler", tags = "定时任务")
@RequestMapping("taskScheduler")
public class TaskSchedulerController {

    @Resource
    private ITaskSchedulerService schedulerService;

    /**
     * 添加定时任务信息
     *
     * @param taskScheduler 定时任务信息
     * @return ReturnModel 添加定时任务
     */

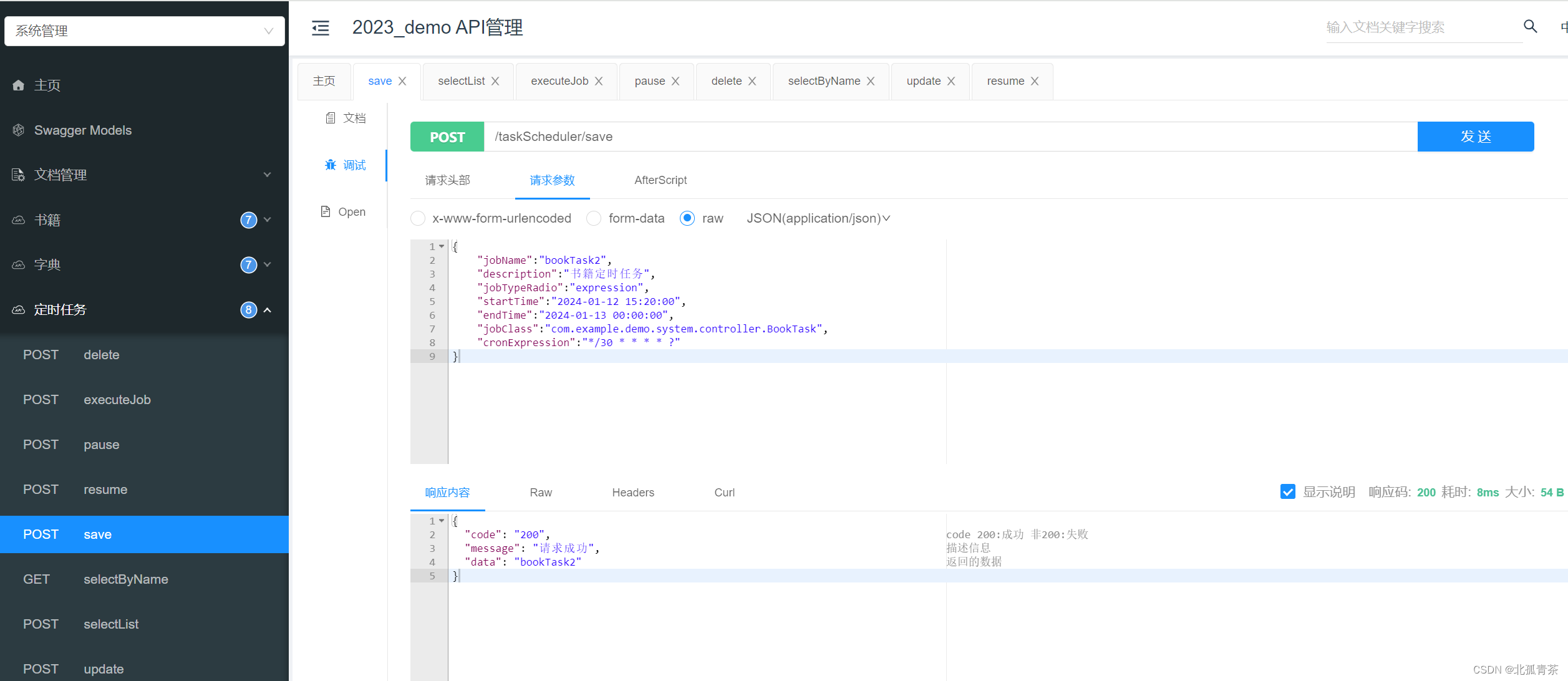

    @PostMapping(value = "save")
    public Result<String> save(@RequestBody TaskScheduler taskScheduler) {
//        {
//            "jobName":"bookTask2",
//                "description":"书籍定时任务",
//                "jobTypeRadio":"expression",
//                "startTime":"2024-01-12 15:20:00",
//                "endTime":"2024-01-13 00:00:00",
//                "jobClass":"com.example.demo.system.controller.BookTask",
//                "cronExpression":"*/30 * * * * ?"
//        }
        schedulerService.save(taskScheduler);
        return Result.success(taskScheduler.getJobName());
    }

    /**

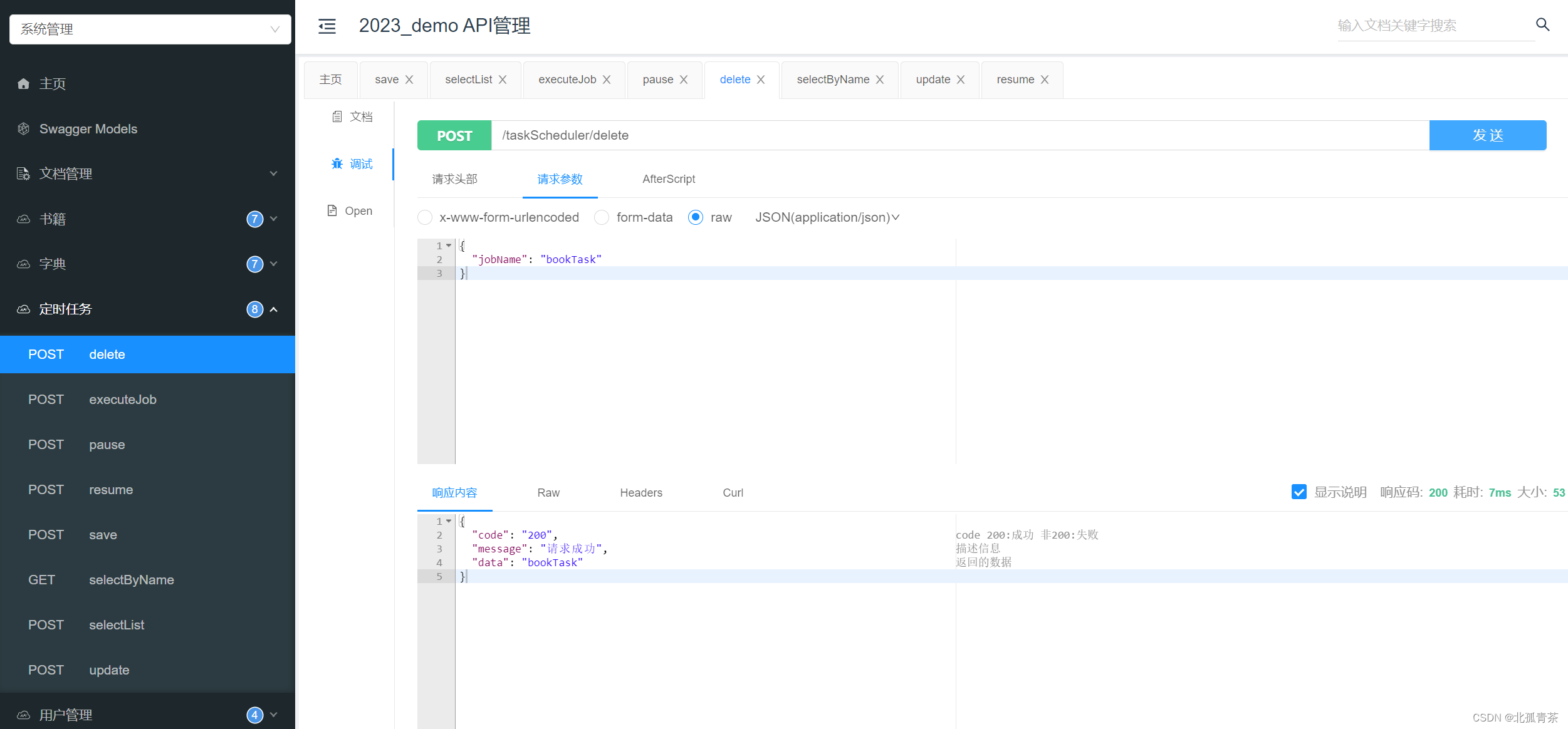

     * 移除定时任务
     *
     * @param taskScheduler 定时任务信息
     * @return ReturnModel 移除定时任务
     */
    @PostMapping(value = "/delete")
    public Result<String> delete(@RequestBody TaskScheduler taskScheduler) {
//        {
//            "jobName": "bookTask"
//        }
        schedulerService.delete(taskScheduler.getJobName());
        return Result.success(taskScheduler.getJobName());
    }

    /**

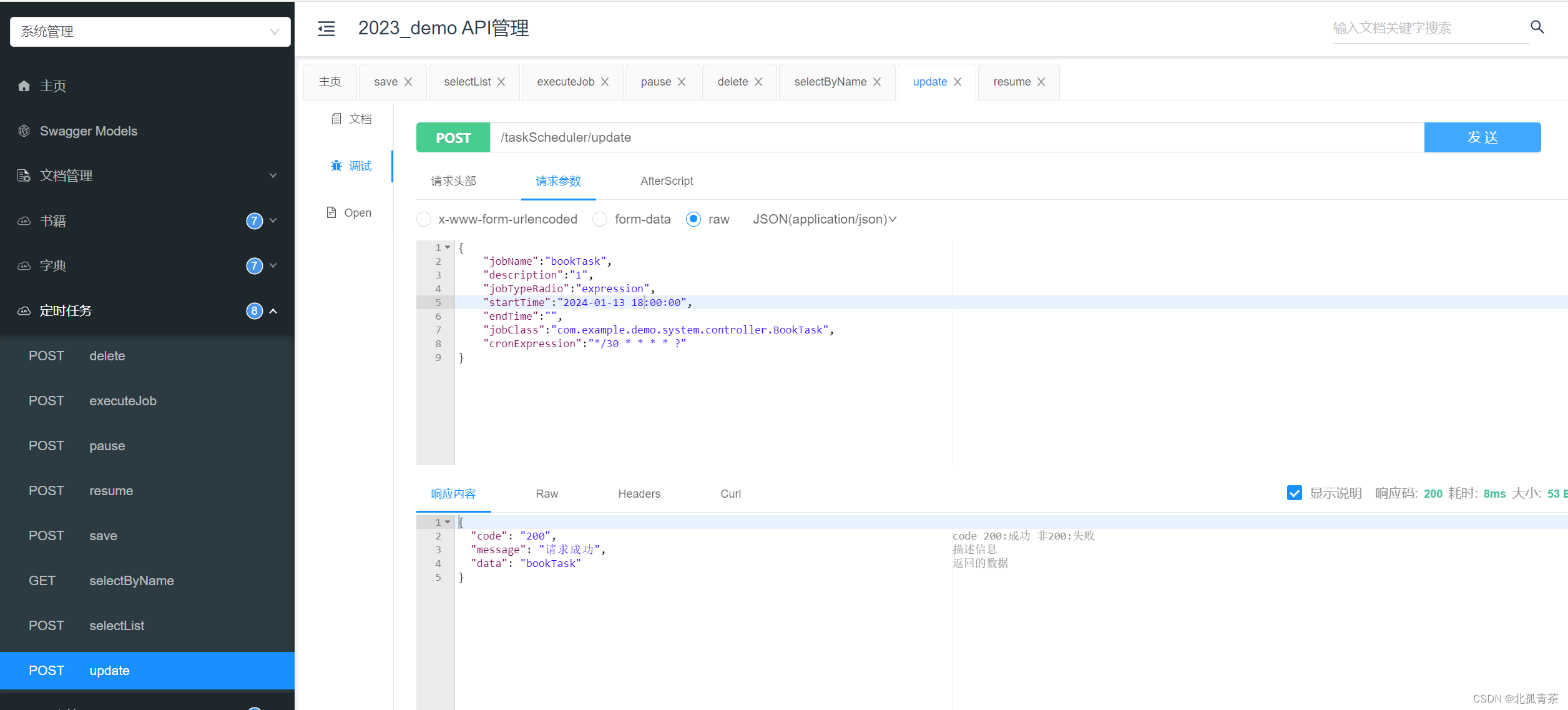

     * 修改定时任务
     *
     * @param taskScheduler 定时任务信息
     * @return ReturnModel 修改定时任务
     */
    @PostMapping(value = "update")
    public Result<String> update(@RequestBody TaskScheduler taskScheduler) {
//        {
//            "jobName":"bookTask",
//                "description":"1",
//                "jobTypeRadio":"expression",
//                "startTime":"2024-01-13 14:00:00",
//                "endTime":"",
//                "jobClass":"com.example.demo.system.controller.BookTask",
//                "cronExpression":"*/30 * * * * ?"
//        }
        schedulerService.update(taskScheduler);
        return Result.success(taskScheduler.getJobName());
    }

    /**

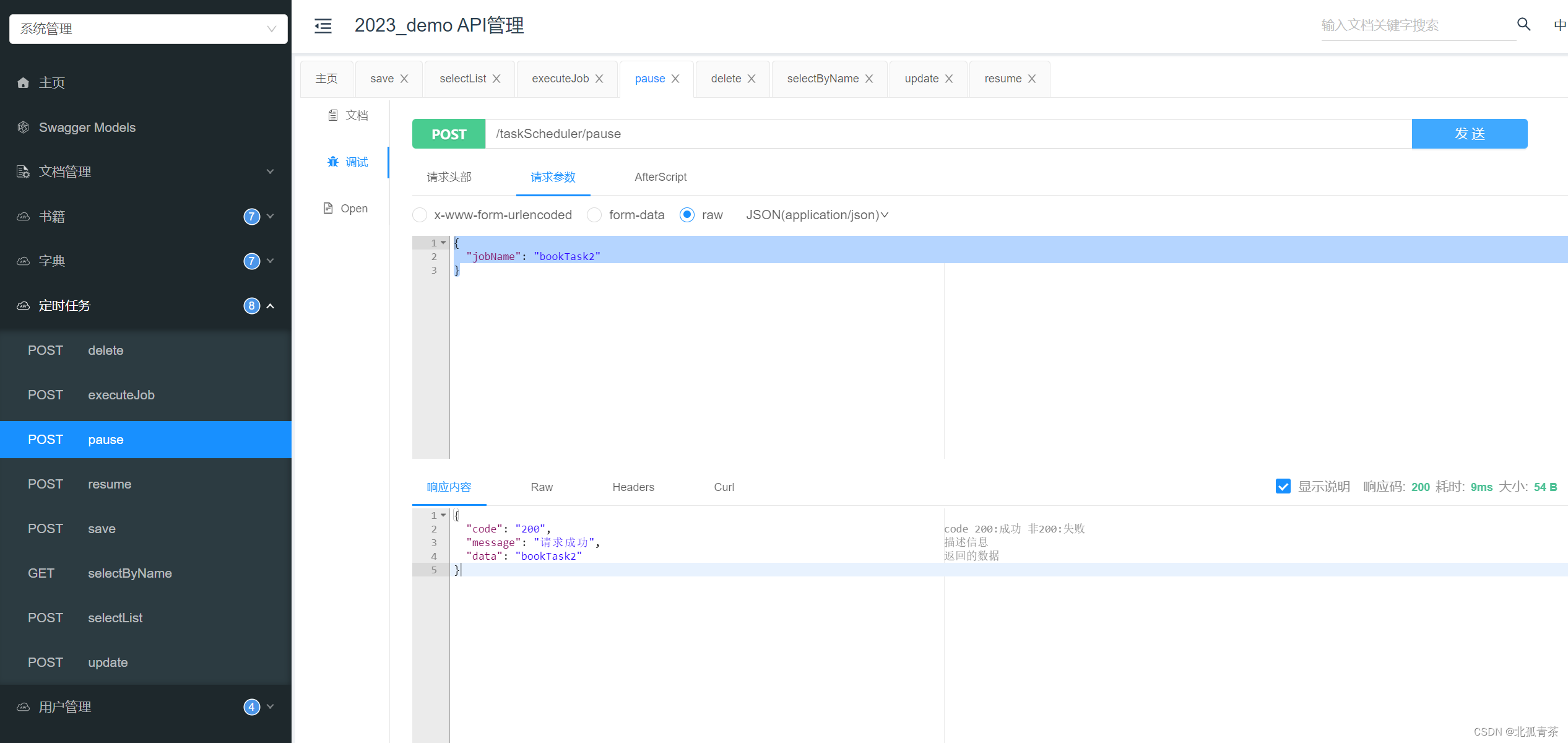

     * 暂停定时任务
     *
     * @param taskScheduler 定时任务名称
     * @return ReturnModel 暂停定时任务
     */
    @PostMapping(value = "pause")
    public Result<String> pause(@RequestBody TaskScheduler taskScheduler) {
//        {
//            "jobName": "bookTask2"
//        }
        schedulerService.pause(taskScheduler.getJobName());
        return Result.success(taskScheduler.getJobName());
    }

    /**

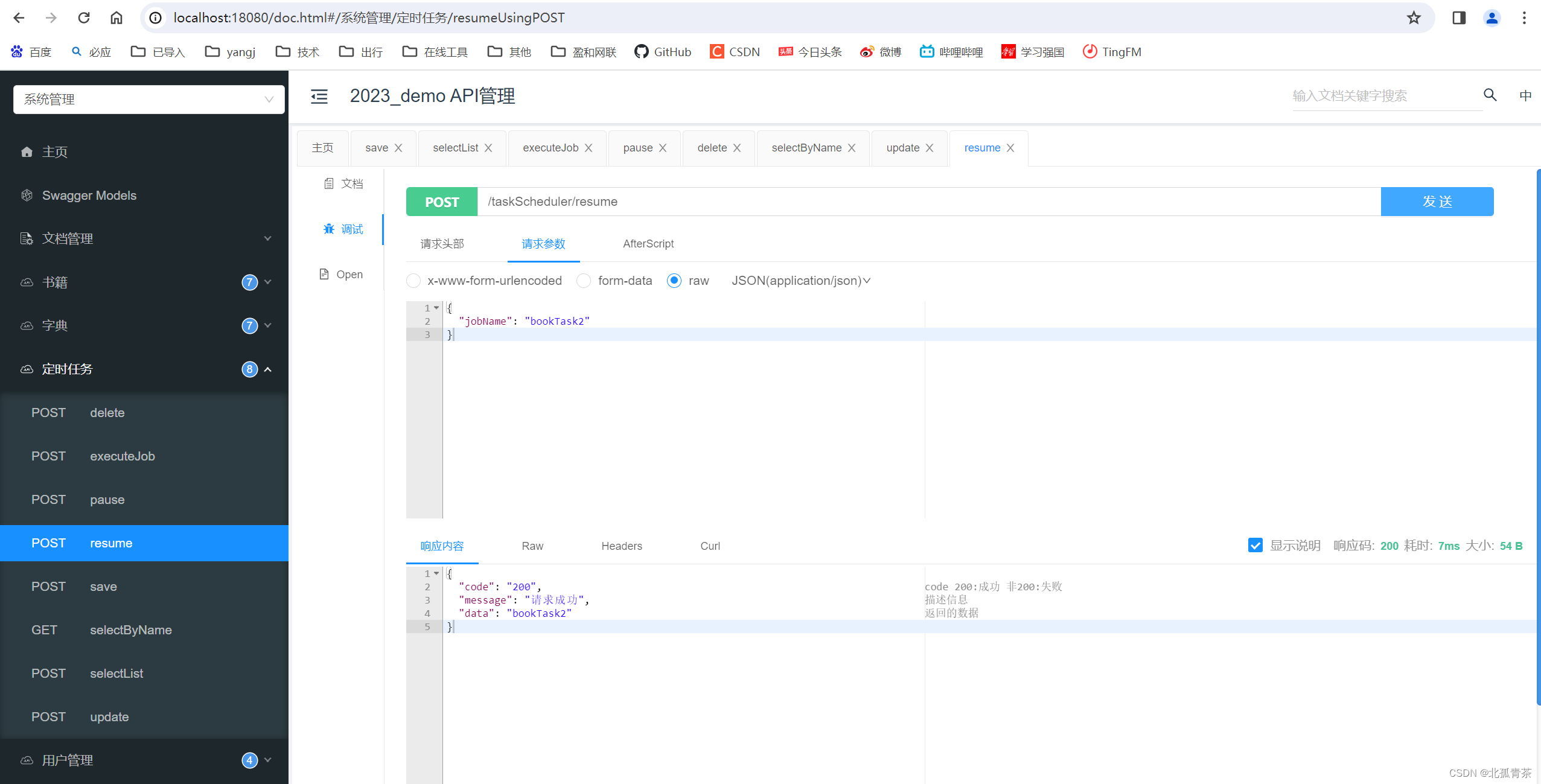

     * 恢复定时任务
     *
     * @param taskScheduler 定时任务名称
     * @return ReturnModel 恢复定时任务
     */
    @PostMapping(value = "resume")
    public Result<String> resume(@RequestBody TaskScheduler taskScheduler) {
//        {
//            "jobName": "bookTask2"
//        }
        schedulerService.resume(taskScheduler.getJobName());
        return Result.success(taskScheduler.getJobName());
    }

    /**

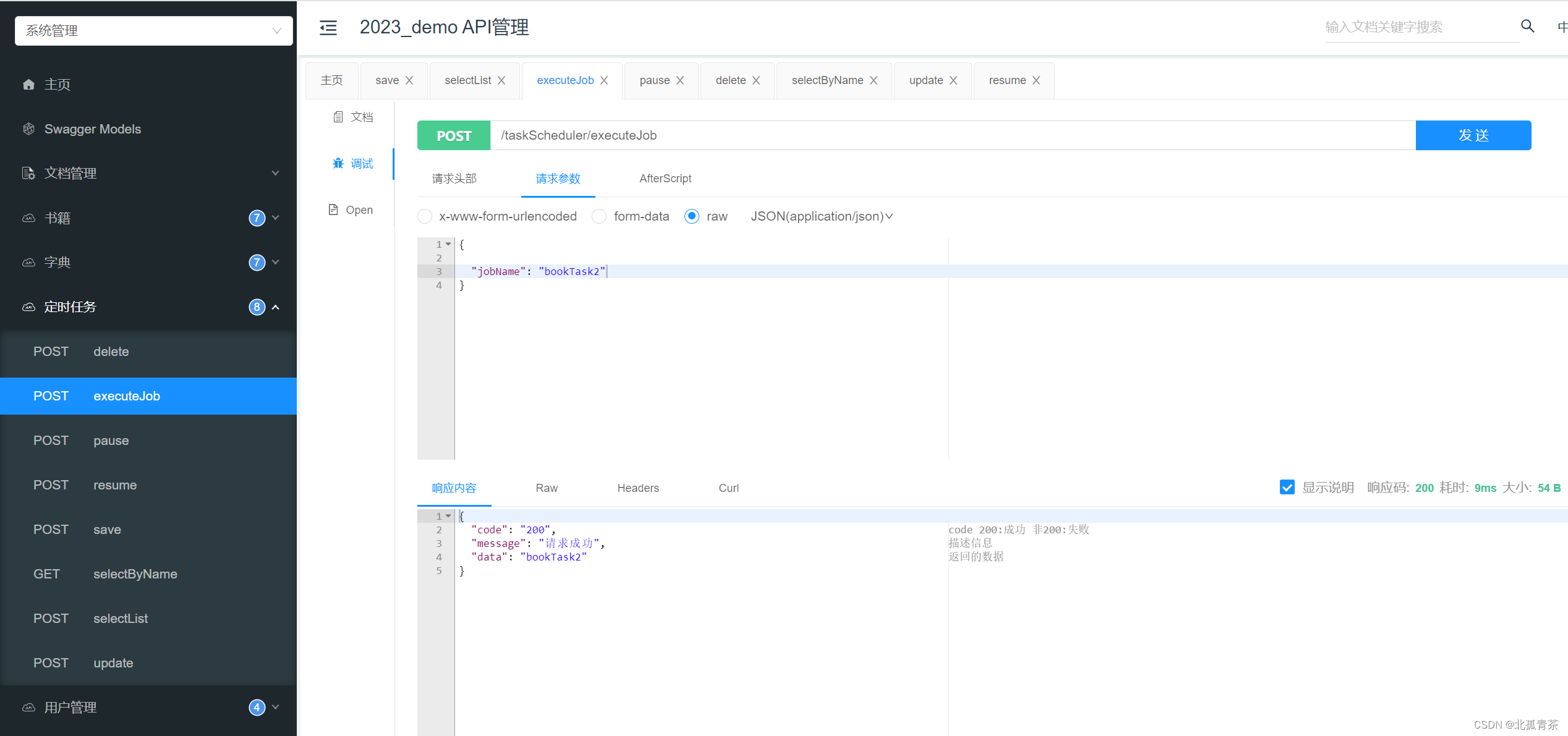

     * 执行定时任务
     *
     * @param taskScheduler 定时任务名称
     * @return ReturnModel 执行定时任务
     */
    @PostMapping(value = "executeJob")
    public Result<String> executeJob(@RequestBody TaskScheduler taskScheduler) {
//        {
//            "jobName": "bookTask2"
//        }
        schedulerService.executeJob(taskScheduler.getJobName());
        return Result.success(taskScheduler.getJobName());
    }

    /**

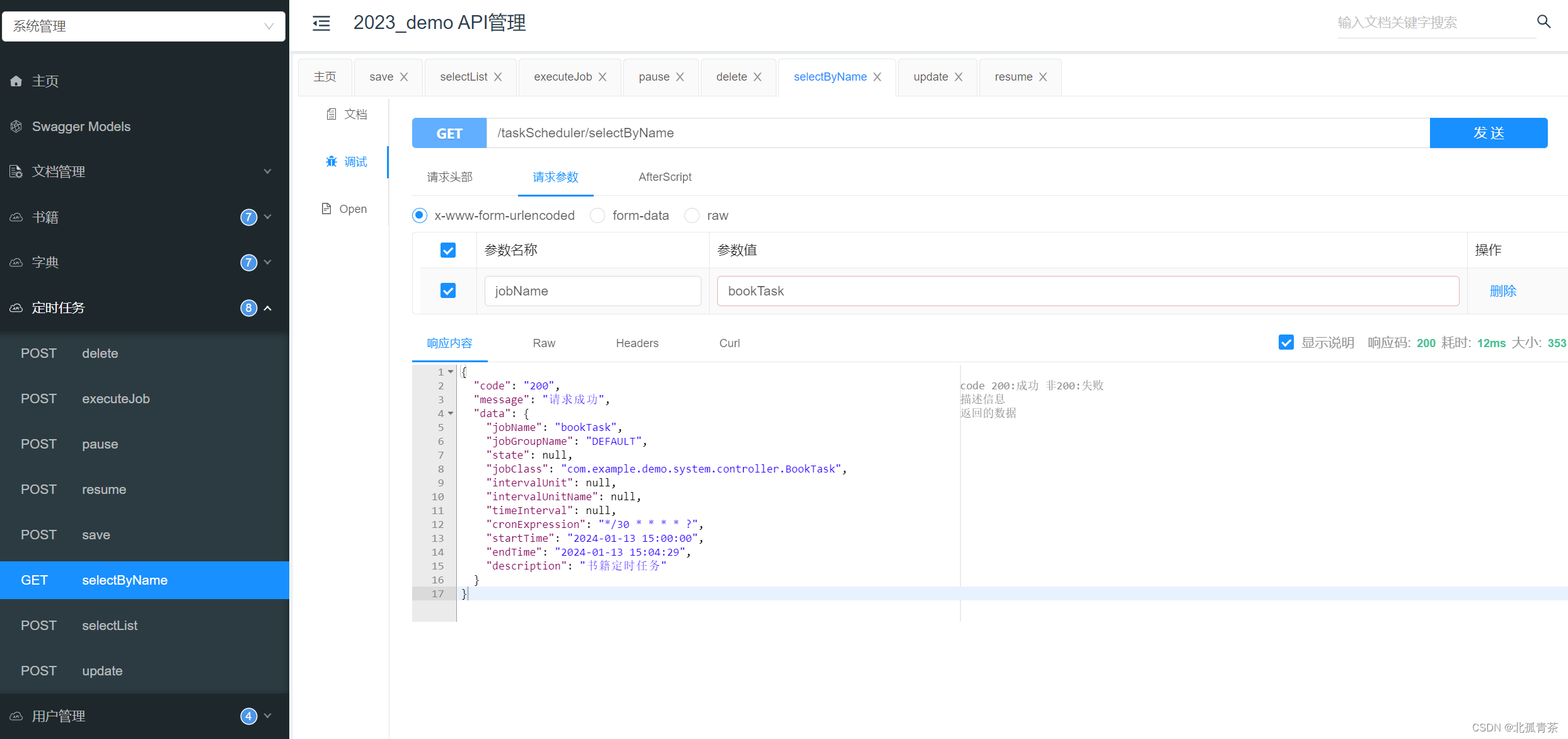

     * 查询单个定时任务信息
     *
     * @param jobName 任务名称
     * @return ReturnModel 查询单个定时任务信息
     */
    @GetMapping(value = "selectByName")
    public Result<TaskScheduler> selectByName(@RequestParam("jobName") String jobName) {
        TaskScheduler taskScheduler = schedulerService.selectByName(jobName);
        return Result.success(taskScheduler);
    }

    /**

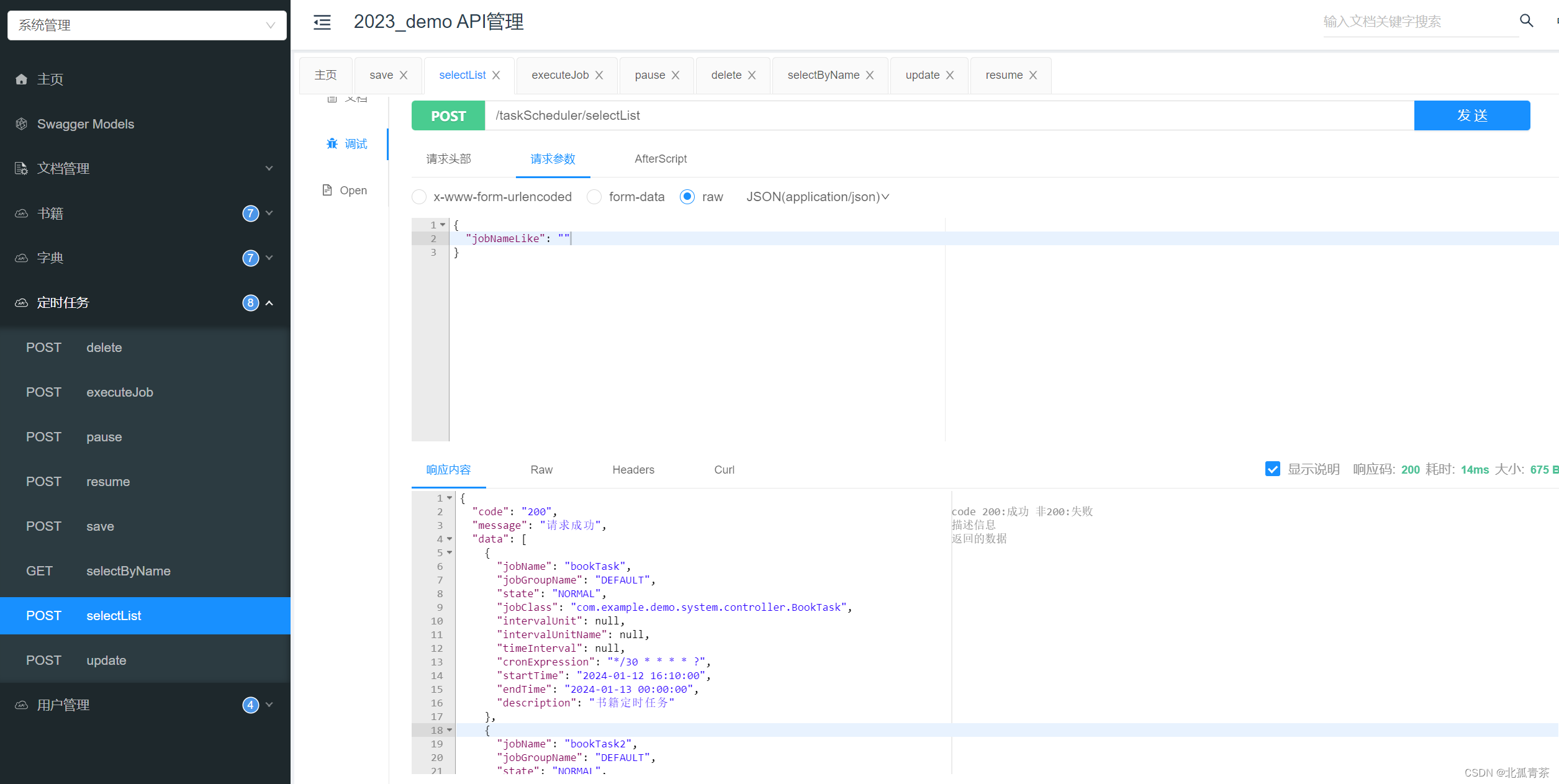

     * 查询定时任务列表
     *
     * @param jobQuery 查询条件
     * @return ReturnModel 查询定时任务列表
     */
    @PostMapping(value = "selectList")
    public Result<List<TaskScheduler>> selectList(@RequestBody JobQuery jobQuery) {
//        {
//            "jobNameLike": ""
//        }
        List<TaskScheduler> taskSchedulers = schedulerService.selectList(jobQuery);
        return Result.success(taskSchedulers);
    }
}

ITaskSchedulerService接口：

import com.example.demo.system.job.JobQuery;
import com.example.demo.system.job.TaskScheduler;
import java.util.List;

public interface ITaskSchedulerService {


    /**
     * 添加定时任务信息
     *
     * @param taskScheduler 定时任务信息
     */
    void save(TaskScheduler taskScheduler);

    /**
     * 移除定时任务--根据任务名称移除
     *
     * @param jobName 任务名
     */
    void delete(String jobName);

    /**
     * 移除定时任务
     *
     * @param groupName 组名
     * @param jobName   任务名
     */
    void delete(String jobName, String groupName);

    /**
     * 修改定时任务
     *
     * @param taskScheduler 任务信息
     */
    void update(TaskScheduler taskScheduler);

    /**
     * 添加任务
     *
     * @param jobName 任务名
     * @return 任务信息
     */
    TaskScheduler selectByName(String jobName);

    /**
     * 查询单个定时任务信息
     *
     * @param groupName 组名称
     * @param jobName   任务名称
     * @return 查询结果
     */
    TaskScheduler selectByName(String jobName, String groupName);


    /**
     * 查询定时任务列表
     *
     * @param jobQuery 查询条件
     * @return 查询结果
     */
    List<TaskScheduler> selectList(JobQuery jobQuery);

    /**
     * 暂停定时任务
     *
     * @param jobName 任务名
     */
    void pause(String jobName);

    /**
     * 暂停定时任务
     *
     * @param jobName   任务名
     * @param groupName 组名
     */
    void pause(String jobName, String groupName);

    /**
     * 恢复定时任务
     *
     * @param jobName 任务名
     */
    void resume(String jobName);

    /**
     * 恢复定时任务
     *
     * @param jobName   任务名
     * @param groupName 组名
     */
    void resume(String jobName, String groupName);

    /**
     * 执行定时任务
     *
     * @param jobName 任务名
     */
    void executeJob(String jobName);

    /**
     * 执行定时任务
     *
     * @param jobName   任务名
     * @param groupName 组名
     */
    void executeJob(String jobName, String groupName);
}

TaskSchedulerServiceImpl实现类：

import cn.hutool.core.collection.CollUtil;
import cn.hutool.core.util.StrUtil;
import com.example.demo.system.job.JobQuery;
import com.example.demo.system.job.TaskScheduler;
import com.example.demo.system.service.ITaskSchedulerService;
import lombok.SneakyThrows;
import lombok.extern.slf4j.Slf4j;
import org.quartz.*;
import org.quartz.impl.matchers.GroupMatcher;
import org.quartz.impl.triggers.CalendarIntervalTriggerImpl;
import org.quartz.impl.triggers.CronTriggerImpl;
import org.springframework.stereotype.Service;
import javax.annotation.Resource;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;
import java.util.Set;


@Service
@Slf4j
public class TaskSchedulerServiceImpl implements ITaskSchedulerService {


    @Resource
    private Scheduler scheduler;

    @Override
    @SneakyThrows
    public void save(TaskScheduler taskScheduler) {
        Class<? extends Job> jobClass = (Class<? extends Job>) Class.forName(taskScheduler.getJobClass());
        String jobName = taskScheduler.getJobName();
        String jobGroupName = StrUtil.isEmpty(taskScheduler.getJobGroupName()) ? Scheduler.DEFAULT_GROUP : taskScheduler.getJobGroupName();
        String triggerGroupName = StrUtil.isEmpty(taskScheduler.getJobGroupName()) ? Scheduler.DEFAULT_GROUP : taskScheduler.getJobGroupName();
        Date startTime = taskScheduler.getStartTime() == null ? new Date() : taskScheduler.getStartTime();
        Date endTime = taskScheduler.getEndTime();
        String description = StrUtil.isEmpty(taskScheduler.getDescription()) ? "" : taskScheduler.getDescription();

        JobDetail jobDetail = JobBuilder.newJob(jobClass).withIdentity(jobName, jobGroupName).withDescription(description).build();
        if (taskScheduler.getCronExpression() != null && taskScheduler.getCronExpression().length() > 0) {
            Trigger trigger = TriggerBuilder.newTrigger()
                    .withIdentity(jobName, triggerGroupName)
                    .startAt(startTime)
                    .endAt(endTime)
                    .withSchedule(CronScheduleBuilder.cronSchedule(taskScheduler.getCronExpression()).withMisfireHandlingInstructionDoNothing())
                    .build();
            scheduler.scheduleJob(jobDetail, trigger);
        } else {
            DateBuilder.IntervalUnit cycleUnit = DateBuilder.IntervalUnit.valueOf(taskScheduler.getIntervalUnit());
            Integer timeInterval = taskScheduler.getTimeInterval();
            Trigger trigger = TriggerBuilder.newTrigger()
                    .withIdentity(jobName, triggerGroupName)
                    .startAt(startTime)
                    .endAt(endTime)
                    .withSchedule(CalendarIntervalScheduleBuilder.calendarIntervalSchedule().withInterval(timeInterval, cycleUnit).withMisfireHandlingInstructionDoNothing())
                    .build();
            scheduler.scheduleJob(jobDetail, trigger);
        }
    }

    /**
     * 移除定时任务--根据任务名称移除
     */
    @Override
    public void delete(String jobName) {
        delete(jobName, Scheduler.DEFAULT_GROUP);
    }

    /**
     * 移除定时任务
     */
    @Override
    @SneakyThrows
    public void delete(String jobName, String groupName) {
        groupName = StrUtil.isEmpty(groupName) ? Scheduler.DEFAULT_GROUP : groupName;

        JobKey jobKey = new JobKey(jobName, groupName);
        TriggerKey triggerKey = new TriggerKey(jobName, groupName);
        scheduler.pauseTrigger(triggerKey);
        scheduler.pauseJob(jobKey);
        // 移除触发器
        scheduler.unscheduleJob(triggerKey);
        // 删除任务
        scheduler.deleteJob(jobKey);

    }

    /**
     * 修改定时任务
     */
    @Override
    @SneakyThrows
    public void update(TaskScheduler taskScheduler) {
        delete(taskScheduler.getJobName());
        save(taskScheduler);
    }

    /**
     * 查询单个定时任务
     */
    @Override
    @SneakyThrows
    public TaskScheduler selectByName(String jobName, String groupName) {
        groupName = StrUtil.isEmpty(groupName) ? Scheduler.DEFAULT_GROUP : groupName;
        TaskScheduler taskScheduler = new TaskScheduler();
        JobKey jobKey = new JobKey(jobName, groupName);
        JobDetail jobDetail = scheduler.getJobDetail(jobKey);
        taskScheduler.setJobName(jobName);
        taskScheduler.setJobGroupName(groupName);
        setJob(jobKey, taskScheduler, jobDetail);

        return taskScheduler;
    }

    /**
     * 查询单个定时任务
     */
    @Override
    public TaskScheduler selectByName(String jobName) {
        return selectByName(jobName, Scheduler.DEFAULT_GROUP);
    }

    /**
     * 查询定时任务列表
     */
    @Override
    @SneakyThrows
    public List<TaskScheduler> selectList(JobQuery jobQuery) {
        List<TaskScheduler> taskSchedulers = new ArrayList<>();
        GroupMatcher<JobKey> mathcher = GroupMatcher.anyJobGroup();
        String keyWord = jobQuery.getJobNameLike();
        Set<JobKey> jobKeys = scheduler.getJobKeys(mathcher);
        if (CollUtil.isEmpty(jobKeys)) {
            return new ArrayList<>();
        }
        for (JobKey jobKey : jobKeys) {
            if (StrUtil.isNotEmpty(keyWord) && !jobKey.getName().contains(keyWord)) {
                continue;
            }
            TaskScheduler taskScheduler = new TaskScheduler();
            JobDetail jobDetail = scheduler.getJobDetail(jobKey);
            taskScheduler.setJobName(jobKey.getName());
            taskScheduler.setJobGroupName(jobKey.getGroup());
            List<? extends Trigger> triggers = setJob(jobKey, taskScheduler, jobDetail);
            taskScheduler.setState(scheduler.getTriggerState(triggers.get(0).getKey()).name());
            taskSchedulers.add(taskScheduler);
        }
        return taskSchedulers;
    }

    private List<? extends Trigger> setJob(JobKey jobKey, TaskScheduler taskScheduler, JobDetail jobDetail) throws SchedulerException {
        taskScheduler.setJobClass(jobDetail.getJobClass().getName());
        taskScheduler.setDescription(jobDetail.getDescription());
        List<? extends Trigger> triggers = scheduler.getTriggersOfJob(jobKey);
        Trigger trigger = triggers.get(0);
        taskScheduler.setStartTime(trigger.getStartTime());
        taskScheduler.setEndTime(trigger.getEndTime());
        if (trigger.getClass().equals(CronTriggerImpl.class)) {
            CronTriggerImpl cronTriggerImpl = (CronTriggerImpl) trigger;
            taskScheduler.setCronExpression(cronTriggerImpl.getCronExpression());
        }
        if (trigger.getClass().equals(CalendarIntervalTriggerImpl.class)) {
            CalendarIntervalTriggerImpl calendarIntervalTriggerImpl = (CalendarIntervalTriggerImpl) trigger;
            taskScheduler.setIntervalUnit(calendarIntervalTriggerImpl.getRepeatIntervalUnit().toString());
            taskScheduler.setTimeInterval(calendarIntervalTriggerImpl.getRepeatInterval());
        }
        return triggers;
    }

    /**
     * 暂停定时任务
     */
    @Override
    public void pause(String jobName) {
        pause(jobName, Scheduler.DEFAULT_GROUP);
    }

    /**
     * 暂停定时任务
     */
    @Override
    @SneakyThrows
    public void pause(String jobName, String groupName) {
        groupName = StrUtil.isEmpty(groupName) ? Scheduler.DEFAULT_GROUP : groupName;
        TriggerKey triggerKey = new TriggerKey(jobName, groupName);
        scheduler.pauseTrigger(triggerKey);
        JobKey jobKey = new JobKey(jobName);
        scheduler.pauseJob(jobKey);

    }

    /**
     * 恢复定时任务
     */
    @Override
    public void resume(String jobName) {
        resume(jobName, Scheduler.DEFAULT_GROUP);
    }

    /**
     * 恢复定时任务
     */
    @Override
    @SneakyThrows
    public void resume(String jobName, String groupName) {
        groupName = StrUtil.isEmpty(groupName) ? Scheduler.DEFAULT_GROUP : groupName;

        TriggerKey triggerKey = new TriggerKey(jobName, groupName);
        scheduler.resumeTrigger(triggerKey);
        JobKey jobKey = new JobKey(jobName);
        scheduler.resumeJob(jobKey);

    }

    /**
     * 执行定时任务
     */
    @Override
    public void executeJob(String jobName) {
        executeJob(jobName, Scheduler.DEFAULT_GROUP);
    }

    /**
     * 执行定时任务
     */
    @Override
    @SneakyThrows
    public void executeJob(String jobName, String groupName) {
        groupName = StrUtil.isEmpty(groupName) ? Scheduler.DEFAULT_GROUP : groupName;
        JobKey jobKey = new JobKey(jobName, groupName);
        scheduler.triggerJob(jobKey);
    }
}

定时任务业务逻辑类BookTask:

import cn.hutool.core.date.DateUtil;
import lombok.extern.slf4j.Slf4j;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.springframework.scheduling.quartz.QuartzJobBean;


@Slf4j
public class BookTask extends QuartzJobBean {

    @Override
    protected void executeInternal(JobExecutionContext context) throws JobExecutionException {
        log.info("book定时任务-开始执行:{}", DateUtil.date().toString("yyyy-MM-dd HH:mm:ss"));
        try {
            Thread.sleep(3000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        log.info("book定时任务-执行结束:{}", DateUtil.date().toString("yyyy-MM-dd HH:mm:ss"));

    }
}

以上动态配置定时任务需要的东西准备完毕，下一步就是配置

在此用swaggger来做测试

1、保存定时任务，我在此保存了两次  bookTask和bookTask2

注意：如果传了开始时间-startTime和结束时间-endTime，开始时间一定要小于结束时间，且开始时间要是一个未来时间，否则永远不会生效，也可以只传开始时间不传结束时间。

2、看看列表

3、查看具体信息

4、更新定时任务：

5、删除定时任务

6、执行一次定时任务

7、暂停定时任务

8、恢复定时任务

9、持久化：在配置文件中加上该配置并新建数据表即可，重启项目后，配置的定时任务还在

        never：从不进行初始化，也就是不清空数据库

        always：每次都清空数据库进行初始化

        embedded：只初始化内存数据库（默认值）

spring:
  quartz:
    job-store-type: jdbc
    jdbc:
      initialize-schema: never

DROP TABLE IF EXISTS QRTZ_FIRED_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_PAUSED_TRIGGER_GRPS;
DROP TABLE IF EXISTS QRTZ_SCHEDULER_STATE;
DROP TABLE IF EXISTS QRTZ_LOCKS;
DROP TABLE IF EXISTS QRTZ_SIMPLE_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_SIMPROP_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_CRON_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_BLOB_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_TRIGGERS;
DROP TABLE IF EXISTS QRTZ_JOB_DETAILS;
DROP TABLE IF EXISTS QRTZ_CALENDARS;

CREATE TABLE QRTZ_JOB_DETAILS(
SCHED_NAME VARCHAR(120) NOT NULL,
JOB_NAME VARCHAR(200) NOT NULL,
JOB_GROUP VARCHAR(200) NOT NULL,
DESCRIPTION VARCHAR(250) NULL,
JOB_CLASS_NAME VARCHAR(250) NOT NULL,
IS_DURABLE VARCHAR(1) NOT NULL,
IS_NONCONCURRENT VARCHAR(1) NOT NULL,
IS_UPDATE_DATA VARCHAR(1) NOT NULL,
REQUESTS_RECOVERY VARCHAR(1) NOT NULL,
JOB_DATA BLOB NULL,
PRIMARY KEY (SCHED_NAME,JOB_NAME,JOB_GROUP))
ENGINE=InnoDB;

CREATE TABLE QRTZ_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
JOB_NAME VARCHAR(200) NOT NULL,
JOB_GROUP VARCHAR(200) NOT NULL,
DESCRIPTION VARCHAR(250) NULL,
NEXT_FIRE_TIME BIGINT(13) NULL,
PREV_FIRE_TIME BIGINT(13) NULL,
PRIORITY INTEGER NULL,
TRIGGER_STATE VARCHAR(16) NOT NULL,
TRIGGER_TYPE VARCHAR(8) NOT NULL,
START_TIME BIGINT(13) NOT NULL,
END_TIME BIGINT(13) NULL,
CALENDAR_NAME VARCHAR(200) NULL,
MISFIRE_INSTR SMALLINT(2) NULL,
JOB_DATA BLOB NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,JOB_NAME,JOB_GROUP)
REFERENCES QRTZ_JOB_DETAILS(SCHED_NAME,JOB_NAME,JOB_GROUP))
ENGINE=InnoDB;

CREATE TABLE QRTZ_SIMPLE_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
REPEAT_COUNT BIGINT(7) NOT NULL,
REPEAT_INTERVAL BIGINT(12) NOT NULL,
TIMES_TRIGGERED BIGINT(10) NOT NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
ENGINE=InnoDB;

CREATE TABLE QRTZ_CRON_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
CRON_EXPRESSION VARCHAR(120) NOT NULL,
TIME_ZONE_ID VARCHAR(80),
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
ENGINE=InnoDB;

CREATE TABLE QRTZ_SIMPROP_TRIGGERS
  (
    SCHED_NAME VARCHAR(120) NOT NULL,
    TRIGGER_NAME VARCHAR(200) NOT NULL,
    TRIGGER_GROUP VARCHAR(200) NOT NULL,
    STR_PROP_1 VARCHAR(512) NULL,
    STR_PROP_2 VARCHAR(512) NULL,
    STR_PROP_3 VARCHAR(512) NULL,
    INT_PROP_1 INT NULL,
    INT_PROP_2 INT NULL,
    LONG_PROP_1 BIGINT NULL,
    LONG_PROP_2 BIGINT NULL,
    DEC_PROP_1 NUMERIC(13,4) NULL,
    DEC_PROP_2 NUMERIC(13,4) NULL,
    BOOL_PROP_1 VARCHAR(1) NULL,
    BOOL_PROP_2 VARCHAR(1) NULL,
    PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
    FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
    REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
ENGINE=InnoDB;

CREATE TABLE QRTZ_BLOB_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
BLOB_DATA BLOB NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
INDEX (SCHED_NAME,TRIGGER_NAME, TRIGGER_GROUP),
FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
ENGINE=InnoDB;

CREATE TABLE QRTZ_CALENDARS (
SCHED_NAME VARCHAR(120) NOT NULL,
CALENDAR_NAME VARCHAR(200) NOT NULL,
CALENDAR BLOB NOT NULL,
PRIMARY KEY (SCHED_NAME,CALENDAR_NAME))
ENGINE=InnoDB;

CREATE TABLE QRTZ_PAUSED_TRIGGER_GRPS (
SCHED_NAME VARCHAR(120) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
PRIMARY KEY (SCHED_NAME,TRIGGER_GROUP))
ENGINE=InnoDB;

CREATE TABLE QRTZ_FIRED_TRIGGERS (
SCHED_NAME VARCHAR(120) NOT NULL,
ENTRY_ID VARCHAR(95) NOT NULL,
TRIGGER_NAME VARCHAR(200) NOT NULL,
TRIGGER_GROUP VARCHAR(200) NOT NULL,
INSTANCE_NAME VARCHAR(200) NOT NULL,
FIRED_TIME BIGINT(13) NOT NULL,
SCHED_TIME BIGINT(13) NOT NULL,
PRIORITY INTEGER NOT NULL,
STATE VARCHAR(16) NOT NULL,
JOB_NAME VARCHAR(200) NULL,
JOB_GROUP VARCHAR(200) NULL,
IS_NONCONCURRENT VARCHAR(1) NULL,
REQUESTS_RECOVERY VARCHAR(1) NULL,
PRIMARY KEY (SCHED_NAME,ENTRY_ID))
ENGINE=InnoDB;

CREATE TABLE QRTZ_SCHEDULER_STATE (
SCHED_NAME VARCHAR(120) NOT NULL,
INSTANCE_NAME VARCHAR(200) NOT NULL,
LAST_CHECKIN_TIME BIGINT(13) NOT NULL,
CHECKIN_INTERVAL BIGINT(13) NOT NULL,
PRIMARY KEY (SCHED_NAME,INSTANCE_NAME))
ENGINE=InnoDB;

CREATE TABLE QRTZ_LOCKS (
SCHED_NAME VARCHAR(120) NOT NULL,
LOCK_NAME VARCHAR(40) NOT NULL,
PRIMARY KEY (SCHED_NAME,LOCK_NAME))
ENGINE=InnoDB;

CREATE INDEX IDX_QRTZ_J_REQ_RECOVERY ON QRTZ_JOB_DETAILS(SCHED_NAME,REQUESTS_RECOVERY);
CREATE INDEX IDX_QRTZ_J_GRP ON QRTZ_JOB_DETAILS(SCHED_NAME,JOB_GROUP);

CREATE INDEX IDX_QRTZ_T_J ON QRTZ_TRIGGERS(SCHED_NAME,JOB_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_T_JG ON QRTZ_TRIGGERS(SCHED_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_T_C ON QRTZ_TRIGGERS(SCHED_NAME,CALENDAR_NAME);
CREATE INDEX IDX_QRTZ_T_G ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_GROUP);
CREATE INDEX IDX_QRTZ_T_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_N_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_N_G_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_GROUP,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_NEXT_FIRE_TIME ON QRTZ_TRIGGERS(SCHED_NAME,NEXT_FIRE_TIME);
CREATE INDEX IDX_QRTZ_T_NFT_ST ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_STATE,NEXT_FIRE_TIME);
CREATE INDEX IDX_QRTZ_T_NFT_MISFIRE ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME);
CREATE INDEX IDX_QRTZ_T_NFT_ST_MISFIRE ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_NFT_ST_MISFIRE_GRP ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_GROUP,TRIGGER_STATE);

CREATE INDEX IDX_QRTZ_FT_TRIG_INST_NAME ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,INSTANCE_NAME);
CREATE INDEX IDX_QRTZ_FT_INST_JOB_REQ_RCVRY ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,INSTANCE_NAME,REQUESTS_RECOVERY);
CREATE INDEX IDX_QRTZ_FT_J_G ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,JOB_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_FT_JG ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_FT_T_G ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP);
CREATE INDEX IDX_QRTZ_FT_TG ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,TRIGGER_GROUP);

commit;

注意：如果有其他业务逻辑 ，需要在对应的方法里加业务代码
