配置H3C设备无线AP多vlan步骤

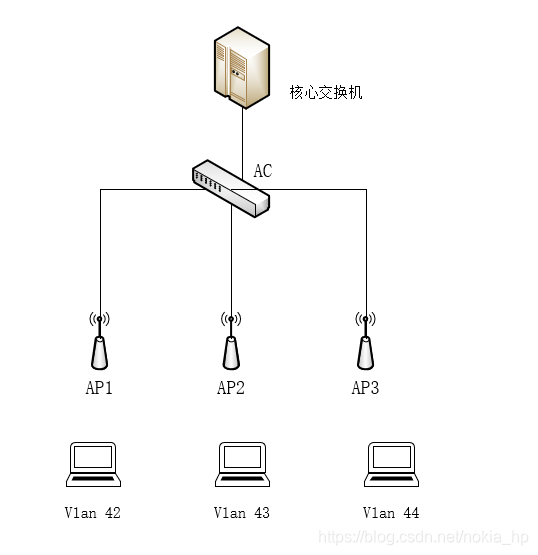

  组网要求：AC为核心交换机中的板卡，双方通过内部端口互联。AP通过POE交换机连接。现在要求无线客户端通过连接AP可以获得不同的Vlan。其中vlan 31是用于AP，42-44是客户端使用，100是核心交换机的管理地址（192.168.100.1）

一、核心交换机主要配置（192.168.100.1)

interface Vlan-interface42
ip address 192.168.42.1 255.255.255.0

interface Vlan-interface43
ip address 192.168.43.1 255.255.255.0

interface Vlan-interface44
ip address 192.168.44.1 255.255.255.0

//配置DHCP服务，使Client端自动获取IP地址

dhcp server ip-pool vlan42

gateway-list 192.168.40.1

network 192.168.40.0 mask 255.255.255.0

dns-list 114.114.114.114



dhcp server ip-pool vlan43

gateway-list 192.168.43.1

network 192.168.43.0 mask 255.255.255.0

dns-list 114.114.114.114



dhcp server ip-pool vlan44

gateway-list 192.168.44.1

network 192.168.44.0 mask 255.255.255.0

dns-list 114.114.114.114

//配置vlan 31，使AP自动获取IP地址。（备注：在AC上配置vlan31的DHCP）

interface Vlan-interface31

ip address dhcp-alloc



//配置静态路由指向AC管理地址

ip route-static 192.168.31.0 24 192.168.100.5



//针对与AC直接互联的2个端口做端口聚合。

interface Bridge-Aggregation1

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 2 to 4094



interface Ten-GigabitEthernet2/0/1

port link-mode bridge

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 2 to 4094

port link-aggregation group 1



interface Ten-GigabitEthernet2/0/2

port link-mode bridge

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 2 to 4094

port link-aggregation group 1

二、AC上配置(192.168.100.5)

备注：vlan 31是AP获取的本身地址，vlan 42-44是客户端获取的IP地址，vlan 46是WLAN-ESS4的缺省地址，vlan 100是核心交换机的管理地址。

//配置AP获取的IP地址

Vlan 31

interface Vlan-interface31

ip address 192.168.31.1 255.255.255.0

dhcp server ip-pool vlan31

network 192.168.31.0 mask 255.255.255.0

gateway-list 192.168.31.1

//配置无线获取的vlan地址池

wlan vlan-pool  ceshi

vlan-id 42 to 44



interface WLAN-ESS1

 port link-type hybrid

 undo port hybrid vlan 1

 port hybrid vlan 46 untagged

 port hybrid pvid vlan 46

 mac-vlan enable                                                      //允许同一SSID中不同vlan用户漫游

 port-security port-mode psk                                     //创建秘钥

 port-security tx-key-type 11key                               //使能11key类型的密钥协商功能

 port-security preshared-key pass-phrase  simple  ceshi     //无线密码：ceshi



wlan service-template 1 crypto                                // 配置服务模板为crypto类型(无线服务模板为加密方式)

ssid  ceshi                                                               //无线名称：ceshi

bind WLAN-ESS 1                                                // 将WLAN-ESS1接口绑定到服务模板

cipher-suite ccmp                                                   //启用ccmp加密套件

security-ie rsn                                                        //启用rsn加密套件

service-template enable                                        //开启服务模版，需要最后使用



//针对与核心交换机直接互联的2个端口做了端口聚合。

interface Bridge-Aggregation1

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan  31 42 to 44 46 100



interface Ten-GigabitEthernet1/0/1

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 31 42 to 44 46 100

port link-aggregation group 1



interface Ten-GigabitEthernet1/0/2

port link-type trunk

undo port trunk permit vlan 1

port trunk permit vlan 31 42 to 44 46 100

port link-aggregation group 1



//配置一个AP

wlan ap ceshi  model  xxxxxxxxxxx      //添加型号

serial-id  xxxxxxxxxxxxxxxxxxxx      //输入序列号

radio 1

channel 149

service-template 1 vlan-pool ceshi

radio enable

radio 2

channel 11

service-template 1 vlan-pool ceshi

radio enable
