Sentinel-DashBoard持久化到Apollo

    公司在对限流熔断技术选型的时候选择了Sentinel，关于Sentinel的介绍这里就不多说了。实际用法的话也不多说了，无非就是本地配置规则、使用Sentinel的DataSource来获取外部的持久化的配置、使用DashBoard来配置。

    我这边选择的方式是使用DashBoard，但是DashBoard有个问题就是规则只能保存到内存。其实问题也不大，毕竟用的时候配置一下就行，系统也不可能天天双十一吧，而且DashBoard也不可能一直重启吧。但是我还是做了DashBoard配置持久化到Apollo的操作，话不多说，开始代码吧。

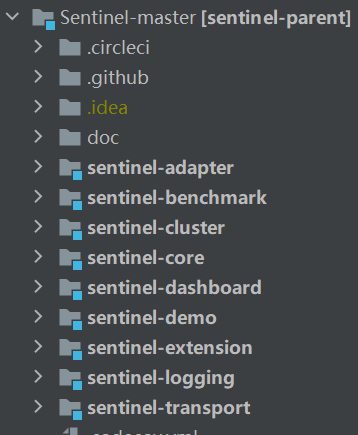

    第一步，当然是拉取源码，项目目录层级如下：

    很明显，我们要改得源码在sentinel-dashboard里面。那知道要改哪个模块以后，要怎么入手呢？其实Sentinel的开发人员很贴心，已经在test里面帮我们写了流控持久化到Apollo的测试类，如下：



    可以看到里面还有nacos和zk的例子。这里提供了4个类，通过类名我们也能够猜出来是做什么的。ApolloConfig，代码如下：

@Configuration
public class ApolloConfig {

    @Bean
    public Converter<List<FlowRuleEntity>, String> flowRuleEntityEncoder() {
        return JSON::toJSONString;
    }

    @Bean
    public Converter<String, List<FlowRuleEntity>> flowRuleEntityDecoder() {
        return s -> JSON.parseArray(s, FlowRuleEntity.class);
    }

    @Bean
    public ApolloOpenApiClient apolloOpenApiClient() {
        ApolloOpenApiClient client = ApolloOpenApiClient.newBuilder()
            .withPortalUrl("http://localhost:10034")
            .withToken("token")
            .build();
        return client;

    }
}

• flowRuleEntityEncoder()，flowRuleEntityDecoder()方法是流控规则和Apollo配置的value的互相转换

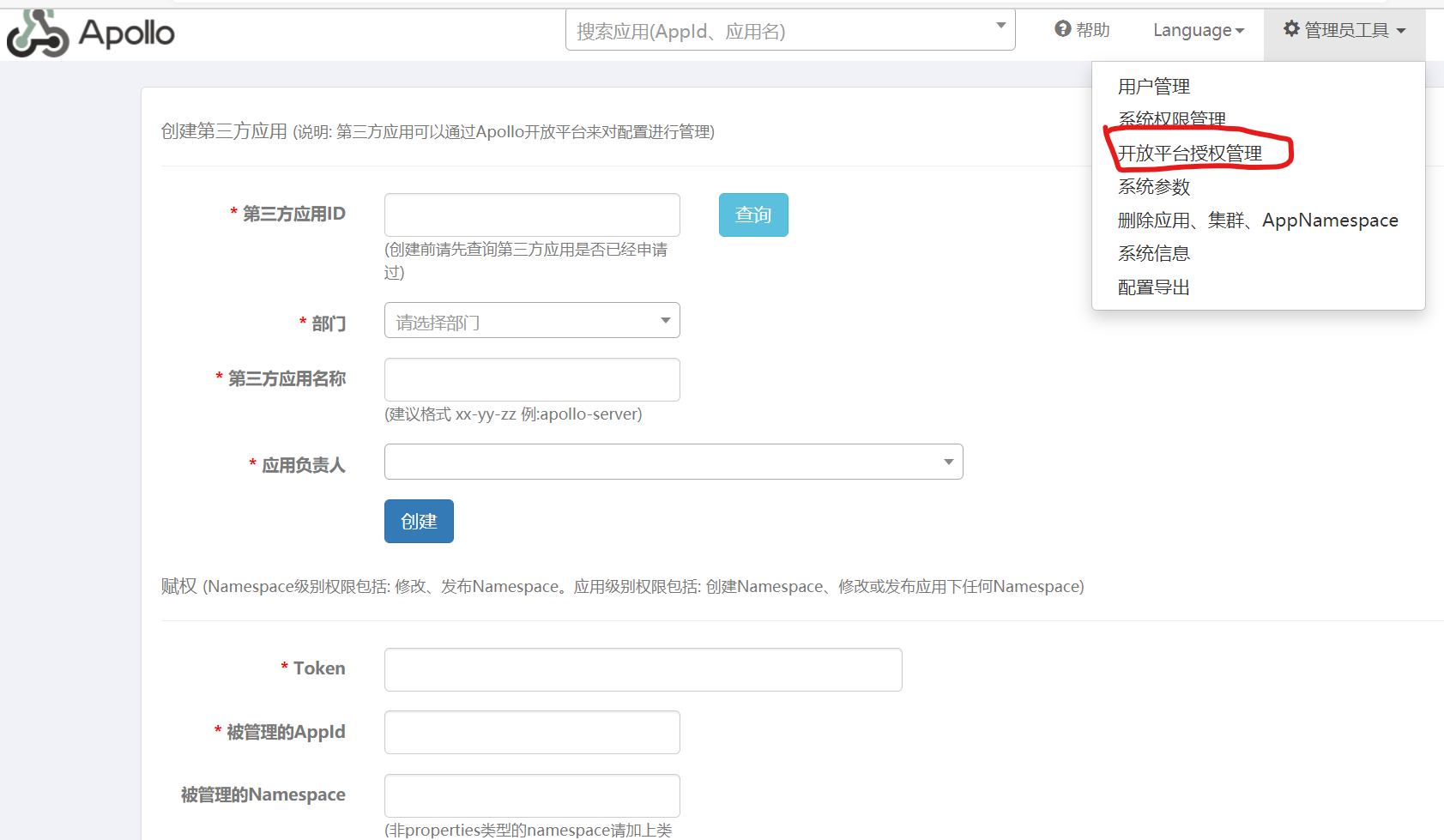

• apolloOpenApiClient()方法是实例化ApolloOpenApiClient，那这里又涉及到了Apollo的portal的url和token，这个可以直接通过Apollo生成，如下：

    生成好token后，直接放入自己Apollo的portal的url和token就ok了。

    那到这里，其实我们也可以自己写ApolloConfig了，先说一下我放置的目录，如下：

     那一般我们用到的就流控、熔断，Sentinel还有个热点，那就加这三个吧，具体自定义ApolloConfig，如下：

@Configuration
public class ApolloConfig {

    @Bean
    public Converter<List<FlowRuleEntity>, String> flowRuleEntityEncoder() {
        return JSON::toJSONString;
    }

    @Bean
    public Converter<String, List<FlowRuleEntity>> flowRuleEntityDecoder() {
        return s -> JSON.parseArray(s, FlowRuleEntity.class);
    }

    @Bean
    public Converter<List<DegradeRuleEntity>, String> degradeRuleEntityEncoder() {
        return JSON::toJSONString;
    }

    @Bean
    public Converter<String, List<DegradeRuleEntity>> degradeRuleEntityDecoder() {
        return s -> JSON.parseArray(s, DegradeRuleEntity.class);
    }

    @Bean
    public Converter<List<ParamFlowRuleEntity>, String> paramFlowRuleEntityEncoder() {
        return JSON::toJSONString;
    }

    @Bean
    public Converter<String, List<ParamFlowRuleEntity>> paramFlowRuleEntityDecoder() {
        return s -> JSON.parseArray(s, ParamFlowRuleEntity.class);
    }

    @Bean
    public ApolloOpenApiClient apolloOpenApiClient() {
        ApolloOpenApiClient client = ApolloOpenApiClient.newBuilder()
            .withPortalUrl("http://localhost:8070/")
            .withToken("9b8746ac285adb0128916c3eb9e93c88c58b515f")
            .build();
        return client;

    }
}

    自定义的ApolloConfig只是增加了转换类和自己的portalurl和token。

    接下去再看下test中的ApolloConfigUtil类，如下：

public final class ApolloConfigUtil {

    public static final String FLOW_DATA_ID_POSTFIX = "-flow-rules";

    private ApolloConfigUtil() {
    }

    public static String getFlowDataId(String appName) {
        return String.format("%s%s", appName, FLOW_DATA_ID_POSTFIX);
    }
}

    简单明了，就是配置到Apollo的key的名称，这个简单，自定义的ApolloConfigUtil，如下：

public final class ApolloConfigUtil {

    public static final String FLOW_DATA_ID_POSTFIX = "-flow-rules";

    public static final String DEGRADE_DATA_TO_POSTFIX = "-degrade-rules";

    public static final String PARAM_FLOW_DATA_TO_POSTFIX = "-param-flow-rules";

    private ApolloConfigUtil() {
    }

    public static String getFlowDataId(String appName) {
        return String.format("%s%s", appName, FLOW_DATA_ID_POSTFIX);
    }

    public static String getDegradeDataId(String appName) {
        return String.format("%s%s", appName, DEGRADE_DATA_TO_POSTFIX);
    }

    public static String getParamFlowDataId(String appName) {
        return String.format("%s%s", appName, PARAM_FLOW_DATA_TO_POSTFIX);
    }
}

    增加2个Apollo的key，熔断和热点。

    继续往下看，在test中还有两个类，FlowRuleApolloProvider和FlowRuleApolloPublisher，对于DashBoard来说，无非就是查询规则，修改规则和新建规则，provider就是提供查询的，publisher就是提供保存和修改的，2个类，如下：

@Component("flowRuleApolloProvider")
public class FlowRuleApolloProvider implements DynamicRuleProvider<List<FlowRuleEntity>> {

    @Autowired
    private ApolloOpenApiClient apolloOpenApiClient;
    @Autowired
    private Converter<String, List<FlowRuleEntity>> converter;

    @Override
    public List<FlowRuleEntity> getRules(String appName) throws Exception {
        String appId = "appId";
        String flowDataId = ApolloConfigUtil.getFlowDataId(appName);
        OpenNamespaceDTO openNamespaceDTO = apolloOpenApiClient.getNamespace(appId, "DEV", "default", "application");
        String rules = openNamespaceDTO
            .getItems()
            .stream()
            .filter(p -> p.getKey().equals(flowDataId))
            .map(OpenItemDTO::getValue)
            .findFirst()
            .orElse("");

        if (StringUtil.isEmpty(rules)) {
            return new ArrayList<>();
        }
        return converter.convert(rules);
    }
}

@Component("flowRuleApolloPublisher")
public class FlowRuleApolloPublisher implements DynamicRulePublisher<List<FlowRuleEntity>> {

    @Autowired
    private ApolloOpenApiClient apolloOpenApiClient;
    @Autowired
    private Converter<List<FlowRuleEntity>, String> converter;

    @Override
    public void publish(String app, List<FlowRuleEntity> rules) throws Exception {
        AssertUtil.notEmpty(app, "app name cannot be empty");
        if (rules == null) {
            return;
        }

        // Increase the configuration
        String appId = "appId";
        String flowDataId = ApolloConfigUtil.getFlowDataId(app);
        OpenItemDTO openItemDTO = new OpenItemDTO();
        openItemDTO.setKey(flowDataId);
        openItemDTO.setValue(converter.convert(rules));
        openItemDTO.setComment("Program auto-join");
        openItemDTO.setDataChangeCreatedBy("some-operator");
        apolloOpenApiClient.createOrUpdateItem(appId, "DEV", "default", "application", openItemDTO);

        // Release configuration
        NamespaceReleaseDTO namespaceReleaseDTO = new NamespaceReleaseDTO();
        namespaceReleaseDTO.setEmergencyPublish(true);
        namespaceReleaseDTO.setReleaseComment("Modify or add configurations");
        namespaceReleaseDTO.setReleasedBy("some-operator");
        namespaceReleaseDTO.setReleaseTitle("Modify or add configurations");
        apolloOpenApiClient.publishNamespace(appId, "DEV", "default", "application", namespaceReleaseDTO);
    }
}

    流控的provider和publisher是直接可以用的，熔断和热点的provider和publisher按照流控的样子也就直接出来了。

    自定义熔断，如下：

@Component("degradeRuleApolloProvider")
public class DegradeRuleApolloProvider implements DynamicRuleProvider<List<DegradeRuleEntity>> {

    @Autowired
    private ApolloOpenApiClient apolloOpenApiClient;
    @Autowired
    private Converter<String, List<DegradeRuleEntity>> converter;

    @Override
    public List<DegradeRuleEntity> getRules(String appName) throws Exception {
        String appId = "sentinel-dashboard-rule";
        String flowDataId = ApolloConfigUtil.getDegradeDataId(appName);
        OpenNamespaceDTO openNamespaceDTO = apolloOpenApiClient.getNamespace(appId, "DEV", "default", "application");
        String rules = openNamespaceDTO
            .getItems()
            .stream()
            .filter(p -> p.getKey().equals(flowDataId))
            .map(OpenItemDTO::getValue)
            .findFirst()
            .orElse("");

        if (StringUtil.isEmpty(rules)) {
            return new ArrayList<>();
        }
        return converter.convert(rules);
    }
}

@Component("degradeRuleApolloPublisher")
public class DegradeRuleApolloPublisher implements DynamicRulePublisher<List<DegradeRuleEntity>> {

    @Autowired
    private ApolloOpenApiClient apolloOpenApiClient;
    @Autowired
    private Converter<List<DegradeRuleEntity>, String> converter;

    @Override
    public void publish(String app, List<DegradeRuleEntity> rules) throws Exception {
        AssertUtil.notEmpty(app, "app name cannot be empty");
        if (rules == null) {
            return;
        }

        // Increase the configuration
        String appId = "sentinel-dashboard-rule";
        String flowDataId = ApolloConfigUtil.getDegradeDataId(app);
        OpenItemDTO openItemDTO = new OpenItemDTO();
        openItemDTO.setKey(flowDataId);
        openItemDTO.setValue(converter.convert(rules));
        openItemDTO.setComment("Program auto-join");
        openItemDTO.setDataChangeCreatedBy("apollo");
        apolloOpenApiClient.createOrUpdateItem(appId, "DEV", "default", "application", openItemDTO);

        // Release configuration
        NamespaceReleaseDTO namespaceReleaseDTO = new NamespaceReleaseDTO();
        namespaceReleaseDTO.setEmergencyPublish(true);
        namespaceReleaseDTO.setReleaseComment("Modify or add configurations");
        namespaceReleaseDTO.setReleasedBy("apollo");
        namespaceReleaseDTO.setReleaseTitle("Modify or add configurations");
        apolloOpenApiClient.publishNamespace(appId, "DEV", "default", "application", namespaceReleaseDTO);
    }
}

    自定义热点，如下：

@Component("paramFlowRuleApolloProvider")
public class ParamFlowRuleApolloProvider implements DynamicRuleProvider<List<ParamFlowRuleEntity>> {

    @Autowired
    private ApolloOpenApiClient apolloOpenApiClient;
    @Autowired
    private Converter<String, List<ParamFlowRuleEntity>> converter;

    @Override
    public List<ParamFlowRuleEntity> getRules(String appName) throws Exception {
        String appId = "sentinel-dashboard-rule";
        String flowDataId = ApolloConfigUtil.getParamFlowDataId(appName);
        OpenNamespaceDTO openNamespaceDTO = apolloOpenApiClient.getNamespace(appId, "DEV", "default", "application");
        String rules = openNamespaceDTO
            .getItems()
            .stream()
            .filter(p -> p.getKey().equals(flowDataId))
            .map(OpenItemDTO::getValue)
            .findFirst()
            .orElse("");

        if (StringUtil.isEmpty(rules)) {
            return new ArrayList<>();
        }
        return converter.convert(rules);
    }
}

@Component("paramFlowRuleApolloPublisher")
public class ParamFlowRuleApolloPublisher implements DynamicRulePublisher<List<ParamFlowRuleEntity>> {

    @Autowired
    private ApolloOpenApiClient apolloOpenApiClient;
    @Autowired
    private Converter<List<ParamFlowRuleEntity>, String> converter;

    @Override
    public void publish(String app, List<ParamFlowRuleEntity> rules) throws Exception {
        AssertUtil.notEmpty(app, "app name cannot be empty");
        if (rules == null) {
            return;
        }

        // Increase the configuration
        String appId = "sentinel-dashboard-rule";
        String flowDataId = ApolloConfigUtil.getParamFlowDataId(app);
        OpenItemDTO openItemDTO = new OpenItemDTO();
        openItemDTO.setKey(flowDataId);
        openItemDTO.setValue(converter.convert(rules));
        openItemDTO.setComment("Program auto-join");
        openItemDTO.setDataChangeCreatedBy("apollo");
        apolloOpenApiClient.createOrUpdateItem(appId, "DEV", "default", "application", openItemDTO);

        // Release configuration
        NamespaceReleaseDTO namespaceReleaseDTO = new NamespaceReleaseDTO();
        namespaceReleaseDTO.setEmergencyPublish(true);
        namespaceReleaseDTO.setReleaseComment("Modify or add configurations");
        namespaceReleaseDTO.setReleasedBy("apollo");
        namespaceReleaseDTO.setReleaseTitle("Modify or add configurations");
        apolloOpenApiClient.publishNamespace(appId, "DEV", "default", "application", namespaceReleaseDTO);
    }
}

    到这里，其实关于Apollo的，该整的都整好了，下一步就是要让他生效了。

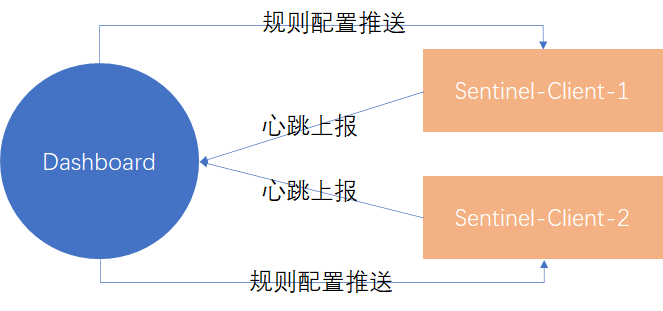

    在我们动手改代码之前，先来梳理一下，DashBoard和Sentinel的客户端是怎么交互的，如下：

    启动DashBoard，在启动Sentinel-Client后，client会把自己的ip、port、appname都会上报到DashBoard，DashBoard在修改规则后推送给客户端。所以我们在修改DashBoard里面的contoller的时候不能把配置推送的代码给干掉哦，先来看下具体的目录在哪里：如下：

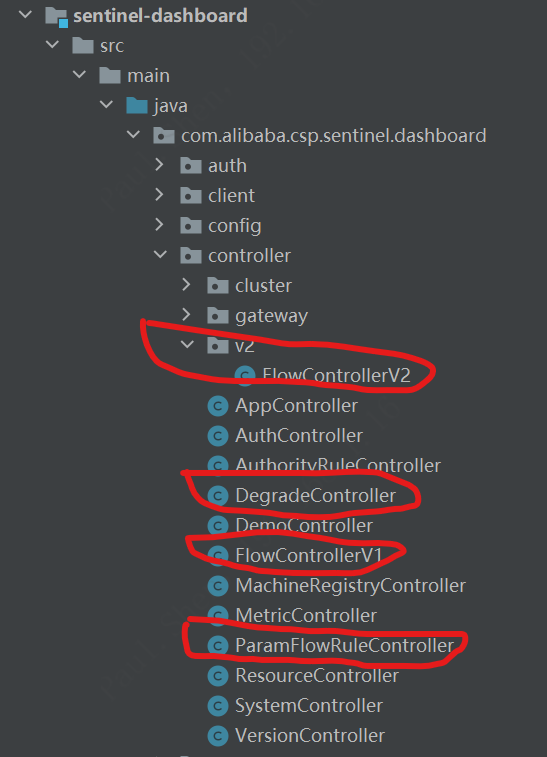

    从类名上面也能够看出来每个controller是做什么的了。但是这里要注意的是，V1和V2，虽然DashBoard启动后已经有一部分流控的规则后端请求使用了V2，但是还是很多还是有V1的。

    我改得比较简单粗暴，这里我贴出改造后V2和V1的代码，如下：

@RestController
@RequestMapping(value = "/v2/flow")
public class FlowControllerV2 {

    private final Logger logger = LoggerFactory.getLogger(FlowControllerV2.class);

    @Autowired
    private InMemoryRuleRepositoryAdapter<FlowRuleEntity> repository;

    @Autowired
    @Qualifier("flowRuleApolloProvider")
    private DynamicRuleProvider<List<FlowRuleEntity>> ruleProvider;
    @Autowired
    @Qualifier("flowRuleApolloPublisher")
    private DynamicRulePublisher<List<FlowRuleEntity>> rulePublisher;

    @GetMapping("/rules")
    @AuthAction(PrivilegeType.READ_RULE)
    public Result<List<FlowRuleEntity>> apiQueryMachineRules(@RequestParam String app) {

        if (StringUtil.isEmpty(app)) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
        try {
            List<FlowRuleEntity> rules = ruleProvider.getRules(app);
            if (rules != null && !rules.isEmpty()) {
                for (FlowRuleEntity entity : rules) {
                    entity.setApp(app);
                    if (entity.getClusterConfig() != null && entity.getClusterConfig().getFlowId() != null) {
                        entity.setId(entity.getClusterConfig().getFlowId());
                    }
                }
            }
            rules = repository.saveAll(rules);
            return Result.ofSuccess(rules);
        } catch (Throwable throwable) {
            logger.error("Error when querying flow rules", throwable);
            return Result.ofThrowable(-1, throwable);
        }
    }

    private <R> Result<R> checkEntityInternal(FlowRuleEntity entity) {
        if (entity == null) {
            return Result.ofFail(-1, "invalid body");
        }
        if (StringUtil.isBlank(entity.getApp())) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getLimitApp())) {
            return Result.ofFail(-1, "limitApp can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getResource())) {
            return Result.ofFail(-1, "resource can't be null or empty");
        }
        if (entity.getGrade() == null) {
            return Result.ofFail(-1, "grade can't be null");
        }
        if (entity.getGrade() != 0 && entity.getGrade() != 1) {
            return Result.ofFail(-1, "grade must be 0 or 1, but " + entity.getGrade() + " got");
        }
        if (entity.getCount() == null || entity.getCount() < 0) {
            return Result.ofFail(-1, "count should be at lease zero");
        }
        if (entity.getStrategy() == null) {
            return Result.ofFail(-1, "strategy can't be null");
        }
        if (entity.getStrategy() != 0 && StringUtil.isBlank(entity.getRefResource())) {
            return Result.ofFail(-1, "refResource can't be null or empty when strategy!=0");
        }
        if (entity.getControlBehavior() == null) {
            return Result.ofFail(-1, "controlBehavior can't be null");
        }
        int controlBehavior = entity.getControlBehavior();
        if (controlBehavior == 1 && entity.getWarmUpPeriodSec() == null) {
            return Result.ofFail(-1, "warmUpPeriodSec can't be null when controlBehavior==1");
        }
        if (controlBehavior == 2 && entity.getMaxQueueingTimeMs() == null) {
            return Result.ofFail(-1, "maxQueueingTimeMs can't be null when controlBehavior==2");
        }
        if (entity.isClusterMode() && entity.getClusterConfig() == null) {
            return Result.ofFail(-1, "cluster config should be valid");
        }
        return null;
    }

    @PostMapping("/rule")
    @AuthAction(value = AuthService.PrivilegeType.WRITE_RULE)
    public Result<FlowRuleEntity> apiAddFlowRule(@RequestBody FlowRuleEntity entity) {

        Result<FlowRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }
        entity.setId(null);
        Date date = new Date();
        entity.setGmtCreate(date);
        entity.setGmtModified(date);
        entity.setLimitApp(entity.getLimitApp().trim());
        entity.setResource(entity.getResource().trim());
        try {
            entity = repository.save(entity);
            publishRules(entity.getApp());
        } catch (Throwable throwable) {
            logger.error("Failed to add flow rule", throwable);
            return Result.ofThrowable(-1, throwable);
        }
        return Result.ofSuccess(entity);
    }

    @PutMapping("/rule/{id}")
    @AuthAction(AuthService.PrivilegeType.WRITE_RULE)
    public Result<FlowRuleEntity> apiUpdateFlowRule(@PathVariable("id") Long id,
                                                    @RequestBody FlowRuleEntity entity) {
        if (id == null || id <= 0) {
            return Result.ofFail(-1, "Invalid id");
        }
        FlowRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofFail(-1, "id " + id + " does not exist");
        }
        if (entity == null) {
            return Result.ofFail(-1, "invalid body");
        }

        entity.setApp(oldEntity.getApp());
        entity.setIp(oldEntity.getIp());
        entity.setPort(oldEntity.getPort());
        Result<FlowRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }

        entity.setId(id);
        Date date = new Date();
        entity.setGmtCreate(oldEntity.getGmtCreate());
        entity.setGmtModified(date);
        try {
            entity = repository.save(entity);
            if (entity == null) {
                return Result.ofFail(-1, "save entity fail");
            }
            publishRules(oldEntity.getApp());
        } catch (Throwable throwable) {
            logger.error("Failed to update flow rule", throwable);
            return Result.ofThrowable(-1, throwable);
        }
        return Result.ofSuccess(entity);
    }

    @DeleteMapping("/rule/{id}")
    @AuthAction(PrivilegeType.DELETE_RULE)
    public Result<Long> apiDeleteRule(@PathVariable("id") Long id) {
        if (id == null || id <= 0) {
            return Result.ofFail(-1, "Invalid id");
        }
        FlowRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofSuccess(null);
        }

        try {
            repository.delete(id);
            publishRules(oldEntity.getApp());
        } catch (Exception e) {
            return Result.ofFail(-1, e.getMessage());
        }
        return Result.ofSuccess(id);
    }

    public void publishRules(/*@NonNull*/ String app) throws Exception {
        List<FlowRuleEntity> rules = repository.findAllByApp(app);
        rulePublisher.publish(app, rules);
    }
}

@RestController
@RequestMapping(value = "/v1/flow")
public class FlowControllerV1 {

    private final Logger logger = LoggerFactory.getLogger(FlowControllerV1.class);

    @Autowired
    private InMemoryRuleRepositoryAdapter<FlowRuleEntity> repository;

    @Autowired
    private SentinelApiClient sentinelApiClient;

    @Autowired
    private FlowControllerV2 flowControllerV2;

    @GetMapping("/rules")
    @AuthAction(PrivilegeType.READ_RULE)
    public Result<List<FlowRuleEntity>> apiQueryMachineRules(@RequestParam String app,
                                                             @RequestParam String ip,
                                                             @RequestParam Integer port) {
        return flowControllerV2.apiQueryMachineRules(app);
//        if (StringUtil.isEmpty(app)) {
//            return Result.ofFail(-1, "app can't be null or empty");
//        }
//        if (StringUtil.isEmpty(ip)) {
//            return Result.ofFail(-1, "ip can't be null or empty");
//        }
//        if (port == null) {
//            return Result.ofFail(-1, "port can't be null");
//        }
//        try {
//            List<FlowRuleEntity> rules = sentinelApiClient.fetchFlowRuleOfMachine(app, ip, port);
//            rules = repository.saveAll(rules);
//            return Result.ofSuccess(rules);
//        } catch (Throwable throwable) {
//            logger.error("Error when querying flow rules", throwable);
//            return Result.ofThrowable(-1, throwable);
//        }
    }

    private <R> Result<R> checkEntityInternal(FlowRuleEntity entity) {
        if (StringUtil.isBlank(entity.getApp())) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getIp())) {
            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (entity.getPort() == null) {
            return Result.ofFail(-1, "port can't be null");
        }
        if (StringUtil.isBlank(entity.getLimitApp())) {
            return Result.ofFail(-1, "limitApp can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getResource())) {
            return Result.ofFail(-1, "resource can't be null or empty");
        }
        if (entity.getGrade() == null) {
            return Result.ofFail(-1, "grade can't be null");
        }
        if (entity.getGrade() != 0 && entity.getGrade() != 1) {
            return Result.ofFail(-1, "grade must be 0 or 1, but " + entity.getGrade() + " got");
        }
        if (entity.getCount() == null || entity.getCount() < 0) {
            return Result.ofFail(-1, "count should be at lease zero");
        }
        if (entity.getStrategy() == null) {
            return Result.ofFail(-1, "strategy can't be null");
        }
        if (entity.getStrategy() != 0 && StringUtil.isBlank(entity.getRefResource())) {
            return Result.ofFail(-1, "refResource can't be null or empty when strategy!=0");
        }
        if (entity.getControlBehavior() == null) {
            return Result.ofFail(-1, "controlBehavior can't be null");
        }
        int controlBehavior = entity.getControlBehavior();
        if (controlBehavior == 1 && entity.getWarmUpPeriodSec() == null) {
            return Result.ofFail(-1, "warmUpPeriodSec can't be null when controlBehavior==1");
        }
        if (controlBehavior == 2 && entity.getMaxQueueingTimeMs() == null) {
            return Result.ofFail(-1, "maxQueueingTimeMs can't be null when controlBehavior==2");
        }
        if (entity.isClusterMode() && entity.getClusterConfig() == null) {
            return Result.ofFail(-1, "cluster config should be valid");
        }
        return null;
    }

    @PostMapping("/rule")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<FlowRuleEntity> apiAddFlowRule(@RequestBody FlowRuleEntity entity) {
        Result<FlowRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }
        entity.setId(null);
        Date date = new Date();
        entity.setGmtCreate(date);
        entity.setGmtModified(date);
        entity.setLimitApp(entity.getLimitApp().trim());
        entity.setResource(entity.getResource().trim());
        try {
            publishRules(entity.getApp(), entity.getIp(), entity.getPort()).get(5000, TimeUnit.MILLISECONDS);
            return flowControllerV2.apiAddFlowRule(entity);
        } catch (Throwable t) {
            Throwable e = t instanceof ExecutionException ? t.getCause() : t;
            logger.error("Failed to add new flow rule, app={}, ip={}", entity.getApp(), entity.getIp(), e);
            return Result.ofFail(-1, e.getMessage());
        }
    }

    @PutMapping("/save.json")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<FlowRuleEntity> apiUpdateFlowRule(Long id, String app,
                                                    String limitApp, String resource, Integer grade,
                                                    Double count, Integer strategy, String refResource,
                                                    Integer controlBehavior, Integer warmUpPeriodSec,
                                                    Integer maxQueueingTimeMs) {
        if (id == null) {
            return Result.ofFail(-1, "id can't be null");
        }
        FlowRuleEntity entity = repository.findById(id);
        if (entity == null) {
            return Result.ofFail(-1, "id " + id + " dose not exist");
        }
        if (StringUtil.isNotBlank(app)) {
            entity.setApp(app.trim());
        }
        if (StringUtil.isNotBlank(limitApp)) {
            entity.setLimitApp(limitApp.trim());
        }
        if (StringUtil.isNotBlank(resource)) {
            entity.setResource(resource.trim());
        }
        if (grade != null) {
            if (grade != 0 && grade != 1) {
                return Result.ofFail(-1, "grade must be 0 or 1, but " + grade + " got");
            }
            entity.setGrade(grade);
        }
        if (count != null) {
            entity.setCount(count);
        }
        if (strategy != null) {
            if (strategy != 0 && strategy != 1 && strategy != 2) {
                return Result.ofFail(-1, "strategy must be in [0, 1, 2], but " + strategy + " got");
            }
            entity.setStrategy(strategy);
            if (strategy != 0) {
                if (StringUtil.isBlank(refResource)) {
                    return Result.ofFail(-1, "refResource can't be null or empty when strategy!=0");
                }
                entity.setRefResource(refResource.trim());
            }
        }
        if (controlBehavior != null) {
            if (controlBehavior != 0 && controlBehavior != 1 && controlBehavior != 2) {
                return Result.ofFail(-1, "controlBehavior must be in [0, 1, 2], but " + controlBehavior + " got");
            }
            if (controlBehavior == 1 && warmUpPeriodSec == null) {
                return Result.ofFail(-1, "warmUpPeriodSec can't be null when controlBehavior==1");
            }
            if (controlBehavior == 2 && maxQueueingTimeMs == null) {
                return Result.ofFail(-1, "maxQueueingTimeMs can't be null when controlBehavior==2");
            }
            entity.setControlBehavior(controlBehavior);
            if (warmUpPeriodSec != null) {
                entity.setWarmUpPeriodSec(warmUpPeriodSec);
            }
            if (maxQueueingTimeMs != null) {
                entity.setMaxQueueingTimeMs(maxQueueingTimeMs);
            }
        }
        Date date = new Date();
        entity.setGmtModified(date);
        try {
            publishRules(entity.getApp(), entity.getIp(), entity.getPort()).get(5000, TimeUnit.MILLISECONDS);
            flowControllerV2.publishRules(entity.getApp());
            return Result.ofSuccess(entity);
        } catch (Throwable t) {
            Throwable e = t instanceof ExecutionException ? t.getCause() : t;
            logger.error("Error when updating flow rules, app={}, ip={}, ruleId={}", entity.getApp(),
                    entity.getIp(), id, e);
            return Result.ofFail(-1, e.getMessage());
        }
    }

    @DeleteMapping("/delete.json")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<Long> apiDeleteFlowRule(Long id) {

        if (id == null) {
            return Result.ofFail(-1, "id can't be null");
        }
        FlowRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofSuccess(null);
        }

        try {
            publishRules(oldEntity.getApp(), oldEntity.getIp(), oldEntity.getPort()).get(5000, TimeUnit.MILLISECONDS);
            flowControllerV2.publishRules(oldEntity.getApp());
            return Result.ofSuccess(id);
        } catch (Throwable t) {
            Throwable e = t instanceof ExecutionException ? t.getCause() : t;
            logger.error("Error when deleting flow rules, app={}, ip={}, id={}", oldEntity.getApp(),
                    oldEntity.getIp(), id, e);
            return Result.ofFail(-1, e.getMessage());
        }
    }

    private CompletableFuture<Void> publishRules(String app, String ip, Integer port) {
        List<FlowRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
        return sentinelApiClient.setFlowRuleOfMachineAsync(app, ip, port, rules);
    }
}

    在V2中注入了flowRuleApolloProvider和flowRuleApolloPublisher，在V2中的增删改中都使用了到了，而且最好还是不要去掉InMemoryRuleRepositoryAdapter的查找和保存。那在V1中，我就更简单粗暴了，直接使用了V2，而且不要把publishRules(String app, String ip, Integer port)给干掉，这是推送到客户端的，干掉了客户端就无法接收了。

    那其实熔断和热点其实也是一样的，这里我把熔断的controller贴出来，如下：

@RestController
@RequestMapping("/degrade")
public class DegradeController {

    private final Logger logger = LoggerFactory.getLogger(DegradeController.class);

    @Autowired
    private RuleRepository<DegradeRuleEntity, Long> repository;
    @Autowired
    private SentinelApiClient sentinelApiClient;

    @Autowired
    @Qualifier("degradeRuleApolloProvider")
    private DynamicRuleProvider<List<DegradeRuleEntity>> ruleProvider;

    @Autowired
    @Qualifier("degradeRuleApolloPublisher")
    private DynamicRulePublisher<List<DegradeRuleEntity>> rulePublisher;

    @GetMapping("/rules.json")
    @AuthAction(PrivilegeType.READ_RULE)
    public Result<List<DegradeRuleEntity>> apiQueryMachineRules(String app, String ip, Integer port) {
        if (StringUtil.isEmpty(app)) {
            return Result.ofFail(-1, "app can't be null or empty");
        }
        if (StringUtil.isEmpty(ip)) {
            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (port == null) {
            return Result.ofFail(-1, "port can't be null");
        }
        try {
            List<DegradeRuleEntity> rules = ruleProvider.getRules(app);
            rules = repository.saveAll(rules);
            return Result.ofSuccess(rules);
        } catch (Throwable throwable) {
            logger.error("queryApps error:", throwable);
            return Result.ofThrowable(-1, throwable);
        }
    }

    @PostMapping("/rule")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<DegradeRuleEntity> apiAddRule(@RequestBody DegradeRuleEntity entity) {
        Result<DegradeRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }
        Date date = new Date();
        entity.setGmtCreate(date);
        entity.setGmtModified(date);
        try {
            entity = repository.save(entity);
            List<DegradeRuleEntity> entities = new ArrayList<>();
            entities.add(entity);
            rulePublisher.publish(entity.getApp(), entities);
        } catch (Throwable t) {
            logger.error("Failed to add new degrade rule, app={}, ip={}", entity.getApp(), entity.getIp(), t);
            return Result.ofThrowable(-1, t);
        }
        if (!publishRules(entity.getApp(), entity.getIp(), entity.getPort())) {
            logger.warn("Publish degrade rules failed, app={}", entity.getApp());
        }
        return Result.ofSuccess(entity);
    }

    @PutMapping("/rule/{id}")
    @AuthAction(PrivilegeType.WRITE_RULE)
    public Result<DegradeRuleEntity> apiUpdateRule(@PathVariable("id") Long id,
                                                   @RequestBody DegradeRuleEntity entity) {
        if (id == null || id <= 0) {
            return Result.ofFail(-1, "id can't be null or negative");
        }
        DegradeRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofFail(-1, "Degrade rule does not exist, id=" + id);
        }
        entity.setApp(oldEntity.getApp());
        entity.setIp(oldEntity.getIp());
        entity.setPort(oldEntity.getPort());
        entity.setId(oldEntity.getId());
        Result<DegradeRuleEntity> checkResult = checkEntityInternal(entity);
        if (checkResult != null) {
            return checkResult;
        }

        entity.setGmtCreate(oldEntity.getGmtCreate());
        entity.setGmtModified(new Date());
        try {
            entity = repository.save(entity);
            List<DegradeRuleEntity> entities = new ArrayList<>();
            entities.add(entity);
            rulePublisher.publish(entity.getApp(), entities);
        } catch (Throwable t) {
            logger.error("Failed to save degrade rule, id={}, rule={}", id, entity, t);
            return Result.ofThrowable(-1, t);
        }
        if (!publishRules(entity.getApp(), entity.getIp(), entity.getPort())) {
            logger.warn("Publish degrade rules failed, app={}", entity.getApp());
        }
        return Result.ofSuccess(entity);
    }

    @DeleteMapping("/rule/{id}")
    @AuthAction(PrivilegeType.DELETE_RULE)
    public Result<Long> delete(@PathVariable("id") Long id) {
        if (id == null) {
            return Result.ofFail(-1, "id can't be null");
        }

        DegradeRuleEntity oldEntity = repository.findById(id);
        if (oldEntity == null) {
            return Result.ofSuccess(null);
        }

        try {
            repository.delete(id);
            List<DegradeRuleEntity> entities = repository.findAllByApp(oldEntity.getApp());
            rulePublisher.publish(oldEntity.getApp(), entities);
        } catch (Throwable throwable) {
            logger.error("Failed to delete degrade rule, id={}", id, throwable);
            return Result.ofThrowable(-1, throwable);
        }
        if (!publishRules(oldEntity.getApp(), oldEntity.getIp(), oldEntity.getPort())) {
            logger.warn("Publish degrade rules failed, app={}", oldEntity.getApp());
        }
        return Result.ofSuccess(id);
    }

    private boolean publishRules(String app, String ip, Integer port) {
        List<DegradeRuleEntity> rules = repository.findAllByMachine(MachineInfo.of(app, ip, port));
        return sentinelApiClient.setDegradeRuleOfMachine(app, ip, port, rules);
    }

    private <R> Result<R> checkEntityInternal(DegradeRuleEntity entity) {
        if (StringUtil.isBlank(entity.getApp())) {
            return Result.ofFail(-1, "app can't be blank");
        }
        if (StringUtil.isBlank(entity.getIp())) {
            return Result.ofFail(-1, "ip can't be null or empty");
        }
        if (entity.getPort() == null || entity.getPort() <= 0) {
            return Result.ofFail(-1, "invalid port: " + entity.getPort());
        }
        if (StringUtil.isBlank(entity.getLimitApp())) {
            return Result.ofFail(-1, "limitApp can't be null or empty");
        }
        if (StringUtil.isBlank(entity.getResource())) {
            return Result.ofFail(-1, "resource can't be null or empty");
        }
        Double threshold = entity.getCount();
        if (threshold == null || threshold < 0) {
            return Result.ofFail(-1, "invalid threshold: " + threshold);
        }
        Integer recoveryTimeoutSec = entity.getTimeWindow();
        if (recoveryTimeoutSec == null || recoveryTimeoutSec <= 0) {
            return Result.ofFail(-1, "recoveryTimeout should be positive");
        }
        Integer strategy = entity.getGrade();
        if (strategy == null) {
            return Result.ofFail(-1, "circuit breaker strategy cannot be null");
        }
        if (strategy < CircuitBreakerStrategy.SLOW_REQUEST_RATIO.getType()
                || strategy > RuleConstant.DEGRADE_GRADE_EXCEPTION_COUNT) {
            return Result.ofFail(-1, "Invalid circuit breaker strategy: " + strategy);
        }
        if (entity.getMinRequestAmount() == null || entity.getMinRequestAmount() <= 0) {
            return Result.ofFail(-1, "Invalid minRequestAmount");
        }
        if (entity.getStatIntervalMs() == null || entity.getStatIntervalMs() <= 0) {
            return Result.ofFail(-1, "Invalid statInterval");
        }
        if (strategy == RuleConstant.DEGRADE_GRADE_RT) {
            Double slowRatio = entity.getSlowRatioThreshold();
            if (slowRatio == null) {
                return Result.ofFail(-1, "SlowRatioThreshold is required for slow request ratio strategy");
            } else if (slowRatio < 0 || slowRatio > 1) {
                return Result.ofFail(-1, "SlowRatioThreshold should be in range: [0.0, 1.0]");
            }
        } else if (strategy == RuleConstant.DEGRADE_GRADE_EXCEPTION_RATIO) {
            if (threshold > 1) {
                return Result.ofFail(-1, "Ratio threshold should be in range: [0.0, 1.0]");
            }
        }
        return null;
    }
}

    ok，到这里就可以把DashBoard的配置持久化到Apollo，各位启动一下并试试看吧，不要在意需要依赖的jar，DashBoard都已经依赖好了。

    前面也说到了，客户端会自己上报心跳到DashBoard，然后DashBoard修改配置后会推送给客户端。那能不能应用启动的时候就把规则给拉下来呢？我又选择了简单粗暴的方法，既然我都上传心跳了，那你直接把规则拿来吧，嘿嘿，代码如下：

@Controller
@RequestMapping(value = "/registry", produces = MediaType.APPLICATION_JSON_VALUE)
public class MachineRegistryController {

    private final Logger logger = LoggerFactory.getLogger(MachineRegistryController.class);

    @Autowired
    private AppManagement appManagement;

    @Autowired
    private SentinelApiClient sentinelApiClient;

    @Autowired
    private RuleRepository<DegradeRuleEntity, Long> degradeRulerepository;

    @Autowired
    private RuleRepository<FlowRuleEntity, Long> flowRulerepository;

    @Autowired
    private RuleRepository<ParamFlowRuleEntity, Long> paramFlowrepository;

    @ResponseBody
    @RequestMapping("/machine")
    public Result<?> receiveHeartBeat(String app,
                                      @RequestParam(value = "app_type", required = false, defaultValue = "0")
                                              Integer appType, Long version, String v, String hostname, String ip,
                                      Integer port) {
        if (StringUtil.isBlank(app) || app.length() > 256) {
            return Result.ofFail(-1, "invalid appName");
        }
        if (StringUtil.isBlank(ip) || ip.length() > 128) {
            return Result.ofFail(-1, "invalid ip: " + ip);
        }
        if (port == null || port < -1) {
            return Result.ofFail(-1, "invalid port");
        }
        if (hostname != null && hostname.length() > 256) {
            return Result.ofFail(-1, "hostname too long");
        }
        if (port == -1) {
            logger.warn("Receive heartbeat from " + ip + " but port not set yet");
            return Result.ofFail(-1, "your port not set yet");
        }
        String sentinelVersion = StringUtil.isBlank(v) ? "unknown" : v;

        version = version == null ? System.currentTimeMillis() : version;
        try {
            MachineInfo machineInfo = new MachineInfo();
            machineInfo.setApp(app);
            machineInfo.setAppType(appType);
            machineInfo.setHostname(hostname);
            machineInfo.setIp(ip);
            machineInfo.setPort(port);
            machineInfo.setHeartbeatVersion(version);
            machineInfo.setLastHeartbeat(System.currentTimeMillis());
            machineInfo.setVersion(sentinelVersion);
            appManagement.addMachine(machineInfo);
            // 并推送已有的规则，限流、熔断、热点
            publishFlowRules(app, ip, port);
            publishDegradeRules(app, ip, port);

            return Result.ofSuccessMsg("success");
        } catch (Exception e) {
            logger.error("Receive heartbeat error", e);
            return Result.ofFail(-1, e.getMessage());
        }
    }

    private CompletableFuture<Void> publishFlowRules(String app, String ip, Integer port) {
        List<FlowRuleEntity> rules = flowRulerepository.findAllByMachine(MachineInfo.of(app, ip, port));
        return sentinelApiClient.setFlowRuleOfMachineAsync(app, ip, port, rules);
    }

    private boolean publishDegradeRules(String app, String ip, Integer port) {
        List<DegradeRuleEntity> rules = degradeRulerepository.findAllByMachine(MachineInfo.of(app, ip, port));
        return sentinelApiClient.setDegradeRuleOfMachine(app, ip, port, rules);
    }
}

    这边就是增加了在流控和熔断controller的publishRules方法。心跳的发送，大家可以自行研究一下，具体是在SimpleHttpHeartbeatSender类中，客户端启动时候会有个定时的线程跑，所以实际拉取稍微会有点延迟。

    友情提醒：在拉取Apollo配置的时候，设置的用户就是openItemDTO.setDataChangeCreatedBy("apollo");，一定要对你得Apollo上面的应用有权限才行哦。

    好了，Sentinel的DashBoard持久化到Apollo到这就结束了，如有问题请指出，谢谢。
