微服务-订单服务+RabbitMQ

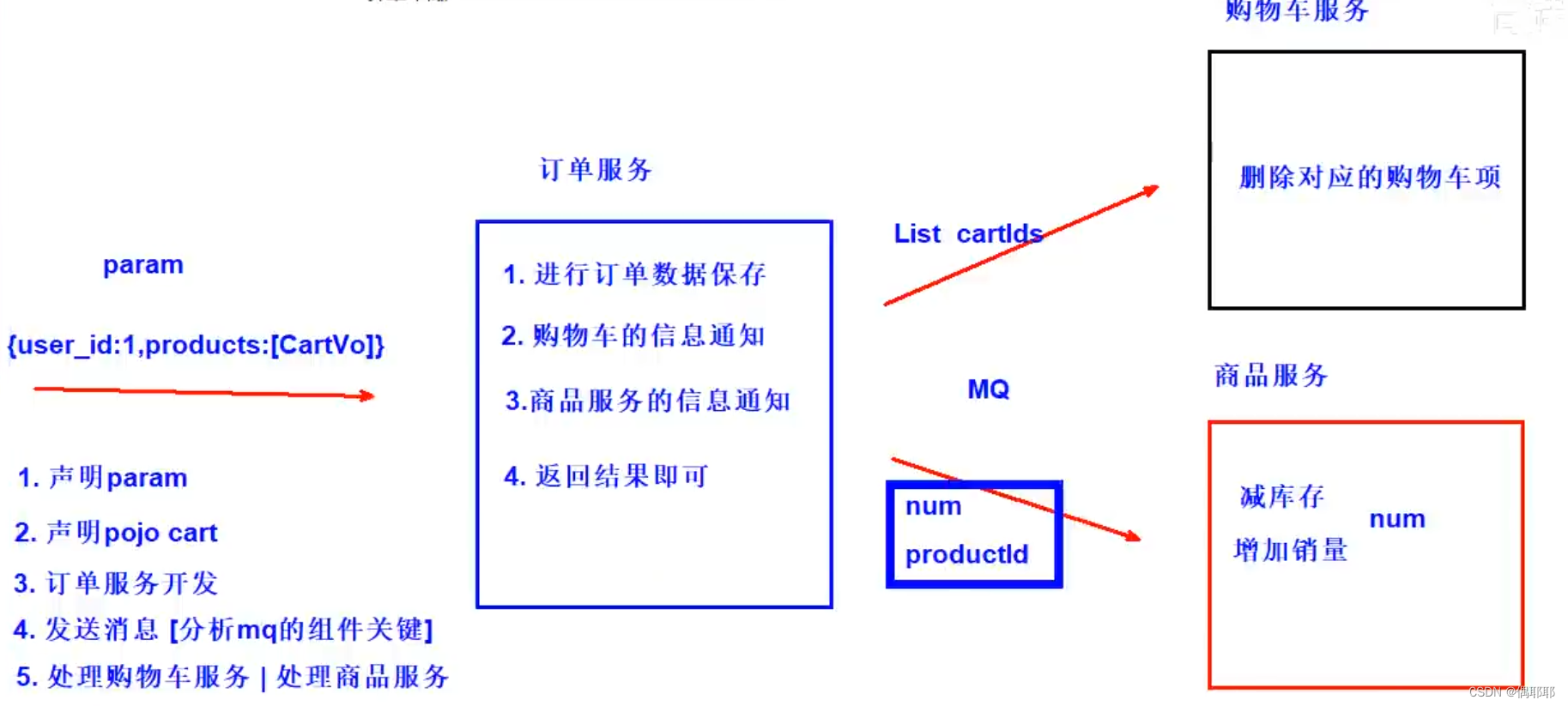

1、流程图

2、订单生成

-业务介绍
  1. 支付成功
  2. 进行订单数据保存
  3. 异步清空对应的购物车数据
  4. 异步修改商品的库存和销售信息
  5. 单业务涉及多DML语句，注意添加事务

2.1功能实现

2.1.1 param定义

//订单参数
@JsonIgnoreProperties(ignoreUnknown = true)
@Data
public class OrderParam implements Serializable {

    public static final Long serialVersionUID = 1L;

    @JsonProperty("user_id")
    private Integer userId;
    private List<CartVo> products;

}

//调用product参数
/**
 * description: 商品库存信息保存param
 */
@Data
public class ProductNumberParam {

    //商品id
    private Integer productId;
    //购买数量
    private Integer productNum;
}

2.1.2 pojo定义

@JsonIgnoreProperties(ignoreUnknown = true)
@Data
@TableName("orders")
public class Order implements Serializable {

    @TableId(type = IdType.AUTO)
    private Integer id;
    @JsonProperty("order_id")
    private Long    orderId; //订单编号,选择使用时间戳
    @JsonProperty("user_id")
    private Integer userId;
    @JsonProperty("product_id")
    private Integer productId;
    @JsonProperty("product_num")
    private Integer productNum;
    @JsonProperty("product_price")
    private Double  productPrice;
    @JsonProperty("order_time")
    private Long    orderTime;
 }

2.1.3 oderVo

//查询订单需要返回结果
@JsonIgnoreProperties(ignoreUnknown = true)
@Data
public class OrderVo extends Order {

    @JsonProperty("product_name")
    private String productName;
    @JsonProperty("product_picture")
    private String productPicture;

}

2.1.4 controller

@RequestMapping("/order")
public class OrderController {


    @Autowired
    private OrderService orderService;

    /**
     * 订单数据保存
     * @param orderParam
     * @return
     */
    @PostMapping("save")
    public Object save(@RequestBody OrderParam orderParam){


        return orderService.save(orderParam);
    }

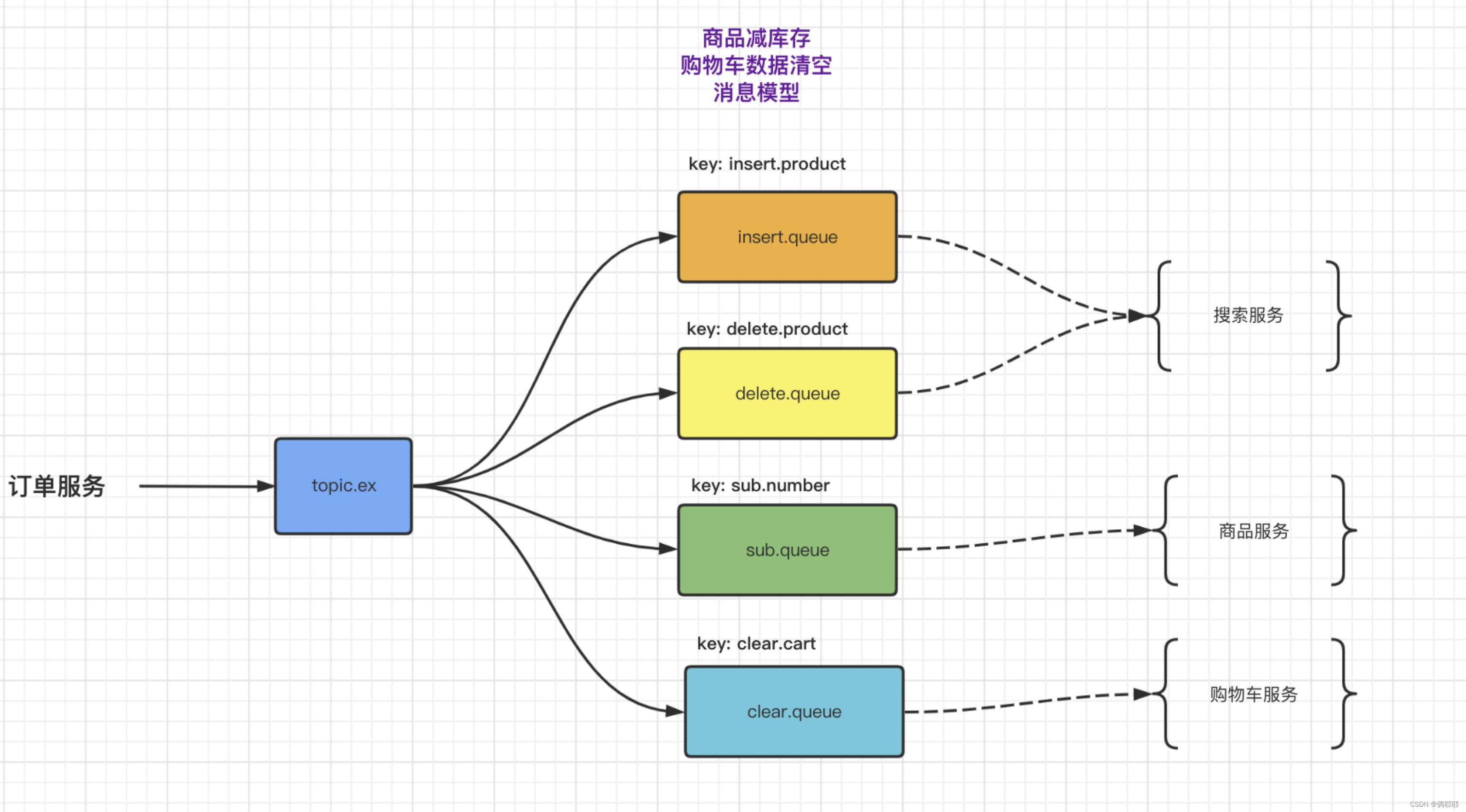

2.1.5 rabbitMQ关系绑定

2.1.6 service

public interface OrderService extends IService<Order> {

@Slf4j
@Service
public class OrderServiceImpl  extends ServiceImpl<OrderMapper,Order> implements OrderService {

    @Autowired
    private ProductClient productClient;

    /**
     * 消息队列发送
     */
    @Autowired
    private RabbitTemplate rabbitTemplate;

    //@Autowired
    //private OrderMapper orderMapper;

    /**
     * 订单保存业务
     * 库存和购物车使用mq异步,避免分布式事务!
     * @param orderParam
     * @return
     */
    @Transactional //添加事务
    @Override
    public Object save(OrderParam orderParam) {

        //修改清空购物车的参数
        List<Integer> cartIds = new ArrayList<>();
        //修改批量插入数据库的参数
        List<Order>  orderList = new ArrayList<>();
        //商品修改库存参数集合
        List<ProductNumberParam>  productNumberParamList  =
                                             new ArrayList<>();

        Integer userId = orderParam.getUserId();
        List<CartVo> products = orderParam.getProducts();
        //封装order实体类集合
        //统一生成订单编号和创建时间
        //使用时间戳 + 做订单编号和事件
        long ctime = System.currentTimeMillis();

        for (CartVo cartVo : products) {
            cartIds.add(cartVo.getId()); //进行购物车订单保存
            //订单信息保存
            Order order = new Order();
            order.setOrderId(ctime);
            order.setUserId(userId);
            order.setOrderTime(ctime);
            order.setProductId(cartVo.getProductID());
            order.setProductNum(cartVo.getNum());
            order.setProductPrice(cartVo.getPrice());
            orderList.add(order); //添加用户信息

            //修改信息存储
            ProductNumberParam productNumberParam = new ProductNumberParam();
            productNumberParam.setProductId(cartVo.getProductID());
            productNumberParam.setProductNum(cartVo.getNum());
            productNumberParamList.add(productNumberParam); //添加集合
        }
        //批量数据插入//
        this.saveBatch(orderList); //批量保存

        //修改商品库存 [product-service] [异步通知]
        /**
         *  交换机: topic.ex
         *  routingkey: sub.number
         *  消息: 商品id和减库存数据集合
         */
        rabbitTemplate.convertAndSend("topic.ex","sub.number",productNumberParamList);
        //清空对应购物车数据即可 [注意: 不是清空用户所有的购物车数据] [cart-service] [异步通知]
        /**
         * 交换机:topic.ex
         * routingkey: clear.cart
         * 消息: 要清空的购物车id集合
         */
        rabbitTemplate.convertAndSend("topic.ex","clear.cart",cartIds);

        R ok = R.ok("订单生成成功!");
        log.info("OrderServiceImpl.save业务结束，结果:{}",ok);
        return ok;
    }

 }

2.1.7 mapper

public interface OrderMapper extends BaseMapper<Order> {
}

2.1.8 productListener

@Component
public class ProductListener {

    @Autowired
    private ProductService productService;

    /**
     * 修改库存数据
     * @param productNumberParams
     */
    @RabbitListener(bindings = @QueueBinding(
            value = @Queue(name = "sub.queue"),
            exchange = @Exchange("topic.ex"),
            key = "sub.number"
    ))
    public void subNumber(List<ProductNumberParam> productNumberParams){
        System.err.println("ProductListener.subNumber");
        System.err.println("productNumberParams = " + productNumberParams);

        //调用业务修改库存即可
        productService.batchNumber(productNumberParams);
    }

}

//productService
 /**
 * 修改商品库存
 *
 * @param productNumberParams
 */
@Transactional
@Override
public void batchNumber(List<ProductNumberParam> productNumberParams) {

    //将productNumberParams转成map
    //使用id作为key, item做值, 比较相邻的两次key,如果相同,去掉重读!
    Map<Integer, ProductNumberParam> productNumberParamMap = productNumberParams.stream()
            .collect(Collectors.toMap(ProductNumberParam::getProductId, v -> v));

    //封装商品集合
    Set<Integer> productIds = productNumberParamMap.keySet();

    //查询
    List<Product> productList = baseMapper.selectBatchIds(productIds);
    //修改

    for (Product product : productList) {
        //设置新库存
        product.setProductNum(product.getProductNum() -
                productNumberParamMap.get(product.getProductId()).getProductNum());
        //设置销售量
        product.setProductSales(product.getProductSales() +
                productNumberParamMap.get(product.getProductId()).getProductNum());
    }

    //批量数据更新
    this.updateBatchById(productList);
}

2.1.8 cartListener

@Component
public class CartListener {


    @Autowired
    private CartService cartService;

    /**
     * 购物车数据清空监听
     * @param cartIds //要清空的购物车数据集合
     */
    @RabbitListener(bindings = @QueueBinding(
            value = @Queue(name = "clear.queue"),
            exchange = @Exchange("topic.ex"),
            key = "clear.cart"
    ))
    public void subNumber(List<Integer> cartIds){
        System.out.println("CartListener.subNumber");
        System.out.println("cartIds = " + cartIds);

        //调用业务修改库存即可
        cartService.removeBatchByIds(cartIds);
    }

}


public class CartServiceImpl extends ServiceImpl<CartMapper,Cart> implements CartService {
