根据最近的学习心得，准备记录一下optee的启动流程分析。在第一部分里，我着重介绍BL31启动optee(BL32)的过程，以及主核从核的启动流程。下一部分，我着重介绍optee的启动流程。
我所参考的代码是optee-3.11.0，ATF-2.4，主要关注aarch64平台的启动流程。
ATF启动流程
大部分aarch64平台都会使用ATF(arm trusted firmware)固件进行启动，optee的启动属于框架中的BL32部分，是由BL31启动。ATF的启动流程可参考下图：

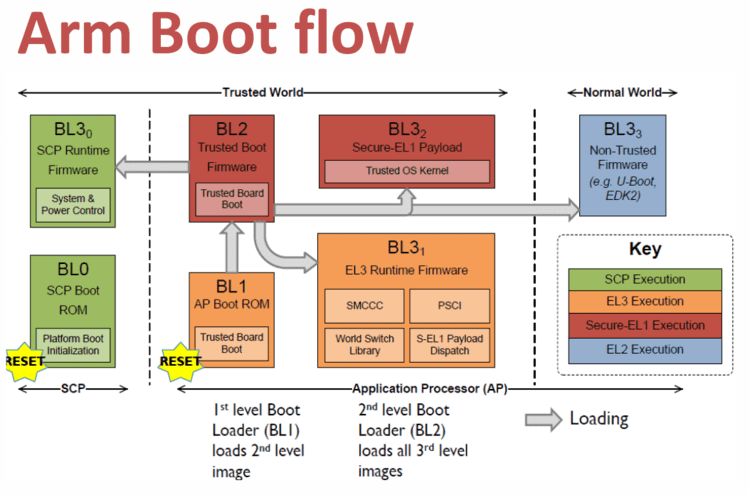

上图可以看到，BL1加载和启动了BL2，BL2加载了BL31, BL32, BL33，加载完成后跳转到BL31中执行。BL31会初始化BL32和BL33。
参考https://wiki.loliot.net/docs/linux/linux-uboot/embedded-linux-boot-process
BL31启动BL32
BL31启动BL32的代码在bl31_entrypoint.S中
func bl31_entrypoint
/* ---------------------------------------------------------------
* Stash the previous bootloader arguments x0 - x3 for later use.
* ---------------------------------------------------------------
*/
mov x20, x0
mov x21, x1
mov x22, x2
mov x23, x3
#if !RESET_TO_BL31
... /* 忽略 */
#else
/* ---------------------------------------------------------------------
* For RESET_TO_BL31 systems which have a programmable reset address,
* bl31_entrypoint() is executed only on the cold boot path so we can
* skip the warm boot mailbox mechanism.
* ---------------------------------------------------------------------
*/
el3_entrypoint_common \
_init_sctlr=1 \
_warm_boot_mailbox=!PROGRAMMABLE_RESET_ADDRESS \
_secondary_cold_boot=!COLD_BOOT_SINGLE_CPU \
_init_memory=1 \
_init_c_runtime=1 \
_exception_vectors=runtime_exceptions \
_pie_fixup_size=BL31_LIMIT - BL31_BASE
/* ---------------------------------------------------------------------
* For RESET_TO_BL31 systems, BL31 is the first bootloader to run so
* there's no argument to relay from a previous bootloader. Zero the
* arguments passed to the platform layer to reflect that.
* ---------------------------------------------------------------------
*/
mov x20, 0
mov x21, 0
mov x22, 0
mov x23, 0
#endif /* RESET_TO_BL31 */
/* --------------------------------------------------------------------
* Perform BL31 setup
* --------------------------------------------------------------------
*/
mov x0, x20
mov x1, x21
mov x2, x22
mov x3, x23
bl bl31_setup
#if ENABLE_PAUTH
... /* 忽略 */
#endif /* ENABLE_PAUTH */
/* --------------------------------------------------------------------
* Jump to main function
* --------------------------------------------------------------------
*/
bl bl31_main
/* --------------------------------------------------------------------
* Clean the .data & .bss sections to main memory. This ensures
* that any global data which was initialised by the primary CPU
* is visible to secondary CPUs before they enable their data
* caches and participate in coherency.
* --------------------------------------------------------------------
*/
... /* 忽略 */
b el3_exit
endfunc bl31_entrypoint又看到了熟悉的el3_entrypoint_common，具体的介绍可以参考前面的文章（BL1启动），在这个宏的定义中，做了以下事情需要我们关注：
- 设置EL3中断向量表，BL31中设置的中断向量表是runtime_exceptions
- 如果从核，要跳转到plat_secondary_cold_boot_setup继续启动
- 初始化一些必要的寄存器
bl31_setup做了平台相关的设置，不在启动流程的参考范围内，bl31_main函数涉及到optee的启动，需要说明一下。
void bl31_main(void)
{
NOTICE("BL31: %s\n", version_string);
NOTICE("BL31: %s\n", build_message);
#ifdef SUPPORT_UNKNOWN_MPID
if (unsupported_mpid_flag == 0) {
NOTICE("Unsupported MPID detected!\n");
}
#endif
/* Perform platform setup in BL31 */
bl31_platform_setup();
/* Initialise helper libraries */
bl31_lib_init();
#if EL3_EXCEPTION_HANDLING
INFO("BL31: Initialising Exception Handling Framework\n");
ehf_init();
#endif
/* Initialize the runtime services e.g. psci. */
INFO("BL31: Initializing runtime services\n");
runtime_svc_init(); /* 初始化runtime service */
/*
* All the cold boot actions on the primary cpu are done. We now need to
* decide which is the next image (BL32 or BL33) and how to execute it.
* If the SPD runtime service is present, it would want to pass control
* to BL32 first in S-EL1. In that case, SPD would have registered a
* function to initialize bl32 where it takes responsibility of entering
* S-EL1 and returning control back to bl31_main. Once this is done we
* can prepare entry into BL33 as normal.
*/
/*
* If SPD had registered an init hook, invoke it.
*/
if (bl32_init != NULL) { /* bl32_init函数指针在runtime_svc_init()中会被赋值 */
INFO("BL31: Initializing BL32\n");
int32_t rc = (*bl32_init)(); /* 执行这个函数即初始化了optee */
if (rc == 0)
WARN("BL31: BL32 initialization failed\n");
}
/*
* We are ready to enter the next EL. Prepare entry into the image
* corresponding to the desired security state after the next ERET.
*/
bl31_prepare_next_image_entry(); /* 准备BL33的image entry */
console_flush();
/*
* Perform any platform specific runtime setup prior to cold boot exit
* from BL31
*/
bl31_plat_runtime_setup();
}runtime_svc_init()函数初始化了一系列runtime service。这些runtime service是通过DECLARE_RT_SVC定义在rt_svc_descs section中的。在ATF中目前看到opteed_fast，opteed_std，arm_arch_svc，std_svc等service。在初始化opteed_fast service时，就对bl32_init进行了赋值，指向opteed_init()函数。
static int32_t opteed_init(void)
{
uint32_t linear_id = plat_my_core_pos();
optee_context_t *optee_ctx = &opteed_sp_context[linear_id];
entry_point_info_t *optee_entry_point;
uint64_t rc;
/*
* Get information about the OPTEE (BL32) image. Its
* absence is a critical failure.
*/
optee_entry_point = bl31_plat_get_next_image_ep_info(SECURE); /* 获取bl32固件入口函数地址。同时配置spsr：EL3返回到EL1，使用sp_el3栈 */
assert(optee_entry_point);
cm_init_my_context(optee_entry_point); /* 把入口函数地址设到cpu context */
/*
* Arrange for an entry into OPTEE. It will be returned via
* OPTEE_ENTRY_DONE case
*/
rc = opteed_synchronous_sp_entry(optee_ctx);
assert(rc != 0);
return rc;
}在opteed_init函数中调用了cm_init_my_context，cm_init_my_context内容不多，又调用了cm_setup_context，我们需要关注一下这个函数，它确定了EL3返回时进入哪一个EL，以及返回地址：
void cm_setup_context(cpu_context_t *ctx, const entry_point_info_t *ep)
{
unsigned int security_state;
u_register_t scr_el3;
el3_state_t *state;
gp_regs_t *gp_regs;
u_register_t sctlr_elx, actlr_elx;
assert(ctx != NULL);
security_state = GET_SECURITY_STATE(ep->h.attr);
/* Clear any residual register values from the context */
zeromem(ctx, sizeof(*ctx));
/*
* SCR_EL3 was initialised during reset sequence in macro
* el3_arch_init_common. This code modifies the SCR_EL3 fields that
* affect the next EL.
*
* The following fields are initially set to zero and then updated to
* the required value depending on the state of the SPSR_EL3 and the
* Security state and entrypoint attributes of the next EL.
*/
... /* 设置 SCR_EL3 */
/*
* Initialise SCTLR_EL1 to the reset value corresponding to the target
* execution state setting all fields rather than relying of the hw.
* Some fields have architecturally UNKNOWN reset values and these are
* set to zero.
*
* SCTLR.EE: Endianness is taken from the entrypoint attributes.
*
* SCTLR.M, SCTLR.C and SCTLR.I: These fields must be zero (as
* required by PSCI specification)
*/
... /* 设置 SCTLR_EL1 */
/* Enable WFE trap delay in SCR_EL3 if supported and configured */
... /* 忽略 */
/*
* Store the initialised SCTLR_EL1 value in the cpu_context - SCTLR_EL2
* and other EL2 registers are set up by cm_prepare_ns_entry() as they
* are not part of the stored cpu_context.
*/
write_ctx_reg(get_el1_sysregs_ctx(ctx), CTX_SCTLR_EL1, sctlr_elx); /* 把前面设置的sctlr_elx的值写入寄存器 */
/*
* Base the context ACTLR_EL1 on the current value, as it is
* implementation defined. The context restore process will write
* the value from the context to the actual register and can cause
* problems for processor cores that don't expect certain bits to
* be zero.
*/
actlr_elx = read_actlr_el1();
write_ctx_reg((get_el1_sysregs_ctx(ctx)), (CTX_ACTLR_EL1), (actlr_elx));
/*
* Populate EL3 state so that we've the right context
* before doing ERET
*/
state = get_el3state_ctx(ctx);
write_ctx_reg(state, CTX_SCR_EL3, scr_el3); /* 把前面设置的scr_el3的值写入寄存器 */
write_ctx_reg(state, CTX_ELR_EL3, ep->pc); /* 把image entry的值写入elr_el3，EL3返回会跳转到entry */
write_ctx_reg(state, CTX_SPSR_EL3, ep->spsr); /* 把spsr的值写入寄存器，EL3返回到EL1，使用sp_el3栈 */
/*
* Store the X0-X7 value from the entrypoint into the context
* Use memcpy as we are in control of the layout of the structures
*/
gp_regs = get_gpregs_ctx(ctx);
memcpy(gp_regs, (void *)&ep->args, sizeof(aapcs64_params_t));
}cm_setup_context函数把EL3和EL1相关的寄存器值都保存在了一个context中，这个context有EL3寄存器的值也有EL1寄存器的值。
opteed_synchronous_sp_entry(optee_context_t *optee_ctx)函数定义如下：
uint64_t opteed_synchronous_sp_entry(optee_context_t *optee_ctx)
{
uint64_t rc;
assert(optee_ctx != NULL);
assert(optee_ctx->c_rt_ctx == 0);
/* Apply the Secure EL1 system register context and switch to it */
assert(cm_get_context(SECURE) == &optee_ctx->cpu_ctx);
cm_el1_sysregs_context_restore(SECURE);
cm_set_next_eret_context(SECURE);
rc = opteed_enter_sp(&optee_ctx->c_rt_ctx);
#if ENABLE_ASSERTIONS
optee_ctx->c_rt_ctx = 0;
#endif
return rc;
}cm_el1_sysregs_context_restore函数根据context变量里的各个寄存器值对相应的寄存器赋值，cm_set_next_eret_context函数设置下一个EL的context，其实就是把context的地址保存在栈顶供下一个EL使用
opteed_enter_sp函数定义如下：
func opteed_enter_sp
/* Make space for the registers that we're going to save */
mov x3, sp
str x3, [x0, #0] /* x0是&optee_ctx->c_rt_ctx，即optee_ctx->c_rt_ctx = sp */
sub sp, sp, #OPTEED_C_RT_CTX_SIZE
/* Save callee-saved registers on to the stack */
stp x19, x20, [sp, #OPTEED_C_RT_CTX_X19]
stp x21, x22, [sp, #OPTEED_C_RT_CTX_X21]
stp x23, x24, [sp, #OPTEED_C_RT_CTX_X23]
stp x25, x26, [sp, #OPTEED_C_RT_CTX_X25]
stp x27, x28, [sp, #OPTEED_C_RT_CTX_X27]
stp x29, x30, [sp, #OPTEED_C_RT_CTX_X29] /* 保存了lr(x30)寄存器，返回地址在opteed_synchronous_sp_entry函数中 */
/* ---------------------------------------------
* Everything is setup now. el3_exit() will
* use the secure context to restore to the
* general purpose and EL3 system registers to
* ERET into OPTEE.
* ---------------------------------------------
*/
b el3_exit /* 前面的流程中设置了elr_el3和spsr_el3，即为optee的_start函数。退出el3就进入el1， 并开始运行optee */
endfunc opteed_enter_spOPTEE的_start
FUNC _start , :
mov x19, x0 /* Save pagable part address */
#if defined(CFG_DT_ADDR)
ldr x20, =CFG_DT_ADDR
#else
mov x20, x2 /* Save DT address */
#endif
adr x0, reset_vect_table
msr vbar_el1, x0
isb
set_sctlr_el1
isb
#ifdef CFG_WITH_PAGER
... /* 忽略 */
#else
/*
* The binary is built as:
* [Core, rodata and data] : In correct location
* [struct boot_embdata + data] : Should be moved to __end, first
* uint32_t tells the length of the struct + data
*/
adr_l x0, __end /* dst */
adr_l x1, __data_end /* src */
ldr w2, [x1] /* struct boot_embdata::total_len */
/* Copy backwards (as memmove) in case we're overlapping */
add x0, x0, x2
add x1, x1, x2
adr x3, cached_mem_end
str x0, [x3]
adr_l x2, __end
copy_init:
ldp x3, x4, [x1, #-16]!
stp x3, x4, [x0, #-16]!
cmp x0, x2
b.gt copy_init
#endif
/*
* Clear .bss, this code obviously depends on the linker keeping
* start/end of .bss at least 8 byte aligned.
*/
adr_l x0, __bss_start
adr_l x1, __bss_end
clear_bss:
str xzr, [x0], #8
cmp x0, x1
b.lt clear_bss
#ifdef CFG_VIRTUALIZATION
... /* 忽略 */
#endif
/* Setup SP_EL0 and SP_EL1, SP will be set to SP_EL0 */
set_sp
bl thread_init_thread_core_local
/* Enable aborts now that we can receive exceptions */
msr daifclr, #DAIFBIT_ABT
/*
* Invalidate dcache for all memory used during initialization to
* avoid nasty surprices when the cache is turned on. We must not
* invalidate memory not used by OP-TEE since we may invalidate
* entries used by for instance ARM Trusted Firmware.
*/
adr_l x0, __text_start
ldr x1, cached_mem_end
sub x1, x1, x0
bl dcache_cleaninv_range
/* Enable Console */
bl console_init
#ifdef CFG_CORE_ASLR
... /* 忽略 */
#else
mov x0, #0
#endif
adr x1, boot_mmu_config
bl core_init_mmu_map
#ifdef CFG_CORE_ASLR
... /* 忽略 */
#endif
bl __get_core_pos
bl enable_mmu
#ifdef CFG_CORE_ASLR
... /* 忽略 */
#endif
mov x0, x19 /* pagable part address */
mov x1, #-1
mov x2, x20 /* DT address */
bl boot_init_primary
/*
* In case we've touched memory that secondary CPUs will use before
* they have turned on their D-cache, clean and invalidate the
* D-cache before exiting to normal world.
*/
adr_l x0, __text_start
ldr x1, cached_mem_end
sub x1, x1, x0
bl dcache_cleaninv_range
/*
* Clear current thread id now to allow the thread to be reused on
* next entry. Matches the thread_init_boot_thread in
* boot.c.
*/
#ifndef CFG_VIRTUALIZATION
bl thread_clr_boot_thread
#endif
#ifdef CFG_CORE_FFA
... /* 忽略 */
#else
/*
* Pass the vector address returned from main_init
* Compensate for the load offset since cpu_on_handler() is
* called with MMU off.
*/
ldr x0, boot_mmu_config + CORE_MMU_CONFIG_LOAD_OFFSET
adr x1, thread_vector_table
sub x1, x1, x0 /* 第二参数是thread_vector_table */
mov x0, #TEESMC_OPTEED_RETURN_ENTRY_DONE /* 第一个参数是smc_fid */
smc #0
b . /* SMC should not return */
#endif
END_FUNC _start
DECLARE_KEEP_INIT _start_start函数在一系列设置后又通过smc进入了EL3，由于EL3已经设置了中断向量为runtime_exceptions，所以会转入中断向量处理。由于是smc命令产生的中断，是同步中断，因此会调用handle_sync_exception
vector_entry sync_exception_aarch64
/*
* This exception vector will be the entry point for SMCs and traps
* that are unhandled at lower ELs most commonly. SP_EL3 should point
* to a valid cpu context where the general purpose and system register
* state can be saved.
*/
apply_at_speculative_wa
check_and_unmask_ea
handle_sync_exception
end_vector_entry sync_exception_aarch64
/* ---------------------------------------------------------------------
* This macro handles Synchronous exceptions.
* Only SMC exceptions are supported.
* ---------------------------------------------------------------------
*/
.macro handle_sync_exception
#if ENABLE_RUNTIME_INSTRUMENTATION
.../* 忽略 */
#endif
mrs x30, esr_el3
ubfx x30, x30, #ESR_EC_SHIFT, #ESR_EC_LENGTH
/* Handle SMC exceptions separately from other synchronous exceptions */
cmp x30, #EC_AARCH32_SMC
b.eq smc_handler32
cmp x30, #EC_AARCH64_SMC
b.eq smc_handler64 /* 转入smc_handler64 */
/* Synchronous exceptions other than the above are assumed to be EA */
ldr x30, [sp, #CTX_GPREGS_OFFSET + CTX_GPREG_LR]
b enter_lower_el_sync_ea
.endmsmc_handler64:
/* NOTE: The code below must preserve x0-x4 */
/*
* Save general purpose and ARMv8.3-PAuth registers (if enabled).
* If Secure Cycle Counter is not disabled in MDCR_EL3 when
* ARMv8.5-PMU is implemented, save PMCR_EL0 and disable Cycle Counter.
*/
bl save_gp_pmcr_pauth_regs
#if ENABLE_PAUTH
... /* 忽略 */
#endif
/*
* Populate the parameters for the SMC handler.
* We already have x0-x4 in place. x5 will point to a cookie (not used
* now). x6 will point to the context structure (SP_EL3) and x7 will
* contain flags we need to pass to the handler.
*/
mov x5, xzr
mov x6, sp
/*
* Restore the saved C runtime stack value which will become the new
* SP_EL0 i.e. EL3 runtime stack. It was saved in the 'cpu_context'
* structure prior to the last ERET from EL3.
*/
ldr x12, [x6, #CTX_EL3STATE_OFFSET + CTX_RUNTIME_SP]
/* Switch to SP_EL0 */
msr spsel, #MODE_SP_EL0
/*
* Save the SPSR_EL3, ELR_EL3, & SCR_EL3 in case there is a world
* switch during SMC handling.
* TODO: Revisit if all system registers can be saved later.
*/
mrs x16, spsr_el3
mrs x17, elr_el3
mrs x18, scr_el3
stp x16, x17, [x6, #CTX_EL3STATE_OFFSET + CTX_SPSR_EL3]
str x18, [x6, #CTX_EL3STATE_OFFSET + CTX_SCR_EL3]
/* Copy SCR_EL3.NS bit to the flag to indicate caller's security */
bfi x7, x18, #0, #1
mov sp, x12
/* Get the unique owning entity number */ /* x0保存的是smc_fid */
ubfx x16, x0, #FUNCID_OEN_SHIFT, #FUNCID_OEN_WIDTH
ubfx x15, x0, #FUNCID_TYPE_SHIFT, #FUNCID_TYPE_WIDTH
orr x16, x16, x15, lsl #FUNCID_OEN_WIDTH /* 经过运算找出需要调用的service，这里是opteed_fast */
/* Load descriptor index from array of indices */
adrp x14, rt_svc_descs_indices
add x14, x14, :lo12:rt_svc_descs_indices
ldrb w15, [x14, x16]
/* Any index greater than 127 is invalid. Check bit 7. */
tbnz w15, 7, smc_unknown
/*
* Get the descriptor using the index
* x11 = (base + off), w15 = index
*
* handler = (base + off) + (index << log2(size))
*/
adr x11, (__RT_SVC_DESCS_START__ + RT_SVC_DESC_HANDLE)
lsl w10, w15, #RT_SVC_SIZE_LOG2
ldr x15, [x11, w10, uxtw] /* 经过运算找出opteed_fast需要调用的handler，这里是opteed_smc_handler */
/*
* Call the Secure Monitor Call handler and then drop directly into
* el3_exit() which will program any remaining architectural state
* prior to issuing the ERET to the desired lower EL.
*/
#if DEBUG
cbz x15, rt_svc_fw_critical_error
#endif
blr x15
b el3_exitx15是opteed_smc_handler的地址，即跳转到opteed_smc_handler。
static uintptr_t opteed_smc_handler(uint32_t smc_fid,
u_register_t x1,
u_register_t x2,
u_register_t x3,
u_register_t x4,
void *cookie,
void *handle,
u_register_t flags)
{
... /* 忽略 */
/*
* Returning from OPTEE
*/
switch (smc_fid) {
/*
* OPTEE has finished initialising itself after a cold boot
*/
case TEESMC_OPTEED_RETURN_ENTRY_DONE:
/*
* Stash the OPTEE entry points information. This is done
* only once on the primary cpu
*/
assert(optee_vector_table == NULL);
optee_vector_table = (optee_vectors_t *) x1;
if (optee_vector_table) {
set_optee_pstate(optee_ctx->state, OPTEE_PSTATE_ON);
/*
* OPTEE has been successfully initialized.
* Register power management hooks with PSCI
*/
psci_register_spd_pm_hook(&opteed_pm);
/*
* Register an interrupt handler for S-EL1 interrupts
* when generated during code executing in the
* non-secure state.
*/
flags = 0;
set_interrupt_rm_flag(flags, NON_SECURE);
rc = register_interrupt_type_handler(INTR_TYPE_S_EL1,
opteed_sel1_interrupt_handler,
flags);
if (rc)
panic();
}
/*
* OPTEE reports completion. The OPTEED must have initiated
* the original request through a synchronous entry into
* OPTEE. Jump back to the original C runtime context.
*/
opteed_synchronous_sp_exit(optee_ctx, x1);
break;
... /* 忽略 */
}opteed_smc_handler函数需要留意psci_register_spd_pm_hook(&opteed_pm)，向PSCI注册了一个opteed_pm，在PSCI启动从核的时候会通过这个callback进入从核的OPTEE。
opteed_smc_handler调用了opteed_synchronous_sp_exit。opteed_synchronous_sp_exit调用了opteed_exit_sp函数：
func opteed_exit_sp
/* Restore the previous stack */
mov sp, x0
/* Restore callee-saved registers on to the stack */
ldp x19, x20, [x0, #(OPTEED_C_RT_CTX_X19 - OPTEED_C_RT_CTX_SIZE)]
ldp x21, x22, [x0, #(OPTEED_C_RT_CTX_X21 - OPTEED_C_RT_CTX_SIZE)]
ldp x23, x24, [x0, #(OPTEED_C_RT_CTX_X23 - OPTEED_C_RT_CTX_SIZE)]
ldp x25, x26, [x0, #(OPTEED_C_RT_CTX_X25 - OPTEED_C_RT_CTX_SIZE)]
ldp x27, x28, [x0, #(OPTEED_C_RT_CTX_X27 - OPTEED_C_RT_CTX_SIZE)]
ldp x29, x30, [x0, #(OPTEED_C_RT_CTX_X29 - OPTEED_C_RT_CTX_SIZE)] /* 恢复了lr(x30)寄存器 */
/* ---------------------------------------------
* This should take us back to the instruction
* after the call to the last opteed_enter_sp().
* Place the second parameter to x0 so that the
* caller will see it as a return value from the
* original entry call
* ---------------------------------------------
*/
mov x0, x1 /* x1是thread_vector_table */
ret
endfunc opteed_exit_sp
由于恢复了lr寄存器，因此不会再return回smc_handler64函数，而是opteed_synchronous_sp_entry调用opteed_enter_sp的地方。因此return了以后，就是在opteed_synchronous_sp_entry继续执行。
opteed_synchronous_sp_entry返回后回到opteed_init()，opteed_init（bl32_init）返回后回到bl31_main函数。
bl31_main会继续执行bl31_prepare_next_image_entry然后去启动BL33。这部分就不在本文讨论范围内了。
启动从核
后面准备描述一下ATF如何在从核启动OPTEE。从我阅读OPTEE源码来看，官方没有给出common的流程，我理解这部分需要厂商在port的时候根据平台实现关键函数。我这里以qemu的实现来做说明。
前面提到OPTEE中有一些service在启动的时候会被初始化，其中有提到一个service叫做std_svc，在这里需要拿出来说一下。这个函数的setup函数（即初始化函数）如下
/* Setup Standard Services */
static int32_t std_svc_setup(void)
{
uintptr_t svc_arg;
int ret = 0;
svc_arg = get_arm_std_svc_args(PSCI_FID_MASK); /* 获取到了从核启动的地址 */
assert(svc_arg);
/*
* PSCI is one of the specifications implemented as a Standard Service.
* The `psci_setup()` also does EL3 architectural setup.
*/
if (psci_setup((const psci_lib_args_t *)svc_arg) != PSCI_E_SUCCESS) {
ret = 1;
}
... /* 忽略 */
return ret;
}其中有一个比较重要的函数是psci_setup，这个是函数初始化了很多关于PSCI的功能。是为了Linux通过PSCI启动从核做了准备。这里需要关注一个函数的调用get_arm_std_svc_args(PSCI_FID_MASK)。这个函数获取到了从核启动的地址。内容如下：
uintptr_t get_arm_std_svc_args(unsigned int svc_mask)
{
/* Setup the arguments for PSCI Library */
DEFINE_STATIC_PSCI_LIB_ARGS_V1(psci_args, bl31_warm_entrypoint); /* 从核启动地址是bl31_warm_entrypoint */
/* PSCI is the only ARM Standard Service implemented */
assert(svc_mask == PSCI_FID_MASK);
return (uintptr_t)&psci_args;
}然后 std_svc_setup把svc_arg做为参数传递给了psci_setup
int __init psci_setup(const psci_lib_args_t *lib_args)
{
... /* 忽略 */
(void) plat_setup_psci_ops((uintptr_t)lib_args->mailbox_ep,
&psci_plat_pm_ops);
assert(psci_plat_pm_ops != NULL);
... /* 忽略 */
return 0;
}在qemu平台上，plat_setup_psci_ops的实现如下：
int plat_setup_psci_ops(uintptr_t sec_entrypoint,
const plat_psci_ops_t **psci_ops)
{
uintptr_t *mailbox = (void *) PLAT_QEMU_TRUSTED_MAILBOX_BASE;
*mailbox = sec_entrypoint;
secure_entrypoint = (unsigned long) sec_entrypoint;
*psci_ops = &plat_qemu_psci_pm_ops;
return 0;
}
上面的函数做了2个事情，一个是初始化了maibox base地址上的值，就是从核的启动地址，就是bl31_warm_entrypoint函数，还有一个是初始化了psci_plat_pm_ops，是plat_qemu_psci_pm_ops
static const plat_psci_ops_t plat_qemu_psci_pm_ops = {
.cpu_standby = qemu_cpu_standby,
.pwr_domain_on = qemu_pwr_domain_on,
.pwr_domain_off = qemu_pwr_domain_off,
.pwr_domain_pwr_down_wfi = qemu_pwr_domain_pwr_down_wfi,
.pwr_domain_suspend = qemu_pwr_domain_suspend,
.pwr_domain_on_finish = qemu_pwr_domain_on_finish,
.pwr_domain_suspend_finish = qemu_pwr_domain_suspend_finish,
.system_off = qemu_system_off,
.system_reset = qemu_system_reset,
.validate_power_state = qemu_validate_power_state,
.validate_ns_entrypoint = qemu_validate_ns_entrypoint
};到此为止，psci的初始化就完成了，后面就等Linux通过PSCI启动从核了。
Linux通过PSCI启动从核可以参考https://blog.csdn.net/tiantao2012/article/details/72622103。根据文中描述，Linux启动从核，最后会通过SMC调用到BL31来启动从核。由前文分析可知，BL31的SMC中断向量是runtime_exceptions，Linux选择的处理用的service就是std_svc_service，处理函数是std_svc_smc_handler。std_svc_smc_handler调用了psci_smc_handler，在aarch64平台psci_smc_handler又调用了psci_cpu_on，psci_cpu_on又调用了psci_cpu_on_start，psci_cpu_on_start又通过psci_plat_pm_ops变量调用了他的pwr_domain_on函数， 就是qemu_pwr_domain_on
static int qemu_pwr_domain_on(u_register_t mpidr)
{
int rc = PSCI_E_SUCCESS;
unsigned pos = plat_core_pos_by_mpidr(mpidr);
uint64_t *hold_base = (uint64_t *)PLAT_QEMU_HOLD_BASE;
hold_base[pos] = PLAT_QEMU_HOLD_STATE_GO;
sev();
return rc;
}可以看到，qemu中调用了sev唤醒了从核，并且从核从bl31_warm_entrypoint函数启动了。
func bl31_warm_entrypoint
#if ENABLE_RUNTIME_INSTRUMENTATION
/*
* This timestamp update happens with cache off. The next
* timestamp collection will need to do cache maintenance prior
* to timestamp update.
*/
pmf_calc_timestamp_addr rt_instr_svc, RT_INSTR_EXIT_HW_LOW_PWR
mrs x1, cntpct_el0
str x1, [x0]
#endif
/*
* On the warm boot path, most of the EL3 initialisations performed by
* 'el3_entrypoint_common' must be skipped:
*
* - Only when the platform bypasses the BL1/BL31 entrypoint by
* programming the reset address do we need to initialise SCTLR_EL3.
* In other cases, we assume this has been taken care by the
* entrypoint code.
*
* - No need to determine the type of boot, we know it is a warm boot.
*
* - Do not try to distinguish between primary and secondary CPUs, this
* notion only exists for a cold boot.
*
* - No need to initialise the memory or the C runtime environment,
* it has been done once and for all on the cold boot path.
*/
el3_entrypoint_common \
_init_sctlr=PROGRAMMABLE_RESET_ADDRESS \
_warm_boot_mailbox=0 \
_secondary_cold_boot=0 \
_init_memory=0 \
_init_c_runtime=0 \
_exception_vectors=runtime_exceptions \
_pie_fixup_size=0
... /* 忽略 */
bl psci_warmboot_entrypoint
... /* 忽略 */
b el3_exit
endfunc bl31_warm_entrypoint可以看到调用的还是el3_entrypoint_common，只不过_secondary_cold_boot设为了0，也就是从核按照主核的方式初始化一遍，并且不用再考虑从核的问题了。psci_warmboot_entrypoint函数会导致OPTEE的初始化，需要关注
void psci_warmboot_entrypoint(void)
{
... /* 忽略 */
/*
* This CPU could be resuming from suspend or it could have just been
* turned on. To distinguish between these 2 cases, we examine the
* affinity state of the CPU:
* - If the affinity state is ON_PENDING then it has just been
* turned on.
* - Else it is resuming from suspend.
*
* Depending on the type of warm reset identified, choose the right set
* of power management handler and perform the generic, architecture
* and platform specific handling.
*/
if (psci_get_aff_info_state() == AFF_STATE_ON_PENDING)
psci_cpu_on_finish(cpu_idx, &state_info);
else
psci_cpu_suspend_finish(cpu_idx, &state_info);
... /* 忽略 */
}从注释中可以看到，刚启动的从核，应该是走AFF_STATE_ON_PENDING分支，调用了psci_cpu_on_finish函数
void psci_cpu_on_finish(unsigned int cpu_idx, const psci_power_state_t *state_info)
{
... /* 忽略 */
/*
* Call the cpu on finish handler registered by the Secure Payload
* Dispatcher to let it do any bookeeping. If the handler encounters an
* error, it's expected to assert within
*/
if ((psci_spd_pm != NULL) && (psci_spd_pm->svc_on_finish != NULL))
psci_spd_pm->svc_on_finish(0);
... /* 忽略 */
}
在前面曾提到，主核的初始化中，定义了psci_spd_pm的值，是opteed_pm，这边就是调用了opteed_pm->svc_on_finish，其实就是opteed_cpu_on_finish_handler
static void opteed_cpu_on_finish_handler(u_register_t unused)
{
int32_t rc = 0;
uint32_t linear_id = plat_my_core_pos();
optee_context_t *optee_ctx = &opteed_sp_context[linear_id];
entry_point_info_t optee_on_entrypoint;
assert(optee_vector_table);
assert(get_optee_pstate(optee_ctx->state) == OPTEE_PSTATE_OFF);
opteed_init_optee_ep_state(&optee_on_entrypoint, opteed_rw,
(uint64_t)&optee_vector_table->cpu_on_entry,
0, 0, 0, optee_ctx);
/* Initialise this cpu's secure context */
cm_init_my_context(&optee_on_entrypoint);
/* Enter OPTEE */
rc = opteed_synchronous_sp_entry(optee_ctx);
/*
* Read the response from OPTEE. A non-zero return means that
* something went wrong while communicating with OPTEE.
*/
if (rc != 0)
panic();
/* Update its context to reflect the state OPTEE is in */
set_optee_pstate(optee_ctx->state, OPTEE_PSTATE_ON);
}可以发现，这个函数的实现和主核进入OPTEE的函数实现类似，并且注释中可以看到opteed_synchronous_sp_entry进入了OPTEE。后面的流程和主核相同。其中需要注意的是跳转到OPTEE的entrypoint不是_start了，而是optee_vector_table->cpu_on_entry。cpu_on_entry的指针指向的是vector_cpu_on_entry函数
LOCAL_FUNC vector_cpu_on_entry , : , .identity_map
bl cpu_on_handler
mov x1, x0
ldr x0, =TEESMC_OPTEED_RETURN_ON_DONE
smc #0
b . /* SMC should not return */
END_FUNC vector_cpu_on_entry主要是执行了cpu_on_handler函数，后面的逻辑是返回处理
FUNC cpu_on_handler , :
mov x19, x0
mov x20, x1
mov x21, x30
adr x0, reset_vect_table
msr vbar_el1, x0
isb
set_sctlr_el1
isb
/* Enable aborts now that we can receive exceptions */
msr daifclr, #DAIFBIT_ABT
bl __get_core_pos
bl enable_mmu
/* Setup SP_EL0 and SP_EL1, SP will be set to SP_EL0 */
set_sp
mov x0, x19
mov x1, x20
#ifdef CFG_CORE_FFA
bl boot_cpu_on_handler
b thread_ffa_msg_wait
#else
mov x30, x21
b boot_cpu_on_handler
#endif
END_FUNC cpu_on_handler
DECLARE_KEEP_PAGER cpu_on_handlercpu_on_handler在做过和primary core类似的处理后跳转到boot_cpu_on_handler函数。boot_cpu_on_handler函数调用的是init_secondary_helper函数
static void init_secondary_helper(unsigned long nsec_entry)
{
IMSG("Secondary CPU %zu initializing", get_core_pos());
/*
* Mask asynchronous exceptions before switch to the thread vector
* as the thread handler requires those to be masked while
* executing with the temporary stack. The thread subsystem also
* asserts that the foreign interrupts are blocked when using most of
* its functions.
*/
thread_set_exceptions(THREAD_EXCP_ALL);
secondary_init_cntfrq();
thread_init_per_cpu();
init_sec_mon(nsec_entry);
main_secondary_init_gic();
init_vfp_sec();
init_vfp_nsec();
IMSG("Secondary CPU %zu switching to normal world boot", get_core_pos());
}init_secondary_helper调用结束后，OPTEE从核启动就结束了
总结
下面画了一个调用关系的图示，方便宏观了解
590
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
