实验简介
编写一个通用高速缓存模拟器,并优化小型矩阵转置核心函数,以最小化对模拟高速缓存的不命中次数。
预备知识
1. 局部性原理
局部性通常有两种形式:
- 时间局部性:被引用过一次的内存位置很可能在不远的将来被多次引用。
- 空间局部性:如一个内存位置被引用,其附近的内存位置很可能在不远的将来被引用。
2. 存储器层次结构

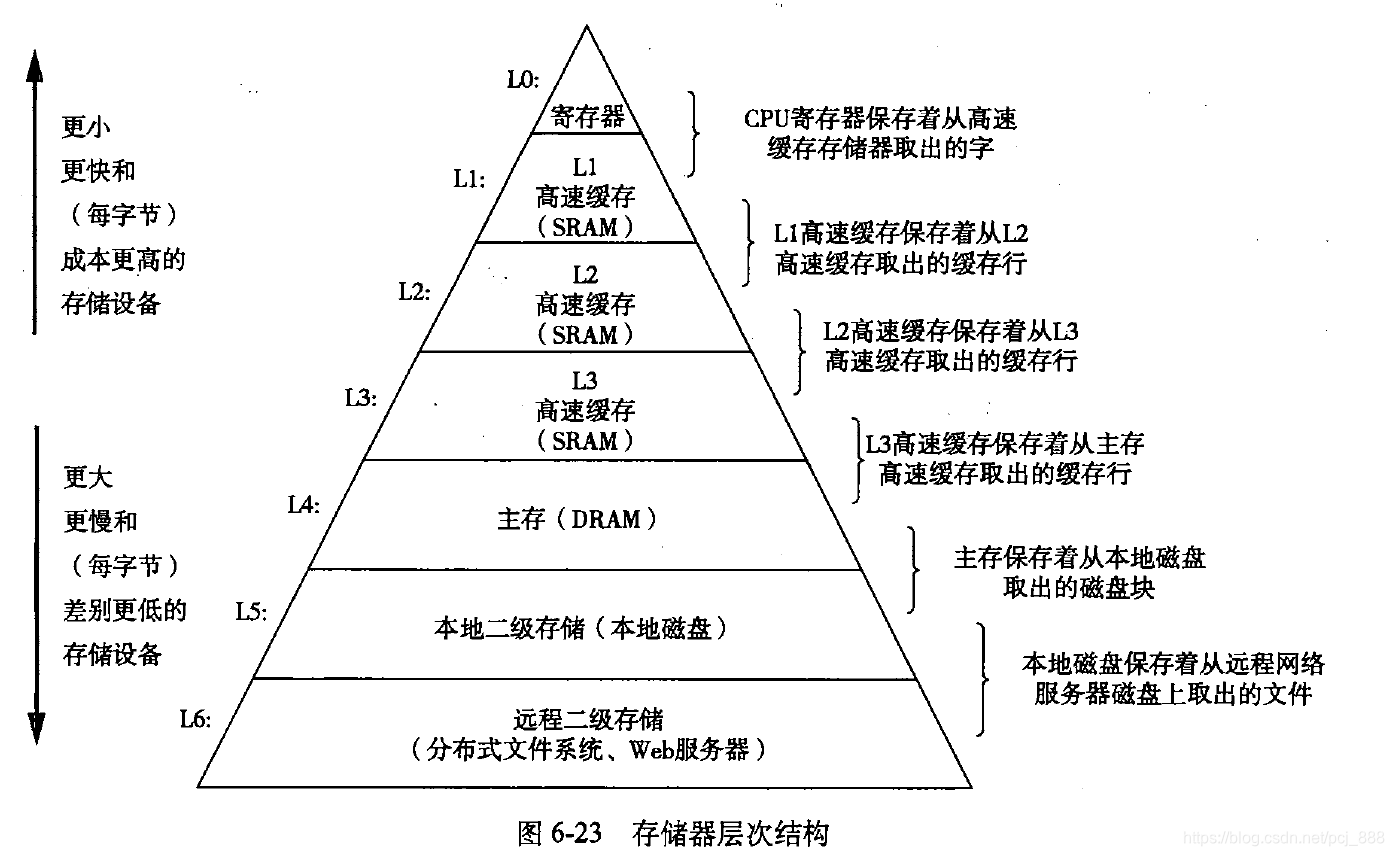

下图展示了一个典型的存储器层次结构:
可以看出,从高往低走,存储设备变得更慢,更大,更便宜。
3. 缓存
缓存被组织成一个有S组,每组E行,每行由一个B字节数据块、一个有效位、一个标记位组成。结构如下:
一个m位地址被划分为标记、组索引、块偏移三个部分。
缓存确定一个请求是否命中,然后抽取被请求字的过程分为三步:
- 组选择:从地址中间抽取s位组索引,得到组号i。比如s=4, 组索引为0010时,组号i = 2。
- 行匹配:从地址抽取t位标记,与组i中每个行的标记进行比较,如标记相等且有效位为1则命中。
- 字抽取:根据地址的b位块偏移, 直接从行中得到数据。
实验准备
从CSAPP官网获取实验文件。
阅读cachelab.pdf,了解实验内容。
实验一: 实现缓存模拟器
修改csim.c
, 实现LRU
策略的缓存模拟器,最终目标是与csim-ref
执行结果一致。
实现要点:
-
使用
getopt
解析命令行参数,man 3 getopt
查看用法。 -
解析
traces
文件,可以使用fgets
和sscanf
实现。 -
缓存结构本质是一个二维数组
cache[S][E]
,但由于s
,E
,b
不确定, 需要使用malloc
分配。 -
缓存替换策略采用
LRU
,可通过每行设计一个时间戳,每更新一次缓存将时间戳加1。
代码如下:
// 命令行参数
struct Args {
int s;
int E;
int b;
char traceFile[BUFFER_SIZE];
};
// getopt解析命令行输入
void parseArgs(int argc, char **argv, struct Args *args)
{
int opt;
while ((opt = getopt(argc, argv, "hvs:E:b:t:")) != -1) {
if (opt == 'h') {
printHelp();
} else if (opt == 's') {
args->s = atoi(optarg);
} else if (opt == 'E') {
args->E = atoi(optarg);
} else if (opt == 'b') {
args->b = atoi(optarg);
} else if (opt == 't') {
strcpy(args->traceFile, optarg);
} else {
;
}
}
}
// 初始化Cache结构
void initCache(struct Cache *cache, struct Args *args) {
cache->s = args->s;
cache->S = 1 << cache->s;
cache->E = args->E;
cache->b = args->b;
cache->sets = (struct CacheSet *)malloc(sizeof(struct CacheSet) * cache->S);
for(int i = 0; i < cache->S; ++i) {
cache->sets[i].lines = (struct CacheLine *)malloc(sizeof(struct CacheLine) * cache->E);
for(int j = 0; j < cache->E; ++j) {
cache->sets[i].lines[j].valid = INVALID;
cache->sets[i].lines[j].tag = INVALID_TAG;
}
}
}
// 释放Cache
void recycleCache(struct Cache *cache) {
for(int i = 0; i < cache->S; ++i) {
free(cache->sets[i].lines);
}
free(cache->sets);
}
void updateTimeStamp(struct Cache *cache) {
int numSets = cache->S;
int numLines = cache->E;
for(int i = 0; i < numSets; ++i) {
for(int j = 0; j < numLines; ++j) {
if(cache->sets[i].lines[j].valid == VALID) {
++cache->sets[i].lines[j].timestamp;
}
}
}
}
void update(struct Cache *cache, int64_t addr, struct Result *result) {
int numLines = cache->E;
// 标记 + 组索引(s位) + 块偏移(b位)
int setIndex = (addr >> cache->b) & (cache->S - 1); // 先求s位组索引, 得到addr位于第几组
int tag = addr >> (cache->s + cache->b); // 求出tag, 方法为地址右移s+b位
struct CacheSet *curSet = &cache->sets[setIndex];
for(int i = 0; i < numLines; ++i) {
if(curSet->lines[i].tag == tag) { // tag相等表示命中
++result->hits;
curSet->lines[i].timestamp = 0;
return;
}
}
// 不命中
++result->misses;
for(int i = 0; i < numLines; ++i) {
if(curSet->lines[i].valid == INVALID) { // 找到一个空行
curSet->lines[i].tag = tag;
curSet->lines[i].valid = VALID;
curSet->lines[i].timestamp = 0;
return;
}
}
// 没有命中又没有空行, 表示冲突不命中
++result->evictions;
int maxIdx = 0;
int maxTime = curSet->lines[0].timestamp;
for(int i = 1; i < numLines; ++i) {
if(curSet->lines[i].timestamp > maxTime) {
maxTime = curSet->lines[i].timestamp;
maxIdx = i;
}
}
curSet->lines[maxIdx].tag = tag;
curSet->lines[maxIdx].timestamp = 0;
}
void updateCache(struct Cache *cache, char ch, int64_t addr, struct Result *result)
{
update(cache, addr, result);
if(ch == 'M') { // 一次读取加上一次写入, 相当于update两次
update(cache, addr, result);
}
updateTimeStamp(cache); // 每条指令执行后更新timestamp
}
void DoParse(struct Cache *cache, char *traceFile, struct Result *result) {
FILE *fp;
char ch;
int size;
int64_t addr;
char buf[BUFFER_SIZE];
fp = fopen(traceFile, "r");
if(fp == NULL) {
printf("open traceFile: %s failed!\n", traceFile);
return;
}
// fgets + sscanf解析trace文件
while(fgets(buf, BUFFER_SIZE, fp) != NULL) {
if(buf[0] == 'I') { // 'I'表示指令cache,不做处理
continue;
}
sscanf(buf, " %c %lx,%d\n", &ch, &addr, &size);
updateCache(cache, ch, addr, result);
}
fclose(fp);
}
int main(int argc, char **argv)
{
struct Args args;
struct Cache cache;
struct Result res = {0, 0, 0};
parseArgs(argc, argv, &args);
initCache(&cache, &args);
DoParse(&cache, args.traceFile, &res);
recycleCache(&cache);
printSummary(res.hits, res.misses, res.evictions);
return 0;
}
实验二: 优化矩阵转置
实验二要求在trans.c
中实现矩阵转置函数,最小化缓存不命中的次数。
实验二中的缓存结构为 S = 5, E = 1, b = 5
,即32组,每组1行,每行32字节,每行可放8个int
数
利用分块技术和局部变量减少miss,分块技术可参考 waside-blocking.pdf
32 * 32
由于缓存的每一行能放8个数,考虑将32 * 32划分为16个8 * 8 的分块,每次处理单个8 * 8的分块,再利用局部变量减少miss。代码如下:
void transpose_submit(int M, int N, int A[N][M], int B[M][N])
{
int a1, a2, a3, a4, a5, a6, a7, a8;
for(int i = 0; i < M; i += 8) {
for(int j = 0; j < N; j += 8) {
for(int k = i; k < i + 8; ++k) {
a1 = A[k][j];
a2 = A[k][j+1];
a3 = A[k][j+2];
a4 = A[k][j+3];
a5 = A[k][j+4];
a6 = A[k][j+5];
a7 = A[k][j+6];
a8 = A[k][j+7];
B[j][k] = a1;
B[j+1][k] = a2;
B[j+2][k] = a3;
B[j+3][k] = a4;
B[j+4][k] = a5;
B[j+5][k] = a6;
B[j+6][k] = a7;
B[j+7][k] = a8;
}
}
}
}
如果改用4 * 4分块,会导致缓存利用不足,因为缓存的一行可以放8个数;也不能用16 * 16分块,会导致块内冲突。
使用8个局部变量(a1 ~ a8
)的目的是避免写入B时,在对角线发生冲突不命中。因为A和B中相同位置的元素会映射到同一行。而矩阵转置不会改变对角线上的元素位置,导致多出现两次不命中。
61 * 67
和32*32类似,尝试分块法,发现8 * 8即可满足要求,再利用局部变量减少miss
。
首先对56 * 64部分进行8 * 8分块,其余部分直接简单转置即可。
void transpose_submit(int M, int N, int A[N][M], int B[M][N])
{
int i, j, a1, a2, a3, a4, a5, a6, a7, a8;
for(j = 0; j < 56; j += 8) {
for(i = 0; i < 64; ++i) {
a1 = A[i][j];
a2 = A[i][j+1];
a3 = A[i][j+2];
a4 = A[i][j+3];
a5 = A[i][j+4];
a6 = A[i][j+5];
a7 = A[i][j+6];
a8 = A[i][j+7];
B[j][i] = a1;
B[j+1][i] = a2;
B[j+2][i] = a3;
B[j+3][i] = a4;
B[j+4][i] = a5;
B[j+5][i] = a6;
B[j+6][i] = a7;
B[j+7][i] = a8;
}
}
for(i = 0; i < 64; ++i) {
for(j = 56; j < 61; ++j) {
a1 = A[i][j];
B[j][i] = a1;
}
}
for(i = 64; i < 67; ++i) {
for(j = 0; j < 61; ++j) {
a1 = A[i][j];
B[j][i] = a1;
}
}
}
64 * 64
对于64 * 64矩阵,每4行就有冲突,如使用8 * 8分块会导致块内就有冲突,只能得0分。
因此,这里改用4 * 4分块,再利用局部变量,代码如下:
// 1667 misses, 3.8 points
void transpose_submit(int M, int N, int A[N][M], int B[M][N])
{
int i, j, l;
int a1, a2, a3, a4, a5, a6, a7, a8;
for(i = 0; i < M; i += 4) {
for(j = 0; j < N; j += 4) {
for(l = i; l < i + 4; l += 2) {
a1 = A[l][j];
a2 = A[l][j+1];
a3 = A[l][j+2];
a4 = A[l][j+3];
a5 = A[l+1][j];
a6 = A[l+1][j+1];
a7 = A[l+1][j+2];
a8 = A[l+1][j+3];
B[j][l] = a1;
B[j+1][l] = a2;
B[j+2][l] = a3;
B[j+3][l] = a4;
B[j][l+1] = a5;
B[j+1][l+1] = a6;
B[j+2][l+1] = a7;
B[j+3][l+1] = a8;
}
}
}
}
结果为1667
次,没有满分,原因是没有充分利用缓存。需要满分的可以参考:https://www.cnblogs.com/liqiuhao/p/8026100.html?utm_source=debugrun&utm_medium=referral
实验结果
代码上传到github,仅供参考:https://github.com/PCJ600/CacheLab
# ./driver.py
Part A: Testing cache simulator
Running ./test-csim
Your simulator Reference simulator
Points (s,E,b) Hits Misses Evicts Hits Misses Evicts
3 (1,1,1) 9 8 6 9 8 6 traces/yi2.trace
3 (4,2,4) 4 5 2 4 5 2 traces/yi.trace
3 (2,1,4) 2 3 1 2 3 1 traces/dave.trace
3 (2,1,3) 167 71 67 167 71 67 traces/trans.trace
3 (2,2,3) 201 37 29 201 37 29 traces/trans.trace
3 (2,4,3) 212 26 10 212 26 10 traces/trans.trace
3 (5,1,5) 231 7 0 231 7 0 traces/trans.trace
6 (5,1,5) 265189 21775 21743 265189 21775 21743 traces/long.trace
27
Part B: Testing transpose function
Running ./test-trans -M 32 -N 32
Running ./test-trans -M 64 -N 64
Running ./test-trans -M 61 -N 67
Cache Lab summary:
Points Max pts Misses
Csim correctness 27.0 27
Trans perf 32x32 8.0 8 287
Trans perf 64x64 3.8 8 1667
Trans perf 61x67 10.0 10 1889
Total points 48.8 53
参考资料
《深入理解计算机系统 原书第3版》
