日常开发中涉及到较多列表功能,如何设计一模板,传递一JSON字符内容,即可呈现对应列表,对提升开发效率和降低开发难度有较大帮助,因此设计常规列表需解决包含查询条件、查询按钮、呈现列表等元素
一、动态查询条件设计
<div class="filter-container">
<!--
a-form-model rules 对动态标签处理时,item-label * 号不出现,需一开始指定,必须绑定,所直接在a-form-model-item标签中直接绑定,也要提取准备好require=true,先设置true,最后再根据规则调整位false
-->
<a-form-model ref="ruleForm" :model="formModel" layout="inline">
<a-row v-for="(rowItem ,rowIndex) in formRowCollapseKey['noCollapseKey']" :key="rowIndex" :gutter="rowItem.gutter">
<a-col v-for="(formItem,colIndex) in formRowActiveData[rowItem.rowKey].colList" :key="colIndex" :span="formItem.span">
<input-tpl-ui
v-show="rowItem.rowType === 'form'"
ref="modalFormTplUi"
:param-data="initData"
:form-item="formColActiveData[formItem.model]"
:active-enum-list="activeEnumData[formItem.model]"
:active-enum-data="activeEnumData"
:modal-fn-data="modalFn"
:ui-page-url="uiPageUrl"
:init-src-label="initSrcObj.initSrcLabel"
:rules="rules"
:modal-form="formModel"
:form-event="formEvent"
@selectSearch="inputSelectSearch"
@inputSearch="inputSearch"
@changeEvent="inputChangeEvent"
@clearEmpty="clearEmpty"
/>
</a-col>
</a-row>
</a-form-model>
</div>
二、动态查询按钮设计
<div class="table-operator">
<div v-if="showChart.defaultShow" :id="tableEchartId" style="width: 100%;height: 270px" />
</div>
<div class="table-operator">
<!-- <div style="display: flex; flex-wrap: wrap"> -->
<operator-btn-tpl-list
:session-config-tpl-data="sessionConfigTplData"
:toolbar-menu-data="tableToolbarMenu"
:toolbar-list-data="tableToolbarList"
:table-selected-key-data="tableSelectedKey"
:ui-page-url="uiPageUrl"
@tableOperatorBtnOnClick="tableOperatorBtnOnClick"
@tableOperatorBtnUpload="tableOperatorBtnUpload"
/>
</div>
三、动态列表设计
<a-table
:ref="tableId"
table-layout="auto"
fixed="true"
:bordered="tableBordered"
:row-key="tableRowKey"
:size="tableSize"
:loading="loading"
:pagination="tablePagination"
:row-selection="{selectedRowKeys: tableSelectedKey,onChange: tableOnSelect,type:rowSelectType}"
:columns="listColActiveList"
:custom-row="processCustomRow"
:data-source="tableData"
:scroll="tableScroll"
@change="tableOnChange"
>
<span v-for="(titleIcon) in titleIconList" :slot="titleIcon.slot" :key="titleIcon.slot">
<a-icon v-if="titleIcon.leftIcon !== undefined" :type="titleIcon.leftIcon.icon" @click="clickIconEvent(titleIcon)" /> {{ titleIcon.title }}
<a-icon v-if="titleIcon.rightIcon !== undefined" :type="titleIcon.rightIcon.icon" @click="clickIconEvent(titleIcon)" />
<a-tooltip v-if="titleIcon.tooltipIcon !== undefined" :title="titleIcon.tooltipIcon.title">
<a-icon :type="titleIcon.tooltipIcon.icon" />
</a-tooltip>
</span>
<!--{ x: 1100 }滚动宽度 -->
<!-- <template v-if="initHeadTitle" slot="title" slot-scope="text,record,rowIndex,rowColumn">-->
<!-- Header-->
<!-- </template>-->
<div
slot="filterDropdown"
slot-scope="{ setSelectedKeys, selectedKeys, confirm, clearFilters, column }"
style="padding: 8px"
>
<a-input
v-ant-ref="c => (searchInput = c)"
:placeholder="`查找 ${column.title}`"
:value="selectedKeys[0]"
style="width: 188px; margin-bottom: 8px; display: block;"
@change="e => setSelectedKeys(e.target.value ? [e.target.value] : [])"
@pressEnter="() => handleSearch(selectedKeys, confirm, column.dataIndex)"
/>
<a-button
type="primary"
icon="search"
size="small"
style="width: 90px; margin-right: 8px"
@click="() => handleSearch(selectedKeys, confirm, column.dataIndex)"
>
查询
</a-button>
<a-button size="small" style="width: 90px" @click="() => handleReset(clearFilters)">
重置
</a-button>
</div>
<a-icon
slot="filterIcon"
slot-scope="filtered"
type="search"
:style="{ color: filtered ? '#108ee9' : undefined }"
/>
<template slot="progress" slot-scope="text,record,rowIndex,rowColumn">
<span>
<a @click="processOnClick(text,record,rowIndex,rowColumn)">
{{ text }}
</a>
</span>
</template>
<span slot="input" slot-scope="text, record,rowIndex,rowColumn">
<a-input
style="margin: -5px 0"
:value="text"
@change="e => tableInputChange(e.target.value, rowColumn.dataIndex, rowIndex)"
/>
</span>
<span slot="inputNumber" slot-scope="text, record,rowIndex,rowColumn">
<a-input-number
style="width: 100%"
:value="text"
step="10"
@change="e => tableInputNumberChange(e, rowColumn.dataIndex, rowIndex)"
/>
</span>
<span slot="select" slot-scope="text, record,rowIndex,rowColumn">{{columnFiltersData.S_OBJ_MSG}}}
<a-select style="width: 120px" @change="e => tableInputChange(e, rowColumn.dataIndex, rowIndex)" :value="text">
<a-select-option v-for="(data,i) in activeEnumData[rowColumn.dataIndex]" :key="data.value">
{{ data.text }}
</a-select-option>
</a-select>
</span>
<span slot="switch" slot-scope="text, record,rowIndex,rowColumn">
<a-switch :checked="text" default-checked @change="e => tableInputChange(e, rowColumn.dataIndex, rowIndex)" />
</span>
<span slot="tags" slot-scope="text, record,rowIndex,rowColumn">
<a-tag
v-for="tag in customRowIdxTagsObj[rowColumn.dataIndex][rowIndex]"
:key="tag"
:color="tag === 'loser' ? 'volcano' : tag.length > 5 ? 'geekblue' : 'green'"
>
{{ tag.toUpperCase() }}
</a-tag>
</span>
<span slot="icon" slot-scope="text">
<a-icon :type="text" />
</span>
<span slot="avatar" slot-scope="text">
<a-avatar :src="text" />
</span>
<!-- <p slot="expandedRowRender" slot-scope="text, record,rowIndex,rowColumn" style="margin: 0">-->
<!-- {{ record.description }}-->
<!-- </p>-->
<span slot="action" slot-scope="text, record,rowIndex,rowColumn">
<span v-for="(btnItem,index) in customRowIdxBtnObj[rowColumn.dataIndex][rowIndex]" :key="index">
<span v-if="btnItem.compTag === 'text'" :key="index">{{ btnItem.name }}{{ text }}
</span>
<router-link v-else-if="btnItem.compTag === 'r'" :key="index" :to="{query:{id:1}}" target="_blank">
{{ btnItem.name }}
</router-link>
<a-popconfirm v-else-if="btnItem.compTag === 'confirm'" :key="index" :title="btnItem.title" @[btnItem.eventName]="columnBtnOnClick(btnItem, record)">
<a>{{ btnItem.name }}</a>
</a-popconfirm>
<a v-else :key="index" @[btnItem.eventName]="columnBtnOnClick(btnItem, record)">
<a-icon v-if="btnItem.leftIcon !== undefined" :type="btnItem.leftIcon.icon" @click="clickIconEvent(btnItem)" /> {{ btnItem.name }}{{ text }}
<a-icon v-if="btnItem.rightIcon !== undefined" :type="btnItem.rightIcon.icon" @click="clickIconEvent(btnItem)" />
<a-tooltip v-if="btnItem.tooltipIcon !== undefined" :title="btnItem.tooltipIcon.title">
<a-icon :type="btnItem.tooltipIcon.icon" />
</a-tooltip>
</a>
<a-divider v-if="(customRowIdxBtnObj[rowColumn.dataIndex][rowIndex] !== undefined && customRowIdxBtnObj[rowColumn.dataIndex][rowIndex].length -1) > index" :type="tableDividerType" />
</span>
<a-divider v-if="customRowIdxBtnObj[rowColumn.dataIndex][rowIndex] !== undefined && customRowIdxBtnObj[rowColumn.dataIndex][rowIndex].length > 0 && customRowIdxMenuObj[rowColumn.dataIndex][rowIndex].length > 0" :type="tableDividerType" />
<a-dropdown v-if="customRowIdxBtnObj[rowColumn.dataIndex][rowIndex] !== undefined && customRowIdxMenuObj[rowColumn.dataIndex][rowIndex].length > 0">
<a class="ant-dropdown-link">更多 <a-icon type="down" /></a>
<a-menu slot="overlay">
<a-menu-item v-for="(menuItem,index) in customRowIdxMenuObj[rowColumn.dataIndex][rowIndex]" :key="index">
<a v-show="menuItem.show" v-if="menuItem.compTag === 'a'" @[menuItem.eventName]="columnBtnOnClick(menuItem, record)">
<a-icon v-if="menuItem.leftIcon !== undefined" :type="menuItem.leftIcon.icon" @click="clickIconEvent(menuItem)" /> {{ menuItem.name }}{{ text }}
<a-icon v-if="menuItem.rightIcon !== undefined" :type="menuItem.rightIcon.icon" @click="clickIconEvent(menuItem)" />
<a-tooltip v-if="menuItem.tooltipIcon !== undefined" :title="menuItem.tooltipIcon.title">
<a-icon :type="menuItem.tooltipIcon.icon" />
</a-tooltip>
</a>
<a-popconfirm v-else-if="menuItem.compTag === 'confirm'" :title="menuItem.title" @[menuItem.eventName]="columnBtnOnClick(menuItem, record)"><a>{{ menuItem.name }}</a></a-popconfirm>
<a v-else @[menuItem.eventName]="columnBtnOnClick(menuItem, record)">
<a-icon v-if="menuItem.leftIcon !== undefined" :type="menuItem.leftIcon.icon" @click="clickIconEvent(menuItem)" /> {{ menuItem.name }}{{ text }}
<a-icon v-if="menuItem.rightIcon !== undefined" :type="menuItem.rightIcon.icon" @click="clickIconEvent(menuItem)" />
<a-tooltip v-if="menuItem.tooltipIcon !== undefined" :title="menuItem.tooltipIcon.title">
<a-icon :type="menuItem.tooltipIcon.icon" />
</a-tooltip>
</a>
</a-menu-item>
</a-menu>
</a-dropdown>
</span>
</a-table>

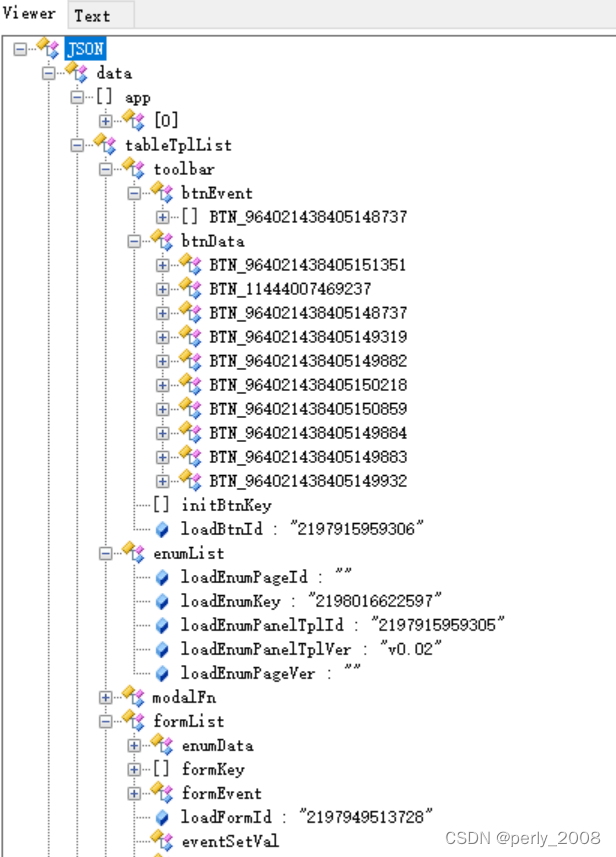

四、数据格式样例
