redis执行lua脚本实现springboot接口限流实践

redis执行lua脚本实现springboot接口限流实践

1.项目依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <artifactId>springboot-rabbitmq</artifactId>
    <version>1.0.0</version>
    <packaging>jar</packaging>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.2</version>
    </parent>

    <dependencies>
        <!-- Springboot核心jar包 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <!-- web开发包：包含Tomcat和Springmvc-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>

        <!-- actuator -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <!--logback日志包-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-logging</artifactId>
        </dependency>


        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.16.22</version>
        </dependency>


        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.24</version>
        </dependency>


        <!-- Radis -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>

        <!-- redis依赖commons-pool 这个依赖一定要添加 -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
        </dependency>

        <!-- mybatis plus 代码生成器 -->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.2.0</version>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-generator</artifactId>
            <version>3.2.0</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>


        <dependency>
            <groupId>org.redisson</groupId>
            <artifactId>redisson</artifactId>
            <version>3.6.5</version>
        </dependency>

        <!--JWT 依赖-->
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
            <version>0.9.0</version>
        </dependency>


        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.7.22</version>
        </dependency>


        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-aop</artifactId>
        </dependency>

        <dependency>
            <groupId>org.flowable</groupId>
            <artifactId>flowable-engine</artifactId>
            <version>6.7.2</version>
        </dependency>
        <!-- Flowable 任务持久化模块 -->
        <dependency>
            <groupId>org.flowable</groupId>
            <artifactId>flowable-spring-boot-starter</artifactId>
            <version>6.7.2</version>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-resources-plugin</artifactId>
                <version>2.4.3</version>
            </plugin>
        </plugins>
    </build>


</project>

2.RateLimiterAspect.java

package com.springboot.aospect;

import com.alibaba.fastjson.JSONObject;
import com.springboot.diyanotion.RateLimiter;
import com.springboot.enums.LimitType;
import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Before;
import org.aspectj.lang.reflect.MethodSignature;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.core.script.RedisScript;
import org.springframework.stereotype.Component;
import org.springframework.web.context.request.RequestAttributes;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.lang.reflect.Method;
import java.nio.charset.StandardCharsets;
import java.util.Collections;
import java.util.List;
import java.util.Objects;

/**
 * spingAop限流处理
 */
@Aspect
@Component
public class RateLimiterAspect {
    private static final Logger log = LoggerFactory.getLogger(RateLimiterAspect.class);

    private RedisTemplate<String, Object> redisTemplate;

    private RedisScript<Long> limitScript;

    @Autowired
    public void setRedisTemplate1(RedisTemplate<String, Object> redisTemplate) {
        this.redisTemplate = redisTemplate;
    }

    @Autowired
    public void setLimitScript(RedisScript<Long> limitScript) {
        this.limitScript = limitScript;
    }

    @Before("@annotation(rateLimiter)")
    public void doBefore(JoinPoint point, RateLimiter rateLimiter) {
        int time = rateLimiter.time();
        int count = rateLimiter.count();
        //根据类型生成一个键值， ip 或者 类路径+方法名
        String combineKey = getCombineKey(rateLimiter, point);
        //Collections.singletonList被限定只被分配一个内存空间，也就是只能存放一个元素的内容。
        List<String> keys = Collections.singletonList(combineKey);
        // 层是redis执行lua脚本， 键值存储数量，redis过期时间是限流时间
        Long number = redisTemplate.execute(limitScript, keys, count, time);
        if (null == number || number.intValue() > count) {
            HttpServletResponse resp = ((ServletRequestAttributes) Objects.requireNonNull(RequestContextHolder.getRequestAttributes())).getResponse();
            JSONObject jsonObject = new JSONObject();
            jsonObject.put("success", false);

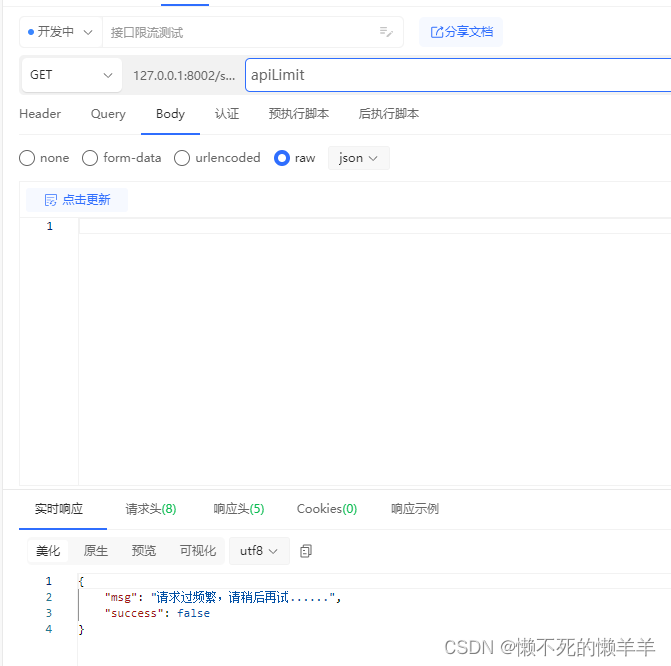

            jsonObject.put("msg", "请求过频繁，请稍后再试......");
            try {
                assert resp != null;
                output(resp, jsonObject.toJSONString());
            } catch (Exception e) {
                log.error("系统异常error,e:{}", e.toString());
            }
        }
        log.info("限制请求'{}',当前请求'{}',缓存key'{}'", count, number.intValue(), combineKey);
    }

    public String getCombineKey(RateLimiter rateLimiter, JoinPoint point) {
        StringBuffer stringBuffer = new StringBuffer(rateLimiter.key());
        if (rateLimiter.limitType() == LimitType.IP) {
            stringBuffer.append(getIpAddr(getRequest())).append("-");
        }
        MethodSignature signature = (MethodSignature) point.getSignature();
        Method method = signature.getMethod();
        Class<?> targetClass = method.getDeclaringClass();
        stringBuffer.append(targetClass.getName()).append("-").append(method.getName());
        return stringBuffer.toString();
    }


    /**
     * 获取request
     */
    private HttpServletRequest getRequest() {
        return getRequestAttributes().getRequest();
    }

    private ServletRequestAttributes getRequestAttributes() {
        RequestAttributes attributes = RequestContextHolder.getRequestAttributes();
        return (ServletRequestAttributes) attributes;
    }

    /**
     * 获取客户端IP
     *
     * @param request 请求对象
     * @return IP地址
     */
    private String getIpAddr(HttpServletRequest request) {
        if (request == null) {
            return "unknown";
        }
        String ip = request.getHeader("x-forwarded-for");
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("Proxy-Client-IP");
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("X-Forwarded-For");
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("WL-Proxy-Client-IP");
        }
        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getHeader("X-Real-IP");
        }

        if (ip == null || ip.length() == 0 || "unknown".equalsIgnoreCase(ip)) {
            ip = request.getRemoteAddr();
        }

        return "0:0:0:0:0:0:0:1".equals(ip) ? "127.0.0.1" : getMultistageReverseProxyIp(ip);
    }

    /**
     * 从多级反向代理中获得第一个非unknown IP地址
     *
     * @param ip 获得的IP地址
     * @return 第一个非unknown IP地址
     */
    private String getMultistageReverseProxyIp(String ip) {
        // 多级反向代理检测
        if (ip != null && ip.indexOf(",") > 0) {
            final String[] ips = ip.trim().split(",");
            for (String subIp : ips) {
                if (false == isUnknown(subIp)) {
                    ip = subIp;
                    break;
                }
            }
        }
        return ip;
    }


    /**
     * 检测给定字符串是否为未知，多用于检测HTTP请求相关
     *
     * @param checkString 被检测的字符串
     * @return 是否未知
     */
    public static boolean isUnknown(String checkString) {
        return "".equals(checkString) || null == checkString || "unknown".equalsIgnoreCase(checkString);
    }


    public void output(HttpServletResponse response, String msg) throws IOException {
        response.setContentType("application/json;charset=UTF-8");
        ServletOutputStream outputStream = null;
        try {
            outputStream = response.getOutputStream();
            outputStream.write(msg.getBytes(StandardCharsets.UTF_8));
        } catch (IOException e) {
            e.printStackTrace();
        } finally {
            outputStream.flush();
            outputStream.close();
        }
    }

}

3.redis配置文件

package com.springboot.config;

import com.fasterxml.jackson.annotation.JsonAutoDetect;
import com.fasterxml.jackson.annotation.JsonTypeInfo;
import com.fasterxml.jackson.annotation.PropertyAccessor;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.fasterxml.jackson.databind.jsontype.impl.LaissezFaireSubTypeValidator;
import org.redisson.Redisson;
import org.redisson.config.Config;
import org.springframework.cache.annotation.CachingConfigurerSupport;
import org.springframework.cache.annotation.EnableCaching;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.ClassPathResource;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.core.script.DefaultRedisScript;
import org.springframework.data.redis.serializer.Jackson2JsonRedisSerializer;
import org.springframework.data.redis.serializer.StringRedisSerializer;
import org.springframework.scripting.support.ResourceScriptSource;


@Configuration
@EnableCaching
public class RedisConfig extends CachingConfigurerSupport {
    @Bean
    @SuppressWarnings(value = {"unchecked", "rawtypes"})
    public RedisTemplate<String, Object> redisTemplate(RedisConnectionFactory connectionFactory) {
        RedisTemplate<String, Object> template = new RedisTemplate<>();
        template.setConnectionFactory(connectionFactory);
        Jackson2JsonRedisSerializer serializer = new Jackson2JsonRedisSerializer(Object.class);
        ObjectMapper objectMapper = new ObjectMapper();
        objectMapper.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY);
        objectMapper.activateDefaultTyping(LaissezFaireSubTypeValidator.instance,ObjectMapper.DefaultTyping.NON_FINAL, JsonTypeInfo.As.EXISTING_PROPERTY);
        // 使用StringRedisSerializer来序列化和反序列化redis的key值
        template.setKeySerializer(new StringRedisSerializer());
        template.setValueSerializer(serializer);
        // Hash的key也采用StringRedisSerializer的序列化方式
        template.setHashKeySerializer(new StringRedisSerializer());
        template.setHashValueSerializer(serializer);

        template.afterPropertiesSet();
        return template;
    }

    @Bean
    public DefaultRedisScript<Long> limitScript() {
        DefaultRedisScript<Long> redisScript = new DefaultRedisScript<>();
        redisScript.setScriptSource(new ResourceScriptSource(new ClassPathResource("lua/limit.lua")));
        redisScript.setResultType(Long.class);
        return redisScript;
    }

    @Bean
    public Redisson redisson() {
        Config config = new Config();
        config.useSingleServer().setAddress("redis://localhost:6379").setPassword("123456").setDatabase(0);
        return (Redisson) Redisson.create(config);
    }
}

4.自定义注解

package com.springboot.diyanotion;

import com.springboot.enums.LimitType;
import java.lang.annotation.*;

/**
 * 限流注解
 */
@Target(ElementType.METHOD)
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface RateLimiter
{
    /**
     * 限流key
     */
    public String key() default "rate_limit";

    /**
     * 限流时间,单位秒
     */
    public int time() default 10;

    /**
     * 限流次数
     */
    public int count() default 5;

    /**
     * 限流类型
     */
    public LimitType limitType() default LimitType.DEFAULT;
}

5.controller

package com.springboot.controller;

import com.springboot.diyanotion.RateLimiter;
import com.springboot.entity.UserInfo;
import com.springboot.enums.LimitType;
import com.springboot.service.LoginService;
import com.springboot.util.Result;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RestController;
import java.util.HashMap;
import java.util.Map;


@RestController
public class LoginController {

    /**
     * lua脚本测试接口限流
     * 5秒内同一IP只能访问3次
     */
    @GetMapping("/apiLimit")
    @RateLimiter(key = "apiLimit", count = 3, time = 5, limitType = LimitType.IP)
    public Result apiLimit() {
        Map<String, Object> map = new HashMap<>();
        map.put("test","测试redis限流");
        return Result.success(map);
    }

}

6.lua脚本（在resource目录下新建lua文件夹，新建limit.lua文件），内容如下

local key = KEYS[1]
local count = tonumber(ARGV[1])
local time = tonumber(ARGV[2])
local current = redis.call('get', key);
if current and tonumber(current) > count then
    return tonumber(current);
end
current = redis.call('incr', key)
if tonumber(current) == 1 then
    redis.call('expire', key, time)
end
return tonumber(current);

7.测试结果
