发那科 / 法兰克(Fanuc)CNC数据采集

一,概述

前面介绍过,发那科CNC数据采集一般有两种方法:

(1)通过Focas开发包进行二次开发,Focas开发包支持win32、win64、linux32、linux64、arm linux 32

(2)通过TCP协议方法。该方法不局限于CPU架构(x86、ARM、MIPS等等),不局限操作系统(Windows、Linux、FreeRTOS、RT-Thread、μC/OS、裸机等等均可),不局限编程语言(Java、Python、C/C++、C#、Go等等均可)。

下面对两种方法都进行相应介绍。

PS:使用TCP协议方式。非常适合于ARM Linux 64位程序,以及单片机(STM32、GD32、ESP32等);也可以很方便集成到软件平台里。


二,FOCAS 1/2 开发包方式

1,使用SDK的Demo源码可以从下面地址下载

发那科CNCSDKDemo源码,Focas1_2SDKDemosourcecode,,C#-C#文档类资源-CSDN下载

主要的库是Fwlib32.dll以及fwlib1.dll。

(1)Fwlib32.dll是负责和fanuc通讯的组件,用来对客户端发送的数据进行转义加密再和数控系统通讯。

(2)fwlib32.dll是核心的函数操作库,封装了各类数据读取函数。

        所以,采集程序是对fwlib32.dll进行函数调用,fwlib32.dll再将数据通过Fwlib32.dll库和数控系统进TCP通讯,数控系统响应数据返回给Fwlib21.dll,Fwlib21.dll再将数据返回给fwlib32.dll进行解析,最终反馈采集程序。


2,撸代码

namespace FANUC
{
    public partial class control_axis : Form
    {
        public control_axis()
        {
            InitializeComponent();
        }
        Fanuc.ODBPOS fos = new Focas1.ODBPOS();
        private void duqu_position_rel_info()//读取相对的位置信息
        {
            short num = Fanuc.MAX_AXIS;
            short type = -1; ;
            short ret = Fanuc.cnc_rdposition(Fanuc.h, type, ref num, fos);
            if (ret == 0)
            {
                listBox1.Items.Add(fos.p1.rel.name.ToString() + ":  " + fos.p1.rel.data * Math.Pow(10, -fos.p1.rel.dec));
                listBox1.Items.Add(fos.p2.rel.name.ToString() + ":  " + fos.p2.rel.data * Math.Pow(10, -fos.p2.rel.dec));
                listBox1.Items.Add(fos.p3.rel.name.ToString() + ":  " + fos.p3.rel.data * Math.Pow(10, -fos.p3.rel.dec));
                listBox2.Items.Add(fos.p1.dist.name.ToString() + ":  " + fos.p1.dist.data * Math.Pow(10, -fos.p1.dist.dec));
                listBox2.Items.Add(fos.p2.dist.name.ToString() + ":  " + fos.p2.dist.data * Math.Pow(10, -fos.p2.dist.dec));
                listBox2.Items.Add(fos.p3.dist.name.ToString() + ":  " + fos.p3.dist.data * Math.Pow(10, -fos.p3.dist.dec));
            }
        }
        public void duqu_position_ab_info()//获取绝对位置信息
        {
            short num = Fanuc.MAX_AXIS;
            short type = -1; ;
            short ret = Fanuc.cnc_rdposition(Fanuc.h, type, ref num, fos);
            if (ret == 0)
            {
                listBox8.Items.Add(fos.p1.abs.name.ToString() + ":  " + fos.p1.abs.data * Math.Pow(10, -fos.p1.abs.dec));
                listBox8.Items.Add(fos.p2.abs.name.ToString() + ":  " + fos.p2.abs.data * Math.Pow(10, -fos.p2.abs.dec));
                listBox8.Items.Add(fos.p3.abs.name.ToString() + ":  " + fos.p3.abs.data * Math.Pow(10, -fos.p3.abs.dec));
                listBox7.Items.Add(fos.p1.dist.name.ToString() + ":  " + fos.p1.dist.data * Math.Pow(10, -fos.p1.dist.dec));
                listBox7.Items.Add(fos.p2.dist.name.ToString() + ":  " + fos.p2.dist.data * Math.Pow(10, -fos.p2.dist.dec));
                listBox7.Items.Add(fos.p3.dist.name.ToString() + ":  " + fos.p3.dist.data * Math.Pow(10, -fos.p3.dist.dec));
            }


        }
        public void get_postion()//获取位置信息
        {
            listBox3.Items.Clear();
            listBox4.Items.Clear();
            listBox5.Items.Clear();
            listBox6.Items.Clear();
            short num = Fanuc.MAX_AXIS;
            short type = -1;
            short ret = Fanuc.cnc_rdposition(Fanuc.h, type, ref num, fos);
            if (ret == 0)
            {
                //绝对
                listBox3.Items.Add(fos.p1.abs.name.ToString() + ":  " + fos.p1.abs.data * Math.Pow(10, -fos.p1.abs.dec));
                listBox3.Items.Add(fos.p2.abs.name.ToString() + ":  " + fos.p2.abs.data * Math.Pow(10, -fos.p2.abs.dec));
                listBox3.Items.Add(fos.p3.abs.name.ToString() + ":  " + fos.p3.abs.data * Math.Pow(10, -fos.p3.abs.dec));
                listBox3.Items.Add(fos.p4.abs.name.ToString() + ":  " + fos.p4.abs.data * Math.Pow(10, -fos.p3.abs.dec));
                listBox3.Items.Add(fos.p5.abs.name.ToString() + ":  " + fos.p5.abs.data * Math.Pow(10, -fos.p5.abs.dec));
                //相对
                listBox4.Items.Add(fos.p1.rel.name.ToString() + ":  " + fos.p1.rel.data * Math.Pow(10, -fos.p1.rel.dec));
                listBox4.Items.Add(fos.p2.rel.name.ToString() + ":  " + fos.p2.rel.data * Math.Pow(10, -fos.p2.rel.dec));
                listBox4.Items.Add(fos.p3.rel.name.ToString() + ":  " + fos.p3.rel.data * Math.Pow(10, -fos.p3.rel.dec));
                listBox4.Items.Add(fos.p4.rel.name.ToString() + ":  " + fos.p4.rel.data * Math.Pow(10, -fos.p4.rel.dec));
                listBox4.Items.Add(fos.p5.rel.name.ToString() + ":  " + fos.p5.rel.data * Math.Pow(10, -fos.p5.rel.dec));
                //机器
                listBox5.Items.Add(fos.p1.mach.name.ToString() + ":  " + fos.p1.mach.data * Math.Pow(10, -fos.p1.mach.dec));
                listBox5.Items.Add(fos.p2.mach.name.ToString() + ":  " + fos.p2.mach.data * Math.Pow(10, -fos.p2.mach.dec));
                listBox5.Items.Add(fos.p3.mach.name.ToString() + ":  " + fos.p3.mach.data * Math.Pow(10, -fos.p3.mach.dec));
                listBox5.Items.Add(fos.p4.mach.name.ToString() + ":  " + fos.p4.mach.data * Math.Pow(10, -fos.p4.mach.dec));
                listBox5.Items.Add(fos.p5.mach.name.ToString() + ":  " + fos.p5.mach.data * Math.Pow(10, -fos.p5.mach.dec));
                //距离
                listBox6.Items.Add(fos.p1.dist.name.ToString() + ":  " + fos.p1.dist.data * Math.Pow(10, -fos.p1.dist.dec));
                listBox6.Items.Add(fos.p2.dist.name.ToString() + ":  " + fos.p2.dist.data * Math.Pow(10, -fos.p2.dist.dec));
                listBox6.Items.Add(fos.p3.dist.name.ToString() + ":  " + fos.p3.dist.data * Math.Pow(10, -fos.p3.dist.dec));
                listBox6.Items.Add(fos.p4.dist.name.ToString() + ":  " + fos.p3.dist.data * Math.Pow(10, -fos.p4.dist.dec));
                listBox6.Items.Add(fos.p5.dist.name.ToString() + ":  " + fos.p5.dist.data * Math.Pow(10, -fos.p5.dist.dec));

            }
        }
        Fanuc.ODBACT pindle = new Focas1.ODBACT();
        public void get_pindle()//获取主轴的速度
        {
            short ret = Fanuc.cnc_acts(Fanuc.h, pindle);
            if (ret == 0)
            {
                label5.Text = pindle.data.ToString();
            }
            else
            {
                MessageBox.Show(ret+"");
            }
        }
        Fanuc.ODBSVLOAD sv = new Focas1.ODBSVLOAD();
        Fanuc.ODBSPLOAD sp = new Focas1.ODBSPLOAD();
        public void get_load()//主,伺服轴的加载计//测试成功
        {
            short a = 6;//伺服轴的数量
            short ret = Fanuc.cnc_rdsvmeter(Fanuc.h, ref a, sv);
            short type = Convert.ToInt16(textBox1.Text);//1朱轴压力,-1俩者都有,0主轴监控速度表
            short ret2 = Fanuc.cnc_rdspmeter(Fanuc.h, type, ref a, sp);
            if (ret == 0 && ret2 == 0)
            {
                listBox9.Items.Add("伺服的加载值:" + sv.svload1.data + "  " + sv.svload2.data + "  " + sv.svload3.data + " ");
                listBox9.Items.Add("主轴的加载值:" + sp.spload1.spload.data);
            }
            else
                MessageBox.Show(ret+"");
        }
    }
}

三,协议方式

void getSystemInfo()
{
	int len = 0;
	unsigned char p_recv[4096] = {0};

	char p_send[] = {
		0xA0, 0xA0, 0xA0, 0xA0,
		0x00, 0x01, 0x21, 0x01,
		0x00, 0x1E,
		0x00, 0x01,
		0x00, 0x1C,
		0x00, 0x01,
		0x00, 0x01,
		0x00, 0x18,
		0x00, 0x00, 0x00, 0x00,
		0x00, 0x00, 0x00, 0x00,
		0x00, 0x00, 0x00, 0x00,
		0x00, 0x00, 0x00, 0x00,
		0x00, 0x00, 0x00, 0x00
	};

	if (m_init)
	{
		// socket发送
		send(m_Socket, p_send, sizeof(p_send), 0);

		// socket接收数据
		int ret = recvData(p_recv, &len);
		if (ret == 0)
		{
			// 处理接收数据
			handleSysInfo(p_recv, len);
		}
	}
}

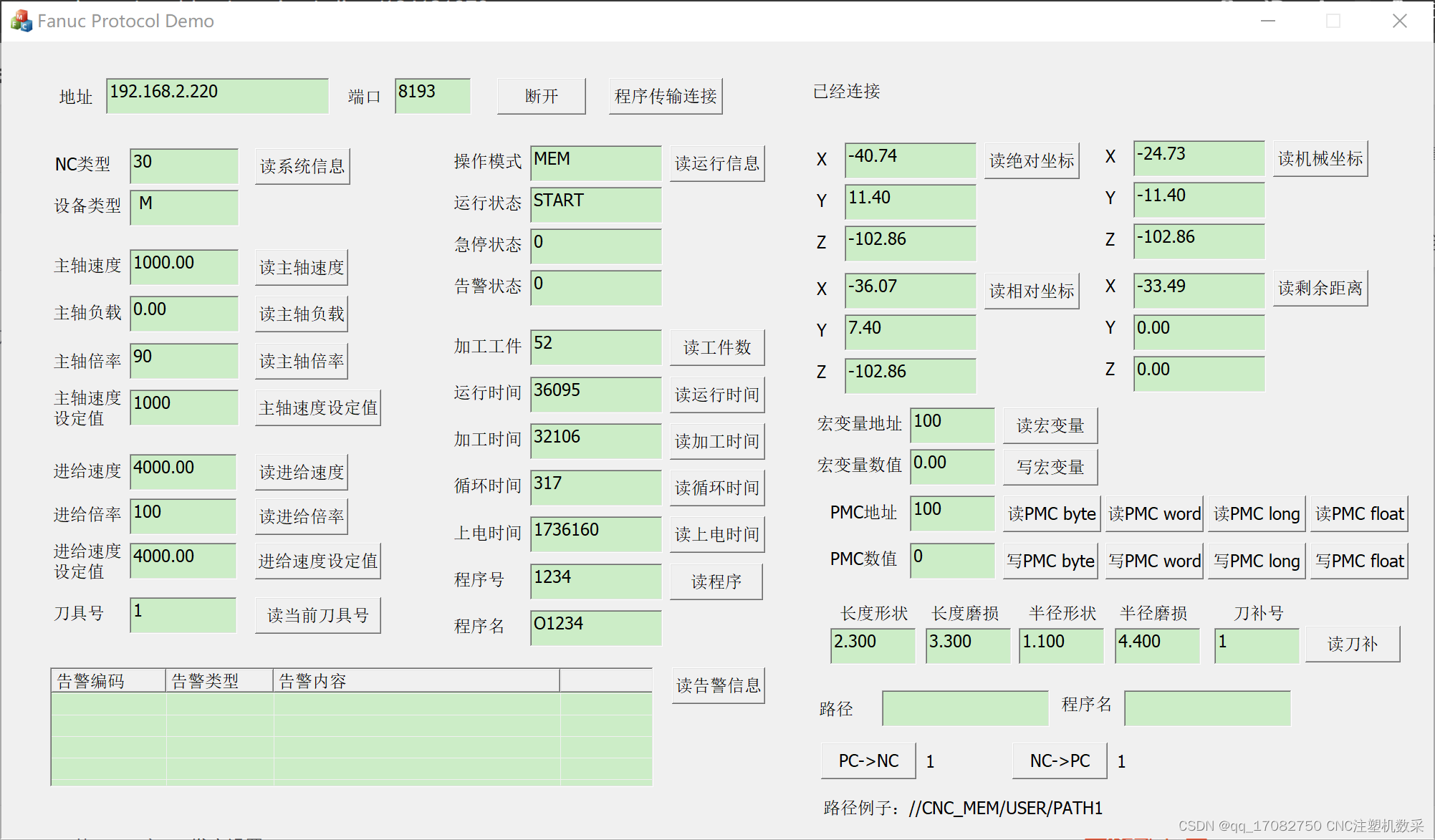

从上面代码可以看出,不再需要调用官方的库文件,直接填充发送缓存,通过TCP连接发送出去即可,所以适用性非常强。状态、模式、主轴速度、进给速度、主轴倍率、进给倍率、当前刀号、工件数、运行时间、加工时间、循环时间、程序号、程序名、绝对坐标、机械坐标、相对坐标、剩余距离、宏变量读写、PMC读写、刀补、NC程序传输等等。

 四,机台IP设置

可以参考下面链接

发那科(Fanuc)CNC IP地址与FOCAS端口设置 | 巫迪科技

五,现场问题

1、能ping通但不能够访问到端口
(1)检查设备端的端口是否配置正确。
(2)检查机台IP是否被其他网络设备占用。
(3)检查是否网口插错,有些机器有两个网卡。不同网卡的配置界面还非常相似。

2、没有网口

(1)有网口配置界面,但是没有网卡的MAC地址,这类就是无自带网口,但可以通过PCMCIA网卡进行扩展。

(2)找不到网口的配置界面。这类一般是厂家限制了功能,想要重新把界面搞出来,非常麻烦。建议采集I/O。

(3)网卡选择错误。在配置网卡的时候可以选择,使用机台自带网口需要选择内置有效,选择PCMCIA有效就是使用PCMCIA扩展网口。

3、PCMCIA网卡丢包

国内做这个卡的就那么两家,用过其中一家,用某些交换机不会出现丢包,用其他交换机会出现严重丢包。
