导语
首先,看一下效果
可能各位在别处看到过类似的东西,我在微信的文章末尾看到有个玩意,感觉有意思,就用代码实现一下。这篇文章主要把握写代码的思路展示一下。
看到上图,我想各位能想到最简单的实现方案就是用动画,切很多图出来,然后就可以轻松实现了。为了不让自己再舒适区里呆的太安逸,就弄点麻烦的:通过计算来实现。文章的末尾会将全部代码贴出,复制可以直接运行。
需要回忆的知识
- 重力势能 E = mgh
- 动能 E = ½mv²
- 在理想状态下,动能和重力式能可以相互转换,且能量守恒
如果不想太注意细节,以上的知识可以忽略
绘制流程
绘制5个带绳子的球
这步非常简单,概括来说就是:
- 确定球的圆心坐标O
- 画固定长度的线段OA
- 以点O为圆心,画固定半径的球(这样就完成了一个带绳的球)
- 绘制多个带绳的球
相关代码在文章末尾已经贴出来了(82-124行,代码中有后续的细节处理,需要甄别下相关的代码),这里只是写下思路,不再重复贴代码了
让球旋转
![这里写图片描述](https://img-blog.csdn.net/20160905200527963)
静态图为:
让带绳子的球旋转,实际上就是改变上图的角α;当α越大,偏移的角度越大;当α越小,偏移的角度越小。
为了让计算简单,先假设一些前提:
- α的最大值为45°(这里可以自由给值)
- 每次刷新屏幕α改变的值的大小一致且为1(也就是调用invalidate()方法)
- 一开始α为45°
有了这些前提限制,实际上,每一次绘图我们的已知条件为:
- O点的坐标
- 大圆的半径 = 绳子的长度 + 小圆的半径
- α的值(因为前提中的2和3,绘制的时候是可以知道当前α的角度)
所以,这步的大致流程为:
- 根据大圆的圆心O、半径R,当前α的角度,求B点的坐标(跟前一篇类似,通过画弧,再通过PathMeasure.getPosTan()来获得相应点的坐标)
- 绘制线段OB
- 以B点为圆心,画半径为固定值的小圆
相关代码在文章末尾已经贴出来了(131-224行,代码中有后续的细节处理,需要甄别下相关的代码),这里只是写下思路,不再重复贴代码了
如果第一步不知道如何去测量B点的坐标,建议先去看下我前两篇的文章
音量调节
绘制仪表盘
模拟现实

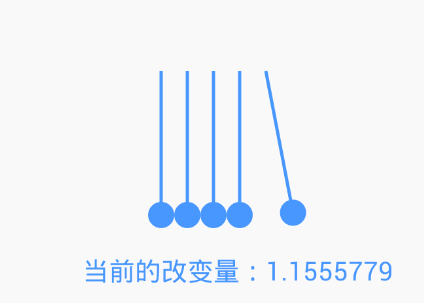

在上一步中,我们为了简化模型,让α的改变量每次都为1,但是,这与现实不相符。现实情况是这样的:
- 球偏移到最高点时,速度很慢,基本上为0
- 球偏移到最低点,速度最快
![这里写图片描述](https://img-blog.csdn.net/20160905202746377)
文章一开始,我们已经准备好了需要回忆的知识,现在,让我们回到物理学课堂,说一说简单的摆钟模型计算:

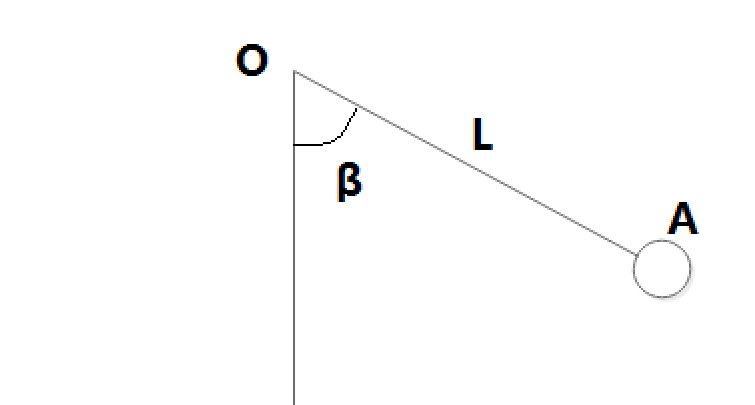

条件:绳子的长为L,球A静止时,竖直方向的夹角为α
求:当与竖直方向的夹角为β时的角速度
![这里写图片描述](https://img-blog.csdn.net/20160905204406580)
解题步骤
- 求总机械能
当球静止时,机械能 = 重力势能
![这里写图片描述](https://img-blog.csdn.net/20160905205938358)
- 一般情况的表示
当球运动时,机械能 = 重力势能 + 动能
经过计算可以得到:
又有公式:
所以最终的结果为![这里写图片描述](https://img-blog.csdn.net/20160905212807310)
回归到代码中
好了,得出了结论,让我们回到代码中来:
float v = (float) Math.sqrt(2 * 9.8 * L * (Math.cos( β* Math.PI / 180) - cos(α* Math.PI / 180)));
float w = v / L;
说明:这里只是拟合,并没有特别精确。我们认为当前角度到改变后的角度之间的角速度是一致的,都为当前角度所对应的角速度;所以,在当前角度下,改变角度的量为:
具体的实现过程在下面代码的243-250行,是不是感觉很简单?
全部代码
上面罗里吧嗦的半天,终于给出来了可以复制的东西 O(∩_∩)O~
/**
* Created by kevin on 2016/9/2.
* <p>
* 需要推敲的地方:
* 1.并排绘制多个带绳子的球
* 2.让左右两端的球可以旋转
* 3.为了模拟现实,需要根据物理学来计算单位时间旋转的角度
*/
public class Pendulum extends View {
private Paint linePaint;
private int width;
private int height;
private Path linePath;
private Path bigCirclePath;
private Path rotateLinePath;
private int stroke = 5;
private int r = 20;
private int length = 400;
private int number = 5;
private static int angle = 50;
private float[] degree = new float[]{angle, -1};
private float t = 30f;
private float cosO;
private float gr2;
private int interval = 40;
private long last;
private long now ;
public Pendulum(Context context) {
super(context);
initPaint();
calCosOAnd2gr();
}
public Pendulum(Context context, AttributeSet attrs) {
super(context, attrs);
initPaint();
calCosOAnd2gr();
}
public Pendulum(Context context, AttributeSet attrs, int defStyleAttr) {
super(context, attrs, defStyleAttr);
initPaint();
calCosOAnd2gr();
}
/**
* 用来计算cosθ和2gr
*/
private void calCosOAnd2gr() {
cosO = (float) Math.cos((angle + 0.1f) * Math.PI / 180);
gr2 = (float) (9.8 * r * 2);
}
@Override
protected void onDraw(Canvas canvas) {
super.onDraw(canvas);
canvas.translate(width / 2, height / 2);
drawPic(canvas);
rotate(canvas);
}
/**
* 绘制静态图形
*
* @param canvas
*/
private void drawPic(Canvas canvas) {
if (number < 1) {
throw new IllegalArgumentException("数量不能小于1");
}
int x;
if (number % 2 == 1) {
int leftNumber = number / 2;
for (int i = -leftNumber; i <= leftNumber; i++) {
if (isRight()) {
if (i == leftNumber)
continue;
} else if (!isRight()) {
if (i == -leftNumber)
continue;
}
x = 2 * r * i;
if (linePath == null)
linePath = new Path();
linePath.reset();
linePath.moveTo(x, 0);
linePath.lineTo(x, -(r + length));
linePaint.setStyle(Paint.Style.FILL_AND_STROKE);
canvas.drawPath(linePath, linePaint);
linePaint.setStyle(Paint.Style.FILL);
canvas.drawCircle(x, 0, r, linePaint);
}
} else if (number % 2 == 0) {
throw new IllegalArgumentException("偶数太丑,没有绘制");
}
}
/**
* 绘制旋转的图形
*
* @param canvas
*/
private void rotate(Canvas canvas) {
int direction;
if (isRight()) {
direction = 1;
} else {
direction = -1;
}
float nowDegree = Math.abs(degree[0]);
linePaint.setStyle(Paint.Style.STROKE);
int pointNumber = number / 2;
int x = 2 * r * pointNumber * direction;
float[] topPoint = new float[]{x, -(r + length)};
int totalLength = length + r;
if (bigCirclePath == null)
bigCirclePath = new Path();
bigCirclePath.reset();
RectF rectF = new RectF(topPoint[0] - totalLength, topPoint[1] - totalLength, topPoint[0] + totalLength, topPoint[1] + totalLength);
bigCirclePath.addArc(rectF, 90, -90 * direction);
float[] rotatePoint = new float[2];
PathMeasure measure = new PathMeasure(bigCirclePath, false);
measure.getPosTan(measure.getLength() * (nowDegree) / 90, rotatePoint, null);
if (rotateLinePath == null)
rotateLinePath = new Path();
rotateLinePath.reset();
rotateLinePath.moveTo(topPoint[0], topPoint[1]);
rotateLinePath.lineTo(rotatePoint[0], rotatePoint[1]);
canvas.drawPath(rotateLinePath, linePaint);
linePaint.setStyle(Paint.Style.FILL);
canvas.drawCircle(rotatePoint[0], rotatePoint[1], r, linePaint);
if (degree[1] == 1) {
if (degree[0] < angle) {
float changeAngle = rotateAngle();
degree[0] = degree[0] + changeAngle;
if (degree[0] >= angle) {
degree[0] = angle;
degree[1] = -1;
}
refreshPic();
}
if (degree[0] >= angle) {
degree[1] = -1;
}
}
else if (degree[1] == -1) {
if (degree[0] > -angle) {
float changeAngle = rotateAngle();
degree[0] = degree[0] - changeAngle;
if (degree[0] <= -angle) {
degree[0] = -angle;
degree[1] = 1;
}
refreshPic();
}
if (degree[0] <= -angle) {
degree[1] = 1;
}
}
}
private void refreshPic() {
now = System.currentTimeMillis();
long i = now - last;
long post = interval - i;
postInvalidateDelayed(post);
if (post < 0) {
}
last = now;
}
/**
* 计算当前需要转动的角度
*
* @return
*/
private float rotateAngle() {
float v = (float) Math.sqrt(gr2 * (Math.cos(Math.abs(degree[0]) * Math.PI / 180) - cosO));
float changedAngle = t * v / length;
if (changedAngle == 0) {
changedAngle = 0.001f;
}
return changedAngle;
}
/**
* 判断是否是右侧的圆球在动
*
* @return true-->右侧的圆球在动
* false-->左侧的圆球在动
*/
private boolean isRight() {
boolean flag = false;
if (degree[0] > 0) {
flag = true;
} else if (degree[0] < 0) {
flag = false;
} else if (degree[0] == 0) {
if (degree[1] == -1) {
flag = true;
}
else if (degree[1] == 1) {
flag = false;
}
}
return flag;
}
@Override
protected void onSizeChanged(int w, int h, int oldw, int oldh) {
super.onSizeChanged(w, h, oldw, oldh);
width = w;
height = h;
}
private void initPaint() {
last = System.currentTimeMillis();
linePaint = new Paint();
linePaint.setStrokeWidth(stroke);
linePaint.setAntiAlias(true);
linePaint.setStyle(Paint.Style.FILL_AND_STROKE);
linePaint.setColor(0xff4897fe);
}
}
