一、设计思路

1.新建一个Function.h文件，在其中声明二维坐标结构体、角度转换函数、方位角计算函数、两点间距离计算函数和三个定点交会函数，并在新建一个Function.cpp文件对函数进行定义（Function.cpp文件中要加入#include "Function.h"）；

2.在CExercise_4Dlg.cpp文件头处添加 #include "Function.h"

3.计算按钮消息响应函数对交会定点计算函数的调用：

iMethod==1，调用前方交会函数；

iMethod==2，调用测边交会函数；

iMethod==3，调用后方交会函数。

二、主要代码

// function.h : 头文件
#pragma once
struct Point2D    //定义二维坐标结构体
{
        double X;
        double Y;
};
double Dms_TO_Rad(double dDms);                         //度分秒转化为弧度制
double Distance(struct Point2D &A,struct Point2D &B);   //计算两点间的距离
double Azimuth(struct Point2D &A,struct Point2D &B);    //计算方位角
struct Point2D ForwardIntersection(struct Point2D &A,struct Point2D &B,double Alpha,double Betta);
//前方交会定点计算
struct Point2D LinearIntersection(struct Point2D &A,struct Point2D &B,double Dap,double Dbp);
//测边交会定点计算
struct Point2D ResctionIntersection(struct Point2D &A,struct Point2D &B,struct Point2D &C,double Alpha,double Betta,double Gamma);
//后方交会定点计算

// function.cpp : 实现文件
#include "StdAfx.h"
#include "Function.h"
#include "math.h"

const double PI=4.0*atan(1.0);


double Dms_TO_Rad(double dDms)
{
        double dRad;
        int iDegree,iMin;
        double dSec;
        iDegree=int(dDms);
        iMin=int((dDms-iDegree)*100);
        dSec=((dDms-iDegree)*100-iMin)*100;
        dDms=iDegree+double(iMin)/60+dSec/3600;
        dRad=dDms/180*PI;
        return dRad;
}
double Distance(struct Point2D &A,struct Point2D &B)
{
        double dDistance=0;
        dDistance=sqrt((A.X-B.X)*(A.X-B.X)+(A.Y-B.Y)*(A.Y-B.Y));
        return dDistance;
}
double Azimuth(struct Point2D &A,struct Point2D &B)
{
        // TODO: 在此添加控件通知处理程序代码

        double dAzimuth=0;                     //方位角
        double dx=B.X-A.X;                     //X坐标增量
        double dy=B.Y-A.Y;                     //Y坐标增量

        if (dx>0)
        {
                if (dy>0)
                {
                        dAzimuth=atan(dy/dx);
                }
                else if(dy<0)
                {
                        dAzimuth=atan(dy/dx)+PI*2;
                }
                else
                        dAzimuth=0;
        }
        else if (dx<0)
        {
                if(dy>0)
                {
                        dAzimuth=atan(dy/dx)+PI;
                }
                else if(dy<0)
                {
                        dAzimuth=atan(dy/dx)+PI;
                }
                else
                        dAzimuth=PI;
        }
        else
        {
                if(dy>0)
                        dAzimuth=PI/2;
                else if(dy<0)
                        dAzimuth=3*PI/2;
        }
        return dAzimuth;
}
struct Point2D ForwardIntersection(struct Point2D &A,struct Point2D &B,double Alpha,double Betta)
{
        struct Point2D P;
        //将度分秒转化为弧度制
        double dA=Dms_TO_Rad(Alpha);
        double dB=Dms_TO_Rad(Betta);
        //计算A，B角余切值
        double dCotA=1/tan(dA);
        double dCotB=1/tan(dB);
        //计算前方交会定位值
        P.X=((A.X*dCotB+B.X*dCotA)+(B.Y-A.Y))/(dCotA+dCotB);
        P.Y=((A.Y*dCotB+B.Y*dCotA)+(A.X-B.X))/(dCotA+dCotB);
        return P;
}
struct Point2D LinearIntersection(struct Point2D &A,struct Point2D &B,double Dap,double Dbp)
{
        struct Point2D P;
        double Dab;                            //三角形AB边长
        Dab=Distance(A,B);
        double alpha_ab;                       //三角形AB方位角
        alpha_ab=Azimuth(A,B);
        double Angle_A;                        //三角形内角A
        Angle_A=acos((Dab*Dab+Dap*Dap-Dbp*Dbp)/(2*Dab*Dap));
        double alpha_ap=alpha_ab-Angle_A;

        P.X=A.X+Dap*cos(alpha_ap);
        P.Y=A.Y+Dap*sin(alpha_ap);
        return P;
}
struct Point2D ResctionIntersection(struct Point2D &A,struct Point2D &B,struct Point2D &C,double Alpha,double Betta,double Gamma)
{
        struct Point2D P;
        double dA;                             //三角形内角A
        double dB;                             //三角形内角B
        double dC;                             //三角形内角C
        double a;                              //三角形边长a
        double b;                              //三角形边长b
        double c;                              //三角形边长c

        a=Distance(C,B);
        b=Distance(C,A);
        c=Distance(B,A);
        dA=acos((b*b+c*c-a*a)/(2*b*c));
        dB=acos((a*a+c*c-b*b)/(2*a*c));
        dC=acos((b*b+a*a-c*c)/(2*b*a));

        double C_TEMP;                        //定义判断是否在危险圆附近的判断变量
        double B_TEMP;
        double A_TEMP;

        C_TEMP=Alpha+Betta+dC;
        B_TEMP=Alpha+Gamma+dB;
        A_TEMP=Betta+Gamma+dA;

        if ((C_TEMP>170)&&C_TEMP<190||
                (B_TEMP>170)&&B_TEMP<190||
                (B_TEMP>170)&&B_TEMP<190)
        {
                P.X=-1;
                P.Y=-1;
                return P;                         //坐标是（-1，-1）则在危险圆附近
        }

        double Alpha_Rad=Dms_TO_Rad(Alpha);   //度分秒转化为弧度
        double Betta_Rad=Dms_TO_Rad(Betta);
        double Gamma_Rad=Dms_TO_Rad(Gamma);

        double pa=(tan(Alpha_Rad)*tan(dA))/(tan(Alpha_Rad)-tan(dA));
        double pb=(tan(Betta_Rad)*tan(dB))/(tan(Betta_Rad)-tan(dB));
        double pc=(tan(Gamma_Rad)*tan(dC))/(tan(Gamma_Rad)-tan(dC));

        P.X=(pa*A.X+pb*B.X+pc*C.X)/(pa+pb+pc);
        P.Y=(pa*A.Y+pb*B.Y+pc*C.Y)/(pa+pb+pc);
        return P;
}

// Exercise_4Dlg.h : 头文件
// CExercise_4Dlg 对话框
class CExercise_4Dlg : public CDialog
{
public:
        //前方交会控件变量
        double dXA_F;
        double dYA_F;
        double dXB_F;
        double dYB_F;
        double dAlpha_F;
        double dBetta_F;
        double dXP_F;
        double dYP_F;
        //测边交会控件变量
        double dXA_L;
        double dYA_L;
        double dXB_L;
        double dYB_L;
        double dDap_L;
        double dDbp_L;
        double dXP_L;
        double dYP_L;
        //后方交会空间变量
        double dXA_R;
        double dYA_R;
        double dXB_R;
        double dYB_R;
        double dXC_R;
        double dYC_R;
        double dXP_R;
        double dYP_R;
        double dAlpha_R;
        double dBetta_R;
        double dGamma_R;
        int iMethod;                          //交会定点类型代号
        afx_msg void OnBnClickedBtnCal();     //计算按钮
        afx_msg void OnBnClickedBtnClear();   //重置编辑框数据
        afx_msg void OnBnClickedCancel();     //退出对话框
        void ForwardIntersection(double XA,double YA,double XB,double YB,double Alpha,double Betta,double &XP,double &YP);
        //前方交会定点计算
        void LinearIntersection(double XA,double YA,double XB,double YB,double Dap,double Dbp,double &XP,double &YP);
        //测边交会定点计算
        void ResctionIntersection(double XA,double YA,double XB,double YB,double XC,double YC,double Alpha,double Betta,double Gamma,double &XP,double &YP);
        //后方交会定点计算
};

// Exercise_4Dlg.cpp : 实现文件
#include "stdafx.h"
#include "Exercise_4.h"
#include "Exercise_4Dlg.h"
#include "Function.h"
CExercise_4Dlg::CExercise_4Dlg(CWnd* pParent /*=NULL*/)
        : CDialog(CExercise_4Dlg::IDD, pParent)
        , dXA_F(116.942)     //构造函数中给定变量初始值
        , dYA_F(683.295)
        , dXB_F(522.909)
        , dYB_F(794.647)
        , dAlpha_F(59.1042)
        , dBetta_F(56.3254)
        , dXP_F(398.151)
        , dYP_F(413.249)
        , dXA_L(1807.041)
        , dYA_L(719.853)
        , dXB_L(1646.382)
        , dYB_L(830.660)
        , dDap_L(105.983)
        , dDbp_L(159.648)
        , dXP_L(1805.957)
        , dYP_L(825.830)
        , dXA_R(840.134)
        , dYA_R(844.422)
        , dXB_R(1001.542)
        , dYB_R(1620.616)
        , dXC_R(659.191)
        , dYC_R(1282.629)
        , dXP_R(503.702)
        , dYP_R(1500.075)
        , dAlpha_R(-68.0237)
        , dBetta_R(-8.2414)
        , dGamma_R(76.2651)
        , iMethod(1)
{
        m_hIcon = AfxGetApp()->LoadIcon(IDR_MAINFRAME);
}
void CExercise_4Dlg::OnBnClickedBtnCal()
{
        // TODO: 在此添加控件通知处理程序代码
        UpdateData(TRUE);

        struct Point2D A,B,C,P;
        //定义个二维结构体变量存放A，B，C，P坐标

        if (iMethod==1)
        {
                A.X=dXA_F;
                A.Y=dYA_F;
                B.X=dXB_F;
                B.Y=dYB_F;
                P=ForwardIntersection(A,B,dAlpha_F,dBetta_F);
                //调用前方交会定点计算函数
                dXP_F=P.X;
                dYP_F=P.Y;
        }
        else if (iMethod==2)
        {
                A.X=dXA_L;
                A.Y=dYA_L;
                B.X=dXB_L;
                B.Y=dYB_L;
                P=LinearIntersection(A,B,dDap_L,dDbp_L);
                //调用测边交会定点计算函数
                dXP_L=P.X;
                dYP_L=P.Y;
        }
        else if (iMethod==3)
        {
                A.X=dXA_R;
                A.Y=dYA_R;
                B.X=dXB_R;
                B.Y=dYB_R;
                C.X=dXC_R;
                C.Y=dYC_R;
                P=ResctionIntersection(A,B,C,dAlpha_R,dBetta_R,dGamma_R);
                //调用后方交会定点计算函数

                dXP_R=P.X;
                dYP_R=P.Y;
                if ((dXP_R==-1)&&(dXP_R=-1))
                {
                        MessageBox(_T("在危险圆附近"));
                }
        }
        else
                MessageBox(_T("代号输入有误"));

        UpdateData(FALSE);
}

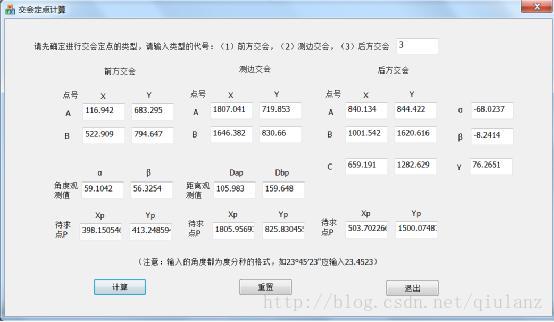

三、运行结果
