Android 仿音乐播放器自定义锁屏歌词功能

在平常使用音乐播放器时经常会遇到锁屏会显示歌词功能,做的时候也是各种手机不适配,翻阅了网上的文章,发现都是好几年前的,适配的安卓版本比较低,所以我就整合了一下分享给大家.

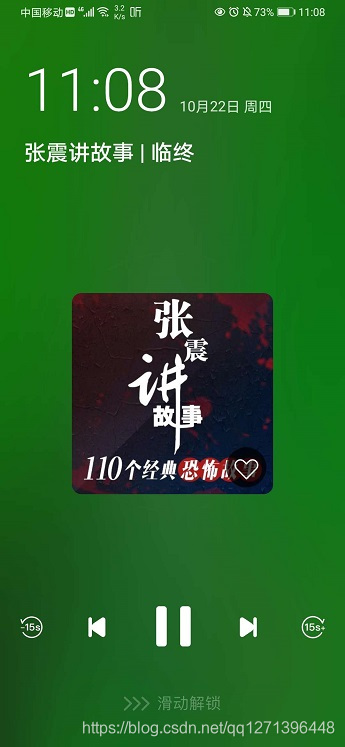

例如下图:

主要用到的知识点

1.锁屏的广播监听



废话不多说,先上代码

广播接收的方法,用来接收自手机系统广播的开屏锁屏:

public class LockerReceiver extends BroadcastReceiver {

    private static final String TAG = "LockReceiver";

    public LockerReceiver() {
    }

    @Override
    public void onReceive(Context context, Intent intent) {
        String action = intent.getAction();
        if (!TextUtils.isEmpty(action)) {
            if (action.equals(Intent.ACTION_POWER_CONNECTED)) {
                //todo
            } else if (action.equals(Intent.ACTION_SCREEN_ON)) {
            } else if (action.equals(Intent.ACTION_SCREEN_OFF)) {
                Log.e(TAG, "onReceive---" + action);
                LockScreenActivity.startActivity(context);
            }
        }
    }
}

注册一下该广播,可以在某个Activity,也可以在Application,也可以在Service,具体根据自己的业务需求来

private void registerLockerReceiver() {
        IntentFilter filter = new IntentFilter();
        filter.addAction(Intent.ACTION_POWER_CONNECTED);
        filter.addAction(Intent.ACTION_SCREEN_OFF);
        filter.addAction(Intent.ACTION_SCREEN_ON);

        lockerReceiver = new LockerReceiver();
        registerReceiver(lockerReceiver, filter);
    }

同时也需要在销毁方法里面反注册:

private void unregisterLockerReceiver() {
        if (lockerReceiver == null) {
            return;
        }
        unregisterReceiver(lockerReceiver);
        lockerReceiver = null;
    }

锁屏的Activity需要单独设置window的显示方式:

/**
     * 显示在锁屏上面
     * @param window
     */
    private void setLockerWindow(Window window) {
        WindowManager.LayoutParams lp = window.getAttributes();
        if (Build.VERSION.SDK_INT > 18) {
            lp.flags |= WindowManager.LayoutParams.FLAG_TRANSLUCENT_STATUS;
        }
        window.setAttributes(lp);
        window.getDecorView().setSystemUiVisibility(0x0);

        window.addFlags(WindowManager.LayoutParams.FLAG_SHOW_WHEN_LOCKED);
        window.addFlags(WindowManager.LayoutParams.FLAG_DISMISS_KEYGUARD);
    }

开启该Activity时添加action标明为新的任务,并且要从任务栈中移出:

@NonNull
    private static Intent getIntent(Context context) {
        Intent screenIntent = new Intent();
        screenIntent.setClass(context, LockScreenActivity.class);
        screenIntent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
        screenIntent.addFlags(Intent.FLAG_ACTIVITY_EXCLUDE_FROM_RECENTS);
        return screenIntent;
    }

同时清单文件也要设置一些必要的属性:

<activity
            android:name=".LockScreenActivity"
            android:configChanges="keyboardHidden|orientation|screenSize"
            android:excludeFromRecents="true"
            android:exported="true"
            android:hardwareAccelerated="true"
            android:launchMode="singleInstance"
            android:taskAffinity="com.lock.LockScreenActivity"
            android:theme="@style/LockScreenStyle"
            android:windowSoftInputMode="stateAlwaysHidden|adjustPan" />

最重要的还是权限:有些10.0手机需要赋予在应用上层显示的权限,有些10.0则不需要,参考喜马拉雅App和酷狗都是需要的

    <!--10.0专属,在其他应用上层展示-->
    <uses-permission android:name="android.permission.SYSTEM_ALERT_WINDOW" />
    <uses-permission android:name="android.permission.WAKE_LOCK" />
    <uses-permission android:name="android.permission.DISABLE_KEYGUARD" />

附上demo地址:

Android 自定义锁屏Demo
