前言
项目中遇到Android手机聊天的图片、语音文件保存到服务器,网上搜索一下大概3种思路:
1.servlet实现,有很多文章,利用DiskFileUpload
2.使用smartupload未学习
3.利用strtus2自带的文件上传功能。
由于strtus2已广泛应用与企业应用,且上手较快,学习成本低、配置简单。文件上传功能已封装,简单易用,故毫不犹豫选择他。
网上这方面的资料不少,但很多重复的,且比较乱,新手可能很难找到自己想要的。总算自己捣鼓半天完成了功能,整理做下笔记,供大家参考。最后附上源码
Android客户端
//要用到三个东东来做Post:HttpClient,httpPost,MultipartEntity
HttpClient httpClient = new DefaultHttpClient();
httpClient.getParams().setParameter( CoreProtocolPNames.PROTOCOL_VERSION, HttpVersion.HTTP_1_1 );
HttpPost httpPost = new HttpPost( "http://localhost:8680/upload/chat/uploadFile" );
MultipartEntity postEntity = new MultipartEntity();
// 字符用StringBody
String fileName = "2.jpg";
ContentBody cbFileName;
cbFileName = new StringBody( fileName );
// 文件用FileBody,并指定文件类型
File file = new File( "D:\\FTP\\2.jpg");
ContentBody cbFileData = new FileBody( file, "image/jpg" );
// 把上面创建的这些Body全部加到Entity里面去。
// 注意他们的key,这些key在Struts2服务器端Action的代码里必须保持一致!!
postEntity.addPart( "fileName", cbFileName );
postEntity.addPart( "fileData", cbFileData );
httpPost.setEntity( postEntity );
// 下面这句话就把数据提交到服务器去了
HttpResponse response = httpClient.execute( httpPost );
服务端struts2
配置web.xml、引入相应jar包、等本文不展开论述,
struts.xml配置
<package name="chat" namespace="/chat" extends="struts-default">
<action name="uploadFile" class="com.tch.action.FileUploadAction" method="upload">
</action>
</package>
贴上Action类
// 注意这些变量名,看见了没? 和Struts2的FormBean是一样的。
// 要和客户端添加字段时的关键字保持一致!!
private String fileName = null;
private String fileData = null;
//针对每个字段的关键字,下面的这些Set方法必须一个不少,否则你什么也得不到
public void setFileName(String fileName) {
this.fileName = fileName;
}
public void setFileData(String fileData) {
this.fileData = fileData;
}
public String upload()
{
String webappPath = findServerPath();
//path=D:\apache-tomcat-6.0.36\webapps\dqapi\
//String path = ServletActionContext.getServletContext().getRealPath("/");
//appPath=/dqapi
//String appPath = ServletActionContext.getServletContext().getContextPath();
String chatFile_path = ServletActionContext.getServletContext().getInitParameter("UPLOAD_CHAT_FILE_PATH");
FileCopyUtil util = new FileCopyUtil();
String[] array = fileName.split("\\.");
String fileType = array[array.length-1];
//String destDir = path.replace(appPath, chatFile_path);
String destDir = webappPath + chatFile_path;
//先获取HttpServletResponse
HttpServletResponse response = (HttpServletResponse) ActionContext.getContext().get( ServletActionContext.HTTP_RESPONSE );
//打开数据流,把要给客户端返回的数据写进数据流
OutputStream writer = null;
......
// 这里不用再返回其他字符串了。
// 客户端接收的不是这里返回的数据,这个是显示结果网页才会用到的返回值。
return null;
}
将用户上传文件与web项目本身分离

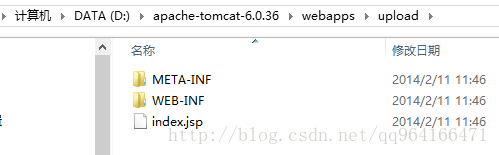

项目路径D:\apache-tomcat-6.0.36\webapps\upload

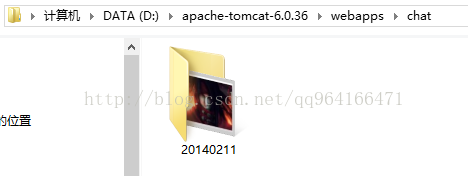

保存上传的文件到webapps目录下指定位置
文件拷贝代码如下
public String copyFile(String fileType,String fileData,String destDir) throws IOException
{
Date date = new Date();
String dirName = new SimpleDateFormat("yyyyMMdd").format(date);
String newFileName = new SimpleDateFormat("yyyyMMddHHmmss_SSS").format(date);
//destDir的值D:/apache-tomcat-6.0.36/webapps/chat/
String dirPath = destDir+dirName;
File dir = new File(dirPath);
if(!dir.exists() && !dir.isDirectory())
{
//目录不存在,创建目录
dir.mkdir();
}
String newFilePath = dirPath+"/"+newFileName+"."+fileType;
FileInputStream in=new FileInputStream(new File(fileData));
FileOutputStream out=new FileOutputStream(newFilePath);
int length=2097152;
byte[] buffer=new byte[length];
while(true){
int ins=in.read(buffer);
if(ins==-1){
in.close();
out.flush();
out.close();
return newFilePath;
}else
out.write(buffer,0,ins);
}
}
源码0积分下载地址以及调试过程
http://download.csdn.net/detail/qq964166471/6912621

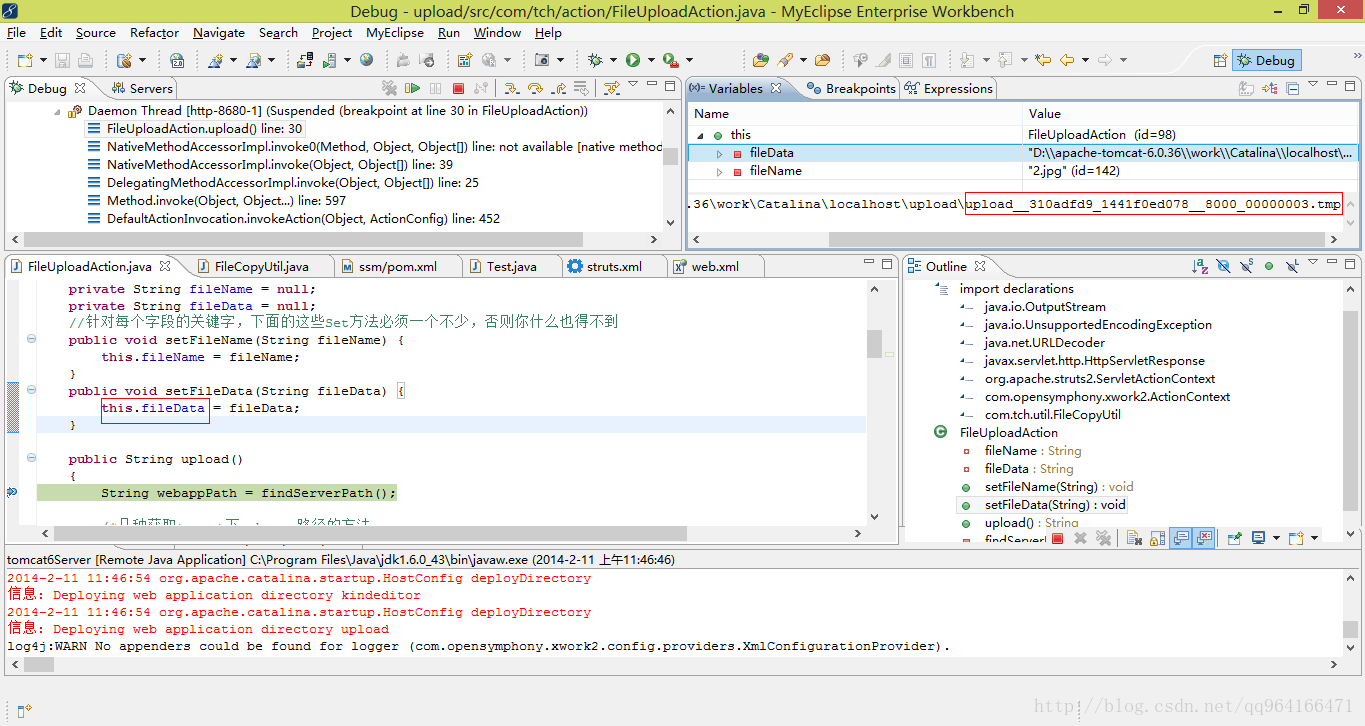

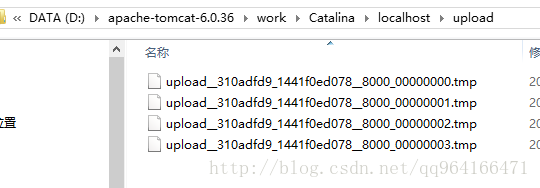

模拟Android端发起文件上传请求,进入服务端Action,观察fileData,发现指向一个tmp文件,此时struts已接受到客户端上传的文件,我们需要做的紧紧是将文件保存到我们希望的位置

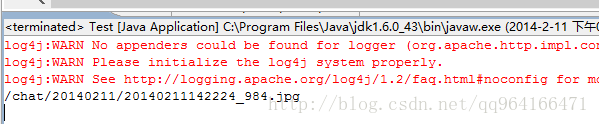

最后客户端从response中取出服务器的返回数据

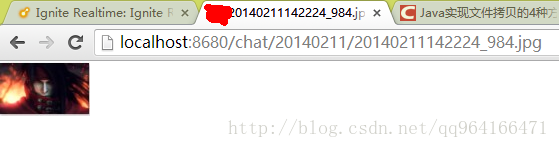

加上http://localhost:8680/chat/20140211/20140211142224_984.jpg便可访问新上传的图片了
测试结果:
支持图片、文本、amr上传,完成。
