Android Tint着色器
概述
tint 译为着色。tint一般与tintMode配合使用。 同时还有backgroundTint和backgroundTintMode属性(很明显backgroundTint是针对背景色着色,通过实践也证实了backgroundTint只有在为控件设置了background属性才会生效。)
tintMode和backgroundTintMode有六种模式:
- src_in
- add
- multiply
- screen
- src_atop
- src_over
使用
XML中使用
<ImageView
android:layout_width="50dp"
android:layout_height="50dp"
android:layout_margin="10dp"
android:src="@drawable/a_normal" />
<LinearLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="horizontal">
<ImageView
android:layout_width="50dp"
android:layout_height="50dp"
android:layout_margin="10dp"
android:src="@drawable/a_normal"
app:tint="@color/red" />
<ImageView
android:layout_width="50dp"
android:layout_height="50dp"
android:layout_margin="10dp"
android:background="@color/white"
android:backgroundTint="@color/red"
android:src="@drawable/a_normal" />
</LinearLayout>
代码中使用
//修改图片颜色
val drawable: Drawable? = ContextCompat.getDrawable(this, R.drawable.a_normal)
drawable?.let {
val tintDrawable: Drawable = DrawableCompat.wrap(it).mutate()
DrawableCompat.setTint(tintDrawable, Color.RED)
imageView1.setImageDrawable(tintDrawable)
}
//修改背景色
val tintDrawable: Drawable = DrawableCompat.wrap(ColorDrawable(Color.WHITE)).mutate()
DrawableCompat.setTint(tintDrawable, Color.RED)
imageView2.setImageResource(R.drawable.a_normal)
imageView2.setBackground(tintDrawable)
选择器使用
按下状态和抬起状态颜色变化:
在res/color
目录下定义颜色选择器selector
<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
<item android:color="@color/red" android:state_pressed="true" />
<item android:color="@color/black" />
</selector>
val drawable3 = ContextCompat.getDrawable(this, R.drawable.a_normal)
drawable3?.let {
val tintDrawable = DrawableCompat.wrap(it).mutate()
DrawableCompat.setTintList(tintDrawable,
ContextCompat.getColorStateList(this, R.color.selector))
imageView3.setImageDrawable(tintDrawable)
}

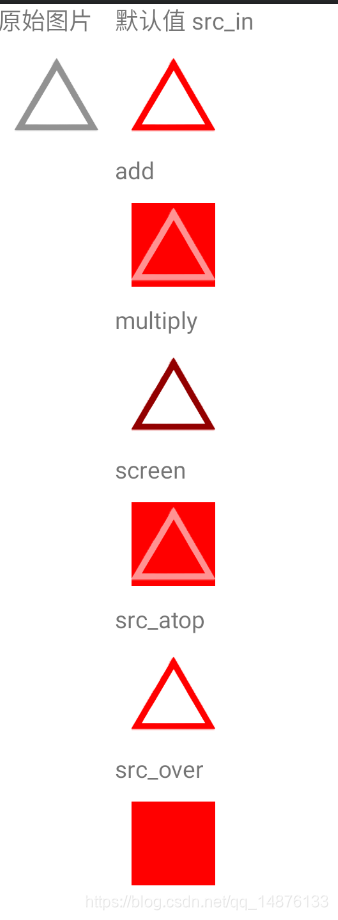

tintMode详解
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="horizontal"
tools:context=".MainActivity">
<LinearLayout
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:orientation="vertical">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="原始图片" />
<ImageView
android:layout_width="50dp"
android:layout_height="50dp"
android:layout_margin="10dp"
android:src="@drawable/a_normal" />
</LinearLayout>
<LinearLayout
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:orientation="vertical">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="默认值 src_in" />
<ImageView
android:layout_width="50dp"
android:layout_height="50dp"
android:layout_margin="10dp"
android:src="@drawable/a_normal"
app:tint="@color/red" />
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="add" />
<ImageView
android:layout_width="50dp"
android:layout_height="50dp"
android:layout_margin="10dp"
android:src="@drawable/a_normal"
android:tintMode="add"
app:tint="@color/red" />
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="multiply" />
<ImageView
android:layout_width="50dp"
android:layout_height="50dp"
android:layout_margin="10dp"
android:src="@drawable/a_normal"
android:tintMode="multiply"
app:tint="@color/red" />
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="screen" />
<ImageView
android:layout_width="50dp"
android:layout_height="50dp"
android:layout_margin="10dp"
android:src="@drawable/a_normal"
android:tintMode="screen"
app:tint="@color/red" />
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="src_atop" />
<ImageView
android:layout_width="50dp"
android:layout_height="50dp"
android:layout_margin="10dp"
android:src="@drawable/a_normal"
android:tintMode="src_atop"
app:tint="@color/red" />
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="src_over" />
<ImageView
android:layout_width="50dp"
android:layout_height="50dp"
android:layout_margin="10dp"
android:src="@drawable/a_normal"
android:tintMode="src_over"
app:tint="@color/red" />
</LinearLayout>
</LinearLayout>
