提升(或降低)插入的内容的位置:\raisebox

\raisebox 是 LaTeX 中的一个命令,用于提升(或降低)插入的内容(如文本、图像等)的位置。该命令可以用于调整垂直位置,使内容相对于周围内容上下移动。

语法如下:

\raisebox{<distance>}[<height>][<depth>]{<content>}

其中:

  • <distance> 表示要上升(正值)或下降(负值)的距离。
  • <height> 表示内容的高度。
  • <depth> 表示内容的深度。
  • <content> 是要调整位置的内容。
    例如,\raisebox{2pt}{内容} 将内容向上移动 2 点。

可以根据需要使用 \raisebox 命令来调整文本或图像的垂直位置,使其与周围内容对齐或居中。

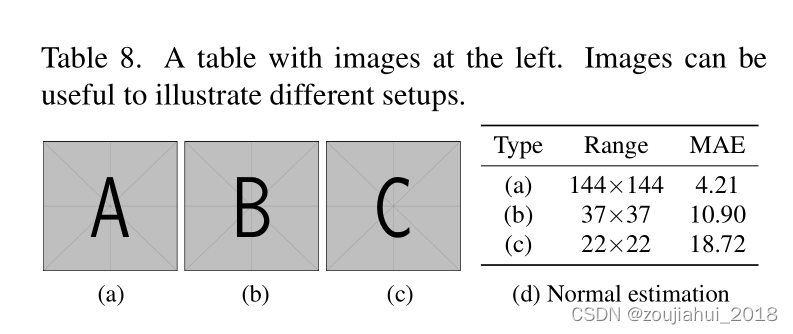

\begin{table}[thb] \centering
    \caption{A table with images at the left. Images can be useful to illustrate different setups.}
    \label{tab:res_synth_mirco_baseline}
    \includegraphics[width=0.088\textwidth,height=0.085\textwidth]{example-image-a}
    \includegraphics[width=0.088\textwidth,height=0.085\textwidth]{example-image-b}
    \includegraphics[width=0.088\textwidth,height=0.085\textwidth]{example-image-c}
    \raisebox{0.9\height}{
    \resizebox{0.19\textwidth}{!}{
    \large
    \begin{tabular}{ccc}
        \toprule
        Type & Range & MAE \\
        \midrule
        (a) & 144$\times$144 & 4.21 \\
        (b) & 37$\times$37 & 10.90 \\
        (c) & 22$\times$22 & 18.72 \\
        \bottomrule
    \end{tabular}
    }}
    \\
    \vspace{-0.2em}
    \makebox[0.09\textwidth]{\footnotesize (a)}
    \makebox[0.09\textwidth]{\footnotesize (b)}
    \makebox[0.09\textwidth]{\footnotesize (c)}
    \makebox[0.19\textwidth]{\footnotesize (d) Normal estimation}
    \\
\end{table}

在这里插入图片描述
