三线表绘制

三线表绘制

为了在一般三线表中显示更多的信息，有时需要多开一行存储二级表头

\usepackage{multirow}
\usepackage{booktabs}
\usepackage{threeparttable}

\begin{table*}
	\scriptsize
	\centering
	\begin{threeparttable}
	\caption{Optimized results of the circular arch for different slenderness and opening angles}
	\label{Tab03}
	\begin{tabular}{cccccccccc}
		\toprule
		\multirow{2}{*}{Opening angle} & \multicolumn{3}{c}{$R/r=10$} & \multicolumn{3}{c}{$R/r=25$} & \multicolumn{3}{c}{$R/r=50$} \\
		\cmidrule(r){2-4} \cmidrule(r){5-7} \cmidrule(r){8-10}
		&  $\omega_{1} (\%)$      &  $r_{{\rm min}}/r_0$   &   $r_{{\rm max}}/r_0$
		&  $\omega_{1} (\%)$      &  $r_{{\rm min}}/r_0$   &   $r_{{\rm max}}/r_0$
		&  $\omega_{1} (\%)$      &  $r_{{\rm min}}/r_0$   &   $r_{{\rm max}}/r_0$  \\
		\midrule
		$\varphi=60^{\circ}$ &3.920 &0.793 &1.355 &5.243 &0.558 &1.122 &6.694 &0.503 &1.133\\
		$\varphi=90^{\circ}$ &4.061* &0.660 &1.106 &7.242 &0.500 &1.136 &8.060 &0.501 &1.140\\
		$\varphi=120^{\circ}$&6.480 &0.558** &1.127 &9.011 &0.500 &1.145 &9.535 &0.500 &1.147\\
		$\varphi=150^{\circ}$&8.756 &0.500 &1.142 &10.763&0.500 &1.153 &11.126&0.500 &1.155\\
		\bottomrule
	\end{tabular}
	\small
	Note: this is pesdo data
	\begin{tablenotes}
		\item[*] significance at 5\%
		\item[**] significance at 1\%
	\end{tablenotes}
	\end{threeparttable}
\end{table*}

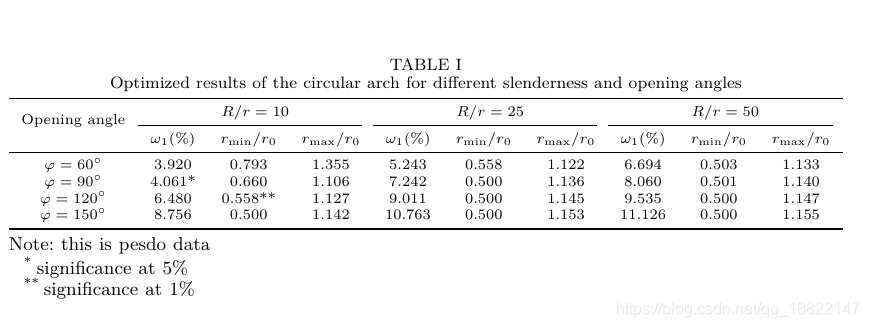

编译后生成表格如下所示
table
