Navigator

Aglorithm
References

Aglorithm

\usepackage[top=2cm, bottom=2cm, left=2cm, right=2cm]{geometry}
\usepackage{algorithm}
\usepackage{algorithmicx}
\usepackage{algpseudocode}
\renewcommand{\algorithmicrequire}{\textbf{Input:}}
\renewcommand{\algorithmicensure}{\textbf{Output:}}

\begin{algorithm}[!t]
	\caption{Logic of BL series modeling}
	\label{alg_1}
	\begin{algorithmic}[1]
		\Require
		The variance-covariance matrix $\Sigma$ of sample data;
		The coefficient of uncertainty for sample data moments $\tau$;
		The uncertainty matrix of opinions $\Omega$;
		One of machine learning algorithm $M$;
		\Ensure
		The optimal portfolio weights $\omega$;
		\State Training machine learning models by $M$ and Setting rules for predicting;
		...
		\State Solve objective function, get portfolio weights $\omega$;
		\label{code:fram:solve}\\
		\Return $\omega$;
	\end{algorithmic}
\end{algorithm}

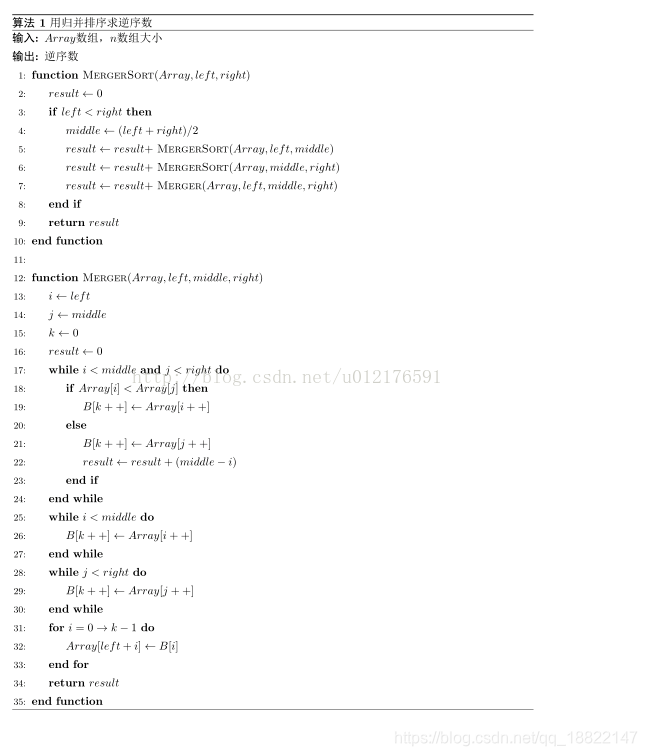

算法伪代码显示效果如图
在这里插入图片描述
